Think Appliances BAH6008 User manual

User Manual for your
BAH6008&BAH7006&
BAH9007&BAH6008G
&BAH9008GAH9009G
Cooker Hood
Chimney Hood in Stainless Steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
06/03/12

1
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….2
IMPORTANT SAFETY INFORMATION……………………………….…3-4
CARING FOR THE ENVIRONMENT…………………………………………5
USING YOUR COOKER HOOD………………………………..……………..6
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….7-9
INSTALLING / CHANGING THE CARBON FILTER …………………10
INSTALLATION INSTRUCTIONS ……………………….……...….11-18
ELECTRICAL CONNECTION……………11
INSTALLING THE COOKER HOOD………12-14
FITTING THE CHIMNEY…………………15-16
INSTALLATION NOTES –EXTRACTION / PURIFYING VERSION .….17
NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET..……18
TROUBLESHOOTING ……………………………………………19
CONTENTS

Dear Customer,
Congratulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your
warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For
example, should you want to learn more about recommended cooking temperatures, the
various cooking functions available, how to set and program your LED clock, and importantly
taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to
familiarize yourself with the installation and operation requirements of your appliance to
ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts
enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look
forward to being of service to you.
Kind regards
Management
Think Appliances

3
Congratulations on purchasing a Cooker Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
Your cooker hood can work either as an extraction fan or as
an air recirculator. Whichever mode you choose, you will
need to bear in mind that the extractor calls for ducting (not
included) to be worked from the exhaust of your fan, while
the recirculation function will require the replacement of
carbon filters.
Please see the installation section of this manual for details.
Model
Width
(mm)
control
light
Extraction
Capacity
Carbon
filter
BAH6008
600
Push button
(AYD-008)
2*20W
halogen
500
S1
BAH7006
700
Push button
(AYD-008)
2*20W
halogen
500
S1
BAH9007
900
Push button
(AYD-008)
2*20W
halogen
500
S1
BAH6008G
600
Electronic Button
(AYD-001)
2*3W
LED
750
S1
BAH9008G
900
Electronic Button
(AYD-001)
2*3W
LED
750
S1
BAH9009G
900
Electronic Button
(AYD-001)
2*3W
LED
750
S1
Specifications of your Cooker Hood

4
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed for
use above a gas appliance then the
provision for ventilation must be in
accordance with the all applicable
regulations.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood, ensure
that the following recommended
distances are being observed
between the cooker top and the
bottom of the cooker hood:
Electric cookers:
600 mm
Gas cookers:
600 mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
600mmABOVE YOURCOOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob.
oThe edges of the cooker
hood are sharp –be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
Important Safety Information: Please read this before installing & using.

5
o Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully –children are
especially vulnerable to it.
o Dirty oil is an even
greater fire risk.
o Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including

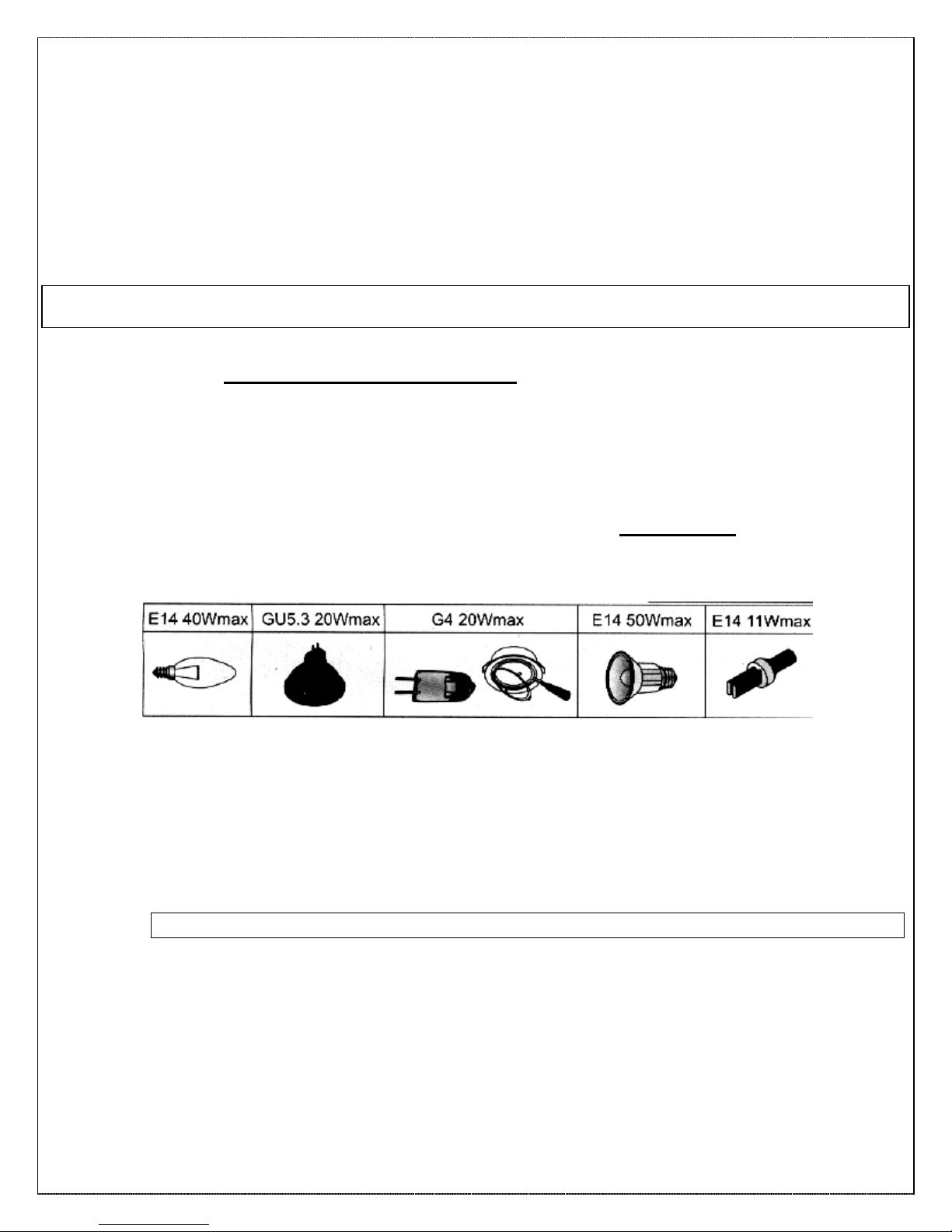

replacing light bulbs.
oIf the supply cord is
damaged it must
replaced by the
manufacturer or service
agent in order to avoid
hazard.
Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
Do not install above a
cooker with a high level
grill.
 Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
 Do not leave naked
flames under the cooker
hood.
Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
 Never flambé cook under
this cooker hood.
oThe lights on this
appliance should only be
used during operation of
the cooker hood. They
should not be left on
permanently and used as
a lighting source.
oregulations concerning the discharge of
air have to be fulfilled.
THE MANUFACTURER
DECLINES ALL
RESPONSIBILITY IN THE
EVENT OF FAILURE TO
Important Safety Information: Please read this before installing & using.

6
OBSERVE THE
INSTRUCTIONS GIVEN HERE,
FOR INSTALLATION,
MAINTENANCE AND
SUITABLE USE OF THE HOOD.
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note

7
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located at the front of the
canopy, to the right.

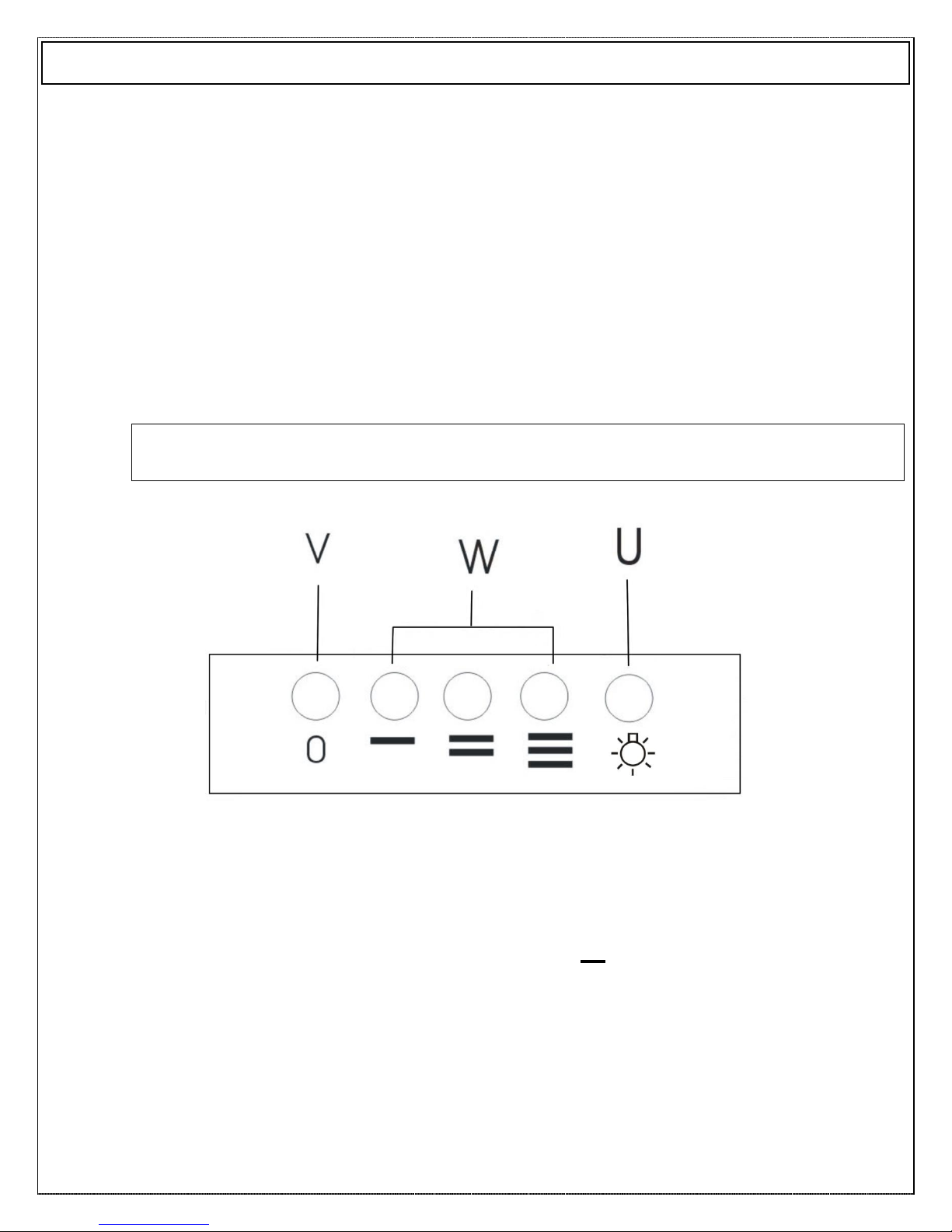

3) The CONTROL PANEL contains buttons as shown in the Figure
below. These perform separate functions. You will need to
understand what these buttons do before you attempt to use your
cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
KEY
„V‟- Motor Off button
„W‟ - Motor operation:
o= low speed, == mid speed, == high speed.
„U‟–Light „on/off‟button-This button controls the light
Using your Cooker Hood:

8
To use your cooker hood (LCD ELECTRONIC CONTROL)
Before operating the hood, make sure that it has been installed by a
suitably qualified person, as per the information contained in
installation instructions.
1) Find the control panel, which is located in the front middle of the
canopy.
2) There are several buttons on the control panel, which perform
separate functions.
Setting the time of day
1) After the appliance is connected to your mains supply, press the
ON/OFF button to switch the hood on, the LED display backlight will
switch on. If no other button is pushed within 30 seconds, then the
backlight will go out.
2) Press and hold down the timer button for a few seconds, the hour
section of the LED display will flash.
3) Press the speed selection button to increase the number shown on
the LED display.
4) Press the light ON/OFF button to decrease the number shown on
the LED display.
5) The clock on the cooker hood is 24 hour, so the largest hour
number that can be set is 23.
6) Press the timer button again to confirm the hour time; the minute
section of the LED display will then flash.

9
7) Use the same buttons as before to adjust the number shown on
the LED display.
8) Press the timer button for a third time and this will confirm the
time of day setting.
Setting the fan speed
1) Press the ON/OFF button to switch the hood on; the LED display
backlight will switch on. If no other button is pushed within 30
seconds, then the backlight will go out.
2) The motor has three speeds, low, medium and high.
3) Press the speed selection button once and the hood will run at low
speed.
4) Press the speed selection button again and the hood will run at
medium speed.
5) Press the speed selection button again and the hood will run at
high speed.
6) If you press the speed selection button whilst the hood is running
at high speed, then the hood will return to running at low speed.
7) To switch the fan off, press the ON/OFF button.
8) When you next switch on the cooker hood using the ON/OFF
button, it will remember the operating speed that it was last used at.
The cut off timer
1) Whilst the cooker hood is in use, if you press the timer button the
number “12:00” will appear on the LED display.
2) This indicates that the hood will run for a further 12 minutes at
the current fan speed.
3) Once the 12 minute period has elapsed, the cooker hood will
switch itself off.

10
4) It is useful to use this feature when you have finished cooking.
You can press the timer button and the hood will run on to extract
any remaining odours and then switch itself off without you needing
to return to the kitchen.
To use your cooker hood (Electronic button)
o You should use a good quality stainless steel cleaner and polish on
ALL of the stainless steel areas of your cooker hood, before it is used
for the first time.
o This will help to leave a silicone water-resistant film to protect the
stainless steel surfaces.

11
PLEASE NOTE THAT YOUR COOKER HOOD CAN BE USED EITHER
IN RECIRCULATION MODE OR IN EXTRACTION MODE. TO USE
THE HOOD IN RECIRCULATION MODE, YOU WILL NEED TO FIT
THE CARBON FILTERS (SEE PAGE 11)
IMPORTANT!: Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
Clean the external parts with
mild liquid detergents on a
damp cloth.
Never use abrasive powder,
corrosive solvents or brushes.
Never insert pointed objects
into the motor‟s protective grid.
Only clean the control panel
and filter grill with a damp
cloth and delicate detergents.
Be sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
Never take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Anti-Grease Grille
Your cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
The metal grille may become inflammable if it
becomes saturated with greasy residue.
Cleaning your Cooker Hood:

12
To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
days and at least once a month in a dishwasher or in
hot water with normal washing-up detergent.
First remove the grille by pulling down on it. Undo the
side catches.
You can now clean the anti-grease filter grilles.
Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
Repeat the process if needed. Refit the grease grille
once it has dried.
To clean the grease filter grilles in your dishwasher:
Place the grease filter grilles in the dishwasher. Select the most
powerful washing programme and highest temperature.
Repeat the process, if necessary.
Refit the grease grilles when dry.
PLEASE NOTE: DISCOLOURATION OF THE GREASE
FILTER CAN TAKE PLACE WHEN CLEANED IN A
Maintenance -Cleaning the Anti-grease Filters
on: Please Read this before installing & using.

13
DISHWASHER, ETC. Do not worry about the slight
discolouration of the grille –its performance won‟t
be affected.
Let the filter grilles dry thoroughly before refitting
them.
a) Changing the light bulb
Before changing the light bulb, ensure that the appliance is not live (i.e., ensure that you
have switched it off at the wall switch).
Remove the metal anti-grease filters (see Figure 2 below) and find the old bulb located in
the light fixture up inside the exposed canopy. Change the halogen bulb using only olive-
shaped spares with an G4 coupling, max. 20W.
* PLEASE NOTE - Defective bulbs should be replaced immediately.
Replace the metal anti-grease filters.
Maintenance –Changing the Light Bulb and Carbon Filter

14
______________________________________________________________________________________
Installing / Changing the Carbon Filter.
Your Baumatic Cooker Hood uses a pair of CARBON
FILTERS to purify the air for the air recirculation function.
You will find that the filters will attach to both sides of the
fan motor (please see figures at bottom of page).
The active carbon filters must be replaced regularly, at least once
every three months, to allow normal operation.
Before starting to fit the carbon filter, turn the omni-polar switch
off at the wall.

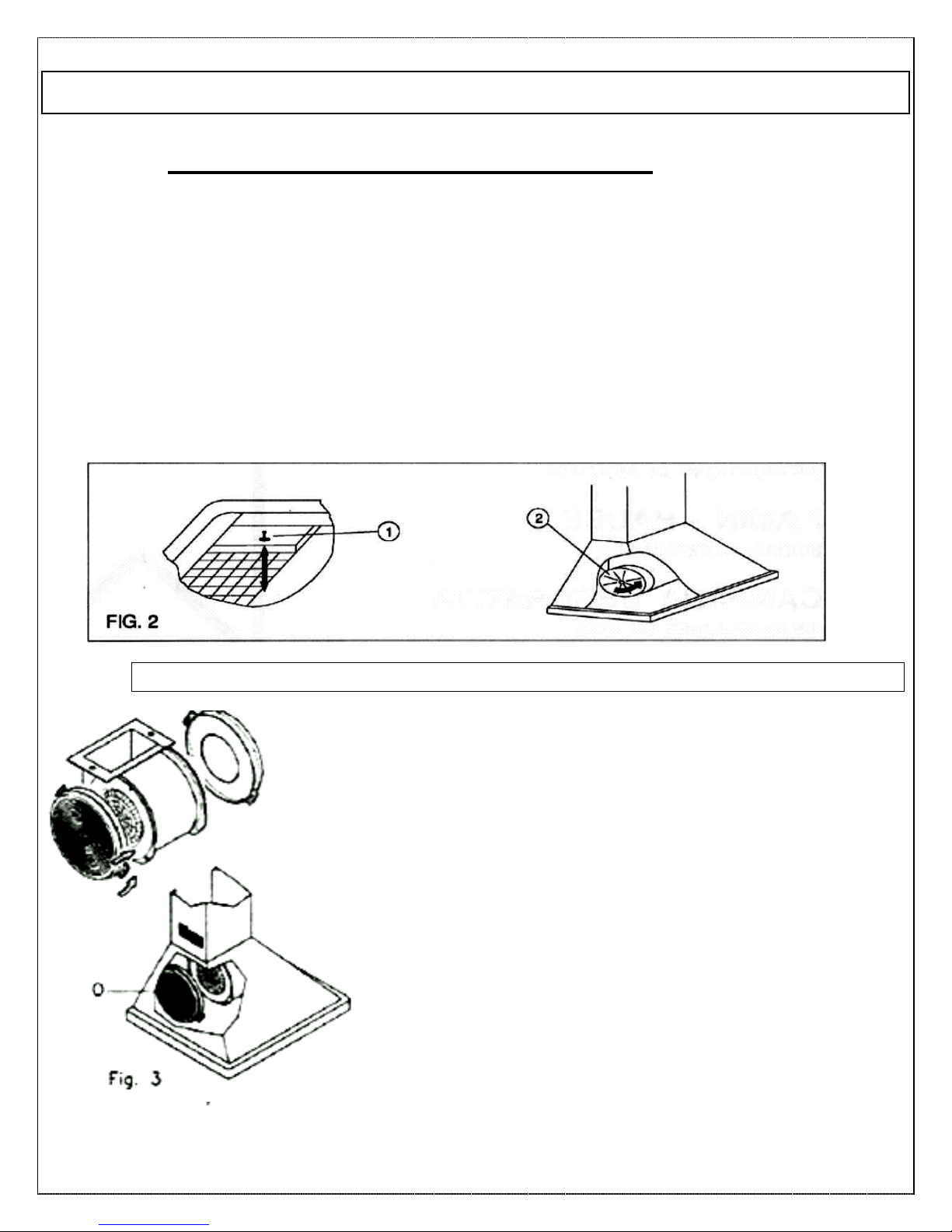

Changing the Carbon Filters
1) Press the handle of the metal grease
filter towards the rear part of the unit
until it is released from the front
housing, and remove it by pressing
downwards (Fig. 2 - above).
2) Remove the old carbon filters by
twisting them anticlockwise until they
unlatch from the sides of the motor.
3) Place the new carbon filters (which
have two fixing tongues), turning
clockwise so that the tongues latch
onto the motor‟s sides. (Fig. 3 - left).
4) Reposition the anti-grease metallic filter grilles.
Installing / Changing the Carbon Filter

15
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed d w wi it th h p po ow we er r c co or rd d & & p pu ul lg g f fo or r
c
co on nn ne ec ct ti io on n t to o 1 10 0A A p po ow we er r o ou ut tl le et t . .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood‟s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.
NOTE: (UK only) WARNING –THIS APPLIANCE MUST BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET.
We recommend that the appliance is connected by a qualified electrician who will comply
with all local regulations. The wires in the mains lead are coloured in accordance with the
following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
As the colours of the wires in the appliance‟s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
1) The BLUE WIRE must be connected to the terminal marked “N”(Neutral), or coloured Black
2) The BROWN WIRE must be connected to the terminal marked “L”(LIVE), or coloured Red
3) The Green/Yellow wire must be connected to the terminal marked “E” or
(Earth)(Fig 7 –at left) (Wire diagram-at right)
INSTALLATION INSTRUCTIONS - ElectricalINSTALLATION INSTRUCTIONS –Electrical Connection.

16
 The cooker hood must not
be fitted above stoves with a
radiant top plate.
 We recommend that at least
two people install this hood.
NOTE: Your Cooker Hood should only be fitted on a wall. Do
NOT position it any less than 600 mm (60 cm) above the hob.

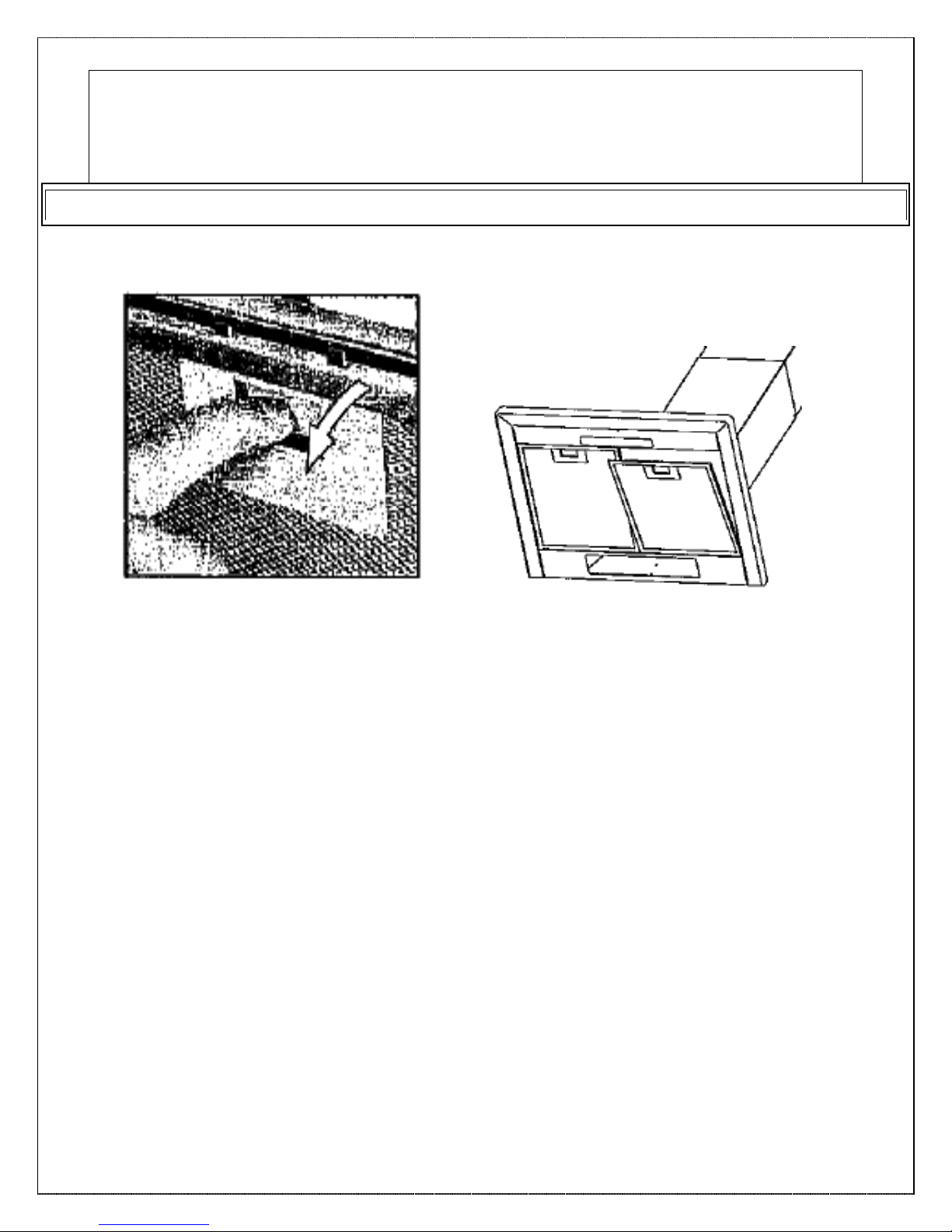

1) Remove the metal anti-grease filters
(See figure at right).
2) Position the hood against the wall and mark the position of the support
holes that are to be drilled as shown in the figure below. These support
holes can be found on Fig. 4 on next page marked as „D‟with the anchoring
holes marked as „E‟(Fig. 4 on next page). If you hood comes with an
attached jig, use that as a guide to make the marks for the screw holes.
INSTALLATION INSTRUCTIONS –Installing your Cooker Hood
PLEASE NOTE THAT YOU WILL HAVE
TO DECIDE BEFORE INSTALLING YOUR
COOKER HOOD THAT YOU CAN ADAPT
IT AS AN EXTRACTION FAN. PLEASE
SEE PAGE 18 NOW TO UNDERSTAND
CRUCIAL DIFFERENCES IN THESE.

17
--------------------------------------------------------------------------
3) Using a drill bit with an 8 mm diameter, make holes in the wall where you have
marked these positions (see below).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4) Insert the expansion fixings (rawlplugs) in the holes and then screw the
support screws halfway in (see below figure, at right).
Rear view of your
cooker hood.
INSTALLATION INSTRUCTIONS –Attaching the Hood
8

18
5) Hook the hood onto the screws (see above figure) and fasten it onto the
wall, tightening the support and anchoring screws the rest of the way in (next
page, at top.)
-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
6) (EXTRACTION FUNCTION ONLY) Connect the coupling to the top of the
cooker hood (see below). Then connect the discharge pipe to the coupling as
shown below. Remember that your ducting will have to match the
specifications shown in the notes on Extraction / Air Purifier (Recirculation)
Modes on p.18.
INSTALLATION INSTRUCTIONS –Attaching the Hood

19
FITTING THE PIPE –Once your Cooker Hood has
been installed, you can now fit the pipe.
1) Take the two casings „A‟ and „B‟:
2) Rest the bottom of the casing „A‟
on the top of the hood, taking
care to position the tabs of the
casing correctly on the back of
the hood as shown as part „X‟ in
Figure 4 at right.
3) Fix casing „A‟ onto the hood
using the two screws „K‟
supplied in the bag of
accessories (Figure 4 –at right).
4) Lift the mobile part „B‟ until it reaches the ceiling, checking
that it is perpendicular to the hood.
5) Mark the side measurement of the mobile casing „B‟ and then
lower it (see below).
INSTALLATION INSTRUCTIONS –Attaching the Hood
INSTALLATION INSTRUCTIONS –Fitting the Chimney
