Think Appliances GUH90 User manual

User Manual for your
GUH90 90 cm
Canopy Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 28/06/13

Contents Page 2

3
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8
Using your cooker hood 9 - 10
Before first use 9
To use your cooker hood 9
Cleaning your cooker hood 10
General cleaning 10
Thegreasefilter 10
Maintenance 11 - 14
Removing and cleaning the grease filter 11
Changing a light bulb 12
Fitting the carbon filters 13-14
Installation 14 - 18
Electrical connection 14-15
Before beginning installation 15
Installing your cooker hood 16-17
Connecting to external ducting 18
Completing the installation 18
Extraction mode or recirculation mode? 19
Troubleshooting 20 - 21
Contact details 24

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
oThe packaging materials that we use are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to us. Please make
sure that you read this instruction booklet before
attempting to install or use the appliance. If you are unsure
of any of the information contained in this booklet, please
contact the Retailer where you purchased your
5
unit from.
IMPORTANT: Any installation work must be carried
out by a qualified electrician or competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the relevant
local Gas Safety codes and regulations.
oIt is dangerous to alter the specifications or to modify this product.
Do not tamper with it or attempt to modify the appliance in any
way.
oWhen installing the hood, ensure that the following recommended
distances are observed between the highest point on the hob top
(including the burners) and the bottom of the cooker hood:
Electric cookers: 700 mm
Gas cookers: 700 mm
Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets must
not overhang the hob.
oThe edges of the cooker hood are sharp – be mindful of this as you
handle your appliance, especially during installation and cleaning.
DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue must
be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure that
the ducting is fire retardant and that there are no bends sharper
than 90 degrees as this will reduce the efficiency of the hood.
oThere shall be adequate ventilation of the room when the range
hood is used at the same time as appliances burning gas or other
fuels.
oEnsure the ducting for the extractor function has the same diameter
as the outlet hole all the way through.
oKeep young children from using, playing with or
tampering with the cooker hood. Older children and
infirm persons should be supervised if they are using
the cooker hood.
oThis appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
oChildren should be supervised to ensure that they do not play with
the appliance.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking on a gas
cooker.
oThe manufacturer refuses to accept any responsibility for damages
arising to the hood or it catching on fire, from a failure to observe
the fire safety advice contained in this instruction booklet.
6

oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote that it removes odours from your room, not steam.
oWarning - Always ensure that the cooker hood
has been disconnected from the power supply
before carrying out any work on the hood,
including replacing light bulbs.
oDo not connect the ducting system of this appliance to any existing
ventilation system which is being used for any other purpose.
oDo not install above a cooker with a high level grill.
oThe air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels.
oRegulations concerning the discharge of air have to be fulfilled.
oNever leave frying pans unattended during use as
overheated fats and oils might catch fire.
oThe cooker hood should not be exposed to a direct heat source from
the cooking device underneath it, i.e. naked flame from a gas
burner or heat from electric hob zones without a pan on them.
oDo not attempt to use the cooker hood if it is damaged in any way.
Never attempt to use it without the grease filters fitted or if the
filters are excessively greasy!
oNever flambé cook under this cooker hood.
oCAUTION: Accessible parts may become hot when used with
cooking appliances.
oThe lights on this appliance should only be used during operation of
the cooker hood. They should not be left on permanently and used
as a lighting source.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7

Specifications of your cooker hood

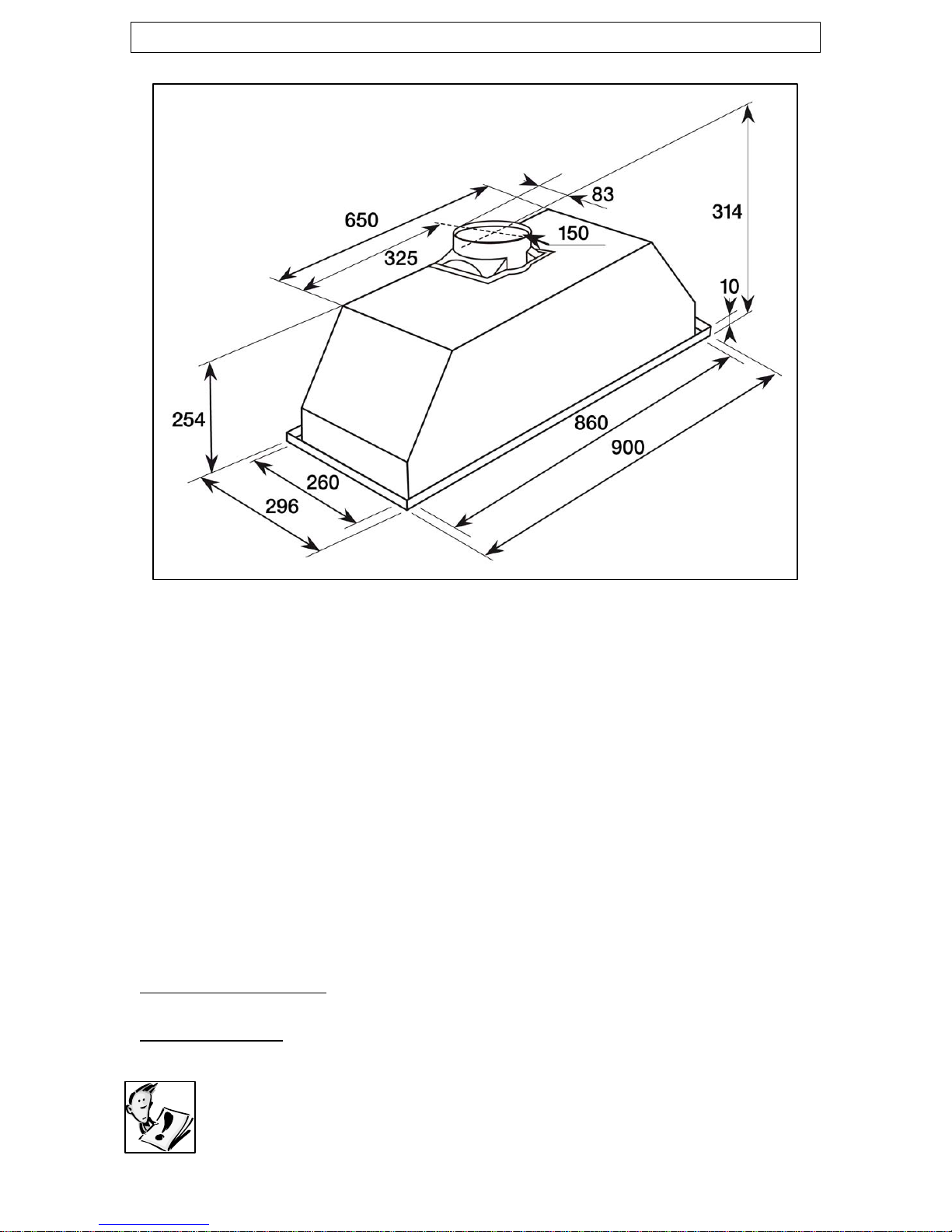

Product dimensions
Height: 254 mm
Width: 900 mm
Depth: 296 mm
Your stainless steel canopy hood is fitted with:
oSlider control operation
oIntegrated axial motor
o3 speeds
o1 washable aluminium grease filter
oNon-return airflow flap
o2 halogen lights
oNoise level: 61 / 65 / 68 dB
Extraction capacity: 750 m³/hr
Optional extras: 1 pair S1 Carbon filters for air recirculation
mode
All of the optional extras are available from the Spares
Department.
8

Using your cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE
THE COOKER HOOD IS USED FOR THE FIRST TIME.
oYou should use a good quality stainless steel cleaner on ALL of the
stainless steel areas of your cooker hood, before it is used for the
first time.
oThis will help to leave a silicone water-resistant film to protect the
stainless steel surfaces.
To use your cooker hood
oMake sure that it has been installed by a suitably qualified person,
as per the information contained in these installation instructions.
oFind the control panel, which is located at the front right of the
canopy.
oThere are two sliders on the control panel, which perform separate
functions.
1) Light control. The light can be used even when the motor is OFF.
0 = Light OFF
I = Light ON
2) Motor speed control.
= Low speed
= Medium speed
= High speed
9
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON YOUR
HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT
THE VERY LEAST WHEN YOU BEGIN COOKING. YOU
SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER
YOU HAVE FINISHED COOKING.

Cleaning your cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE
THAT YOU HAVE SWITCHED YOUR COOKER HOOD
OFF AT THE OMNI-POLAR SWITCH, SET AT THE
WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
oIf you are using the appliance in recirculation mode, then be sure to
replace the carbon filters at the recommended interval (see section
on “Fitting the carbon filter”). A build up of grease could cause a
fire hazard.
oNever attempt to clean the area above the grease filter.
oIMPORTANT: You should regularly use a good quality
stainless steel cleaner to maintain the shine and finish on
the stainless steel areas of your cooker hood.
oThis will help to leave a silicone water-resistant film to protect the
stainless steel surfaces and keep them in good condition for the life
of the product.
The grease filter
oYour cooker hood includes a grease filter which helps to absorb
grease particles to protect your kitchen and furniture from greasy
residues.
oThe metallic filter may become flammable if it becomes saturated
with greasy residue.
oTo prevent this fire hazard, the filter should be cleaned regularly.
Depending on use, this should be done every 10-15 days or at least
once a month, using hot water and normal washing-up detergent.
10
oDO NOT WASH THE GREASE FILTER IN A DISHWASHER.

Maintenance
Removing and cleaning the grease filter

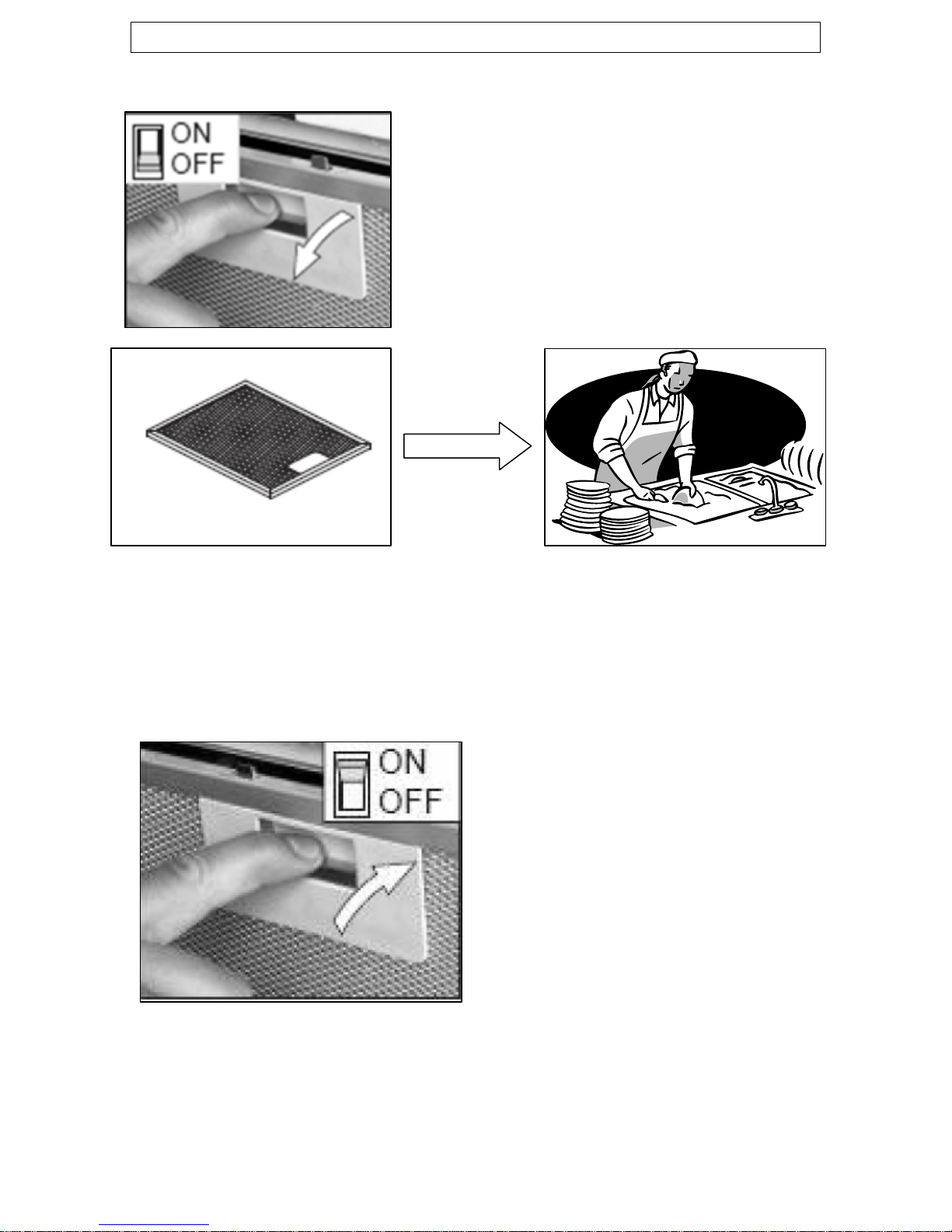

oFirst remove the grease filters by
pulling down on the handle and pulling
them away from the cooker hood.
oSoak the grease filter in hot water and washing up liquid for
about an hour.
oRinse it off thoroughly with hot water.
oRepeat the process if required.
oRefit the grease filter once it
has dried.
oIMPORTANT: Let the
grease filter dry
thoroughly before
refitting it in the cooker
hood.
11

Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
oRemove the grease filter (as
described on page 11-12).
oPrior to touching the light bulbs
ensure that they have cooled
down.
oFind the bulb that requires
replacement, you will find it
located in the light fixture which
is inside the exposed section of
the canopy.
oPress gently on the underside of the bulb that needs to be
replaced and twist anticlockwise to release.
oInsert a new identical 40W (max) GUH10 bulb.
oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the lights still do not work, make sure that the bulbs are fitted
properly into their housings before you call for technical
assistance.
oRefit the grease filter.
12

Fitting the carbon filter
If the appliance is going to be used in recirculation mode then it is
necessary to a fit a carbon filter. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
oYou will find that one filter will attach over the front of the fan
motor. The active carbon filter must be replaced at least every
four months depending on usage to allow normal operation when
in recirculation mode.
(1 x pair S1 carbon filters)
1) Remove the grease filters (as described
previously).
2) Hook the carbon filter over
the pins that are located at the
end of the motor.
3) Turn the carbon filter anticlockwise,
until you feel it click into place.
13

oRepeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
oRefit the grease filters.
oThe carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.
Installation

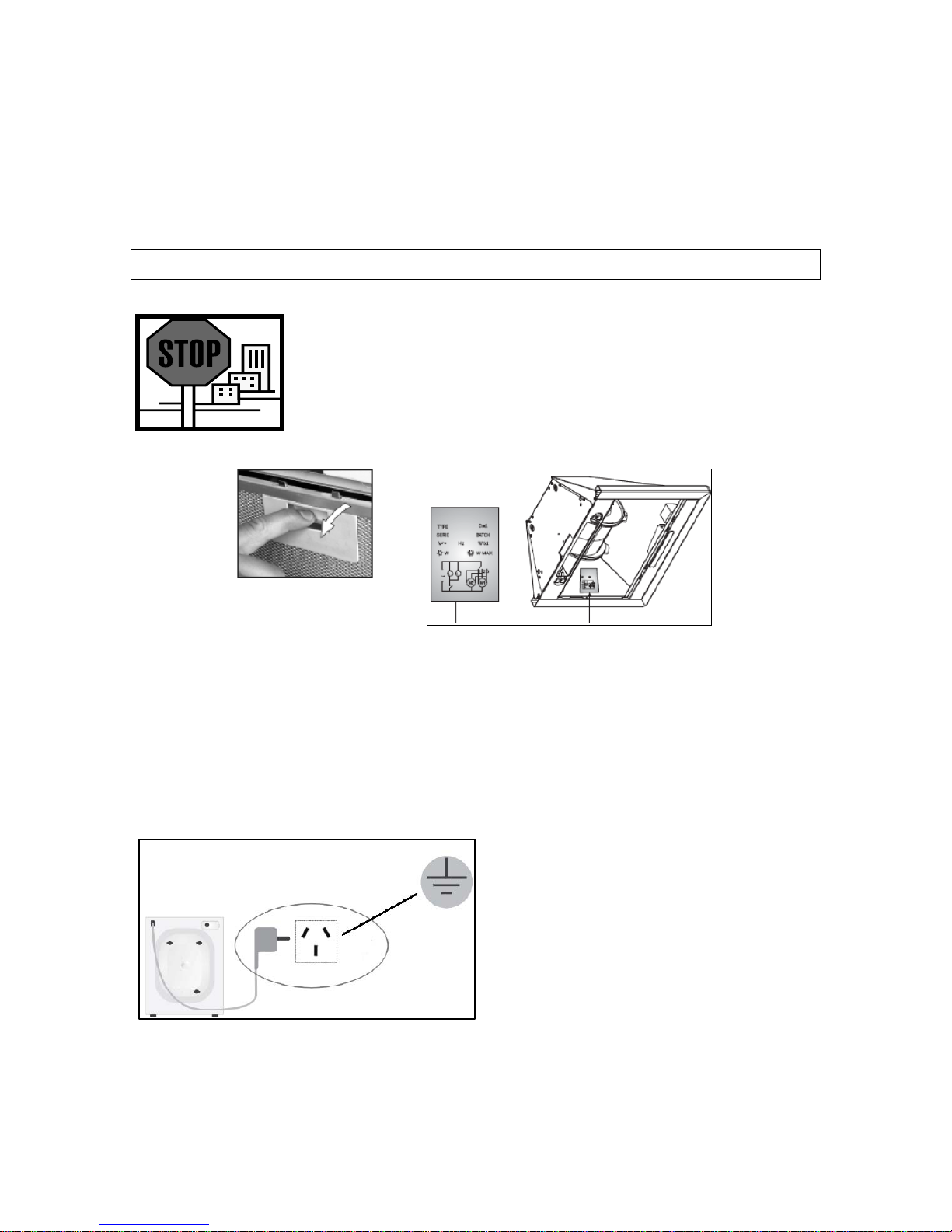

IMPORTANT: Before installation read all the
instructions and make sure that the voltage (V)
and the frequency (Hz) indicated on the rating
plate are exactly the same as the voltage and
frequency in your home. The rating plate can be
found behind the grease filters.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Power supply
oIMPORTANT: The electrical
socket must still be
accessible once the
appliance is installed.
oThe moulded plug that is supplied with the appliance must be
placed into an earthed and insulated socket.
14

15
oBroken or damaged power leads must only be replaced by a
suitably qualified person. A power lead of a similar type must be
used in replacement.
oIMPORTANT: We do not recommend that this appliance is
connected to an extension lead.
IMPORTANT: If your supply cord is damaged, it must be
replaced by the manufacturer, its service agent, or similarly
qualified persons to avoid any hazard.
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oBefore commencing installation of the cooker hood the grease filter
should be removed.
oCheck inside the product and ensure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will help
to protect these surfaces from damage and debris.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood parts
and fittings on it. Do not tile, grout or silicone this appliance to the
wall or cabinetry. This appliance is designed to be surface mounted
only.

Installing your cooker hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE IT
IN EXTRACTION MODE OR RECIRCULATION MODE.
PLEASE TURN TO PAGE 20 NOW TO UNDERSTAND THE
DIFFERENCES BETWEEN THESE TWO MODES.
oWe recommend that two people install this hood.
oYour cooker hood should only be fitted into the underside of a
kitchen unit.
oIt must be positioned at least 700 mm above the hob underneath it.
You cannot fit this product by securing it between two cupboards.
oWARNING: DO NOT penetrate any screws into the range hood as
this may result in electrical hazards.
oWarning: Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards.
IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED
TO YOUR MAINS SUPPLY AFTER THE REST OF THE
INSTALLATION PROCESS HAS BEEN COMPLETED, AND THE
POWER POINT SHOULD STILL BE ACCESSIBLE FOR SERVICE.
1) Remove the metal grease filter (A).

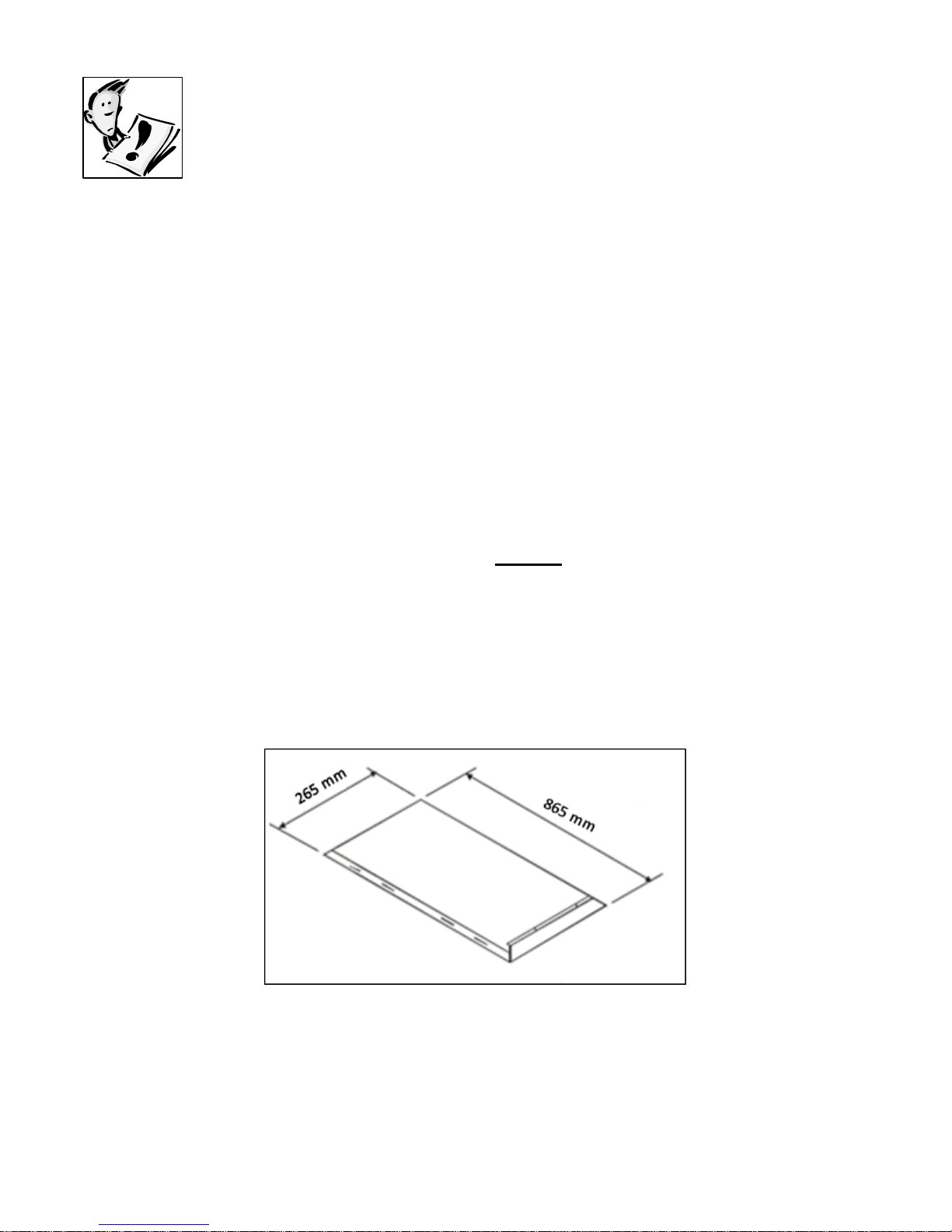

2) Create an opening in the underneath of the kitchen unit; the cut-
out must be of the dimensions shown in the drawing below.
oIMPORTANT: If you are going to connect your cooker hood to
external ducting, then you must complete the steps listed in the
“Connecting to external ducting” section before carrying on with
the rest of the installation (this information can be found on
page 19).
16

17
.
ge.
3) Make a hole in the inside of the
kitchen unit for the electrical cable to
feed through. Remove the screws
securing the extractor frame (B) to the
hood and unscrew the 2 lights. Ensure
that the two support clips on either side
of the hood are set to accommodate
the thickness of the mounting surface,
by adjusting the clip via the screw
4) Lift the cooker hood towards the
cut-out that you made in step 2. Feed
the electrical cable through the hole
that you made in step 3. IMPORTANT:
Do not connect the electrical cable to
the mains supply at this sta
5) Lift the cooker hood fully into the cut out that you made in step 2.
If you are connecting the cooker hood to external ducting, then secure
the ducting hose to the coupling on the appliance.
oOne person should support the hood. The other person should
fully tighten the support screws through the pre-drilled holes in
the outer frame of the hood, into the kitchen unit. Then replace
the extractor frame using the 2 screws (4 screws for GUH52)
(B) and reattach the 2 lights.
oRefit the grease filter.

Connecting to external ducting
oConnect the coupling to the top of the cooker hood, using two of
the smaller screws provided.
oConnect a Ø150 mm ducting pipe to a discharge outlet that is
suitable for cooking vapours.
oThe discharge outlet should have a cross section of at least 150mm
(please note that the ducting pipe is not supplied with the appliance
but one can be obtained from the Spares Department).
oThe maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend. For each
additional 90 degree bend, the maximum distance is reduced by a
further metre.
oBefore fixing the cooker hood into the kitchen unit, you should
connect the other end of the ducting hose to the coupling in the top
of the cooker hood.
Completing the installation
oIf you are setting the appliance to recirculation mode, then you
should now fit the two carbon filters. See the “Fitting the carbon
filters” section on pages 13-14.
oThe electrical connection must correspond to the electrical
requirement noted on the rating plate, which is placed inside the
cooker hood. The appliance should now be connected to the
electrical supply. See page 14-15 for detailed information on the
electrical connection.
oRefit the grease filter and then switch on the mains
supply to the appliance. Check that the appliance is
operating correctly by selecting each speed and
switching the light bulbs on and off.
18

Extraction mode or recirculation mode?
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE.
What is the difference between extraction and recirculation
modes?

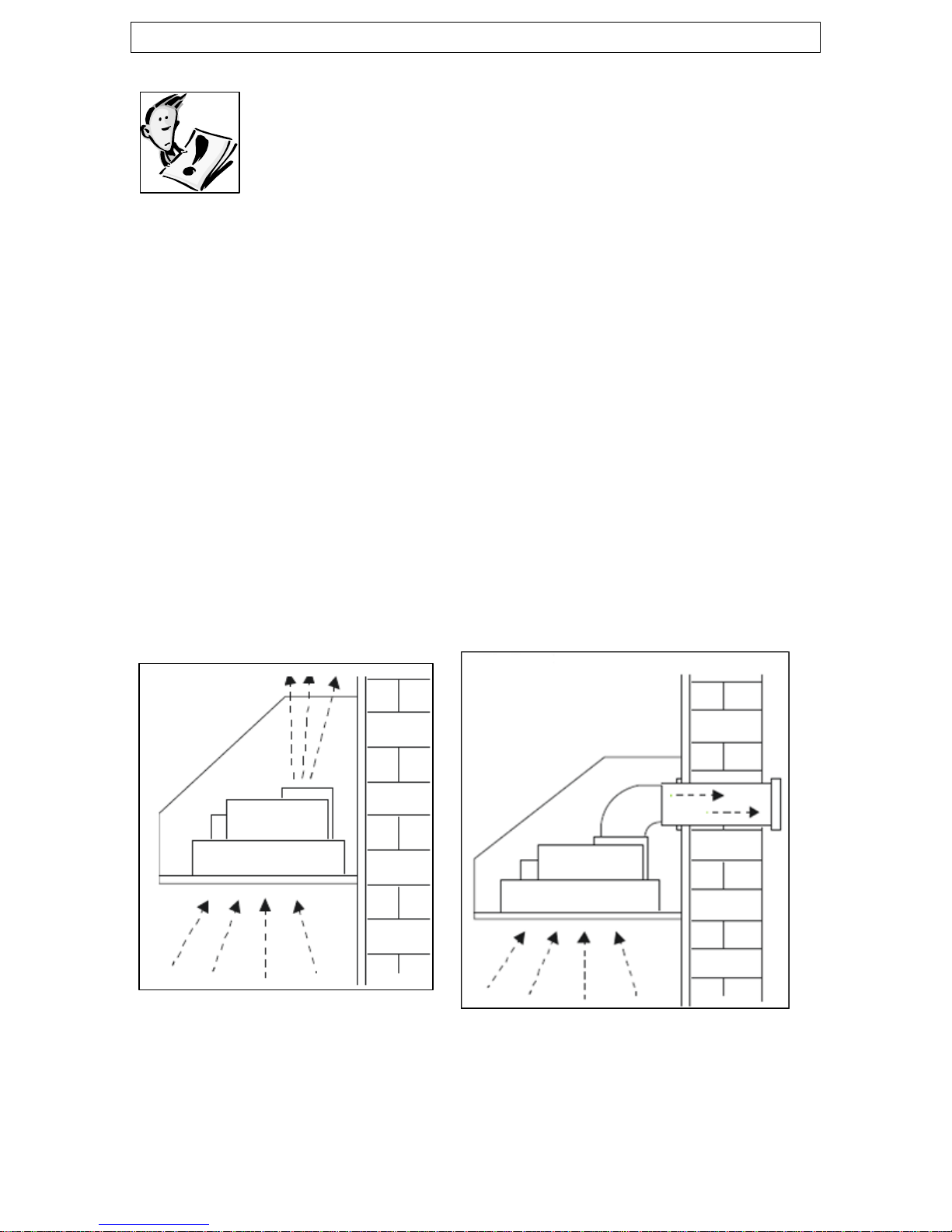

In extraction mode, the stale air will be taken via the grease filter and
out of the room via external ducting.
In recirculation mode stale air is taken via the grease filter, and passed
through a charcoal filter for purification. The air then re-enters the
kitchen via an opening in the hood.
For optimum performance, we recommend that the cooker hood is
used in extraction mode and connected to external ducting.
Unfortunately if you live in a flat or the hood is too far from an outside
wall, this may not be possible. The only alternative is to recirculate the
air.
Recirculation: Extraction:
Do I need a charcoal filter?
All cooker hoods have a grease filter but if you are using your cooker
hood in recirculation mode, then charcoal filters must be fitted in
addition to the grease filter.
19

Troubleshooting
IMPORTANT: If your cooker hood appears not to be operating
properly, before contacting the Advice Line, please refer to the
table below.
My cooker hood will not start.
oCheck that the hood is connected to the power supply and
whether you have selected any of the fan speeds.
My cooker hood is not working effectively.
oCheck that fan speed is set to an appropriate setting.
oCheck that the grease filter is not dirty and if it requires
cleaning.
oIf the hood is set up for recirculation mode, check that the
carbon filters do not need to be replaced.
oIf the hood is set up for extraction mode, check that the ducting
hose and discharge outlet are not blocked.
My cooker hood is noisy and/or vibrating.
oCheck whether the installation has been completed as per the
instruction booklet.
oIt is normal to get a certain amount of noise and vibration, due
to the extraction capacity of the cooker hood.
DO NOT MAKE ANY ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF. IF THE APPLIANCE IS STILL NOT OPERATING
CORRECTLY, PLEASE CONTACT THE ADVICE LINE ON
TELEPHONE NUMBER 1800 444 357.
20
