User Manual for your
GEH9023
Cooker Hood
Chimney Hood in Stainless Steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
24/05/11

1
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3
IMPORTANT SAFETY INFORMATION……………………………….…4-5
CARING FOR THE ENVIRONMENT…………………………………………6
USING YOUR COOKER HOOD………………………………..……………..7
MAINTAINING AND CLEANING YOUR COOKER HOOD …….…8-13
INSTALLATION INSTRUCTIONS ……………………….……...….13-23
ELECTRICAL CONNECTION……………13-14
INSTALLING THE COOKER HOOD………14-18
FITTING THE CHIMNEY…………………18-20
ATTACHING THE GLASS……………………..21
INSTALLATION NOTES –EXTRACTION / PURIFYING VERSION .….22
NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET……..23
TROUBLESHOOTING…………. ……………………………………………24
CONTACT DETAILS……………………………………. …………………...25
CONTENTS

2

3
Congratulations on purchasing a Cooker Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
cooker hood has been installed properly.
Your cooker hood can work either as an extraction fan or as
an air recirculator. Whichever mode you choose, you will
need to bear in mind that the extractor calls for ducting (not
included) to be worked from the exhaust of your fan, while
the recirculation function will require the installation of
carbon filters.
Please see the installation section of this manual for details.
DIMENSIONS
Width (canopy): 900 mm
Depth (canopy): 500 mm
Height (adjustable): 480 mm to 860 mm
Dimensions of Chimney Section:
276 mm X 303 mm
Your stainless steel Cooker Hood is fitted with:
oIntegrated axial motor
oPushbutton control operation
o3 speeds
o3 washable aluminium grease filters
o2 halogen lights
Extraction capacity –750 m³/hr
Optional Extra: 1 x S1 Pair of Carbon filters for air
recirculation.
Specifications of your Cooker Hood

4
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the all
applicable regulations.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
Electric cookers:
600 mm
Gas cookers:
600 mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
600mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets, the
cabinets must not overhang
the hob.
o Dirty oil is an even greater
fire risk.
oThe edges of the cooker
hood are sharp –be mindful
of this as you handle your
appliance, especially during
installation and cleaning.
DO NOT CLEAN IN BEHIND
THE GREASE FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a central
heating boiler then its flue
must be of the sealed or
balanced flue type.
oIf other types of flue or
appliances are fitted, ensure
that there is an adequate
supply of air in the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant and
that there are no bends
sharper than 90 degrees as
this will reduce the
efficiency of the hood.
oEnsure the ducting for the
extractor function has the
same diameter as the outlet
hole all the way through.
o Keep young children from
using, playing with or
tampering with the cooker
hood. Older children and
infirm persons should be
supervised if they are using
the cooker hood.
o Your cooker hood is for
domestic use only.
Important Safety Information: Please read this before installing & using.

5
o Please dispose of the
packing material carefully –
children are especially
vulnerable to it.
o Always put lids on pots and
pans when cooking on a gas
cooker.
o The manufacturer refuses to
accept any responsibility for
damages arising to the hood
or its catching on fire from
failure to observe fire safety
advice in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing air
from your room. Ensure
that proper ventilation
measures are being
observed. Note that it
removes odours from your
room, not steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from the
power supply before
carrying out any work on
the hood, including
replacing light bulbs.
oIf the supply cord is
damaged it must replaced
by the manufacturer or
service agent in order to
avoid hazard.
Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
Do not install above a
cooker with a high level
grill.
 Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
 Do not leave naked
flames under the cooker
hood.
Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
 Never flambé cook under
this cooker hood.
o The lights on this
appliance should only be
used during operation of
the cooker hood. They
should not be left on
permanently and used as
a lighting source.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY IN THE
EVENT OF FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN
HERE, FOR INSTALLATION, MAINTENANCE AND SUITABLE USE
OF THE HOOD.
Important Safety Information: Please read this before installing & using.

6
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.

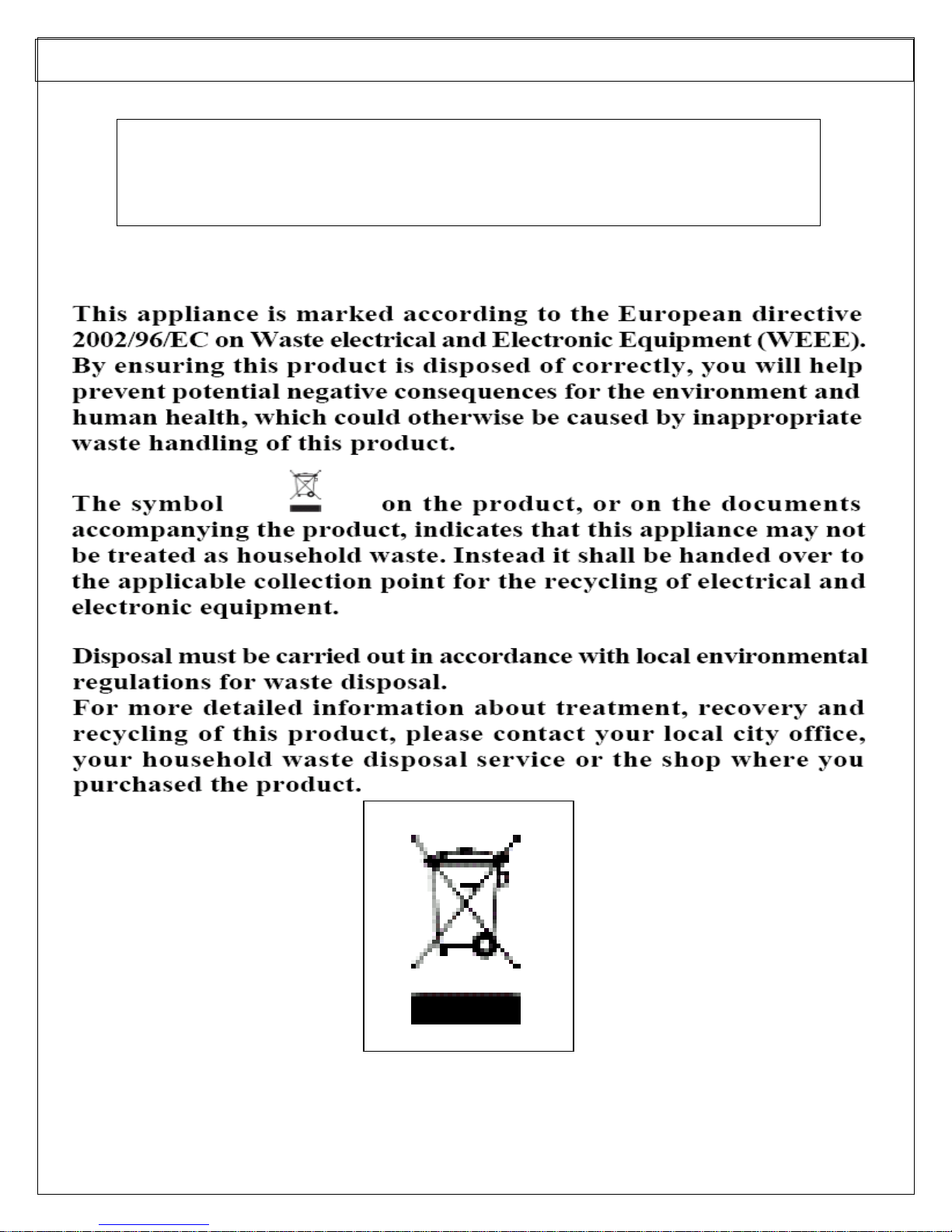

CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note

7
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located at the front of the canopy, to
the right.

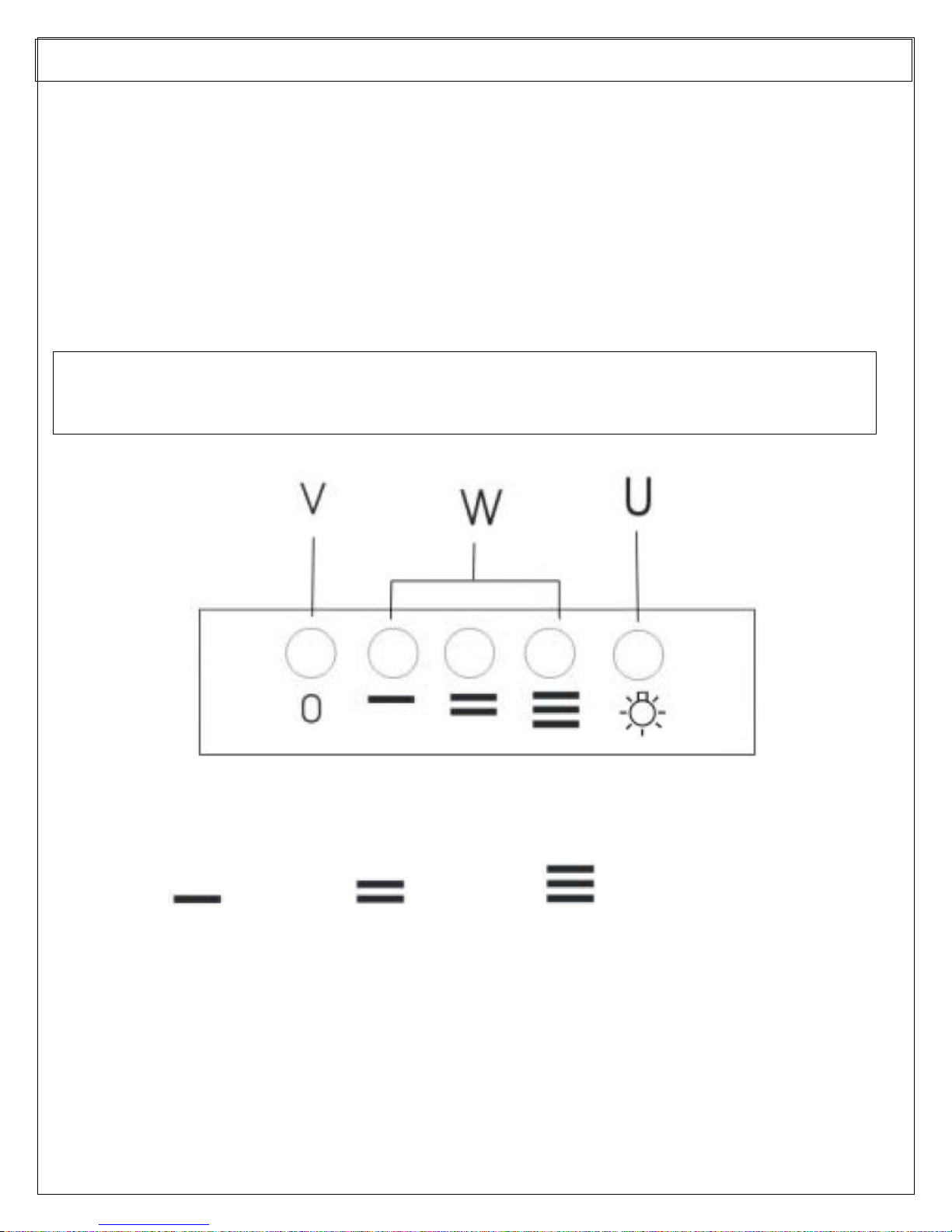

3) The CONTROL PANEL contains buttons as shown in the Figure below..
These perform separate functions. You will need to understand what
both switches do before you attempt to use your cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking. It is a good idea to have had it running for 5 minutes prior to
cooking and at least 15 minutes after you have finished cooking.
KEY
„V‟ –Motor OFF button
„W‟ – Motor operation:
= low speed, = mid speed, = high speed.
„U‟ – Light „ON/OFF‟ button – This button controls the light.
Using your Cooker Hood:

8
PLEASE NOTE THAT YOUR COOKER HOOD CAN BE USED EITHER
IN RECIRCULATION MODE OR IN EXTRACTION MODE. TO USE
THE HOOD IN RECIRCULATION MODE, YOU WILL NEED TO FIT
THE CARBON FILTERS (SEE PAGE 12)
IMPORTANT!: Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
Clean the external parts with
mild liquid detergents on a
damp cloth.
Never use abrasive powder,
corrosive solvents or brushes.
Never insert pointed objects
into the motor‟s protective grid.
Only clean the control panel
and filter grill with a damp
cloth and delicate detergents.
Be sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
Never take out the
grease filters and
attempt to clean the
space above where they
are set.
Cleaning your Cooker Hood:

9
Anti-Grease Grille
Your cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
The metal grille may become flammable if it
becomes saturated with greasy residue.
To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
days and at least once a month in a dishwasher or in
hot water with normal washing-up detergent.

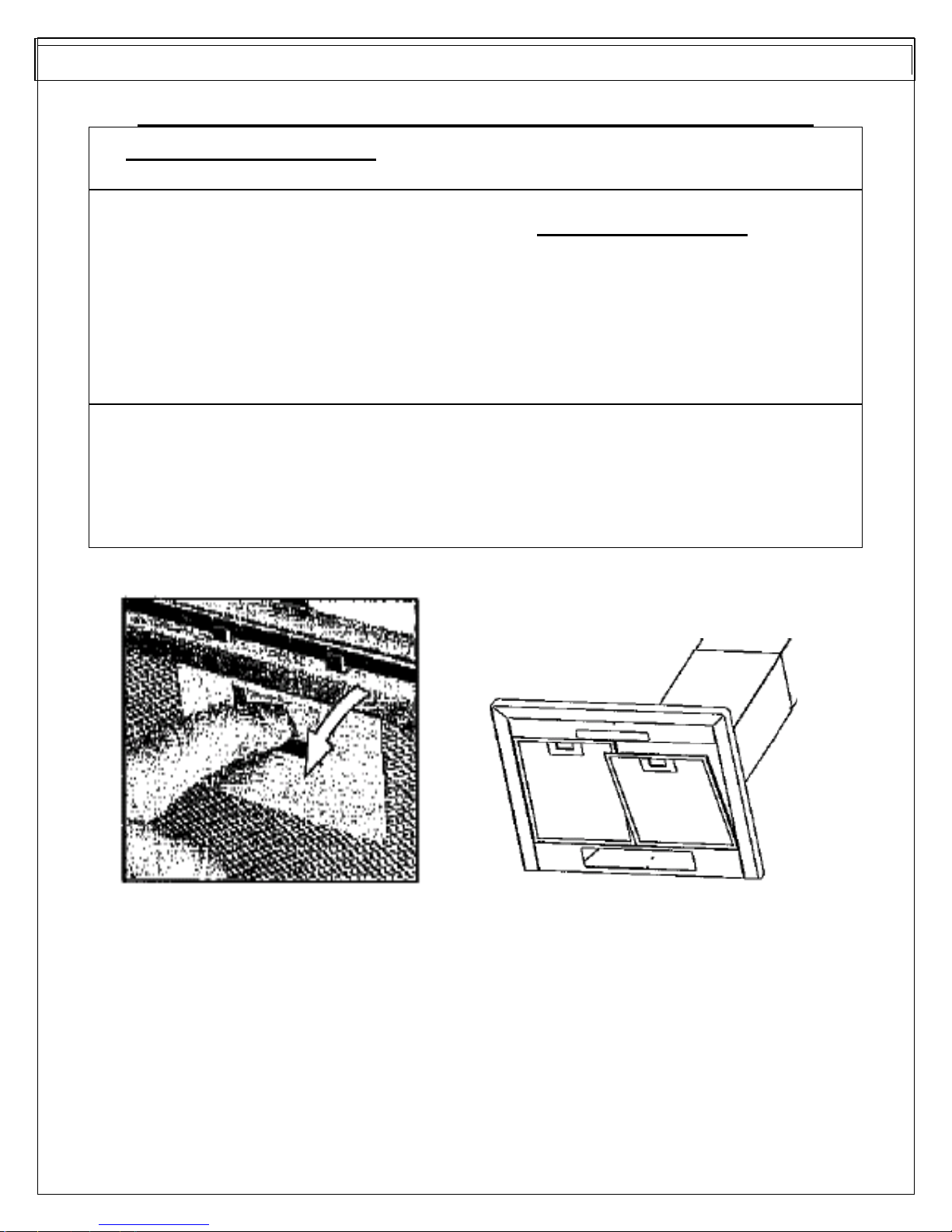

First remove the grille by pulling down on it. Undo the
side catches.
Maintenance - Cleaning the Anti-grease Filters
on: Please Read this before installing & using.

10
You can now clean the anti-grease filter grilles.
Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
Repeat the process if needed. Refit the grease grille
once it has dried.
To clean the grease filter grilles in your dishwasher:
Place the grease filter grilles in the dishwasher. Select the most
powerful washing programme and highest temperature.
Repeat the process, if necessary.
Refit the grease grilles when dry.
PLEASE NOTE: DISCOLOURATION OF THE GREASE
FILTER CAN TAKE PLACE WHEN CLEANED IN A
DISHWASHER, ETC. Do not worry about the slight
discolouration of the grille –its performance won‟t
be affected.
Let the filter grilles dry thoroughly before refitting
them.

11

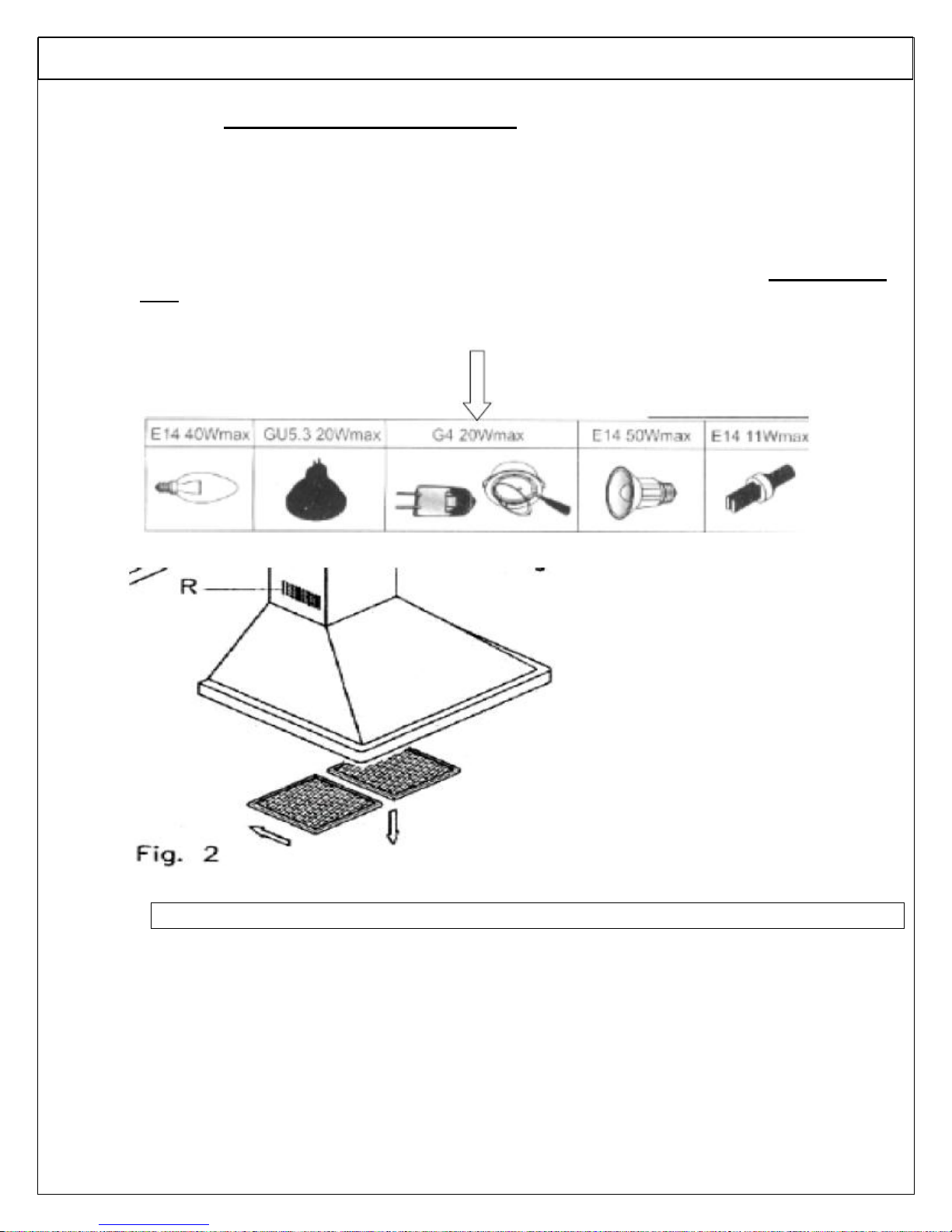

a) Changing the light bulb
Before changing the light bulb, ensure that the appliance is not live (i.e., ensure
that you have switched it off at the wall switch).
Remove the metal anti-grease filters (see Figure 2 below) and find the old bulb
located in the light fixture up inside the exposed canopy. Change the incandescent
bulb using only olive-shaped type with an E14 coupling, max. 20W.
* PLEASE NOTE - Defective bulbs should be replaced immediately.
Replace the metal anti-grease filters.
Maintenance –Changing the Light Bulb and Carbon Filter

12
b) Installing / Changing the Carbon Filter.
Your cooker hood uses a pair of CARBON FILTERS to purify the air for
the air recirculation function.
You will find that the filters will attach to both sides of the fan motor
(please see figures at bottom of page).
The active carbon filters must be replaced regularly, at least once every
three months, to allow normal operation.
Before starting to fit the carbon filter, turn the omni-polar switch off
at the wall.
Changing the Carbon Filters

13
1) Press the handle of the metal grease filter towards the rear part of the unit
until it is released from the front housing, and remove it by pressing
downwards (Fig. 2 - above).
2) Remove the old carbon filters by twisting them anticlockwise until they unlatch
from the sides of the motor.
3) Place the new carbon filters (which have two fixing tongues), turning clockwise
so that the tongues latch onto the motor‟s sides. (Fig. 3)
4) Reposition the anti-grease metallic filter grilles.
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s f fi it tt te ed d w wi it th h a a p po ow we er r c co or rd d & & p pl lu ug g f fo or r c co on nn ne ec ct ti io on n t to o a a
1
10 0A A p po ow we er r o ou ut tl le et t . .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood‟s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.
NOTE: (UK only) WARNING –THIS APPLIANCE MUST BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET.
We recommend that the appliance is connected by a qualified electrician who will comply
with all local regulations. The wires in the mains lead are coloured in accordance with the
following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
INSTALLATION INSTRUCTIONS –Electrical Connection

14
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
As the colours of the wires in the appliance‟s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
1) The BLUE WIRE must be connected to the terminal marked “N” (Neutral), or
coloured Black
2) The BROWN WIRE must be connected to the terminal marked “L” (LIVE), or
coloured Red
3) The Green/Yellow wire must be connected to the terminal marked “E” or
(Earth)(Fig 7 –at left) (Wire diagram-at right)
 The cooker hood must not
be fitted above stoves with a
radiant top plate.
 We recommend that at least
two people install this hood.
NOTE: Your Cooker Hood should only be fitted on a wall. Do
NOT position it any less than 700 mm (70 cm) above the hob.

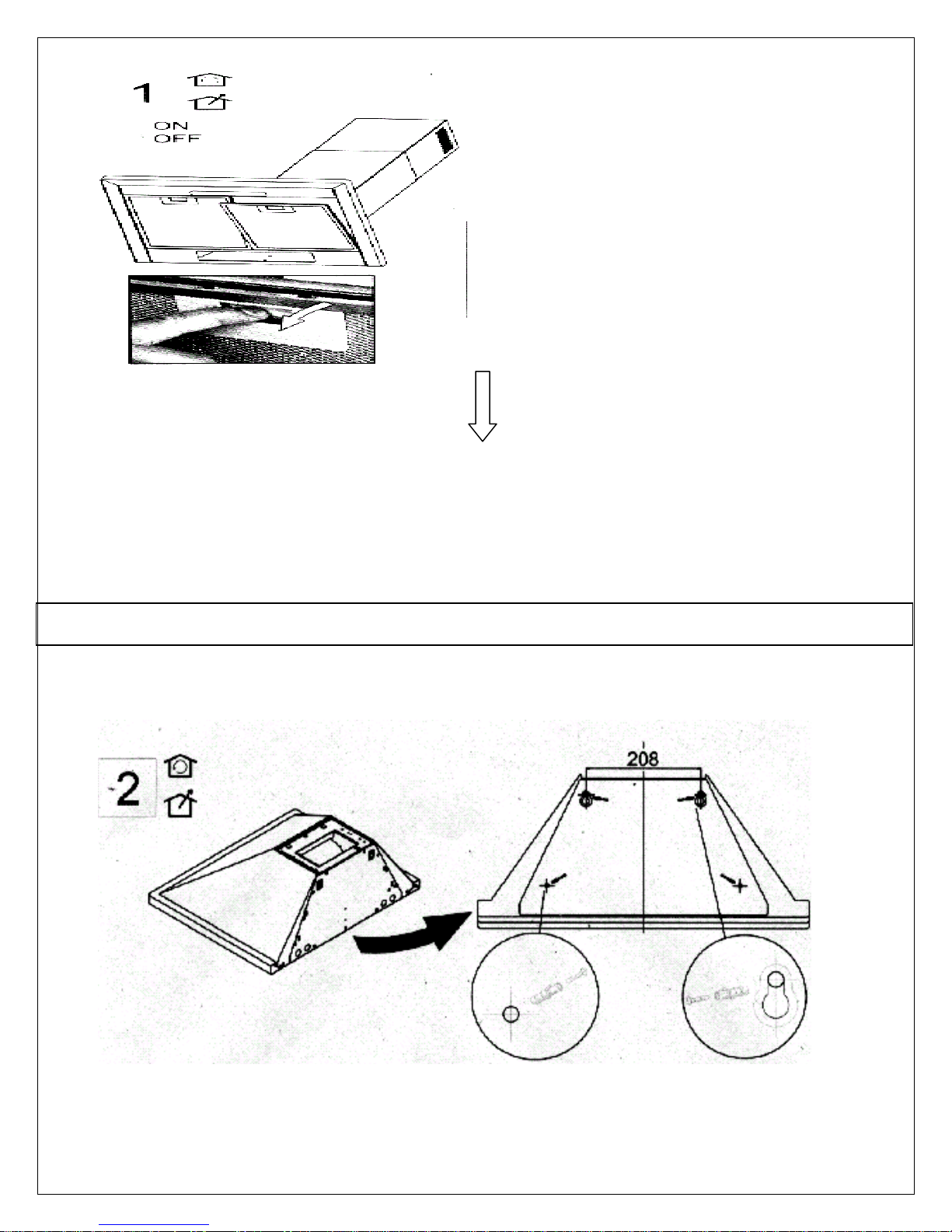

1) Remove the metal anti-grease filters
(See figure at right).
INSTALLATION INSTRUCTIONS –Installing your Cooker Hood
PLEASE NOTE THAT YOU WILL HAVE
TO DECIDE BEFORE INSTALLING YOUR
COOKER HOOD THAT YOU CAN ADAPT
IT AS AN EXTRACTION FAN.

15
2) Position the hood against the wall and mark the position of the support
holes that are to be drilled as shown in the figure below. These support
holes can be found on Fig. 4 on next page marked as „D‟with the
anchoring holes marked as „E‟(Fig. 4 on next page). If you hood comes
with an attached jig, use that as a guide to make the marks for the screw
holes.
INSTALLATION INSTRUCTIONS –Attaching the Hood

16
3) Using a drill bit with an 8 mm diameter, make holes in the wall where
you have marked these positions (see below).
4) Insert the expansion fixings (rawlplugs) in the holes and then screw the
support screws halfway in (see figure, at right on the next page).

17
5) Hook the hood onto the screws (see above figure) and fasten it onto the
wall, tightening the support and anchoring screws the rest of the way in
(see below).

18
-------------------------------------------------------------------------------------------

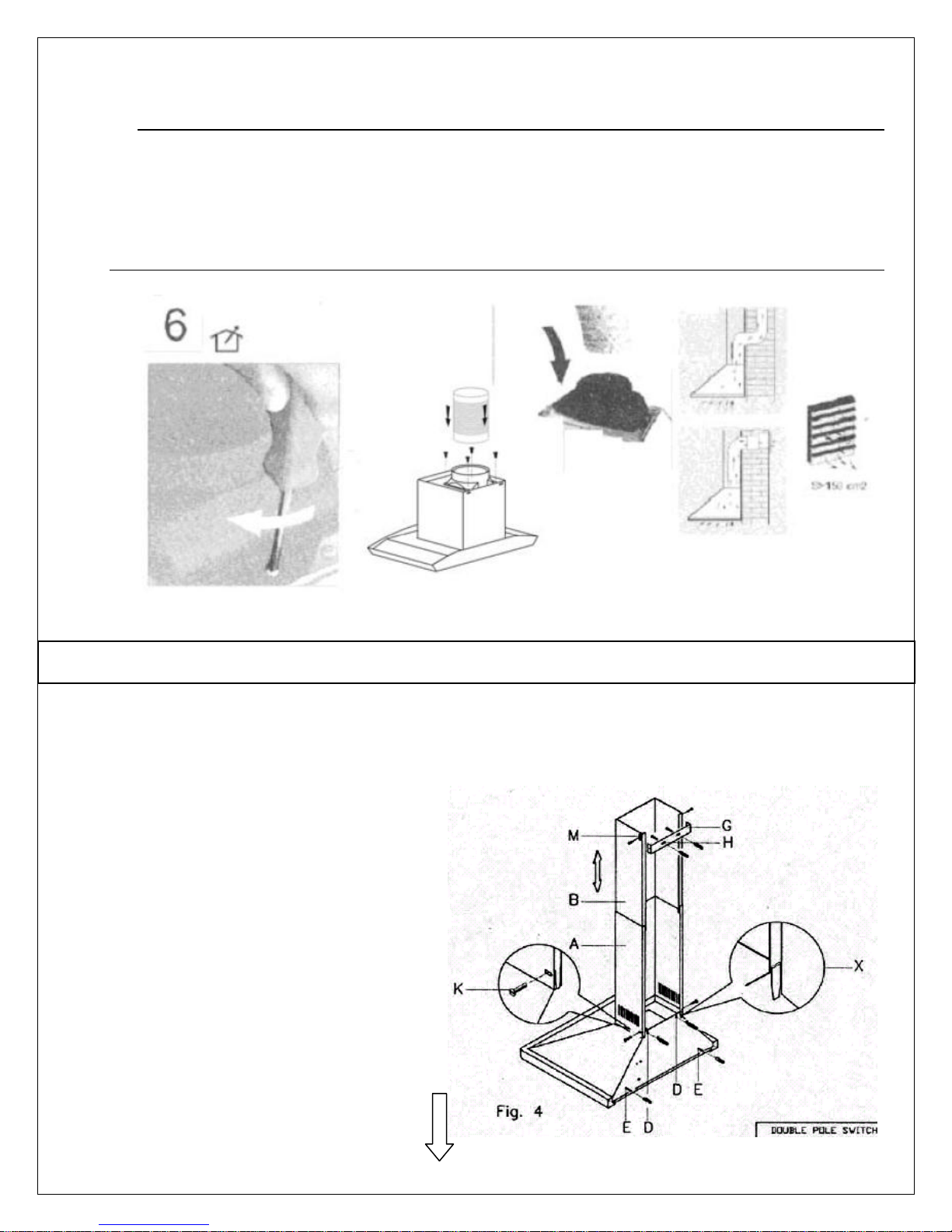

6) (EXTRACTION FUNCTION ONLY) Connect the coupling to the top of the
cooker hood (see below). Then connect the discharge pipe to the coupling as
shown below.
FITTING THE PIPE –Once your Cooker Hood has
been installed, you can now fit the pipe.
1) Take the two casings „A‟ and „B‟:
2) Rest the bottom of the casing „A‟
on the top of the hood, taking
care to position the tabs of the
casing correctly on the back of
the hood as shown as part „X‟ in
Figure 4 at right.
3) Fix casing „A‟ onto the hood
using the two screws „K‟
supplied in the bag of
accessories (Figure 4 –at right).
INSTALLATION INSTRUCTIONS –Attaching the Hood
INSTALLATION INSTRUCTIONS –Fitting the Chimney

19
4) Lift the mobile part „B‟ until it reaches the ceiling, checking
that it is perpendicular to the hood.
5) Mark the side measurement of the mobile casing „B‟ and then
lower it (see below).
6) Take the fixing bracket „G‟ (Fig. 4 –previous page), centre it
with respect to the mark you previously made, keeping it in
contact with the ceiling, and then mark the anchoring holes
(„H‟).
7) Using a drill bit with an 6mm diameter, make two holes on
the fixing marks you previously made (see next page).
