thomann Startone BK-54 User manual

BK-54
keyboard
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
25.08.2021, ID: 524514

Table of contents
1 General information.............................................................................................................. 4
1.1 Further information........................................................................................................ 4
1.2 Notational conventions................................................................................................. 4
1.3 Symbols and signal words........................................................................................... 5
2 Safety instructions................................................................................................................. 6
3 Features....................................................................................................................................... 8
4 Assembly instructions.......................................................................................................... 9
5 Connections and operating elements........................................................................ 11
6 Connection options............................................................................................................. 14
7 Operating................................................................................................................................. 15
7.1 Powering up the keyboard........................................................................................ 15
7.1.1 Automatic shuto..................................................................................................... 15
7.2 Setting overall volume................................................................................................ 15
7.3 Adjusting the accompaniment volume................................................................ 15
7.4 Transposing..................................................................................................................... 15
7.5 Setting the tempo......................................................................................................... 16
7.6 Chord accompaniment............................................................................................... 16
7.7 Voice selection............................................................................................................... 17
7.8 Style selection................................................................................................................ 17
7.9 Song selection................................................................................................................ 17
7.10 Record and playback................................................................................................. 18
7.11 Programming mode.................................................................................................. 18
7.12 Synchronous start function.................................................................................... 18
7.13 Intro and Ending......................................................................................................... 19
7.14 Fill bars (Fill In)............................................................................................................. 19
7.15 Metronome................................................................................................................... 19
7.16 Percussion selection.................................................................................................. 20
7.17 Sustain eect................................................................................................................ 20
7.18 Vibrato eect................................................................................................................ 20
7.19 Split mode..................................................................................................................... 21
7.20 Learning mode A........................................................................................................ 21
7.21 Learning mode B......................................................................................................... 21
8 Song list.................................................................................................................................... 22
9 Style list..................................................................................................................................... 23
10 Voice list.................................................................................................................................... 27
11 Troubleshooting................................................................................................................... 31
12 Technical specications.................................................................................................... 32
13 Protecting the environment........................................................................................... 33
Table of contents
BK-54
3

1 General information
This user manual contains important information on the safe operation of the device.
Read and follow all safety notes and all instructions. Save this manual for future refer‐
ence. Make sure that it is available to all persons using this device. If you sell the
device to another user, be sure that they also receive this manual.
Our products and user manuals are subject to a process of continuous development.
We therefore reserve the right to make changes without notice. Please refer to the
latest version of the user manual which is ready for download under
www.thomann.de.
1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and
details on the following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the
topics of interest for you quickly.
Online guides Our online guides provide detailed information on technical
basics and terms.
Personal
consultation
For personal consultation please contact our
technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
The individual steps of an instruction are numbered consecutively. The result of a
step is indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
Letterings
Instructions
General information
keyboard
4

References to other locations in this manual are identied by an arrow and the speci‐
ed page number. In the electronic version of the manual, you can click the cross-
reference to jump to the specied location.
Example: See Ä ‘Cross-references’ on page 5.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words
that are used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in
death or serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates
a possible dangerous situation that can result in minor
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate‐
rial and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
Cross-references
General information
BK-54
5

2 Safety instructions
This device is intended to be used for electronic sound generation using a piano key‐
board. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in per‐
sonal injury or property damage. No liability will be assumed for damages resulting
from improper use.
This device may be used only by persons with sucient physical, sensorial, and intel‐
lectual abilities and having corresponding knowledge and experience. Other persons
may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces
and choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable
parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
CAUTION!
Possible hearing damage
Using headphones for a prolonged period and at high volume can cause hearing damage. Avoid using the device at high volume,
especially when using headphones.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside
can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be main‐
tained by qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
External power supply
The device can be powered by an external power supply. Before connecting an external power supply, ensure that the input
voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit
breaker. Failure to do so could result in damage to the device and possibly the user. Unplug the external power supply before
electrical storms occur and when the device is unused for long periods of time to reduce the risk of electric shock or re.
Intended use
Safety instructions
keyboard
6

NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a
longer period.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your ground and after some
time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the ground, but use felt-pad protectors.
Safety instructions
BK-54
7

3 Features
The keyboard is characterized by the following features:
n54 keys
n300 voices
n300 Styles
n50 demo songs
nMetronome
nSustain, Vibrato
nKeyboard Split
nTranspose function
nAutomatic shuto
nBuilt-in speakers
nConnections: 1 × headphones output, 1 × microphone input (headphones and
microphone not included)
nPlug-in power supply and music stand included
Features
keyboard
8

4 Assembly instructions
Unpack and check carefully there is no transportation damage before using the unit.
Keep the equipment packaging. To fully protect the product against vibration, dust
and moisture during transportation or storage use the original packaging or your
own packaging material suitable for transport or storage, respectively.
Set up the device in the desired location.
The device can be powered by batteries or with the included AC adapter.
When using batteries, remove the plug-in power supply and remove the
batteries when using the plug-in power supply.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer
period.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
Batteries are not charged in the device.
Inserting batteries
1. Make sure that the device is switched o before inserting or replacing bat‐
teries.
2. Press the left key repeatedly until the volume is at minimum before inserting
the batteries into the keyboard. This is to protect the speakers from damage.
3. Open the battery compartment cover on the underside of the device and
insert six AA size batteries. Pay attention to the correct polarity.
Always use batteries of the same type and do not use new and used batteries
at the same time.
4. Reattach the battery compartment cover and snap it into place.
Voltage supply
Assembly instructions
BK-54
9

Power adapter
1. Make sure that the device is turned o before you connect it to the power
supply or disconnect it.
2. Press the left key repeatedly until the volume is at minimum before inserting
the batteries into the keyboard. This is to protect the speakers from damage.
3. Connect the cable from the power adapter outlet to the input socket
[9V power] on the rear panel of the keyboard.
4. Plug the power adapter into a properly wired mains wall outlet.

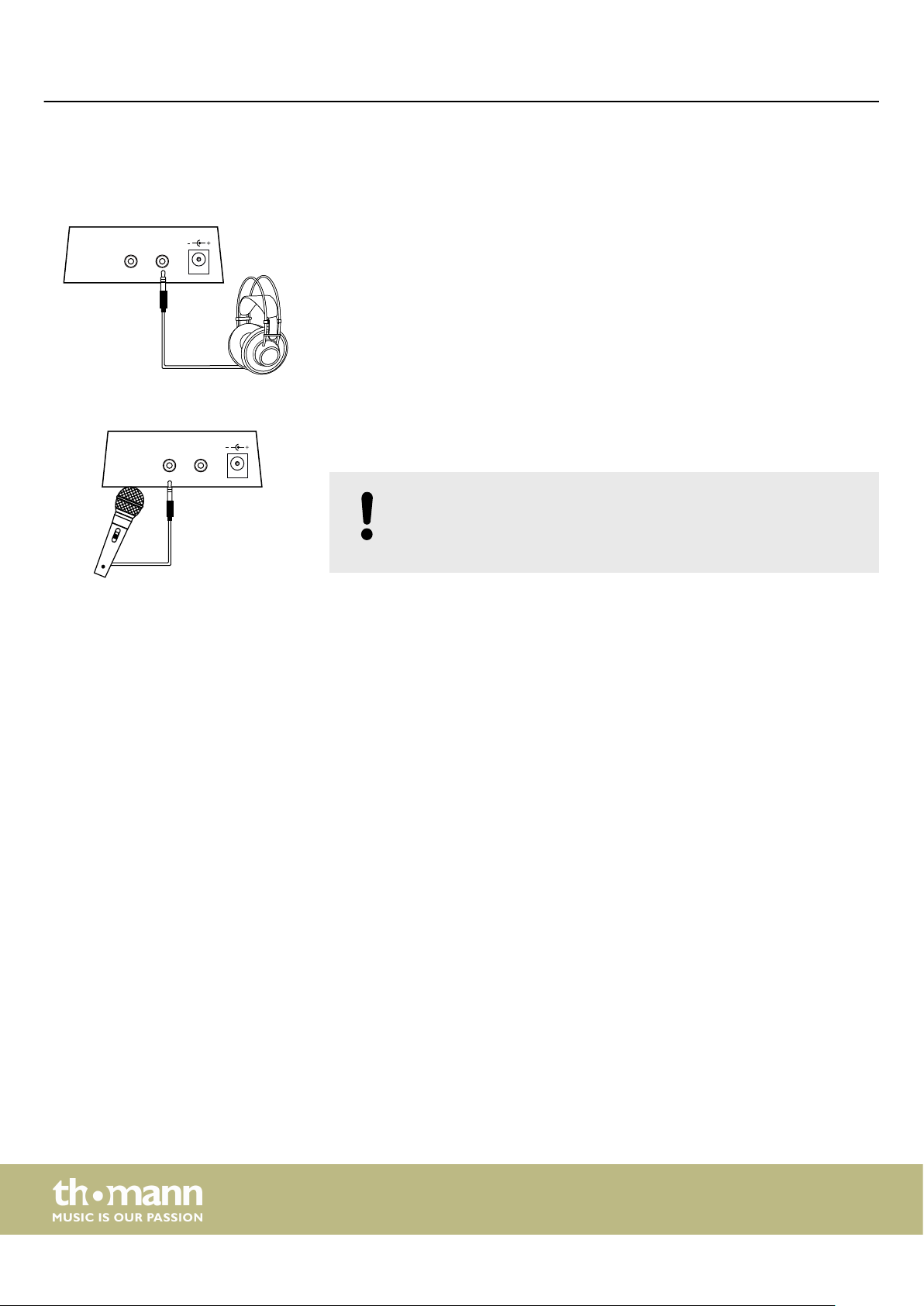

Microphone Headphone
9V power
Assembly instructions
keyboard
10
