thomann Startone MKL-201 User manual

MKL-201
keyboard
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
15.07.2021, ID: 517331

Table of contents
1 General information.............................................................................................................. 5
1.1 Further information........................................................................................................ 5
1.2 Notational conventions................................................................................................. 5
1.3 Symbols and signal words........................................................................................... 6
2 Safety instructions................................................................................................................. 7
3 Features....................................................................................................................................... 8
4 Assembly instructions.......................................................................................................... 9

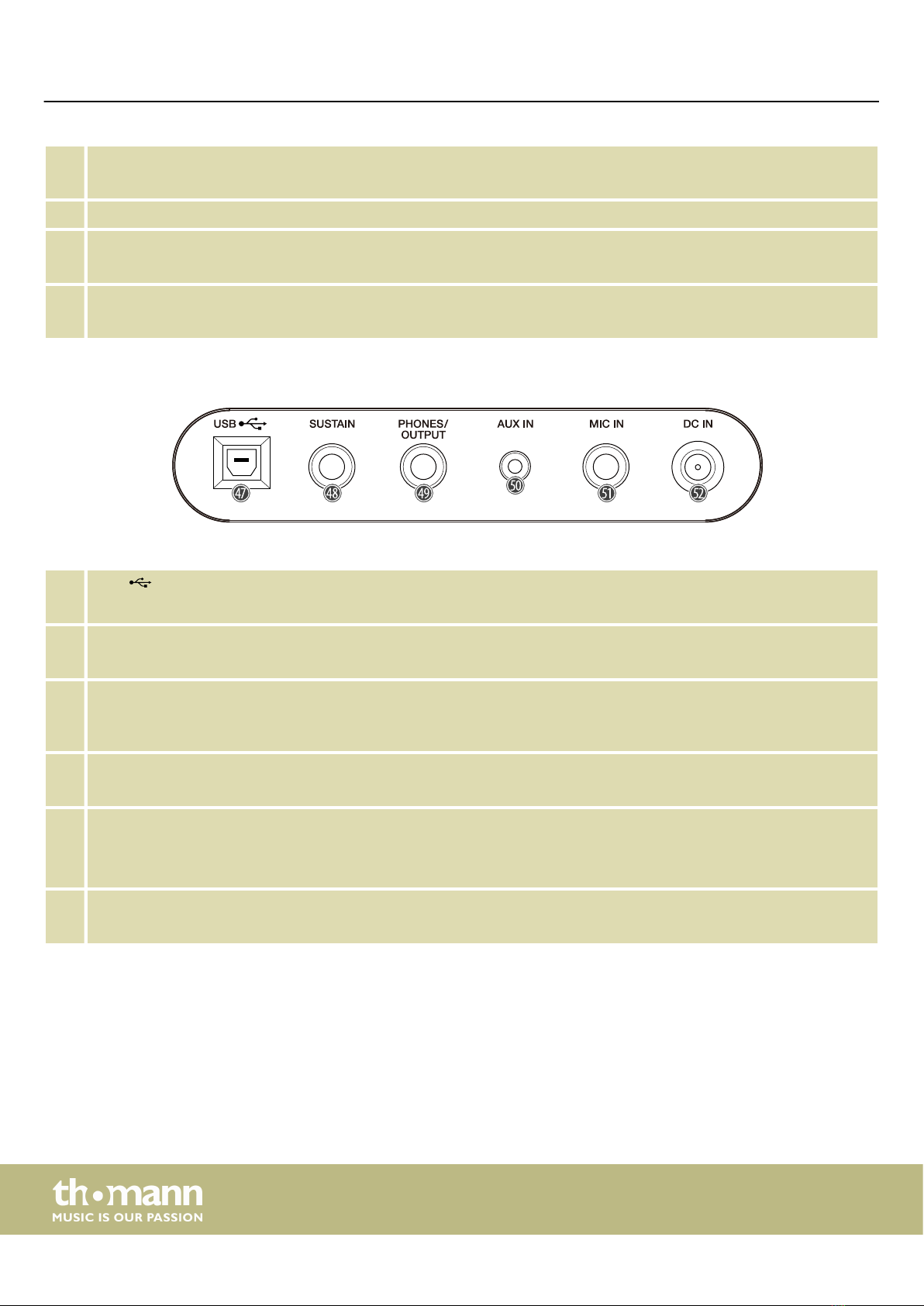

5 Connections and operating elements........................................................................ 10
6 Connection options............................................................................................................. 15
7 Operating ................................................................................................................................ 17
7.1 Turning the keyboard on / o.................................................................................. 17
7.1.1 Automatic shuto..................................................................................................... 17
7.2 Adjusting the volume.................................................................................................. 17
7.3 Demo pieces................................................................................................................... 18
7.4 Using the Sustain pedal.............................................................................................. 18
7.5 Sounds.............................................................................................................................. 19
7.5.1 Layer mode.................................................................................................................. 19
7.5.2 Split mode.................................................................................................................... 20
7.5.3 Piano mode.................................................................................................................. 20
7.6 DSP eect......................................................................................................................... 21
7.7 Transposing..................................................................................................................... 21
7.8 Styles and automatic accompaniment................................................................. 21
7.8.1 Starting Auto Accompaniment (rhythm track only)..................................... 22
7.8.2 Starting Auto Accompaniment (all tracks)....................................................... 22
7.8.3 Style variations........................................................................................................... 22
7.8.4 Chord structure.......................................................................................................... 25
7.8.5 Chord name................................................................................................................. 25
7.8.6 Chord inversions........................................................................................................ 25
7.8.7 Chord detection modes.......................................................................................... 26
7.8.8 Quick Setting............................................................................................................... 28
7.9 Metronome..................................................................................................................... 28
7.9.1 Turning the metronome on and o.................................................................... 28
7.10 Function menu............................................................................................................ 29
7.10.1 Octave shift............................................................................................................... 29
7.10.2 Split point setting................................................................................................... 30
7.10.3 Metronome time signature................................................................................. 30
7.10.4 Accompaniment volume..................................................................................... 30
7.10.5 Touch velocity.......................................................................................................... 30
7.10.6 Fine tuning................................................................................................................ 30
7.10.7 Reverb eect............................................................................................................. 31
7.10.8 Chorus eect............................................................................................................. 31
Table of contents
MKL-201
3

7.10.9 Automatic shuto................................................................................................... 31
7.10.10 Key illumination ................................................................................................... 32
7.10.11 Key illumination USB MIDI ................................................................................ 32
7.11 Performance Memory............................................................................................... 32
7.11.1 Selecting a memory location.............................................................................. 32
7.11.2 Calling up information.......................................................................................... 33
7.11.3 Selecting a bank...................................................................................................... 33
7.11.4 Resetting the Performance Memory................................................................ 33
7.12 Chord dictionary......................................................................................................... 34
7.13 Songs.............................................................................................................................. 34
7.13.1 Selecting, playing and stopping songs........................................................... 34
7.13.2 Learning mode......................................................................................................... 34
7.13.3 Recording................................................................................................................... 37
7.14 MIDI functions............................................................................................................. 37
7.14.1 What is MIDI?............................................................................................................ 37
7.14.2 USB connection....................................................................................................... 38
8 MIDI implementation chart............................................................................................. 39
9 Troubleshooting................................................................................................................... 41
10 Technical specications.................................................................................................... 42
11 Plug and pin assignments................................................................................................ 44
12 Protecting the environment........................................................................................... 45
Table of contents
keyboard
4

1 General information
This user manual contains important information on the safe operation of the device.
Read and follow all safety notes and all instructions. Save this manual for future refer‐
ence. Make sure that it is available to all persons using this device. If you sell the
device to another user, be sure that they also receive this manual.
Our products and user manuals are subject to a process of continuous development.
We therefore reserve the right to make changes without notice. Please refer to the
latest version of the user manual which is ready for download under
www.thomann.de.
1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and
details on the following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the
topics of interest for you quickly.
Online guides Our online guides provide detailed information on technical
basics and terms.
Personal
consultation
For personal consultation please contact our
technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
Letterings
Displays
General information
MKL-201
5

The individual steps of an instruction are numbered consecutively. The result of a
step is indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
References to other locations in this manual are identied by an arrow and the speci‐
ed page number. In the electronic version of the manual, you can click the cross-
reference to jump to the specied location.
Example: See Ä ‘Cross-references’ on page 6.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words
that are used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in
death or serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates
a possible dangerous situation that can result in minor
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate‐
rial and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
Instructions
Cross-references
General information
keyboard
6

2 Safety instructions
This device is intended to be used for electronic sound generation using a piano key‐
board. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in per‐
sonal injury or property damage. No liability will be assumed for damages resulting
from improper use.
This device may be used only by persons with sucient physical, sensorial, and intel‐
lectual abilities and having corresponding knowledge and experience. Other persons
may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces
and choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable
parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
CAUTION!
Possible hearing damage
Using headphones for a prolonged period and at high volume can cause hearing damage. Avoid using the device at high volume,
especially when using headphones.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside
can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be main‐
tained by qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage
(AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
Failure to do so could result in damage to the device and possibly the user. Unplug the external power supply before electrical
storms occur and when the device is unused for long periods of time to reduce the risk of electric shock or re.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
Intended use
Safety instructions
MKL-201
7

3 Features
The keyboard is characterized by the following features:
n61 touch-sensitive illuminated keys
nLCD display
n64-voice polyphony
n480 sounds
n160 Styles
n140 songs
n140 demo songs
n16 performance memory locations
nRecord and playback function
nLayer and Split mode
nPiano mode
nMetronome
nReverb and Chorus eects
nDSP eect
nSequencer
nTranspose and octave functions
nBattery operation possible
nSpeaker: 2 × 2.5 W
nConnections: USB MIDI, sustain pedal, headphones / external audio devices, Aux
In, microphone
nAutomatic shuto
Features
keyboard
8

4 Assembly instructions
Unpack and check carefully there is no transportation damage before using the unit.
Keep the equipment packaging. To fully protect the product against vibration, dust
and moisture during transportation or storage use the original packaging or your
own packaging material suitable for transport or storage, respectively.
Set up the device in the desired location.
The device can be powered by batteries or with the included AC adapter.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer
period.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
Inserting batteries
1. Turn the volume control counterclockwise to the minimum before inserting
the batteries into the keyboard. This is to protect the speakers from damage.
2. Open the battery compartment cover on the underside of the device and
insert six AA size batteries. Pay attention to the correct polarity.
Always use batteries of the same type and do not use new and used batteries
at the same time.
3. Reattach the battery compartment cover and snap it into place.
Power adapter
1. Make sure that the device is turned o before you connect it to the power
supply or disconnect it.
2. Turn the volume knob counterclockwise to minimum before connecting the
keyboard to the power supply. This is to protect the speakers from damage.
3. Connect the cable from the power adapter outlet to the input socket [DC IN] on
the rear panel of the keyboard.
4. Plug the power adapter into a properly wired mains wall outlet.
Voltage supply
Assembly instructions
MKL-201
9

5 Connections and operating elements
1
Main switch. Turns the device on and o.
2[VOLUME]
Rotary control to adjust the overall volume
3[LESSON]
Button to activate the learn mode
Overview
Control panel
Connections and operating elements
keyboard
10
