thomann The box pro Achat 112 User manual

Achat 112 Sub A
active speaker
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
21.10.2021, ID: 214528 (V2)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 14
4.1 Pin assignment.................................................................................................................................. 15
4.2 Tips on handling speakers............................................................................................................ 18
5 Operating elements............................................................................................................................... 19
6 Technical specications....................................................................................................................... 22
7 Protecting the environment.............................................................................................................. 27
Table of contents
Achat 112 Sub A
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
active speaker
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Achat 112 Sub A
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
active speaker
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General information
Achat 112 Sub A
7

Warning signs Type of danger
Warning – danger zone.
General information
active speaker
8

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
Intended use
Safety instructions
Achat 112 Sub A
9

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for transport and installation.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
active speaker
10

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
Safety instructions
Achat 112 Sub A
11

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt-pad oor protectors or similar.
Safety instructions
active speaker
12

3 Features
Special features of this powerful active subwoofer:
nXLR/1/4" combo socket for signal input
nXLR mounting plug for signal output
nSelectable operating voltage
nPole mount ange, (M20), on topside
nBlack textured coating
Features
Achat 112 Sub A
13

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
Installation
active speaker
14

NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
4.1 Pin assignment
You may use XLR and jack connectors with either balanced or unbalanced pinout. Below you
will nd an overview of the dierent options.
Installation
Achat 112 Sub A
15

XLR panel sockets are provided for signal inputs. XLR panel plugs are provided for signal out‐
puts. The gure and the table show the XLR pin assignment.
Balanced pinout:
1 Ground
2 Positive signal (+)
3 Negative signal (–)
Unbalanced pinout:
1 Ground
2 Signal
3 Jumpered with pin 1
XLR connections for signal
inputs/outputs
Installation
active speaker
16

The gure and the table show the pin assignment for ¼-inch jack plugs.
Unbalanced wiring (jack plug, mono):
1 Signal
2 Ground
Unbalanced wiring (jack plug, stereo):
1 Signal
2, 3 Ground
Jack plugs for signal input
Installation
Achat 112 Sub A
17

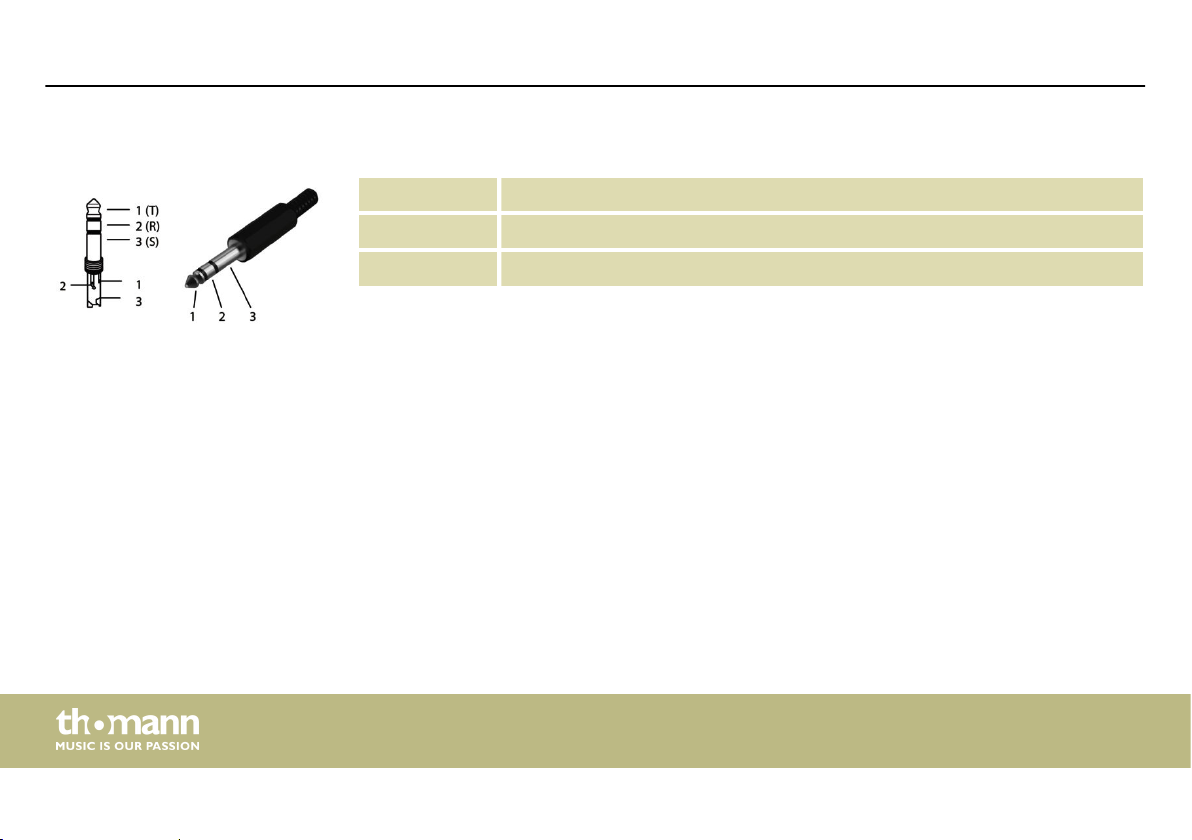

Balanced wiring (jack plug, stereo):
1 (tip) Positive signal (+)
2 (ring) Negative signal (–)
3 (sleeve) Ground
4.2 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
If you notice distortion during operation, the active speaker is overloaded. This may perma‐
nently damage the device. Always reduce the volume as soon as you hear distortion.
Installation
active speaker
18

5 Operating elements
Achat 112 Sub A
No:
ON OFF
USE ONLY WITH A 250 V FUSE
PUSH
1
2
3
250
210
120
110
165
0
-
LIMIT
ACTIVE
ØINV
HIGH CUT
VOLUME
OUTPUT
INPUT
#
+
$
%
&
'
)
(
*
Operating elements
Achat 112 Sub A
19

1[ON/OFF]
Use this switch (power switch) to turn the unit on and o.
2 IEC chassis plug for power supply with fuse holder
3[OUTPUT]
Signal output to connect another mixer, designed as XLR chassis plug
4[HIGH CUT]
Control for adjusting the low-pass lter. This sets the upper cut-o frequency for the signal going to the built-in
amplier.
5[LIMIT]
The LED lights up when the amplier's input level is too high. In this case, reduce the level of the input level.
6[INV]
If necessary, this switch shifts the phase of the subwoofer signal by 180 °. This avoids unwanted cancellation eects in
combination with other speakers.
7[ACTIVE]
The LED indicates that the device is switched on.
Operating elements
