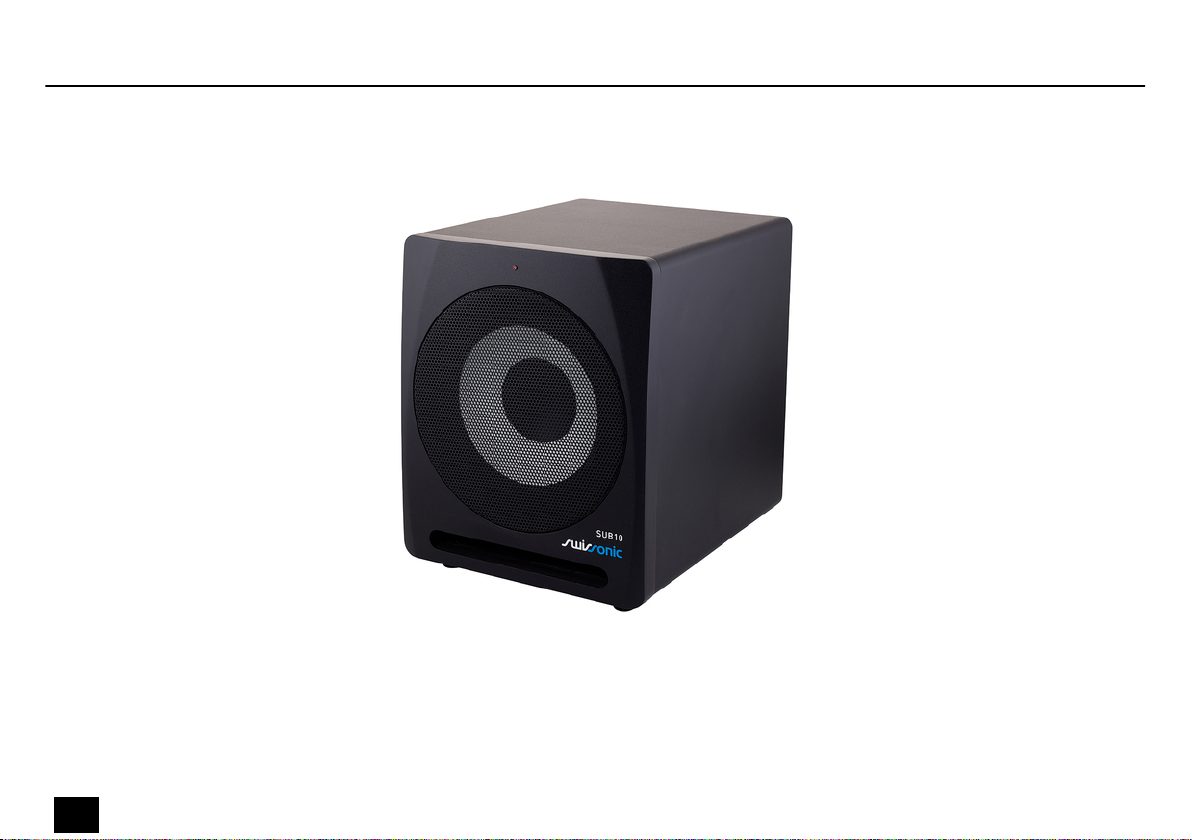

thomann swissonic SUB10 User manual

SUB10
Active Speaker
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
27.04.2022, ID: 350078 (V2)

Table of Contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 14
4 Installation.................................................................................................................................................. 15
5 Connections and operating elements........................................................................................... 16
6 Technical specications....................................................................................................................... 20
7 Plug and connection assignment.................................................................................................... 22
8 Troubleshooting...................................................................................................................................... 25
9 Protecting the environment.............................................................................................................. 27
Table of Contents
SUB10 3
Active Speaker

4SUB10
Active Speaker

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
SUB10 5
Active Speaker

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
6SUB10
Active Speaker

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
SUB10 7
Active Speaker

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General information
8SUB10
Active Speaker

Warning signs Type of danger
Warning – danger zone.
General information
SUB10 9
Active Speaker

2 Safety instructions
This device is primarily designed for monitoring during audio recording and mixing in the
studio. Use the device only as described in this user manual. Any other use or use under other
operating conditions is considered to be improper and may result in personal injury or prop‐
erty damage. No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
10 SUB10
Active Speaker

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
SUB10 11
Active Speaker

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
Safety instructions
12 SUB10
Active Speaker

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt-pad oor protectors or similar.
Safety instructions
SUB10 13
Active Speaker

3 Features
Special features of the device:
n10" woofer
nXLR and 1/4" phone inputs
n1/4" phone outputs for external active speakers
nClass AB amplier
nLow-pass lter with adjustable crossover frequency
nHousing made of vinyl-coated MDF
nProtection circuits against radio interference, over temperature, on / o switching noise
and to limit output current
nStandby function
Features
14 SUB10
Active Speaker

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation
SUB10 15
Active Speaker

5 Connections and operating elements
If the speaker box receives no signal for 10 to 15 minutes, it switches to standby mode. The
control LED on the front panel then lights red. As soon as the speaker box receives a signal, it
switches back to normal mode and the LED will turn blue.
Control LED on the front panel
Connections and operating elements
16 SUB10
Active Speaker

AC SELECT
(
'
&
%
$
)*
,
#
+
Rear panel
Connections and operating elements
SUB10 17
Active Speaker

1 IEC chassis plug with fuse holder
Connection for the power supply.
2[POWER]
Mains switch. Turns the device on and o.
3, 4 [OUTPUT RIGHT], [OUTPUT LEFT]
Connections for external active speakers, designed as 1/4" phone sockets.
5, 6 [INPUT]
Signal inputs, designed as 1/4" phone sockets.
7, 8 [INPUT]
Signal inputs, designed as XLR chassis sockets.
9[VOLUME]
Volume control.
Connections and operating elements
18 SUB10
Active Speaker

10 [LOW PASS]
Control for stepless crossover frequency adjustment from 40 Hz to 180 Hz.
11 [PHASE]
Phasing switch. Shifts the phase of the subwoofer signal by 180 °, if necessary. This avoids unwanted cancellation
eects in combination with other speakers.
Connections and operating elements
SUB10 19
Active Speaker

6 Technical specications
Speaker 10" woofer
Input connections Signal input 2 × 1/4" phone socket (balanced)
2 × XLR panel socket (balanced)
Voltage supply IEC chassis plug C14
Input impedance 20 kΩ(balanced), 10 kΩ(unbalanced)
Output connections Signal output 2 ×1/4" phone socket (balanced and unbal‐
anced usable)
Output power RMS: 200 W
Peak: 320 W
Frequency range 30 Hz … 200 Hz
Crossover frequency 40 Hz … 180 Hz
Signal-to-noise ratio > 100 dB (typical, A-weighted)
Technical specications
