Chapter 1 Overview
Chapter 1 Overview
1.1 Introduction
This motorized fast-change filter wheel has been designed for applications that
require sequential observations with different filters inserted in the optical path, such
as multi-wavelength fluorescence imaging.
Access for the fitting of filters can be gained through a removable cover without
needing to unmount the filter wheel from the optomechanical setup within which it sits.
Choice of electronic controller for the FW103 depends on the required speed of
operation. The FW103H kit includes the FW103 filter wheel and our BSC201 single-
channel controller, for applications requiring high-speed switching (<50ms) between
adjacent filters.
Where slower speed filter switching is desired (~250ms), the filter wheel can be driven
by our KST101 K-cube stepper motor controller. The KST101 controller offers two
power supply options each sold separately: KPS101 when using a single KST101 K-
Cube and the KCHxxx hubs for up to 6 K-Cubes.

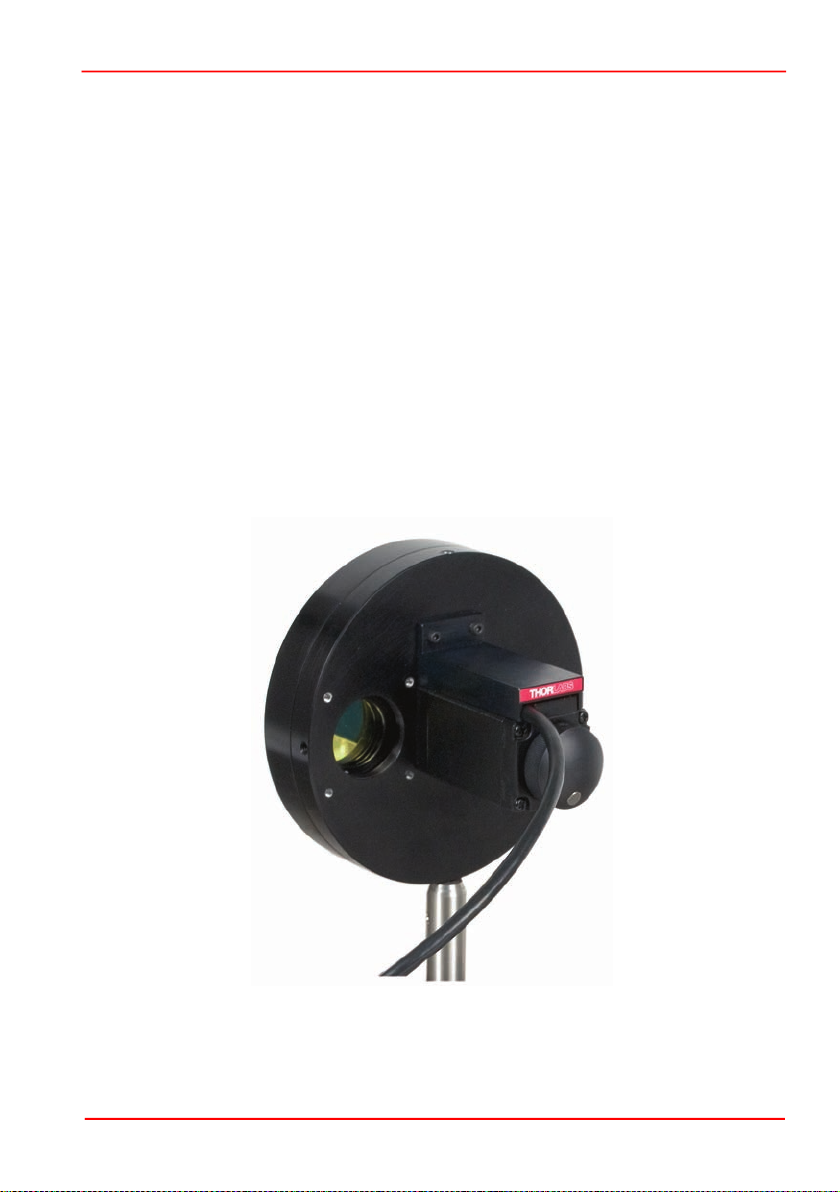

Fig. 1.1 FW103 Filter Wheel

Page 2
FW103 Motorized Filter Wheel
Chapter 2 Safety
2.1 Safety Information
For the continuing safety of the operators of this equipment, and the protection of the
equipment itself, the operator should take note of the Warnings, Cautions and Notes
throughout this handbook and, where visible, on the product itself.
The following safety symbols may be used throughout the handbook and on the
equipment itself.
2.2 General Warnings
Warning: Risk of Electrical Shock
Given when there is a risk of injury from electrical shock.
Warning
Given when there is a risk of injury to users.
Caution
Given when there is a risk of damage to the product.
Note
Clarification of an instruction or additional information.
Warnings
If this equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired. In particular, excessive
moisture may impair operation.
Spillage of fluid, such as sample solutions, should be avoided. If spillage does
occur, clean up immediately using absorbant tissue. Do not allow spilled fluid to
enter the internal mechanism.

Rev L Jun 2021Page 3
Chapter 3 Installation
Chapter 3 Installation
3.1 Unpacking.
3.2 Mounting
3.2.1 General
The mechanical interfacing of the wheel accepts SM1 lens tubes and 30mm cage
systems for both input and output ports of the filter wheel housing as shown in Fig.
3.1 below.
Fig. 3.1 Typical Arrangements
The housing contains four #8-32 (M4) tapped holes to allow post mounting of the
wheel.
Fig. 3.2 Post Mounting
Note
Retain the packing in which the unit was shipped, for use in future transportation.
Caution
Once removed from its packaging, the filter wheel is easily damaged by
mishandling. Handle with care.

Page 4 16403-D01
FW103 Motorized Filter Wheel
3.3 Connecting The Motor Driver
The FW103 wheel is supplied with 600mm (2 ft) of cable and is terminated in a 15 pin
D-Type connector. The FW103H (/M) is shipped with a 3m (9 ft) extension cable for
use with the BSC20x series controllers.

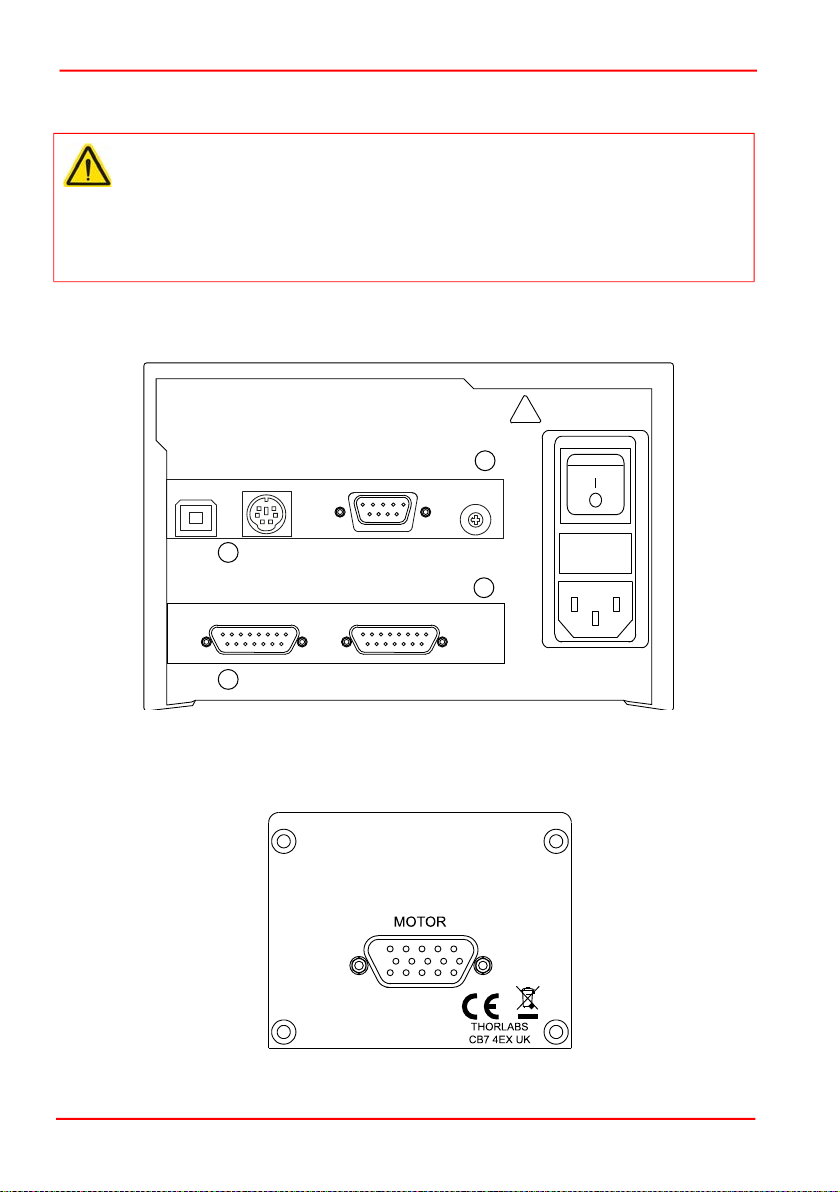

Fig. 3.3 BSC201 rear panel
If using the KST101 K-Cube driver unit - see Fig. 3.4 below, an extension cable is not
required and the driver should be connected directly to the filter wheel.
Fig. 3.4 KST101 rear panel
Caution
It is recommended that the FW103 filter wheel is driven by either the Thorlabs
KST101 K-Cube stepper motor driver or the BSC201 benchtop stepper motor
controller. If the wheel is being driven by any other driver or controller, consult
Section B.1. for motor pin out details and Appendix B for details of the motor
specification.
!
CONTROL IO MOTOR DRIVE
USB HANDSET IN INTERCONNECT CH ID
FUSES F1 and F2
T3.15A
ANTISURGE CERAMIC
85 - 264 VAC
47 - 63Hz 150VA

Rev L Jun 2021Page 5
Chapter 3 Installation
3.4 Fitting the Filters
Up to six Ø1.0" (25mm) filters (up to 6.35 mm thick) can be fitted onto the wheel.
Thinner filters may need shorter bolts.
1) Remove the six screws securing the cover, then remove the cover.
Fig. 3.5 Filter Cover and Securing Screws
2) Each filter sits in a recess which ensures correct positioning. Fit the filter into its
recess as shown in Fig. 3.6 below, ensuring that the open end of the filter housing
is towards the base plate, and the filter is uppermost .
Fig. 3.6 Filter Fitted in its Recess
Caution
The filters can be damaged or impaired by dirt and grease. During the following
procedure, handle the filters only by the housing and avoid touching the filter
surface. Wear lint free gloves.

Page 6 16403-D01
FW103 Motorized Filter Wheel
3) Fit the retaining ring (supplied) over the filter and secure using screws as follows:
•Standard filters, 6.0 mm to 6.35 mm thick: M2 x 8 (supplied);
•Thinner filters: use correspondingly shorter screws (e.g. M2 x 6 for 4 mm
thickness).
Note: if using filters thinner than 2.0 mm, the use of optic spacers are
recommended (e.g. Thorlabs part SM1S01 or SM1S3M) to ensure secure fitting
within the filter recesses.
Fig. 3.7 Filter Retaining Ring and Screws
4) Refit the cover.
3.5 Transportation
Caution
Use only screws of the length specified above. Using longer screws will foul
the rotation of the wheel. Do not allow attachment screws to protrude
through the wheel.
Caution
When packing the unit for shipping, use the original packing. If this is not
available, use a strong box and surround the unit with at least 100 mm of shock
absorbent material.

Rev L Jun 2021Page 7
Chapter 4 Operation
Chapter 4 Operation
4.1 General
The filter wheels are connected to the controller via a flying lead terminated in a D-
type connector.
For a complete tutorial on using the stage with a motor controller, see the relevant
controller manual. Basic steps in controlling the stage are as follows:
1) Connect the stage to the DC motor driver - see Section 3.3.
2) Run the software and associate the controller serial number, stage type and
channel number – see Section 4.2.
3) Move the stage to its home position, to establish a zero datum - see the handbook
supplied with the controller unit.
Caution
It is recommended that the FW103 filter wheel is driven by either the Thorlabs
KST101 K-Cube stepper motor driver or the BSC201 benchtop stepper motor
controller. If the wheel is being driven by any other driver or controller, consult
Section B.1. for motor pin out details and Appendix B for details of the motor
specification.
Warning
The controller must be switched OFF before the stages are plugged in or
unplugged. Failure to switch the controller off may result in damage to either the
controller, the stage, or both.
Note
For large moves (i.e. greater than 60°) the velocity may need to be reduced in order
to avoid stalling the motor.
Errors can accumulate if the wheel is jogged repeatedly. To avoid such errors when
large moves are required, click on the position display in the GUI panel and enter in
the pop up window the number of degrees to move.

Page 8
FW103 Motorized Filter Wheel
4.2 Selecting the Stage Type
To ensure that a particular stage is driven properly by the system, a number of parameters
must first be set. These parameters relate to the physical characteristics of the stage being
driven (e.g. min and max positions, leadscrew pitch, homing direction etc.).
To assist in setting these parameters correctly, it is possible to associate a specific stage
type and axis with the motor controller channel. Once this association has been made, the
server automatically applies suitable default parameter values on boot up of the software.
4.2.1 Using Kinesis Software
1) Install the electronic hardware and connect the controllers to the relevant axes of
the associated stages (see the handbooks for the associated controller).
2) For each Stepper Motor Controller in your system, fit the interlock plug (supplied)
to the MOTOR CONTROL connector on the rear panel.
3) Ensure that the device is connected to the PC and powered up.
4) Run the Kinesis software - Start/All Programs/Thorlabs/Kinesis/Kinesis.
5) On start-up, the 'Actuator/Startup Settings' window is displayed. This window
allows the correct actuator to be selected.

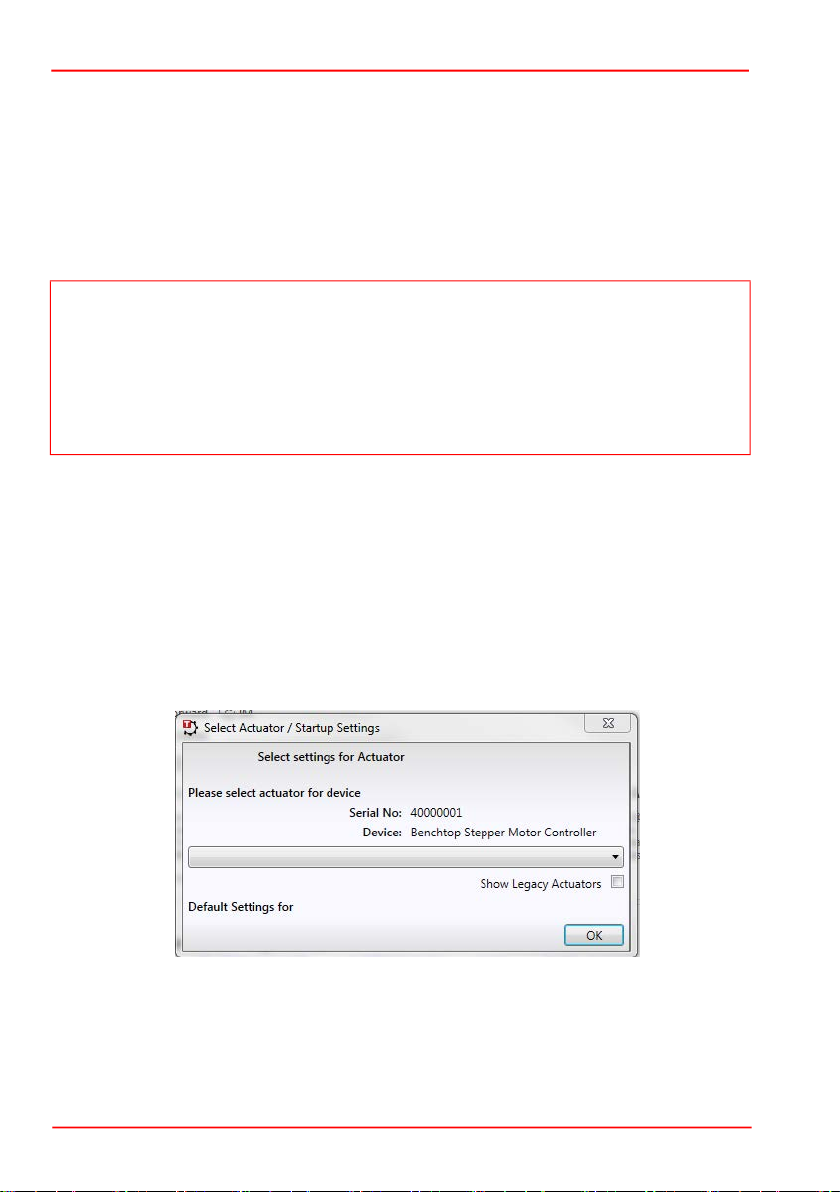

Fig. 4.1 Select Actuator Settings Window - 1
Note
To ensure correct operation, it is important to select the correct stage and axis type
as described above. If using a BSC20x series controller, proceed as follows. If using a
KST101 controller, select the stage type via the settings menu on the hardware unit, see
the handbook for the KST101 for more details.
Selecting an incompatible stage/axis type could result in reduced velocity and/or
resolution.

Rev L Jun 2021Page 9
Chapter 4 Operation
6) Click the arrow to the right of the window and select your actuator type (e.g. HS
BSC FW103 Filter Wheel) from the list displayed.
Fig. 4.2 Select Actuator Settings Window - 2
7) Click OK.
8) The server reads in the stage and controller information automatically.
Refer to the handbook for the associated controller for more information on driving
the actuator/stage.
Note
To ensure correct operation, it is important to select the correct stage and axis type.
If using a BSC20x series controller, select the ‘HS BSC FW103’ option.
If using a KST101 controller, select the ‘HS TST FW103’ option.
If using a legacy BSC0xx or BSC10x controller, or a TST001 K-Cube driver, choose
the option without the ‘HS’ prefix.
Selecting an incompatible stage/axis type could result in reduced velocity and
resolution.

Page 10 16403-D01
FW103 Motorized Filter Wheel
4.2.2 Using the APT Software
1) Shut down all applications using the APT server (e.g. APT User or your own
custom application).
2) Run the APT Config utility - Start/Programs/Thorlabs/APT Config/APT Config.
3) From the 'APT Configuration Utility' window, click the 'Stage' tab.
4) In the ‘Motor’ field, select the serial number of the stepper motor controller to be
configured (this number can be found on the rear panel of the controller unit)..

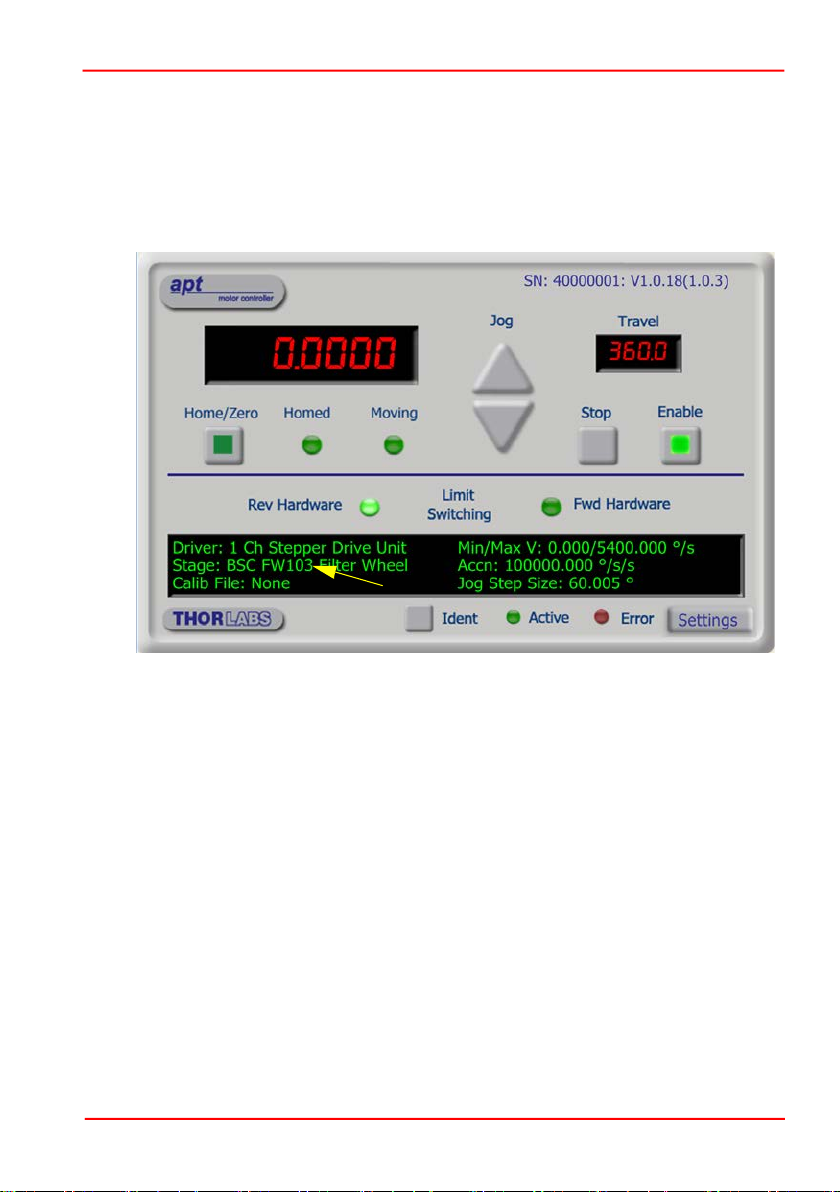

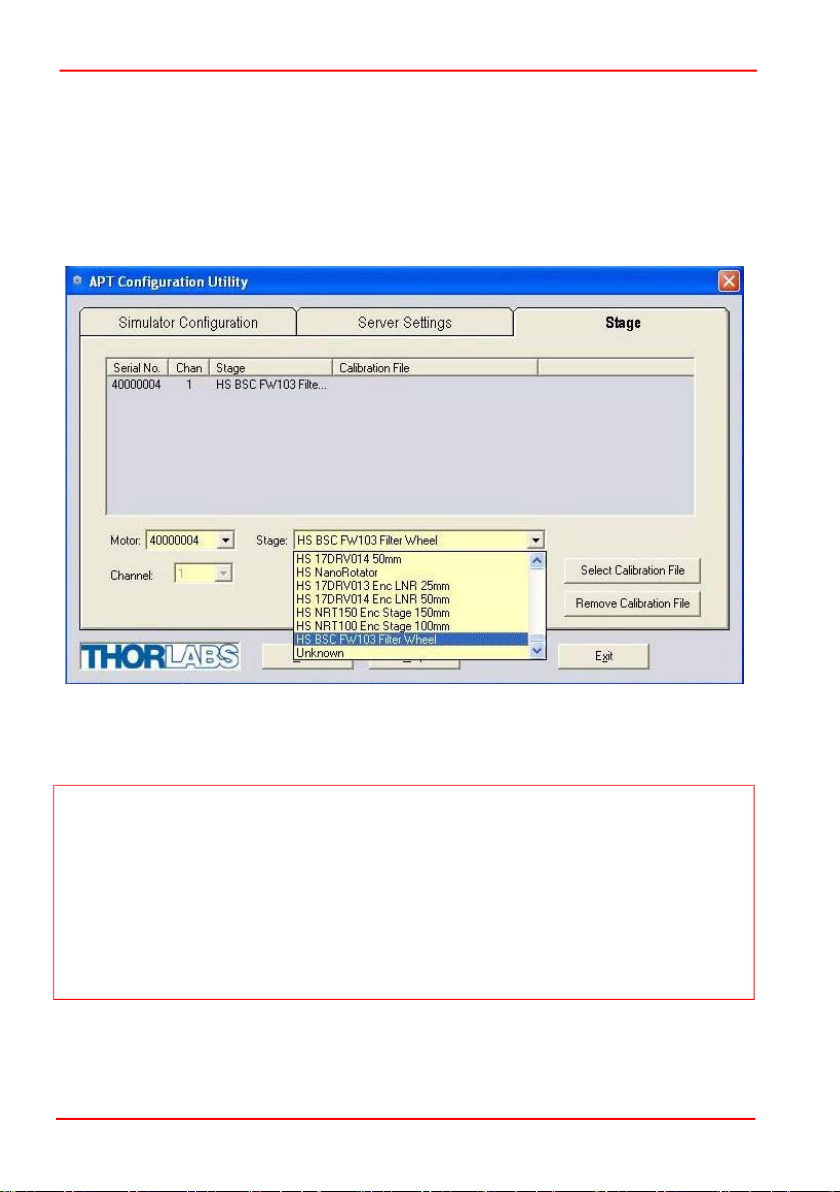

Fig. 4.3 APT Configuration Utility - Stage Tab
5) In the ‘Stage’ field, select your actuator type from the list displayed
(e.g. HS BSC FW103).
6) Click the 'Add Stage Association' button.
7) The FW103 Filter Wheel and driver unit serial number are added to the list in the
main window as shown in Fig. 4.3. A default configuration is set at the factory and
stored in the non-volatile memory of the motor controller. The server reads in the
Note
To ensure correct operation, it is important to select the correct stage and axis type.
If using a BSC20x series controller, select the ‘HS BSC FW103’ option.
If using a KST101 controller, select the ‘HS TST FW103’ option.
If using a legacy BSC0xx or BSC10x controller, or a TST001 K-Cube driver, choose
the option without the ‘HS’ prefix.
Selecting an incompatible stage/axis type could result in reduced velocity and
resolution.

Rev L Jun 2021Page 11
Chapter 4 Operation
stage and controller information on start up. See the handbook supplied with the
stepper motor controller for further information.
8) Click ‘Exit’ to sut down the APTConfig utility.
9) Start the APTUser utility - Start/Programs/Thorlabs/APT User/APT User.
10) The APT server reads in the stage and controller information on boot up and the
settings made above are displayed in the ‘Setting’ window as shown in Fig. 4.4.
Fig. 4.4 APTUser GUI screen
See the APTConfig and APTUser online help files for further information on the use
of these utilities.
4.3 Parameters
The procedure detailed in Section 4.2. loads default parameter values for the filter
wheel. To maximise performance, some tuning of these values may be necessary.
‘Maximum Speed’ and ‘Acceleration’ settings can be adjusted using the ‘Settings’
button on the GUI panel. If the inertia of the loaded filter wheel is too large for a given
acceleration or speed setting, then the wheel will stall. A stall can be detected audibly
or visually, or it can be detected through the APT software. The ‘FWD Hardware’ LED
in the GUI panel is connected to a Hall effect switch within the filter wheel. Six small
magnets are fitted to the rotating wheel, which only operate the Hall switch when the
wheel is at a correct position.

Page 12
FW103 Motorized Filter Wheel
Appendix A Specifications
Parameter Value
General Specifications
Operating Temperature -20°C to +40°C (Motor Specification Only)
Transition Time Between
Filters BSC201 Controller: 55 to 60ms
KST101 Driver: 250ms
Motor Specifications
Step Angle 1.8° (50 poles & ±2 phases for 360°/200 steps)
Step Accuracy 5%
Rated Phase Current 1 A
Phase Resistance 4.6 
Phase Inductance 10.6 mH
Holding Torque 23.1 N.cm
Detent Torque 1.7 N.cm

Rev L Jun 2021Page 13
Chapter 4 Operation
Appendix B Motor Pin Out Details
B.1 Motor Connector Pin Out
The Motor cable is terminated in a 15 way D-type connector, which provides
connection to the motor controller. The pin functions are detailed in Fig. B.1.

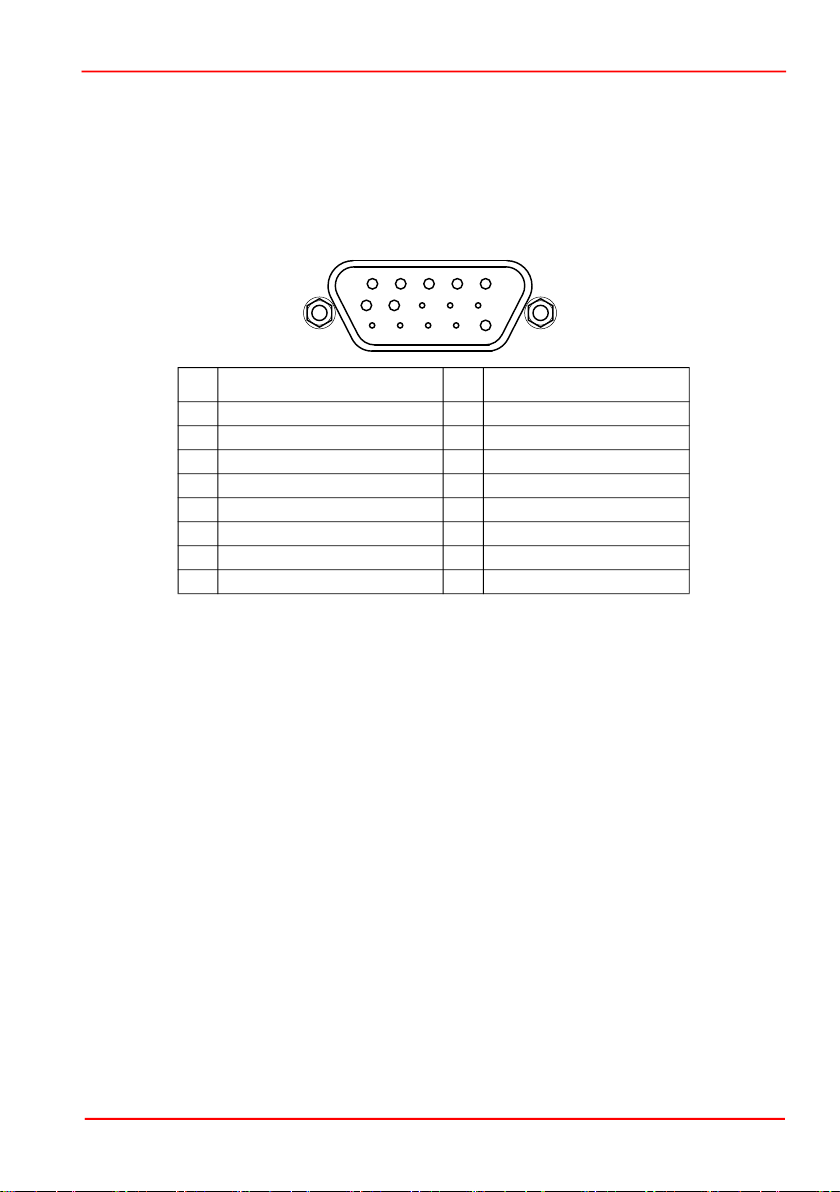

Fig. B.1 Motor Connector Pin Out Details
Pin Description Pin Description
1 Limit Switch Ground/ 9
2 Not Connected 10 + 5V DC
3 C/W Limit Switch 11
4 Phase B -ve 12
5 Phase B +ve 13 + 5V DC
6 Phase A -ve 14
7 Phase A +ve 15 Ground/Earth
8
5
10
11 15
6
1

Page 14
FW103 Motorized Filter Wheel
Appendix C Regulatory
C.1 Declarations Of Conformity
C.1.1 For Customers in Europe
See Section C.2.
C.1.2 For Customers In The USA
This equipment has been tested and found to comply with the limits for a Class A
digital device, persuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by the company could void the
user’s authority to operate the equipment.

Page 15
FW103 Motorized Filter Wheel

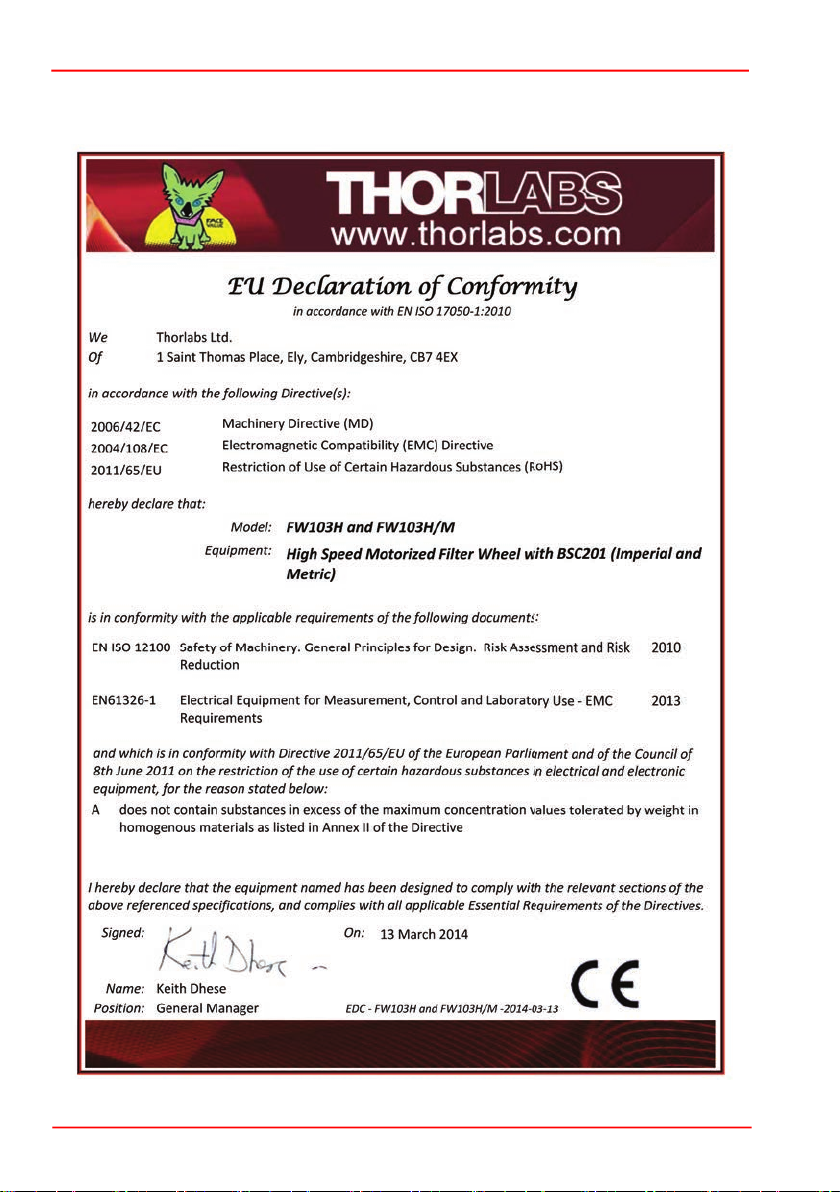

C.2 CE Certificate

Page 16 16403-D01
FW103 Motorized Filter Wheel
Chapter 4 Thorlabs Worldwide Contacts
For technical support or sales inquiries, please visit us at www.thorlabs.com/contact
for our most up-to-date contact information.
Thorlabs verifies our compliance with the WEEE (Waste Electrical and Electronic
Equipment) directive of the European Community and the corresponding national
laws. Accordingly, all end users in the EC may return "end of life" Annex I category
electrical and electronic equipment sold after August 13, 2005 to Thorlabs, without
incurring disposal charges. Eligible units are marked with the crossed out "wheelie
bin" logo (see right), were sold to and are currently owned by a company or institute
within the EC, and are not dissembled or contaminated. Contact Thorlabs for more
information. Waste treatment is your own responsibility. "End of life" units must be
returned to Thorlabs or handed to a company specializing in waste recovery. Do not
dispose of the unit in a litter bin or at a public waste disposal site.
USA, Canada, and South America
Thorlabs, Inc.
[email protected]
[email protected]
Europe
Thorlabs GmbH
[email protected]
France
Thorlabs SAS
[email protected]
Japan
Thorlabs Japan Inc.
[email protected]
UK and Ireland
Thorlabs Ltd.
[email protected]
[e-mail]
Scandinavia
Thorlabs Sweden AB
[email protected]
Brazil
Thorlabs Vendas de Fotônicos Ltda.
[email protected]
China
Thorlabs China
[email protected]

www.thorlabs.com
