HEATED ASPHALT DISTRIBUTOR
Owner’s Manual
Version 2.1
Issue Date: June 2019
Effective Date: January 2018
Version
Date
Changes
Approval
1.0
Original Issue
2.0
4/19
New Format and Updates
DS
2.1
6/19
Updated Wiring Diagrams
EK

Table of Contents
CORRESPONDENCE ..........................................................................................................................................................................................................2
SealMaster® LIMITED WARRANTY .................................................................................................................................................................................. 3
SAFETY PRECAUTIONS AND CAUTIONS ........................................................................................................................................................................... 4
PRECAUTIONS .............................................................................................................................................................................................................. 4
CAUTIONS .................................................................................................................................................................................................................... 4
FIRST AID...................................................................................................................................................................................................................... 5
OPERATING INSTRUCTIONS.............................................................................................................................................................................................6
HEATING THE MATERIAL -1 .........................................................................................................................................................................................6
STARTING THE ENGINE ................................................................................................................................................................................................8
PUMPING MATERIAL - 2 .............................................................................................................................................................................................. 9
SPRAY BAR - 3 ............................................................................................................................................................................................................ 11
DIESEL FLUSH - 4 ........................................................................................................................................................................................................ 13
MAINTENANCE TIPS - 5.............................................................................................................................................................................................. 13
OPERATING INSTRUCTIONS WITH HYDRAULIC DRIVE .................................................................................................................................................. 15
HEATING THE MATERIAL - 1....................................................................................................................................................................................... 15
CHECKLIST.................................................................................................................................................................................................................. 17
BEFORE STARTING THE ENGINE.................................................................................................................................................................................17
STARTING THE ENGINE .............................................................................................................................................................................................. 18
PUMPING MATERIAL - 2 ............................................................................................................................................................................................ 19
SPRAY BAR - 3 ............................................................................................................................................................................................................ 21
DIESEL FLUSH - 4 ........................................................................................................................................................................................................ 23
MAINTENANCE TIPS - 5.............................................................................................................................................................................................. 23
PARTS LIST ................................................................................................................................................................................................................. 25
HEATED TACK TANK MACHINE MAINTENANCE ............................................................................................................................................................27
MAINTENANCE SCHEDULE......................................................................................................................................................................................... 27
TROUBLESHOOTING GUIDE ....................................................................................................................................................................................... 28
WIRING DIAGRAMS ....................................................................................................................................................................................................... 29
ELECTRIC BRAKES AND RUNNING LIGHTS.................................................................................................................................................................. 29
TANK CAPACITY CHART.................................................................................................................................................................................................. 30
MATERIAL DEPTH AND GALLON VOLUME ................................................................................................................................................................. 30
ROPER 1-1/4” PUMP ...................................................................................................................................................................................................... 31
PARTS LIST ................................................................................................................................................................................................................. 31
PUMP DIAGRAM ........................................................................................................................................................................................................ 32
ROPER 2” PUMP.............................................................................................................................................................................................................33
PARTS LIST ................................................................................................................................................................................................................. 33
PUMP DIAGRAM ........................................................................................................................................................................................................ 34

2
`ThorWorks Industries, Inc.
Purchased by __________________________ Model NO. _______________________ Company Name _______________________ Serial NO. _______________________ Address ________________________________ Acceptance Date ________________ City _____________ State______ Zip _______
CORRESPONDENCE
All Correspondence regarding this equipment, as well as general correspondence should be addressed to:
ThorWorks Industries, Inc.
PO Box 2277
Sandusky, OH 44870
In referring to the equipment, kindly state the Model Number, Serial Number and any part number involved
`

3
SealMaster® LIMITED WARRANTY
SealMaster warrants that its products are of quality material and workmanship. SealMaster agrees to replace,
within a period of one (1) year from date of delivery, or at its option, repair, without charge, any part of their
manufacture which proved defective. The repair or replacement will be free of charge F.O.B. Sandusky, Ohio,
proving the damaged part or parts are returned, freight prepaid, to SealMaster and investigation show such
repair or replacement is made necessary by an inherent defect of material or workmanship.
It is hereby understood that engines, motors, pumps, or other components purchased by SealMaster for use
on its equipment are not warranted by SealMaster and are sold only with the standard warranty of the
manufacturer of that component.
SealMaster will make no allowances for repairs or alterations completed by outside sources unless
authorization is in writing and approved by an authorized SealMaster representative.
Any claims for defective material or workmanship must be made prior to the expiration of thirty (30) days
from the date failure occurs, and in all cases prior to the expiration of the warranty period of one (1) year. It is
the intent of this paragraph to limit SealMaster’s liability solely to the cost of replacement parts, F.O.B.
factory, or at the option of SealMaster to repair of the defective part or parts. No allowances for damages, lost
time, or any other claim will be recognized.
This warranty is null and void if other than genuine SealMaster parts are used.
SealMaster is constantly striving to improve their products. Changes in design and improvement will be made
whenever the manufacturer believes the efficiency of the product will be improved, without incurring any
obligation to incorporate such improvements in any machines which have been shipped or are in service.
In an effort to continue to improve product quality, SealMaster reserves the right to change specifications
without notice.
Any modification or alteration of this machine without prior approval of the manufacturer may void this
warranty.

4
SAFETY PRECAUTIONS AND CAUTIONS
PRECAUTIONS
•The operator must be aware that he is working with a mechanical device,
that contains HOT materials, and must exercise caution at all times.
•Always wear eye and ear protection, long sleeve shirt, and gloves.
•Be aware of all CAUTION, WARNING, DANGER signs on the machine.
•All employees should be trained in Emergency Burn First Aid.
•Read all Owners Manuals that come with this Machine.
•Make sure the operator is familiar with machine operation.
•Know the procedures for safe operation of propane-fired devices.
•Read and understand the MSDS Sheets for the material you are applying.
•Replace any hoses that show signs of wear, fraying or splitting.
•Be sure all fittings and joints are tight and leak proof.
•Do not operate the machine in the rain or closed building or confined area.
•Do not do maintenance work on the machine while in operation.
•The machine should not be left unattended when running.
CAUTIONS
•Never refuel engine while the burner is lit.
•Never expose the material to an open flame.
•Keep hands, feet, and clothing away from moving parts.
•Do not operate the machine without all guards in place.
•Do not point the spray nozzle at another person.
•Wear eye protection when operating the spray wand or spray bar.

5
SAFETY PRECAUTIONS AND CAUTIONS

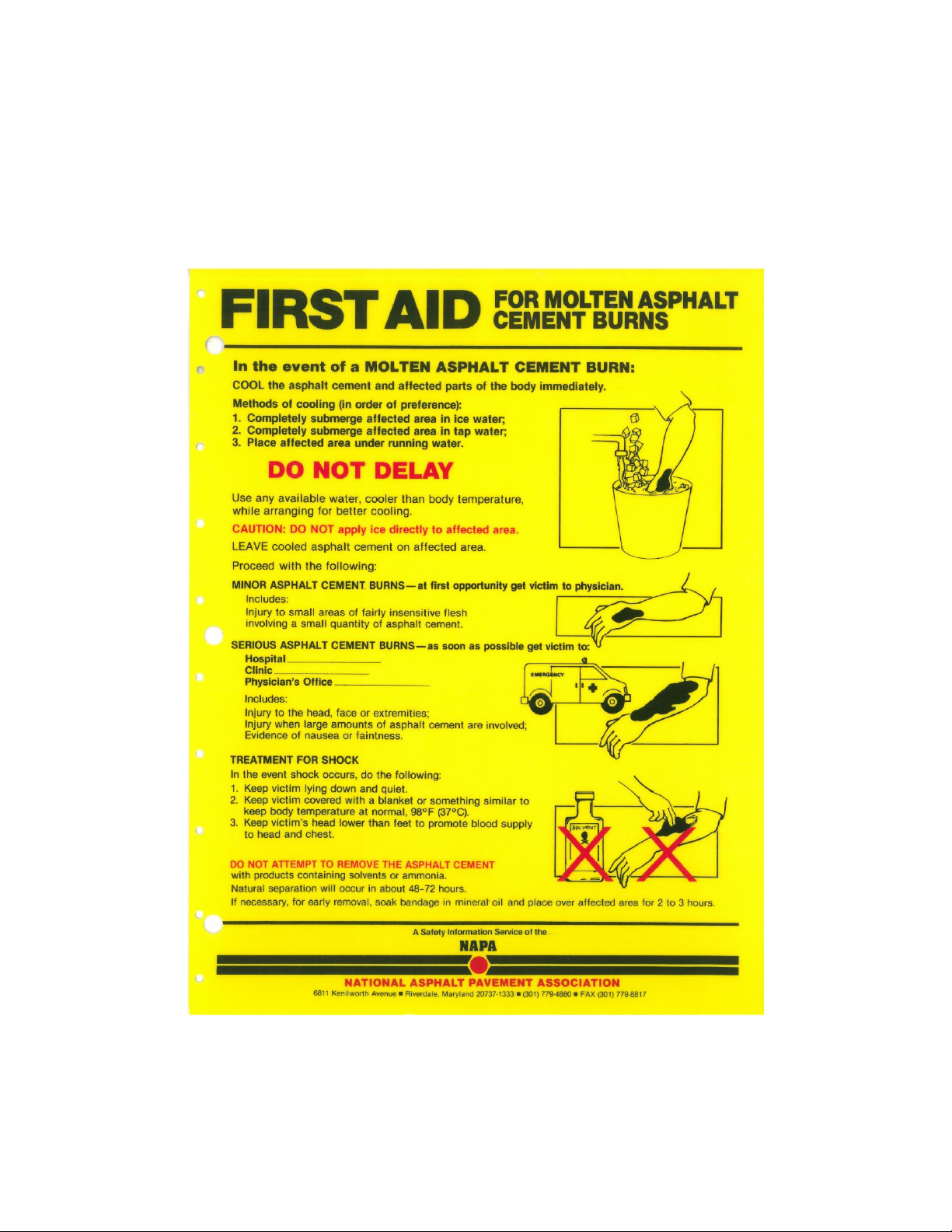

FIRST AID

6
HEATED ASPHALT DISTRIBUTOR
APPLIES TO ALL TRAILER AND SKID VERSIONS
OPERATING INSTRUCTIONS

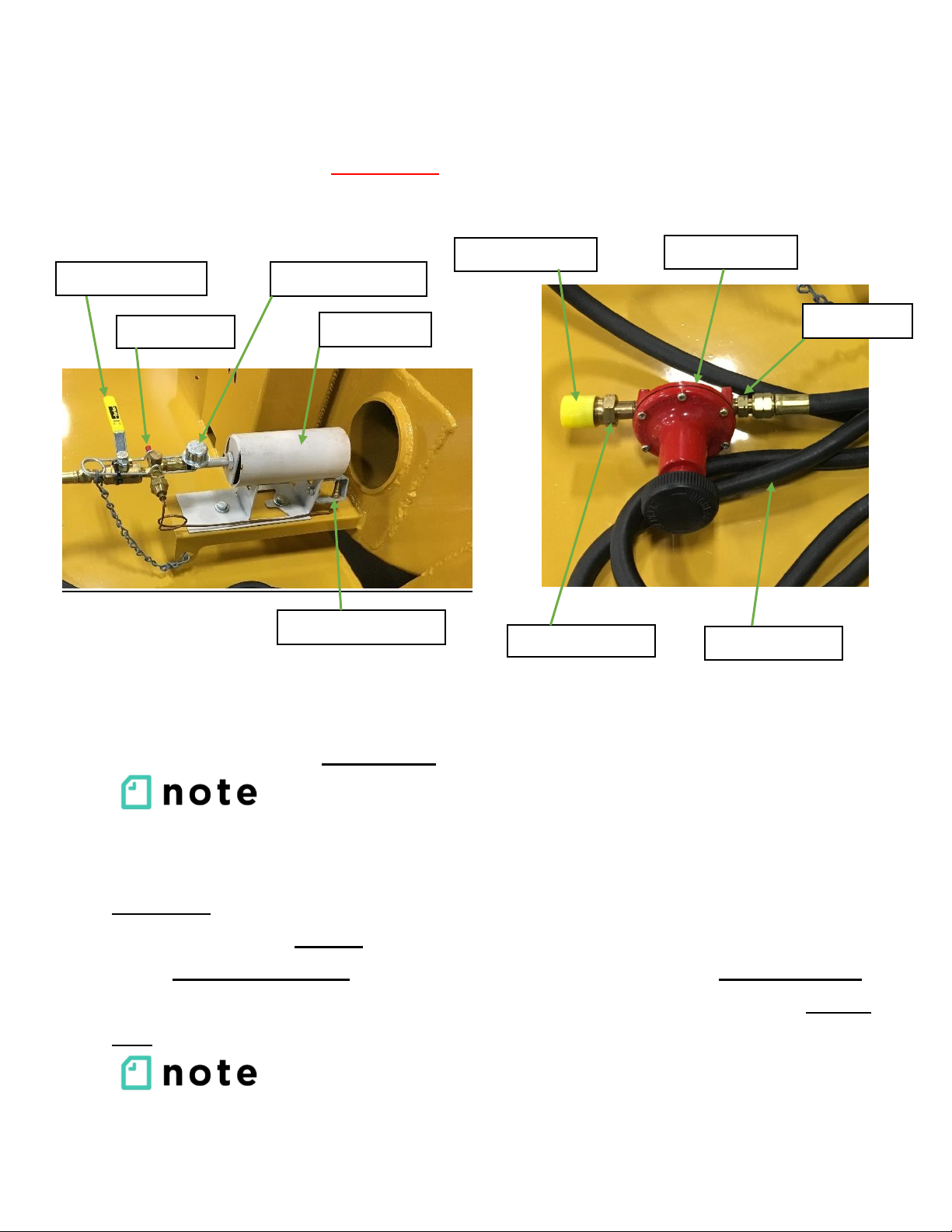

PICTURE –1
HEATING THE MATERIAL -1
1. Attach the threaded nipple inlet #1 to your LP Gas tank.
The burner uses vapor propane, NOT liquid.
2. Slowly open the valve on the LP Gas Tank. Opening too fast can cause a check
valve to slam closed, reducing the available flow of gas.
3. Regulator #3 is pre-set for 30 psi. Turn the knob counter-clockwise to lower
the pressure. The burner #11, is rated for maximum heat output at 30 psi.
Open gas shut-off valve #7 slightly, depress the red push on gas pilot valve
#8. This allows gas to flow thru the burner, at the same time use the striker
flint #10 to produce a spark. Strike repeatedly until the gas ignites.
If the gas does not light within 5 seconds, release the red
push button and wait 10 minutes before trying again.
8GAS PILOT
10 STRIKER FLINT
1NIPPLE INLET
2NUT & NIPPLE
3REGULATOR
5COUPLER
7GAS SHUT-OFF
11 BURNER
9THERMOCOUPLE
6LP GAS HOSE

7
HEATED ASPHALT DISTRIBUTOR
APPLIES TO ALL TRAILER AND SKID VERSIONS
OPERATING INSTRUCTIONS
HEATING THE MATERIAL - 1 cont.
Once you have ignition, you must continue to depress the red push button on gas
pilot valve #8 for at least 10 seconds. This allows the thermocouple #9 to heat up,
allowing the gas valve to continue the gas flow. If the flame stays on, then open
gas shut-off valve #7 all the way to get maximum heat from the burner.
If the flame goes out, you will need to start over with the lighting
process. Anytime you want to decrease the flame intensity, slightly close gas shut-
off valve #7.
4. The thermocouple #9 also acts as a safety. Should the flame go out because
of wind, the thermocouple immediately starts to cool off and stops the signal
to the gas valve, which then stops the flow of gas. This may take up to 30
seconds.
WAIT 10 MINUTES BEFORE TRYING TO RE-LIGHT THE
BURNER.
5. Monitor material temperature on thermometer #13. As the material reaches
the desired temperature you can slightly close gas shut-off valve #7 to
decrease the flame, or just shut off the valve completely.
NEVER DRIVE WITH THE BURNER LIT!!

8
HEATED ASPHALT DISTRIBUTOR
APPLIES TO ALL TRAILER AND SKID VERSIONS
OPERATING INSTRUCTIONS
STARTUP
STARTING THE ENGINE
NOTE: If equipped with optional hydraulic drive upgrade refer to pages 18-26
•Set the fuel shutoff and choke levers to the on position.
•Set the throttle lever at ½ open.
•Set the engine on/off switch to on position.
•Pull start the engine.
•It is important that when you are done running the engine that the
fuel shutoff lever is turned to the off position. This keeps gasoline from
mixing with oil as you are driving.
Refer to the engine manual.

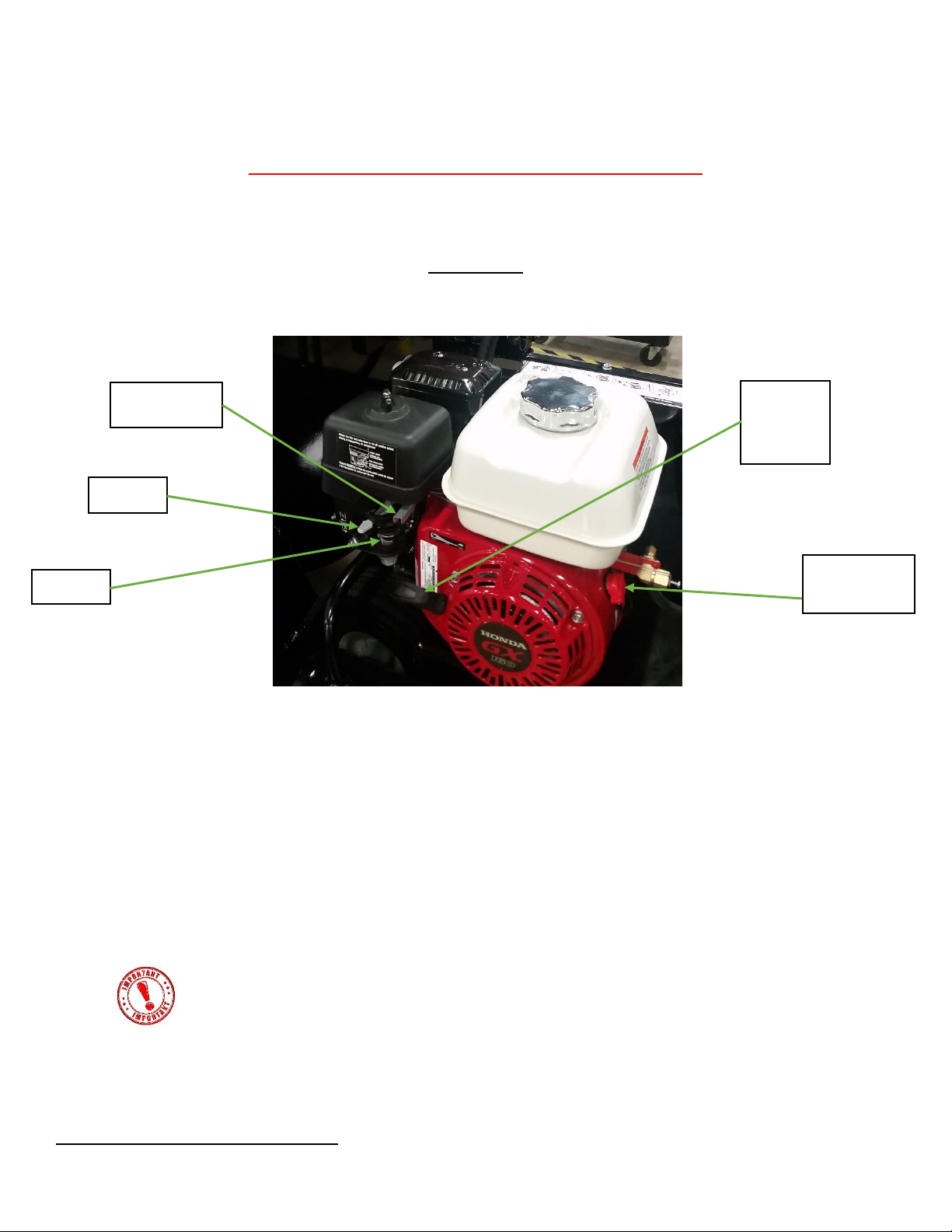

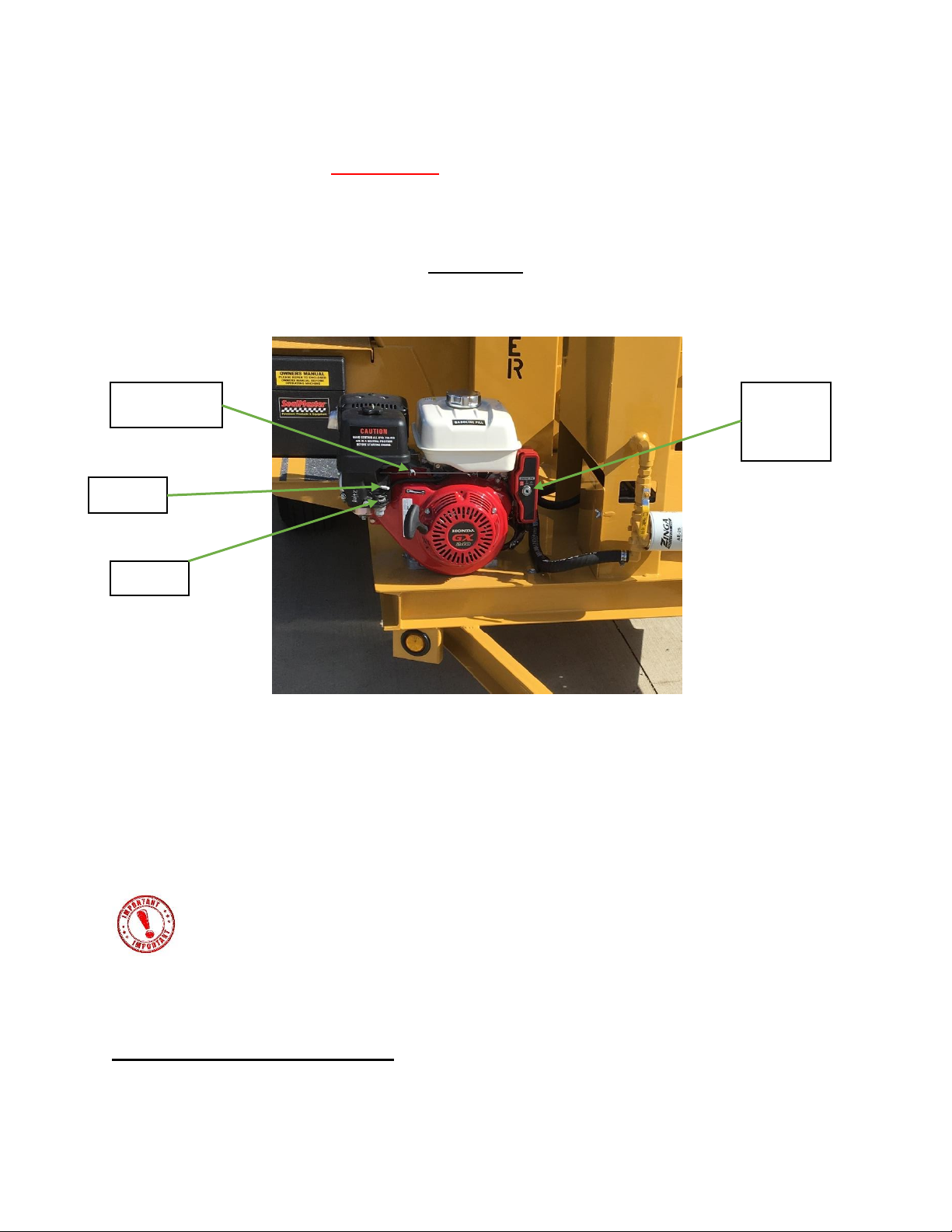

ENGINE
PULL
HANDLE
CHOKE
FUEL
THROTTLE
ON/OFF
SWITCH

9
HEATED ASPHALT DISTRIBUTOR
APPLIES TO ALL TRAILER AND SKID VERSIONS
OPERATING INSTRUCTIONS
PUMPING MATERIAL - 2
6. Open main tank valve #16 and recirculation valve #24. Close all other valves.
7. Start engine #23 only after reading the engine manual, provided with your
machine. Engine speed will determine the gallons per minute pumped.
8. Start by recirculating material. The material pump #22 draws material from
the tank, thru the basket strainer #17, thru the recirculation valve #24 and
into the top of the tank.
9. Uncoil the spray hose from the side hangars on the tank. Open spray hose
feed valve #25 and spray wand valve #27. Slowly start to close recirculation
valve #24. This will send some product down the spray hose and out the
wand spray tip 80/20 #28. Partially closing this valve allows you to adjust the
desired spray pressure.
NEVER CLOSE RECIRCULATION VALVE #24 COMPLETELY

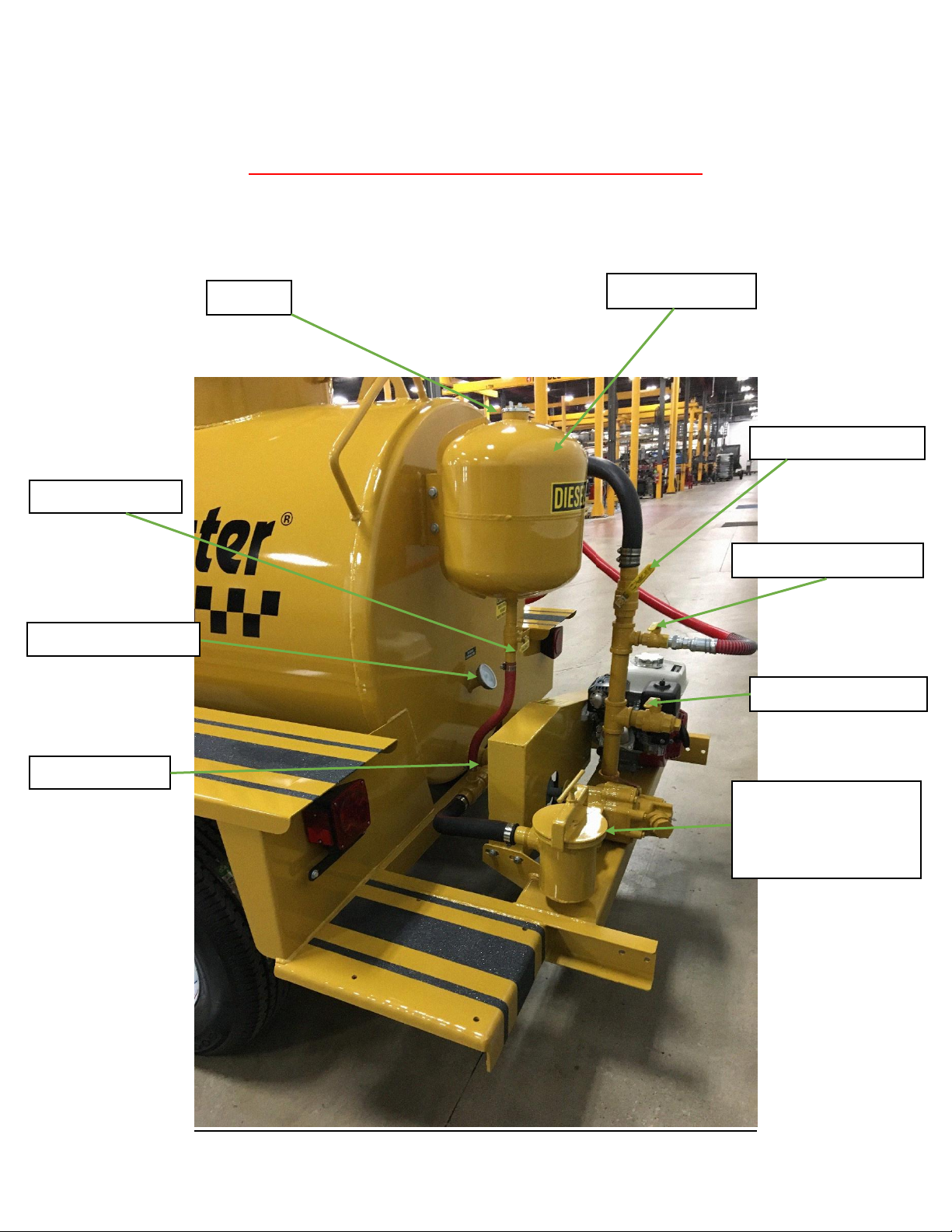

PICTURE - 2
23 ENGINE
17 BASKET STRAINER
ASSEMBLY
22 MATERIAL PUMP
38 SPRAY BAR FEED
13 THERMOMETER

10
HEATED ASPHALT DISTRIBUTOR
APPLIES TO ALL TRAILER AND SKID VERSIONS
OPERATING INSTRUCTIONS

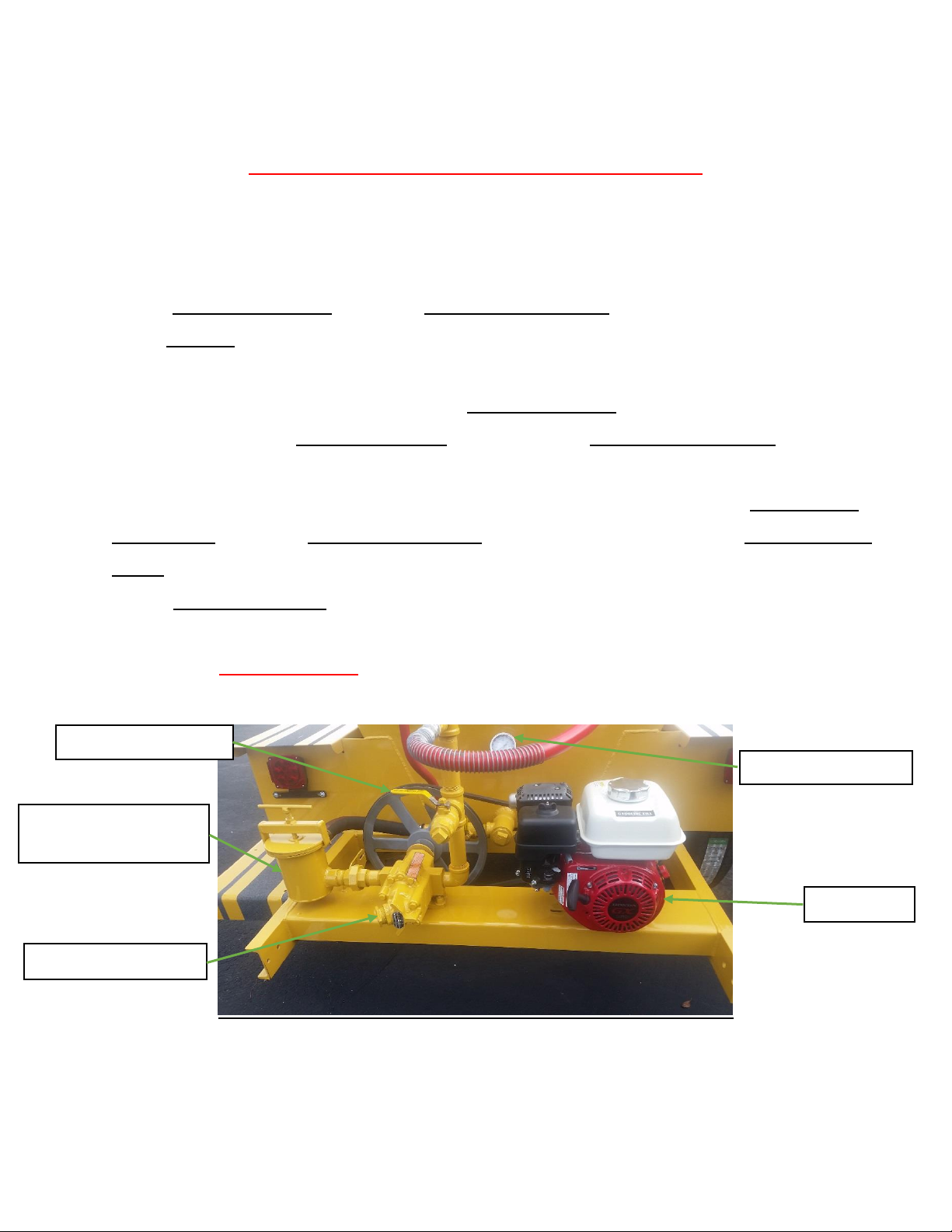

PICTURE - 3
24 RECIRCULATION
25 SPRAY HOSE FEED
12 DIESEL TANK
38 SPRAY BAR FEED
17 BASKET STRAINER
ASSEMBLY
39 BASKET
13 THERMOMETER
16 MAIN TANK
15 DIESEL FLUSH
14 CAP

11
HEATED ASPHALT DISTRIBUTOR
APPLIES TO ALL TRAILER AND SKID VERSIONS
OPERATING INSTRUCTIONS

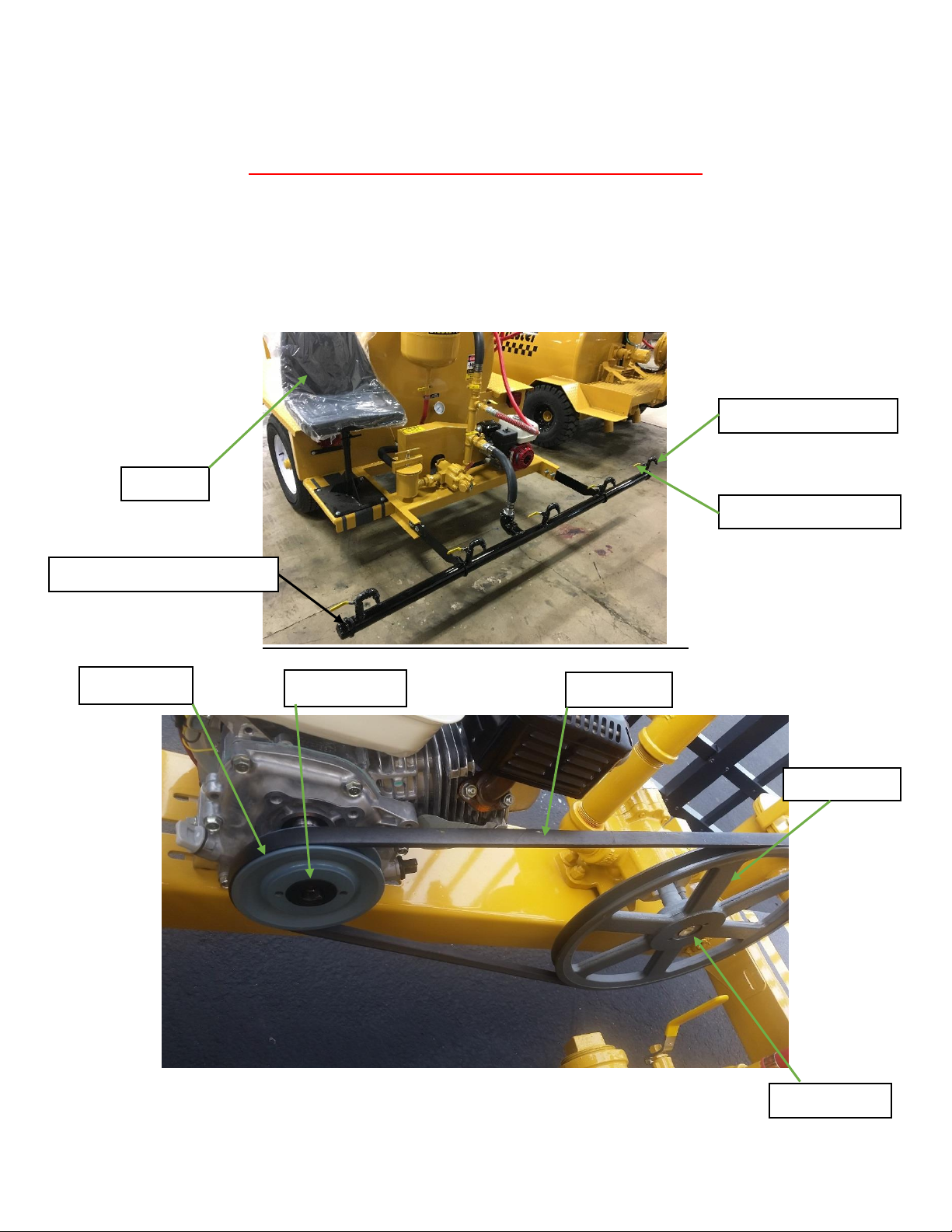

SPRAY BAR - 3
10. When using the spray bar #31, spray hose feed valve #25 and spray wand
valve #27 remain closed. Once you have recirculated product, slowly close
recirculation valve #24. Open spray tip valves #32 on the spray bar #31.
Position the machine, motion for the driver to start forward at approx. 4mph,
open spray bar feed valve #38,and also the (optional) spray bar lever, to
start spraying. This opens all of the spray tip valves #32 at the same time.
Once again, recirculation valve #24 determines spray pressure, adjust
accordingly.
11. The throttle on the engine #23 needs to be set to 3/4 or full position to
ensure there is enough speed is available for the material pump #22.
12. Run the pump pressure and speed at the lowest acceptable application
pressure to help reduce overspray.
13. You can control pressure by using the recirculation valve #24.
14. Close spray bar feed valve #38 or the (optional) spray bar lever when you
reach the end of your pass, leave all the pump controls set. The spray will
continue when you open the spray bar feed valve #38 or (optional) spray bar
lever.
15. Position the tires right next to the previous pass, this will give you the proper
overlap.
16. When finished, turn off the engine and close all valves and follow flushing
instructions below.

12
HEATED ASPHALT DISTRIBUTOR
APPLIES TO ALL TRAILER AND SKID VERSIONS
OPERATING INSTRUCTIONS
PICTURE - 4
19 SHEAVE
21 SHEAVE
40 BUSHING
18 BUSHING
20 V-BELT
32 SPRAY TIP VALVE
29 SEAT
28 SPRAY TIP 80/20
31 SPRAY BAR ASSEMBLY

13
HEATED ASPHALT DISTRIBUTOR
APPLIES TO ALL TRAILER AND SKID VERSIONS
OPERATING INSTRUCTIONS
DIESEL FLUSH - 4
17. Close main tank valve #16 and recirculation valve #24. Start engine #23.
18. Open diesel flush valve #15 on the bottom of the diesel tank #12.
19. Open spray hose feed valve #25 and spray wand valve #27 to flush the spray
hose and wand. To flush the spray bar open spray bar feed valve #38 or the
lever (optional) on the spray bar #31 to the open position. When done, turn
off the engine and close all open valves.
20. Use only diesel fuel for flushing purposes.
21. Remove the lid from the basket strainer #17 and clean the basket.
Anytime you notice the spray pressure is decreasing, the
basket strainer #17 probably needs to be cleaned. Make sure you close main
tank valve #16 before you remove the lid.
MAINTENANCE TIPS - 5
22. Adjust the V-belt #20 tension, by going halfway between the center of the
two pulleys and moving the belt up and down. It should move about ½”.
23. The material pump #22 has a mechanical seal, some leakage is normal. When
the seal plate cannot be tightened any more, the seal must be replaced.
24. The orifice is inside burner #11, needs to be cleaned occasionally. Soot and
spider webs can cause blockage of the flow of gas.
25. Always leave the LP gas hose #6 connected to a tank. If left
disconnected, insects will make their nest inside of it and block the flow of
gas.

14
HEATED ASPHALT DISTRIBUTOR
APPLIES TO ALL TRAILER AND SKID VERSIONS
OPERATING INSTRUCTIONS
PICTURE - 5

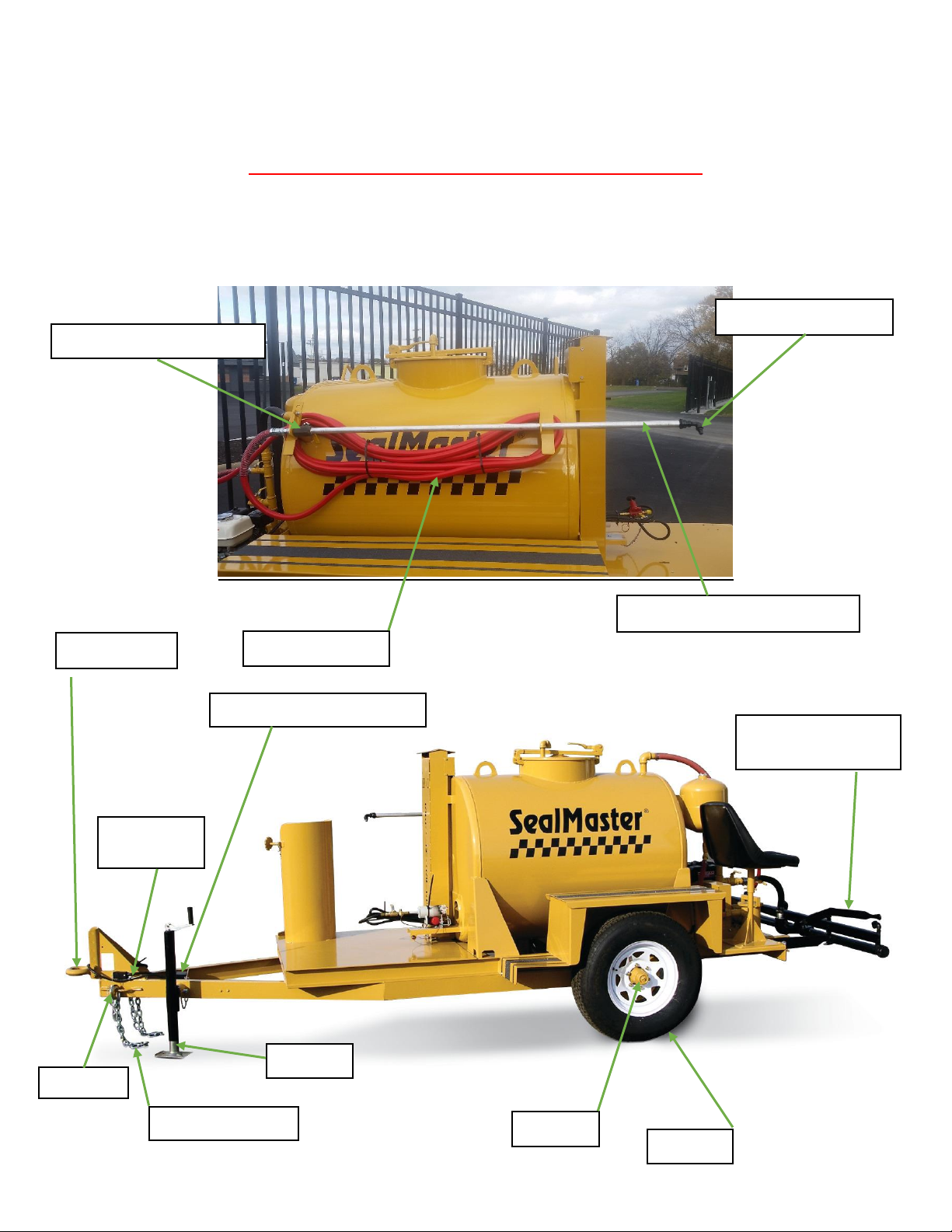

26 SPRAY HOSE
27 SPRAY WAND VALVE
28 SPRAY TIP 80/20
41 SPRAY WAND ASSEMBLY
34 TIRE
37 COUPLER
33 AXLE
35 SAFETY BREAK-AWAY
36 JACK
SPRAY BAR
LEVER-OPTIONAL
43 SAFETY CHAIN
45 TRAILER
PLUG
44 HOOK

15
HEATED ASPHALT DISTRIBUTOR
APPLIES TO OPTIONAL HYDRAULIC DRIVE VERSIONS
OPERATING INSTRUCTIONS WITH HYDRAULIC DRIVE
PICTURE –1
HEATING THE MATERIAL - 1
1. Attach the threaded nipple inlet #1 to your LP Gas tank.
The burner uses vapor propane, NOT liquid.
2. Slowly open the valve on the LP Gas Tank. Opening too fast can cause a check
valve to slam closed, reducing the available flow of gas.
3. Regulator #3 is pre-set for 30 psi. Turn the knob counter-clockwise to lower
the pressure. The burner #11, is rated for maximum heat output at 30 psi.
Open gas shut-off valve #7 slightly, depress the red push on gas pilot valve
#8. This allows gas to flow thru the burner, at the same time use the striker
flint #10 to produce a spark. Strike repeatedly until the gas ignites.
If the gas does not light within 5 seconds, release the red
push button and wait 10 minutes before trying again.
8GAS PILOT
10 STRIKER FLINT
1NIPPLE INLET
2NUT & NIPPLE
3REGULATOR
5COUPLER
7GAS SHUT-OFF
11 BURNER
9THERMOCOUPLE
6LP GAS HOSE

16
HEATED ASPHALT DISTRIBUTOR
APPLIES TO OPTIONAL HYDRAULIC DRIVE VERSIONS
OPERATING INSTRUCTIONS WITH HYDRAULIC DRIVE
HEATING THE MATERIAL - 1 cont.
Once you have ignition, you must continue to depress the red push button on gas
pilot valve #8 for at least 10 seconds. This allows the thermocouple #9 to heat up,
allowing the gas valve to continue the gas flow. If the flame stays on, then open
gas shut-off valve #7 all the way to get maximum heat from the burner.
If the flame goes out, you will need to start over with the lighting
process. Anytime you want to decrease the flame intensity, slightly close gas shut-
off valve #7.
4. The thermocouple #9 also acts as a safety. Should the flame go out because
of wind, the thermocouple immediately starts to cool off and stops the signal
to the gas valve, which then stops the flow of gas. This may take up to 30
seconds.
WAIT 10 MINUTES BEFORE TRYING TO RE-LIGHT THE
BURNER.
5. Monitor material temperature on thermometer #13. As the material reaches
the desired temperature you can slightly close gas shut-off valve #7 to
decrease the flame, or just shut off the valve completely.
NEVER DRIVE WITH THE BURNER LIT!!

17
HEATED ASPHALT DISTRIBUTOR
APPLIES TO OPTIONAL HYDRAULIC DRIVE VERSIONS
OPERATING INSTRUCTIONS WITH HYDRAULIC DRIVE
STARTUP
CHECKLIST
•Check engine oil level. Follow manufacturers guidelines as to type and
frequency of changes.
•Check hydraulic oil level. Use grade AW68 hydraulic oil.
•Fill fuel tank with gasoline for the engine.
BEFORE STARTING THE ENGINE
Make sure the material pump control valve #46 is in the neutral position.

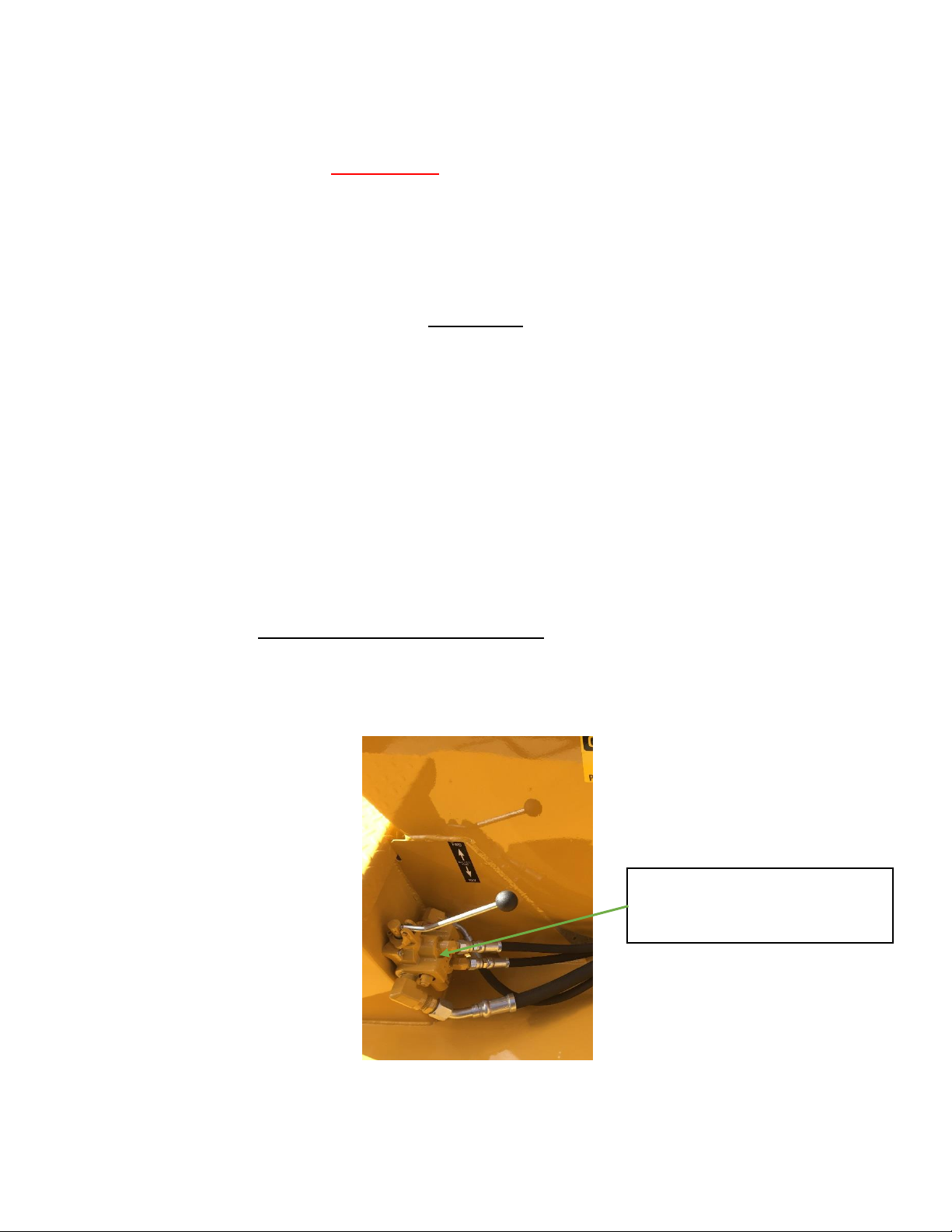

46 MATERIAL PUMP
CONTROL VALVE

18
HEATED ASPHALT DISTRIBUTOR
APPLIES TO OPTIONAL HYDRAULIC DRIVE VERSIONS
OPERATING INSTRUCTIONS WITH HYDRAULIC DRIVE
STARTUP
STARTING THE ENGINE
•Set the fuel shutoff and choke levers to the on position.
•Set the throttle lever at ½ open.
•Turn the engine switch to the start position.
•It is important that when you are done running the engine that the
fuel shutoff lever is turned to the off position. This keeps gasoline from
mixing with oil as you are driving.
Refer to the engine manual.
ENGINE
SWITCH
CHOKE
FUEL
THROTTLE
