TiGHT AV VC-C101U-ETH User manual

User Manual
VC-C101U-ETH
USB-C to HDMI2.0 converter with USB and Ethernet
All Rights Reserved
Version: VC-C101U-ETH_2021V1.0

USB-C to HDMI2.0 converter with USB and Ethernet
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated by
November, 2021. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

USB-C to HDMI2.0 converter with USB and Ethernet
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
⚫Unpack the equipment carefully and save the original box and packing material
for possible future shipment.
⚫Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
⚫Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
⚫Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
⚫Refer all servicing to qualified service personnel.
⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
⚫Do not put any heavy items on the extension cable in case of extrusion.
⚫Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
⚫Install the device in a place with fine ventilation to avoid damage caused by
overheat.
⚫Keep the module away from liquids.
⚫Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the module
immediately.
⚫Do not twist or pull by force ends of the cable. It can cause malfunction.
⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
to the device before cleaning.
⚫Unplug the power cord when left unused for a long period of time
⚫Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

USB-C to HDMI2.0 converter with USB and Ethernet
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Packing List .......................................................................................................2
1.3 Customer Service ..............................................................................................2
2. Specification ...............................................................................................................3
3. Panel Description........................................................................................................4
3.1 Front Panel ........................................................................................................4
3.2 Rear Panel.........................................................................................................4
4. System Connection.....................................................................................................5
5. Panel Drawing ............................................................................................................6

USB-C to HDMI2.0 converter with USB and Ethernet
1
1. Product Introduction
Thanks for choosing the VC-C101U-ETH USB-C to HDMI converter. This converter is
designed to convert 4K@60Hz 4:4:4(max) DisplayPort alt mode signal over USB-C
video input to 4K@60Hz 4:4:4(max) HDMI 2.0 video output. For the USB-C input
interface, it also supports USB 3.1 Gen2 data transfer, Gigabit LAN and 60W fast-
charging.
The converter includes three USB 3.1 device ports and one Ethernet Gigabit LAN port.
1.1 Features
⚫Input supports DisplayPort Alt mode up to 4K@60Hz 4:4:4 using DisplayPort 1.4
(DisplayPort 1.2 is limited to 4K@30Hz 4:4:4).
⚫Output supports HDMI 2.0, 4K@60Hz 4:4:4.
⚫HDCP 2.3 support.
⚫USB-C input supports 60W USB Power Delivery.
⚫Supports USB3.1 Gen2 (up to10Gbit/s) data transfer via USB-C.
⚫3x USB 3.1 device ports for camera, keyboard and mouse.
⚫Ethernet Gigabit LAN pass-through via USB-C
⚫No software drivers required - Plug and Play.

USB-C to HDMI2.0 converter with USB and Ethernet
2
1.2 Packing List
⚫1x VC-C101U-ETH
⚫2x Mounting Ears with 4 Screws
⚫4x Plastic Cushions
⚫1x Power Adapter (DC 24V/5A)
⚫1x User Manual
1.3 Customer Service
We provide limited warranty for the product within five years counting from date of
purchase (The purchase invoice shall prevail).
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

USB-C to HDMI2.0 converter with USB and Ethernet
3
2. Specification
Video Input
Input
(1) USB
Input Connector
(1) USB-C
Input Resolution
Up to 4K@60Hz 4:4:4
USB Standard
USB3.1 Gen2
Video Output
Output
(1) HDMI
Output Connector
(1) Female type-A HDMI
HDMI Output Resolution
Up to 4K@60Hz 4:4:4
HDMI Standard
2.0b
HDCP Version
2.3 compliant (backwards compatible)
USB
Connector
(3) USB-A, (1) USB-C
USB Standard
(3) USB-A: USB 3.1 Gen 1, 5V1A External Power Supply
(1) USB-C: USB 3.1 Gen 2, 60W External Charging
Ethernet
Standard
10/100/1000Base-T
General
Bandwidth
18Gbps
Operation Temperature
-10 ~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humility
10% - 90%
Power Supply
Input:100V~240V AC; Output: 24V DC 5A
Power Consumption
68W(Max)
Dimension (W*H*D)
145mm x 22mm x 80mm
Net Weight
270g

USB-C to HDMI2.0 converter with USB and Ethernet
4
3. Panel Description
3.1 Front Panel
①Power LED: The LED illuminates green when power is applied.
②CHARGING: The LED illuminates green when USB-C is charging an external
device.
3.2 Rear Panel
①ETHERNET: 1x RJ45 port, connect to Ethernet.
②USB IN: 3x USB 3.1 device ports for camera, keyboard and mouse.
③USB-C IN: 1x USB-C port, connect to video source.
④HDMI OUT: 1x HDMI-A port, connect to HDMI display.
⑤DC 24V: DC barrel port to connect a power adapter.

USB-C to HDMI2.0 converter with USB and Ethernet
5

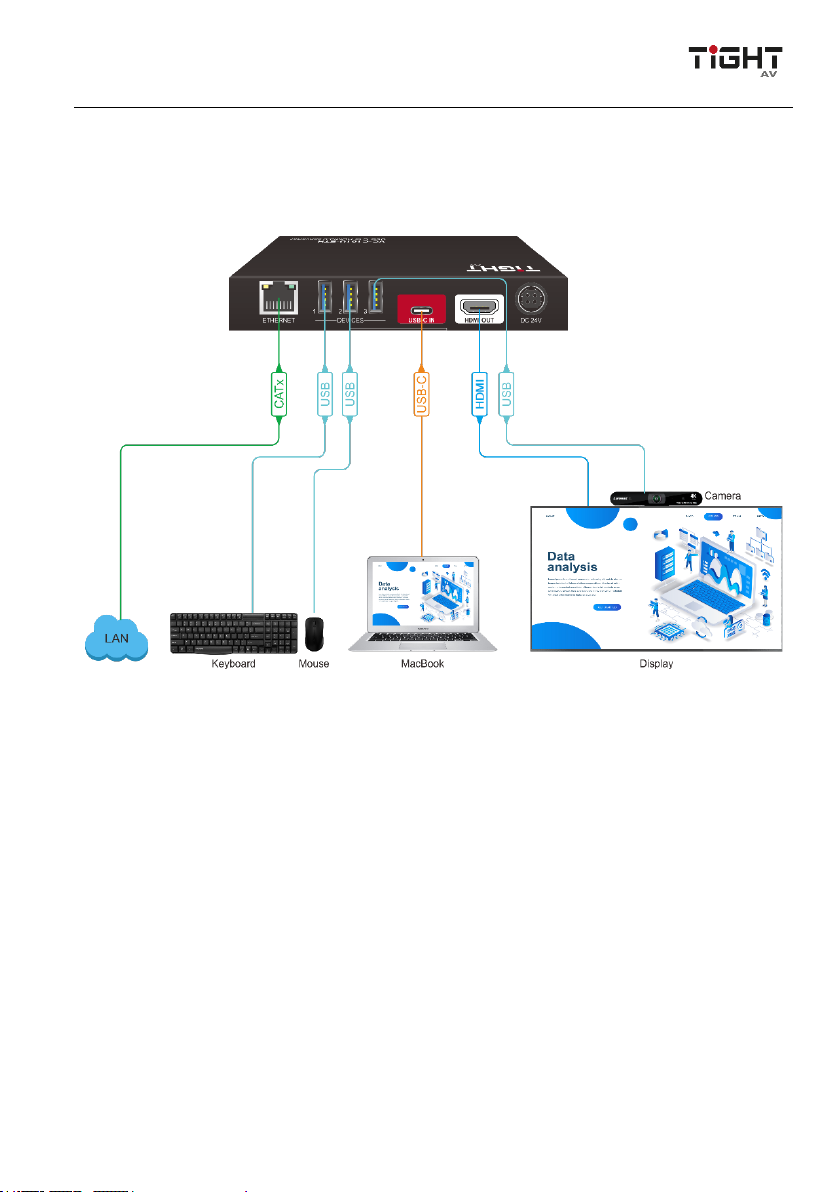

4. System Connection
The following diagram illustrates typical input and output connections that can be
utilized with the VC-C101U-ETH:

USB-C to HDMI2.0 converter with USB and Ethernet
6
5. Panel Drawing
