Timberk T-PAC07-P09E User manual

ЭЛЕКТРИЧЕСКИЙ КОНДИЦИОНЕР ВОЗДУХА МОБИЛЬНОГО ТИПА
PORTABLE TYPE ELECTRIC AIR CONDITIONER
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
INSTRUCTION MANUAL
Модели/Models:
T-PAC07-P09E
T-PAC09-P09E

IM2019
2
1. IMPORTANT INFORMATION .............................................................................................. 3
2. SAFEGUARDS ..................................................................................................................... 3
3. APPOINTMENT OF THE DEVICE ....................................................................................... 5
4. DEVICE DESCRIPTION ....................................................................................................... 5
5. DELIVERY SET .................................................................................................................... 6
6. SPECIFICATIONS ................................................................................................................ 6
7. DEVICE INSTALLATION ...................................................................................................... 7
8. DEVICE CONTROL ............................................................................................................ 10
9. OPERATING MODES ........................................................................................................ 11
10. MAINTENANCE.................................................................................................................. 12
11. WIRING DIAGRAMS .......................................................................................................... 15
12. TROUBLESHOOTING ........................................................................................................ 15
13. UTILIZATION RULES ......................................................................................................... 16
14. TRANSPORTATION AND STORAGE ................................................................................ 17

IM2019
3
Dear Customer!
We thank you for your wise choice and purchase of a portable air conditioner. It will serve you for
a long time.
1. IMPORTANT INFORMATION
The appliance is designed for air cooling, dehumidifying, ventilating in domestic premises. The
manufacturer reserves the right to make minor changes to the design of the product without
additional notice that do not fundamentally affect its safety, performance and functionality. There
may be some misprints in text and digital notations in the present manual. In case after reading
of this manual you have any questions concerning work and operation of the appliance, please,
refer to a shop assistant or to a specialized service center for further explanations. The device
has a label with all the needed technical data and other useful information about the appliance.
Use the appliance only for its intended purposes indicated in this manual
2. SAFEGUARDS
When using an electric air conditioner, a number of safety precautions must be observed.
Improper operation by ignoring safety precautions can result in damage to the health of the user
and other people, as well as damage to their property.
• Read these instructions carefully before using the appliance to avoid damage during
use.
• Before starting up for the first time, check that the specifications on the product comply
with the power supply specifications.
• Do not use outdoors or in high humidity.
• To avoid damage to the air conditioner and cancellation of your warranty, put the device
in an upright position at least 2 hours before use.
• If after reading the instructions you still have questions about the operation and
operation of the device, contact the seller or a specialized service center for
clarification.
• On the product there is a label on which all the necessary technical data and other
useful information about the device are indicated.
• Use the appliance only for the purpose specified in this manual.
• Before installing a mobile air conditioner without connecting it to the mains, check and
make sure that the power outlet for the air conditioner has a ground contact and is
properly grounded.
• Make sure that the power cord does not touch sharp edges or hot surfaces.
• The manufacturer reserves the right to make minor changes to the design of the
product without additional notice that do not fundamentally affect its safety,
performance and functionality.
• Always unplug the device before assembling, disassembling and cleaning, or if you are
not using it.
• If the product was at a temperature below 0ºC for some time, it must be kept at room
temperature for at least 2 hours before turning it on.

IM2019
4
• If there is no ground circuit in your electrical system, the operation of a mobile air
conditioner is life threatening.
• Do not use adapters or extension cords to connect your mobile air conditioner.
• Improper installation and use of this air conditioner can result in serious injury or
damage to your property.
• Any service work must be carried out by a specialized organization and qualified
specialists. Do not attempt to repair the device or replace any parts by yourself. If you
find a problem, contact your nearest Service Center.
• Do not block the air inlet and outlet.
• Make sure that the air inlet and outlet are free from any foreign objects.
• Do not insert objects into the air outlet grilles of the air conditioner. This is very
dangerous because the fan rotates at high speed.
• Install the device on a horizontal surface to prevent condensate (water) leakage.
• Do not install the floor air conditioner in the following places:
- in places exposed to direct sunlight;
- near sources of open flame;
- near other operating heating appliances;
- in places where splashing water or steam is possible on the device;
- in rooms with high humidity;
- close to pools, bathrooms and showers.
• Do not use the device in explosive or corrosive environments. Do not store gasoline or
other volatile flammable liquids near the air conditioner - this is very dangerous!
• Use the device to cool the air at an ambient temperature of 17-35°C.
• Clean the filters periodically to ensure effective operation of the device.
• To ensure reliable compressor operation, do not tilt the air conditioner.
• If the device is turned off, it must be switched back on no earlier than after 3.5 minutes
in order to avoid compressor malfunction.
• For the compressor to work, the electrical outlet must be rated for a rated current of at
least 10A. To avoid overheating and the risk of fire, as well as damage to the internal
electrical network, do not plug the device into extension cords.
• Use only for domestic purposes in accordance with this instruction manual. The device
is not intended for industrial use.
• If the power cord is damaged, it must be replaced by the manufacturer, customer
service, or similar qualified personnel to avoid danger.
• Before disposing of the device, remove the batteries from the remote control, they must
be disposed safely.
• The device is not intended for use by persons (including children) with reduced
physical, sensory or mental abilities or in the absence of their life experience or
knowledge, unless they are supervised or instructed on the use of the device by the
person responsible for their safety. Children must be supervised to prevent playing with
the appliance.
• Do not use accessories that are not supplied.
• When disconnecting the appliance from the mains, do not pull on the power cord, grasp
the plug. Do not twist and do not wind it on anything.

IM2019
5
IMPORTANT
For effective cooling:
1) Ensure at least 50 cm of free space on the filtering side of the unit (fig. 1)
2) Install the device near the window. Adjust the length of the hose to reach the window. Make
sure the air exhaust hose is unobstructed. Open the window or French window slightly and
position the outlet (fig. 2)
Fig. 1 Fig. 2
3. APPOINTMENT OF THE DEVICE
Portable air conditioner is intended for cooling, dehumidifying, ventilating in domestic premises
4. DEVICE DESCRIPTION
Fig. 3 Fig. 4 Fig. 5
The appearance of the air conditioner may differ from the images in the manual.

IM2019
6
1. Top cover
2. Control panel
3. Handle
4. Air outlet grille
5. Front side body
6. Rollers
7. Air filter
8. The opening for the drain hose (for аutomatic condensate removal)
9. Handle
10. The opening for the warm air
11. Air inlet grille
12. Drainage hole
13. Air exhaust hose
5. DELIVERY SET
1. Portable air conditioner – 1 pc.
2. Remote control – 1 pc.
3. Batteries for remote control (AAA) – 2 pc.
2. Air outlet hose – 1 pc.
3. Packing of the device – 1pc.
4. Instruction manual - 1 pc.
5. Warranty card - 1 pc.
6. SPECIFICATIONS
Technical specifications
Technical specifications of the device are indicated in table 1.
Table 1
Наименование
Ед. изм.
T-PAC07-P09E
T-PAC09-P09E
Capacity (cooling)
BTU (kW)
7000 (2050)
9000 (2400)
Rated power consumption
(cooling)
W 780 900
Power supply
V/Hz
220-240~/50
220-240~/50
Rated power current
(cooling)
А 3.5 3,9
Air consumption
m³/h
300
320
Water tank volume
l
1.1
1.1
Capacity of draining
l/d
17
21,6

IM2019
7
Noise level
dB(A)
65
65
Refrigerant
-
R410A
R410A
Energy efficiency (cooling)
-
А
А
Coefficient of energy
efficiency
- 2,61 2,73
Electrical protection class
-
Class I
Class I
Degree of protection
against moisture
- IPX0 IPX0
Filling of refrigerant
g
300
350
Operating temperature
range: cooling
°С 16-31 16-31
Service area of the device
m
2
10-15
12-16
Annual energy
consumption (cooling
mode)
kW*h/year 390 475
Operating mode
(cooling/cooling + heating)
- cooling cooling
Cooling type (air/water)
-
air
air
Compressor
-
Toshiba
Toshiba
Maximum operating
pressure of refrigerant
circuit (discharge/suction)
MPa 3.2/0.8 3.2/0.8
Net weight
kg
21
21
Gross weight
kg
23
22.5
Net dimensions
mm
688*323*334
688*323*334
Packing dimensions
mm
872*370*384
872*370*384
7. DEVICE INSTALLATION
AIR-CONDITIONING WITHOUT INSTALLATION
Just a few simple steps and your comfort ensured:
1. Install the air exhaust hose in the housing at the back of the unit (Fig. 6)
2. Install the air conditioner near a window and put the exhaust hose outside through the
window (Fig. 6,7,8,9,10).
3. Adjust the length of the exhaust hose to reach the window. Make sure the air exhaust
hose is unobstructed.

IM2019
8

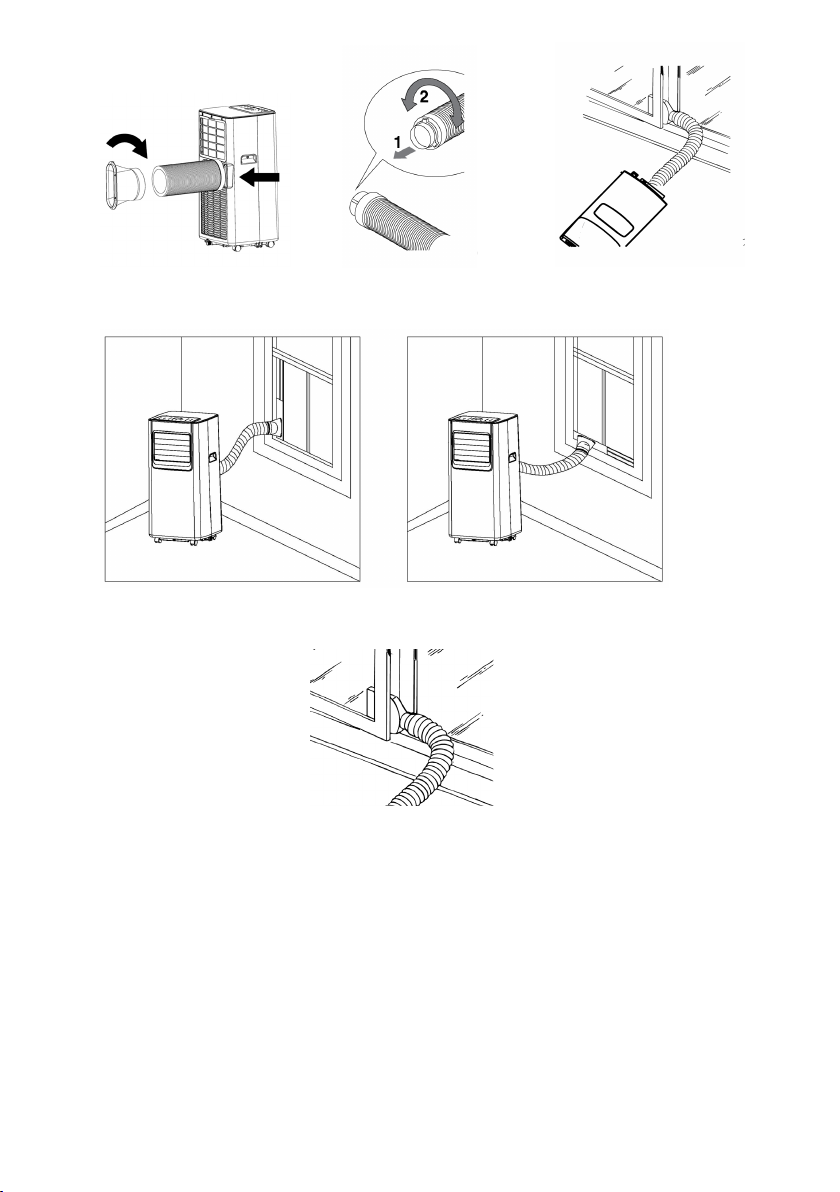

Fig. 6 Fig. 7 Fig. 8
Fig. 9
Fig. 10
If you have a sash (window):
1. Place the bracket on the windowsill
2. Extend the bracket fully within the window frame
3. Fix the bracket by using the pin
4. Lower the window into the bracket
5. Insert the window outlet of the exhaust hose into the slot
6. Connect the hose to the air conditioner (Fig. 9)

IM2019
9
AIR-CONDITIONING WITH INSTALLATION
If required, your appliance can also be installed stationary (Fig. 11).
Proceed as follows:
1. Drill in an outside wall or in the window a 134 mm diameter hole. Keep in mind the
heights shown in fig. 12.
2. Fit the flange accessory provided in the hole following the indications on figs.13,14,15.
3. Fit the hose in the housing at the back of the device (Fig. 7).
4. Fit the end of the hose to the flange as shown in fig. 12. When the hose is not fitted, the
hole can be closed with the flange cap.
Keep the air hose as short and free of curves as possible to avoid bottlenecks.
When installing the air conditioner stationary, you should leave a door slightly open (as little as 1
cm) to guarantee correct ventilation.
Fig. 11 Fig. 12
Fig. 13 Fig. 14 Fig. 15

IM2019
10
8. DEVICE CONTROL
Description of remote control*
* The appearance of the remote control, as well as the buttons and indicators may differ from the image in
the manual, but their functions are identical
1. Power: Turns the air conditioning on / off.
2. Timer: Setting the on/off time of the air conditioner by timer
3. Down: Click to decrease temperature or timing set value.
4. Mode: Click to switch between cooling, dehumidifying, ventilating mode.
5. Up: Click to increase temperature or timing set value.
6. Fan: Selecting high or low speed ventilation.
7. Sleep Mode: Turns on the sleep mode.

IM2019
11
9. OPERATING MODES
Fig. 16*
*Image is for reference only and may differ from actual control panel.
1. “TIMER” button - in the case of power on, press the button to set the time to automatically
turn off the device; in the case of power off, press the button to set the time to automatically turn
on the device. Press the “TIMER” button, then, when the timing symbol flashes on the LED
display, press “UP” and “DOWN” buttons to select the required timing value. Timing values can
be set in 1-24 hours range. One pressing of “UP” or “DOWN” button equals 1 hour.
2. “SPEED” button - in cooling and fan mode, press the button to select HIGH, LOW wind
speed operation. In dehumidifying mode, pressing the key is invalid, in this mode the fan works
only in low wind speed operation.
3, 5. “UP” and “DOWN” buttons - press these buttons to change the setting temperature or
setting time, operate as follows:
• While setting temperature, press “UP” or “DOWN” button to select the required
temperature (not available in fan or dehumidifying mode).
• While setting time, press “UP” or “DOWN” button to select the required time.
4. LED display
6. “MODE” button - press the button to switch between cooling → fan → dehumidifying
modes.
7. “POWER” button - press the button to turn on and turn off the device.

IM2019
12
SLEEP mode
This mode can be enabled using the «SLEEP» and « » buttons
Note: It is impossible to turn on the SLEEP mode in the dehumidifying or fan modes.
COOL mode
Press «MODE» until the «COOL» indicator lights up. Click buttons « » or « » to select the
needed room temperature. The temperature can be set in the range 16 °C−31 °C. Press the
«SPEED» button to select the fan speed.
DRY mode
Press «MODE» until the «DRY» indicator lights up. In this mode, you can’t select or adjust the
fan speed temperature. Close windows and doors to achieve the best drying effect. Do not put
the duct to window.
FAN mode
Press «MODE» until the «FAN» indicator lights up. Press the «SPEED» button to select the fan
speed. You can’t adjust the temperature. Do not put the duct to window.
10. MAINTENANCE
ATTENTION!
Disconnect the unit from the mains before cleaning.
1. When cleaning the air conditioner, do not use gasoline, solvents and other chemically active
substances.
2. To avoid electric shock and damage to electrical components, do not pour water on the air
conditioner from a tap or a hose.
3. Do not use the air conditioner if the power cord is damaged. On the subject of replacing a
damaged power cord, contact an authorized service center.
Air filter
Clogging with dust particles impairs the air conditioner operation efficiency, therefore clean the
filter no less than once in two weeks.
Filter removal/installation
On the back of the housing, slide the plastic lock, unscrew the four screws and pull out the filter
frame (as shown in the figure below)

IM2019
13
Filter cleaning
To clean the filter, put it in warm water with a mild detergent (with a temperature of about 40° C),
rinse it and remove any dirt. Before installing the filter in the air conditioner, it is necessary to dry
it, avoiding direct sunlight.
Air intakes (heat exchangers)
Use a vacuum cleaner for cleaning
Case
Wipe the surface by a damp cloth and dry it by a soft dry cloth.
Automatic condensate removal
Condensate is automatically removed from the unit. Moisture inside the unit starts to evaporate
and is removed from the unit through an air duct (or an air diffuser) in the form of steam.

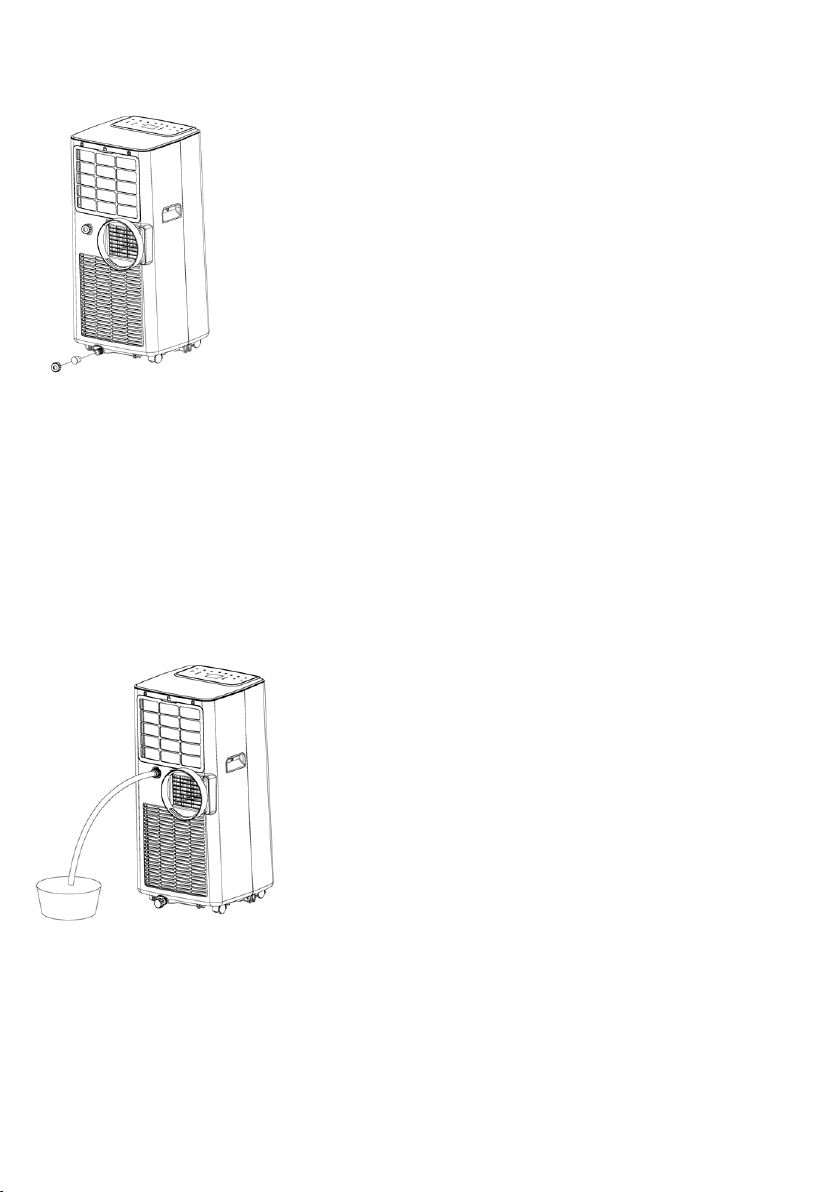

Condensate removal instructions
1. When condensate is filling the tank, switch off the air conditioner and turn off the power.
Note: Move the device carefully to avoid spilling of water in the bottom of the case
2. Place the water container behind the outlet at the rear part of the device
3. Unscrew the drain cap and pull out the plug, the water will automatically flow into the water
tank.
Note:
1. Hold the drain plug cover, and the water plug properly.
2. During drainage, the housing may be tilted slightly backwards.
Note: If the water container can’t contain all the condensate from the air conditioner, cover the
drain with a plug as soon as possible to prevent water from spilling onto the floor.
4. When the water is drained, stick water plug and tighten the drain cap.

IM2019
14
Note: Continue to operate the device only after installing the water plug and drain cap to prevent
condensation from spilling onto the floor.
Automatic condensate removal (optional, only works in DRY mode):
1. Unscrew the drain cap and remove the water plug.
2. Install the drain hose* into the drain hole
3. Put the drain hose* in the water container
*Not supplied

IM2019
15
11. WIRING DIAGRAMS
12. TROUBLESHOOTING
In case of emergency, please, use the troubleshooting methods shown in table. If it is impossible
to solve problems with these methods, apply to the service center.
Failures and their possible reasons:
Failure
Possible reason
Actions
The appliance does not
operate
Power failure Wait for restoration of
power supply
The remote control
batteries have run out
Replace remote control batteries.
Do not throw batteries into
common trash cans, the
batteries should be disposed of
in the special containers
situated in the collection points.
Active TIMER-ON function Wait untill the air conditioner will
turn on by timer or cancel the timer
setting
Device is filled with
condensate
Darin the condensate for the
device (see “Maintenance”)

IM2019
16
Room temperature is too
low or too high
Use the device in the operating
temperature range specified by the
manufacturer (see table of
technical specifications)
Insufficient cold airflow Incorrect temperature
setting
Set the correct
air temperature
Air filter is dirty.
Clean the air filter
Air inlet or outlet are
blocked.
Remove foreign objects from inlet
and outlet
The air conditioner is not
powerful enough for the
room
Use the device in an area
recommended by the
manufacturer (see table of
technical specifications)
Strong sunlight in the room
Close the curtains
Windows and / or doors
are open
Close windows and / or doors
Other sources of heat in
the room.
Remove all heat sources from the
room
Air conditioner works but
does not cool the room
There is a three-minute
delay on the starting of
compressor
Wait a little
Incorrect temperature
setting.
Set the correct
air temperature
The remote control does
not work
The distance between the
device and the remote
control is too big.
Let the remote control get close to
the air conditioner, and make sure
that the remote control directly
faces to the remote control
receiver.
The remote control is not
directed on the remote
control receiver.
The remote control
batteries have run out
Replace remote control batteries.
Do not throw batteries into
common trash cans, the
batteries should be disposed of
in the special containers
situated in the collection points.
13. UTILIZATION RULES
After the lifetime of the device expires, it should be recycled in compliance with the laws, rules
and methods in region of recycling. Detailed information about the recycling of the device, you
can receive from a representative of the local authorities, after providing full information about
the device. The manufacturer and authorized organization of the manufacturer do not carry
responsibility for the fulfillment by the Buyer of the requirements of legislation on utilization and
methods of utilization of the device selected by the Buyer. The lifetime of the device is indicated
in the warranty card. Warranty period for the device and warranty terms are specified in the
warranty card. The warranty card is an integral part of the documentation supplied with this unit.

IM2019
17
If there is no warranty card in the delivery set, ask for it from the Seller. The warranty card
provided by the Seller must conform to the manufacturer’s form.
The manufacturer and the authorized organization of the manufacturer remove responsibility for
any possible harm which can be caused to people, animals or property directly or indirectly, if
this harm occurred as a result of noncompliance with the rules and operating conditions,
installation of the device, intentional or reckless actions of the user- and / or third parties, as well
as in situations caused by natural and / or anthropogenic accidents.
14. TRANSPORTATION AND STORAGE
1. During transportation, any possible impacts and movements of the package inside the vehicle
should be excluded.
2. Transporting and storage should be provided in strict accordance to the manipulation marks.
3. Outdoor unit should be transported vertical.
Temperature
Requirements*
Transportation
and storage
From -30°C up to +50°C
Humidity
Requirements*
From 15% up to 85%
(without a condensate)
We are exploring new technologies and we constantly improving the quality of our products.
That’s why specifications, design and accessories are subject to change without any specific
notice.
* This product must have storage in dry, well-ventilated space of warehouse at the temperature not lower
than +5°C

IM2019
18
ОГЛАВЛЕНИЕ
1. ВАЖНАЯ ИНФОРМАЦИЯ ................................................................................................ 18
2. МЕРЫ ПРЕДОСТОРОЖНОСТИ ...................................................................................... 19
3. НАЗНАЧЕНИЕ ПРИБОРА ................................................................................................ 21
4. ОПИСАНИЕ ПРИБОРА .................................................................................................... 21
5. КОМПЛЕКТ ПОСТАВКИ ................................................................................................... 22
6. РАБОЧИЕ ХАРАКТЕРИСТИКИ ....................................................................................... 22
7. УПРАВЛЕНИЕ ПРИБОРОМ ............................................................................................. 23
8. РЕЖИМЫ РАБОТЫ.......................................................................................................... 27
9. УХОД И ОБСЛУЖИВАНИЕ .............................................................................................. 28
10. УСТРАНЕНИЕ НЕИСПРАВНОСТЕЙ ............................................................................... 31
11. УТИЛИЗАЦИЯ, СРОК СЛУЖБЫ, ГАРАНТИЙНЫЙ СРОК ............................................ 33
12. ТРАНСПОРТИРОВКА И ХРАНЕНИЕ .............................................................................. 33
Уважаемый покупатель!
Благодарим Вас за удачный выбор и приобретение электрического мобильного
кондиционера воздуха. Он прослужит Вам долго.
1. ВАЖНАЯ ИНФОРМАЦИЯ
Просим внимательно ознакомиться с руководством по эксплуатации перед
использованием прибора. В данном руководстве по эксплуатации содержится важная
информация, касающаяся Вашей безопасности, а также рекомендации по правильному
использованию прибора и уходу за ним. Сохраните руководство по эксплуатации вместе с
гарантийным талоном, кассовым чеком, по возможности, картонной коробкой и
упаковочным материалом. В данном руководстве по эксплуатации описываются разные
виды данного типа устройства. Производитель оставляет за собой право без
дополнительного уведомления вносить незначительные изменения в конструкцию
изделия, кардинально не влияющие на его безопасность, работоспособность и
функциональность. Приобретенный Вами прибор может несколько отличаться от
описанного в руководстве, что не влияет на способы использования и эксплуатации. В
тексте и цифровых обозначениях данной инструкции могут быть допущены опечатки.
ВНИМАНИЕ!
Важные меры предосторожности и инструкции, содержащиеся в данном руководстве, не
включают всех возможных режимов и ситуаций, которые могут встречаться. Изготовитель
не несет ответственности в случае повреждения прибора или его отдельных частей во
время транспортировки, в результате неправильной установки, в результате колебаний
напряжения, а также в случае, если какая-либо часть прибора была изменена или
модифицирована.

IM2019
19
ПРИМЕЧАНИЕ
На изделии присутствует этикетка, на которой указаны все необходимые технические
данные и другая полезная информация о приборе. Используйте прибор только по
назначению, указанному в данном руководстве.
2. МЕРЫ ПРЕДОСТОРОЖНОСТИ
При использовании электрического кондиционера воздуха, необходимо соблюдать ряд
мер предосторожности. Неправильная эксплуатация в силу игнорирования мер
предосторожности может привести к причинению вреда здоровью пользователя и других
людей, а также нанесению ущерба их имуществу.
• Внимательно прочитайте данную инструкцию перед эксплуатацией прибора во
избежание поломок при использовании.
• Перед первоначальным включением проверьте, соответствуют ли технические
характеристики, указанные на изделии параметрам электросети.
• Не использовать вне помещений или в условиях повышенной влажности.
• Во избежание повреждений кондиционера и аннулирования Вашей гарантии
перед началом работы поставьте прибор в вертикальное положение минимум на
2 часа до эксплуатации.
• Если после прочтения инструкции у Вас останутся вопросы по работе и
эксплуатации прибора, обратитесь к продавцу или в специализированный
сервисный центр для получения разъяснений.
• На изделии присутствует этикетка, на которой указаны все необходимые
технические данные и другая полезная информация о приборе.
• Используйте прибор только по назначению, указанному в данной инструкции.
• Перед установкой мобильного кондиционера, не подключая его к электросети,
проверьте и убедитесь, что сетевая розетка для кондиционера имеет контакт
заземления и правильно заземлена.
• Следите, чтобы шнур питания не касался острых кромок и горячих поверхностей.
• Всегда отключайте устройство от электросети перед сборкой, разборкой и
очисткой, или если Вы его не используете.
• Если изделие некоторое время находилось при температуре ниже 0ºC, перед
включением его следует выдержать в комнатных условиях не менее 2 часов.
• При отсутствии заземляющего контура в вашей электросети эксплуатация
мобильного кондиционера опасна для жизни.
• Не используйте переходники и удлинители для подключения вашего мобильного
кондиционера.
• Неправильная установка и использование настоящего кондиционера может
привести к серьезным травмам или ущербу для вашего имущества.
• Любые сервисные работы должны производиться специализированной
организацией, квалифицированными специалистами. Не пытайтесь
самостоятельно ремонтировать прибор или заменять какие-либо детали. При
обнаружении неполадок обращайтесь в ближайший Сервисный центр.
• Не закрывайте вентиляционные отверстия
• Убедитесь, что входное и выходное вентиляционное отверстие свободно.
• Не засовывайте посторонние предметы в воздуховыпускные решетки
кондиционера. Это очень опасно, т.к. вентилятор вращается с высокой скоростью.
• Устанавливайте устройство на горизонтальную поверхность во избежание утечки
конденсата (воды).
• Не устанавливайте напольный кондиционер в следующих местах:

IM2019
20
- в местах воздействия прямых солнечных лучей;
- вблизи источников открытого пламени;
- вблизи других работающих нагревательных приборов;
- в местах, где возможно попадание брызг воды или пара на прибор;
- в помещениях с повышенной влажностью;
- вблизи бассейнов, ванных и душевых комнат.
• Не используйте устройство во взрывоопасной или коррозионной среде. Не
храните рядом с кондиционером бензин и другие летучие
легковоспламеняющиеся жидкости – это очень опасно!
• Используйте устройство для охлаждения воздуха при температуре окружающей
среды 17-35°С.
• Периодически очищайте фильтры для обеспечения эффективной работы
устройства.
• Для обеспечения надежной работы компрессора не наклоняйте кондиционер.
• Если устройство отключено, повторное включение должно осуществляться не
ранее чем через 3,5 минуты во избежание выхода из строя компрессора.
• Для работы компрессора электрическая розетка должна быть рассчитана на
номинальный ток не ниже 10A. Во избежание перегрева и риска возникновения
пожара, а также повреждения внутренней электрической сети, не включайте
устройство в удлинители.
• Использовать только в бытовых целях согласно данному Руководству по
эксплуатации. Прибор не предназначен для промышленного применения.
• При повреждении шнура питания его замену, во избежание опасности, должны
производить изготовитель, сервисная служба или подобный квалифицированный
персонал.
• Перед утилизацией устройства необходимо извлечь батареи из пульта
управления, после чего они подлежат безопасной утилизации.
• Прибор не предназначен для использования лицами (включая детей) с
пониженными физическими, сенсорными или умственными способностями или
при отсутствии у них жизненного опыта или знаний, если они не находятся под
присмотром или не проинструктированы об использовании прибора лицом,
ответственным за их безопасность. Дети должны находиться под присмотром
для недопущения игр с прибором.
• Не используйте принадлежности, не входящие в комплект поставки.
• При отключении прибора от электросети не тяните за шнур питания, беритесь за
вилку. Не перекручивайте и ни на что не наматывайте его.
ПРИМЕЧАНИЕ
Для эффективного охлаждения необходимо:
1) Обеспечить свободное пространство не менее 50 см от воздухозаборной решетки
(рисунок 1).
2) Устанавливайте кондиционер рядом с окном. Отрегулируйте длину воздуховода, чтобы
добраться до окна. Убедитесь, что вытяжному воздуховоду нет препятствий (рисунок 2).
