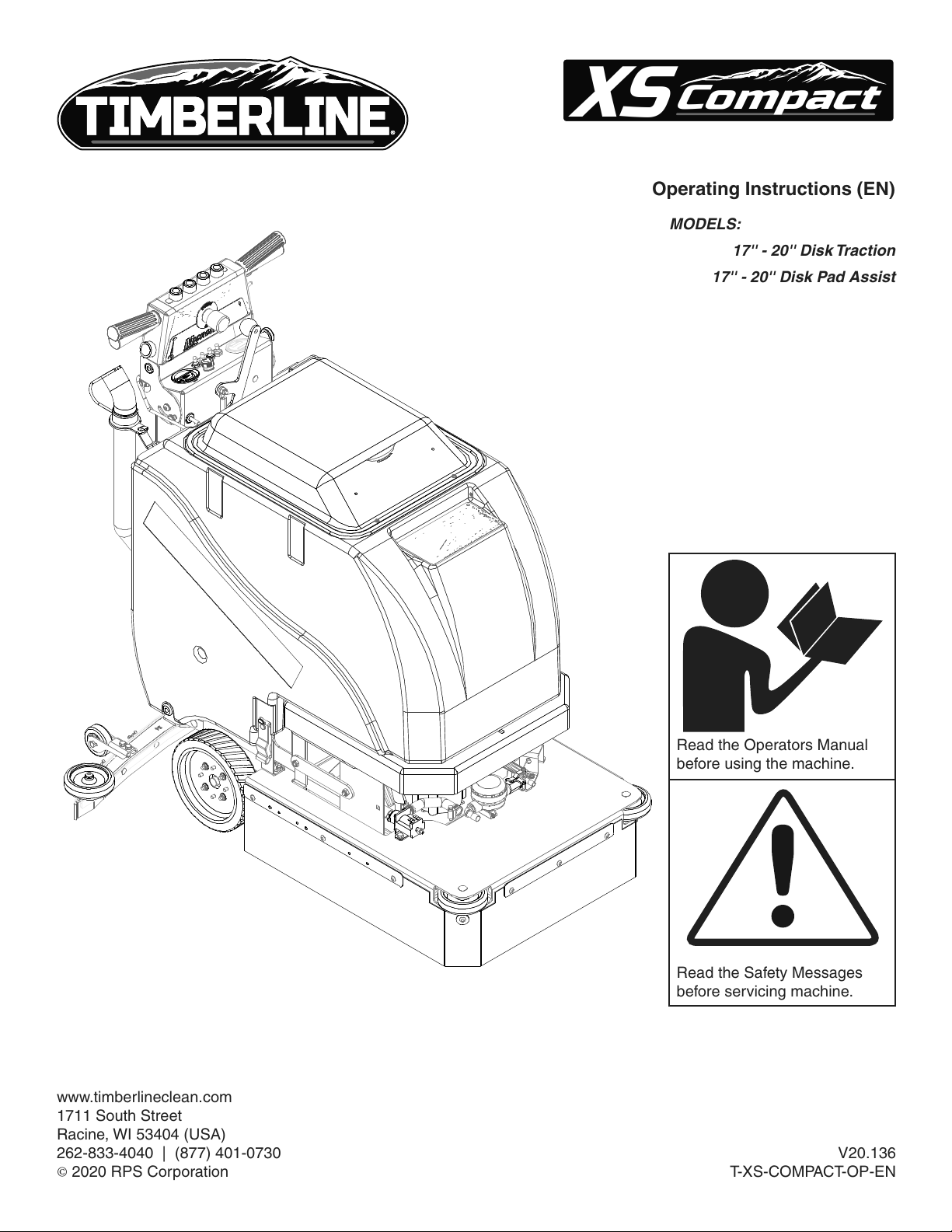

Timberline XS Compact 17" Disk Traction User manual

Operating Instructions (EN)
MODELS:
17'' - 20'' Disk Traction
17'' - 20'' Disk Pad Assist
Read the Operators Manual
before using the machine.
Read the Safety Messages
before servicing machine.
XS
Compact
www.timberlineclean.com
1711 South Street
Racine, WI 53404 (USA)
262-833-4040 | [phone] V20.136
©2020 RPS Corporation T-XS-COMPACT-OP-EN

- 2 - XS-COMPACT-OP-EN
INTRODUCTION
This manual is furnished with each new machine. This manual will allow the Operator to get the best performance out of
your RPS manufactured Scrubber-Drier, Sweeper, Burnisher, or Orbital Scrubber. Read this manual thoroughly before
operating or servicing the machine.
This machine will provide excellent performance, but the best results will be obtained at the most minimum costs if:
• The machine is regularly maintained - per the machine Preventative Maintenance instructions provided.
• The machine is operated with reasonable care and caution.
• The machine is maintained with manufacturer supplied parts.
ABOUT THIS MANUAL
Table of Contents: Tells you where to look in the manual.
Safety: Section contains important information regarding hazard or unsafe practices of the machine. Levels of hazards
are identified that could result in product or personal injury, or severe injury resulting in death.
Machine Controls: Shows you the different machine controls and features.
Machine Setup: Tells you how to setup machine from un-crating to installing Squeegee and Brushes.
Operations: Section is to familiarize the operator with the operation and function of the machine.
Battery Charging: Shows you how to charge the Batteries (on-board and off board charging).
Maintenance: This section contains preventative maintenance to keep the machine and it’s components in good working
condition. They are listed in this general order:
• Batteries
• Scrub Brushes
• Adjusting Squeegee
• Service Schedule
• Machine Trouble Shooting
Trouble Shooting: A list of common problems that may occur.
Machine Install Form: Should be filled out upon machine installation and faxed to 1-866-632-6961 or online at
www.rpscorporation.com.
Warranty Policy: Tells you coverage, exclusions and limitations to warranty.
NOTE: The Serial Number of your machine is located on the lower half of the control panel of the machine.
AS OUR POLICY IS ONE OF CONSTANT IMPROVEMENT - ALL INFORMATION AND
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Serial Number

K10-COMPACT-OP-EN - 3 -
TABLE OF CONTENTS
Introduction 2
About This Manual 2
Table of Contents 3
Safety Messages 4
Safety Label Locations 6
Operation Controls 7
Machine Components 8
Machine Components 9
Machine Setup 10
Un-Crating Machine: 10
Connecting Batteries: 10
Attaching Squeegee: 10
Adjusting Squeegee: 11
Removing Squeegee: 11
Replacing or Rotating Squeegee Blades: 11
Installing Disk Pad Driver or Brush: 12
Installing Driver Pads: 12
Replacing Driver Pads on Machine: 12
Adjusting Pad Assist Bias: 13
Machine Operation 14
Pre-Cleaning Checklist: 14
Operating Hints: 14
One Pass Scrubbing: 15
Scrub Only: 15
Vacuum Only: 15
Adjust Solution Flow: 16
Draining Solution Tank: 16
Draining Recovery Tank: 16
Open Recovery Lid: 16
Flush Recovery Tank: 17
Clean “Drain Saver”: 17
Clean Vacuum Screen: 17
Tip Tank: 18
Squeegee Up: 18
Squeegee Down: 18
Vacuum Motor: 19
Solution Filter: 19
Cleaning Solution Filter: 19
Battery Charging 20
External Battery Charging: 20
On-Board Charger 21
On-Board Battery Charging (Optional): 21
Battery Maintenance Guide 22
Safety: 22
Inspection and Cleaning: 22
Storage: 22
Watering: 22
Maintenance 23
Daily Maintenance: 23
Weekly Maintenance: 23
Monthly maintenance: 23
Yearly Maintenance: 23
Storing Machine: 23
Checking Battery Specific Gravity: 23
K10-STANDARD PM Records 24
Common Wear Parts 26
Orbital Pads and Screens: 26
Common Wear Parts 27
Round Disk Brushes: 27
Round Disk Pads: 27
Squeegee Blade Kits & Complete Squeegee
Assemblies: 28

- 4 - XS-COMPACT-OP-EN
SAFETY MESSAGES
You will see four kinds of safety reminders in this manual:
DANGER
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, could result in minor or moderate
injury or damage to this machine or nearby objects. CAU-
TION also can be used to alert against unsafe practices.
NOTICE
NOTICE indicates information considered important, but
not hazard-related. This safety message may be related
to property damage or warranty warnings.
Your safety, and that of others, is very important. Operating this machine safely is an important responsibility.
DO NOT OPERATE THIS MACHINE:
• Unless you are trained and authorized to do so
• Unless you have read and understood this Operator’s Manual
• On surfaces with greater than a 2% grade unless this machine is equipped with a functional parking brake
• On surfaces with greater than an 8% grade at any time
• On Loading Docks
WHEN OPERATING THIS MACHINE:
• Remove loose objects from the floor that could be projected from the rotating Brushes
• Keep your hands and feet away from the rotating Brushes
• Do not operate this machine where flammable liquids are present
• Use caution when maneuvering
BEFORE LEAVING THE MACHINE:
• Park the machine on a level surface
• Turn the machine OFF and remove key
BEFORE SERVICING THE MACHINE:
• Disconnect the Batteries
DANGER
Explosive hydrogen gas forms when Batteries are
charging. An open flame or spark can cause this gas
to explode. Serious personal injury or property damage
could occur. Only charge the Batteries in this machine in
a well ventilated area.
DANGER
Flammable materials can cause an explosion or fire. Do
not use flammable materials in tank or pick up.

K10-COMPACT-OP-EN - 5 -
WARNING
The Batteries in this machine produce hazardous
voltage which can cause electrical shock, burns and/
or electrocution. Always disconnect Batteries before
servicing this machine.
WARNING
When climbing or descending ramps, always drive
machine forward. To avoid overturning the machine, Do
not back down ramps. Do not drive across inclines. Do
not turn while ascending or descending ramps. Over-
turning the machine can cause serious injury or death.
WARNING
Do not use water that exceeds 135°F / 57°C. If wa-
ter is above said temperature, this will void the Tank
Warranty.
WARNING
Do not park this machine on ramps or slopes. Always
park this machine on a level, hard surface. Do not oper-
ate this machine outdoors or on uneven surfaces.
WARNING
The batteries in this machine contain sulfuric acid,
which causes burns to skin. If battery acid contacts
clothing or skin, rinse the effected area with cold water
immediately. If battery acid gets on your face or in your
eyes, flush the area immediately with cold water and
seek medical attention.
WARNING
To avoid electrical shock, do not operate this machine
over electrical floor outlets.
WARNING
Dress safely. Do not wear rings or metal wrist watches
when servicing this machine, as they can cause an
electrical short circuit which can cause serious burns.
WARNING
Do not remove, paint over or destroy warning decals. If
warning decals become damaged, call 1-262-681-3583
for free replacements.
WARNING
Dress safely. Do not wear a neck tie, scarf, or any
loose or dangling clothing while operating this machine.
Loose or dangling clothing or neck-wear can tangle in
rotating parts, causing serious injury or death.
WARNING
Always turn off this machine before leaving it unat-
tended. Do not allow untrained persons to operate this
machine.
WARNING
NO RIDERS. Do not carry passengers on this ma-
chine. Do not use this machine as a stepladder or work
platform.
WARNING
Understand the dynamic braking system before you
operate the machine on ramps. Machine may coast.
WARNING
Before you service a Battery, always wear face protec-
tion, protective gloves and protective clothing. Battery
acid or battery explosion can cause serious injuries.
CAUTION
To avoid damage to this machine, use only cleaning
solutions and replacement parts recommended by the
manufacturer.
CAUTION
Do not operate this machine if any parts have been
damaged or removed.
CAUTION
Always use the automatic battery charger provided by
the manufacturer of this machine to charge the batter-
ies of this machine. It is designed to charge the batter-
ies at the appropriate rate. If you must use a different
charger, disconnect the Batteries before charging to
avoid damage to the electronic speed controller.
CAUTION
To avoid damage to the electronic control components
of this machine, Do not store this machine outdoors. Do
not pressure wash this machine.

- 6 - XS-COMPACT-OP-EN

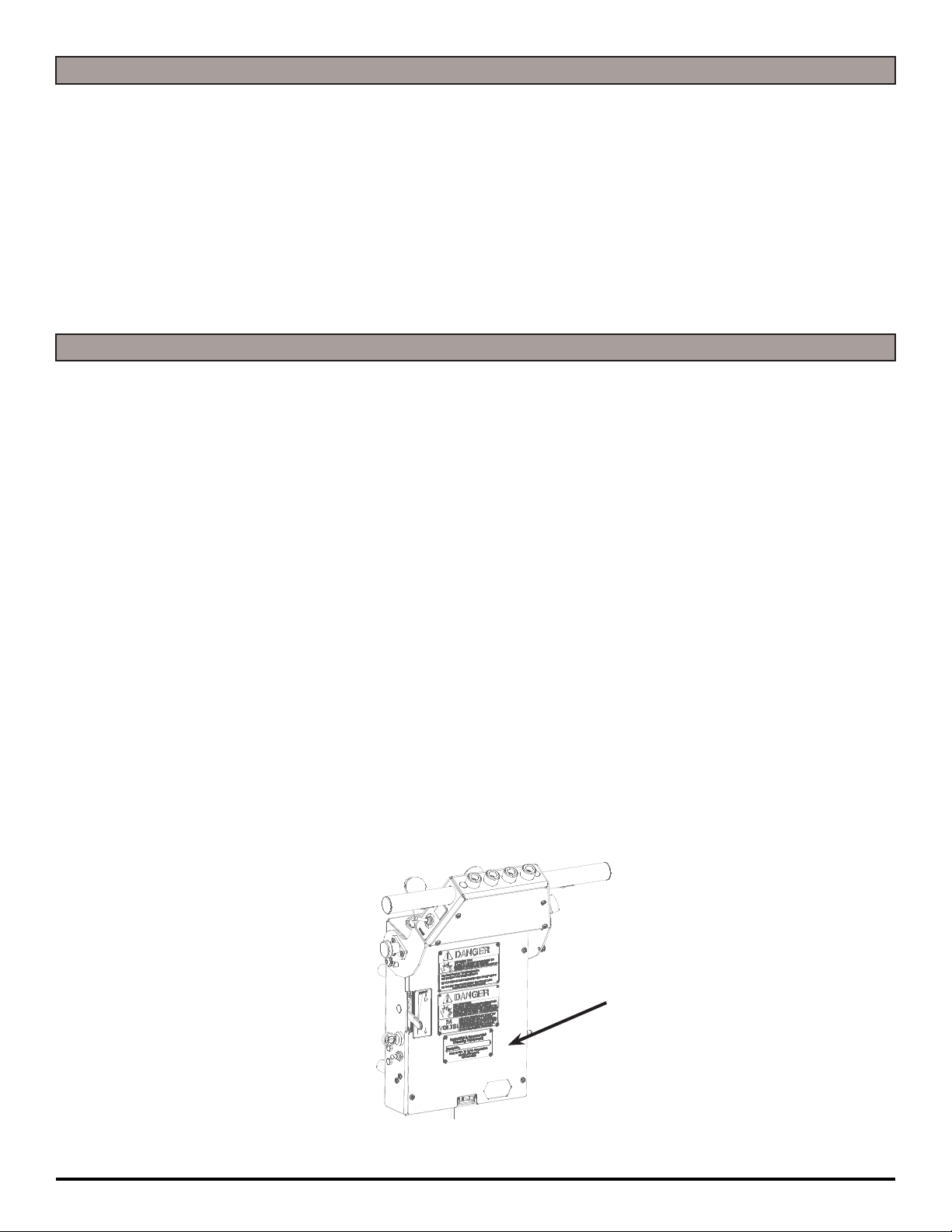

SAFETY LABEL LOCATIONS
Read and obey all Safety Labels on your K10-Standard Floor Scrubber. If you have questions about these labels, ask your
supervisor.
These images indicate where on the K10-Standard Safety Labels are located. If ever the labels become illegible, worn off,
or torn, promptly report it to your supervisor and replace it.

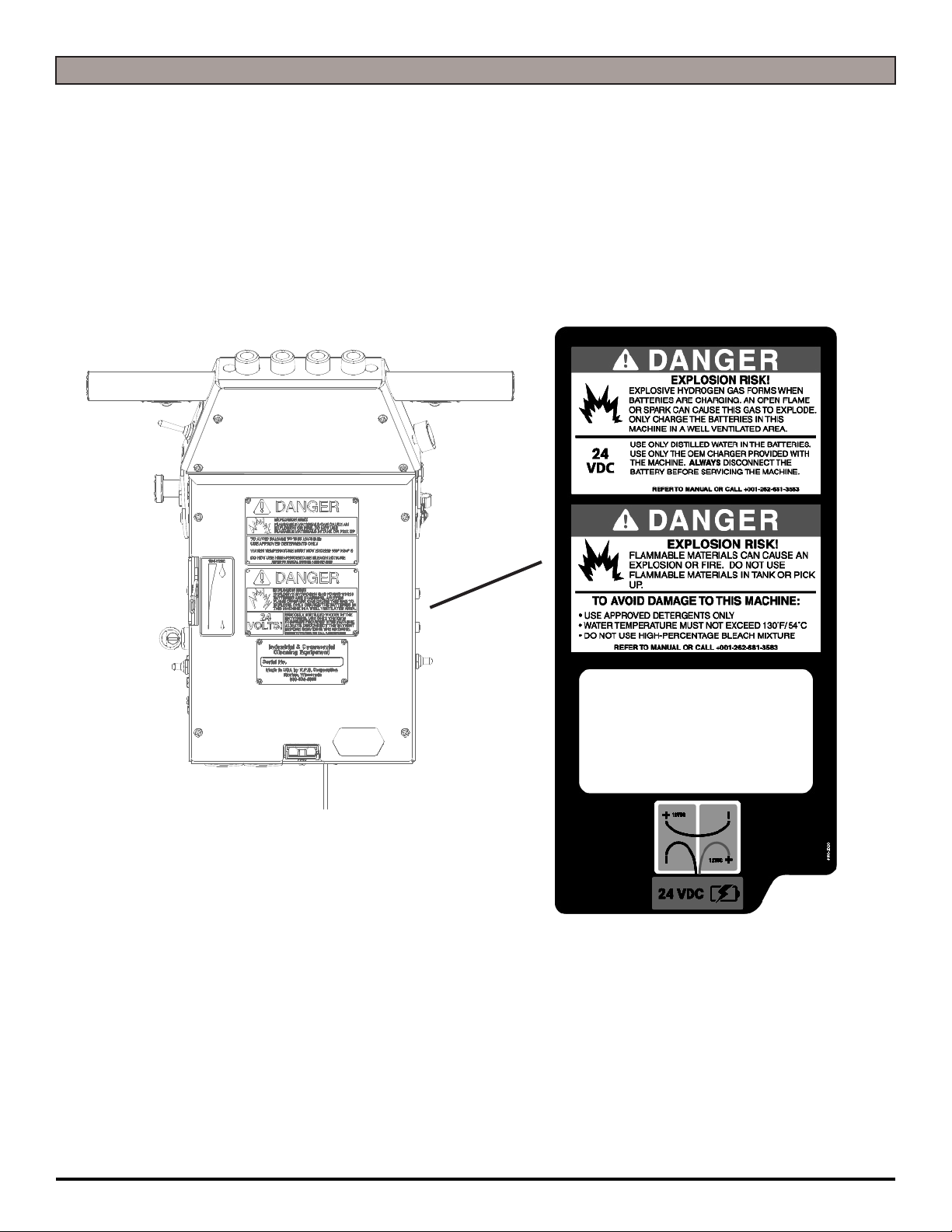

DANGER LABEL
PART #: 150-2020

K10-COMPACT-OP-EN - 7 -

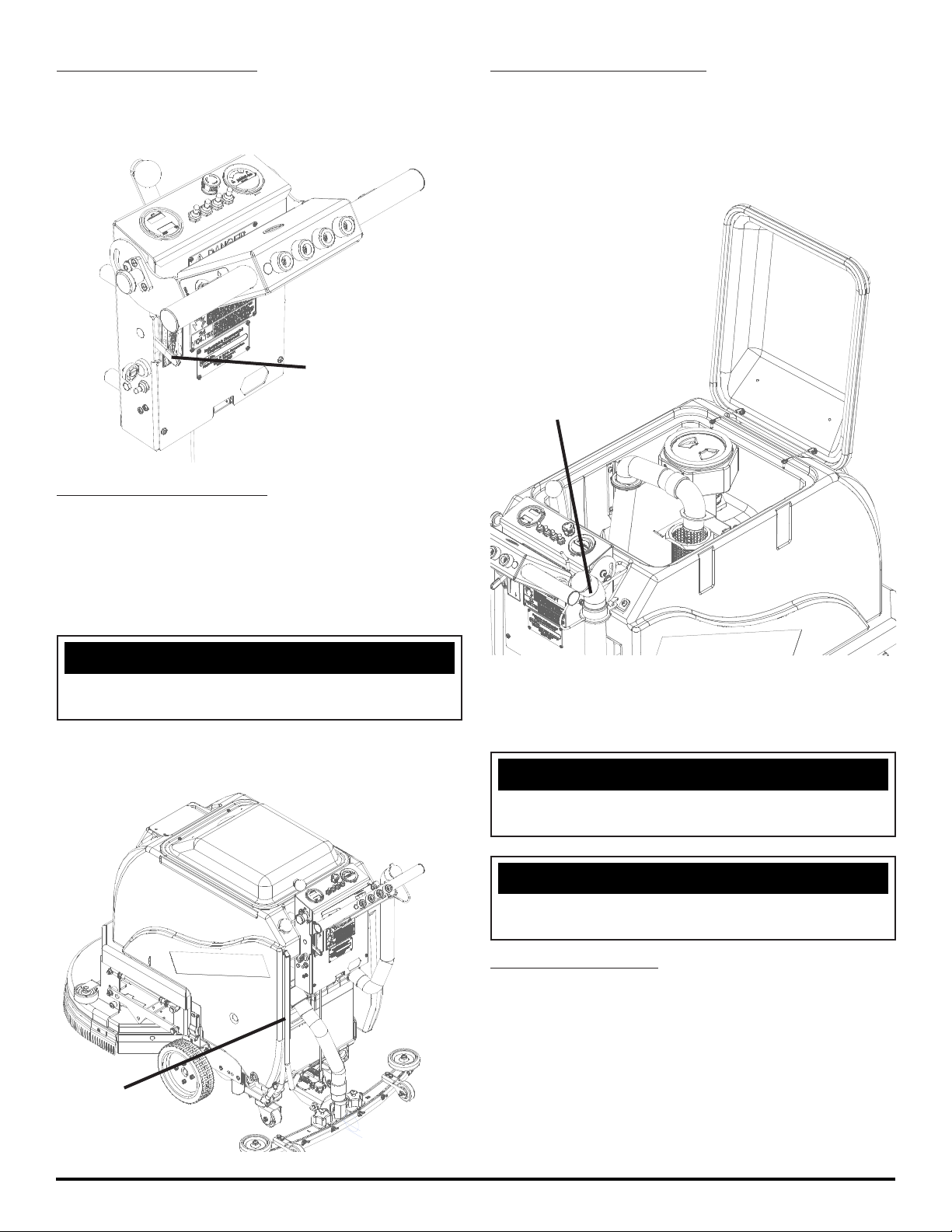

OPERATION CONTROLS
1. POWER KEY: Turns power on to the machine
2. SOLUTION CONTROL LEVEL: Controls solution flow
3. BATTERY GAUGE / HOUR METER: Indicates the amount of Battery charge
remaining and hours on.
4. SQUEEGEE LIFT LEVER: Raises and lowers the Squeegee
5. VACUUM SWITCH: Turns the Squeegee Vacuum Motor ON and OFF
6. SOLUTION FLOW SWITCH: Turns solution flow ON or OFF
7. SCRUBDECK SWITCH: Turns the Scrubdeck ON or OFF &UP or DOWN
8. EMERGENCY SHUT OFF SWITCH (OPTIONAL): Shuts OFF the machine in case
of emergency
9. SCRUBDECK DOWN PRESSURE GAUGE (OPTIONAL): Shows the amount of
down pressure applied to Scrubdeck
10. HANDLE BAR: Adjustable Handlebar
11. ADJUSTABLE HANDLE BAR LOCK: Pull out to adjust Handlebar and release to
lock the Handlebar in place
12. REVERSE SWITCH: Pull back for reverse
13. DRIVE BUTTON: Press to drive forward, release to stop
14. SPEED CONTROL KNOB: Controls the speed of the Traction Drive - Turn counter-
clockwise to reduce speed
15. CIRCUIT BREAKER: 25 AMP resettable circuit breaker for Vacuum Motor
16. CIRCUIT BREAKER: 30 AMP resettable circuit breaker for Scrub Motor
17. CHARGER PORT: Red 50 used to receive charger input for optional external
charger - 24 VDC ONLY!
1
2
3
4
5 6 7 8 910
11
12
13
14
15
16
17

- 8 - XS-COMPACT-OP-EN

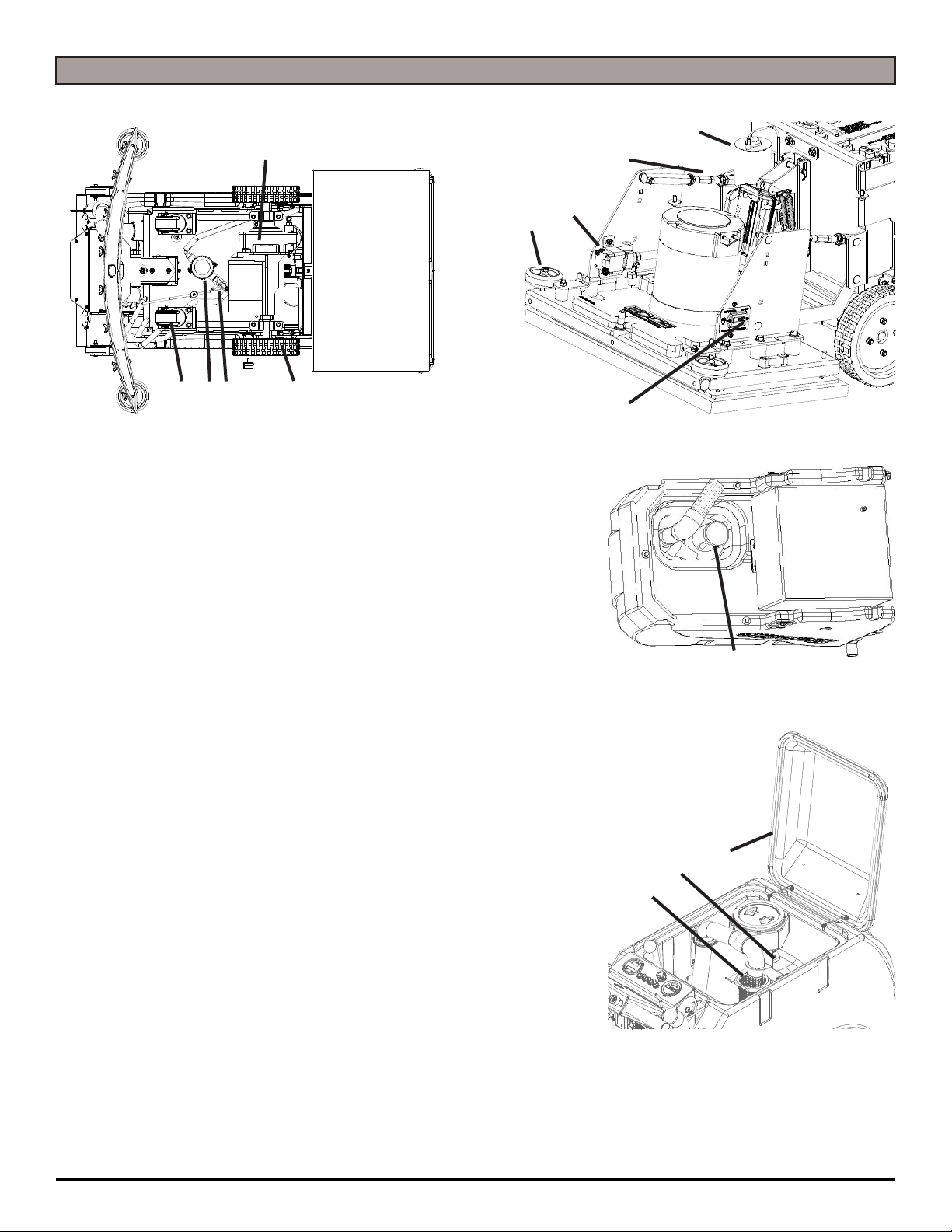

MACHINE COMPONENTS
1. CASTER: Twin casters for stability
2. SOLUTION FILTER: Filters water solution prior to scrubbing
3. SOLUTION FLOW SHUT OFF VALVE: Meters solution rate
(GPM)
4. MAIN TIRES: Drive Tires
5. TRACTION DRIVE: Propels machine forward/reverse
6. WALL ROLLERS: Helps protect machine when scrubbing
near walls
7. SOLUTION FLOW VALVE: Turns solution ON / OFF (Turns
off when motor stops)
8. DECK ADJUSTMENT ARMS: Determines the pitch / level of
the machine deck
9. SPRAY JET MOTOR (OPTIONAL): Motor for the Spray Jet
Spray Nozzle
10. ISOLATOR HOUR METER: Hour meter specifically for how
long the Motor has run to determine replacement of Isolators
Change Isolators < 250 Hours (Optional)
11. VACUUM MOTOR: Creates vacuum for Tank / Squeegee
12. “DRAIN SAVER” STRAINER: Helps prevent clogging of
drain ports
13. VAC SCREEN: Protects Vacuum Motor from debris
14. RECOVERY LID: Used for flushing out Recovery Tank area
with fresh water
1 2 3 4
5
67
8
9
10
11
12
13
14

K10-COMPACT-OP-EN - 9 -
MACHINE COMPONENTS
1. FRONT SOLUTION FILL POINT/LID: Front fill port for filling Solution Tank
2. TANK LATCH: Secures Tank to frame
3. SOLUTION SIGHT TUBE AND DRAIN HOSE: Displays how much clean water is in the
Tank and drains clean water
4. ADJUSTABLE SQUEEGEE HEIGHT WHEELS: Height of wheels adjust to height of
Squeegee
5. SQUEEGEE PITCH ADJUSTMENT: Adjusts pitch of Squeegee - Deflection should be
even across entire Blade
6. SQUEEGEE BLADE: Recovers dirty water from floor to be recovered by Vacuum Hose
7. VACUUM HOSE: Creates vacuum for Squeegee (NOTE: Keep free and clear of
blockage)
8. REAR SOLUTION FILL POINT: Rear fill port for filling Solution Tank
9. RECOVERY DRAIN HOSE: Allows for controlled draining of Recovery Tank
1
2
3
4
5
6
7
8
9

- 10 - XS-COMPACT-OP-EN
MACHINE SETUP
UN-CRATING MACHINE:
Carefully check the crate for any signs of damage and that
the Batteries are in the unit.
To un-crate the machine, remove banding strips from
around the crate. Take off the top and sides and dispose
properly. Remove brackets (A) from machine frame. Re-
move bolts from pallet, then remove board. Carefully roll
the machine off of the base. Notify the carrier immediately
if concealed damage is discovered.
CONNECTING BATTERIES:
Your machine is equipped with (2×) 12-Volt/ 130 AH, or
(2×) 12-Volt/ 150 AH Wet Lead Acid, AGM, or Deep Cycle
Batteries which form a 24 Volt system.
(SEE PICTURE BELOW FOR CORRECT CABLE CON-
NECTIONS)
1. Turn all switches to the OFF position and remove Key
(if machine is equipped with optional key switch).
2. Attach Battery Cables as shown below.
3. Turn ON main power switch and check the battery
condition meter to ensure correct installation. Charge
Batteries if needed (SEE BATTERY CHARGING).
NOTICE
Batteries are a possible environmental hazard. Consult
your Battery supplier for safe disposal methods.
NOTICE
Orientation of Batteries is critical for cables to reach.
ATTACHING SQUEEGEE:
1. Lower the Squeegee Mounting Plate by rotating the
Squeegee Lift Lever (A) in a clockwise motion (SEE
BELOW).
2. Loosen the two knobs (B) on the squeegee and slide
them into the slots in the Squeegee Mounting Plate
(SEE BELOW).
3. Tighten the two knobs and connect the Vacuum Hose
(C) from the machine to the Squeegee (SEE BELOW).
4. You may have to adjust the Squeegee Pitch (SEE AD-
JUSTING SQUEEGEE ON THE NEXT PAGE)
24 VOLTS
A
B
B
C
A

K10-COMPACT-OP-EN - 11 -

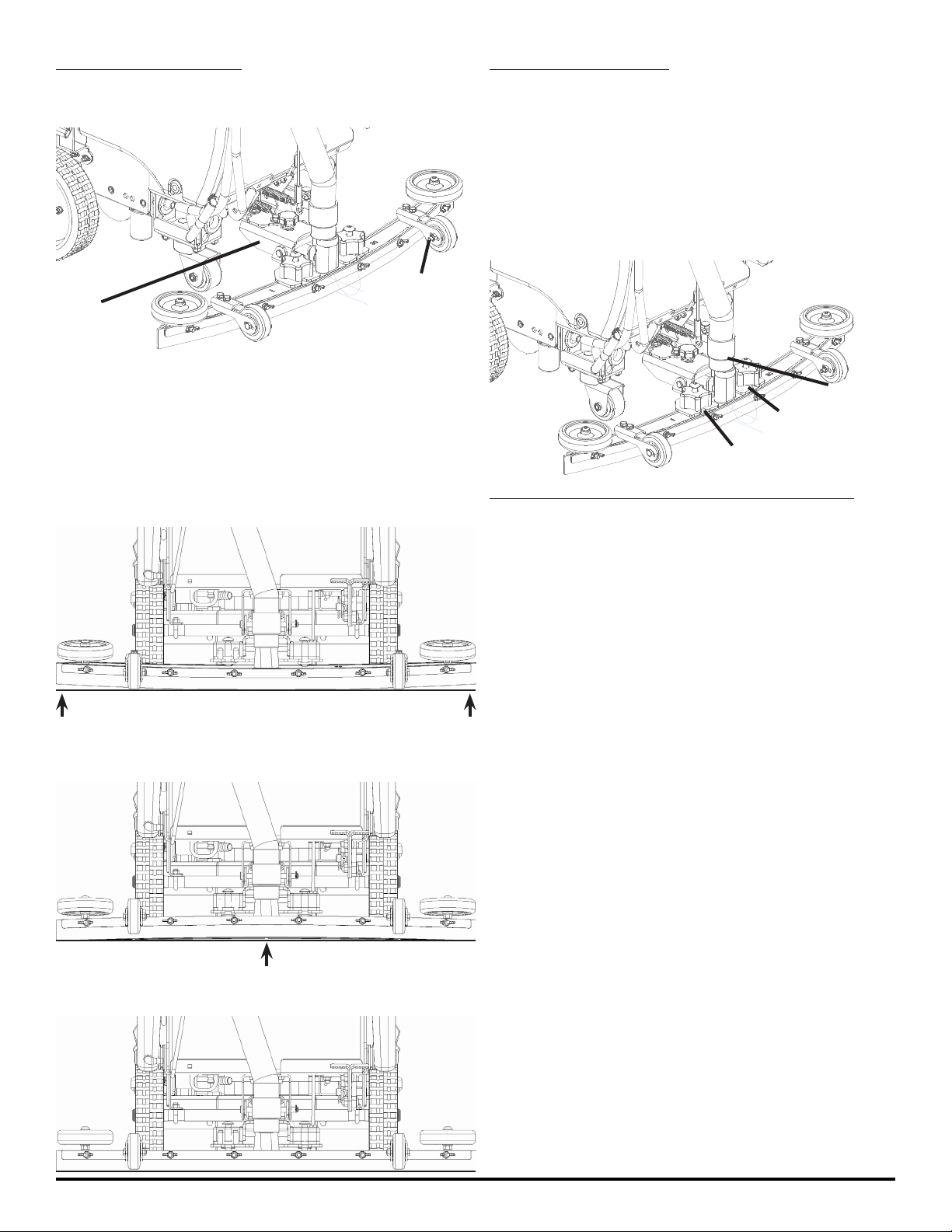

ADJUSTING SQUEEGEE:
1. Turning adjustment knob (A) clockwise (tightening) will
lower tips and raise the center of the Squeegee (SEE
BELOW).
2. Adjustable Wheel (B) (SEE ABOVE) has 3 holes. The
closer to the machine the wheel is, the further from the
ground the wheel becomes. The farther from the ma-
chine the wheel is, the closer to the ground the wheel
becomes.
3. This Squeegee is adjusted too far back and will not
pick up on the corners (SEE BELOW).
NOTE: Tips off of the floor.
4. This Squeegee is adjusted too far forward and will not
pick up in the center (SEE BELOW).
NOTE: Center spaced off the floor.
5. This squeegee is adjusted just right with good deflec-
tion across the entire rear blade (SEE BELOW).
REMOVING SQUEEGEE:
1. With the Squeegee in the up position, turn machine
power off.
2. Disconnect Vacuum Hose (A) from Squeegee and
loosen both knobs (B) (SEE BELOW).
3. Pull Squeegee assembly backward from the lifting
carrier.
4. Inspect or repair as needed and reinstall.
REPLACING OR ROTATING SQUEEGEE BLADES:
FOR SAFETY: Before leaving or servicing the machine,
stop on a level surface, turn off machine and remove Key.
1. Remove the Squeegee assembly from the machine.
Remove Blade retainer strap and remove Squeegee
Blade.
2. Rotate the Squeegee to new edge position or replace
as required.
3. Install Blade on the locating pins of Squeegee assem-
bly.
4. Install squeegee retainer strap.
5. Fasten and lock knobs, starting in the center and mov-
ing outwards.
A
B
B
B
A

- 12 - XS-COMPACT-OP-EN
INSTALLING DISK PAD DRIVER OR BRUSH:
1. With empty Tanks, remove Squeegee and make sure
the Tank latches (A) are locked on.
2. Lower the Scrubdeck by depressing the Scrubdeck
Switch (B) on the Handlebars and turn OFF the
machine (for machines with manual foot-pedal
Scrubdeck lifting - lower manually). Remove Key if
Option equipped.

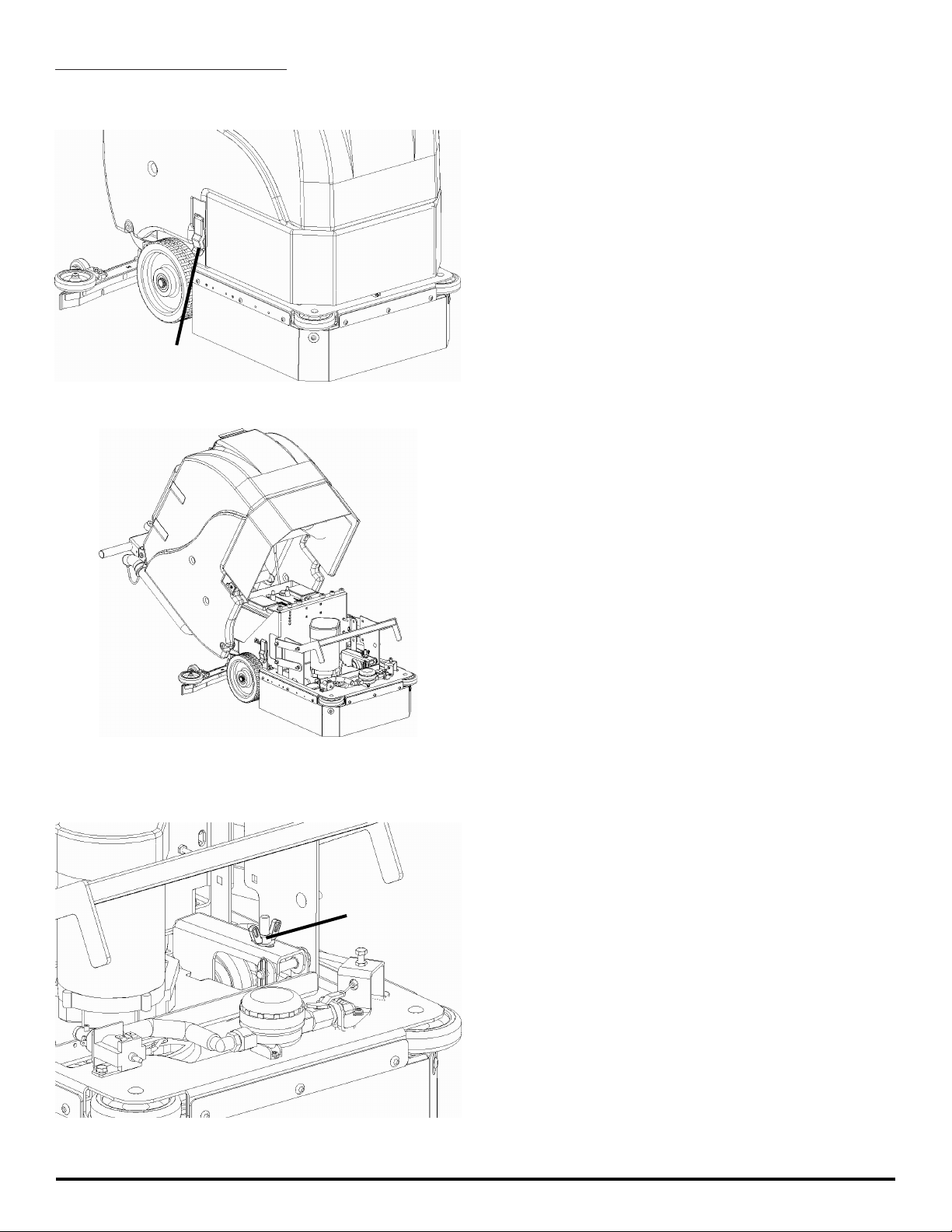

3. Tip machine back by pulling back on Handlebar and
allowing the machine to rest on the Triangle Squeegee
Plate (C).
4. Attach brushes or pads to motor drives. Squeeze the
scissor locking device and lift brush up on to the Motor
Drive Hub. Make sure the scissors close and lock on
to the Brushes (SEE BELOW).
5. With Brushes locked into place, tip machine back down
to a level surface.
INSTALLING DRIVER PADS:
1. Select the correct Pads that best meet your cleaning
application needs. Consult your local dealer for
assistance.
2. Pad Installation: Attach Pads to Pad Drivers before
connecting Drivers to Motor Hub. Screw center clip (E)
into place (SEE BELOW).
REPLACING DRIVER PADS ON MACHINE:
1. Select the correct Pads or Brushes that best meet
your cleaning application. Consult your local dealer for
assistance.
2. With empty Tanks and Squeegee removed, tip
machine back and rest on Triangle Plate.
3. Attach Pads to Pad drivers and screw center clip (F)
into place (SEE BELOW).
A
B
C
D
E
F
NOTICE
NEVER place aggressive Pads (Maroon Prep, Dominator
HD Strip, etc.) directly onto the Grip Face. Always use
Red or Blue Spacer pad to prevent Grip Face damage.

K10-COMPACT-OP-EN - 13 -
ADJUSTING PAD ASSIST BIAS:
1. Release (2×) Tank latches (A) (SEE BELOW).
2. Tip Tank back (SEE BELOW).
3. Turn the Pad Assist Adjustment wing nut (B) to the
right to increase bias and to the left to decrease (SEE
BELOW).
A
B

- 14 - XS-COMPACT-OP-EN
MACHINE OPERATION
PRE-CLEANING CHECKLIST:
Read and understand the Safety Messages section on
Pages 6 and 7 before operating the machine.
1. Check Battery Condition Gauge on the Control Panel.
Make sure Batteries are fully charged before using.
2. Check the condition of the Pads.
3. Check the condition of the Squeegee Blades.
4. Raise the Scrubdeck and Squeegee before transport-
ing then transport the machine to the filling station.
5. Turn the machine OFF.
6. Fill the tank with up to 10 gallons of clean water either
at the front fill port (A) or rear fill port (B) (SEE BE-
LOW).
7. Add APPROVED cleaning chemical to the tank. Use
the proper dilution ratio indicated on the bottle. Con-
tact us at 1(800)-634-4060 or +011-262-681-3583 if
unsure.
NOTICE
The clear tube (Solution Sight Tube) (C) at the rear of the
machine indicates the amount of water in the tank (SEE
BELOW).
DANGER
EXPLOSION RISK! Flammable materials can
cause an explosion or fire. Do NOT use flammable
materials in Tank or pick up.
CAUTION
TO AVOID DAMAGE TO THIS MACHINE:
• Use approved Detergents only
• Water temperature must not exceed 130˚F/54˚C
• Do NOT use high-percentage Bleach mixture
OPERATING HINTS:
1. Observe the amount of solution the machine is
dispensing on the floor and adjust to the desired flow.
To increase the solution flow rate, pull the Solution
Control Lever up. To shut the solution OFF completely,
just release the Drive button, or use dash mounted
switch.
2. Keep an eye on the clear Vacuum cover to make sure
that there is not any foamy buildup in the Recovery
Tank. If excess foam begins to develop, pour a
recommended foam control solution into the Recovery
Tank. Foam is usually an indication of excessive soap.
3. Always operate at lower speeds when scrubbing
around walls and objects. You should reduce the
speed to maintain control when turning.
4. If Squeegee starts to streak, raise and wipe the blades
with a clean cloth. if the problem continues, check the
Squeegee Blades for wear or damage and rotate if
needed. You may need to pre-sweep before scrubbing.
(Only Use OEM Parts)
5. Change or turn over Pads when dirty.
6. Stay clear of objects protruding from the floor such as
sockets, grates, etc, for they will damage the Pads and
Squeegee Blades.
7. Always keep an eye on your gauges. They let you
know the status of a particular system at a glance.
If your battery gauge is reading low you much stop
immediately and recharge. Running the Batteries
dead will result in damage to the Batteries.
8. When you run out of solution, raise the Scrubdeck and
continue to Vacuum the remaining water until it is all
consumed. The Solution Sight Tube is used to indicate
the level of detergent remaining in the Tank.
9. When you are ready to stop, raise the Scrubdeck, turn
OFF the solution switch, raise the Squeegee and drive
the machine back to the charging area. Be sure to
drain both Tanks before storing the machine.
AB
C

K10-COMPACT-OP-EN - 15 -
ONE PASS SCRUBBING:
1. Turn on machine Power Switch (A), make sure the
Speed Control Knob (B) is at a lower setting.
2. Lower the Squeegee by rotating the Squeegee Lift
Lever (C) all the way to the right. Turn on Vacuum
Motor with Vacuum Switch on Control Panel (D).
3. Lower Scrubdeck head to the floor by pressing
the Scrubdeck Switch on the Control Panel (E).
4. Move the Solution Flow Lever (F) to
regulate the amount of solution flow.
5. Begin scrubbing by pressing one of the green
Drive Buttons (G) on the Handlebars. Adjust the
Speed Control Knob (B) to the desired setting.
6. To operate the machine in reverse, simply
pull the Reverse switch (H) back towards
the Handlebar. The reverse speed is set to
approximately 50% of the forward speed.
7. To stop the machine, let go of the Drive Buttons (G).
SCRUB ONLY:
1. Turn on machine Power Switch (A) while making sure
the Speed Control Knob (B) is at a lower setting.
2. Lower Scrubdeck head to the floor by pressing
the Scrubdeck Switch on the Control Panel (E).
3. Move the Solution Control Lever (F) to
regulate the amount of solution flow.
4. Begin scrubbing by pressing one of the green
Drive Buttons (G) on the Handlebars. Adjust the
Speed Control Knob (B) to the desired setting.
5. To operate the machine in reverse, simply
pull the Reverse Switch (H) back towards
the Handlebar. The reverse speed is set to
approximately 50% of the forward speed.
6. To stop the machine, let go of the Drive Buttons (G).
VACUUM ONLY:
1. Turn on machine Power Switch (A) while making sure
the Speed Control Knob (B) is at a lower setting.
2. Lower the Squeegee by rotating the Squeegee Lift
Lever (C) all the way to the right. Turn on Vacuum
Motor with Vacuum Switch on Control Panel (D).
3. Begin vacuuming by pressing one of the green
Drive Buttons (G) on the Handlebars.
A
C
F
DE
B
H
G
G

- 16 - XS-COMPACT-OP-EN
ADJUST SOLUTION FLOW:
1. Push down on the Solution Flow Lever (A) to decrease
the solution flow and push up on the lever to increase
solution flow (SEE BELOW).
DRAINING SOLUTION TANK:
To drain unwanted cleaning solution from the Solution
Tank, perform the following steps:
(SEE BELOW)
1. Pull the clear Sight Tube/Drain
Hose (B) off barbed fitting.
NOTICE
Get Supervisor APPROVAL first and drain at
APPROVED locations only.
2. Rinse out Tank and solution flow
system with clean water.
DRAINING RECOVERY TANK:
Always empty Recovery Tank when refilling the Solution
Tank. You can refill the Solution Tank while the Recovery
Tank is draining. To drain the Recovery Tank remove Drain
Hose (C) from hook at rear of Tank and pop off cap (SEE
BELOW). Rinse with fresh water.
NOTICE
Leave Recovery Lid open while draining Tanks. Rinse
thoroughly.
NOTICE
Get Supervisor APPROVAL first and drain at
APPROVED locations only.
OPEN RECOVERY LID:
1. Rotate Tank Lid (C) forward and full open to rest
in a tipped open position (SEE ABOVE).
A
B
C

K10-COMPACT-OP-EN - 17 -
FLUSH RECOVERY TANK:
1. Rinse the Recovery Tank after every use
(A). This will prevent heavy build-up on the
bottom of the Tank, foul odors as well as
clogging of the Drain Hose (SEE BELOW).
2. Remove Drain Hose (B) and open to allow for
drainage of the Recovery Tank (SEE BELOW).
3. Flush Recovery Tank with water hose.
4. After rinsing, reattach the Drain Hose
(B) on hook (SEE ABOVE).
NOTICE
Keep water off of Control Panel.
CLEAN “DRAIN SAVER”:
With Recovery Lid open and Tank fully drained:
1. Remove 2'' Squeegee Intake Hose (A) from
“Drain Saver” strainer (B) (SEE BELOW).
2. Remove stainless screen and dispose of debris.
3. Rinse screen with fresh water from the
outside while holding the screen upside
down. This will allow for better cleaning.
4. Replace the screen into the bracket.
5. Replace 2'' Squeegee Intake Hose.
CLEAN VACUUM SCREEN:
With Recovery Lid open and Tank fully drained:
1. Remove Vacuum Screen retaining
clip (C) (SEE BELOW).
2. Pull Vacuum Screen and float ball
assembly (D) off of the Vacuum box.
3. Rinse with hot water.
4. Dry thoroughly.
5. Replace the Vacuum Screen onto box.
6. Replace and tighten retaining clip.
A
BB
A
C
D

- 18 - XS-COMPACT-OP-EN
TIP TANK:
1. Fully drain Solution Tank and the Recovery Tank.
2. Remove Squeegee or place in center.
3. Unlatch Tank Latch (A) on each side
of the machine (SEE BELOW).
4. Tip Tank Back carefully until supported
by strap (SEE BELOW).
CAUTION
Casters need to be swiveled back (B) as shown, other-
wise machine may tip.
SQUEEGEE UP:
1. To raise the Squeegee off the floor, rotate
Squeegee Lift Lever (A) counter-clockwise
all the way to the left (SEE BELOW).
SQUEEGEE DOWN:
1. To Lower the Squeegee to the floor, rotate Squeegee
Lift Lever (B) clockwise all the way to the right. To
turn on Vacuum Motor use the Vacuum Switch
(C) on the Control Panel (SEE BELOW).
A
B
A
B
C

K10-COMPACT-OP-EN - 19 -
VACUUM MOTOR:
1. The machine is equipped with a 24 volt,
.75HP Vacuum Motor (A) (SEE BELOW).
2. If foam or water gets past the Recovery Tank’s
Vac Screen/Ball system, adjust the bracket
(B) in the Tank upwards (SEE BELOW).
3. The Vacuum Motor has an (standard)
“Foam Muffler” (C), sound reduction walls
(D) and vibration dampeners (E) that are
available to quiet machine operation.
SOLUTION FILTER:
The solution system has an “Inline Filter” (A) to filter out
cleaning solution prior to scrubbing (SEE BELOW).
CLEANING SOLUTION FILTER:
1. To clean the Solution Filter, first close Solution Flow
Valve by moving lever (B) down. Then unscrew
the clear cap (C) from house (A) and remove
the stainless steel screen (E) (SEE BELOW).
2. Rinse any debris from the screen with clean water.
3. Reinstall screen and screw cap back on tightly.
4. Re-open valve.
B
C
D
A
E
D
B
A
E
C

- 20 - XS-COMPACT-OP-EN
BATTERY CHARGING
Charger Specifications
• Output voltage of 24 Volts
• Output current of 12 amps max
• Input voltage of 110 Volts/ 60 Hz
(220V/50 Hz available)
• Automatic shut off circuit
• Made for Deep Cycle Batteries
DANGER
Explosive hydrogen gas forms when Batteries are
charging. An open flame or spark can cause this gas
to explode. Serious personal injury or property damage
could occur. Only charge the Batteries in this machine
in a well ventilated area.
WARNING
Before you service a Battery, always wear face protec-
tion, protective gloves and protective clothing. Battery
acid or battery explosion can cause serious injuries.
WARNING
The Batteries in this machine contain sulfuric acid,
which causes burns to skin. If battery acid contacts
clothing or skin, rinse the effected area with cold water
immediately. If battery acid gets on your face or in your
eyes, flush the area immediately with cold water and
seek medical attention.
CAUTION
Always use the automatic battery charger provided by
the manufacturer of this machine to charge the batter-
ies of this machine. It is designed to charge the Batter-
ies at the appropriate rate. If you must use a different
charger, disconnect the Batteries before charging to
avoid damage to the electronic speed controller.
EXTERNAL BATTERY CHARGING:
1. Transport machine to a well ventilated area for
charging.
2. Turn the machine off. Tip Tank back.
3. Check the water in each battery (1). Do not charge
the machine unless the water is slightly higher than
the plates. If needed, add enough distilled water to
just slightly cover the plates. Be careful not to over fill.
Batteries can overflow during charging. Replace caps
before charging.
4. First, plug the red 50 Charger plug into the machine’s
Charger Port (2). While the Charger plug is connected,
plug the Charger Power Cord into a grounded 110 Volt
standard wall outlet (3).
5. The Charger will automatically begin charging and
automatically shut off when fully charged (check
Battery gauge).
6. After the Charger has turned off - First, unplug the
Charger from the wall outlet. Second, unplug the red
50 Charger plug from the machine.
7. Recheck the cell level after charging. If needed, add
distilled water up to the correct level. Be certain to
replace the caps securely and to wipe off the top of the
Batteries with a clean cloth.
WATER LEVEL SHOULD BE
1/8'' ABOVE PLATES
1
2
2
3
