1 Introduction
1.1 Thank you for choosing Timberwolf
Timberwolf wood chippers are designed to give safe and dependable service if operated in
accordance with the instructions.
This manual should be considered an important part of the machine and should
remain with it if the machine is resold.
This manual covers the operation and maintenance of the Timberwolf TW 230VTR and the
optional Timberwolf Safety Plus Kit. All information in this manual is based on the latest
product information available at the time of purchase.
All the information you need to operate the machine safely and effectively is contained
within this manual.
Ensure that all operators are properly trained for operating the TW 230VTR, especially in
safe working practices.
Timberwolf's policy of regularly reviewing and improving our products may involve major or
minor changes to this TW 230VTR or its accessories. Timberwolf reserves the right to
make changes at any time without notice and without incurring any obligation.
Due to improvements in design and performance during production, there may be, in some
cases, minor discrepancies between the actual TW 230VTR and the text in this manual.
All TW 230VTR chippers have a full pre-delivery inspection before leaving the factory and
are ready to use.
1.2 Important Health and Safety Information
Before using your new chipper, please take time to read this manual. Failure to do so could
result in:
• personal injury.
• equipment damage.
• damage to property.
• 3rd party injuries.
TW 230VTR (Diesel)

1.3 Warning or Caution Symbols
Be aware of these symbols and where shown, carefully follow the instructions.
These symbols indicate important safety messages in this manual. When you see these
symbols, be alert to the possibility of injury to yourself or others and carefully read the
message that follows.
Always follow safe operating and maintenance practices.
1.4 Hazardous Materials
The following hazardous materials are present within the TW 230VTR:
• Engine oil • Battery acid • Diesel
• Grease • Hydraulic oil • Copper Ease
• Loctite • Coolant
MATERIAL SAFETY DATA SHEETS FOR THESE HAZARDOUS MATERIALS ARE
AVAILABLE ON REQUEST. REFER TO THESE FOR FIRST AID AND FIRE
PROTECTION MEASURES.
Always follow recommended procedures for safe handling, removal and disposal of
hazardous materials. Safety precautions should be taken when handling hazardous
materials. The use of oil-resistant gloves and safety glasses is recommended. Avoid direct
contact with the substance. Store in a cool, well ventilated area. Avoid sources of ignition,
strong oxidising agents and strong acids. Ensure hazardous spillages do not flow into the
ground or drainage system. Ensure potential environmental damage is controlled safely,
according to local laws.
1.5 Purpose
The TW 230VTR is designed to chip solid wood material up to 160 mm (6 inches) in
diameter and is capable of chipping over 4 tonnes of brushwood per hour.
6/69 C190-0303 - Rev 1.0 EN
TW 230VTR (Diesel) 1 Introduction

C190-0303 - Rev 1.0 EN 7/69
2 Product Details
This chapter contains the specifications of the TW 230VTR.
It shows the locations of the main components of the chipper, lists all the decals used on the
machine, and describes the purpose of the various guarding assemblies.
2.1 Specification
The specifications of the TW 230VTR are shown in Table 1.
Overall Height 2225 mm
Height with Discharge Tube Removed 1365 mm
Length with tray and step up 2635 mm
Length with tray and step down 3550 mm
Width with tracks out 1302 mm
Width with tracks in 1120 mm
Width with tracks in and funnel removed 812 mm
Overall Weight 1294 Kg (Without Winch)
Engine Type Kubota 4-cylinder diesel
Maximum Power 18.5 kW (24.8 hp)
Cooling Method Water cooled
Starting Method Electric
Roller feed Twin hydraulic motors
Maximum Material Diameter 160 mm (6 inches)
Fuel Capacity 36 litres
Hydraulic Oil Capacity 15 litres
Maximum Material Processing Capacity 4 tonnes/hr
Fuel Type Diesel
Table 1 - Specifications
TW 230VTR (Diesel)

2.2 Location of Parts
2.2.1 Parts Locator 1
1 Discharge tube 12 Rotor housing blade access hatch
2 Discharge bucket 13 Winch (optional)
3 Roller box guard 14 Hydraulic motor guard
4 Air intake 15 Reflector (both sides)
5 Exhaust 16 Control box (both sides)
6 Throttle lever 17 Safety bar
7 Driving control panel 18 In-feed funnel
8 Driving platform 19 Push stick (Timberwolf Safety Plus Kit)
9 Engine bay side panel (both sides) 20 Emergency stop (Timberwolf Safety Plus Kit)
10 Rotor housing 21 Manual canister
11 Winch controls (optional) 22 Discharge tube clamp
8/69 C190-0303 - Rev 1.0 EN
TW 230VTR (Diesel) 2 Product Details

C190-0303 - Rev 1.0 EN 9/69
2.2.2 Parts Locator 2

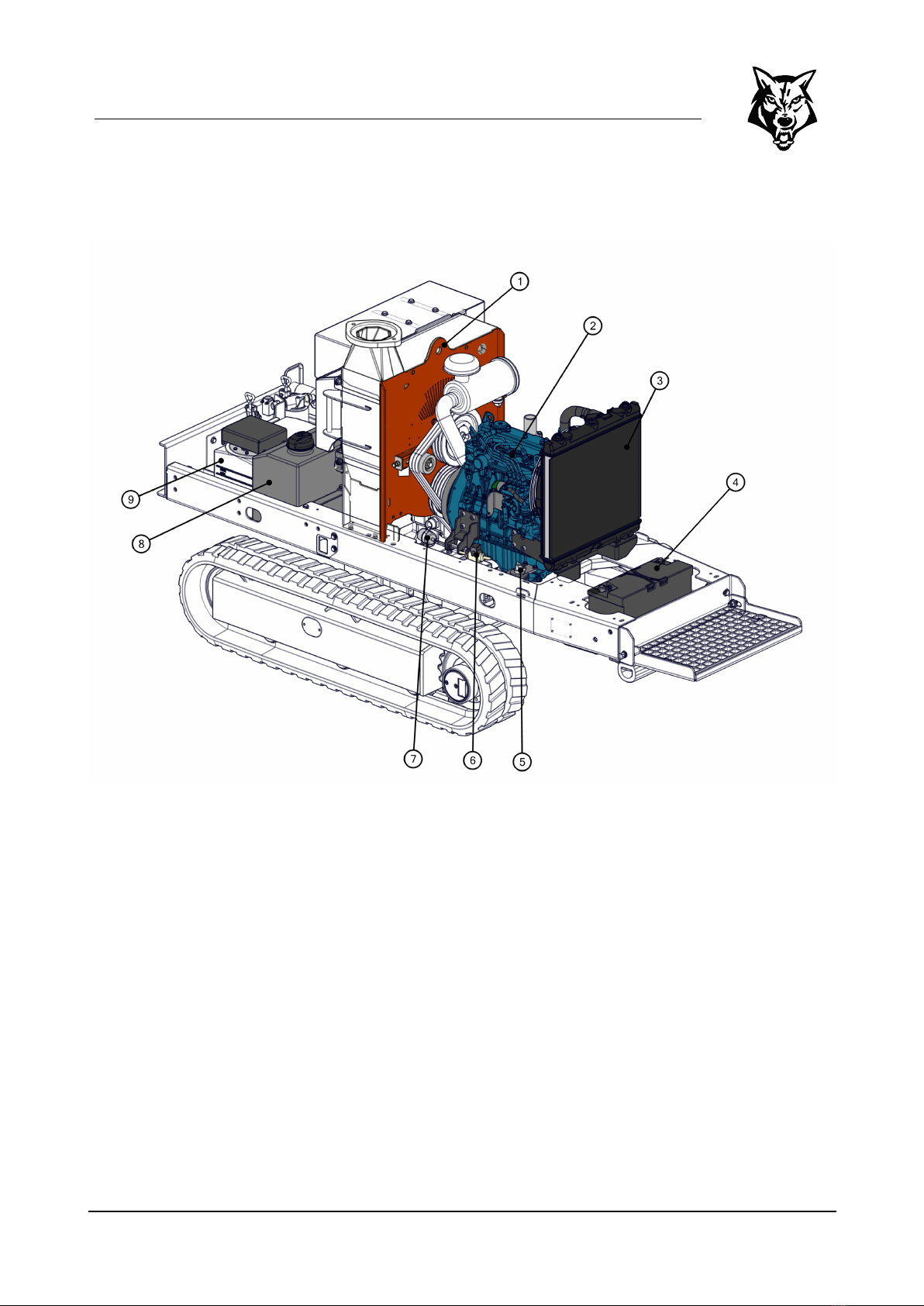

1 Lifting eye 6 Fuel pump
2 Engine block 7 In-line fuel filter
3 Radiator 8 Fuel tank
4 Battery 9 Hydraulic tank
5 Fuel filter
2 Product Details TW 230VTR (Diesel)

2.2.3 Parts Locator 3

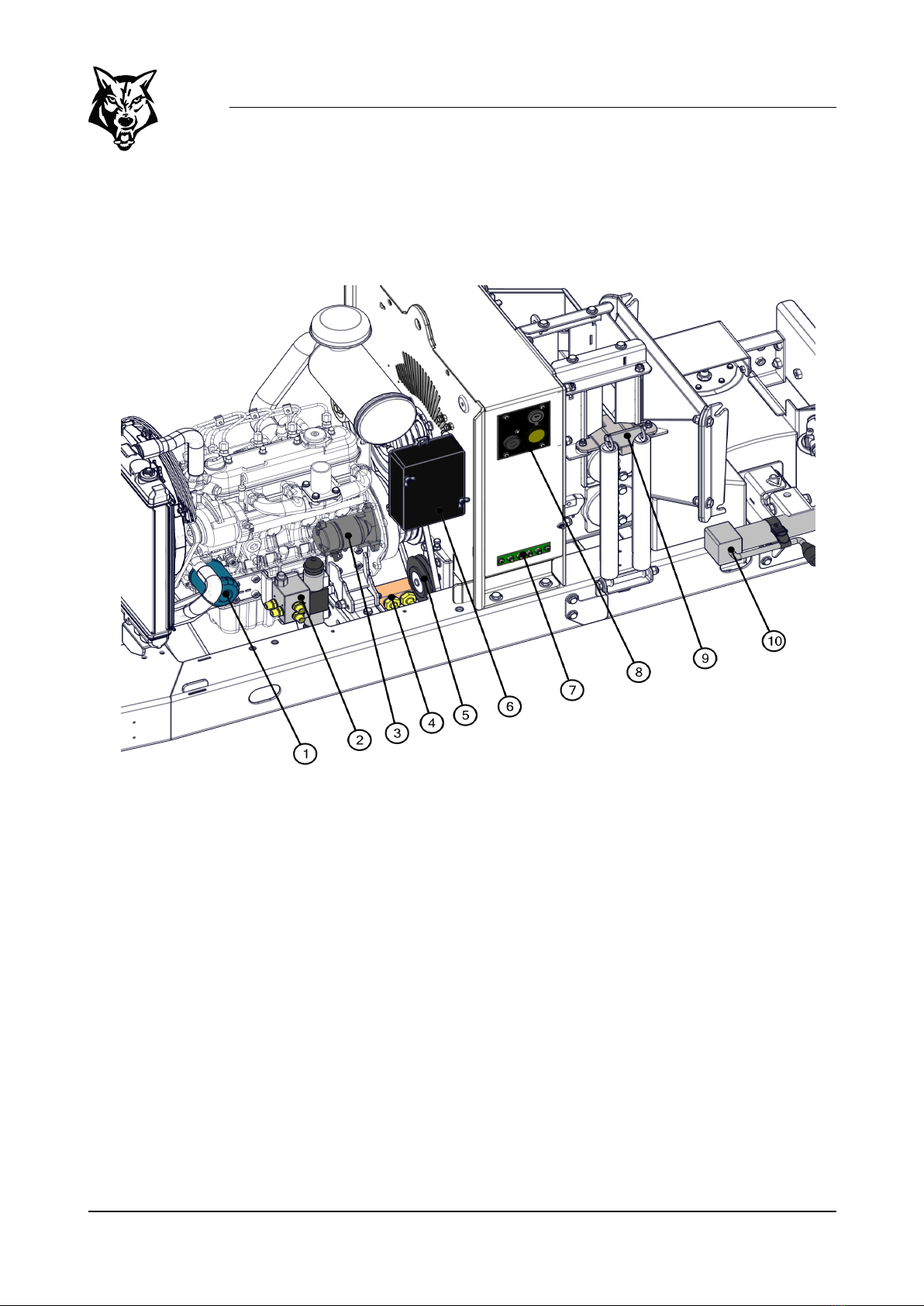

1 Oil filter 6 Electrical panel
2 Directional control valve 7 Greasing panel
3 Starter motor 8 Control panel
4 Hydraulic manifold 9 Top roller slide
5 Hydraulic pump pulley 10 Jack
10/69 C190-0303 - Rev 1.0 EN
TW 230VTR (Diesel) 2 Product Details

C190-0303 - Rev 1.0 EN 11/69
2.2.4 Parts Locator 4
1 Rotor 6 Hydraulic pump drive belt
2 Rotor pulley 7 Fan section (x4)
3 Belt tensioning pulley 8 Hydraulic pump
4 Drive belts 9 Cutting blade (x2)
5 Drive pulley
2.3 Tool Box
The TW 230VTR is supplied with a tool box which contains:
• Combination spanner (17mm/19mm) • Access cover keys (x2)
• Rotor locking tool • Ignition keys (x2)
• Copper Ease • Keyring
2 Product Details TW 230VTR (Diesel)

2.4 Safety Decals
Pt No Description
616 WARNING - Hot exhaust.
617 WARNING - High velocity discharge. Keep clear.
4099 DANGER - Rotating blades. Keep hands and feet out.
C192-
0102 DANGER - Do not climb into the feed funnel (Timberwolf Safety Plus Kit).
C192-
0112
Fuel here. Risk of fire. Allow engine to cool for one minute before refuelling. Use diesel
fuel only.
P637 DANGER - Do not operate without this cover in place.
P650 DANGER - Autofeed system fitted. Rollers may turn without warning. When the engine is
switched off the rollers will turn during the run down period.
P653 DANGER - Rotating blades inside. Stop engine and remove key before removing
discharge unit.
P654 CAUTION - When transporting, discharge clamps may work loose. Check frequently.
P655 CAUTION - Avoid standing directly in front of feed funnel to reduce exposure to noise,
dust and risk from ejected material.
P656 DANGER - Do not use this machine without the discharge unit fitted. Failure to comply
may result in serious injury or damage.
P3611 DANGER - Rotating blades. Keep hands and feet out (Timberwolf Safety Plus Kit).
Table 2 - Safety Decal Descriptions
12/69 C190-0303 - Rev 1.0 EN
TW 230VTR (Diesel) 2 Product Details

C190-0303 - Rev 1.0 EN 13/69
2.5 Instruction Decals
Pt No Description
670 Personal Protective Equipment required. (Section 3.2 "
Operator's Personal Protective
Equipment (PPE) " on page 17.)
1399 Push safety bar to stop.
1661 Refer to the instruction manual for greasing and maintenance information.
1662
The instruction manual with this machine contains important operating, maintenance and
health and safety information. Failure to follow the information in this instruction manual
may lead to death or serious injury.
2800 Reverse feed.
2801 Forward feed.
2949
Lifting eye is designed to lift the machine's weight only. Do not use hoist on lifting eye. Use
correctly rated safety shackle only through lifting eye. Lifting eye to be inspected every 6
months and prior to each use. Do not use lifting eye if damaged.
2950 Throttle setting.
3015 Track width: in/out.
3022 Clean under blades before refitting or turning. Failure to do so may result in blades coming
loose and damage being caused to the rotor housing.
3059
Jacking point.
Refer to Section 5.18 " Jacking the Chipper " on page 51.
Table 3 - Instruction Decal Descriptions
2 Product Details TW 230VTR (Diesel)

Pt No Description
18393 New drive belts need re-tensioning. When new belts are fitted check tension every 2-3
hours and adjust until tension remains constant.
18653 Close bucket and point discharge away from driving position. Protective equipment must
be worn when driving machine.
19517
WARNING - Do not engage starter motor for more than 20 seconds. Allow one minute
before attempting to start. Investigate reasons for failure to start. Excessive cranking will
result in starter motor failure. This will not be covered under warranty.
P652 CAUTION -Do not put road sweepings in machine as grit will damage blades.
P691 Do not pull here.
P1301 Push to stop. Pull to reset. (Engine.)
P1810 Relay decal: Forward latch.
P1811 Relay decal: Engine safety.
P1812 Torque blade bolts to 170 Nm (125 ft-lb).
P2157 Relay decal: Tracking speed.
C192-
0204 Engine control panel.
C192-
0205 Track control panel.
C192-
0216
Tie down point.
Refer to Section 5.17 " Securing the Chipper for Transport " on page 51
P2156 Lifting eye maximum weight.
14/69 C190-0303 - Rev 1.0 EN
TW 230VTR (Diesel) 2 Product Details

C190-0303 - Rev 1.0 EN 15/69
2.6 Model Decals
Pt No Description
1363 Timberwolf - Wolf head logo.
C192-
0100
Guaranteed Sound Power Level. (The maximum amount of acoustic energy emitted by
the machine.)
C192-
0101
Equivalent Continuous Sound Power Level. (The average amount of acoustic energy an
operator is subjected to during normal operations.)
C192-
0146 Wolftrack system.
P2100 Timberwolf - Side panel.
C192-
0201 Made in Britain
C192-
0213 Diesel engine.
Table 4 - Model Decal Descriptions
2 Product Details TW 230VTR (Diesel)

2.7 Identification Plate
The Timberwolf TW 230VTR Identification Plate is mounted on the front outer face of the
right-hand chassis beam. It includes the unique machine Serial Number.
2.8 Guards
Ensure all the guards are correctly fitted during all operations. The guards may only be
removed for maintenance.
The TW 230VTR has the following fixed guards for protection of the operator, chipper and
environment:
Roller Box Guard
• Protects the rotor housing from damage or foreign matter.
• Protects the operator from injuries from moving rollers or from ejected material
during operation.
Hydraulic Motor Guard
• Protects the hydraulic motors from damage.
• Protects the operator from injuries due to heat or movement of the motor.
Rotor Housing Blade Access
• Protects the operator from rotating parts (e.g. cutting blades).
• The interlocking switch prevents the engine from running when the hatch is
opened, to stop the chipper from rotating.
Engine Bay Side Panels
• Protect the operator from moving parts (e.g. belts and pulleys), hot surfaces and
engine fluids.
• Protect the chipper from ingress of environmental debris.
16/69 C190-0303 - Rev 1.0 EN
TW 230VTR (Diesel) 2 Product Details

C190-0303 - Rev 1.0 EN 17/69
3 Safety Notes and Warnings
3.1 Safety Notices
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in moderate injury or
damage the machine.
3.2 Operator's Personal Protective Equipment (PPE)
DO NOT wear rings, bracelets, watches, jewellery, loose-fitting clothing or any other items
that could be caught in the material and draw you into the chipper.
Chainsaw safety helmet (EN 397) fitted with mesh visor (EN 1731)
and ear defenders (EN 352).
Work gloves with elasticated wrist.
Steel toe cap safety boots (EN 345-1).
Close-fitting heavy-duty non-snag clothing. High-visibility clothing
(EN 471) if risk assessment identifies the need.
Face mask if appropriate.
TW 230VTR (Diesel)

3.3 Basic Woodchipping Safety
It is the responsibility of the machine operator to carry out a full site Risk Assessment
before starting work. This Risk Assessment should consider the following points:
MAINTAIN A SAFETY EXCLUSION ZONE around the chipper of at least 10 metres for
the general public or employees without adequate protection. Use hazard tape to identify
this working area and keep it clear from debris build up. Chips should be ejected away from
any area the general public have access to.
HAZARDOUS MATERIAL - Some species of trees and bushes are poisonous. The
chipping action can produce vapour, spray and dust that can irritate the skin. This may lead
to respiratory problems or even cause serious poisoning. Check the material to be chipped
before you start. Avoid confined spaces and use respiratory protection where necessary.
BE AWARE when the chipper is processing material that is an awkward shape. The
material can move from side to side in the funnel with great force. If the material extends
beyond the funnel, it may push you to one side. Badly twisted material should be trimmed
before being chipped to avoid thrashing in the feed funnel.
BE AWARE that the chipper can eject chips out of the feed funnel with considerable force.
Always wear full head and face protection.
ALWAYS work on the side of the machine furthest from any local danger (e.g. not road
side).
NEVER leave the chipper unattended when running. Machines must be supervised at all
times when in use.
In the event of an accident, stop the machine, remove the key and call the emergency
services immediately.
18/69 C190-0303 - Rev 1.0 EN
TW 230VTR (Diesel) 3 Safety Notes and Warnings
