Timberwolf 2300 User manual

1
W415-0892 / 03.05.10
$10.00
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.19
SAFETY INFORMATION
!WARNING
If the information in these instructions is not followed exactly, a
fire or explosion may result causing property damage, personal
injury or death. Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage,
bodily injury or even death. Please read entire manual before
you install and use your appliance.
This appliance has not been tested with an unvented gas log
set. To reduce risk of fire or injury, do not install an unvented
gas log set into the appliance.
- This appliance can be very hot when burning.
- Combustible materials such as firewood, wet clothing, etc. placed too
close can catch fire.
- Children and pets must be kept from touching the appliance when it is hot.
- The chimney must be sound and free of cracks. Before installing this unit,
contact the local building or fire authority and follow their guidelines.
- Operate only with the door tightly closed.
- Burn wood behind the log retainer directly on the firebricks.
- Do not use an elevated grate or otherwise raise the fire.
- At least 14 square inches of outside air must be admitted to the room or
directly to the unit through a 4” diameter pipe.
- This appliance is designed to burn natural wood only. Higher efficiencies
and lower emissions generally result when burning air dried seasoned
hardwoods, as compared to softwoods or to green or freshly cut
hardwoods.
- Do not start a fire with chemicals or fluids such as gasoline, engine oil,
etc.
- Do not burn treated wood, coal, charcoal, colored paper, cardboard,
solvents or garbage.
- Do not let the appliance become hot enough for any part to glow red.
- KEEP THE STOVE TOP TEMPERATURE BELOW 700°F (371°C). Attempts to
achieve heat output rates that exceed design specifications can result in
steel distortion and damage.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.timberwolffireplaces.com • ask@timberwolffireplaces.com
2300
PEDESTAL MODEL
CERTIFIED UNDER U.S. ENVIRONMENTAL PROTECTION AGENCY (E.P.A.) JULY 1990 40 C.F. R. PART 60 AND THE OREGON DEPARTMENT OF ENVIRON-
MENTAL QUALITY (D.E.Q.) PARTICULATE EMISSION STANDARDS BY E.E.M.C THESE STOVES HAVE BEEN TESTED AND LISTED BY INTERTEK TESTING
SERVICES TO STANDARDS: CSA B366.2, ULC S627, UL 1482.

2
W415-0892 / 03.05.10
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 SPECIFICATIONS 5
2.3 GENERAL INSTRUCTIONS 5
2.4 GENERAL INFORMATION 6

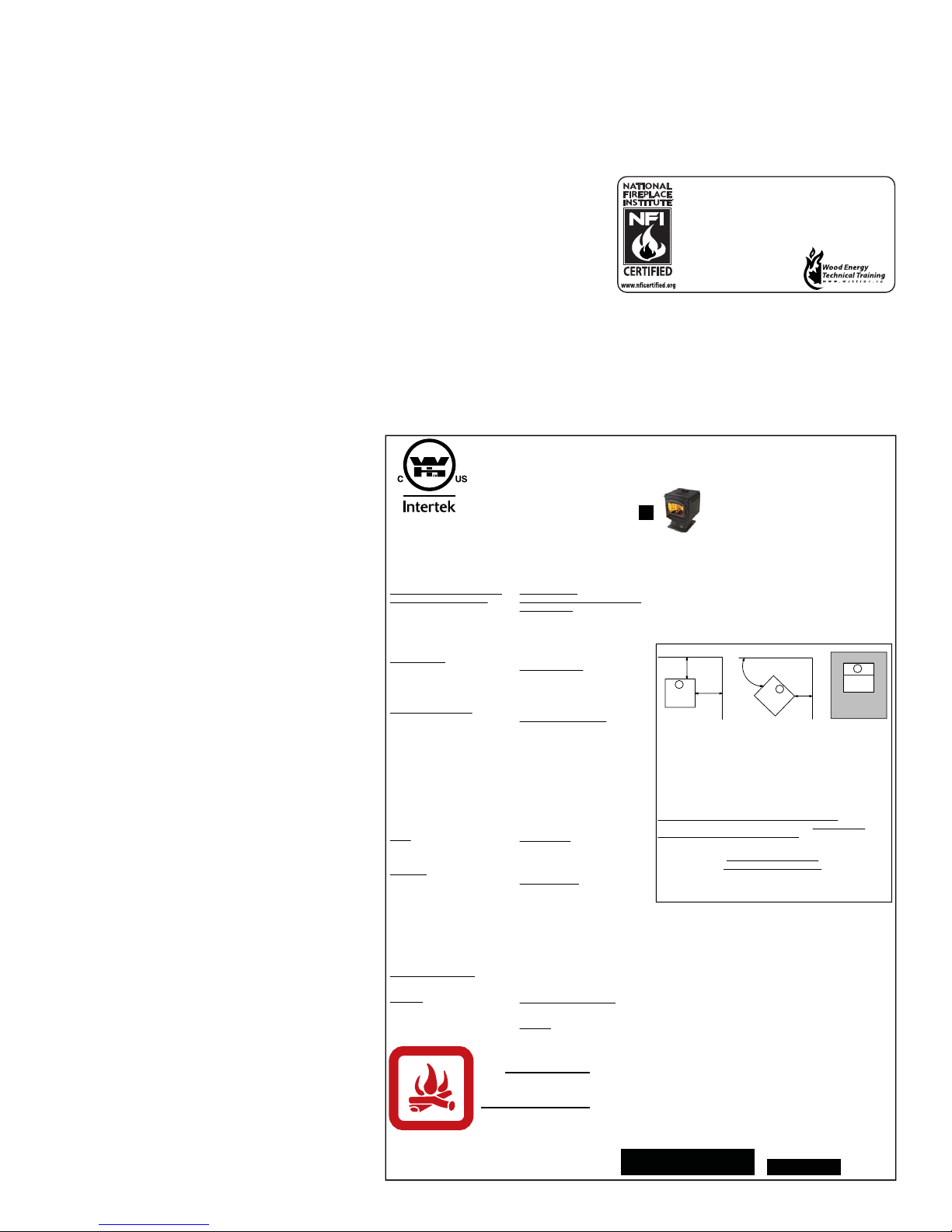

2.5 RATING PLATE LOCATION 7
3.0 PRE-INSTALLATION PREPARATION 8
3.1 APPLIANCE PLACEMENT 8
3.2 CLEARANCE TO COMBUSTIBLES 8
3.3 FLOOR PROTECTION 8
3.4 OUTSIDE AIR 9
4.0 INSTALLATION 10
4.1 CHIMNEY 11
4.1.1 CHIMNEY CONNECTION 12
4.1.2 ADDING SECTIONS 13
4.1.3 TYPICAL THROUGH THE CEILING 14
4.1.4 TYPICAL THROUGH THE WALL 15
4.1.5 TYPICAL EXISTING MASONRY 16
5.0 FINISHING 17
5.1 DOOR REMOVAL / INSTALLATION 17
5.2 DOOR HANDLE INSTALLATION 17
5.3 BRICKS AND BAFFLE INSTALLATION 18
6.0 OPTIONAL KIT INSTALLATIONS 19
6.1 OPTIONAL BLOWER INSTALLATION 19
7.0 OPERATION 20
7.1 AIR CONTROL 21
7.2 FIRE EXTINGUISHERS / SMOKE DETECTORS 21
7.3 FUEL 22
7.4 LIGHTING A FIRE 22
7.4.1 FLASH FIRE 22
7.4.2 EXTENDED FIRE 22
7.5 SMOKING 22
8.0 MAINTENANCE 23
8.1 ASH REMOVAL PROCEDURES 23
8.2 CREOSOTE FORMATION AND REMOVAL 24
8.3 RUNAWAY OR CHIMNEY FIRE 24
8.4 CHIMNEY CLEANING 24
8.5 GLASS REPLACEMENT 25
8.6 GASKET REPLACEMENT 25
8.7 CARE OF GLASS 26
8.8 CARE OF PLATED PARTS 26
8.9 WOOD 26
9.0 REPLACEMENTS 27
10.0 TROUBLE SHOOTING 29
11.0 WARRANTY 30
12.0 SERVICE HISTORY 31
13.0 NOTES 32

3
W415-0892 / 03.05.10
1.0 INSTALLATION OVERVIEW
Door, see “DOOR
REMOVAL /
INSTALLATION”
section.
Handle, see “DOOR
HANDLE INSTALLATION”
section.
Draft, see “DRAFT
CONTROL” section.
Ash, see “ASH REMOVAL
PROCEDURES” section.
Outside air, see “OUTSIDE AIR”
section.
Blower, see
“OPTIONAL BLOWER
INSTALLATION”
section.

4
W415-0892 / 03.05.10
2.0 INTRODUCTION
3.17A
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Before installing this appliance, contact the local building or fire authority and follow their guidelines.
• This appliance must be installed by a qualified installer.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not let the appliance become hot enough for any part to glow red.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal
edges may be sharp.
• Young children should be carefully supervised when they are in the same room as the appliance. Tod-
dlers, young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict access to an appliance or stove,
install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the
room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance. Objects placed in
front of the appliance must be kept a minimum of 48” away from the front face of the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children
from hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• Under no circumstances should this appliance be modified.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• Operate only with the doors tightly closed.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• If the appliance is not properly installed, a house fire may result. Do not expose the appliance to the elements
(ex. rain, etc.) and keep the appliance dry at all times. Wet insulation will produce an odour when the appliance
is used.
• The chimney must be sound and free of cracks. Clean your chimney a minimum of twice a year and as re-
quired.
• Do not start a fire with chemicals or fluids such as gasoline, engine oil, etc.
• Your appliance requires periodic maintenance and cleaning. Failure to maintain your appliance may lead to
smoke spillage in your home.
• Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods,
as compared to softwoods or too green or freshly cut hardwoods. Burning wet unseasoned wood can
cause excessive creosote accumulation. When this is ignited it can cause a chimney fire that may result
in a serious house fire.
• This appliance is designed to burn natural wood only. Do not burn treated wood, coal, charcoal, co-
loured paper, cardboard, solvents or garbage.
• Burn wood behind the log retainer directly on the firebricks. Do not elevate grate or otherwise raise the
fire.
• Do not store wood within appliance installation clearances or within the space required for re-fueling
and ash removal.

5
W415-0892 / 03.05.10
SPECIFICATIONS 2300
CHAMBER (D.W.H) 22 ½” x 18” x 12”
CAPACITY 3.0 FT3
APPROX. AREA HEATED* 1000-3500 FT2
HEAT OUTPUT (HIGH BURN) ** 85,000 BTU
DURATION LOW FIRE* 12 HRS
WEIGHT w/o BRICKS 285 LBS
WEIGHT OF BRICKS 114 LBS
IDEAL WOOD LENGTH 21”
* Figures will vary considerably with individual conditions.
** Wolf Steel Ltd. estimated realistic BTU/h with hardwood logs and regular refueling.
2.2 SPECIFICATIONS
2.1 DIMENSIONS
2.3 GENERAL INSTRUCTIONS
4.7
ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH
LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN
ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN
THE UNITED STATES.
THIS APPLIANCE HAS NOT BEEN TESTED WITH ANY VENTED OR UNVENTED GAS LOG SET. TO
REDUCE RISK OF FIRE OR PREVENT INJURY, DO NOT INSTALL A VENTED OR UNVENTED GAS LOG
SET INTO THE APPLIANCE.
BURNING YOUR UNIT WITH THE ASH DUMP DOOR OPEN OR AJAR CREATES A FIRE HAZARD THAT
MAY RESULT IN DISCOLOURATION TO THE GOLD PLATED DOOR, INTERNAL DAMAGE TO THE
APPLIANCE OR A HOUSE CHIMNEY FIRE.
DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
THIS APPLIANCE AND IT’S COMPONENTS ARE DESIGNED TO BE INSTALLED AND OPERATED AS A
SYSTEM. ANY ALTERATION TO OR SUBSTITUTION FOR ITEMS IN THIS SYSTEM, UNLESS ALLOWED
BY THESE INSTALLATION INSTRUCTIONS, WILL VOID THE LISTING AND MAY VOID THE PRODUCT
WARRANTY. IT MAY ALSO CREATE A HAZARDOUS INSTALLATION. READ THROUGH THESE
INSTRUCTIONS THOROUGHLY BEFORE STARTING YOUR INSTALLATION AND FOLLOW THEM
CAREFULLY THROUGHOUT YOUR PROJECT.
!
WARNING
31 ¾”
25 ³/
8
”29
1
/
8
”
7”
29
1
/
8
”
31”
12 ¾”
7”
25 ³/
8
”

6
W415-0892 / 03.05.10
• Before beginning your installation, consult with your local building code agency or fire officials and
insurance representative to ensure compliance.
• Non-toxic smoke will be emitted during the paint curing process, to help dissipate the smoke open a
window near the appliance.
• Remove any dust or debris off the top of the appliance before firing the appliance as the paint will be-
come soft as the appliance heats up and will harden as the appliance cures. To cure the paint on your
appliance burn your appliance moderately hot during the first few fires.
• To keep the gasket from sticking to the appliance as the paint is curing, periodically open the door
every 5-10 minutes.
• For the first two weeks use generous amounts of fuel and burn the appliance with the damper wide
open for an hour as the appliance goes through a process of eliminating moisture in the steel and fire-
bricks. The initial heat output will be reduced while the moisture is being drawn from the appliance and
it will be necessary to build several hot fires to remove this moisture. DURING THIS PROCESS DO
NOT OVERFIRE THE APPLIANCE. REDUCE THE AMOUNT OF AIR COMING INTO THE APPLI-
ANCE IF THE APPLIANCE OR CHIMNEY BECOMES RED.
Your appliance has been specifically designed over many months of research to meet the 1990 U.S.A. EPA particu-
late emission standards and have been extensively tested in Canadian and American laboratories. This system is
the most efficient, simple and trouble free we know and works as follows:
The chimney vent system used on your wood burning appliance should be designed with the least amount of
restriction possible to enable the exhaust products to easily flow through it. Chimney vent systems that are too
short or too long can also have an adverse affect on the flow of exhaust through it. The wood burning appliance
and chimney vent system also require a sufficient supply of combustion air not only to support the combustion in the
combustion chamber but to replace the exhaust leaving it so it can flow freely up through the vent system and out
into the atmosphere. It is the correct balance of combustion air and the chimney vent system that will ensure the
appliance provides you with its optimum performance.
Combustion air enters through two holes in the bottom
which can be adjusted by a single air control. Air from
the front hole goes up on either side of the door into a
preheating airwash located across the top and then down
the window to feed the fire and also to ensure that the
glass remains clean. Air from this hole also feeds directly
into the combustion chamber at hearth level. Secondary
air from the rear hole travels up the back in the secondary
air housing to the manifold located at the top and shoots
out laterally to oxidize the gases below the smoke exit.
The combustion chamber is lined with high temperature
firebrick on 2 sides, the back and across the bottom, with
a layer of fibre baffles at the top to maintain a high tem-
perature in the combustion chamber so that gases mixing
with the preheated air from the secondary air manifold
tube are easily ignited and burned. The stove sides and
back are shielded to direct the heat upwards and for-
wards into the room.
Be sure to provide sufficient combustion air. There are many other appliances in your home competing for air such
as: a kitchen range hood, forced air heating devices or a bathroom exhaust fan.
HOT SECONDARY AIR
FIBRE BRICKS
REFRACTORY
2 SIDES, BACK
& BOTTOM
SECONDARY AIR
PRIMARY AIR
FLUE GLASS
CERAMIC
GLASS
AIR CONTROL
COMBUSTION AIR
INTAKE
OPEN CLOSED
2.4 GENERAL INFORMATION
DO NOT OPERATE THIS APPLIANCE WITHOUT THE PEDESTAL INSTALLED.
!
WARNING

7
W415-0892 / 03.05.10
We suggest that our woodburning hearth products
be installed and serviced by professionals who are
certified in the U.S. by the National Fireplace
Institue® (NFI) as NFI Woodburning Specialists or
who are certified in Canada by
Wood Energy Technical
Training (WETT).
Expansion / contraction noises during heating up and cooling down cycles are normal and to be expected.
After extended periods of non-operation such as following a vacation or a warm weather season, the appliance may
emit a slight odour for a few hours. This is caused by dust particles on the firebox burning off. Open a window to suf-
ficiently ventilate the room.
CALIFORNIA PROP 65 WARNING:
Use of this product may produce smoke which contains chemicals
known to the State of California to cause cancer, birth defects, or other
reproductive harm.
If optional ash drawer is purchased, ensure that the ash dump door is
tightly closed, allow the door to snap shut dislodging anything (ashes or
pieces of coal) that may be stuck in the opening.
If outside air is utilized, you should never experience a shortage of combustion air. If you choose not to utilize out-
side air and experience draft or smoking problems, you may need to open a door, a window or otherwise provide
some method of supplying combustion air to the appliance.
2.5 RATING PLATE LOCATION
For rating plate location, see
“INSTALLATION OVERVIEW”
section.
8" 8"
18"
8"
C
BACK WALL (M/A)
45°
SIDE WALL (M/L)
FROM HEATER / DU POÊLE
RESIDENTIAL / RÉSIDENTIEL
22IN/PO (560 mm)
12IN/PO (305mm)
8IN/PO (205mm)
BACK WALL (M/A)
SIDE WALL (M/L)
B
A
REFERENCE #15983
IF THE STOVE IS TO BE INSTALLED ON A COMBUSTIBLE FLOOR, IT
MUST BE PLACED ON AN APPROVED NON-COMBUSTIBLE HEARTH
PAD, THAT EXTENDS 8” (200MM) BEYOND THE STOVE SIDES AND
BACK, AND 18” (455MM) TO THE FRONT.
SI LE POÊLE EST INSTALLÉ SUR UN PLANCHER COMBUSTIBLE, IL DOIT
ÊTRE PLACÉ SUR UNE BASE DE PROTECTION INCOMBUSTIBLE CERTIFÉE
QUI DOIT DÉPASSER LES CÔTÉS ET L’AMÉRE DU POÊLE DE 8” (200mm)
ET SE PROLONGER DE 18” (455mm) SUR LE DEVANT.
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIAL USING SINGLE
OR DOUBLE WALL CHIMNEY CONNECTORS / DÉGAGEMENT
MINIMAL AUX MATÉRIAUX COMBUSTIBLE AVEC DES CONDUITS DE
RACCORDEMENT À PAROI SIMPLE OU À DOUBLE PAROI
CONTACT LOCAL BUILDING FIRE OFFICIALS ABOUT RESTRICTIONS
AND INSTALLATION INSPECTIONS IN YOUR LOCALAREA. A MINIMUM
CLEARANCE OF 18 INCHES (457mm) TO THE CHIMNEY CONNECTOR
MAY BE REQUIRED BY THE AUTHORITY HAVING JURISDICTION.
RENSEIGNEZ-VOUS AUPRÈS DES AUTORITÉS LOCALES DU
BÂTIMENT ET DU SERVICE DES INCENDIES AU SUJET DES
RESTRICTIONS ET DES INSPECTIONS D’INSTALLATION DANS VOTRE
RÉGION. UN DÉGAGMENT MINIMAL DE 18 POUCES (457mm)
JUSQU’AU RACCORD DE LA CHEMINÉE PEUT ÊTRE EXIGÉ PAR
L’AUTORITÉ AYANT JURIDICTION.
INSTALL AND USE ONLY IN
ACCORDANCE WITH THE
MANUFACTURER’S INSTRUCTIONS
AND LOCAL BUILDING CODES.
MINIMUM CEILING HEIGHT: 7FT
(2.13m)
HEARTH EXTENSION / COMBUS-
TIBLE FLOOR PROTECTION: IF
INSTALLED ON A COMBUSTIBLE
FLOOR, UNIT MUST BE PLACED ON
A NON-COMBUSTIBLE FLOOR
PROTECTOR EXTENDING 18”
(455mm) IN FRONT AND 8” (205mm) TO
THE SIDES AND BACK.
CHIMNEY TYPE: MINIMUM 6”
(152mm) DIAMETER APPROVED
RESIDENTIAL TYPE FOR MOBILE
HOME USE A CHIMNEY LISTED TO
ULC S629 IN CANADA OR UL103HT IN
THE USA.
CHIMNEY CONNECTOR: 6” (152mm)
DIAMETER MINIMUM 24 GAUGE
STEEL MINIMUM CLEARANCE
FROM HORIZONTAL CONNECTOR
AND CEILING 18” (455mm).
DO NOT OBSTRUCT SPACE UNDER
HEATER.
SPECIAL METHODS ARE
REQUIRED WHEN PASSING A
CHIMNEY THROUGH A WALL OR
CEILING. SEE INSTRUCTIONS AND
BUILDING CODES.
DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING
ANOTHER APPLIANCE.
FUEL: FOR USE WITH WOOD ONLY.
DO NOT USE GRATE OR ELEVATE
FIRE. BUILD WOOD FIRE DIRECTLY
ON HEARTH.
WARNING: RISK OF SMOKE
SPILLAGE. OPERATE ONLY WITH
DOOR FULLY CLOSED.
REPLACE GLASS ONLY WITH
CERAMIC GLASS.
DO NOT OVERFIRE. IF HEATER OR
CHIMNEY CONNECTORS GLOW,
YOU ARE OVERFIRING. INSPECT
AND CLEAN CHIMNEY
FREQUENTLY. UNDER CERTAIN
CONDITIONS OF USE CREOSOTE
BUILD-UP MAY OCCUR RAPIDLY.
OPTIONAL BLOWER KIT: EP-62,
115V, 60HZ, 0.82AMP. ROUTE CORD
AWAY FROM UNIT.
DANGER: RISK OF ELECTRICAL
SHOCK. DISCONNECT POWER
BEFORE SERVICING UNIT.
POUR INSTALLATION ET UTILISATION
CONFORMÉMENT AUX INSTRUCTIONS
DU FABRICANT ET AUX CODES
LOCAUX DU BÂTIMENT.
HAUTEUR DE PLAFOND MINIMAL 7PI
(2,13m).
PROLONGEMENT
D’ÂTRE/PROTECTION DU PLANCHER
COMBUSTIBLE: SI INSTALLÉ SUR UN
PLANCHER COMBUSTIBLE,
L’APPAREIL DOIT ÊTRE PLACÉ SUR
UNE PLAQUE PROTECTRICE
INCOMBUSTIBLE S’ÉTENDANT SUR
18” (455mm) À L’AVANT ET 8” (205mm) À
L’ARRIÈRE ET SUR LES CÔTÉS.
TYPE DE CHIMNÉE: DIAMÈTRE
MINIMAL DE 6” (152mm) APPROUVÉE
POUR USAGE RÉSIDENTIEL. MAISON
MOBILE EMPLOYEZ UNE CHEMINÉE
HOMOLOGUÉE ULC S629 AU CANADA
OU UL 103HTAUX ÉTATS-UNIS.
RACCORD DE CHEMINÉE: DIAMÈTRE
DE 6” (152mm) D’ACIER DE CALIBRE 24
MINIMUM. 18” (455mm) DE DÉGAGE-
MENT MINIMAL ENTRE LE RACCORD
HORIZONTAL ET LE PLAFOND.
NE RIEN ENTREPOSER SOUS
L’APPAREIL.
DES MÉTHODES SPÉCIALES SONT
REQUISES LORSQU’UNE CHEMINÉE
TRAVERSE UN MUR OU UN PLAFOND.
VOIR LES INSTRUCTIONS ET LES
CODES DU BÂTIMENT.
NE PAS RACCORDER À LA CHEMINÉE
D’UN AUTRE APPAREIL.
COMBUSTIBLE: POUR USAGE AVEC LE
BOIS SEULEMENT. N’UTILISEZ PAS DE
CHENET OU NE SURÉLEVEZ PAS LE
BOIS. PRÉPAREZ LE FEU DIRECTE-
MENT SUR L’ÂTRE.
AVERTISSEMENT: RISQUE
D’ÉCHAPPEMENT DE FUMÉE. TENIR LA
PORTE FERMÉE LORSQUE LE POÊLE
FONCTIONNE. REMPLACEZ LA VITRE
PAR UNE VITRE EN CÉRAMIQUE
SEULEMENT.
NE SURCHAUFFEZ PAS L’APPAREIL. SI
L’APPAREIL OU LES RACCORDS
ROUGEOIENT, L’APPAREIL
SURCHAUFEE. INSPECTEZ ET
NETTOYEZ LA CHEMINÉE FRÉQUEM-
MENT. DANS CERTAINES CONDITIONS,
DES DÉPÔTS DE CRÉOSOTE PEUVENT
SE FORMER RAPIDEMENT.
SOUFFLERIE OPTIONNELLE: EP-62,
115V, 60HZ, 0,82A. TENEZ LE CORDON
ÉLECTRIQUE LOIN DE L’APPAREIL.
DANGER: RISQUE DE SECOUSSE
ÉLECTRIQUE. DÉBRANCHEZ AVANT DE
PROCÉDER À L’ENTRETIEN.
HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
QUAND L’APPAREIL FONCTIONNE, L A SURFACE DEVIENT
CHAUDE. NE PAS TOUCHER. TENIR LES ENFANTS, LES
VÊTEMENTS ET LES MEUBLES À L’ÉCARTT.LECON
TACT PEUT
CAUSER DES BRÛLURES À LA PEAU.
CAUTION:
ATTENTION :
U.S. ENVIRONMENTAL PROTECTION AGENCY Certifié conforme à la norme d’émanation de particules de juillet 1992.
W385-0402_C
MADE IN CANADA BY / FABRIQUÉ AU CANADA PAR:
WOLF STEEL LTD., BARRIE, ONTARIO, CANADA
DATE CODE / DE DATE
EPA1900
SKIN BURNS.
LISTED SOLID FUEL BURNING SPACE HEATER /
POÊLE À COMBUSTIBLE SOLIDE HOMOLOGUÉ
MODEL / MODÈLE - EPA 1900
TESTED TO: / TESTÉ SELON : UL1482 / ULC S627 / CSA B366.2 (DEC 92)

8
W415-0892 / 03.05.10
3.0 PRE-INSTALLATION PREPARATION
Have an authorized dealer install the appliance. If you install the appliance yourself, have your dealer review
your installation plans and/or installation.
Draw out a detailed plan of the installation including dimensions and verify the dimensions with the require-
ments listed in this manual.
You may wish to adjust the appliance position slightly to ensure the vent does not intersect with a framing
member. Appliance must be positioned so that no combustibles are within, or can swing within (e.g. drapes,
doors), 48” of the front of the appliance.
If the appliance is placed in a location where the ceiling height is less than 7’ above the base of the appliance,
the installation must follow the requirements in the section “ALCOVE INSTALLATION”.
67.1
3.1 APPLIANCE PLACEMENT
3.2 CLEARANCE TO COMBUSTIBLES
DO NOT INSTALL INTO ANY AREA HAVING A HEIGHT LESS THAN 7 FEET (CEILING OF ENCLOSURE
TO APPLIANCE BOTTOM, EXCLUDING HEARTH HEIGHT).
!
WARNING
BACK WALL
B
SIDE WALL
A
BACK WALL
C
SIDE WALL
F
D
E
E
PARALLEL & CORNER SINGLE WALL CONNECTOR DOUBLE WALL CONNECTOR
SIDEWALL (A) 22” 22”
SIDEWALL TO FLUE (B) 31 3/4” 31 3/4”
BACK WALL (C) 12” 12”
BACK WALL TO FLUE (D) 15 1/2” 15 1/2”
CORNER (E) 8” 8”
CEILING (F) 84” 84”
Clearances can be reduced with shielding acceptable to local authorities. Reduced installation must comply
with NFPA 211 or CAN/CSA-B365.
K
J
J
I
MINIMUM FLOOR PROTECTION
FRONT (I) SIDES (J) BACK (K)
CANADA 18” 8” 8”
USA 16” 8” 8”
NOTE: If a section of horizontal chimney connector is used, floor protection is
required under the chimney connector and 2” beyond each side.
3.3 FLOOR PROTECTION
If the appliance is to be installed on top of a combustible floor, it must be guarded by a non-combustible mate-
rial extending at least 18” from the front and 8” from the sides and back of the appliance, see “CLEARANCE
TO COMBUSTIBLES” section.
Refer to local building codes for suitable floor protection materials.

9
W415-0892 / 03.05.10
3.4 OUTSIDE AIR
If possible connect the air intake at the pedestal’s back or bottom to the outside with a 4 inch diameter fresh air
kit available at your authorized dealer / distributor.
The following are signs that a fresh air kit may be required:
11 ¹¹/16”
13 ³/8”
• When there is combustion present: Wood burns poorly, smoke spills, back-draft takes place and your
chimney does not draw steadily.
• In the winter there is too much condensation on the windows.
• Opening a window seems to alleviate the above symptoms.
• A ventilation system is installed in the house.
• Other devices are present that exhaust house air.
• The house has tight fitting windows and/or is equipped with a well-sealed vapour barrier.
!
WARNING
IF ROOM AIR STARVATION OCCURS BECAUSE THE FRESH AIR INTAKE IS BLOCKED WITH ICE,
LEAVES, ETC., OR BECAUSE THE APPLIANCE DOOR WAS LEFT OPEN, OR DUE TO A STRONG
EXHAUST FAN OPERATING ETC., DANGEROUS FUMES AND SMOKE FROM THE OPERATING APPLI-
ANCE COULD BE DRAWN INTO THE ROOM.

10
W415-0892 / 03.05.10
4.0 INSTALLATION
68.3
!
WARNING
WEAR GLOVES AND SAFETY GLASSES FOR PROTECTION.
CAREFULLY FOLLOW THE INSTRUCTIONS FOR ASSEMBLY OF THE PIPE AND OTHER PARTS
NEEDED TO INSTALL THE APPLIANCE. FAILURE TO DO SO MAY RESULT IN A FIRE, ESPECIALLY IF
COMBUSTIBLES ARE TOO CLOSE TO THE APPLIANCE OR CHIMNEY AND AIR SPACES ARE
BLOCKED, PREVENTING THE FREE MOVEMENT OF COOLING AIR.
DO NOT DRAW OUTSIDE AIR FROM GARAGE SPACES. EXHAUST PRODUCTS OF GASOLINE ENGINES ARE
HAZARDOUS.
DO NOT INSTALL OUTSIDE AIR DUCTS SUCH THAT THE AIR MAY BE DRAWN FROM ATTIC SPACES, BASEMENTS
OR ABOVE THE ROOFING WHERE OTHER HEATING APPLIANCES OR FANS AND CHIMNEYS EXHAUST OR UTILIZE
AIR. THESE PRECAUTIONS WILL REDUCE THE POSSIBILITY OF APPLIANCE SMOKING OR AIR FLOW REVERSAL.
THE OUTSIDE AIR INLET MUST REMAIN CLEAR OF LEAVES, DEBRIS ICE AND/OR SNOW. IT MUST BE UNRE-
STRICTED WHILE APPLIANCE IS IN USE TO PREVENT ROOM AIR STARVATION WHICH CAN CAUSE SMOKE SPILL-
AGE AND AN INABILITY TO MAINTAIN A FIRE. SMOKE SPILLAGE CAN ALSO SET OFF SMOKE ALARMS.
NEGATIVE PRESSURE WITHIN YOUR HOME MAY INADVERTENTLY AFFECT YOUR APPLIANCE.
TO PREVENT CONTACT WITH SAGGING OR LOOSE INSULATION, THE APPLIANCE MUST NOT BE INSTALLED
AGAINST VAPOUR BARRIERS OR EXPOSED INSULATION. LOCALIZED OVERHEATING COULD OCCUR AND A FIRE
COULD RESULT.
DO NOT USE MAKESHIFT COMPROMISES DURING INSTALLATION. DO NOT BLOCK OR RESTRICT AIR, GRILLE OR
LOUVRE OPENINGS. DO NOT ADD A HOOD.

11
W415-0892 / 03.05.10
NEVER INSTALL A SINGLE WALL SLIP SECTION OR SMOKE PIPE IN A CHASE STRUCTURE. THE HIGHER
TEMPERATURE OF THIS SINGLE WALL PIPE MAY RADIATE SUFFICIENT HEAT TO COMBUSTIBLE
CHASE MATERIALS TO CAUSE A FIRE.
DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY SYSTEM SERVING ANOTHER APPLIANCE.
TO AVOID DANGER OF FIRE, ALL INSTRUCTIONS MUST BE STRICTLY FOLLOWED, INCLUDING THE
PROVISION OF AIR SPACE CLEARANCE BETWEEN CHIMNEY SYSTEM AND ENCLOSURE. TO
PROTECT AGAINST THE EFFECTS OF CORROSION ON THOSE PARTS EXPOSED TO THE WEATHER, WE
RECOMMEND THAT THE CHASE TOP BE PAINTED WITH A RUST-RESISTANT PAINT.
DO NOT FILL ANY FRAMED SPACE AROUND THE CHIMNEY WITH INSULATION OR ANY OTHER MATERIAL.
INSULATION PLACED IN THIS AREA COULD CAUSE ADJACENT COMBUSTIBLES TO OVERHEAT.
MAINTAIN A MINIMUM 2" AIR CLEARANCE TO ALL PARTS OF THE CHIMNEY SYSTEM AT ALL TIMES.
FAILURE TO MAINTAIN THIS 2" AIR CLEARANCE WILL CAUSE A STRUCTURE FIRE. NEVER FILL THIS
SPACE WITH ANY TYPE OF MATERIAL.
DETAILED INSTRUCTIONS FOR INSTALLATION OF THE CHASE TOP, STORM COLLAR AND
TERMINATION CAP ARE PACKAGED WITH THESE PARTS.
DO NOT CUT RAFTERS OR CEILING JOISTS WITHOUT FIRST CONSULTING A BUILDING OFFICIAL
TO ENSURE STRUCTURAL INTEGRITY IS NOT COMPROMISED.
FIRESTOP SPACERS MUST BE USED WHENEVER THE CHIMNEY PENETRATES A CEILING/FLOOR AREA.
THE TOTAL HORIZONTAL VENT LENGTH SHOULD NOT EXCEED 40% OF THE CHIMNEY HEIGHT
ABOVE THE STOVE. ALL HORIZONTAL SMOKE PIPE MUST SLOPE SLIGHTLY UPWARDS A MINIMUM
OF 1/4” PER FOOT AND ALL CONNECTIONS MUST BE TIGHT AND SECURED BY THREE SHEET
METAL SCREWS EQUALLY SPACED. AN UNINSULATED SMOKE PIPE SHALL NOT PASS THROUGH
AN ATTIC, ROOF SPACE, CLOSET OR SIMILAR CONCEALED SPACE, OR THROUGH A FLOOR,
CEILING, WALL OR PARTITION, OR ANY COMBUSTIBLE CONSTRUCTIONS.
DO NOT USE ANY MAKESHIFT MATERIALS DURING INSTALLATION.
!
WARNING
4.1 CHIMNEY
Your appliance may be hooked up with a factory built or masonry chimney. If you are using a factory built chim-
ney, it must comply with ULCS629 (Canada) or UL103 (USA) standards. It must therefore be a 6" HT Type
(2100°F) chimney. It is extremely important that it be installed according to the manufacturer's specifications.
The manufacturer's installation instructions and specified clearances should always be followed in accordance
with local and national codes. In Canada the CSA B365 and the CSA C22.1 installation codes are to be fol-
lowed. In the USA the ANSI NFPA 70 and ANSI NFPA 211 installation codes are to be followed.
Chimney and chimney connector must be in good condition and kept clean.

12
W415-0892 / 03.05.10
Your chimney connector and chimney must have the same diameter as the appliance’s exhaust outlet. The
appliance pipe must be made of aluminized or cold roll steel with a minimum 24 gauge thickness. It is strictly
forbidden to use galvanized steel.
A 6” diameter single wall stove pipe, used to connect the appliance to the chimney, must be installed with the
crimped end toward the appliance. This will ensure that the moisture which condenses from the burning wood will
flow back into the fire chamber. Each joint in the stove pipe must be secured with at least three sheet metal screws.
For installation of your chimney connector, the following recommendations may be useful.
• The chimney connector must be short and straight. For optimum performance it is recommended that
all horizontal runs have a minimum 1/4” rise per foot, with the upper end of the section toward the
chimney. For safe and proper operation of the appliance, see “INSTALLATION” instructions.
• To insure a good draft, the total horizontal length of the connector should never exceed 8’ to 10’. In
the case of vertical installation, the total length of the connector can be longer and connected without
problem to the chimney at the ceiling level.
• There should never be more than two 90° elbows in the whole connector and chimney system. Never
start with a 90° elbow. Always go up vertically for at least 2 feet from the flue collar before using a 90°
elbow.
• The connector must not pass through any combustible material, nor may it pass through a concealed
space (such as an attic, roof space, or closet). If passing through a wall, ceiling, or into a masonry
chimney, use either chimney components listed for that specific use, or means acceptable to local
authorities having jurisdiction over the installation.
4.1.1 CHIMNEY CONNECTION
This appliance must be connected to:
A
.A chimney complying with the requirements for Type
HT chimneys in the Standard for Chimneys, Factory-
Built, Residential Type and Building Heating Appli-
ance, or
B. A code-approved masonry chimney with a flue liner.
Vent the stove into a masonry chimney or an ap-
proved, insulated solid-fuel stainless-steel chimney
with as short and straight a length of 6” diameter
chimney connector as possible. Connection to a ma-
sonry chimney must be by a metal or masonry thimble
cemented in place.
TOWARD
APPLIANCE
FLUE GAS
DIRECTION
MALE END OF
CONNECTOR
OR CHIMNEY
PIPE
58.1A

13
W415-0892 / 03.05.10
4.1.2 ADDING SECTIONS
A
dd chimney sections, according to the manufacturers installation instructions. The chimney must extend at
least, 3 feet above its point of contact with the roof and at least 2 feet higher than any wall, roof or building
within 10 feet horizontally.
59.1A
3 FT
MIN
3 FT
MIN
3 FT
MIN
3 FT
MIN
10 FT OR
MORE
LESS THAN
10 FT
FLAT ROOF WALL
2 FT
MIN
10 FT TO
NEAREST
ROOFLINE
RIDGE
LESS THAN
10 FEET
2 FT MIN 2 FT
MIN

14
W415-0892 / 03.05.10
4.1.3 TYPICAL THROUGH THE CEILING
A. Move the stove into position with the flue centered, midpoint between two
joists to prevent having to cut them. Use a plumb bob to line up the center.
B. Cut and frame an opening in the ceiling to provide a 2” clearance between
the outside of the chimney and any combustible material. DO NOT FILL THIS
SPACE WITH ANY TYPE OF MATERIAL.
Nail headers between the joist for extra support.
Firestop spacers must be placed on the bot-
tom of each framed opening in any floor or
ceiling that the chimney passes through.
If your chimney system is enclosed within
the attic area, a rafter radiation shield is
required.
C. Hold a plumb bob from the underside of
the roof to determine where the opening in
the roof should be. Cut and frame the roof
opening to maintain proper 2” clearances.
NOTE: The chimney must be supported at the ceiling or roof so that it’s
weight does not rest on the appliance and must comply with it’s
manufacturer’s instructions.
60.1A
HEADERS
FIRESTOP SPACER -
UNDERSIDE OF JOIST
FLOOR
PROTECTOR
ROOF
FLASHING
STORM
COLLAR
TERMINAL
COMBUSTIBLE
WALL
MAINTAIN 2”
CLEARANCE
CHIMNEY
CONNECTOR
CHIMNEY
SUPPORT
LISTED CHIMNEY INSULATION
CEILING
SUPPORT
LISTED
CHIMNEY
SPECIFIED
CLEARANCE
TO STOVE
CONNECTION
DETAIL

15
W415-0892 / 03.05.10
4.1.4 TYPICAL THROUGH THE WALL
If possible, design the installation so that the connector does not pass through a combustible wall. If during
your installation you must pass through a combustible wall, check with your building inspector before you be-
gin. Also check with the chimney connector manufacturer for any specific requirements.
Consult with your dealer regarding special connection components available for use for wall pass-throughs.
Use only parts that have been tested and listed for use in a wall pass-through.
61.1
FLOOR
PROTECTOR
ROOF
FLASHING
STORM
COLLAR
TERMINAL
COMBUSTIBLE
WALL
CHIMNEY
CONNECTOR
MAINTAIN 2”
CLEARANCE
THROUGH EAVE
COMBUSTIBLE
CEILING
LISTED
CHIMNEY
COMBUSTIBLE
OUTSIDE WALL
TO
STOVE
2”
CLEARANCE
INSULATED
“T”
WALL
SUPPORT
WALL SPACER
FOR OUTSIDE
WALL
CONNECTION
DETAIL
SECTION
LISTED
CHIMNEY PIPE
THIMBLE

16
W415-0892 / 03.05.10
4.1.5 TYPICAL EXISTING MASONRY
You can also install your appliance using your
existing masonry chimney. To do so, follow the
guidelines below. You may want to use a factory-
built thimble, or construct your own brick thimble.
If you are using a masonry chimney, it is
important that it be built in compliance with
the specifications of the Building Code in
your region. It must normally be lined with
fire clay bricks, metal or clay tiles sealed
together with fire cement. (Round flues are
the most efficient). The maximum flue size
is 8” x 8” square or 6” round.
62.1
FLOOR
PROTECTOR
CHIMNEY
CONNECTOR
COMBUSTIBLE
WALL
CLEARANCE
EAVE
RAFTER
CLEARANCE WITH FIRESTOP
CEILING JOIST
THIMBLE

17
W415-0892 / 03.05.10
5.0 FINISHING
5.2 DOOR HANDLE INSTALLATION
BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT
MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE.
DO NOT STRIKE OR SLAM DOOR.
NEVER REMOVE THE DOOR WHEN THE APPLIANCE IS HOT.
!
WARNING
5.1 DOOR REMOVAL / INSTALLATION
5.1.1 Pivot the door open and lift up to clear
the bushings. Do not pivot the door
any further than necessary.
5.1.2 Carefully set the door aside and pull
the pins out from the door bushings.
Repeat in reverse order to install the
door.
DOOR
HANDLE
NUT
DOOR HANDLE
LATCH
LOCK
WASHER
DOOR
SPACER
SPRING
WASHER
FRONT VIEW
NOTE: Position of
door handle latch.
PINS
NOTE: DOOR MAY NOT BE AS
ILLUSTRATED

18
W415-0892 / 03.05.10
5.3 BRICKS AND BAFFLE INSTALLATION
OPERATION OF THE APPLIANCE WITHOUT THE BAFFLES CAN RESULT IN EXCESSIVE TEMPERA-
TURES THAT COULD DAMAGE THE APPLIANCE, CHIMNEY AND THE SURROUNDING ENCLOSURE.
!
WARNING
1
1
1
1
1
1
1
1
1
1
1
11
11
11
2
2
2
2
2
2
3
4
5
6
7
10
8
9
8
9
1
1
1
1
1
1
3
4
With stove and chimney installation completed, move the bricks into place as illustrated.
5.3.1 Install three courses of brick on both sides of the unit. Install two courses on the back wall. Before
installing the final two bricks on the back wall, loosen the screw holding the retainer and ensure that
it has been moved forward. Insert the final two bricks behind the retainer and while still holding the
bricks in place, slide the retainer snugly into place. Retighten the screw.
5.3.2 1900 ONLY:
Place the stainless steel support onto the top row of the bricks as illustrated. Pivot the 2 piece baffle
up and onto the support, then slide them over and onto the flange of the manifold. Ensure that the
overlaps are interlocked to close the gap. Push the baffles to the rear of the firebox. Repeat for the op-
posite side.
5.3.3 Carefully pivot fibre baffle up onto the top of the side brick. Slide it over onto the flange of the manifold.
Ensure that the top baffles are pushed all the way to the rear of the firebox, leaving a minimum of a 1
inch gap along the front. This will allow the flue gases to escape the firebox.
5.3.4 Install the bottom bricks, working from the back of the unit.
5.3.5 Install the 4 bricks at the front as illustrated.

VORTEX BAFFLE ADDENDUM
The following sections of your installation manual have been updated as a continuous improvement. Please refer to the
instructions below in place of those in your installation manual.
Brick
Retainers
Brick
Retainers
9” x 2” x 19 5/8”
(Fibre Baffles)
W018-0130 X2
9” x 2” x 19 5/8”
(Fibre Baffles)
W018-0130 X2
1900
With appliance and chimney installation
completed, move the bricks into place for your
appliance as illustrated.
A. Install the bottom bricks, working from the
back of the appliance forward.
B. Before installing the back bricks, loosen the
screw holding the brick retainer and ensure
that it has been moved forward. Install the
six bricks along the back wall by pivoting
the bricks up under the brick retainer.
Retighten the screw.
C. Refering to the appropriate illustration for
your appliance, install the first two rows
of side bricks as shown. Pivot fibre baffle
into place, with the brick retainer down
and towards the outside of the unit. Slide
top row of bricks into place to support the
baffle. Baffle must sit flat on outside row of
bricks as well as the flange on the manifold
sheild. Push baffle all the way to the rear of
the firebox, leaving a minimum of a 1” gap
along the front. This will allow flue gases to
escape the firebox.
D. Install the 4 bricks along the front opening.
NOTE: Do not operate if baffle and manifold
shield are not in position.
USE THIS ADDENDUM WITH THE FOLLOWING
REVISION LEVELS OR EARLIER
MANUAL # ENGLISH REVISION FRENCH REVISION
W415-0763 Ae / 11.03.10 Af / 11.17.10
W415-0892 -e / 03.05.10 -f / 09.01.10
W415-1000 / 01.10.11
2300

19
W415-0892 / 03.05.10
6.1 OPTIONAL BLOWER INSTALLATION
6.0 OPTIONAL KIT INSTALLATIONS
!
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK.
TURN OFF THE ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, ETC.)
COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
ENSURE THAT THE BLOWER’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE
APPLIANCE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER
CORD BENEATH THE APPLIANCE.
Drywall dust will penetrate into the blower
bearings, causing irreparable damage.
Care must be taken to prevent drywall
dust from coming into contact with the
blower or its compartment. Any damage
resulting from this condition is not cov-
ered by the warranty policy. Use of the
blower increases the output of heat.
Provisions have been made on this
appliance to install an optional blower
kit (EP65) that comes complete with a
variable speed switch to turn the blower
ON/OFF, as well as adjusting the blower
speed.
6.1.1 Ensure the thermal disc bracket is in the correct position.
6.1.2 Remove the knock-out from the back of the appli-
ance.
6.1.3 Install the blower and housing as shown using
the 4 screws supplied.
6.1.4 Loosen the thermal disc bracket (2 screws) and
slide the bracket until the thermal disc is touch-
ing the rear of the firebox and secure.
Check that the thermal
switch bracket is
positioned as illustrated.
THERMAL SWITCH BRACKET
THERMAL DISC
BRACKET
SCREWS
KNOCKOUT
BLOWER
