Timberwolf TI-2201 User manual

1
W415-0890 / A / 04.28.10
$10.00
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.14A
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.timberwolffireplaces.com • ask@timberwolffireplaces.com
SAFETY INFORMATION
!WARNING
If the information in these instructions is not followed exactly,
a fire or explosion may result causing property damage,
personal injury or death. Improper installation, adjustment,
alteration, service or maintenance can cause injury or property
damage, bodily injury or even death. Please read entire
manual before you install and use your appliance.
- This appliance can be very hot when burning.
- Combustible materials such as firewood, wet clothing, etc. placed too
close can catch fire.
- Children and pets must be kept from touching the appliance when it
is hot.
- The chimney must be sound and free of cracks. Before installing
this unit, contact the local building or fire authority and follow their
guidelines.
- Operate only with the door tightly closed.
- Burn wood behind the log retainer directly on the firebricks.
- Do not use an elevated grate or otherwise raise the fire.
- At least 14 square inches of outside air must be admitted to the room
or directly to the unit through a 4” diameter pipe.
- This appliance is designed to burn natural wood only. Higher
efficiencies and lower emissions generally result when burning air
dried seasoned hardwoods, as compared to softwoods or to green or
freshly cut hardwoods.
- Do not start a fire with chemicals or fluids such as gasoline, engine
oil, etc.
- Do not burn treated wood, coal, charcoal, coloured paper, cardboard,
solvents or garbage.
- Do not let the appliance become hot enough for any part to glow red.
- KEEP THE STOVE TOP TEMPERATURE BELOW 700°F (371°C).
Attempts to achieve heat output rates that exceed design
specifications can result in steel distortion and damage.
CERTIFIED UNDER U.S. ENVIRONMENTAL PROTECTIONAGENCY (E.P.A.) JULY 1990 40 C.F. R. PART 60AND THE OREGON DEPARTMENT OF
ENVIRONMENTAL QUALITY (D.E.Q.) PARTICULATE EMISSION STANDARDS BY E.E.M.C THESE APPLIANCES HAVE BEEN TESTED AND LISTED BY OMNI
TESTING SERVICES TO STANDARDS: ULC-S628, UL1482.
TI-2201
WOOD INSERT

2
W415-0890 / A / 04.28.10
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS (COMPLETE WITH FLASHING) 5
2.2 SPECIFICATIONS 5
2.3 GENERAL INSTRUCTIONS 5
2.4 GENERAL INFORMATION 6
2.5 RATING PLATE LOCATION 8
3.0 INSTALLATION PLANNING 9
3.1 MINIMUM CLEARANCE TO COMBUSTIBLES 9
4.0 INSTALLATION 10
4.1 TYPICAL EXISTING MASONRY 11
4.2 FACTORY BUILT FIREPLACE 12
5.0 FINISHING 13
5.1 SECONDARYAIR TUBES 13
5.2 BRICKS AND BAFFLES INSTALLATION 14
5.3 DOOR INSTALLATION 14
5.4 DOOR HANDLE INSTALLATION 15
5.5 FLASHING INSTALLATION 16
5.6 BLOWER INSTALLATION 17
6.0 OPERATION 18
6.1 AIR CONTROL 19
6.2 FIRE EXTINGUISHERS / SMOKE DETECTORS 19
6.3 FUEL 19
6.4 LIGHTING A FIRE 20
6.4.1 FLASH FIRE 20
6.4.2 EXTENDED FIRE 20
6.5 SMOKING 20
7.0 MAINTENANCE 21
7.1 ASH REMOVAL PROCEDURES 21
7.2 CREOSOTE FORMATION AND REMOVAL 21
7.3 RUNAWAY OR CHIMNEY FIRE 22
7.4 CHIMNEY CLEANING 22
7.5 DOOR REMOVAL 23
7.6 GLASS REPLACEMENT 23
7.7 CARE OF GLASS 24
7.8 CARE OF PLATED PARTS 24
7.9 GASKET REPLACEMENT 24
7.10 BLOWER SERVICE OR REPLACEMENT 25
7.11 WOOD 25
8.0 REPLACEMENTS 26
9.0 TROUBLE SHOOTING 28
10.0 WARRANTY 29
11.0 SERVICE HISTORY 30

3
W415-0890 / A / 04.28.10
1.0 INSTALLATION OVERVIEW
Rating plate, see
“RATING PLATE
INFORMATION”
section.
Blower, see “BLOWER INSTALLATION”
section.
Door, see “DOOR
AND HANDLE
INSTALLATION”
section.
Flashing, see “FLASHING
INSTALLATION” section.
Draft, see “AIR
CONTROL” section.

4
W415-0890 / A / 04.28.10
2.0 INTRODUCTION
3.17A
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Before installing this appliance, contact the local building or fire authority and follow their guidelines.
• This appliance must be installed by a qualified installer.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not let the appliance become hot enough for any part to glow red.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal
edges may be sharp.
• Young children should be carefully supervised when they are in the same room as the appliance. Tod-
dlers, young children and others may be susceptible to accidental contact burns. Aphysical barrier is
recommended if there are at risk individuals in the house. To restrict access to an appliance or stove,
install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the
room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance. Objects placed in
front of the appliance must be kept a minimum of 48” away from the front face of the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children
from hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• Under no circumstances should this appliance be modified.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• Operate only with the doors tightly closed.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• If the appliance is not properly installed, a house fire may result. Do not expose the appliance to the elements
(ex. rain, etc.) and keep the appliance dry at all times. Wet insulation will produce an odour when the appliance
is used.
• The chimney must be sound and free of cracks. Clean your chimney a minimum of twice a year and as re-
quired.
• Do not start a fire with chemicals or fluids such as gasoline, engine oil, etc.
• Your appliance requires periodic maintenance and cleaning. Failure to maintain your appliance may lead to
smoke spillage in your home.
• Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods,
as compared to softwoods or too green or freshly cut hardwoods. Burning wet unseasoned wood can
cause excessive creosote accumulation. When this is ignited it can cause a chimney fire that may result
in a serious house fire.
• This appliance is designed to burn natural wood only. Do not burn treated wood, coal, charcoal, co-
loured paper, cardboard, solvents or garbage.
• Burn wood behind the log retainer directly on the firebricks. Do not elevate grate or otherwise raise the
fire.
• Do not store wood within appliance installation clearances or within the space required for re-fueling
and ash removal.

5
W415-0890 / A / 04.28.10
** Figures will vary considerably with individual conditions.
*** Wolf Steel Ltd. estimated realistic BTU/hr with hardwood logs and regular refueling.
Specifications 2201
CHAMBER (D.W.H) 14 5/8” x 20 7/8” x 11 5/8”
CAPACITY 1.9 ft3
APPROX. AREA HEATED** 800-1800 ft2
HEAT OUTPUT (HIGH BURN) *** 60,000 BTU
DURATION LOW FIRE* 8 Hours
WEIGHT w/o BRICKS 225 lbs
WEIGHT OF BRICKS 60 lbs
AB
MIN DEPTH 7 1/2” 14”
MAX DEPTH 4” 17 1/2”
2.2 SPECIFICATIONS
2.1 DIMENSIONS (COMPLETE WITH FLASHING)
31
3/4"
20
5/8"
44
7/16"
A *
B *
11
1/16"
21
3/4"
25
3/8"
2.3 GENERAL INSTRUCTIONS
4.7
ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH
LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN
ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN
THE UNITED STATES.
THIS APPLIANCE HAS NOT BEEN TESTED WITH ANY VENTED OR UNVENTED GAS LOG SET. TO
REDUCE RISK OF FIRE OR PREVENT INJURY, DO NOT INSTALL A VENTED OR UNVENTED GAS LOG
SET INTO THE APPLIANCE.
BURNING YOUR UNIT WITH THE ASH DUMP DOOR OPEN OR AJAR CREATES A FIRE HAZARD THAT
MAY RESULT IN DISCOLOURATION TO THE GOLD PLATED DOOR, INTERNAL DAMAGE TO THE
APPLIANCE OR A HOUSE CHIMNEY FIRE.
DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
THIS APPLIANCE AND IT’S COMPONENTS ARE DESIGNED TO BE INSTALLED AND OPERATED AS A
SYSTEM. ANY ALTERATION TO OR SUBSTITUTION FOR ITEMS IN THIS SYSTEM, UNLESS ALLOWED
BY THESE INSTALLATION INSTRUCTIONS, WILL VOID THE LISTING AND MAY VOID THE PRODUCT
WARRANTY. IT MAY ALSO CREATE A HAZARDOUS INSTALLATION. READ THROUGH THESE
INSTRUCTIONS THOROUGHLY BEFORE STARTING YOUR INSTALLATION AND FOLLOW THEM
CAREFULLY THROUGHOUT YOUR PROJECT.
!
WARNING
* A and B are adjustable in 3/8” increments (see min max below).

6
W415-0890 / A / 04.28.10
2.4 GENERAL INFORMATION
• Before beginning your installation, consult with your local building code agency or fire officials and
insurance representative to ensure compliance.
• Non-toxic smoke will be emitted during the paint curing process, to help dissipate the smoke open a
window near the appliance.
• Remove any dust or debris off the top of the appliance before firing the appliance as the paint will be-
come soft as the appliance heats up and will harden as the appliance cures. To cure the paint on your
appliance burn your appliance moderately hot during the first few fires.
• To keep the gasket from sticking to the appliance as the paint is curing, periodically open the door
every 5-10 minutes.
• For the first two weeks use generous amounts of fuel and burn the appliance with the damper wide
open for an hour as the appliance goes through a process of eliminating moisture in the steel and fire-
bricks. The initial heat output will be reduced while the moisture is bring drawn from the appliance and
it will be necessary to build several hot fires to remove this moisture. DURING THIS PROCESS DO
NOT OVERFIRE THE APPLIANCE. REDUCE THE AMOUNT OF AIR COMING INTO THE APPLI-
ANCE IF THE APPLIANCE OR CHIMNEY BECOMES RED.
Your appliance was specifically designed to meet the 1990 U.S.A. EPA particulate emission standards and
have been extensively tested in Canadian and American laboratories. This system is the most efficient, simple
and trouble free we know and works as follows:
Your appliance is the exact duplication of the clean-burning technology found in all Timberwolf® EPAcertified free-
standing stoves. External modifications have been made to allow its installation as a “functional insert” with a heat
circulating blower system and a means of enclosing the solid fuel burning fireplace cavity for greater heating efficiency.
Your appliance must be installed only into a solid fuel burning fireplace that is at least 14” deep 25 7/8” wide and 22”
high with an approved lined chimney at least 15 feet high (4.6m) and a hearth of 18”. This minimum recess can only be
achieved if the opening height is sufficient enough to allow the connector to fit under the noncombustible facing. The
appliance and chimney must be constructed in accordance with all national and local building code standards.
The chimney vent system used on your wood burning appliance should be designed with the least amount of
restriction possible to enable the exhaust products to easily flow through it. Chimney vent systems that are too
short or too long can also have an adverse affect on the flow of exhaust through it. The wood burning appliance
and chimney vent system also require a sufficient supply of combustion air not only to support the combustion in the
combustion chamber but to replace the exhaust leaving it so it can flow freely up through the vent system and out
into the atmosphere. It is the correct balance of combustion air and the chim-
ney vent system that will ensure the appliance provides you with its optimum
performance.
Secondary air from the rear intake opening travels up the back in the second-
ary air housing to the manifold located across the top and flows out laterally to
oxidize the gases below the smoke exit.
The lower combustion chamber is lined with high temperature firebricks on
2 sides, the back and across the bottom, with a layer of fibre baffles at the
top to maintain a high temperature in the combustion chamber so that gases
mixing with the preheated air from the secondary air manifold tube are easily
ignited and burned. The appliance sides and back are shielded to direct the
heat upwards and forwards into the room.
Be sure to provide sufficient combustion air. There are many other ap-
pliances in your home competing for air such as: a kitchen range hood,
forced air heating devices or a bathroom exhaust fan.
AIR INLET PATH
EXHAUST PATH

7
W415-0890 / A / 04.28.10
We suggest that our woodburning hearth products
be installed and serviced by professionals who are
certified in the U.S. by the National Fireplace
Institue® (NFI) as NFI Woodburning Specialists or
who are certified in Canada by
Wood Energy Technical
Training (WETT).
Expansion / contraction noises during heating up and cooling down cycles are normal and to be expected.
After extended periods of non-operation such as following a vacation or a warm weather season, the appliance
may emit a slight odour for a few hours. This is caused by dust particles on the firebox burning off. Open a
window to sufficiently ventilate the room.
CALIFORNIA PROP 65 WARNING:
Use of this product may produce smoke which contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
If you experience smoking problems, you may need to open a door, a window or otherwise provide some
method of supplying combustion air to the appliance.

8
W415-0890 / A / 04.28.10
2.5 RATING PLATE LOCATION
INSTALL AND USE ONLY IN ACCORDANCE WITH THE
MANUFACTURER’S INSTRUCTIONSAND LOCAL BUILDING CODES.
MINIMUM CEILING HEIGHT: 7FT (2.13m)
HEARTH EXTENSION / FLOOR PROTECTION: MUST BE
NON-COMBUSTIBLE AND EXTEND 22" IN FRONTOF THE
INSERTAND 8" ON BOTH SIDES WITH AMINIMUM
THICKNESS OF .500" (K=0.84)
CHIMNEY TYPE: MINIMUM 6” (152mm) DIAMETER APPROVED
RESIDENTIAL TYPE FOR MOBILE HOME USEA CHIMNEY
LISTED TO ULC S629 IN CANADAOR UL 103HT IN THE USA.
DO NOT OBSTRUCT SPACE UNDER HEATER.
SPECIAL METHODS ARE REQUIRED WHEN PASSING A
CHIMNEY THROUGHA WALL OR CEILING. SEE INSTRUC-
TIONS AND BUILDING CODES.
DO NOT CONNECT THIS UNITTO ACHIMNEY FLUE SERVING
ANOTHER APPLIANCE.
FUEL: FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT
USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY
ON HEARTH.
WARNING: RISK OF SMOKE SPILLAGE. OPERATE ONLY WITH
DOOR FULLY CLOSED.
REPLACE GLASS ONLY WITH CERAMIC GLASS.
DO NOT OVERFIRE. IF HEATER OR CHIMNEY CONNECTORS
GLOW,YOU ARE OVERFIRING. INSPECTAND CLEAN
CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF
USE CREOSOTE BUILD-UP MAY OCCUR RAPIDLY.
DANGER: RISK OF ELECTRICAL SHOCK. DISCONNECT
POWER BEFORE SERVICING UNIT.
INSERT: INSTALL AND USE ONLY IN SOLID FUEL BURNING
FIREPLACES. DO NOT REMOVE BRICKS OR MORTAR FROM
SOLID FUEL BURNING FIREPLACE. INSTALL WITHA
POSITIVE FLUE CONNECTORAND FACEPLATE.
CONTACT LOCAL BUILDING FIRE OFFICIALS ABOUT RESTRIC-
TIONS AND INSTALLATION INSPECTION IN YOURAREA.
A MINIMUM CLEARANCE OF 18” (457mm)TO THE CHIMNEY
CONNECTOR MAY BE REQUIRED BY THEAUTHORITY
HAVING JURISDICTION.
POUR INSTALLATION ET UTILISATION CONFORMÉMENT
AUX INSTRUCTIONS DU FABRICANTET AUX CODES
LOCAUX DU BÂTIMENT.
HAUTEUR DE PLAFOND MINIMAL: 7PI (2,13m).
BASE DE PROTECTION/PROTECTION DE PLANCHER :
DOIT ÊTRE DE NATURE INCOMBUSTIBLE ET SE
PROLONGER DE 22" À L’AVANT DE L’ENCASTRÉ ET 8"
SUR LES CÔTÉS, ETAVOIR UNE ÉPAISSEUR MINIMALE
DE 0,500" (K = 0,84).
TYPE DE CHIMNÉE: DIAMÈTRE MINIMAL DE 6” (152mm)
APPROUVÉE POUR USAGE RÉSIDENTIEL. MAISON
MOBILE EMPLOYEZ UNE CHEMINÉE HOMOLOGUÉE ULC
S629 AU CANADAOU UL 103HTAUX ÉTATS-UNIS.
NE RIEN ENTREPOSER SOUS L’APPAREIL.
DES MÉTHODES SPÉCIALES SONT REQUISES
LORSQU’UNE CHEMINÉE TRAVERSE UN MUR OU UN
PLAFOND. VOIR LES INSTRUCTIONS ET LES CODES DU
BÂTIMENT.
NE PAS RACCORDER À LA CHEMINÉE D’UNAUTRE
APPAREIL.
COMBUSTIBLE: POUR USAGE AVEC LE BOIS
SEULEMENT. N’UTILISEZ PAS DE CHENET OU NE
SURÉLEVEZ PAS LE BOIS. PRÉPAREZ LE FEU DIRECTE-
MENT SUR L’ÂTRE.
AVERTISSEMENT: RISQUE D’ÉCHAPPEMENT DE FUMÉE.
TENIR LA PORTE FERMÉE LORSQUE LE POÊLE
FONCTIONNE. REMPLACEZ LA VITRE PAR UNE VITRE EN
CÉRAMIQUE SEULEMENT.
NE SURCHAUFFEZ PAS L’APPAREIL. SI L’APPAREIL OU
LES RACCORDS ROUGEOIENT, L’APPAREIL
SURCHAUFEE. INSPECTEZ ET NETTOYEZ LACHEMINÉE
FRÉQUEMMENT. DANS CERTAINES CONDITIONS, DES
DÉPÔTS DE CRÉOSOTE PEUVENT SE FORMER
RAPIDEMENT.
DANGER: RISQUE DE SECOUSSE ÉLECTRIQUE.
DÉBRANCHEZ AVANT DE PROCÉDER À L’ENTRETIEN.
ENCASTRÉ: INSTALLEZ ET UTILISEZ SEULEMENT DANS
UN FOYER À COMBUSTIBLE SOLIDE. NE RETIREZ PAS DE
MORTIER, NI BRIQUES DU FOYER À COMBUSTIBLE
SOLIDE.
INSTALLEZ AVEC UNE GAINE CONFORME ET UNE
PLAQUE DE RECOUVREMENT.
RENSEIGNEZ-VOUS AUPRÈS DES AUTORITÉS LOCALES
DU BÂTIMENT ET DU SERVICE DES INCENDIESAU SUJET
DES RESTRICTIONS ET DES INSPECTIONS
D’INSTALLATION DANS VOTRE RÉGION.
UN DÉGAGEMENT MINIMAL DE 18” (457mm) JUSQU’AU
RACCORD DE LA CHEMINÉE PEUTÊTRE EXIGÉ PAR
L’AUTORITÉ AYANT JURIDICTION.
CAUTION:
ATTENTION:
U.S. ENVIRONMENTAL PROTECTION AGENCY Certifié
conforme à la norme d’émanation de particules de juillet 1992.
W385-0504
DATE CODE / DE DATE
TI-2201
LISTED SOLID FUEL BURNING FIREPLACE INSERT
TESTED TO: / TESTÉ SELON :
UL1482 / ULC S628
MODEL / MODÈLE: 2201
ENCASTRÉ ÀCOMBUSTIBLESOLIDEHOMOLOGUÉ
HOTWHILE INOPERATION. DONOT
TOUCH.KEEPCHILDRENCLOTHINGAND
FURNITUREAWAY.CONTACT MAY CAUSE
SKINBURNS.
QUAND L’APPAREIL FONCTIONNE, LA
SURFACE DEVIENT CHAUDE. NE PAS
TOUCHER. TENIR LES ENFANTS, LES
VÊTEMENTS ET LES MEUBLES À
L’ÉCART. LE CONTACT PEUT CAUSER
DES BRÛLURES À LAPEAU.
A
BC
D
E
F
G
MADE IN / FABRIQUÉ AU:
WOLFSTEELLTD.
BARRIE,ONTARIO CANADA
24 NAPOLEON ROAD,
BARRIE, ON, L4M 4Y8 CANADA
NACGUANGZHOU P.R.C.
NO.69 HEFENG ROAD,
GUANGZHOU,CHINA
CLEARANCE TO COMBUSTIBLE CONSTRUCTION / DÉGAGEMENTS AUX MATÉRIAUX COMBUSTIBLES:
(MEASURED TO UNIT / À PARTIR DE L’APPAREIL)
UNIT /
APPAREIL
ADJACENT
SIDE WALL
(TO SIDE) /
MUR LATÉRAL
ADJACENT (AU
CÔTÉ)
A
MANTLE
(TO TOP) /
MANTEAU
(JUSQU’AU
DESSUS)
B
TOP FACING
(TO TOP) /
HAUT DE LA
FAÇADE
(JUSQU’AU
DESSUS)
C
SIDE FACING
(TO SIDE) /
CÔTÉ DE LA
FAÇADE (AU
COTÉ)
D
MINIMUM
HEARTH
EXTENSION /
BASE DE
PROTECTION
MINIMALE
E
MINIMUM
HEARTH
THICKNESS /
ÉPAISSEUR
MINIMALE DE LA
BASE DE
PROTECTION
F
MINIMUM
HEARTH SIDE
EXTENSION /
BADE DE
PROTECTION
LATÉRALE
MINIMALE
G
2201 8”1”22”10”22”30”16”
REPORT NO. 415-S-08-2
For rating plate location, see “INSTALLATION
OVERVIEW” section.

9
W415-0890 / A / 04.28.10
3.0 INSTALLATION PLANNING
Clean all ashes out of the inside of the existing fireplace opening. Make sure that the chimney and fireplace are
free of cracks, loose mortar, creosote deposits, blockage or other signs of deterioration. If necessary, have any
repair work done by a qualified professional before installing the insert.
Do NOT remove bricks or mortar from the fireplace. In case of an outside air inlet or ash dump, fill with fiber-
glass insulation. Adhere to minimum clearances as illustrated.
Combustible material must not protrude more than 1” to the side of the insert or between the mantel and the
top of the insert.

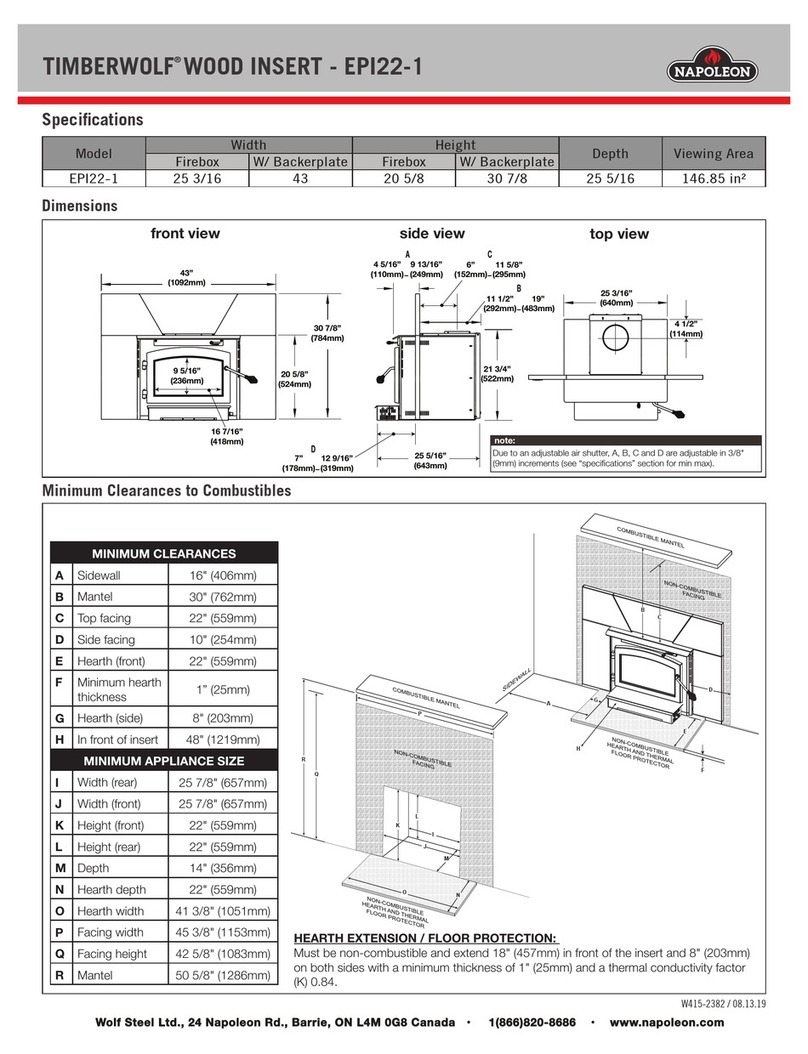

MINIMUM CLEARANCES
ASidewall 16”
BMantel 30”
CTop facing 22”
DSide facing 10”
EHearth (front) 22”
FHearth (side) 8”
GIn front of
insert 48”
MINIMUM APPLIANCE SIZE
HWidth (rear) 25 7/8”
IWidth (front) 25 7/8”
JHeight (front) 22”
KHeight (rear) 22”
LDepth 14”
MHearth depth 18”
NHearth width 41 7/8”
OFacing width 45 7/8”
PFacing height 47 7/8”
QMantel 52 5/8”
SIDEWALL
COMBUSTIBLE MANTEL
NON-COMBUSTIBLE
FACING
NON-COMBUSTIBLE
FACING
COMBUSTIBLE MANTEL
NON-COMBUSTIBLE
HEARTH AND THERMAL
FLOOR PROTECTOR
AF
GE
C
B
D
H
O
JK
L
I
P
Q
NM
NON-COMBUSTIBLE
HEARTH AND THERMAL
FLOOR PROTECTOR
3.1 MINIMUM CLEARANCE TO COMBUSTIBLES
HEARTH EXTENSION / FLOOR PROTECTION:
Must be non-combustible and extend 22” in front
of the insert and 8” on both sides with a minimum
thickness of .500” and a thermal conductivity fac-
tor (K) 0.84.

10
W415-0890 / A / 04.28.10
4.0 INSTALLATION
68.3A
!
WARNING
WEAR GLOVES AND SAFETY GLASSES FOR PROTECTION.
CAREFULLY FOLLOW THE INSTRUCTIONS FOR ASSEMBLY OF THE PIPE AND OTHER PARTS
NEEDED TO INSTALL THE APPLIANCE. FAILURE TO DO SO MAY RESULT IN A FIRE, ESPECIALLY IF
COMBUSTIBLES ARE TOO CLOSE TO THE APPLIANCE OR CHIMNEY AND AIR SPACES ARE
BLOCKED, PREVENTING THE FREE MOVEMENT OF COOLING AIR.
DO NOT DRAW OUTSIDE AIR FROM GARAGE SPACES. EXHAUST PRODUCTS OF GASOLINE ENGINES ARE
HAZARDOUS.
DO NOT INSTALL OUTSIDE AIR DUCTS SUCH THAT THE AIR MAY BE DRAWN FROM ATTIC SPACES, BASEMENTS
OR ABOVE THE ROOFING WHERE OTHER HEATING APPLIANCES OR FANS AND CHIMNEYS EXHAUST OR UTILIZE
AIR. THESE PRECAUTIONS WILL REDUCE THE POSSIBILITY OF APPLIANCE SMOKING OR AIR FLOW REVERSAL.
THE OUTSIDE AIR INLET MUST REMAIN CLEAR OF LEAVES, DEBRIS ICE AND/OR SNOW. IT MUST BE UNRE-
STRICTED WHILE APPLIANCE IS IN USE TO PREVENT ROOM AIR STARVATION WHICH CAN CAUSE SMOKE SPILL-
AGE AND AN INABILITY TO MAINTAIN A FIRE. SMOKE SPILLAGE CAN ALSO SET OFF SMOKE ALARMS.
NEGATIVE PRESSURE WITHIN YOUR HOME MAY INADVERTENTLY AFFECT YOUR APPLIANCE.
TO PREVENT CONTACT WITH SAGGING OR LOOSE INSULATION, THE APPLIANCE MUST NOT BE INSTALLED
AGAINST VAPOUR BARRIERS OR EXPOSED INSULATION. LOCALIZED OVERHEATING COULD OCCUR AND A FIRE
COULD RESULT.
DO NOT USE MAKESHIFT COMPROMISES DURING INSTALLATION. DO NOT BLOCK OR RESTRICT AIR, GRILLE OR
LOUVRE OPENINGS. DO NOT ADD A HOOD.
KEEP HAND TOOLS IN GOOD CONDITION, SHARPEN CUTTING EDGES AND MAKE SURE TOOL HANDLES ARE
SECURE.
ALWAYS MAINTAIN THE MINIMUM AIR SPACE REQUIRED TO THE ENCLOSURE TO PREVENT FIRES.
It is extremely important that your appliance be installed according to the manufacturer's specifications. The
manufacturer's installation instructions and specified clearances should always be followed in accordance with
local and national codes. In Canada the CSA B365 and the CSA C22.1 installation codes are to be followed. In
the USA the ANSI NFPA 70 and ANSI NFPA 211 installation codes are to be followed.
Chimney and liner must be in good condition and kept clean.

11
W415-0890 / A / 04.28.10
4.1 TYPICAL EXISTING MASONRY
You can install your appliance using your existing masonry chimney. To do
so, follow the guidelines below. If you are using a masonry chimney, it
is important that it be built in compliance with the specifications of the
Building Code in your region. It must normally be lined with fire clay
bricks, metal or clay tiles sealed together with fire cement. (Round
flues are the most efficient).
62.2
FOLLOW MANUFACTURER’S
INSTRUCTIONS FOR
MAXIMUM LINER EXTENSION
ABOVE CHIMNEY
FLOOR
PROTECTOR
DAMPER PLATE
REMOVED OR
FASTENED IN OPEN
POSITION
SEAL WITH NON-
COMBUSTIBLE
MATERIAL
MASONRY CHIM-
NEY MUST HAVE
STRUCTURAL
INTEGRITY LISTED
CHIMNEY
LINER
A. Remove the fireplace damper or fasten it permanently open.
* We recommend the following method of sealing off the damper area around the liner.
B. * Measure the throat of the fireplace and mark this shape on a piece of 24 gauge sheet metal (flue
cover); cut a six-inch (6.75”) hole to lie directly below the fireplace flue opening.Allow two inches of
material for a flange on all sides and cut to these measurements. Bend down the flanges. If you have
never done this before, it might be a good idea to make a cardboard pattern and test it first. Fasten this
flue cover in position as high as possible with two masonry screws per side through the flanges into the
fireplace.
In Canada: Install a listed 6 inch diameter flexible stainless steel liner from the top of the chimney to the insert
flue collar. Attach a stainless steel liner connector or elbow to the liner and insert onto the flue collar. Fasten with
three screws. Secure the top of the liner to the chimney cap using a liner support and chimney flashing. Cap the
top of the chimney liner assembly using an approved rain cap.
In the United States: While it is not required, it is recommended that a chimney liner be installed that is continu-
ous from the insert to the top of the chimney, particularly when the insert is installed in a basement. For this type
of connection, use the “In Canada” installation instructions above.
If a continuous liner is not installed, a “direct flue connection” must be made. The direct flue connection requires a
non-combustible connector that extends from the insert into the chimney flue liner and also that the installed flue
cover be sealed below the entry point of the connector to prevent dilution of combustion products in the chimney
flue with air from inside the house. Cap the top of the chimney using an approved rain cap.
The following installation requirements must be observed when installing solid fuel burning inserts into factory
built fireplaces.

12
W415-0890 / A / 04.28.10
4.2 FACTORY BUILT FIREPLACE
The following installation requirements must be observed when installing solid fuel burning inserts into factory
built fireplaces.
A. The factory built fireplace must be listed per UL 127 or ULC S610.
B. Clearances to any combustible material surrounding this insert as identified must be followed. These
clearance requirements supersede any pre-existing facing material clearances listed for the factory
built fireplace.
C. Installation must include a full height listed chimney liner meeting HT requirements (2100°F) as re-
quired in UL 1777 (U.S.) or ULC S635 (Canada). The liner must be securely attached to the insert flue
collar and the chimney top.
D. Means must be provided to prevent room air passage to the chimney cavity of the fireplace. This may
be accomplished by sealing the damper area around the chimney liner, or sealing the appliance front.
E. The air flow within and around the appliance shall not be altered by the installation of the insert (i.e.
no louvres or cooling air inlet or outlet ports are blocked), unless specifically tested as such for each
factory built fireplace manufacturer and model line. NOTE: Using a louvered face plate (surround)
complies with this requirement.
F. Alteration of the appliance in any manner is not permitted with the following exceptions;
A. External trim pieces which do not affect the operation of the appliance may be removed providing
they can be stored on or within the fireplace for reassembly if the insert is removed.
B. The chimney damper may be removed to install the chimney liner.
G. Circulating air chambers (i.e. in a steel fireplace liner or metal heat circulator) shall not be blocked.
H. Means must be provided for removal of the insert to clean the chimney flue.
I. Inserts that project in front of the fireplace must be supplied with appropriate support means.
J. A permanent metal warning label must be attached to the back of the fireplace stating that the fireplace
must be restored to its original condition for safe use without the insert. 80.2A

13
W415-0890 / A / 04.28.10
5.0 FINISHING
5.1 SECONDARY AIR TUBES
5.1.1 Start at the back working forwards, install the secondary
air tube by inserting the tube into the hole,
as illustrated in “A”.
5.1.2 Slide the tube into the opposite hole.
With the holes on the secondary air
tube pointing forward, align
the tube with the tube
retainer and insert
the cotter pin, as
illustrated in“B”.
5.1.3 Spread the cotter pin
to retain.
NOTE: There are 4 second-
ary air tubes. One of the
tubes has larger holes. This
tube is to be located closest
to the front of the appliance,
as illustrated in “C”. C
B
COTTER PIN
TUBE
RETAINER
A
HOLE

14
W415-0890 / A / 04.28.10
5.3 DOOR INSTALLATION
Hang the door using the hinge pins supplied.
5.2 BRICKS AND BAFFLES INSTALLATION
AAAA
AAAA
AAAA
AAAA
A
AAA
E
C
B
A
D
D
E
OPERATION OF THE APPLIANCE WITHOUT THE BAFFLES CAN RESULT IN EXCESSIVE TEMPERA-
TURES THAT COULD DAMAGE THE APPLIANCE, CHIMNEY AND THE SURROUNDING ENCLOSURE.
!
WARNING
With the appliance and chimney installation completed, move the bricks into place as illustrated below.
5.2.1 Install the bottom nine (A) bricks and one (B) brick, working from the back of the appliance forward as
illustrated.
5.2.2 Install four (A) bricks along both sides of the appliance.
5.2.3 Install the four (A) bricks and one (C) brick along the back wall by pivoting the bricks up under the brick
retainer. NOTE: Place narrow (C) brick in centre.
5.2.4 Install two (D) bricks along the front of the appliance below the ledge at the bottom of the door
opening.
5.2.5 Carefully pivot two (E) fibre baffles up onto the secondary air tubes as illustrated. Ensure that the top
baffles are pushed all the way to the rear of the firebox, leaving a minimum of a 1 inch gap along the
front. This will allow the flue gases to escape the firebox. Ensure overlap joint is tight.
BAFFLE
SECONDARY
AIR TUBES
OVERLAP
JOINT

15
W415-0890 / A / 04.28.10
5.4 DOOR HANDLE INSTALLATION
DOOR
HANDLE
NUT
DOOR HANDLE
LATCH LOCK
WASHER
DOOR
SPACER
SPRING
WASHER
FRONT VIEW
NOTE: Position of
door handle latch.
Twist the large wire handle over the end of the handle rod. Twist the smaller wire handle over the end of the air control rod
above the door.

16
W415-0890 / A / 04.28.10
5.5 FLASHING INSTALLATION
The top and side flashings have been shipped flat.
5.5.1 To install the side flashings, engage the tabs into the slots which will position the insert in the preferred
location.
5.5.2 Lower the top flashing against the appliance and secure using the clips as illustrated below.
5.5.3 Based on where the flashing has been installed, adjust the top chute tight against the top flashing and
secure in place.
5.5.4 The three pieces of trim are assembled in the same manner as a picture frame. Place the corner
brackets (with screw loosened) into the trim sections. Tighten the screw spreading the two pieces
apart. Attach the adjoining section. Repeat with the opposite side. Tighten all screws firmly.
5.5.5 Slide the trim over the flashing.
5.5.6 Install the five spring clips provided by inserting them in between the trim and the back of the flashing
as illustrated.
NOTE: The flashing on this appliance is adjustable in 1/4” increments. It has been designed to accom-
modate a minimum hearth depth of 14”. Once the appliance has been installed, the flashing can be
adjusted back to the facing material. If desirable the appliance can be moved back into the masonry
opening as far as 17 1/2”.
3
2
5
6
1
4

17
W415-0890 / A / 04.28.10
5.6 BLOWER INSTALLATION
Drywall dust will penetrate into the blower bearings, causing irreparable damage. Care must be taken to pre-
vent drywall dust from coming into contact with the blower or its compartment. Any damage resulting from this
condition is not covered by the warranty policy. Use of the blower increases the output of heat.
This blower is thermally activated. Depending on the intensity of the fire, the blower will start 15-30 minutes af-
ter lighting. The thermal switch for the appliance is affixed to an adjustable bracket, which should be positioned
so it is in contact with the blower housing as illustrated.
For shipping purposes the blower housing has
been stored within the firebox. We recommend
removing the door prior to installing the blower.
5.6.1 Remove the two screws securing the
cover and set aside.
5.6.2 Engage the clips onto the retainer
bracket and secure using the screw
supplied.
5.6.3 Reattach the cover with the two screws
previously removed.
!
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK.
TURN OFF THE ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, ETC.)
COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
ENSURE THAT THE BLOWER’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE
APPLIANCE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER
CORD BENEATH THE APPLIANCE.
BLOWER
HOUSING
COVER
CLIPS
RETAINER
BRACKET
ADJUSTABLE

18
W415-0890 / A / 04.28.10
6.0 OPERATION
ALWAYS OPERATE THIS APPLIANCE WITH THE DOOR CLOSED AND LATCHED EXCEPT DURING
START UP AND RE-FUELING. ALWAYS WEAR GLOVES TO PREVENT INJURY. DO NOT LEAVE THE
FIRE UNATTENDED WHEN THE DOOR IS UNLATCHED AS UNSTABLE WOOD COULD FALL OUT OF
THE FIRE CHAMBER CREATING A FIRE HAZARD TO YOUR HOME.
NEVER LEAVE CHILDREN UNATTENDED WHEN THERE IS A FIRE BURNING IN THE APPLIANCE.
NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID,
OR SIMILAR LIQUIDS TO START OR ‘FRESHEN UP’A FIRE IN THIS APPLIANCE. KEEP ALL SUCH
LIQUIDS WELL AWAY FROM THE APPLIANCE WHILE IT IS IN USE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE SHOULD BE KEPT A MINIMUM OF 48” FROM THE
FRONT FACE.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE
TESTING AUTHORITY IS CONSIDERED BREACHING CSA B365 (CANADA) AND ANSI NFPA 211 (USA).
OPEN AIR CONTROL (AND DAMPER WHEN FITTED) BEFORE OPENING FIRING DOOR.
HOT WHILE IN OPERATION, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY
CAUSE SKIN BURNS. WEAR GLOVES TO OPERATE YOUR APPLIANCE.
BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT MAY
RESULT IN A HOUSE AND OR CHIMNEY FIRE.
!
WARNING
Your Timberwolf EPAlisted product is designed with the most advanced technology. The appliance is extremely air-
tight.
The first fire(s) in your appliance will be difficult to get going and keep going with little amount of heat being gener-
ated. This is a result of the moisture being driven out of the fire brick.Allow 30 to 40 hours of hot fires (temperatures in
excess of 500°F - 600°F) before your appliance will perform normally. During the break-in period (the first 2 or 3 fires)
create only small, hot fires using kindling; this will allow the firebrick to cure. Do not be alarmed if small hairline cracks
develop in the firebrick. This is a normal occurrence and does not pose a safety hazard. The paint may also smell a
little for the first few fires as it cures and you may wish to open a door or window to alleviate the smell.
To start, a brisk fire is required. Place loosely crumpled paper on the floor of the appliance and cover with dry kindling.
Open the air control fully by sliding control all the way to the right. Light the paper and leave the door slightly ajar (one
inch) until all kindling is burning. To maintain a brisk fire, a hot coal bed must be established and sustained.
Slowly add larger wood (2x4 size pieces). Lay the pieces lengthwise from side to side in the hot coal bed with a shal-
low trench between, so that the primary air can flow directly into this trench and ignite the fuel above. When the fire
seems to be at its peak, medium sized logs may be added. Once these logs have caught fire, carefully close the door.
(Closing the door too quickly after refueling will reduce the firebox temperature and result in an unsatisfactory burn.)
Remember it is more efficient to burn medium sized wood, briskly, and refuel frequently than to load the appliance with
large logs that result in a smouldering, inefficient fire and dirty glass.
As soon as the door is closed, you will observe a change in the flame pattern. The flames will get smaller and lazier
because less oxygen is getting into the combustion chamber. The flames, however, are more efficient. The flames will
remain lazy but become larger again as soon as the firebricks have been heated thoroughly and the chimney becomes
heated and provides a good draft.At this point, the roaring fire that you see when the door is opened is wastefully
drawing heated room air up the chimney, certainly not desirable.Always operate with the door fully closed once the
medium sized logs have caught fire.

19
W415-0890 / A / 04.28.10
You can now add larger pieces of wood and operate the appliance normally. Once the appliance is entirely hot,
it will burn very efficiently with little smoke from the chimney. There will be a bed of orange coals in the firebox
and secondary flames flickering just below the top baffles. You can safely fill the firebox with wood to the top of
the door and will get best burns if you keep the appliance pipe temperatures between 250 degrees Fahrenheit
(120 degrees Celsius) and 450 degrees Fahrenheit (270 degrees Celsius). A surface thermometer will help
regulate this.
Without an appliance thermometer, you are working blindly and have no idea of how the appliance is operating!
An appliance thermometer offers a guide to performance.
Can’t get the fire going? Use more kindling and paper. Assuming the chimney and vent are sized correctly and
there is sufficient combustion air, the lack of sufficiently dry quantities of small kindling is the problem. Thumb
size is a good gauge for small kindling diameter.
Can’t get heat out of the appliance? One of two things may have happened. The appliance door may have
been closed prematurely and the appliance itself has not reached optimum temperature. Reopen the door and/
or draft control to re-establish a brisk fire. The other problem may have been wet wood. The typical symptom is
sizzling wood and moisture being driven from the wood.
6.1 AIR CONTROL
Draft is the force which moves air from the firebox up through the chimney.
The amount of draft in your chimney depends on the length and diameter of
chimney, local geography, nearby obstructions and other factors. Adjusting
the air control all the way to the left reduces the temperature. The draft can be
adjusted from low to high by moving the handle from left to right. Inadequate
draft may cause back-puffing into the room through the appliance and chimney
connector points and may cause plugging of the chimney. Too much draft may
cause an excessive temperature in the appliance, glowing red appliance parts
or chimney connectors or an uncontrollable burn which can lead to a chimney
fire or permanent damage to the appliance. Do not operate your appliance for
longer than 30 minutes with the air control on “HIGH” (fully open).
6.3 FUEL
When loading the appliance, ensure that the two upper fibre baffles are not lifted up and off their ledge. For
maximum efficiency, when the appliance is thoroughly hot, load it fully to the top of the door opening and burn at
a medium low setting. Maximum heat for minimum fuel (optimum burn) occurs when the appliance top tempera-
ture is between 500°F (260°C) and 600°F (315°C). The bricks will be nearly all white and the glass mostly clear.
The whiteness of the bricks and the cleanliness of the glass are good indicators of your operating efficiency. Not
enough heat is produced when only one or two pieces of wood are burned or the wood may not burn completely.
A minimum of three pieces are needed to encase a bed of coals that sustains the fire.
NOTE: When loading the appliance, ensure to keep fuel back from the glass. If coals are to accumulate
on the front lip, there is a chance they will fall out when the door is opened.
AIR CONTROL
6.2 FIRE EXTINGUISHERS / SMOKE DETECTORS
All homes with a solid fuel burning appliance should have at least one fire extinguisher in a central location
known to all and at least one smoke detector in the room containing the appliance. If it sounds an alarm, cor-
rect the cause but do not deactivate or relocate the smoke detector.
!
WARNING
DO NOT STORE FUEL WITHIN THE CLEARANCE TO COMBUSTIBLES, OR IN THE SPACE REQUIRED
FOR RE-FUELING AND ASH REMOVAL.
BURNING WET, UNSEASONED WOOD CAN CAUSE EXCESSIVE CREOSOTE ACCUMULATION. WHEN
IGNITED IT CAN CAUSE A CHIMNEY FIRE THAT MAY RESULT IN A SERIOUS HOUSE FIRE.

20
W415-0890 / A / 04.28.10
6.4 LIGHTING A FIRE
6.4.1 FLASH FIRE
6.4.2 EXTENDED FIRE
A flash fire is a small fire burned quickly when you don’t need much heat. After your kindling has “caught”, load
at least 3 pieces of wood, stacked loosely. Burn with the draft control fully open or closed only slightly.
Load your larger pieces of wood compactly, packed close enough to prevent the flames from penetrating it
completely.
After approximately 30 minutes, depending on the size of the load, close the draft control completely making
sure that the fire is not extinguished.
DO NOT OVERFIRE THE APPLIANCE!
Overfiring can occur by:
A. Burning large amounts of smaller wood pieces such as furniture scraps, skids or treated wood;
B. Vigorously burning large loads of wood with the draft control on “HIGH” (fully open) for long periods of
time (one or two hours).
C. Leaking door gaskets that will permit excess air to enter the combustion chamber.
A properly installed appliance should not smoke. If yours does, check the following:
• Has the chimney had time to get hot?
• Is the smoke passage blocked anywhere in the appliance, chimney connector or chimney?
• Is the room too airtight and the air intake not connected to the outside? Try with a window partly open.
• Is the smoke flow impeded by too long a horizontal pipe or too many bends?
• Is it a weak draft perhaps caused by a leaky chimney, a cold outside chimney, too large a diameter of
a chimney, too short a chimney, or a chimney too close to trees or a higher roof?
• Has a direct flue connection been used rather than a chimney liner continuous from cap to appliance
flue collar.
6.5 SMOKING
Loosely stacked wood burns quicker than a tightly packed load. Wood burns in cycles rather than giving a steady
output of heat. It is best to plan these cycles around your household routine so that only enough coals are left to
start the next load. In the evening, load your appliance, at least, a half-hour before bed to ensure a good fire, hot
enough to close the draft control for an overnight burn.
Burn only dry seasoned wood. It produces more heat and less soot or creosote. Do not burn ocean beach wood.
Its salt content can produce a metal eating acid. When refueling open the door slowly to prevent smoke spillage.
Use a pair of long gloves (barbecue gloves) when feeding the fire. Because these appliances burn at the front,
they are clean and efficient, but they are also very hot and gloves are useful. Keep a small steel shovel nearby to
use as a poker and to remove ashes. Do not store the wood within 3 feet (1m) of the appliance.
