Timeguard Weathersafe Extreme WXT201N Manual

Installation & Operating Instructions
Weathersafe Extreme
JOB NUMBER TITLE PG VERSION DATE Size at 100%
XTIM2189 WXTN INSTRUCTIONS 99 215/07/2019
DESIGNER Org A/W A/W AMENDS C: TG45816 DATE:
TM TM

1
2. Safety
• Before installation or maintenance, ensure the mains supply to
the switch, socket, spur or bell push unit is switched off and the
circuit supply fuses are removed or the circuit breaker turned off.
• It is recommended that a qualified electrician is consulted or used
for the installation of this IP66 rated switch, socket, spur or bell
push unit and install in accordance with the current IEE wiring
and Building Regulations.
IP66 Products covered by
these instructions
WXT201N Twin Gang Socket Switched 13A
WXT104NP Single Gang RCD Fused Spur 13A
WXT204NP Twin Gang RCD Socket Switched 13A
(Passive/Latching)
WXT205NP Twin Gang RCD Socket Switched 13A
(Active/Non-Latching)
WXT103N Single Gang Switched Fused Spur 13A –
with Neon
1. General Information
These instructions should be read carefully and retained for further
reference and maintenance.
All Weathersafe Extreme products need to be fitted with waterproof
cable and conduit entries to maintain their IP rating once installed

2
• Check that the total load on the circuit including when this switch,
socket, spur or bell push unit is fitted does not exceed the rating of
the circuit cable, fuse or circuit breaker.
• Electricity can be dangerous; the use of an RCD should not be
regarded as a substitute for basic electrical safety precautions.
• Always test the RCD before use. If the test procedure is not
completed satisfactory or an appliance continues to trip the RCD
seek professional advice and switch off the appliance.
• To clean, use a clean dry cloth only. Do NOT use any liquid cleaners.
• During use warming of the enclosure is normal.
Wiring tests – Important (WXT104NP,WXT204NP & WXT205NP)
• Remove this product from the circuit if carrying out tests (as
described in the IEE Wiring Regulations) for earth loop impedance,
prospective short circuit current and insulation resistance.
• Use the enclosed warning label to ensure this is carried out.
3. Technical Specifications
General
• Voltage: 230V AC 50Hz
• IP Rating: IP66
• All products in the range comply with the low voltage directive
2014/35/EU and where relevant the EMC directive 2014/30/EU
and ROHS directive 2011/65/EU & 2015/863.
• CE Compliant

3
Sockets (WXT101N & WXT201N)
• Individual power ‘ON’ Neon Indicators
• Lockable cover facility
• Operating temperature range: -5° to 55°C
• Complies with: BS1363
RCD’S (WXT104NP, WXT204NP, WXT205NP)
• Lockable cover facility
• Rated trip current: 30mA
• RCD Type: Double pole, suitable for
2 and 3 wire applications
• Breaking capacity: 250A (Earth leakage)
• Through fault withstand: 1500A
• Trip Speed: Less than 40msec at 150mA
residual current
• Classification: WXT104NP – Latching (Passive)
WXT204NP – Latching (Passive)
WXT205NP – Non-latching (Active)
• Operating temperature range: -5ºC to 40ºC
• Complies with: BS7288 & BS1363
Fused Spur (WXT103N)
• Power ‘ON’ Neon indicator
• Lockable cover facility
• Operating temperature range: -5° to 55°C
• Complies with: BS1363

4 5
ON/OFF
switches
Neon status indicator
ON/OFF switch
Fuse socket
Individual
backlit neon
indicators
Figure 1
Features apply to
both WXT101N
and WXT201N
Figure 2
WXT103N
front plate
Tapped screws
Tapped screws
Lid clip for padlocks
4. WXT101N, WXT201N & WXT103N
Installation
1. IMPORTANT Switch off the electricity at the fuse box by removing
the relevant fuse or switching off the circuit breaker before
proceeding with the installation.
2. Using a Philips screwdriver, separate the faceplate from the back
box by removing the four tapped screws located in each corner.
See figure 1 & 2 for your chosen product.

5 6

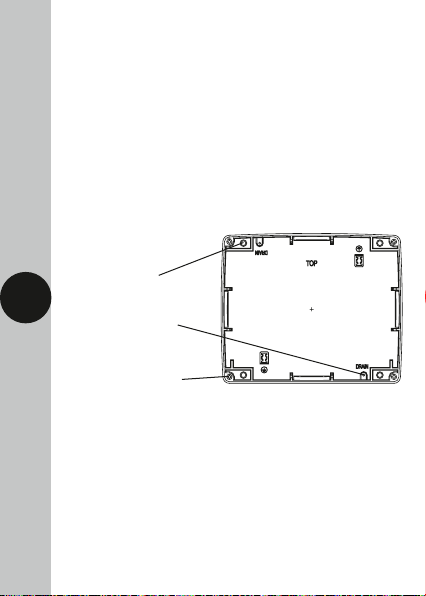

Figure 3
4x fixing holes for
no. 8 wood screws
Drain feature, use only
lower if required
Front cover fixing holes
3. Using the back plate as a template mark the position for the
holes. Note the back plate must be mounted in the correct
orientation, following the ‘TOP’ marking inside the back plate.
If the mounting position desired is uneven use a sheet of marine
ply as a base plate and fit the back box. Insert the rawl plugs into
the holes.
4. Drill the wall using a 4mm Ø drill bit making sure not to infringe
or compromise any gas, water pipes or cables.
5. The drain feature must be drilled out using a 5mm drill if the top
or side entry conduit is used. Opening this drain hole will reduce
the IP rating of the product. Remember – open out the lower
drain feature only, see figure 3.

6 7
6. Select the required entry point by unscrewing the appropriate
seal located on all four sides of the back box. If conduit is not
going to be used, a waterproof cable with suitable IP rated 20mm
cable glands to maintain the overall IP rating. If the bottom entry
conduit is used, there must be adequate drainage from the lowest
point of the conduit.
7. Follow suit using the same method depicted in stage 6 to create
an exit point for the output supply cable to follow through on.
8. Secure the back box to the wall using suitable screws for the rawl
plugs installed. Ensure that the back box is correctly orientated
following the ‘TOP’ marking which is labelled inside.
9. Pass though the 230V AC 50Hz mains supply cable and secure
the cables tightly to their respective terminals ensuring that all
bare conductors are sleeved and that correct polarity is observed,
see figure 4, 5 or 6 for the appropriate wiring diagram of your
chosen product. Note that if metal conduit is being used the earth
continuity between the conduits must be maintained.
10.Once the mains supply is connected to the correct terminals,
mount the face plate over the back box aligning the four screws
from the face plate to the four mounting holes on the back box.
Tighten until secured.

7 8
Figure 4
WXT101N
Figure 5
WXT201N
230V 50Hz AC
Mains Supply
Earth
Mains Neutral Supply
230V 50Hz AC Mains Supply
Earth
Mains Neutral Supply
4.1 WXT101N, WXT201N & WXT103N Wiring Diagrams

8
Figure 6
WXT103N
230V 50Hz AC
Mains Supply
Earth Earth
Mains Neutral
Supply
Live
Supply Out
Neutral
Supply Out

Am03evitcA
esUerofeB)T(tseT
NO–galFdeR
9
5. WXT104NP, WXT204NP, WXT205NP
Installation
1. IMPORTANT Switch off the electricity at the fuse box by removing
the relevant fuse or switching off the circuit breaker before
proceeding with the installation.
2. Using a Philips screwdriver, separate the faceplate from the back
box by removing the four tapped screws located in each corner.
See figure 7 & 8 for your chosen product.
Reset button (R)
Test button (T)
Status indicator
shows Red for ON,
Green for OFF
Figure 7
WXT204NP &
WXT205NP
Front Plate
Tapped screws
Lid clip for
padlocks

RCD16ML
30mA1 n DP
Flagabove Reset R
Red:ON Black:OFF
ALWAYSTEST
BEFORE USE
Press TestT, flag
should disappear.
If not, do not use.
Reset after testing
F
U
S
E
10
Reset button (R)
Status indicator
shows Red for ON,
Green for OFF Figure 8
WXT104NP
Front Plate
Tapped screws
Lid clip for
padlocks
Test button (T)
3. Using the back plate as a template mark the position for the
holes. Note the back plate must be mounted in the correct
orientation, following the ‘TOP’ marking inside the back plate.
If the mounting position desired is uneven use a sheet of
marine ply as a base plate and fit the back box.
4. Drill the wall using a 4mm Ø drill bit making sure not to infringe
or compromise any gas, water pipes or cables. Insert the rawl
plugs into the holes.
5. The drain feature must be drilled out using a 5mm drill if the top
or side entry conduit is used. Opening this drain hole will reduce
the IP rating of the product. Remember – open out the lower
drain feature only.
6. Select the required entry point by unscrewing the appropriate seal
located on all four sides of the back box. If conduit is not going
to be used, a waterproof cable with suitable IP rated 20mm cable
glands will be required to maintain the overall IP rating. If the
bottom entry conduit is used, there must be adequate drainage
from the lowest point of the conduit.
7. Follow suit using the same method depicted in stage 6 to create
an exit point for the output supply cable to follow through on.

11
8. Secure the back box to the wall using suitable screws for the rawl
plugs installed. Ensure that the back box is correctly orientated
following the ‘TOP’ marking which is labelled inside.
9. Pass though the 230V AC 50Hz mains supply cable and secure
the cables tightly to their respective terminals ensuring that all
bare conductors are sleeved and that correct polarity is observed,
see figure 9 and 10 for the appropriate wiring diagram for your
chosen product. Note that if metal conduit is being used the earth
continuity between the conduits must be maintained.
10.Once the mains supply is connected to the correct terminals,
mount the face plate over the back box aligning the four screws
from the face plate to the four mounting holes on the back box.
Tighten until secured.
Live Supply
to Load
230V 50Hz AC Mains Supply Mains Neutral Supply
Neutral Supply to Load
Earth
5.1 WXT104NP, WXT204NP, WXT205NP Wiring Diagrams
Figure 9
WXT104NP

12 13
Figure 10
WXT204NP
This diagram
applies to both
WXT204NP &
WXT205NP
230V 50Hz AC
Mains Supply
Mains
Neutral
Supply
Earth
5.2 WXT104NP, WXT204NP and WXT205NP Testing & Usage
To test: Ensure supply is connected
RESET – press the grey (blue for WXT205NP) button marked
Reset (R), the status indicator should show red.
Test – Press the Red Test button marked (T), the status indicator
should show Green. This indicates the RCD has been tripped and
power has been disconnected.
RESET – press the grey (blue for WXT205NP) button marked
reset (R) again; the status indicator should show red.
If all the above operations work satisfactory, the RCD is safe for use.
If this test procedure is not completed to a satisfactory standard,
do not use the RCD and seek professional advice.
In applications such as hand driers it may not be practical to expect
each user to test before use. In this case we suggest an appropriate
person applies the test routine twice a day.
After satisfactory testing the RCD, any connected appliance may
be switched on, and used in the confidence that the user is protected
from electric shock by rapid disconnection of the supply.

13 14
3 Year Guarantee
In the unlikely event of this product becoming faulty due to defective
material or manufacture within 3 years of the date of purchase,
please return it to your supplier in the first year with proof of
purchase and it will be replaced free of charge. For the second
and third years or any difficulty in the first year telephone the
helpline on 020 8450 0515.
Note: A proof of purchase is required in all cases. For all eligible
replacements (where agreed by Timeguard) the customer is
responsible for all shipping/postage charges outside of the UK.
All shipping costs are to be paid in advance before a replacement
is sent out.

14
JOB NUMBER TITLE PG VERSION DATE Size at 100%
XTIM2189 WXTN INSTRUCTIONS 99 215/07/2019
DESIGNER Org A/W A/W AMENDS C: TG45816 DATE:
TM TM

9
TG45816 – July 2019
67.058.517 (Issue 3)
Timeguard Limited.
Victory Park, 400 Edgware Road,
London NW2 6ND
Sales Office: 020 8452 1112
or email [e-mail]
For a product brochure please contact:
Qualified Customer Support Co-ordinators will be on-line
to assist in resolving your query.
If you experience problems, do not immediately
return the unit to the store.
Telephone the Timeguard Customer Helpline;
HELPLINE
020 8450 0515
or email [e-mail]
www.timeguard.com
