TIS electronics 30070 User manual

30070 User Manual
BL IP HDMI Matrix Set

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 2
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Safety Information
To reduce the risk of electric shock, do not expose this product to rain or
moisture
Do not modify the wall plug. Doing so will void the warranty and safety
features
If the wall plug does not fit into your local power socket, hire an electrician
to replace your obsolete socket.
This equipment should be installed near the socket outlet and the device
should be easily accessible in the case it requires disconnection

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 3
Content
Safety Information..............................................................................................2
Introduction........................................................................................................4
Features.............................................................................................................5
Panel Description...............................................................................................6
IP HDMI Transmitter .......................................................................................6
RS232 PIN description ...................................................................................7
IP HDMI Receiver...........................................................................................8
IR remote control...............................................................................................9
Connection diagram ........................................................................................10
One to one....................................................................................................10
One to many.................................................................................................10
Many to many............................................................................................... 11
Specification ....................................................................................................12
Package Contents ...........................................................................................13
Maintenance....................................................................................................14
Warranty Policy.............................................................................................14
Limitations of Warranty.................................................................................14
Exclusive Remedies .....................................................................................15
RMA Policy ...................................................................................................15
Standard Replacement.................................................................................16
Once you have obtained an RMA number....................................................16
Please note:..................................................................................................16
Warranty..........................................................................................................17
Return and RMA Policies..............................................................................18

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 4
Introduction
The BL 30070 IP HDMI matrix Set is a matrix extender consisting of a
transmitter and a receiver. The 256-channel HDMI high-definition signal source
can be realized by connecting a switch between the transmitting and receiving
lines through the network cable. It can be switched, distributed and extended to
an unlimited number of displays.
Of course, this model can also support one-to-one, or one-to-many
transmission mode. In the transmission process, using Cat5e/6 types of
network cables, the transmitter to the receiver can be extended by 150 meters,
and with the switch it can be extended by 300 meters. In the case of
many-to-many transmission sources, when the digital tube of the transmitter
and the receiver display the same value, it means that the information of the
corresponding signal source is played by the display, but the same value
cannot be displayedon the digital tube of the other tranasmitter/receiver.
At the same time, this product supports RS232 remote operation, infrared
return and remote control switching. Widely used in security monitoring,
dispatching centers, entertainment centers, multimedia exhibition venues and
other places.
Note:
It is recommended to work with an IGMP enabled switch for the use of
multicast video streaming.

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 5
Features
HDMI signal resolution supports 1920*1080@60Hz, backward compatible
with multiple resolutions
Use H.264 format to compress and decompress video, effectively improve
the transmission rate and ensure the smoothness and stability of playback.
Support RS232 signal remote control device
Support infrared return, remote signal source
With remote control switching and touch panel switching source channel
function
One-to-many or multi-to-multiple cascading amplification transmission can
be carried out through the switch or router, supporting 256 channels of
signal source input in different frequency bands, and infinite channel display
device output.
Using the cat5e/6 network cable, the transmitter to the receiver can be
extended by 150 meters, and with a switch it can be extended by 300
meters.
Using 26AWG HDMI standard cable, the input distance can reach 10
meters, and the output distance can reach 5 meters.

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 6
Panel Description
IP HDMI Transmitter
S.N.
Name
Introduction
❶
DC 5V
5V DC power input
❷
HDMI In
HDMI signal input
❸
RS232
RS232 Communication
Interface, 38400,8,N,1
❹
Cat5e/6e
RJ45 interface
❺
IR OUT
External red line output
interface

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 7
❻
Signal channel
display
Adjust the corresponding
signal channel
❼
Back
Return
❽
+
Channel up
❾
-
Channel down
❿
OK
Determine
RS232 PIN description
Data TX
Ground
Data RX
Parameter: 38400,8,N,1

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 8

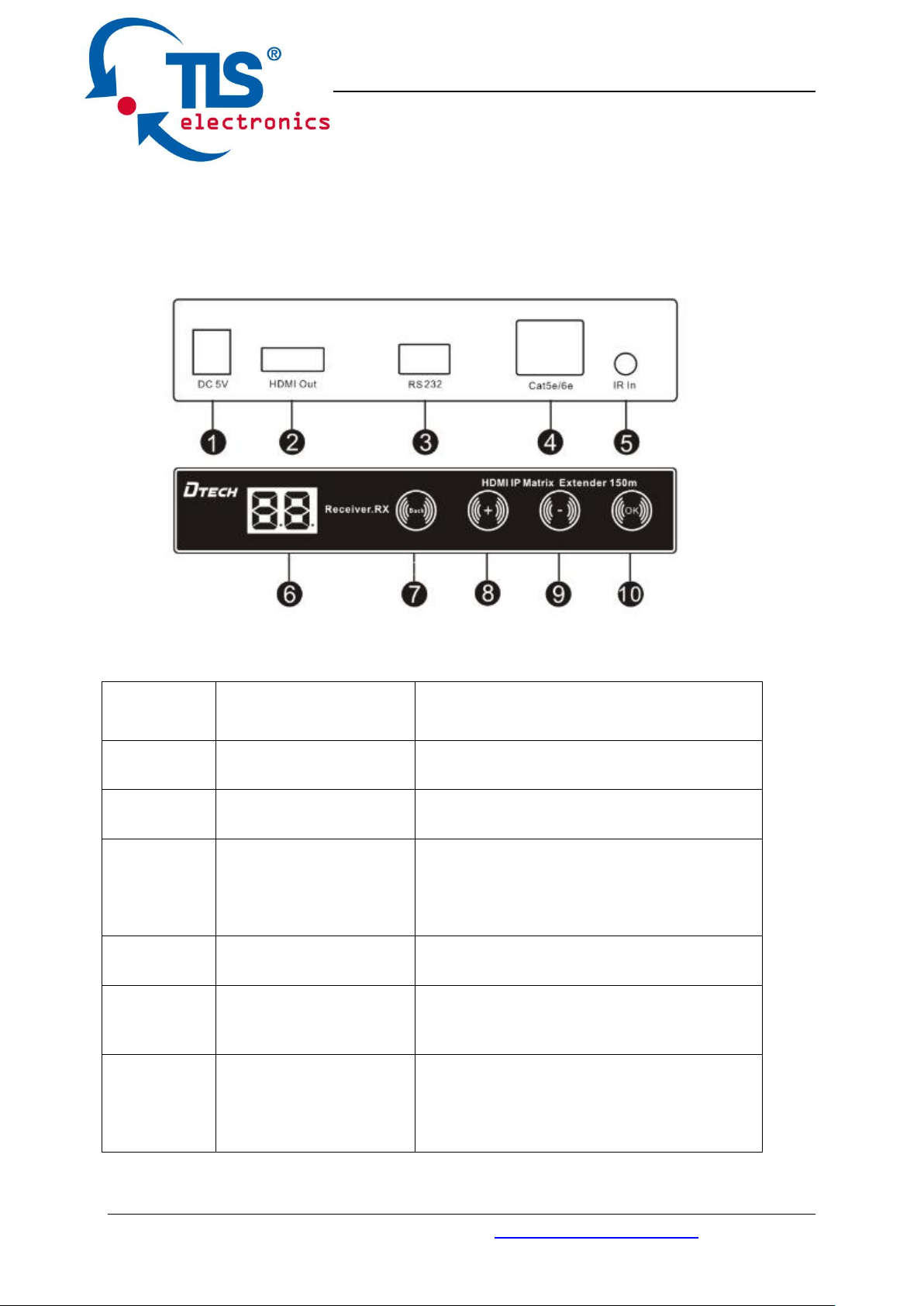

IP HDMI Receiver
S.N.
Name
Introduction
❶
DC 5V
5V DC power input
❷
HDMI Out
HDMI signal output
❸
RS232
RS232 communication interface
38400,8,n,1
❹
Cat5e/6e
RJ45 interface
❺
IR In
External red line output
interface
❻
Signal channel
display
Adjust the corresponding
signal channel

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 9
❼
Back
Return
❽
+
Channel up
❾
-
Channel down
❿
OK
Determine
IR remote control
With the IR remote control the user can switch choose the specified channel for
the transmitter and the receiver

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 10

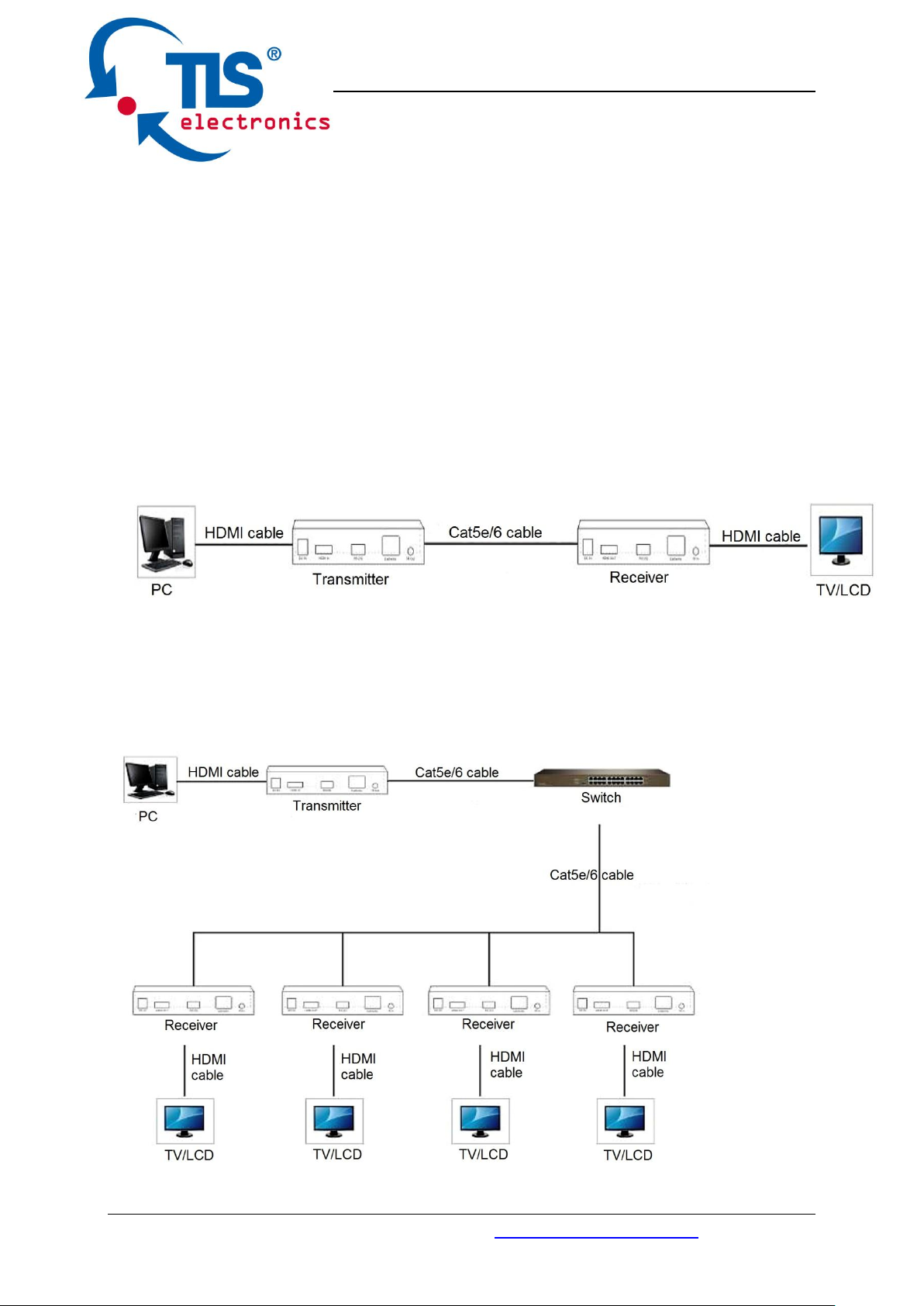

Connection diagram
Note: It is recommended to work with an IGMP enabled switch for the use
of multicast video streaming.
Note: Using the super five network cable, the transmitter to the receiver
can be extended by 150 meters, and the switch can be extended by 300
meters.
One to one
One to many

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 11

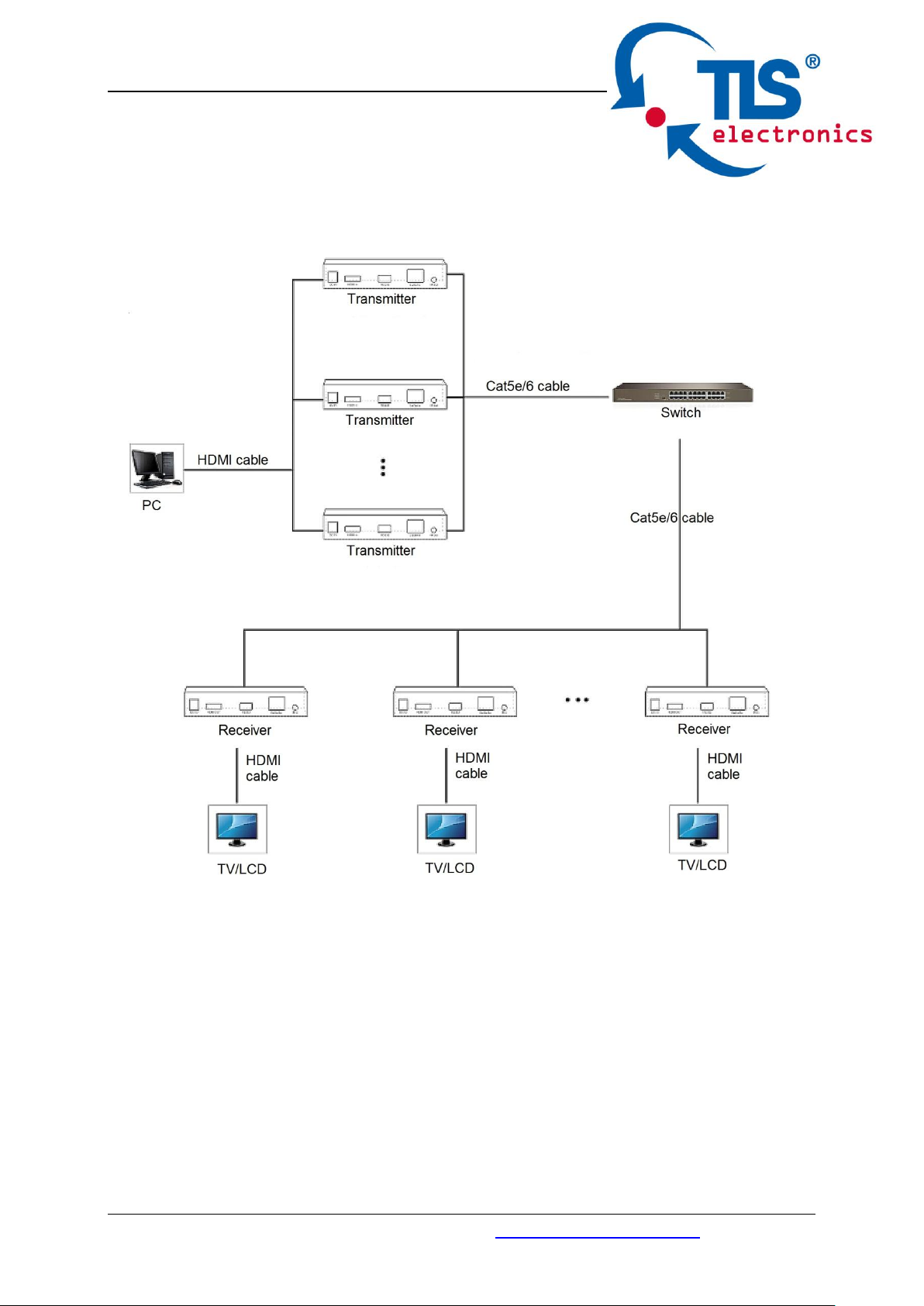

Many to many
Note:
It is recommended to work with an IGMP enabled switch for the use of
multicast video streaming.

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 12
Specification
Items
Specification
Power supply
Voltage / Current
DC 5V/1A
HDMI
performance
and interface
HDMI compliance
HDCP compliance
HDMI resolution
supported
HDMI 1.2a
HDCP 1.2
480i@60Hz, 480p@60Hz,
576i@50Hz, 576p@50Hz,
720p@50/60Hz,
1080i@50/60Hz,
1080p@50/60Hz
IR performance
and interface
IR remote control
Support IR passback with 20-60
KHz frequency
RS232
RS232 remote control
38400,8,N,1, Bi-directional
Operating
environment
Working temperature
Storage temperature
Humidity temperature
0 - 40 C°
-20 –70 C°
0 –90 %
Body properties
Dimension
Material
Colour
Weight
119x82x23 mm (WDH)
Metall
Grey
450g

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 13
Package Contents
1. HDMI transmitter
2. HDMI receiver
3. Power adaptor 2pcs 5V 1 A
4. 1x IR blaster extension cable
5. 1x IR receiver extension cable
6. IR remote control
7.
8. Terminal blocks 2pcs. for RS232
9. Angle brackets 2pcs
10. User manual

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 14
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or
benzene to clean this unit.
Warranty Policy
TLS electronics products are warranted against defects in material and
workmanship for three years from the date of shipment. During the warranty
period, TLS electronics will, at its option, repair or replace products that prove
to be defective. Repairs are warranted for the remainder of the original
warranty or a 90 day extended warranty, whichever is longer.
For equipment under warranty, the owner is responsible for freight to TLS
electronics and all related customs, taxes, tariffs, insurance, etc. TLS
electronics is responsible for the freight charges only for return of the
equipment from the factory to the owner. TLS electronics will return the
equipment by the same method as the equipment was sent to TLS electronics.
All equipment returned for warranty repair must have a valid RMA number
issued prior to return and be marked clearly on the return packaging. TLS
electronics strongly recommends all equipment be returned in its original
packaging.
TLS electronics obligations under this warranty are limited to repair or
replacement of failed parts, and the return shipment to the buyer of the repaired
or replaced parts.
Limitations of Warranty
The warranty does not apply to any part of a product that has been installed,
altered, repaired, or misused in any way that, in the opinion of TLS electronics,
would affect the reliability or detracts from the performance of any part of the
product, or is damaged as the result of use in a way or with equipment that had
not been previously approved by TLS electronics.
The warranty does not apply to any product or parts thereof where the serial
number or the serial number of any of its parts has been altered, defaced, or
removed. The warranty does not cover damage or loss incurred in
transportation of the product.
The warranty does not cover replacement or repair necessitated by loss or

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 15
damage from any cause beyond the control of TLS electronics, such as
lightning or other natural and weather related events or wartime environments.
The warranty does not cover any labor involved in the removal and or
reinstallation of warranted equipment or parts on site, or any labor required to
diagnose the necessity for repair or replacement.
The warranty excludes any responsibility by TLS electronics for incidental or
consequential damages arising from the use of the equipment or products, or
for any inability to use them either separate from or in combination with any
other equipment or products.
A fixed charge established for each product will be imposed for all equipment
returned for warranty repair where TLS electronics cannot identify the cause of
the reported failure.
Exclusive Remedies
TLS electronics’s warranty, as stated is in lieu of all other warranties, expressed,
implied, or statutory, including those of merchantability and fitness for a
particular purpose. The buyer shall pass on to any purchaser, lessee, or other
user of TLS electronics products, the aforementioned warranty, and shall
indemnify and hold harmless TLS electronics from any claims or liability of such
purchaser, lessee, or user based upon allegations that the buyer, its agents, or
employees have made additional warranties or representations as to product
preference or use.
The remedies provided herein are the buyer’s sole and exclusive remedies.
TLS electronics shall not be liable for any direct, indirect, special, incidental, or
consequential damages, whether based on contract, tort, or any other legal
theory.
RMA Policy
When returning product to TLS electronics for any reason, the customer should
fill out the official RMA form to obtain a RMAnumber. Without the permission or
approval, TLS electronics will be no responsible for any return. This can be
initiated by emailing or calling your related sales. All requests are processed
within 48 hours.

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 16
Standard Replacement
For customers that agree to return defective product to TLS electronics first, a
Standard Replacement option is available.
An RMA number must first be issued by sales. This RMA number will need to
be referenced on the outside of the return shipment.
Upon receipt of the defective product, TLS electronics will, at its discretion,
either repair or replace the product and ship it out in the most expeditious
manner possible. Subject to availability, the replacement product will be
shipped on the business day following receipt of the defective product.
In the event the product returned to TLS electronics has been discontinued (i.e.
the product is no longer being manufactured by TLS electronics but is still
under warranty), TLS electronics will, at its discretion, either repair or replace
with recertified product.
Once you have obtained an RMA number
After obtaining an RMA number from TLS electronics, you must send the
product - freight prepaid - to TLS electronics. The TLS electronics RMA number
must be prominently displayed on the outside of your package. If you send your
product to TLS electronics without the RMA number prominently displayed on
the outside of the package, it will be returned to you unopened.
Please use a shipping company that can demonstrate proof of delivery. TLS
electronics does not accept responsibility for any lost shipments unless proof of
delivery to TLS electronics is provided.
Please note:
Product shipped to TLS electronics must be properly packaged to prevent loss
or damage in transit.
Shipping your RMA to TLS electronics using regular mailing envelopes is not
acceptable, as they do not protect the product from damage during shipping.
TLS electronics will not repair or replace a module that is shipped in such a way
that the product is not properly protected.
TLS electronics will not accept any product that has been damaged as a result
of accident, abuse, misuse, natural or personal disaster, or any unauthorized
disassemble, repair or modification.

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 17
Warranty
Warranty time is two year and from the date of original shipment.
This warranty shall be void if a serial number has been removed from the
product.
Upon determination of a legitimate defect covered by this warranty and
at TLS sole discretion, user should bear the transport cost during the
warranty.
If product is out of warranty then repair charge is required. Minimum
repair charge: 10% of the retail price plus the cost of failed components.
We will repair the failed product after repair cost has been approved by
Customers and proper financial arrangements are made. Customer must
cover round trip shipment expenses.

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 18
Return and RMA Policies
Shipments will not be received and processed for warranty
repair/replacement without an TLS electronics RMA(Return Materials
Authorization).
Ecco Cine supply and service GmbH
Germany
40721 Hilden
Marie-Curie-Str. 20
info(at)tls-electronics.de
www.tls-electronics.de

30070 BL IP HDMI Matrix Set
Ecco Cine Supply GmbH Contact: [e-mail] 19
