PureLink VIP-100 II User manual

1
VIP-100 II
H.264 HDMI Extender over IP Extender
With LED, Remote, POE, RS232
User Manual
2
VIP-100 II Series H.264 Encoder Decoder User Manual
Introduction
The VIP100 II series incorportates the advanced H.264 codec as the
compression type, which makes it occupy lower bandwidth and transmit
over the LAN more smoothly. It supports 120m over single cat5e/6 cable at
point to point, as well as point to many and many to many over Ethernet
switch. The over IP solution is widely used in various locations, like meeting
room, class room, metro, airport, home, mall advertisement...etc.
1. Features
1). Using H.264 compression encoding, support resolution up to
1080p@60hz
2). Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI
output
3). With IR Remote to choose the source, with LED to show the Group ID
4). Comply with TCP/IP protocol, streaming bit rate is up to 15Mbps
5). Support LPCM audio format
6). Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
7). Wide-band IR pass through to control the source (38khz to 56khz)
8). By pass 2 way UART/RS232 (Up to 115200), use remote controller to
select 8 group Baud rate
9). Support one to one, one to many, many to one, many to many modes,
with large cascade
10). Dual power input: 802.3af compliant POE & DC 5V (No need power
supply when connecting with POE Switch)
11). HDCP Compliant
12). Support PC tool control
13). DC 5V 1A power supply
3
2. 1 Specifications
Performance
Protocol H.264 encoder over TCP/IP
Support Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ
Support Audio format LPCM, Audio sampling rate 48KHZ
Streaming Bit Rate 15Mbps
HDCP Compliant
IR Frequency 38 -56 KHZ
RS232 Baud rate Default 2400bps, total 8 kinds optional
IP setting &Group ID setting
Default IP TX: 192.168.1.11 ; RX: 192.168.1.12
Group ID Group00-Group 99 (use remote controller)
Request for Switch/Router Support IGMP, support DHCP
Connectors on Transmitter
Input 1xHDMI Female port
Output 1x RJ45 output , 1x HDMI looping output
RS232 Phoenix RS232 port
IR IR TX port (Support 38K-56KHz)
IR Ext port (Support 38KHz)
Connectors on Receiver
Input 1xRJ45 input
Output 1x HDMI Female port looping output
RS232 Phoenix RS232 port
IR IR RX port (Support 38K-56KHz)
IR Ext port (Support 38KHz)
Environmental & Power Requirements
Operating temperature -5 to +35 ℃(+23 to +95℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Power supply DC 5V 1A
Power consumption Max 3 watt
Physical
Dimension TX: 119x79.5x28mm ; RX: 119x79.5x28mm
Net Weight TX: 0.28KG ; RX:0.28KG
VIP-100 II Series H.264 Encoder Decoder User Manual
4
2. 1 Supported input resolution
Frequency Resolution
50Hz
576i
576P
720P
1080P
1080i
60Hz/59.94Hz
480i
480P
720P
1080P
30Hz/29.97Hz 1080P
24Hz 1080P
25Hz 1080P
VESA Resolution
Frequency Resolution
60Hz
640×480
800×600
1024×768
1280×768
1280×960
1280×1024
1680×1050
1920×1080
1280×720
1360×768
1400×1050
VIP-100 II Series H.264 Encoder Decoder User Manual
5
3. Packing content
1
)
. 1x Transmitte
r
2
)
.1xReceiver
3
)
.1xIR-TXcable
4
)
. 1x IR-RX cable
5). 2X IR Ext Cable
6
)
. 1x Manual
7
)
.8xscrews
8). 4x detachable mounting ears
9
)
. 2x Phoenix plu
g
sfo
r
RS232 cable termination
10
)
. 2x Remote controlle
r
11
)
. 2x Power adapter 5V 1A
4. Panel description
1). TX
1) DC 5V 1A input 2) Green indicator of data status
3) Red indicator of power input 4) HDMI output for local display
5) HDMI input 6) CAT5e/6 output
7) IR-TX 8) RS232 port
9) IR-Ext 10) LED to show the Group ID
11) Press the button for the previous Group ID
12) Press the button for the next Group ID 13) Reset button
①The green LED will blink once the unit is working.
②The LED indicator will glow bright red once the power supply is
connected.
VIP-100 II Series H.264 Encoder Decoder User Manual
6
2). RX
1) DC 5V 1A input 2) Green indicator of data status
3) Red indicator of power input 4) HDMI output
5) CAT5e/6 input 6) IR-RX
7) RS232 port 8) IR-Ext
9) LED to show the Group ID
10) Press the button for the previous Group ID
11) Press the button for the next Group ID 12) Reset button
①The green LED will blink once the unit is working.
②The LED indicator will glow bright red once the power supply is
connected.
3). How to connect the IR Cable
Remote of the source
Remote of the HDMI extender
VIP-100 II Series H.264 Encoder Decoder User Manual
7

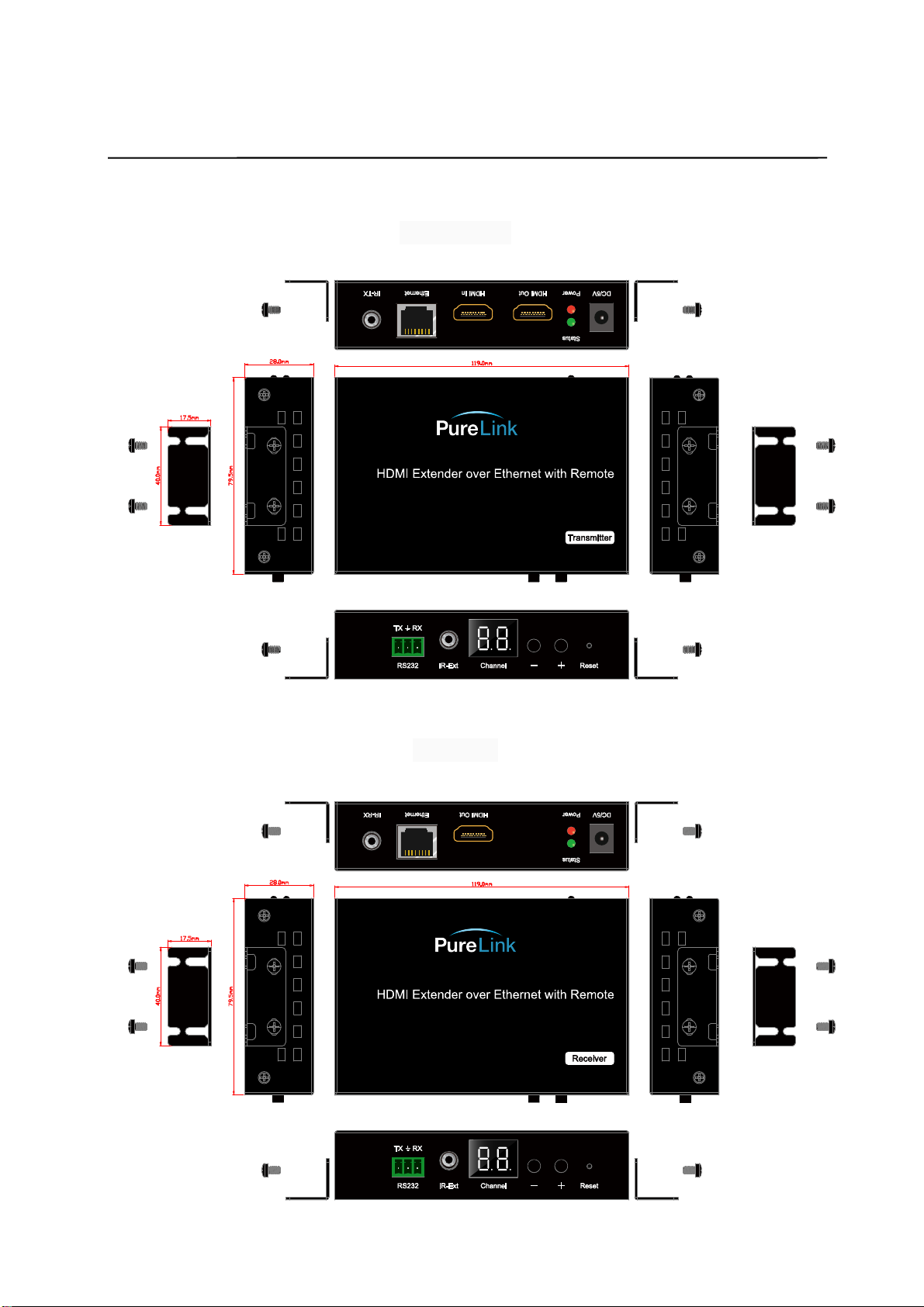

4.1. Panel Drawing
Transmitter
Receiver
VIP-100 II Series H.264 Encoder Decoder User Manual
8
5. Installation and Configuration
5.1 Setup HDMI TX and RX
When connecting point to point, no need to configure TX and RX,
When connecting point to many, many to point and many to many, please
make sure every TX and RX has unique IP and MAC address, every TX has
unique group ID.
Our this over IP Extender has been assigned unique default MAC address for
every TX and RX, so you don’t have to set the MAC for the units.
You just need to set the IP address and Group ID following bellowing steps.
5.1.1 Setting the IP address
A). DHCP (Dynamic host configuration protocol)
If you are using a Switch that supports DHCP, please enable DHCP so that
the Switch will assign an unique IP for TX and RX, and you don’t need to
change the IP fo
r
the units manually.
B). Set the IP via web browser
If you are using a Switch that doesn’t support DHCP, please change the
default IP for TX (192.168.1.11) and RX (192.168.1.12) manually.
A
HTTP server is embedded in each TX and RX. You can set up IP address
for HDMI Extende
r
via web browse
r
The default IP address of the TX is 192.168.1.11, use
r
name: admin,
password: admin
The default IP address of the RX is 192.168.1.12
VIP-100 II Series H.264 Encoder Decoder User Manual
9
Step 1: Make sure the Transmitter and PC are in the same domain.
A
ccess the Network Setting Control Panel in Windows and locate your
Lan connection. Under Windows 7, this can be done by clicking Start >
Control Panel >Network Sharing center>Change adapter settings >
Properties >Internet Protocol Version4 (TCP/IPv4). Change the IP address fi
eld to 192.168.1.1
(0-255).
A
fter that press "OK" to save the configuration.
※The PC and TX/RX should be in the same domain.
※The IP address of PC should be different from the IP address of
TX and RX.
Step 2: Use an Ethernet Cable to connect the PC (or laptop) and the
extender. the power LED for the extender is red and the green status is
blinking.
Step 3: Login in IE: 192.168.1.11 (default IP fo
r
TX) o
r
192.168.1.12(default
IP fo
r
RX), You can setup IP address fo
r
the TX and RX. TX requires user
name: admin and password: admin
Please set IP address for each TX and each RX, IP: 192.168.1.XX (XX:1-255.
all IP address for TX and RX must be different and can’t be same as the PC’s
address.)
Step 4: After selecting “Use DHCP” or reset the IP Address, click “Submit”
(transmitter) or “update DHCP” (Receiver).
Step 5: Click “Reboot”.
Step 6: Restart the extender after resting the IPAddress.
VIP-100 II Series H.264 Encoder Decoder User Manual
10
5.1.2 Choose the Group ID and Baud Rate by Remote controller
(When the LED shows “00”, it’s ready to work)
①Press the button, switch to
choose the Group ID or Baud rate.
②Factory reset. Press the button for
3 seconds, the LED will flicker then
turn to “00”, you have successfully
finished the factory reset.
Choose Group ID 00-63
1). Press “+” or “–” to change to the previous or next Group ID.
2). Press the No to change Group ID. For example, if you need change to 01,
press “0”, then press“1”.
Choose the Baud Rate
Press the Button, switch to Baud Rate mode, press “+” or “–” to change the
Baud Rate.
F0 = 2400
(
default
)
F1 = 4800
F2 = 9600
F3 = 19200
F4 = 28800
F5 = 38400
F6 = 57600
F7 = 115200
3). How to choose the source:
For example, when the connection is:
Source (DVD1) - TX (TX1) - Gigabit Switch – RX (RX1) - TV1
Source (DVD2) - TX (TX2) - Gigabit Switch – RX (RX2) - TV2
Source (DVD3) - TX (TX3) - Gigabit Switch
–
RX (RX3) - TV3
The group ID of transmitters is:
TX1 (01)
TX2 (02)
TX3 (03)
If you need display Source on TV1, then just set Group ID of RX1 same as
TX1: 01(see below picture).
TX 1 RX 1
VIP-100 II Series H.264 Encoder Decoder User Manual
11
5.1.3 Set the group ID for TX and RX via web browser
Step 1: Make sure the Transmitter and PC are in the same domain.
(Refer to 5.1.1)
Step 2: Use an Ethernet Cable to connect the PC (or laptop) and the
Extender. the power LED for the extender is red and the green status
LED is blinking.
Step 3: Power on the TX or RX with 5V 1A power supply.
Step 4: Login in IE: 192.168.1.11 (default IP for TX) or 192.168.1.12(default
IP for RX), TX requires user name: admin and password: admin.
Step5: Change the group ID at “Stream setting”, “00” means group “00” here
which can be chosen from 00 to 63.
Step 6: Click “Submit” (transmitter) or update (receiver).
※When you change the group ID on both Web browser and Remote
controller, the units will follow the latest one.
※If you change the Group ID on web browser, it can’t be shown
on the LED.
5.2 Preparing the switch
When doing point to many and many to many, it requires a switch to distribute
the sources. We suggest you use the Switch that supports IGMP and DHCP.
IGMP feature help to manage the group ID which is related to switch the
sources; DHCP allow the switch to assign an IP for TX and RX automatically,
please enable DHCP of the switch.
5.3 Connection
※Please don’t insert into or pull out HDMI cable when power on.
Please connect cable only when power is off.
5.3.1 Point to point
1. Connect the source device and the Transmitter unit with HDMI Cable.
2. Connect the HDMI looping output of the Transmitter to the local HDMI
display.
VIP-100 II Series H.264 Encoder Decoder User Manual
12
3. Connect another HDMI display and the HDMI Receive
r
unit with HDMI
Cable.
4. Connect the Transmitter and Receiver with Cat5e/6 cable
5. Connect the IR TX cable into “IR TX” port of the transmitter; Connect the IR
RX cable into “IR RX” port o
f
the receiver. Then you can control the source at
theRXsidewithIR.
6. Connect one RS-232 Cable from the PC or automation system to the
RS-232 port on the Transmitter; Connect one RS-232 cable from the
Receiver to the RS-232 device to be controlled.
7. Powe
r
on Transmitte
r
and Receiver with adapte
r
5V 1A.
NOTE: Insert/Extract cables gently.
5.3.2 Compatible with
V
ideo Playe
r
such as
V
LC etc

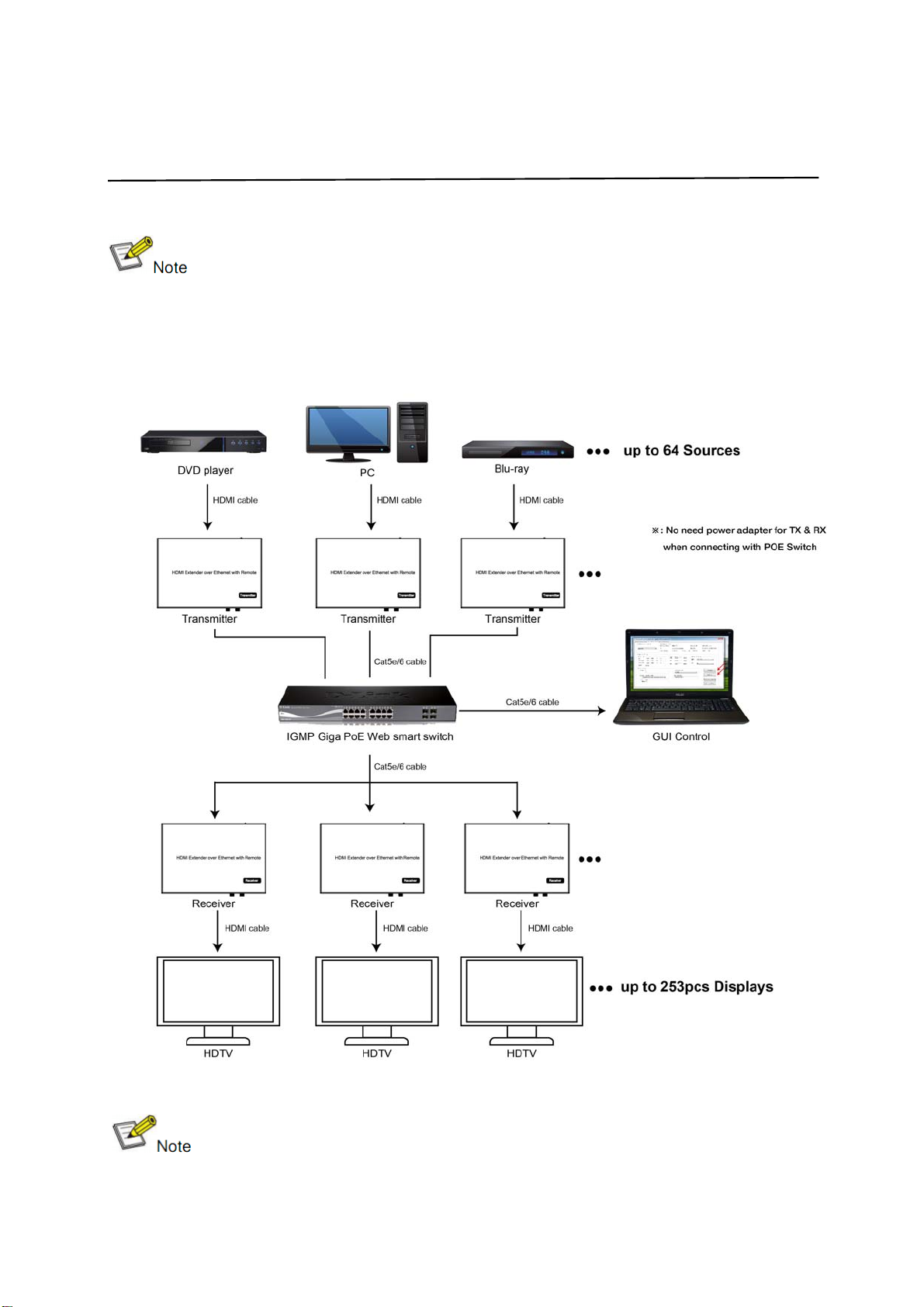

5.3.3 Point to many
1. Setting the IP address for Transmitter & Receiver and preparing the switch
following the steps as instructed above (5.1.1&5.2)
2. Connect the source device and the Transmitter unit with HDMI Cable.
VIP-100 II Series H.264 Encoder Decoder User Manual
13
3. Connect the HDMI looping output o
f
the Transmitter to the local HDMI
Display.
4. Connect the transmitter and the switch/router with cat5e or cat6 cable.
5. Connect all the Receivers and the switch/ router with Cat5e/6 cable.
6. Connect the HDMI displays and the HDMI Receiver units with HDMI
Cable.
7. Connect the IR TX cable into “IR TX” port o
f
the transmitter; Connect the IR
RX cable into “IR RX” port of the receiver. Then you can control the source at
theRXsidewithIR.
8. Connect one RS-232 Cable from the PC or automation system to the
RS-232 port on the Transmitter; Connect one RS-232 cable from the
Receiver to the RS-232 device to be controlled.
9. Power on Transmitter and Receiver with adapter 5V1A, power on the
switch with its adapter.
※Daisy chain the switch i
f
its RJ45 port is not enough.
※The quantity o
f
Receiver is up to 255pcs.
5.3.4 Many to many
1. Settin
g
the IP address fo
r
Transmitter & Receiver and preparin
g
the switch
following the steps as instructed above (5.1.1&5.2)
2. Connect the source device and the Transmitte
r
unit with HDMI Cable.
3. Connect the HDMI looping output o
f
the Transmitter to the local HDMI
Displa
y
.
4. Connect the transmitters and the switch/router with cat5e o
r
cat6 cable
5. Connect the Receivers and the switch/ route
r
with Cat5e/6 cable
6. Connect the HDMI displa
y
s and the HDMI Receiver units with HDMI
Cable.
7. Connect the IR TX cable into “IR TX” port o
f
the transmitter; Connect the IR
RX cable into “IR RX” port o
f
the receiver. Then
y
ou can control the source at
theRXsidewithIR.
8. Connect one RS-232 Cable from the PC or automation s
y
stem to the
RS-232 port on the Transmitter; Connect one RS-232 cable from the
Receiver to the RS-232 device to be controlled.
9. Powe
r
on Transmitte
r
and Receiver with adapte
r
5V1A, power on the
switch with its adapter.
VIP-100 II Series H.264 Encoder Decoder User Manual
14
10. Choose the source by Remote controller or Web browser as instructed
above (5.1.2)
※Daisy chain the switch i
f
its RJ45 port is not enough.
※The quantity o
f
Transmitter is no more than 64 pcs.
※The total quantity o
f
Transmitter and Receiver is less than
256 pcs.
※The total qty of TX, RX, Switch is less than 256pcs.
VIP-100 II Series H.264 Encoder Decoder User Manual
15
6. RS232 and Baud rate
The unit provides a path to pass through the RS232 signal, RS232 passes
from TX to RX or from RX to TX, connect to your RS232 devices, such as PC,
IP Camera, Creston control panel, Smart Matrix, printer and Scanner and so
on.ItworkswhenTX,RXandyou
r
RS232 devices baud rate is the same.
The default baud rate o
f
TX and RX is 2400 which is frequently used fo
r
most
devices.
6.2 Baud rate setting
6.2.1 Setting the Baud rate via Web Browser
Login TX and RX with their default IP (TX: 192.168.1.11; RX: 192.168.1.12)
to modify the Baud Rate which range from default 2400 to 115200.
※When you change the Baud rate on both Web browser and
Remote controller, the units will follow the latest one.
※Please send the data in the same group ID.
7. Firmware update
We provide the firmware to upgrade the units when it is necessary. Please
follow up bellowing steps to update the firmware.
Step1: Connect TX
/
RX to the PC with a short Cat5e cable
Step2: Power on TX/ RX with power adapter 5V1A.
Step3: Login TX or RX with their default IP (TX: 192.168.1.11; RX:
192.168.1.12) on web browser, TX requires user name: admin and password:
admin
Step4: Click “choose File” on the interface and find out the latest version
firmware
Step5: Click “Upgrade”, the process will takes seconds, please DO NOT
interrupt or power off the units during the time.
8. One key recovery to default setting
It is available to recover the setting to factory setting, use a tiny pin to insert
the reset hole and hold about 10 seconds, when the unit is connected.
VIP-100 II Series H.264 Encoder Decoder User Manual
16
9. PC Tool Instructions
Step 1: Make sure the Transmitter and PC are in the same domain. (Refer to
5.1.1)
Step 2: Open the PC Tool.
Step 3: Click “Start Scan”.
VIP-100 II Series H.264 Encoder Decoder User Manual
17
Step 4: Choose the TX or RX Name.
9.1 Firmware Upgrade
Upgrade for TX
Step 1: Click “Firmware Upgrade”.
VIP-100 II Series H.264 Encoder Decoder User Manual
18
Step 2: Click “Upgrade Encoder FW” first.
VIP-100 II Series H.264 Encoder Decoder User Manual
19
Step 3: After the step 2 is finished, click “Firmware Upgrade” again, then click
“Upgrade TX FW”.
Upgrade for RX
Step 1: Click “Firmware Upgrade”.
VIP-100 II Series H.264 Encoder Decoder User Manual
20
Step 2: Click “Upgrade Rx FW”.
VIP-100 II Series H.264 Encoder Decoder User Manual

Other manuals for VIP-100 II

1

Other PureLink Extender manuals

PureLink CSW320 User manual

PureLink

PureLink CSW320 User manual

PureLink DVI Pure Fiber Optic Extender Dual LinkODC User manual

PureLink

PureLink DVI Pure Fiber Optic Extender Dual LinkODC User manual

PureLink DTS-1000RV User manual

PureLink

PureLink DTS-1000RV User manual

PureLink PM Series User manual

PureLink

PureLink PM Series User manual

PureLink PT-E-DV30 User manual

PureLink

PureLink PT-E-DV30 User manual

PureLink DS2200-060 User manual

PureLink

PureLink DS2200-060 User manual

PureLink PureMedia 4K User manual

PureLink

PureLink PureMedia 4K User manual

PureLink DTE RX User manual

PureLink

PureLink DTE RX User manual

PureLink WHD030-V2 User manual

PureLink

PureLink WHD030-V2 User manual

PureLink CSW110 User manual

PureLink

PureLink CSW110 User manual

PureLink PT-E-HD60 User manual

PureLink

PureLink PT-E-HD60 User manual

PureLink PM Series User manual

PureLink

PureLink PM Series User manual

PureLink HDX II User manual

PureLink

PureLink HDX II User manual

PureLink HTS50R User manual

PureLink

PureLink HTS50R User manual

PureLink HCE III User manual

PureLink

PureLink HCE III User manual

PureLink DOF4 User manual

PureLink

PureLink DOF4 User manual

PureLink DCE II User manual

PureLink

PureLink DCE II User manual

PureLink HW-100 User manual

PureLink

PureLink HW-100 User manual

PureLink FIBERX FX-P350 User manual

PureLink

PureLink FIBERX FX-P350 User manual

PureLink HWCE-III User manual

PureLink

PureLink HWCE-III User manual

PureLink PureMedia PM-CT101-U User manual

PureLink

PureLink PureMedia PM-CT101-U User manual

PureLink PT-E-HD10 User manual

PureLink

PureLink PT-E-HD10 User manual

PureLink HTE Tx User manual

PureLink

PureLink HTE Tx User manual

PureLink CSW200 User manual

PureLink

PureLink CSW200 User manual

Popular Extender manuals by other brands

Pulsar EXT-POE4 quick start guide

Pulsar

Pulsar EXT-POE4 quick start guide

Amulet Hotkey DXT-H4 quick start guide

Amulet Hotkey

Amulet Hotkey DXT-H4 quick start guide

Enable-IT 860WC PRO quick start guide

Enable-IT

Enable-IT 860WC PRO quick start guide

ATZ DVI-E60 quick start guide

ATZ

ATZ DVI-E60 quick start guide

Z-Wave ZXT-120 user manual

Z-Wave

Z-Wave ZXT-120 user manual

D-Link DHP-701AV Quick installation guide

D-Link

D-Link DHP-701AV Quick installation guide

Lindy 32686 user manual

Lindy

Lindy 32686 user manual

Bergstrom L441 quick start guide

Bergstrom

Bergstrom L441 quick start guide

Questtel L-8SDI-FE-HD-TX user manual

Questtel

Questtel L-8SDI-FE-HD-TX user manual

Lindy 38018 user manual

Lindy

Lindy 38018 user manual

Atmel CryptoAuth Xplained Pro Hardware user's guide

Atmel

Atmel CryptoAuth Xplained Pro Hardware user's guide

AEQ TH-03 user manual

AEQ

AEQ TH-03 user manual

Mircom RAM-2200-8 installation instructions

Mircom

Mircom RAM-2200-8 installation instructions

Patton electronics Industrial Ethernet Extender with LCD Interface... Cli reference guide

Patton electronics

Patton electronics Industrial Ethernet Extender with LCD Interface... Cli reference guide

HIS KVM2EXT-xx-xx-USB quick start guide

HIS

HIS KVM2EXT-xx-xx-USB quick start guide

American Booster B-25K user guide

American Booster

American Booster B-25K user guide

weBoost Home 4G Quick install guide

weBoost

weBoost Home 4G Quick install guide

Gefen EXT-DVI-1CAT6-GI user manual

Gefen

Gefen EXT-DVI-1CAT6-GI user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
