TIS TIS-TM120 User manual

TIS ROLLER MOTOR
INSTALLATION MANUAL
Model: TIS-TM120
This solution is used to control blinds and roman
rollers and features an RF antenna, so you can
control your curtains using the TIS remote control
or via the TIS mobile application and software.
PRODUCT INFORMATION
BARCODE (UPC-A)
6 58921 79882 9

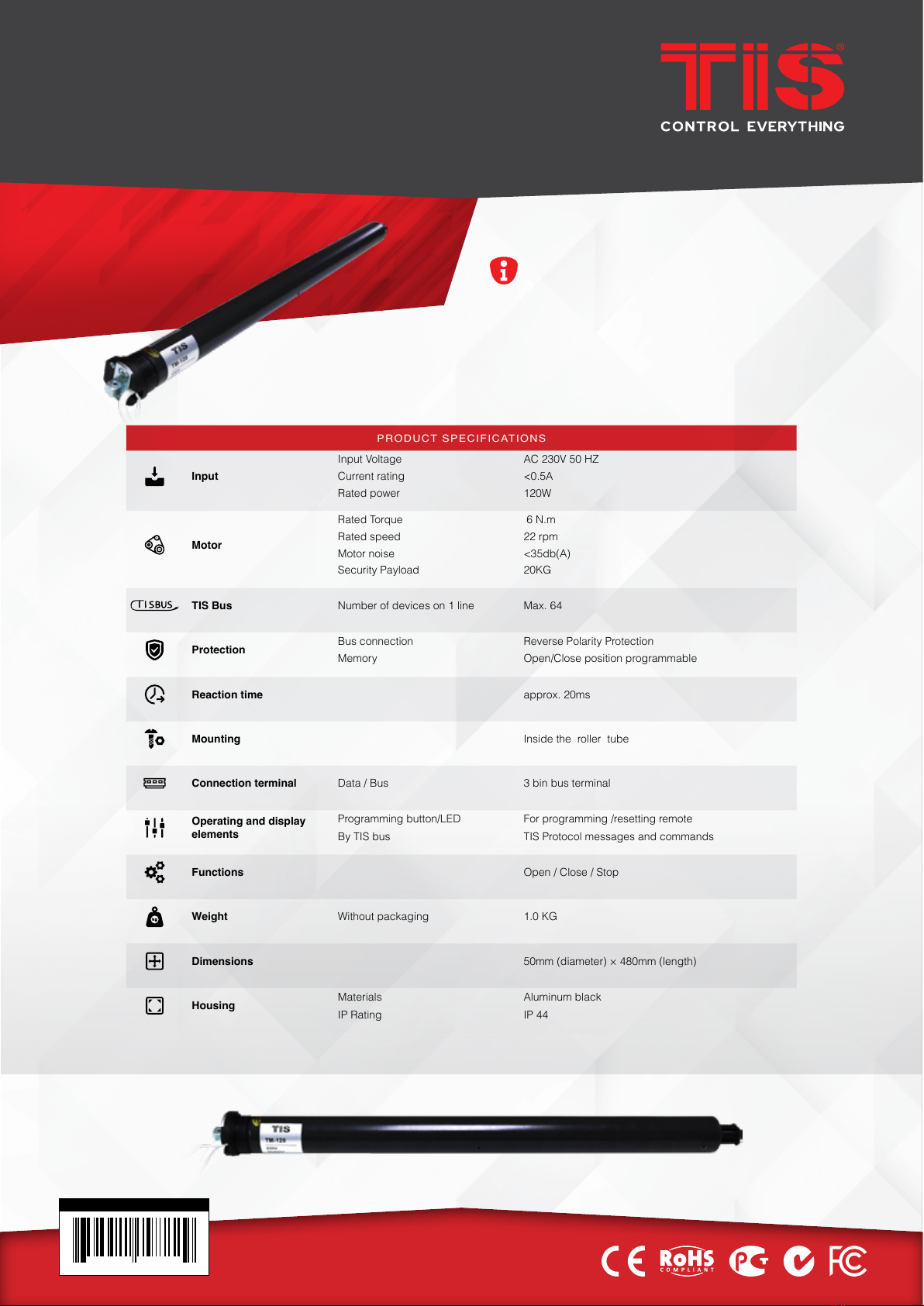

PRODUCT SPECIFICATIONS
Input
Input Voltage AC 230V 50 HZ
Current rating <0.5A
Rated power 120W
Motor
Rated Torque 6 N.m
Rated speed 22 rpm
Motor noise <35db(A)
Security Payload 20KG
TIS Bus Number of devices on 1 line Max. 64
Protection Bus connection Reverse Polarity Protection
Memory Open/Close position programmable
Reaction time approx. 20ms
Mounting Inside the roller tube
Connection terminal Data / Bus 3 bin bus terminal
Operating and display
elements
Programming button/LED For programming /resetting remote
By TIS bus TIS Protocol messages and commands
Functions Open / Close / Stop
Weight Without packaging 1.0 KG
Dimensions 50mm (diameter) × 480mm (length)
Housing Materials Aluminum black
IP Rating IP 44

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
2
Data Cable
Use screened stranded RS485 data cable
with 3 twisted pairs. Congure devices in a
“Daisy Chain.”
Do not cut or terminate live data cables.
Electrical Wires
The recommended wire size for light
channels is 1.5mm for Power Connection.
Warranty
There is a one-year warranty provided by
law.
Read Instructions
We recommend that you read this
Instruction Manual before installation.
Safety instructions
Electrical equipment should only be
installed and tted by electrically skilled
persons.
Failure to follow the instructions may
cause damage to the device and other
hazards.
These instructions are an integral part of
the product and must remain with the end
customer.
Programming
This device can be tested and
programmed manually Using Motor RF
remote. Advanced programming requires
knowledge of the TIS Device Search
software and instruction in the TIS
advanced training courses.
Mounting Location
Install in a dry, indoor area with a suitable
temperature and humidity range.

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
3

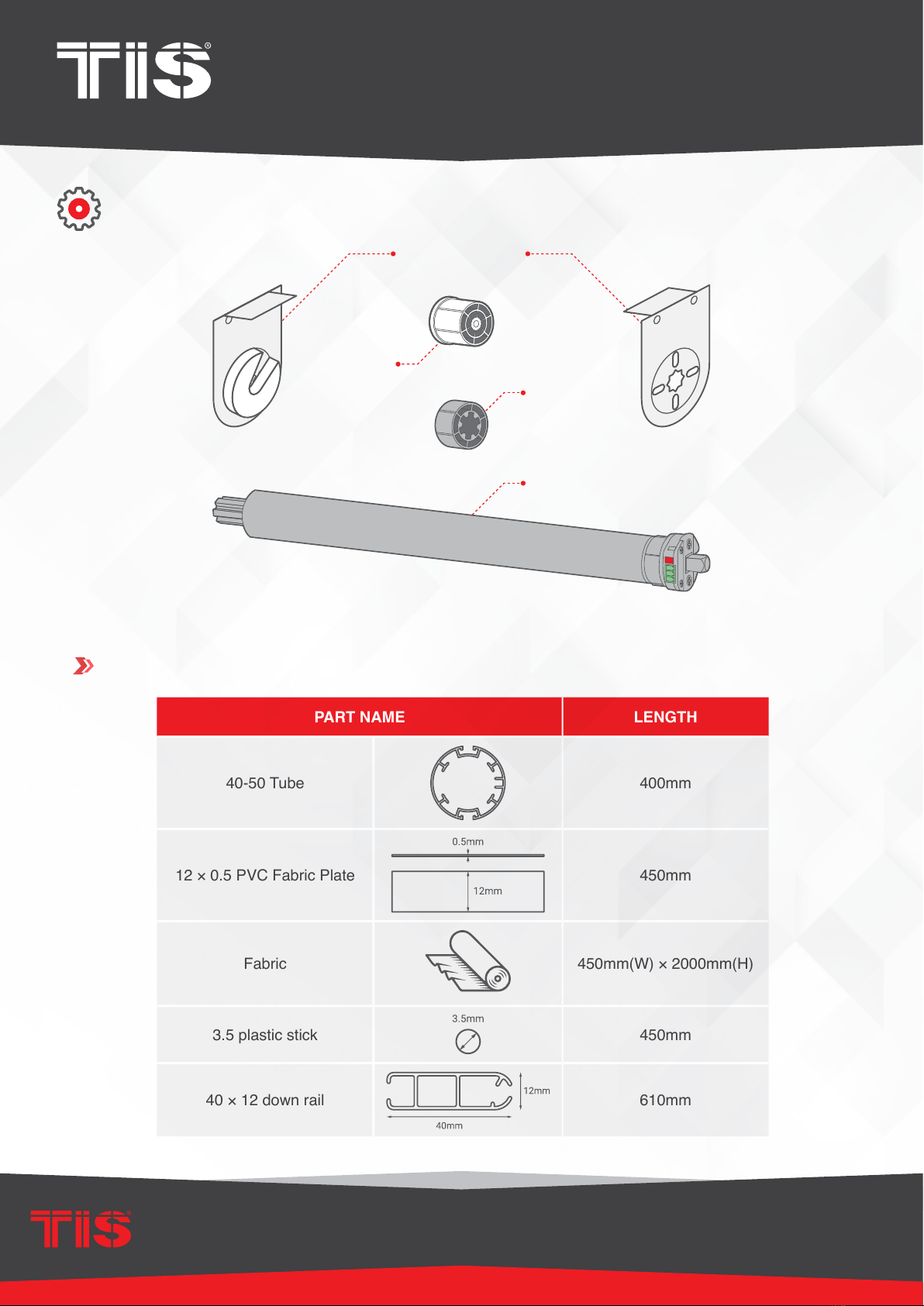

DEVICE ACCESSORIES
40-50 Wheel
Tube Plug
Mounting Brackets
TIS TM-120 Roller Motor
PART NAME LENGTH
40-50 Tube 400mm
12 × 0.5 PVC Fabric Plate 450mm
Fabric 450mm(W) × 2000mm(H)
3.5 plastic stick 450mm
40 × 12 down rail 610mm
OTHER ACCESSORIES (not included in the box)

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
4
1Conjoin the motor and the
wheels, then place it inside the
40-50 tube.
2Drill a screw hole on the tube,
where the wheel is placed.
3Put a BGB.846-ST3P5*16 screw
into the hole and x the motor.
LIFTING PART ASSEMBLY

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
5
1
2

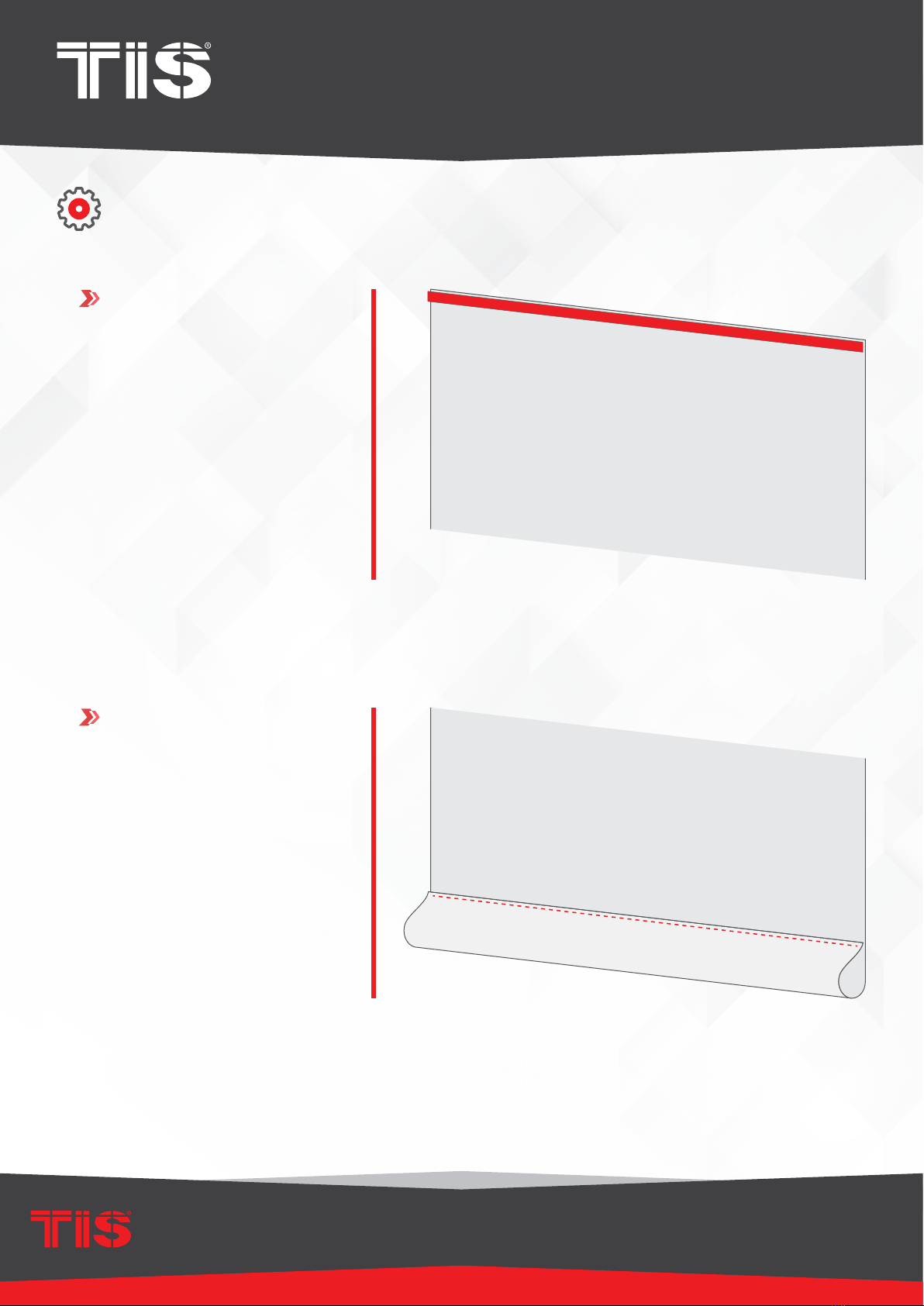

Solder the 12×0.5 PVC plate to
the upper end of the fabric.
Use a welding machine to
minimize the edgefold, then
solder the edgefold to the lower
end of the fabric.
FABRIC SOLDERING

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
6
1
2

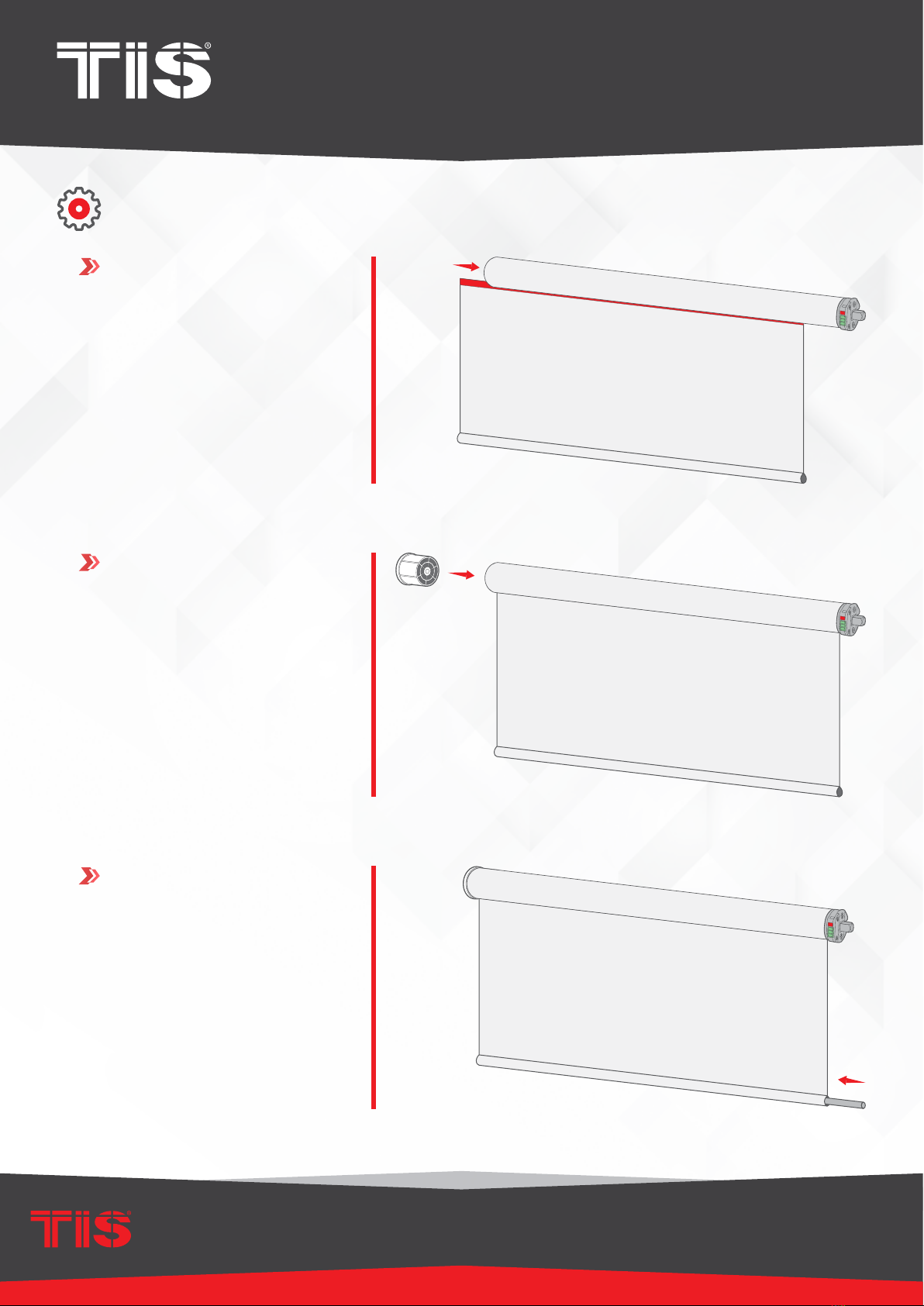

Put the fabric with plate into the
roller tube.
Place the plug at the end of the
tube.
INSTALLATION STEPS
3Put the plastic stick into the
fabric pocket you made in Step
2 of Fabric Soldering.

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
7
4
5
6
Place the down rail onto the
fabric and then attach the plugs
to both ends of it.
Put the motor into the mounting
bracket from one side and then,
use a GB.845_ST3P5*12 screw
to x the motor in the mounting
kit.
Place the other end of the tube
into the mounting kit and press
down until you hear a click and
they are completely xed.
INSTALLATION STEPS

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
8
GND
D+
D-
TM-120
220V
50/60H
120W
D- (white-green)&(white-blue)
D+ (blue-green)
Cat5e connection
GND (white-orange)&(white-brown)
to the TIS BUS Network
Cat5e
GND
D+
D-
TM-120 220V 50/60H 120W
Cat5e
1.5 mm Electric Wire
1.5 mm Electric Wire
D-(white-green)&(white-blue)
D+(blue-green)
Cat5e connection
GND(white-orange)&(white-brown)
Connect To L
Connect To N
O-OFF
I-ON
MCB
GND
D+
D-
TM-120 220V 50/60H 120W
Cat5e
7
8
Connect to the TIS-BUS Network using
the D-, D+, and the GND terminals as
shown in the diagram.
Connect the 230V Power to the L/N
terminals.
INSTALLATION STEPS

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
9
CONFIGURATION STEPS
GND
D+
D-
TM-120
220V
50/60H
120W
D- (white-green)&(white-blue)
D+ (blue-green)
Cat5e connection
GND (white-orange)&(white-brown)
to the TIS BUS Network
Cat5e
GND
D+
D-
TM-120 220V 50/60H 120W
Cat5e
GND
D+
D-
TM-120
220V
50/60H
120W
D- (white-green)&(white-blue)
D+ (blue-green)
Cat5e connection
GND (white-orange)&(white-brown)
to the TIS BUS Network
Cat5e
GND
D+
D-
TM-120 220V 50/60H 120W
Cat5e
GND
D+
D-
TM-120
220V
50/60H
120W
D- (white-green)&(white-blue)
D+ (blue-green)
Cat5e connection
GND (white-orange)&(white-brown)
to the TIS BUS Network
Cat5e
GND
D+
D-
TM-120 220V 50/60H 120W
Cat5e
1
3
2

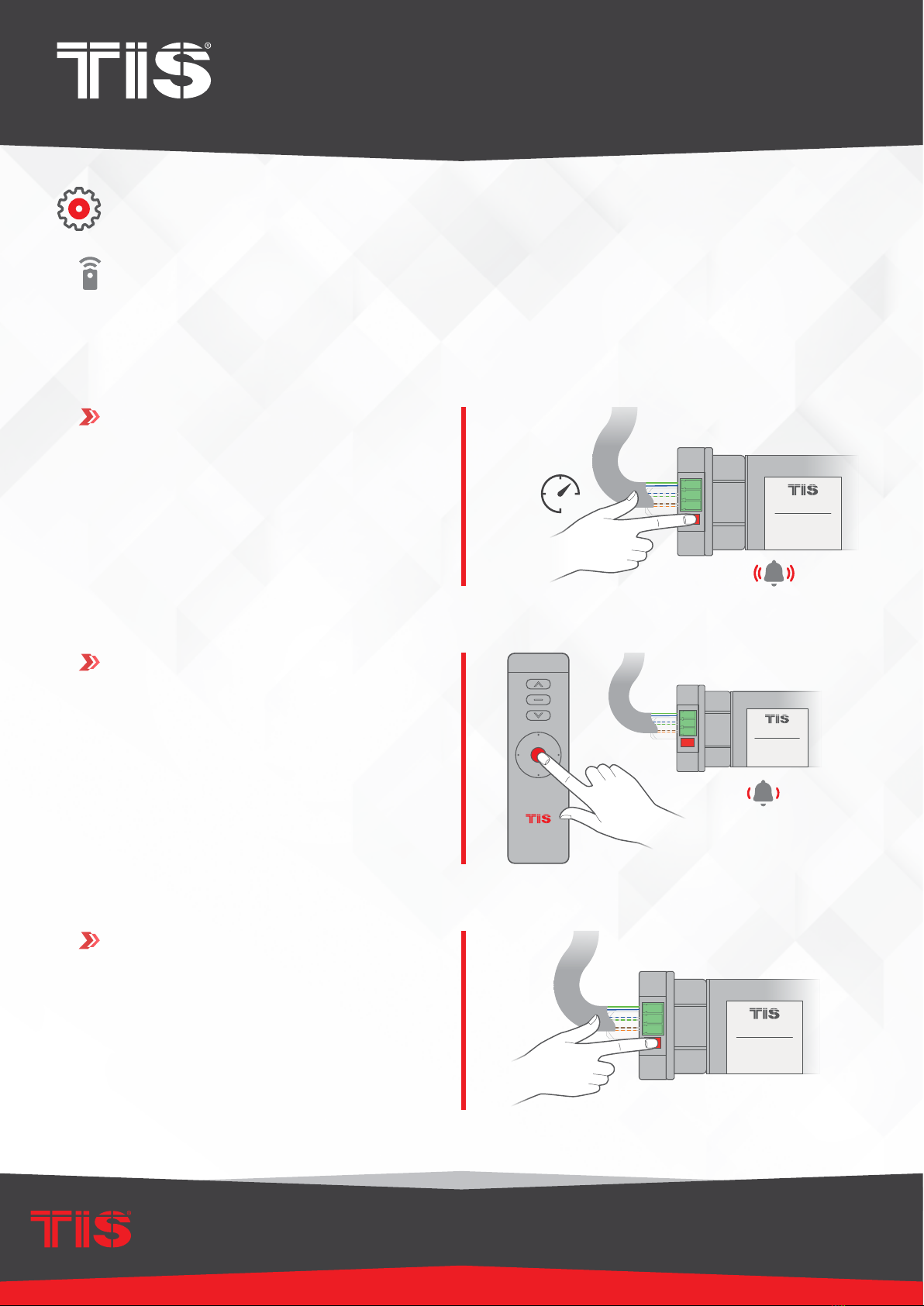

ENTER CODE-LEARNING MODE
Long press on the motor’s [code learning]
red button for 3 seconds. The motor’s
buzzer will start beeping continuously.
CONFIRMATION
Shortly press the motor’s [code learning]
red button. If the code learning is
successful, the buzzer will stop beeping
and quit code-learning status.
CHANNEL SETTING
Press the remote’s Center (select)
button. The motor’s buzzer will beep
intermittently.
PROGRAMMING WITH REMOTE CONTROL
The TM-120 roller motor’s Open & Close limit points are not part of the default settings and
they must be programmed using the motor’s remote control. After the conguration, you can
test the motor using the BUS network.
To use the TM-120 motor with the RF remote control, you need to do as follows:
3”

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
10
CONFIGURATION STEPS
GND
D+
D-
TM-120
220V
50/60H
120W
D- (white-green)&(white-blue)
D+ (blue-green)
Cat5e connection
GND (white-orange)&(white-brown)
to the TIS BUS Network
Cat5e
GND
D+
D-
TM-120 220V 50/60H 120W
Cat5e
4
6
5

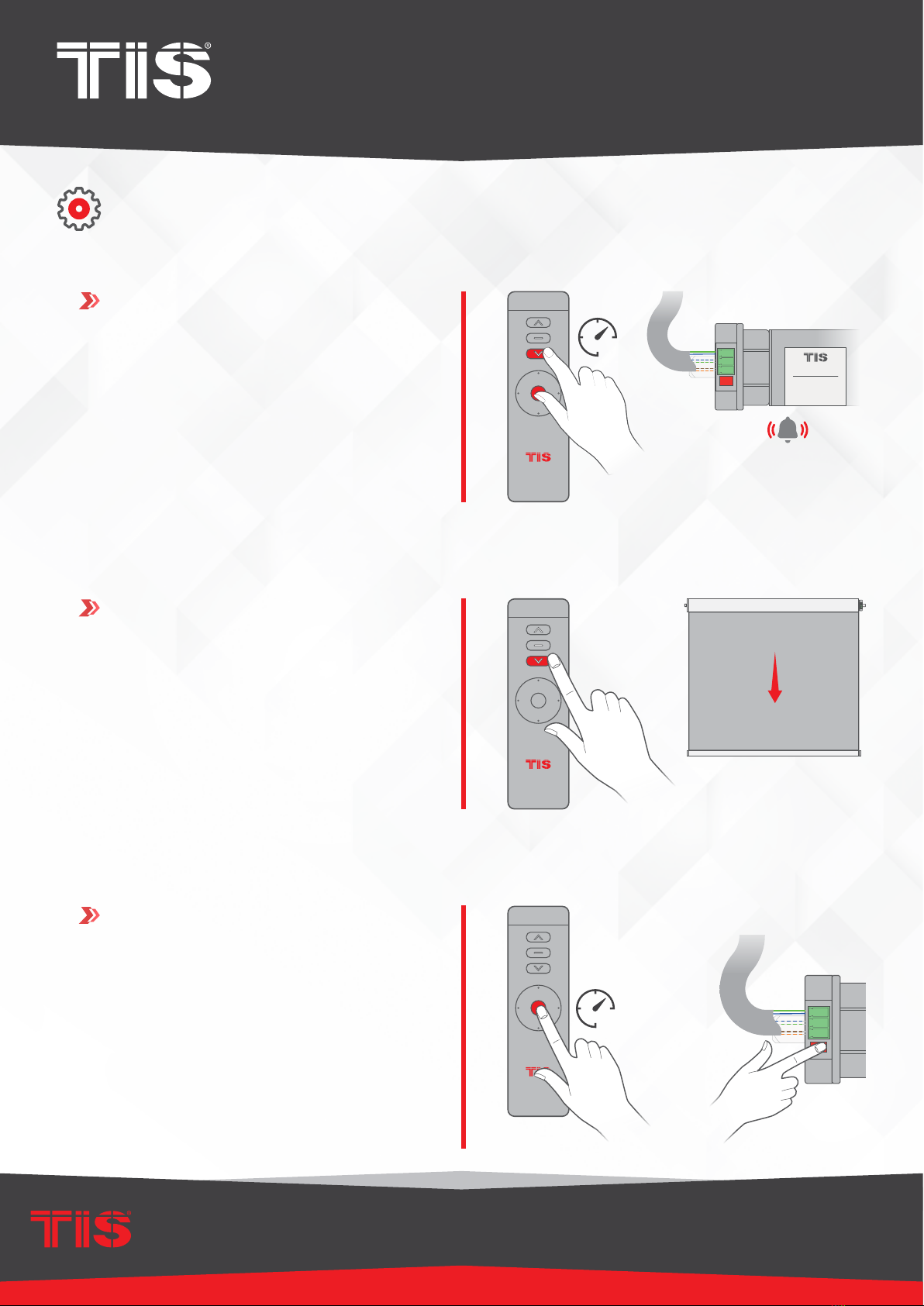

ENTER OPEN-LIMIT
PROGRAMMING MODE
Long-press the remote’s Center & Up
buttons simultaneously for 4 seconds
until the buzzer sounds a long beep.
CONFIRM THE OPEN LIMIT
Press the remote’s Center button for 4
seconds or select the motor’s Code-
learning button. If the motor’s buzzer
stops beeping subsequently, the opening
limit point is programmed successfully.
SET THE OPENING LIMIT POINT
open the curtain to the point where the
customer requested (normally fully open)
and hold it at that point by pressing the
Up button on the remote.
You can adjust the curtain’s position
Using the Up, Stop, and Down buttons.
4”
GND
D+
D-
TM-120
220V
50/60H
120W
D- (white-green)&(white-blue)
D+ (blue-green)
Cat5e connection
GND (white-orange)&(white-brown)
to the TIS BUS Network
Cat5e
GND
D+
D-
TM-120 220V 50/60H 120W
Cat5e
4” OR

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
11
CONFIGURATION STEPS
GND
D+
D-
TM-120
220V
50/60H
120W
D- (white-green)&(white-blue)
D+ (blue-green)
Cat5e connection
GND (white-orange)&(white-brown)
to the TIS BUS Network
Cat5e
GND
D+
D-
TM-120 220V 50/60H 120W
Cat5e
7
9
8
ENTER THE CLOSE-LIMIT
PROGRAMMING MODE
Long-press the remote’s Center & Down
buttons simultaneously for 4 seconds.
The motor’s buzzer will start long beeping.
CONFIRM THE CLOSE LIMIT
Press the remote’s Center button for 4
seconds or select the motor’s code-
learning button. If the motor’s buzzer
stops beeping subsequently, the opening
limit point is programmed successfully.
SET THE CLOSING LIMIT POINT
Close the curtain to the point where
the customer requested (normally
fully closed) and hold it at that point by
pressing the Down button on the remote.
You can adjust the curtain’s position
Using the Up, Stop, and Down buttons.
GND
D+
D-
TM-120
220V
50/60H
120W
D- (white-green)&(white-blue)
D+ (blue-green)
Cat5e connection
GND (white-orange)&(white-brown)
to the TIS BUS Network
Cat5e
GND
D+
D-
TM-120 220V 50/60H 120W
Cat5e
4”
4” OR

INSTALLATION MANUAL
MODEL: TIS-TM120
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS ROLLER MOTOR
12
CONFIGURATION STEPS

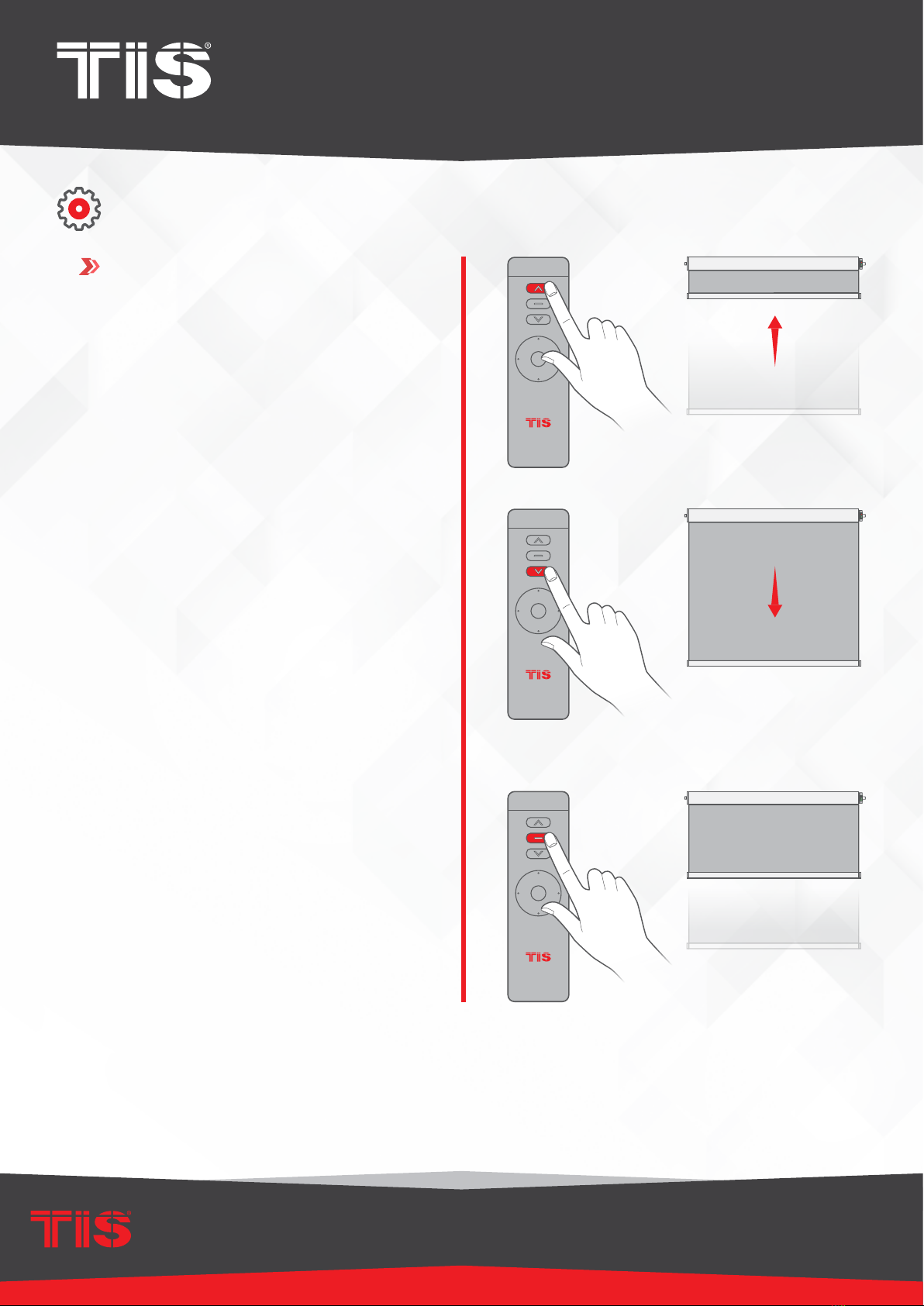

10 TEST THE PROGRAMMING
Use the remote’s Up, Stop, and Down
buttons to see if everything is congured
properly. If the motor reacts to each
command accordingly, it’s all set, and
you are good to go.
