Tisira TDW-1S User manual

TDW-1S

This manual contains sections of Safety
Instructions,Operating Instructions,
Installation Instructions and Troubleshooting
Tips etc. Carefully reading it before using the
dishwasher will help you to use and maintain
the dishwasher properly.
To review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself and not need to ask for the help of
professional technicians.
The manufacturer, following a policy of constant
development and up-dating of the product, may
make modifications without giving prior notice.
..................1
ControlPanel........................2
DishwasherFeatures................. 2
WashCycleTable.................... 3
TurningOntheAppliance..............3
Detergent...........................4
RinseAid........................... 5

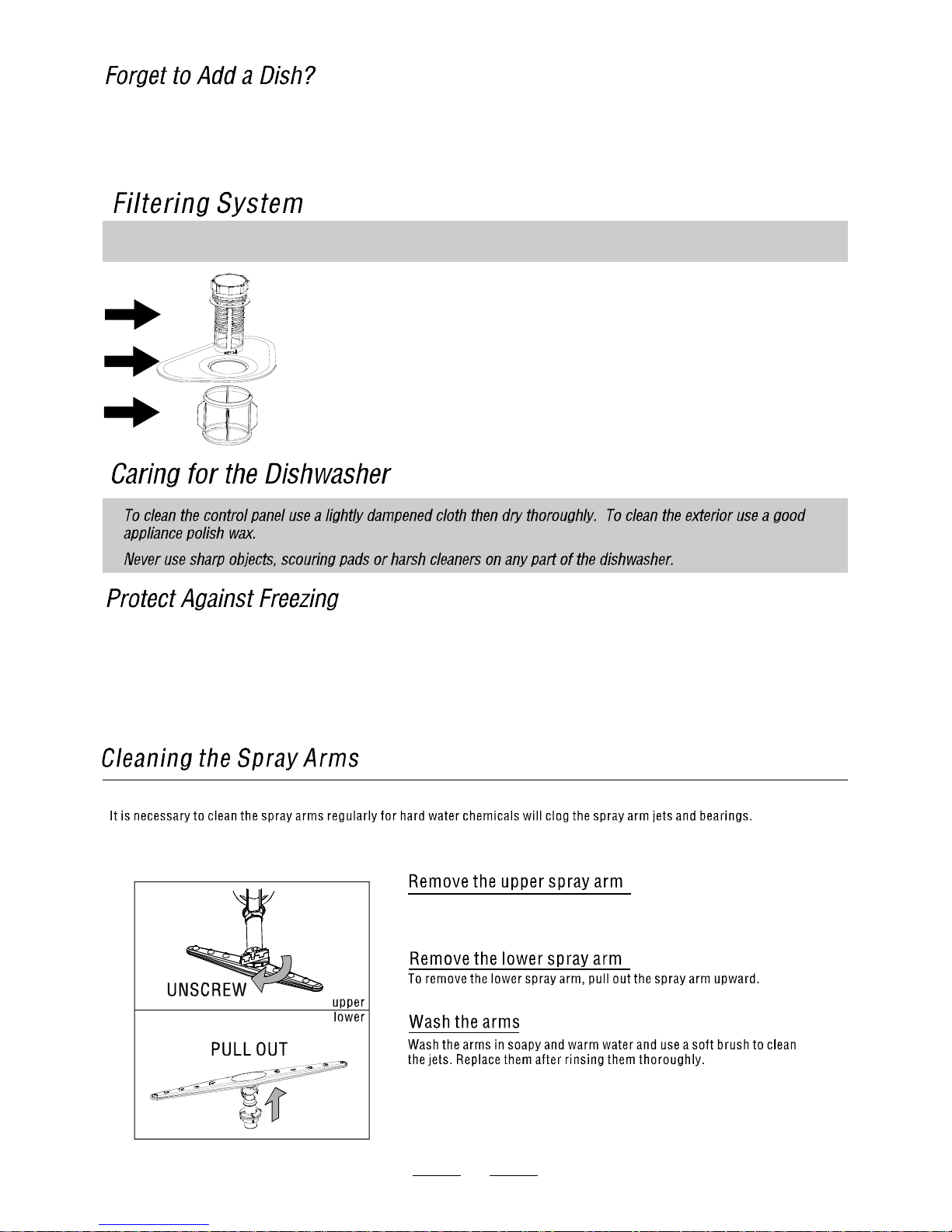

FilteringSystem......................9

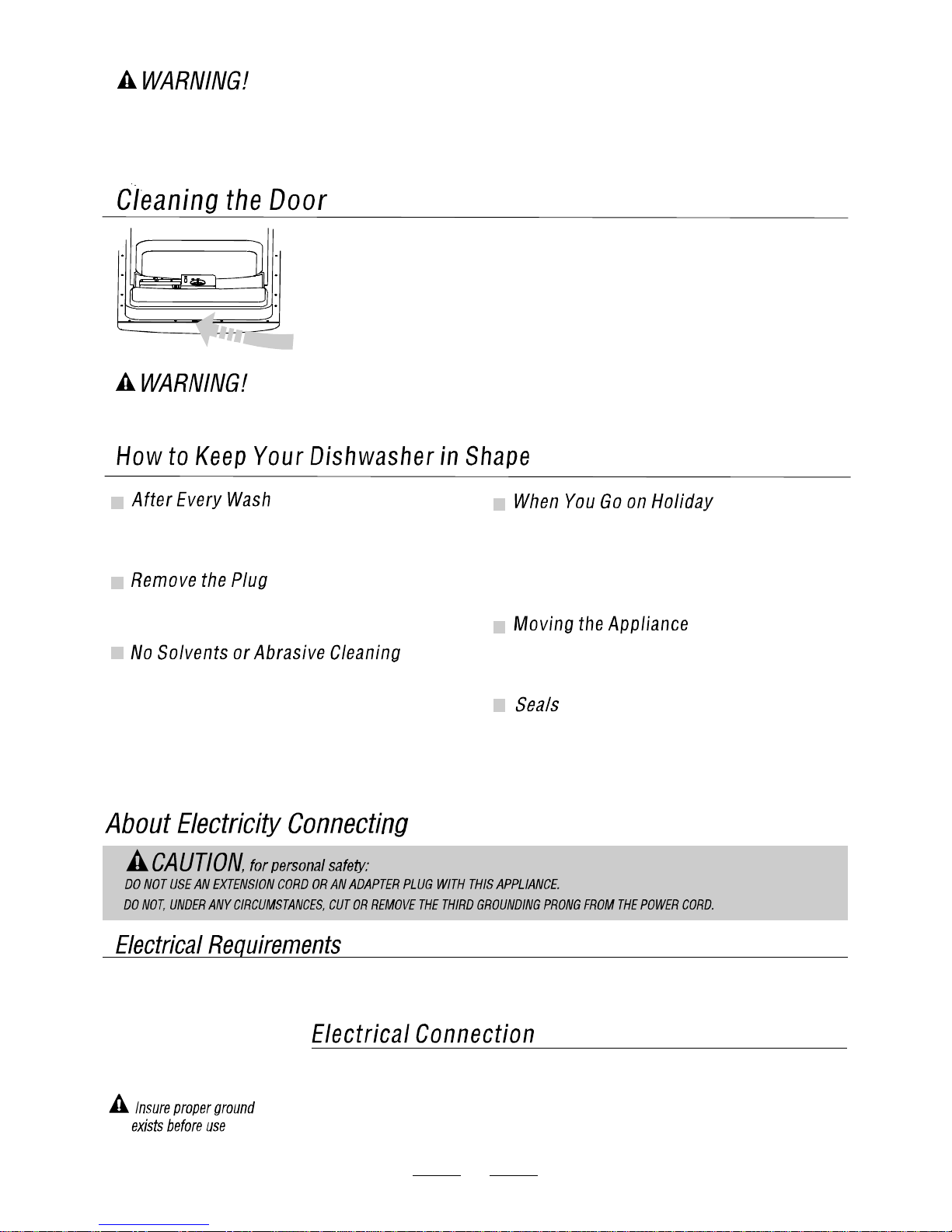

CaringfortheDishwasher..............9
About Electricity connection . . . . . . . . . . 10

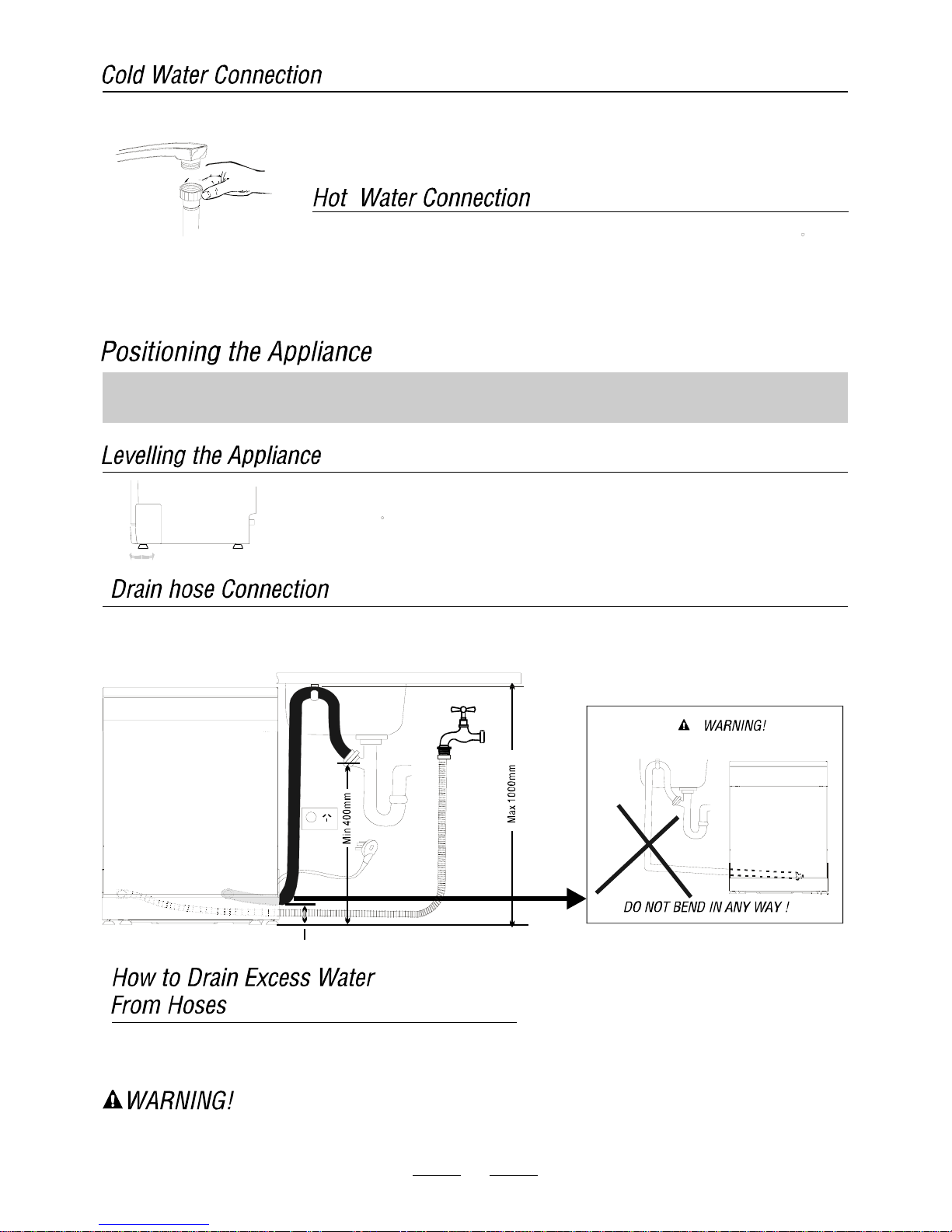

WaterConnection................... 11
Beforecallingforservice.......... 12,13
Faultcodes.........................13
Loading the Dishwasher Rack(12 sets) . 7,8
Adjusttheupperrack................. 6
Notsuitableforthedishwasher.........8

This appliance must be grounded. In the event
of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a
path of least resistance of electric current. This
appliance is equipped with a cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate
outlet that is installed and grounded in accordance
with all local codes and ordinances.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if you
are in doubt whether the appliance is
properly grounded. Do not modify the plug
provided with the appliance; If it is not fit
for the outlet. Have a proper outlet installed
by a qualified electrician.

Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot-water system has not been used for such a period, before using the dishwasher turn on all
hot-water faucets and let the water flow from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this
time.
1

Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren

Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.

Do not touch the heating element during or
immediately after use.

Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's
recommendations.
Only use detergent and rinse-aid intended
specificallyfor domestic dishwashers.
Never use soap,laundry detergent, or hand washing
detergentwhich can produce excessive amounts
of foam and can impair operation of the appliance.


During installation, the power supply must not
be excessively or dangerously bent or flattened.
The door should not be left in the open position
since this could present a tripping hazards.


Do not tamper with controls.


Do not place any heavy objects of stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Load sharp knives with the handles up to reduce
the risk of cut-type injuries.
3 Warning:Knives and other utensils with sharp points
must be loaded in the basket with their points down
or placed in a horizontal position.
)

When using your dishwasher, you should prevent
plastic item from contacting with heating element.

If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.

Please dispose of packing materials properly.


Use the dishwasher only for its intended function.

Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
The appliance is not intended for use by young
children or infirm persons without supervision.
Dishwasher detergents are strongly alkaline,they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes andkeep children away
from the dishwasher when the door is open.
Young children should be supervised to ensure that
they do not play with the appliance.
Check that the detergent receptable is empty after
completion of the wash cycle.




Other means for disconnection from the supply must
be incorprated in the fixed wiring with at least 3mm
contact separation in all poles.

The appliance is to be connected to the water mains
using new hose sets and that old hose-sets should
not be reused.

The maximum number of place settings to be washed
is 12.

The maximum permissible inlet water pressure is 1Mpa.

The minimum permissible inlet water pressure is 0.04Mpa.

Do not operate your dishwasher unless all
enclosure panels are properly inplace. Open
thedoorverycarefullyifthedishwasheris
operating, there is a risk of water squirting out.

To get the best performance from your dishwasher,read all operating instructions before using it for the
first time.
2
11
10
Upper Basket
Spray Arms
Lower Basket
Detergent Dispenser
Silverware Basket
Main Filter
Cup Shelf
5
6
7
8
Rinse Aid Dispenser
Coarse Filter
Drain pipe connector
Inlet pipe connector
9
10
11
3
2
14
2 Power Light : To come on when the ON/OFF Button is
Pressed down.
1 ON/OFF Button: To turn ON/OFF the power supply.
3 Display Window: Delay time and P1 to P7 will be disp ayed
here, P1 to P7 corresponds to the seven programme.
l
4
32
17
.
56
7 Program Button: Press the button to choose the desired
program.
4 Delayed Start Button: Press this button to set the delayed
hours for washing. You can delay the start of washing up
to 24 hours. One press on this button delays the start of
washing by an hour.
6 Program indicator light
5 Rinse Aid Warning Light: To come on when rinse aid needs
to be refilled.
1
2
3
4
5
6
7
8
9

If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main power and water supply
before calling a service.
3
3
4
5
6
7
1
Draw out the lower and upper basket, load the dishes and
push them back. It is commended that loading the lower
basket first, then the upper one (see the section entitled
" Loading the Dishwasher " ).
Press the ON/OFF button.
When the washing is over, you can shut off the swtich by
pressing on/off button.
With a little force to ensure the door is properly closed,
w.
ashing is start
NOTE: A click could be heard when the door is closed
perfectly.
2

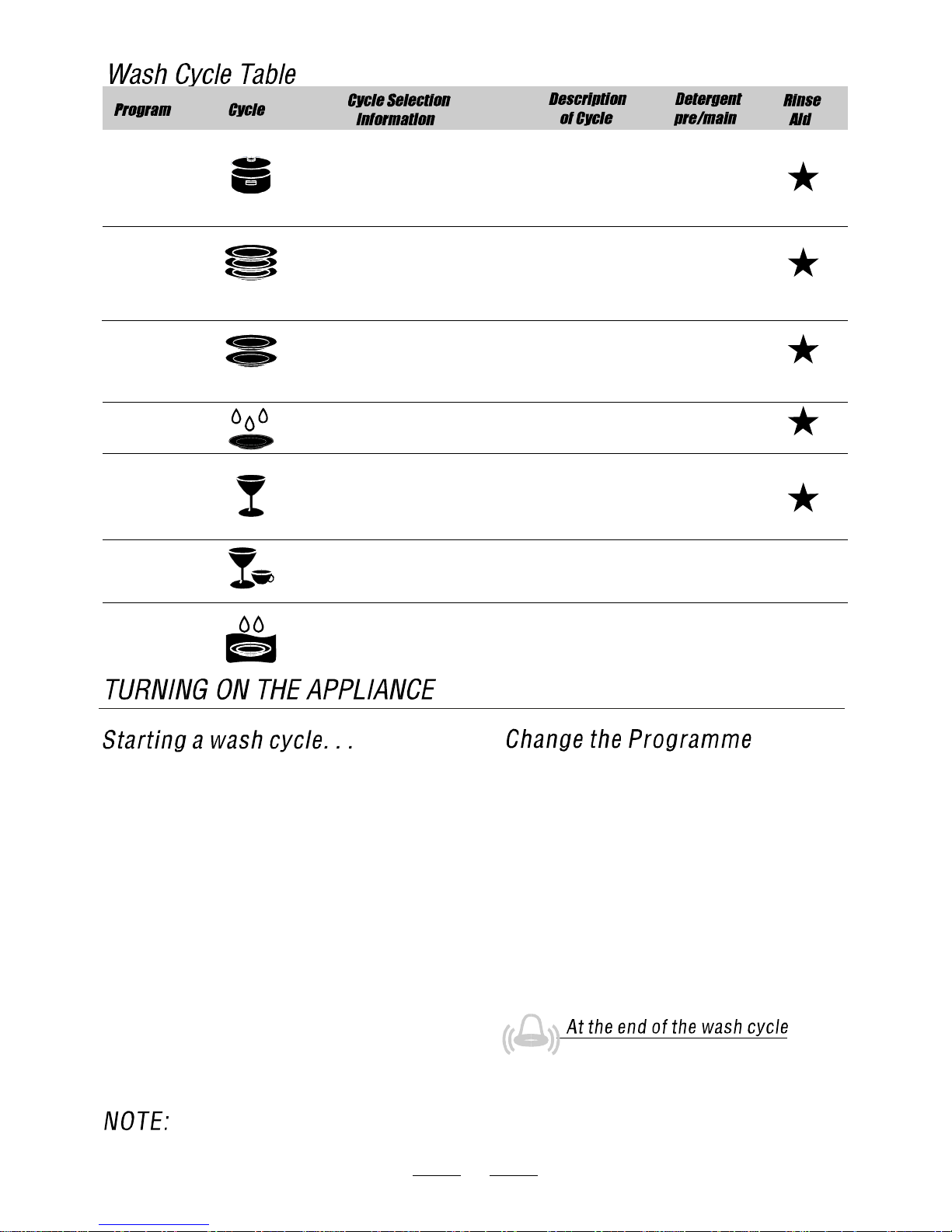

Soak
5/25 g
Heavy
5/25 g
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
Intensive
For dishes that need to rinsed
and dried only
Rinse
Normal
Glass
Rapid
15 g.
According to the soil level to choose the desired program by
pressing program selection button.
For very lightly soiled loads,
such as glasses, crystal and
fine china.
For normal soiled loads,
such as pots, plates,glasses
and pans. standard daily
cycle.
(AS/NZS 2007. 1 )
Pre-wash of dishes pots and
pans while waiting for the
load to be completed after the
subsequent meal.
Ashorterwashforlightly
soiled loads that do not need
drying.
For heavy soiled loads,
such as , plates,glasses
and lightly soiled pans.
pots
5/25 g
Turn on the water supply to full pressure
Insert the plug into the socket.
The power supply is 240VAC 50Hz, the specification
of the socket is 10A 250 VAC, Make sure that the water
supply is turned on to full pressure.
15 g.
Rinse
Pre-wash
Pre-wash
Wash (50℃)
Rinse
Rinse (70℃)
Drying.
Pre-wash
Wash
Wash(50
Rinse 60
Drying.
Pre-
℃)
℃
Rinse
Rinse (70℃)
Drying.
Pre-wash
Wash (40℃)
Rinse
Rinse (60℃)
Drying.
Wash (40℃)
Rinse
(50℃)Rinse
Pre-wash
wash(50℃ 70℃
/ )
Rinse
Rinse (70℃)
Drying.
(45℃)
Rinse
1
2
3
Premise : A cycle that is underway can only be modified if it
has only been running for a short time. Otherwise, the detergent
may have already been released, and the appliance may have
already drained the wash water. I this case, the detergent
dispenser must be refilled (see the paragraph entitled " Loading
the Detergent " ).
n
NOTE: If you open the door when washing, the machine
will pause. When you close the door and the machine
will keep on working after10 seconds.
Press the programme button to select the desired
programme.
Close the door to start washing.
At the end of a wash cycle, the time display will flash for 8
seconds while the buzzer sound. However, when the delay
start funtion is activated, the time display will flash for
8 seconds, but the buzzer will not sound.
Open the door ,Please press the programme button and
last more than three seconds.
