Tisira TDW12X User manual

pg 1
tisira | www.tisira.com
USER MANUAL
12 PLACE DISHWASHER
TDW12X
IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This
manual contains important information to ensure optimal performance and keep you safe. Please retain your
proof of purchase, as this will be required in the event that you require warranty service. Remember to retain
this manual for future reference.
www.tisira.com

pg 2
www.tisira.com | tisira
CONGRATULATIONS ON THE SELECTION OF THIS TISIRA APPLIANCE. TISIRA
APPLIANCES HAVE BEEN SPECIFICALLY DESIGNED FOR AUSTRALIAN AND
NEW ZEALAND KITCHENS.
Please read through this user manual carefully as it contains information that
will ensure that your appliance is installed correctly, important operating &
care instructions and also some advice of what you need to do if this appliance
is not performing as intended.
HELLO

pg 3
tisira | www.tisira.com
CONTENTS
HELLO 2
CONTENTS 3
WARNINGS 4
PRODUCT OVERVIEW 5-6
OPERATING INSTRUCTIONS 7-15
MAINTENANCE 16-17
INSTALLATION 18-19
TROUBLESHOOTING 20-21
PRODUCT SPECIFICATIONS 22
NOTES 23
CONTACT DETAILS 24

pg 4
www.tisira.com | tisira
IMPORTANT // To get the best performance from your dishwasher, read all operating
instructions before using it for the first time.
SAFETY INFORMATION
WARNING // HYDROGEN GAS IS EXPLOSIVE
Under certain conditions, Hydrogen gas
may be produced in a hot water system that
has not been used for two weeks or more. If
the hot water system has not been used for
such a period, before using the dishwasher
turn on all hot water faucets and let the
water flow from each for several minutes.
This will release any accumulated hydrogen
gas. As the gas is flammable, do not smoke
or use an open flame during this time.
•DO NOT USE OR STORE FLAMMABLE
MATERIALS IN THE APPLIANCE STORAGE
DRAWER OR NEAR THIS APPLIANCE
•DO NOT SPRAY AEROSOLS IN THE
VICINITY OF THIS APPLIANCE WHILE IT
IS IN OPERATION
•DO NOT MODIFY THIS APPLIANCE
•Do not touch the heating element during
or immediately after use.
•Do not operate your dishwasher unless
all enclosure panels are properly in
place. Open the door very carefully if the
dishwasher is operating. There is a risk
of water leaking out.
•Do not place any heavy objects or
stand on the door when it is open. The
appliance could tip forward.
•Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent,
or hand washing detergent in your
dishwasher.
•Young children should be supervised
to ensure that they do not play with the
appliance.
•The door should not be left in the open
position since this could present a
tripping hazard.
•This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning
use of the appliance by a person
responsible for their safety.
•If the supply cord is damaged, it must
be replaced by the manufacturer or its
service agent or a similarly qualified
person in order to avoid a hazard.
•Please dispose of packing materials
properly.
•This appliance is intended to be used in
household and similar applications such
as: staff kitchen areas in shops, offices
and other working environments;farm
houses: by clients in hotels, motels and
other residential type environments;
bed and breakfast type environments.
•Dishwasher detergents are strongly
alkaline. They can be extremely
dangerous if swallowed. Avoid contact
with the skin and eyes, and keep children
away from the dishwasher when the
door is open. Check that the detergent
receptacle is empty after completion of
the wash cycle.
WARNINGS

pg 5
tisira | www.tisira.com
START/STOP
3 sec
3H
6H
9H
PRODUCT
OVERVIEW

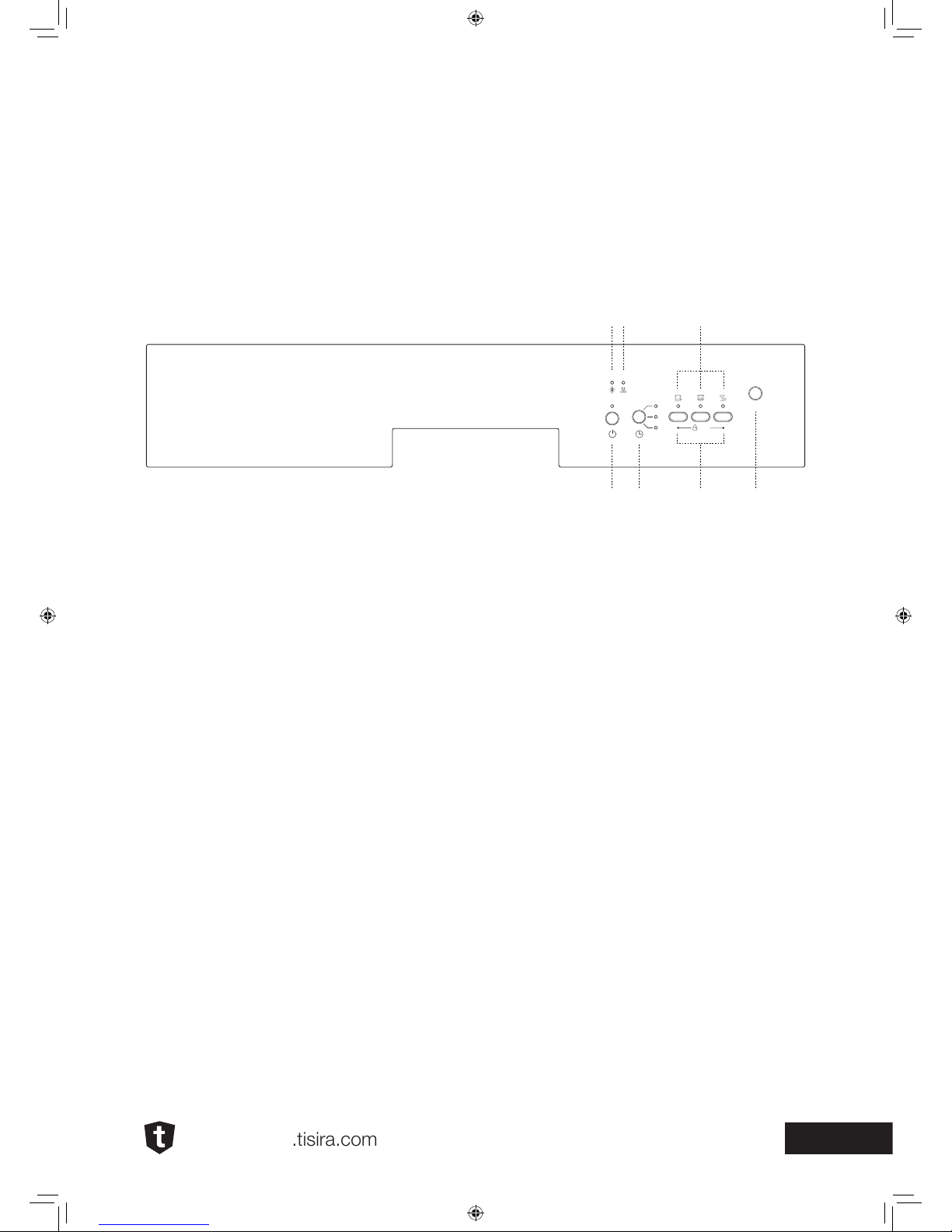

CONTROL PANEL
1. Power switch: To turn on/off the power
supply.
2. Delay button: The delay start can be set
for 3 different periods: 3, 6 or 9 hours.
3. Child Lock & Unlock: To lock and unlock
the dishwasher controls, press and
hold the INTENSIVE & RAPID buttons
at the same time for a few seconds. The
INTENSIVE & RAPID lights will turn on
or off when the controls are locked or
unlocked, respectively.
4. Start/Pause Button: Press this button to
start or pause washing cycle
5. Rinse aid refill indicator: The indicator
lights up when dispenser needs to be
refilled.
6. Drying indicator: the light comes on
when the dishwasher is drying.
7. Program Buttons: Choose the desired
program and the corresponding light will
turn on indicating the chosen type of wash.
1
5 6 7
2 3 4

pg 6
www.tisira.com | tisira
PRODUCT
OVERVIEW
DISHWASHER FEATURES
FRONT VIEW
1. Upper Basket
2. Upper Spray Arm
3. Lower Basket
4. Detergent Dispenser
5. Rinse Aid Dispenser
6. Cutlery Basket
7. Wine Glass Holder
1
2
3
4
7
6
5

pg 7
tisira | www.tisira.com
OPERATING
INSTRUCTIONS
ATTENTION // Before using your dishwasher for the first time, please make sure that you
read the following sections:
A. Fill the rinse aid dispenser B. Fill the detergent dispenser
A. FILL THE RINSE AID DISPENSER
FUNCTION OF RINSE AID
The rinse aid is automatically released during the last rinse in order to prevent water from
forming droplets on your dishes that can leave spots and streaks.
ATTENTION // Only use branded rinse aid in the dishwasher.
Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent,
liquid detergent). This would damage the appliance.
The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level
indicator turns completely black. The volume of the rinse aid container is about 140ml.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any
spills with a damp cloth. Don’t forget to close the cap before you close the dishwasher door.
1. To open the dispenser, turn the cap to the “open” (left) arrow and lift it out.
2. Pour the rinse aid into the dispenser, be careful not to overfill.
3. Replace the cap by inserting it aligned with “open” arrow and turning it to the “closed”
(right) arrow.
ATTENTION // Clean up any rinse aid split during filling with an absorbent cloth to avoid
excess foaming during the next wash.
2
13

pg 8
www.tisira.com | tisira
OPERATING
INSTRUCTIONS

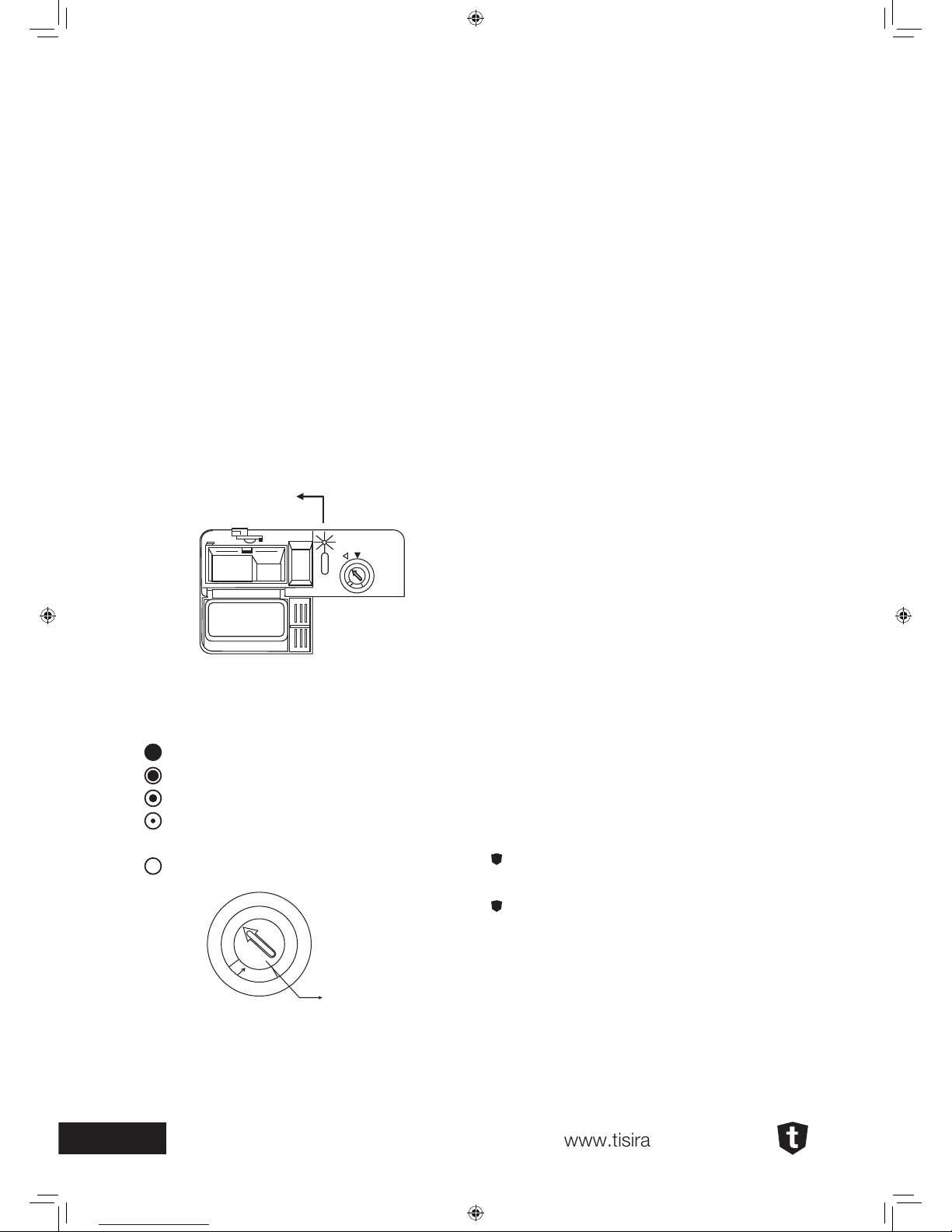

WHEN TO REFILL THE RINSE AID
DISPENSER
You can judge the amount of rinse-aid by
the colour of the optical level indicator “D”
located next to the cap. When the rinse-aid
container is full, the whole indicator will be
dark .As the rinse aid diminishes, the size of
the dark dot decreases.
IMPORTANT // You should never let the
rinse aid get below 1 / 4 full.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate
spotting
Empty
ADJUSTING RINSE AID DISPENSER
The rinse aid dispenser has six settings.
Always start with the dispenser set on “4”
If spots and poor drying are problems,
increase the amount of rinse aid dispensed
by removing the dispenser lid and rotating
the dial to “5”. If the dishes still are not
drying properly or are spotted, adjust the
dial to the next higher number until your
dishes are spot-free. The dose is factory set
in position 5.
NOTE // Increase the dose if there are
drops of water or lime spots on the dishes
after washing. Reduce it if there are sticky
whitish streaks on the dishes or a bluish
film on glassware or knife blades.
B. FILL THE DETERGENT
DISPENSER
Detergents with its chemical ingredients
are necessary to remove dirt, crush dirt and
transport it out of the dishwasher. Most of
commercial quality detergents are suitable
for this purpose.
CONCENTRATED DETERGENT
Based on their chemical composition,
dishwasher can be split in two basic types:
•conventional, alkaline detergents with
caustic components
•low alkaline concentrated detergents with
natural enzymes
The use of “normal” washing programme
in conjunction with concentrated detergents
reduces pollution and is good for your dishes;
these washing programmes are specially
matched to the dirt dissolving properties of the
enzymes of the concentrated detergents. For
this reason ”normal” washing programme in
which concentrated detergents are used can
Adjust lever
(Rinse)
1
2
3
4
5
6
MA X
D (RINSE-AID
INDICATOR)
1
2
3
4
5
6
MA X

pg 9
tisira | www.tisira.com
OPERATING
INSTRUCTIONS
achieve the same results that can otherwise
only be achieved using ”intensive” programme.
DETERGENT TABLETS
Detergent tablets of different brands dissolve
at different speeds. For this reason some
detergent cannot dissolve and develop their
full cleaning power during short programmes.
Therefore please use long programmes
when using detergent tablets, to ensure the
complete removal of detergent residuals.
DETERGENT DISPENSER
The dispenser must be refilled before the
start of each washing cycle following the
instructions provided in the “Washing Cycle
Table”. Your dishwashers use less detergent
and rinse aid than conventional dishwashers.
Generally, only one tablespoon of detergent
is needed for a normal wash load. Also, more
heavily soiled items need more detergent.
Always add the detergent just before
starting the dishwasher, otherwise the tablet
can get damp and it will not dissolve properly.

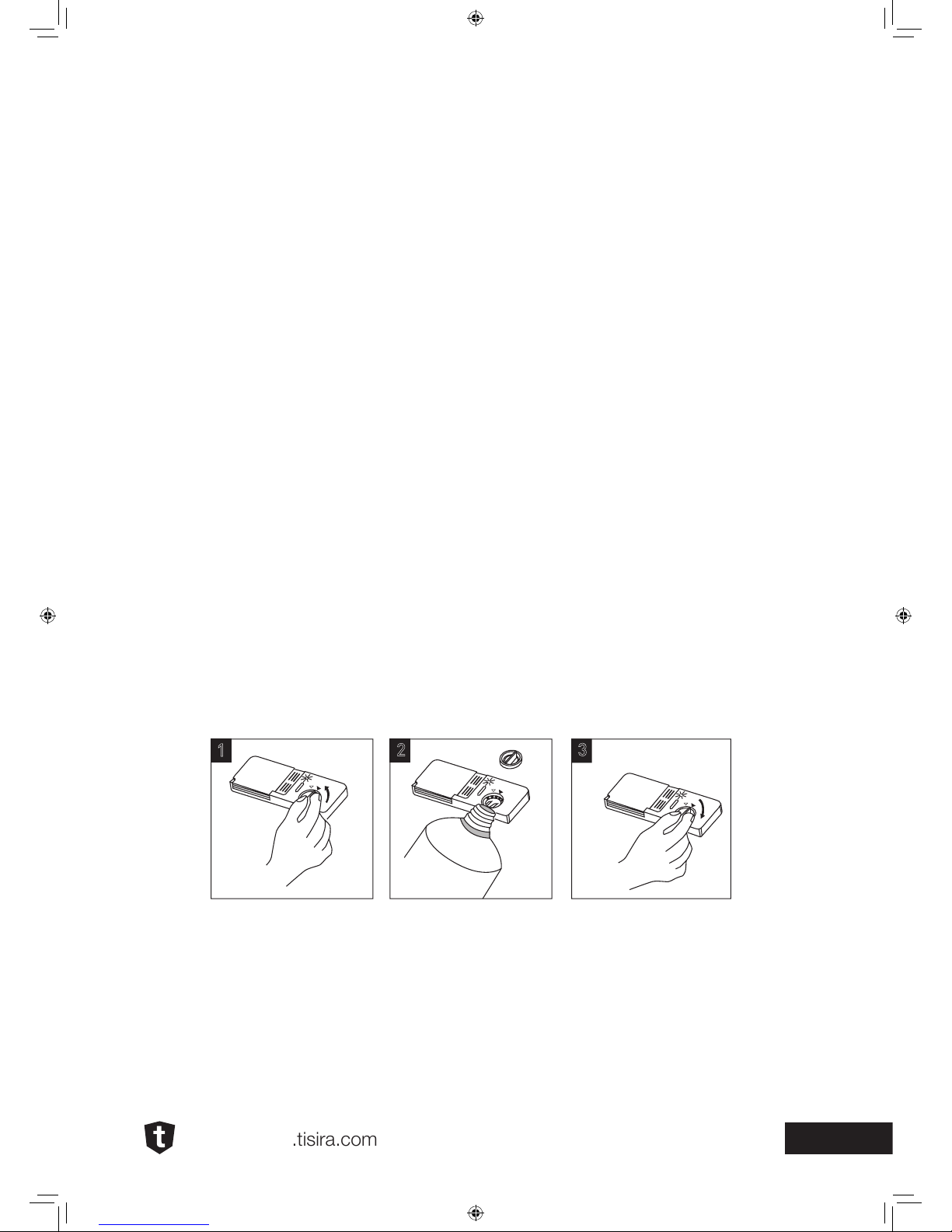

1. If the lid is closed: press release button.
The lid springs open.
2. Always add the detergent just before
starting each washing cycle. Only use
branded detergent aid for dishwasher.
WARNING // Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
Use only detergent specifically made for use
in dishwashers. Keep your detergent fresh
and dry. Do not put powder detergent into the
dispenser until you’re ready to wash the dishes.
FILL IN THE DETERGENT
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated above:
1. Main washing cycle detergent dispenser.
MIN means approximately 20g of detergent.
2. Pre washing cycle detergent dispenser.
Approximately 5g of detergent.
Close the lid and press until it locks in place.
1
2
3
4
5
6
MA X
12
1
2

pg 10
www.tisira.com | tisira
OPERATING
INSTRUCTIONS
If the dishes are heavily soiled, place an
additional detergent dose in the pre-wash
detergent chamber. This detergent will take
effect during the pre-wash phase.
NOTICE // Information about the amount of
detergenttobeusedforeachtypeofprogramme
can be found on the Washing Cycle Table in the
“Starting a washing programme” section.
Please be aware that according to the level
of soiling and the specific hardness of water,
differences are possible. Please observe the
manufacturer’s recommendations on the
detergent packaging.
DETERGENTS
There are 3 sorts of detergents:
1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chloride
Normally, new pulverized detergents don’t
have phosphate. The water softener function
of phosphate is not given. In this case, we
recommend to fill the salt dispenser with salt
even when the hardness of the water is only 6
dH. If detergents without phosphate are used
in cases where hard water is supplied, often
white spots appear on dishes and glasses.
In this case, please increase the amount of
detergent to achieve better results.
Detergents without chlorine can only bleach
a little. Strong and coloured spots will not
be removed completely. In this case, please
choose a programme with higher temperature.
USE OF “3 IN 1” DETERGENT
TABLETS
GENERAL ADVICE
1. Before using these type of detergents,
you should first read the manufacturer
instructions to check if their tablets are
compatible to the water hardness of your
water supply.
2. These products should be strictly used
according to the detergent manufacturers
instructions.
3. If you encounter problems when using “3
in 1” products for the first time then please
contact the detergent manufacturers care
line (the telephone number is given on the
product packaging). These products are
detergents with integrated and combined
detergent/rinse aid and salt functions.
WHEN LOADING ITEMS TO BE
WASHED:
•Locate sharp items so that they are not
likely to damage the door seal.
•Knives and other utensils with sharp
points must be loaded in the basket with
their points down or placed in a horizontal
position.
•When using your dishwasher, you should
prevent plastic items from touching the
heating element.
•Do not wash plastic items unless they are
marked dishwasher safe or the equivalent.
For plastic items not so marked, check the
manufacturer’s recommendations.

pg 11
tisira | www.tisira.com
OPERATING
INSTRUCTIONS
LOADING THE DISHWASHER
BASKETS
NOTE // Features and appearances of baskets
and cutlery tray may vary from your model.
ATTENTION // Before or after loading the
dishwasher baskets, scrape off any large
amounts of leftover food.
Place objects in the dishwasher in the
following way:
•Items such as cups, glasses, pots/pans,
etc. are placed upside down.
•Curve items, or those with recesses,
should be at a slant so that water can run
off.
•They are stacked securely and can not tip
over.
•They do not prevent the spray arms from
rotating while washing takes place.
•To avoid damage to glasses, ensure
they are not touching other items in the
dishwasher.
NOTE // Very small items should not be
washed in the dishwasher as they could
easily fall out of the baskets.

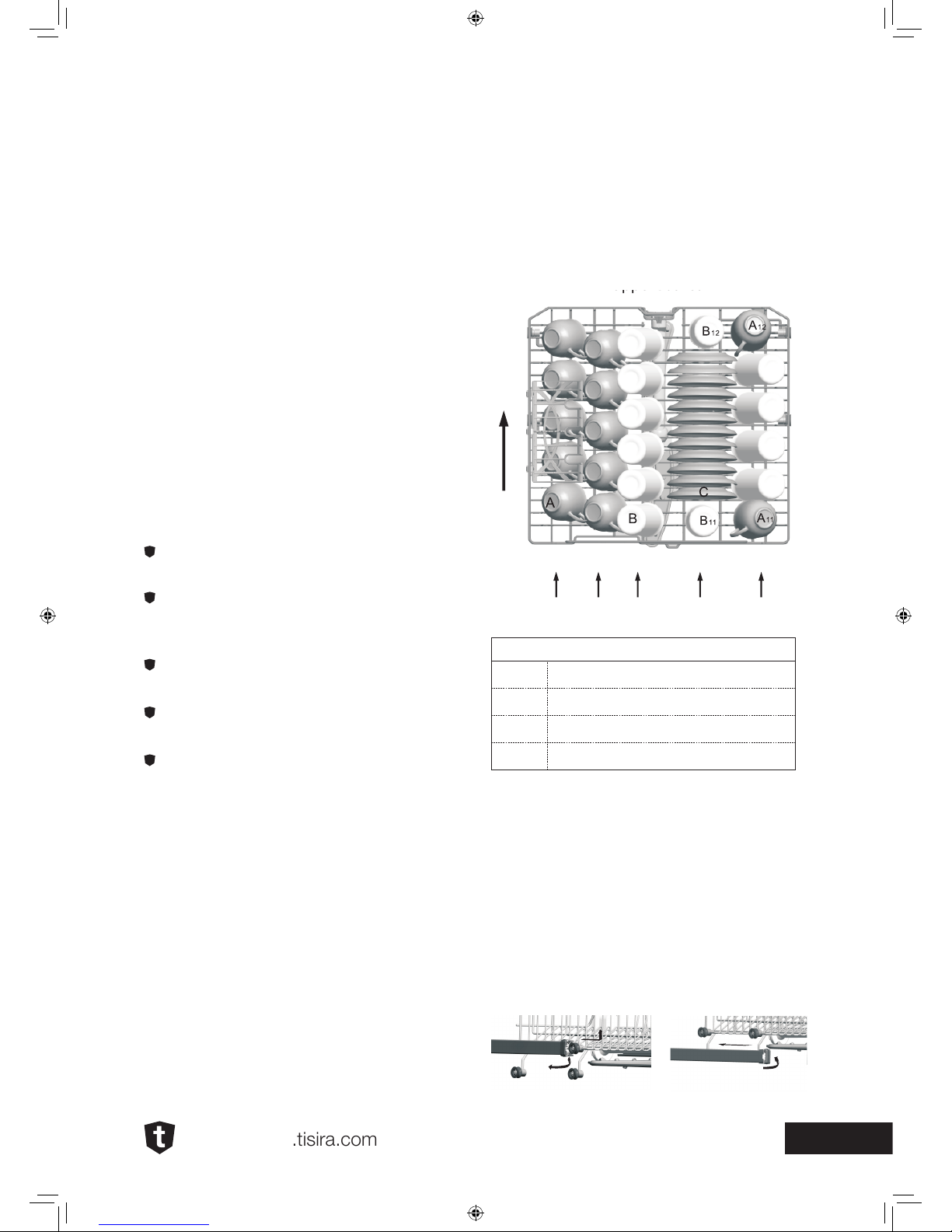

THE UPPER BASKET
The upper basket is designed to hold more
delicate and lighter dishware such as
glasses, coffee and tea cups, saucers, as
well as plates, small bowls and shallow
pans. Position the dishes and cookware so
that they do not get moved by the spray of
water.
Upper Basket
A1
A5
A6
A10
B1
B6
C1
C12
B7
B10
IN
UPPER BASKET
Type Item
A Cup
B Glass
C Saucer
ADJUSTING THE UPPER BASKET
The upper basket can be adjusted for
height by putting wheels of different height
into the rails. Long items, serving cutlery,
salad servers or knives should be placed
on the shelf so that they do not obstruct
the rotation of the spray arms. The shelf
can be folded back or removed when not be
required for use.
1
2
3
4

pg 12
www.tisira.com | tisira
1
2
OPERATING
INSTRUCTIONS

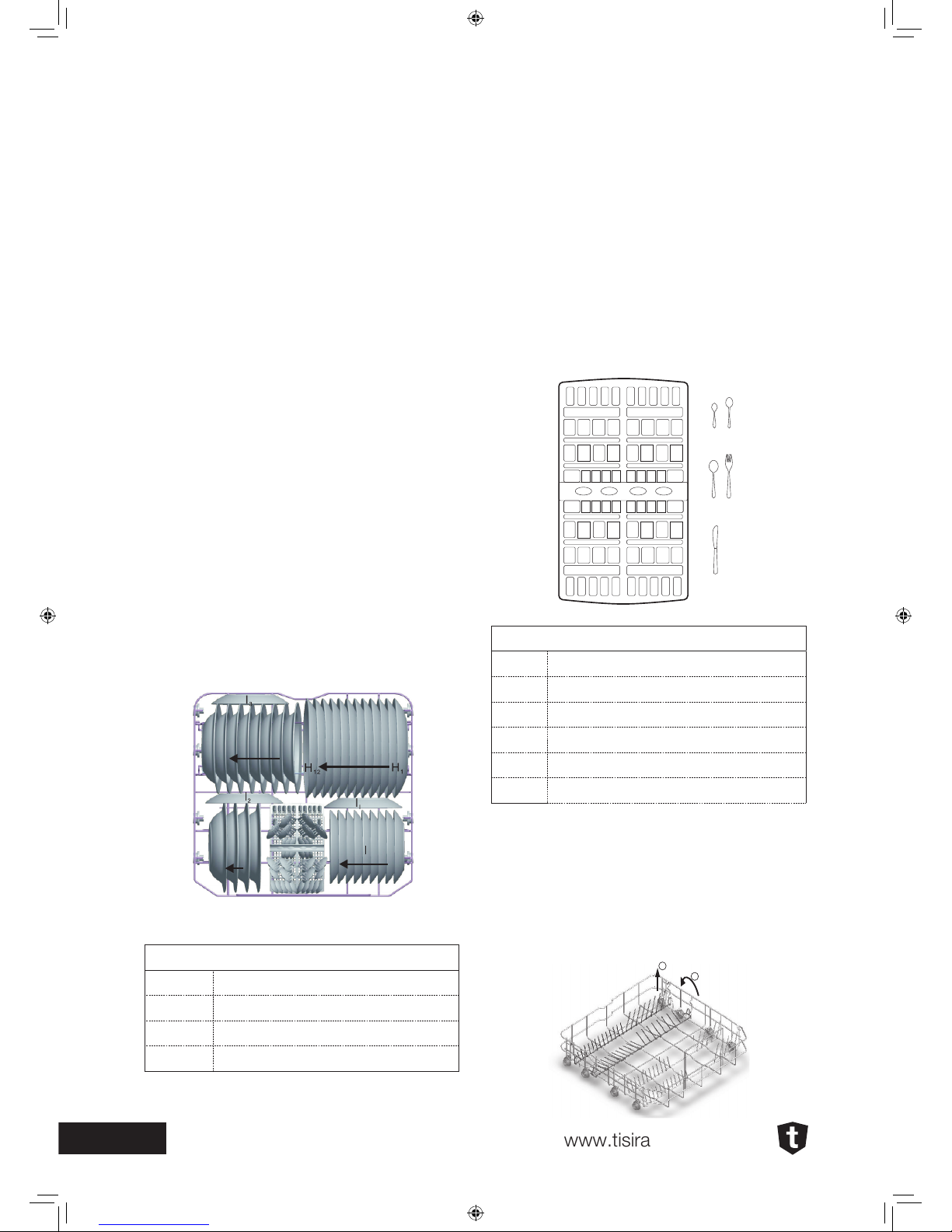

LOADING THE LOWER BASKET
We recommend that you place large items
which are most difficult to clean in to the
lower basket: pots, pans, lids, serving dishes
and bowls, as shown in the figure below.
It is preferable to place serving dishes and
lids on the side of the baskets in order to
avoid blocking the rotation of the top spray
arm. Pots, serving bowls, etc. must always
be placed top down.
Deep pots should be slanted to allow water
to flow out.
The bottom basket features fold down tine
rows so that larger or more pots and pans
can be loaded.
FOLDING RACKS
Folding racks consist of two parts and are
located on the lower basket of the machine.
Using the folding racks allows for more
room on the lower basket for larger items.
To use the folding racks, lift them up then
fold down as shown.
CUTLERY BASKET
Arrange the cutlery in the tray as shown.
G
I
4
I
1 2
G
1
G
5
G
1 2
G
4
H
G
LOWER BASKET
Type Item
G Soup Plate
H Dinner Plate
I Dessert Plate
CUTLERY BASKET
Type Item
1 Teaspoons
2 Dessert Spoons
3 Soup Spoons
4 Forks
5 Knives
4 435
5 5 5 5 5 5 5 5 5 5
53 1 2
3 4
5
4 4 22 3 3
3 4 3
11 1 1
4 3 4 3 4
6 4 6 4 6 4 6 4
1 1 1 1
2 2 2 2 2 2 2 2 2 2

pg 13
tisira | www.tisira.com
OPERATING
INSTRUCTIONS
LOADING CUTLERY & DISHES
Before loading the dishes you should
remove large left-over food scraps and
soften remnants of burnt food in pans.
The following items are not suitable for
washing in the dishwasher:
•Cutlery with wooden or mother-of-pearl
handles
•Plastic items that are not heat resistant
•Older cutlery with glued parts that is not
temperature resistant
•Bonded cutlery items or dishes
•Pewter or copper items
•Lead crystal glass
•Steel items subject to rusting
•Wooden platters
•Items made from synthetic fibre
•Take caution when loading dishwasher as:
•Some types of glasses can become dull
after a large number of washes
•Silver and aluminium parts have a
tendency to discolour during washing
•Glazed patterns may fade if machine
washed frequently
NOTE // Do not load items that are dirty
with cigarette ashes, candle wax, lacquer
or paint. When buying new dishes, ensure
they are suitable for dishwashers.
NOTE // Please do not overload your
dishwasher. There is only space for 12
standard dishes. This is important for
good results and for reasonable energy
consumption.
AT THE END OF THE WASH
When the working cycle has finished, the
buzzer of dishwasher will ring 6 times,
then stop. Turn off the appliance using
the “Power” button and open the door
of the dishwasher. Wait a few minutes
before unloading the dishwasher to avoid
handling the dishes and utensils while
they are still hot and more susceptible to
breakage. They will also dry better.
REMOVING THE DISHES
To prevent water dripping from the upper
basket onto dishes on the lower basket,
empty the lower basket first and then the
upper basket.
TURNING ON THE APPLIANCE
1. Close the door.
2. Make sure the spray arms are not
obstructed.
3. Switch the dishwasher on using the
“Power” button.
The additional indicators, delay start
indicators and status indicator could light
up periodically one by one.
NOTE // A click can be heard when the
door is closed perfectly.

pg 14
www.tisira.com | tisira
OPERATING
INSTRUCTIONS
SELECT A PROGRAMME
Choose your programme according to the
type of load and how dirty it is.
The different programmes and their uses
are described in the “washing cycle table”
(see page 15). Use the programme selector
to select the expected programme.
CHANGE THE PROGRAMME.
A cycle that is underway can only be modified
if it has only been running for a short time.
Otherwise, the detergent may have already been
released, and the appliance may have already
drained the wash water. If this is the case, the
detergent dispenser must be refilled (see the
section entitled “Filling the Detergent “).
Turn the appliance off and then turn it
on again by pressing the “Power” button.
Press the “Programme” button to choose
the expected cycle settings.
NOTE // If you open the door when the washing
cycle is underway, the appliance will pause
and emit warning signals, the indicator lights
of the Intensive and Normal programs will
flash. When you close the door, the machine
will keep on working after 10 seconds.
The 3 programme lights show the state of
the dishwasher and the following situations
can be found:
a) One of the programme lights on -->
cycle running
b) One of the programme lights blinking -->
pause
NOTE // If all the lights begin to glimmer,
that indicates the machine is out of order,
please turn off the main power and water
supply before calling a service.
FORGET TO ADD A DISH
A forgotten dish can be added any time
before the detergent cup opens.
1. Open the door a little to stop the washing.
2. After the spray arms stop working, you
can open the door completely.
3. Add forgotten dishes.
4. Close the door, the dishwasher will work
after ten seconds.
WARNING // It is dangerous to open the
door when washing, because the hot water
may scald you.
SWITCH OFF THE DISHWASHER
The buzzer rings 6 times, only in this case
the programme has ended. Turn off the
dishwasher by pressing the Power button.
Open the door carefully. Hot steam may escape
when the door is opened!
•Hot dishes are sensitive to knocks. The
dishes should therefore be allowed to cool
down around 15 minutes before removing
from the appliance.
•Open the dishwasher’s door, leave it ajar
and wait a few minutes before removing
the dishes. In this way they will be cooler
and the drying will be improved.

pg 15
tisira | www.tisira.com
OPERATING
INSTRUCTIONS
WASHING CYCLE TABLE
Program Cycle Selection Information Description of
Cycle
Detergent
Pre/Main
Running
Time
(min)
Energy
(kWh)
Water
(L)
Intensive
For the heaviest soiled
loads, such as pots, pans,
casserole dishes and dishes
that have been sitting with
dried food on them for a
while.
Pre-wash(40ºC)
Main wash(55ºC)
Rinse 1
Rinse 2
Hot rinse(65ºC)
Drying
5/25g 145 1.20 15.5
Normal
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
Main wash(45ºC)
Rinse
Hot rinse(50ºC)
Drying
5/25g 112 0.73 11.8
Rapid
A shorter wash for lightly
soiled loads that do not need
drying.
Main wash(40ºC)
Hot rinse(50ºC) 15g 50 0.50 7.5

pg 16
www.tisira.com | tisira
MAINTENANCE

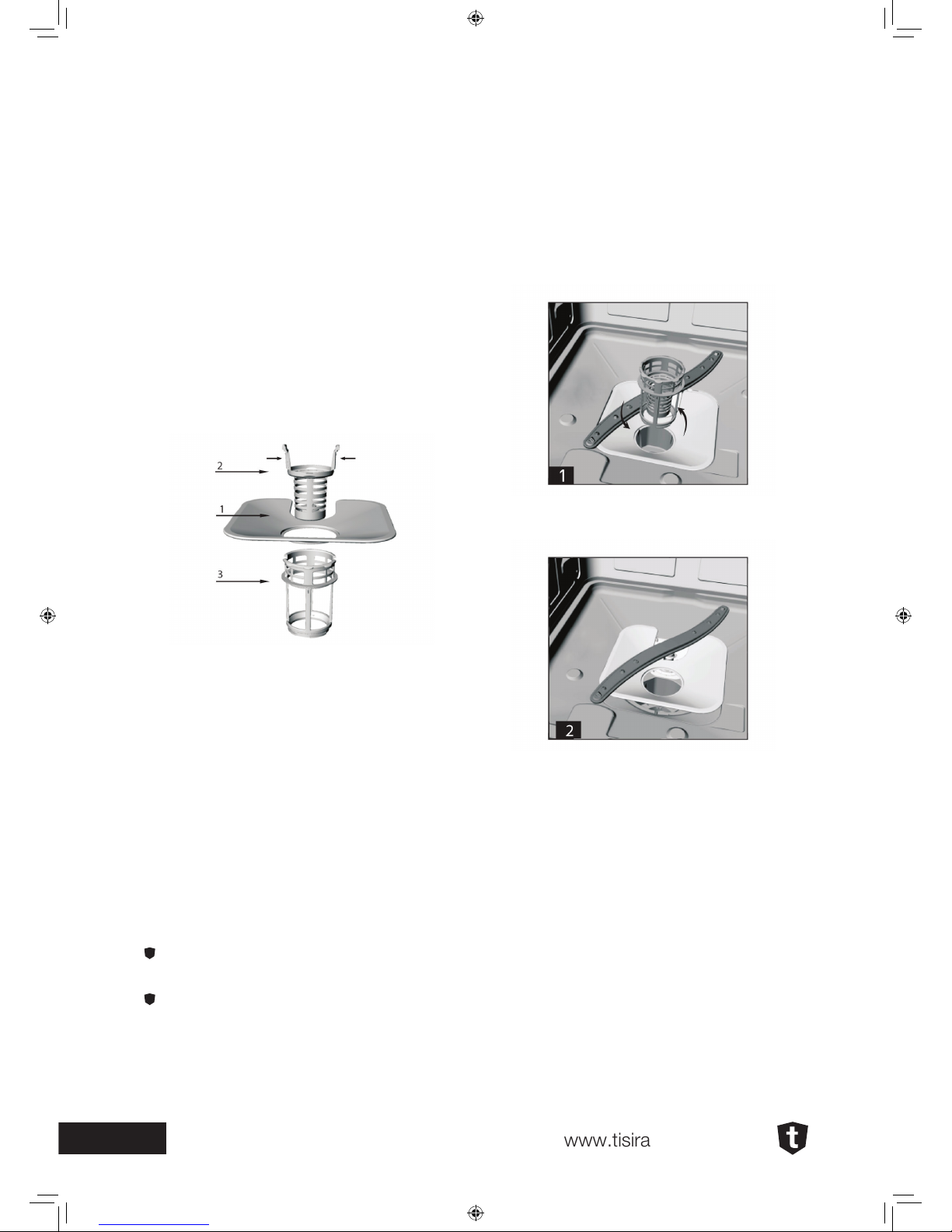

FILTERING SYSTEM
The filter is used to avoid the big remnants
and other sundries getting inside the
pump. Sometimes, an extra deposit of
residues can obstruct the water flow.
The filter system consists of a coarse
filter, a flat (Main filter) and a micro
filter (fine filter).
1. Flat filter - Food and debris will be
trapped by a jet on the lower spray arm.
2. Coarse filter - Big debris, such as bone
and glass that could clog the drain will
be trapped in the coarse filter.
3. To remove an item caught in this filter,
gently squeeze the tabs on the top of this
filter and lift it out.
4. Micro filter - This filter holds soil and
food residue in the sump area and
prevents it from being redeposited on
the dishes during a cycle.
•Inspect the filters for obstructions every
time the dishwasher has been used.
•By unscrewing the coarse filter, you
can remove the filter system. Remove
any food remnants and clean the filters
under running water.
STEP 1 // Rotate the coarse filter anti-
clockwise, filter, and then lift it up;
STEP 2 // lift the flat filter up
Repeat the steps in reverse to reinstall the
filtering system.
FILTER ASSEMBLY
The filter assembly should be cleaned once
a week with a brush. Then, reassemble the
filter parts as shown in the figures above and
reinsert the assembly in the dishwasher,
positioning in its seat and pressing downward.
Improper replacement of the filter may
reduce the performance level of the appliance
and damage dishes and utensils.
WARNING // Never run the dishwasher
without the filters in place.

pg 17
tisira | www.tisira.com
MAINTENANCE
CLEANING THE SPRAY ARMS
It is necessary to clean the spray arms
regularly to ensure efficient operation of
the spray arm jets and bearings.
To remove the spray arms, screw off the
nut clockwise to take out the washer on
top of the spray arm and remove the arm.
Wash the arms in warm soapy water and
use a soft brush to clean the jets. Rinse
thoroughly and replace.
CLEANING THE DISHWASHER
To clean the exterior and rubber parts
of the dishwasher, do not use solvents or
abrasive cleaning products. Use only a cloth
and warm soapy water. To remove spots or
stains from the surface of the interior, use
a cloth dampened with water and a little
white vinegar, or a cleaning product made
specifically for dishwashers.
AFTER EVERY WASH
After every wash, leave the door slightly
ajar so that moisture and odours are not
trapped inside.
REMOVE THE PLUG
Beforecleaningorperformingmaintenance,
always remove the plug from the socket.
WHEN YOU GO ON HOLIDAY
When you go on holiday, it is recommended
thatyourunawashcyclewiththedishwasher
empty and then remove the plug from the
socket, turn off the water supply and leave
the door of the appliance slightly ajar. This
will help the seals last longer and prevent
odours from forming in the appliance.
TO REMOVE SPOTS FROM GLASSWARE:
1. Take out all metal utensils out of the
dishwasher.
2. Do not add detergent.
3. Choose the longest cycle.
4. Start the dishwasher and allow it to run
for about 18 to 22 minutes, then it will be
in the main wash.
5. Open the door to pour 2 cups of white
vinegar into the bottom of the dishwasher.
6. Close the door and let the dishwasher
complete the cycle. If the vinegar does not
work: Repeat as above, except use 1/4 cup (60
ml)of citric acid crystals instead of vinegar.
MOVING THE APPLIANCE
If the appliance must be moved, try to
keep it in the vertical position. If absolutely
necessary, it can be positioned on its back.
SEALS
One of the factors that cause odours to
form in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with
a damp sponge will prevent this.

pg 18
www.tisira.com | tisira
INSTALLATION
WARNING // Disconnect electrical power
before installing the dishwasher. Failure to
do so can result in death or electrical shock.
POSITIONING AND LEVELLING
1. Remove the appliance from all packaging
and check that it has not been damaged
during transportation. If it has been
damaged, contact the retailer and do not
proceed any further with the installation
process.
2. Check the dishwasher by placing it so that
its sides or back panel are in contact with
the adjacent cabinets or even with the
wall. This appliance can also be recessed
under a single work top.
3. Position the dishwasher on a level
and sturdy floor. If the floor is uneven,
the front feet of the appliance may be
adjusted until it reaches a horizontal
position. If the appliance is levelled
correctly, it will be more stable and much
less likely to move or cause vibrations
and noise while it is in operation.
NOTICE // The maximum adjustment height
of the feet is 20 mm.
Make sure that the carpet does not obstruct
the openings at the bottom base.
CONNECTING THE WATER AND
ELECTRIC SUPPLIES
ATTENTION // Connection to the water
and electrical supplies should only be
performed by a qualified technician.
The dishwasher should not stand on top of
the water hoses or the electric supply cable
The appliance must be connected to the
water supply network using new piping. Do
not use old piping.
CONNECTING THE WATER INLET
HOSE*
Connect the cold water supply hose to a
threaded 3/4 inch connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not
been used for an extended period of time,
let the water run to make sure that the
water is clear and free of impurities. If this
precaution is not taken, there is a risk that
the water inlet can get blocked and the
appliance could be damaged.
CONNECTING THE WATER OUTLET
HOSE
Fit the drainage hose of your machine to the
drainage pipe without bending.
If the length of the hose is not sufficient,
apply to the authorized service agent for
an extension made from the same material
as the original. Remember that the length
of the hose should not exceed 4 meters
even when with an extension.
If the drainage hose is longer than 4 meters
the dishes will not be cleaned.
Properly secure your hose firmly to the
drainage pipe to avoid it coming off during
the washing process.

pg 19
tisira | www.tisira.com
INSTALLATION
ELECTRICAL CONNECTION
NOTICE // During installation, the power
supply must not be excessively or dangerously
bent or flattened.
Before inserting the plug into the electrical
socket, make sure that:
•the socket is earthed and complies with
current regulations;
•the socket can withstand the maximum
load of the appliance, which is indicated
on the data plate located on the inside of
the door(see description of the appliance);
•the power supply voltage falls within the
values indicated on the data plate on the
inside of the door;
•the socket is compatible with the plug of
the appliance. If this is not the case, ask an
authorised technician to replace the plug
(seek assistance); do not use extension
cables or multiple sockets.
•Once the appliance has been installed,
the power supply cable and the electrical
socket should be easily accessible.
•Thecableshouldnotbebentorcompressed.
•If the power supply cable is damaged, it
must be replaced by the manufacturer or
its Technical Assistance Service in order
to prevent all potential hazards.
•The company shall not be held responsible
for any incidents that occur if these
regulations are not observed.
HOW TO DRAIN EXCESS WATER
FROM HOSES
If the sink is 1000mm higher from the floor,
the excess water in hoses cannot be drained
directly into the sink. It will be necessary to
drain excess water from hoses into a bowl
or a suitable container that is held outside
and lower than the sink.
SYPHON CONNECTION
The waste connection must be at a height
of between 50cm (minimum) and 100cm
(maximum) from the bottom of the dish. The
water drain hose should be fixed by a hose clip.
STARTING YOUR DISHWASHER
The followings should be checked before
starting the dishwasher:
1. Whether the dishwasher is level and fixed
2. Whether the inlet valve is opened
3. Whether there is leakage at the
connections of the conducts
4. Whether the wires are tightly connected
5. Whether the power is switched on
6. Whether the inlet and drain hoses are knotted
7. All packing materials and printings
should be taken out from the dishwasher
NOTICE // After installation, please put this
manual into the bags of printings. The content
of this manual is very helpful to the users.
NOTICE // Other means for disconnection
from the supply must be incorporated in
the fixed wiring with at least 3mm contact
separation in all poles.
max1100mm
min 500mm
min120mm
min 40mm

pg 20
www.tisira.com | tisira
TROUBLESHOOTING
ERROR CODES
When some malfunctions happen, the appliance will display error codes to warn you.
CODES MEANINGS POSSIBLE CAUSES
LED1 LED2 flashing Door open The door is opened when the dishwasher is operating
LED1 LED5 flashing Water inlet Water inlet malfunction
LED1 LED4 flashing Water drainage Water drainage malfunction
LED2 LED3 flashing Temperature sensor Temperature sensor malfunction
LED2 LED4 flashing Overflow/leakage Overflow occurs/Water leakage occurs
LED3 LED4 flashing Water leakage Water leakage occurs
LED3 LED5 flashing Heating element Abnormal heating
BEFORE CALLING
CUSTOMER SERVICE
Reviewing the charts on the
following pages to help you
resolve the problem without
having to call for service.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Dishwasher
doesn’t run
Fuse blown, or the
circuit breaker acted
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher.
Power supply is not
turned on
Make sure the dishwasher is turned on and the door is closed
securely. Make sure the power cord is properly plugged into
the wall socket.
Water pressure is low Check that the water supply is connected properly and the
water is turned on.
Drain pump
doesn’t stop Overflow The system is designed to detect an overflow. When it does, it
shuts off the circulation pump and turns on the drain pump.
Noise
Some audible sounds
are normal
Sound from detergent cup opening.
Utensils are not
Secure in the baskets
or something small has
dropped into the basket
To ensure everything is secured in the dishwasher.
Motor hums Dishwasher has not been used regularly. If you do not use it
often, remember to set it to fill and pump out every week, which
will help keep the seal moist.
LED 1
LED 5 LED 4
LED 2 LED 3
