Tissot T013.420.11.032.00 User manual

www.tissot.ch 141_EN
1/13
Acknowledgements
We would like to thank you for choosing a TISSOT
watch, a Swiss brand among the most highly renowned
in the world. Your T-TOUCH watch has the most recent
technical innovations. It gives you a constant analogue
time display and a variety of digital displays.
In addition, the following functions can be accessed
simply by touching the glass: Weather, Altimeter,
Chronograph, Compass, Alarm and Thermometer.
T-TOUCH EXPERT
User’s Manual
*

www.tissot.ch 141_EN
2/13
T-TOUCH EXPERT
*
K

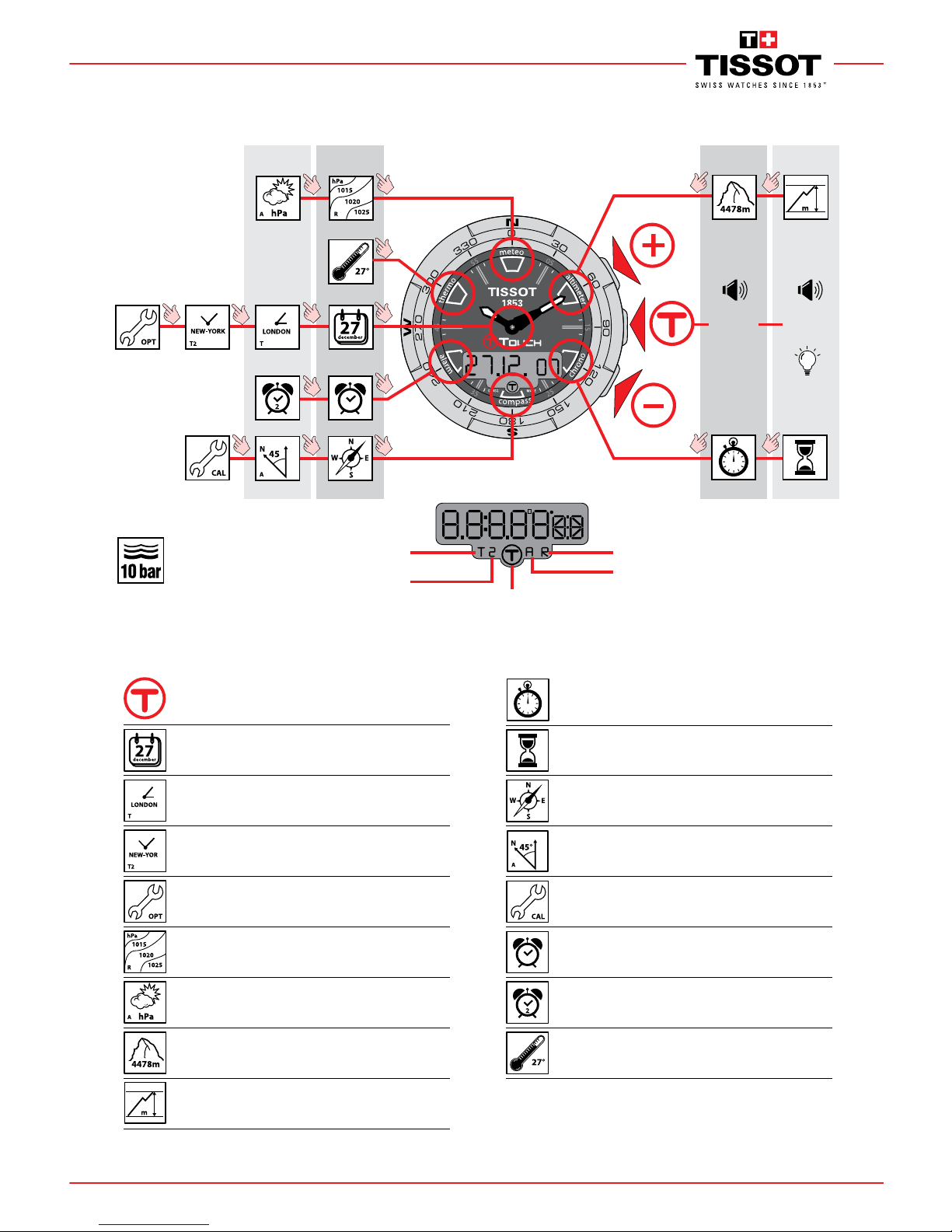

FUNCTIONS
°
Time T
Time T2
Alarm 2
R Relative pressure, Active altitude difference meter
A Absolute pressure, Azimuth
Water resistance: 10 bar
(100 m / 330 ft)
Active touch-sensitive glass
2nd function 1st function 1st function
ACTIVATE
LIGHT
ACTIVATE
TOUCH-
SENSITIVE
GLASS
CENTRE – Date 3
CENTRE – Time 1 3
Activate touch-sensitive glass / Activate light
CENTRE – Time 2 4
CENTRE – Options 4
METEO – Weather, relative pressure 6
METEO – Weather, absolute pressure 6
ALTIMETER – Altimeter 7

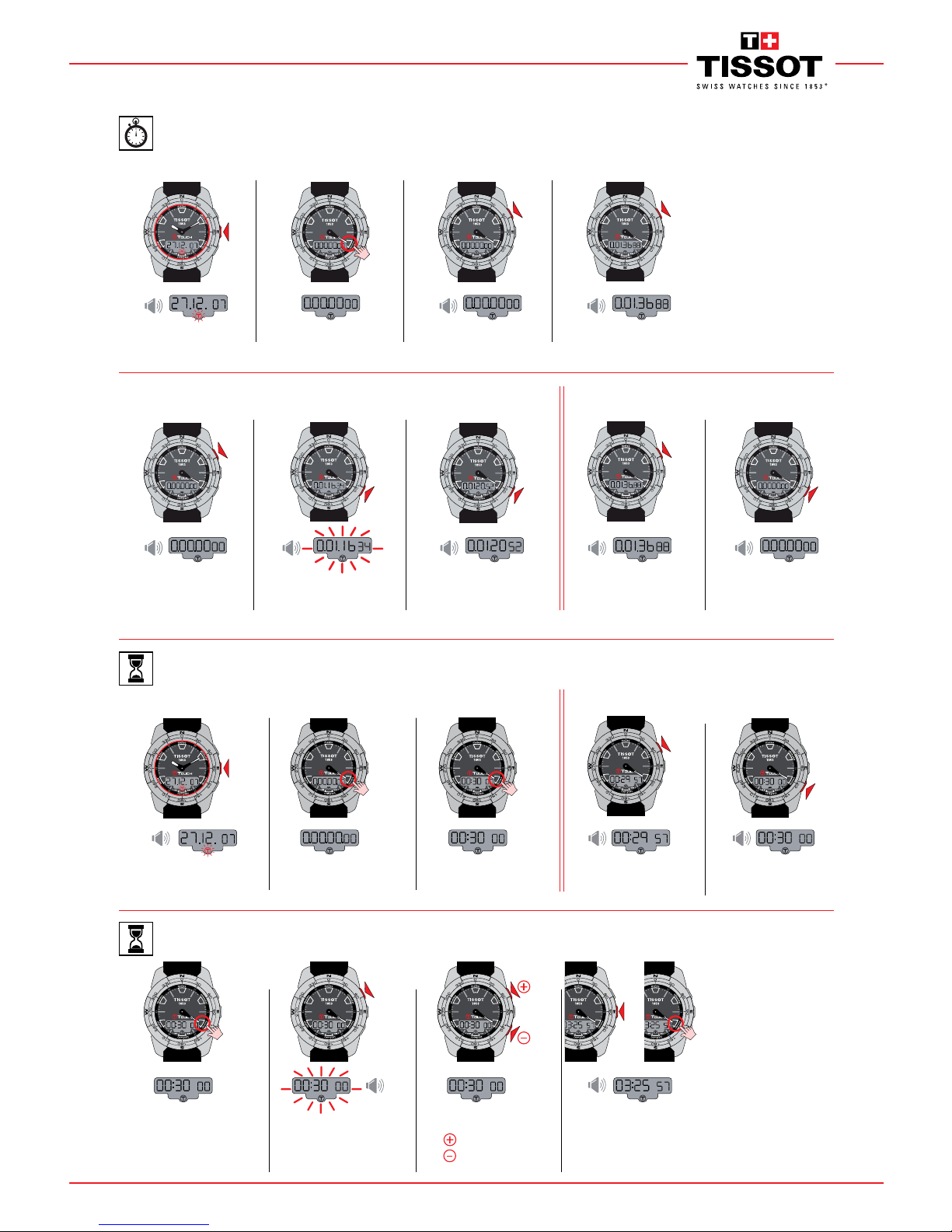

CHRONO – Timer 9
COMPASS – Compass 10

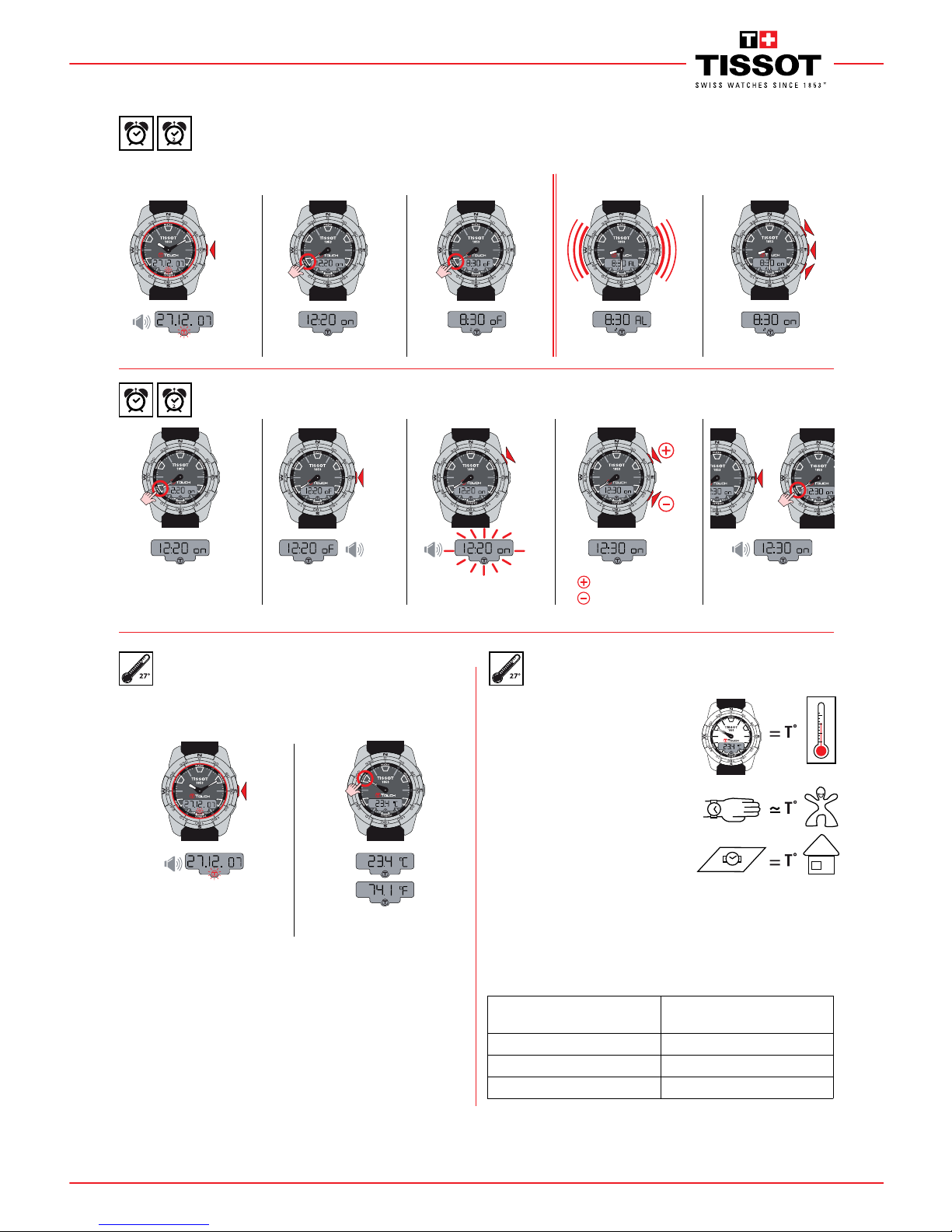

ALARM – Alarm 1 12
ALARM – Alarm 2 12
THERMO – Thermometer 12

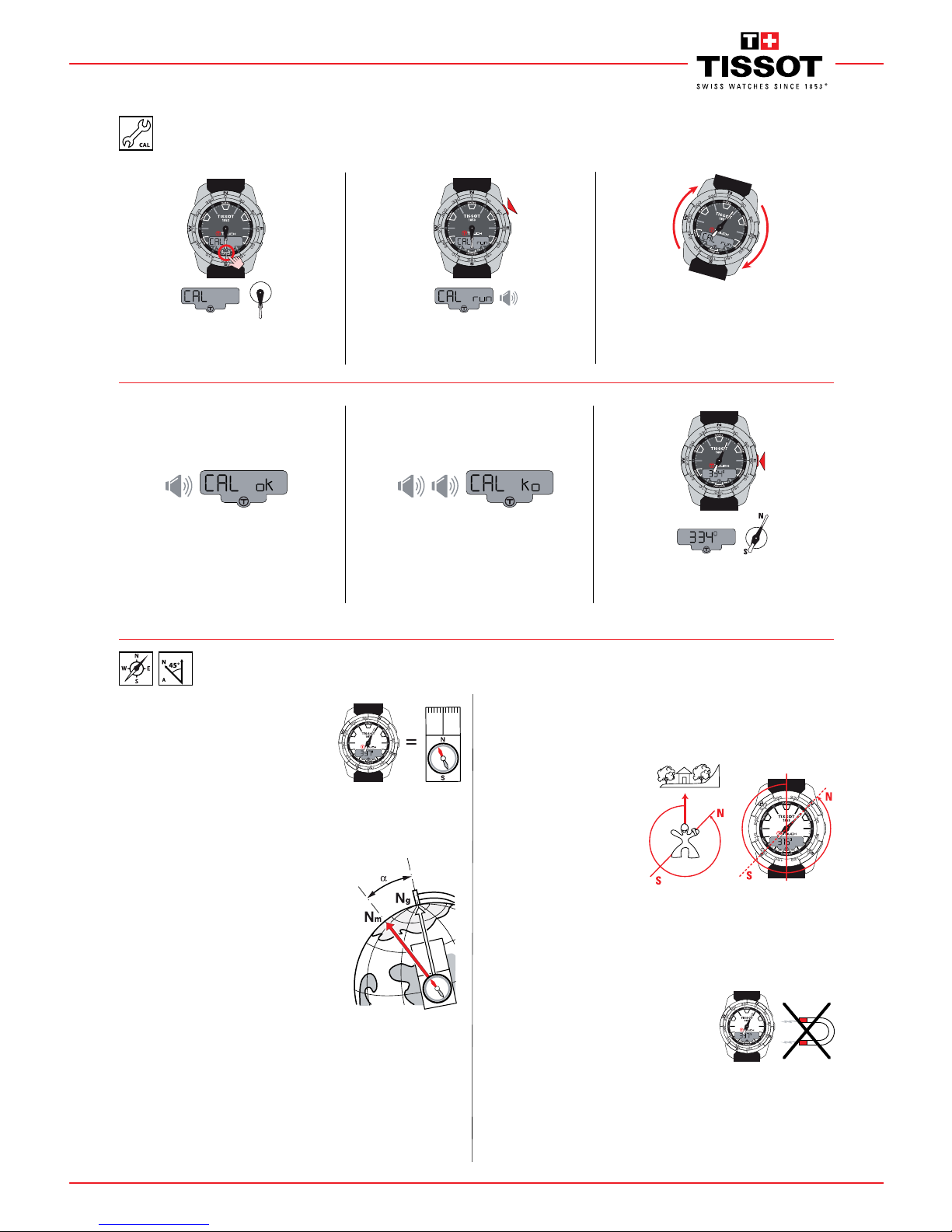

COMPASS – Calibration 11
ALTIMETER – Altitude difference meter 8
CHRONO – Chronograph 9

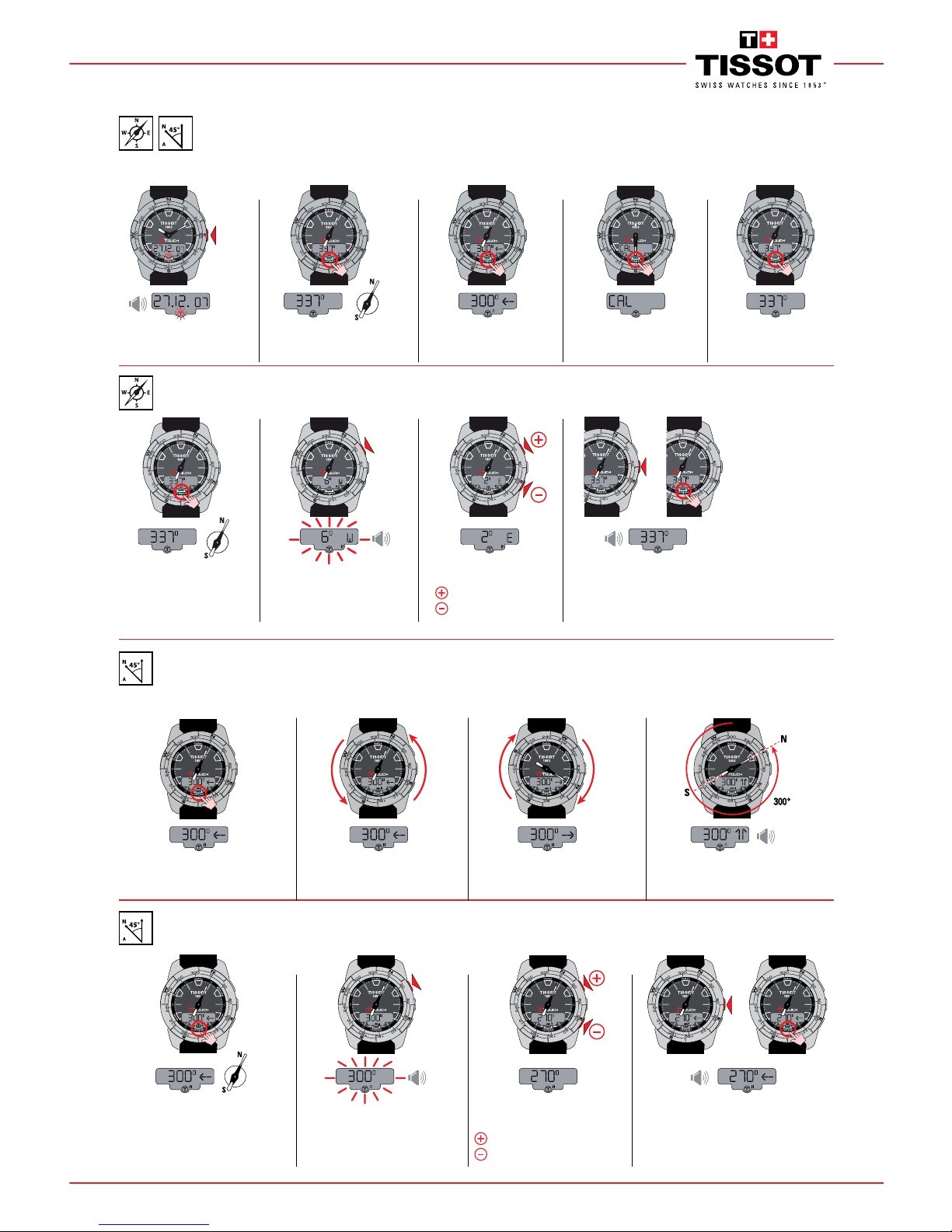

COMPASS – Azimuth 10
2nd function
Battery type: button-type lithium-
manganese dioxide primary
battery cell.

www.tissot.ch 141_EN
3/13
T-TOUCH EXPERT
*

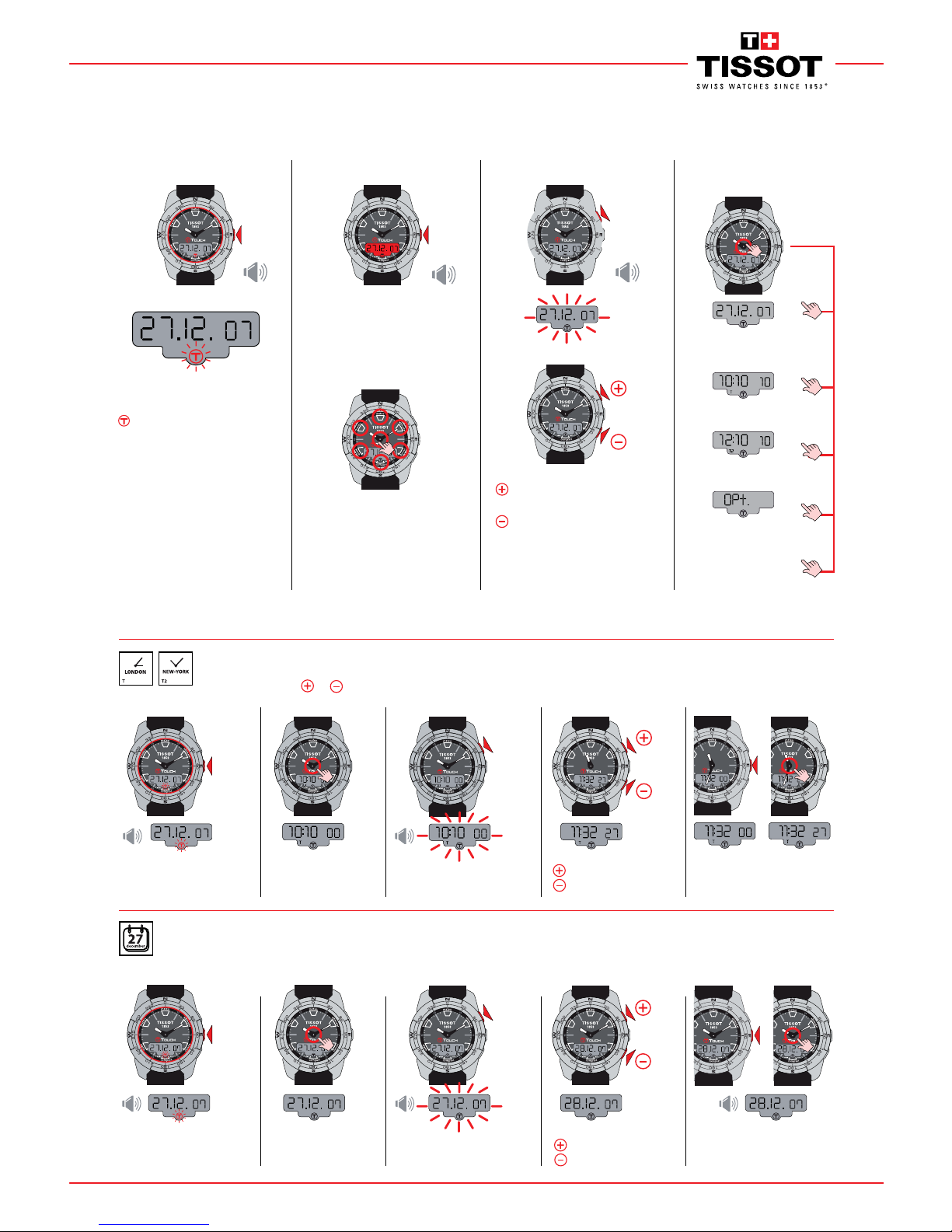

SETTING > TIMES T & T2
SETTING > DATE
Pressing and holding or will move the hands forward or backward. After a full revolution, the minutes hand will stop and the hour
hand advances/reverses in steps of one hour. Time T2 is set in steps of 15 minutes.
Activate glass Time Tor T2 display
(example: T)
Setting mode :forward 1 min.
:back 1 min.
(hands and display)
Validate setting
a) The seconds restart
at zero
b) The seconds continue
Activate glass Date display Validate setting
The calendar is perpetual, i.e. the number of days per month is predefined. In continuous setting, the days scroll past slowly at first, and then
quicker. After a full month, the calendar scrolls in months, and then likewise in years.
1 sec.
1 sec.
2 sec.
2 sec.
or
a) b)
or
or
Setting mode :forward one day
:back one day

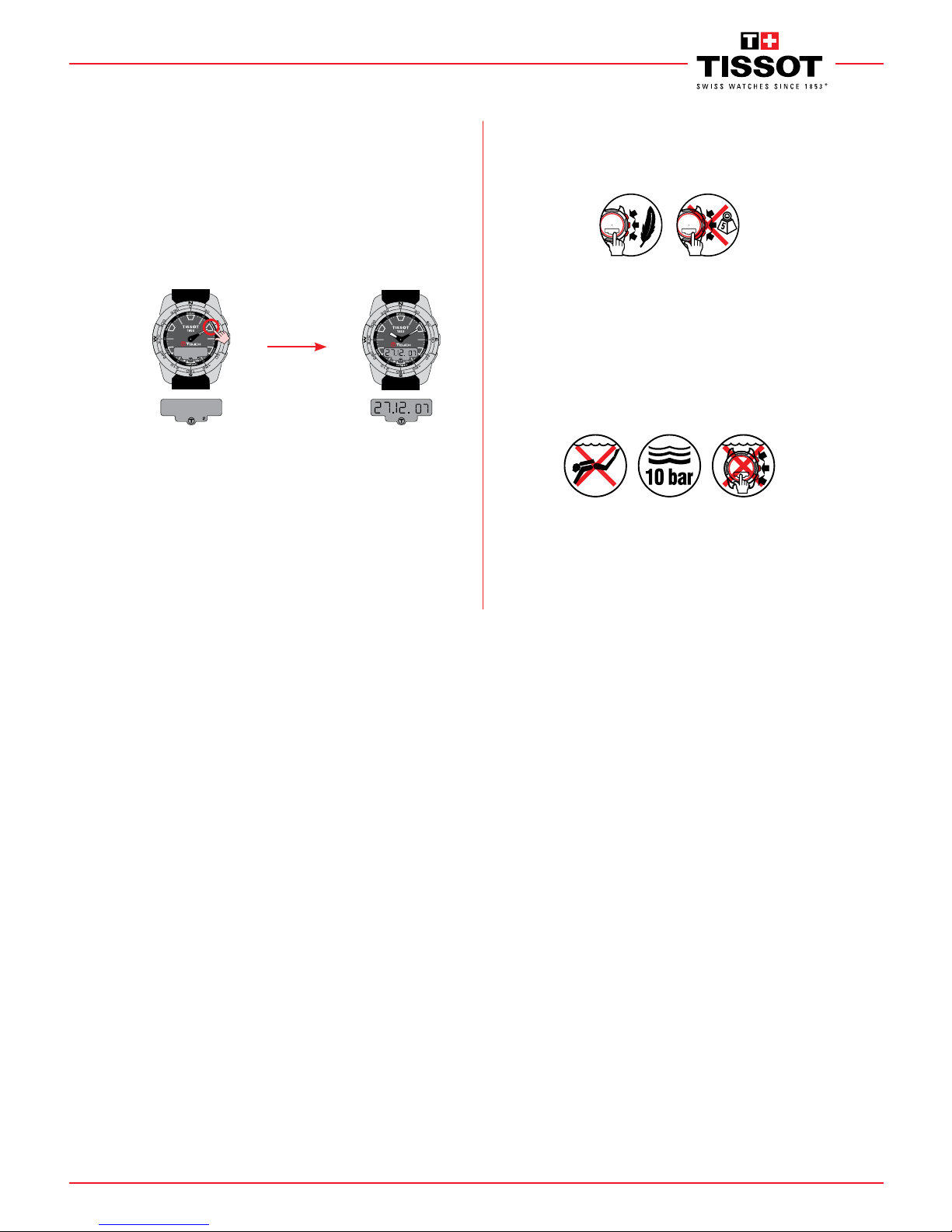

GENERAL USER INFORMATION
Activating the
touch-sensitive glass
Activating the light Setting mode
Select a function
Touch one of the 7 touch-sensitive areas
of the glass to activate the
corresponding function.
Display mode
Activate the glass
When the glass is activated, the
symbol will flash on the digital
display.
If the glass is not touched,
it will automatically deactivate after
15 seconds.
Exception: In compass and altitude
difference meter mode, the glass will
deactivate after 30 seconds
1 sec. 2 sec.
2 sec.
Date display =
Default display
Time 1 display:T
Time 2 display: T2
Options Display
:move display and/or hand
position forward
:move display and/or hand
position backward
If no manipulation for
10 seconds, the setting mode
is deactivated.
The display light will stay on
for 5 seconds.
Return to
Date display
or

www.tissot.ch 141_EN
4/13
T-TOUCH EXPERT
*
Units display
SETTING > UNITS
SETTING > BEEP
Setting mode Select mode 12/24 hours – in
12 hour mode, the letter A
(AM) or P(PM) appears be-
tween minutes and seconds
when setting the time
Select Mode
"º C / m" or "ºF / ft"
Validate setting.
Selecting 12 hour mode
displays the date in the format
12.27.2007 (month, day, year),
and 24 hour mode in the format
27.12.2007 (day, month, year).
Beep display Setting mode Activated = on ,
Deactivated = off
Validate setting
2 sec.
2 sec.
or
Deactivating the sound
silences adjustment beeps
but not the alarms.
or
or
READING > OPTIONS
Activate glass Options display
(see page 3) Switch to sub-menus:
Units display
Automatic switch to
standby mode after
5 seconds
Beep every second
Back to units display At any time: exit sub-menu
– back to date display
Climate zone display
Beep display
1 sec.

www.tissot.ch 141_EN
5/13
T-TOUCH EXPERT
*

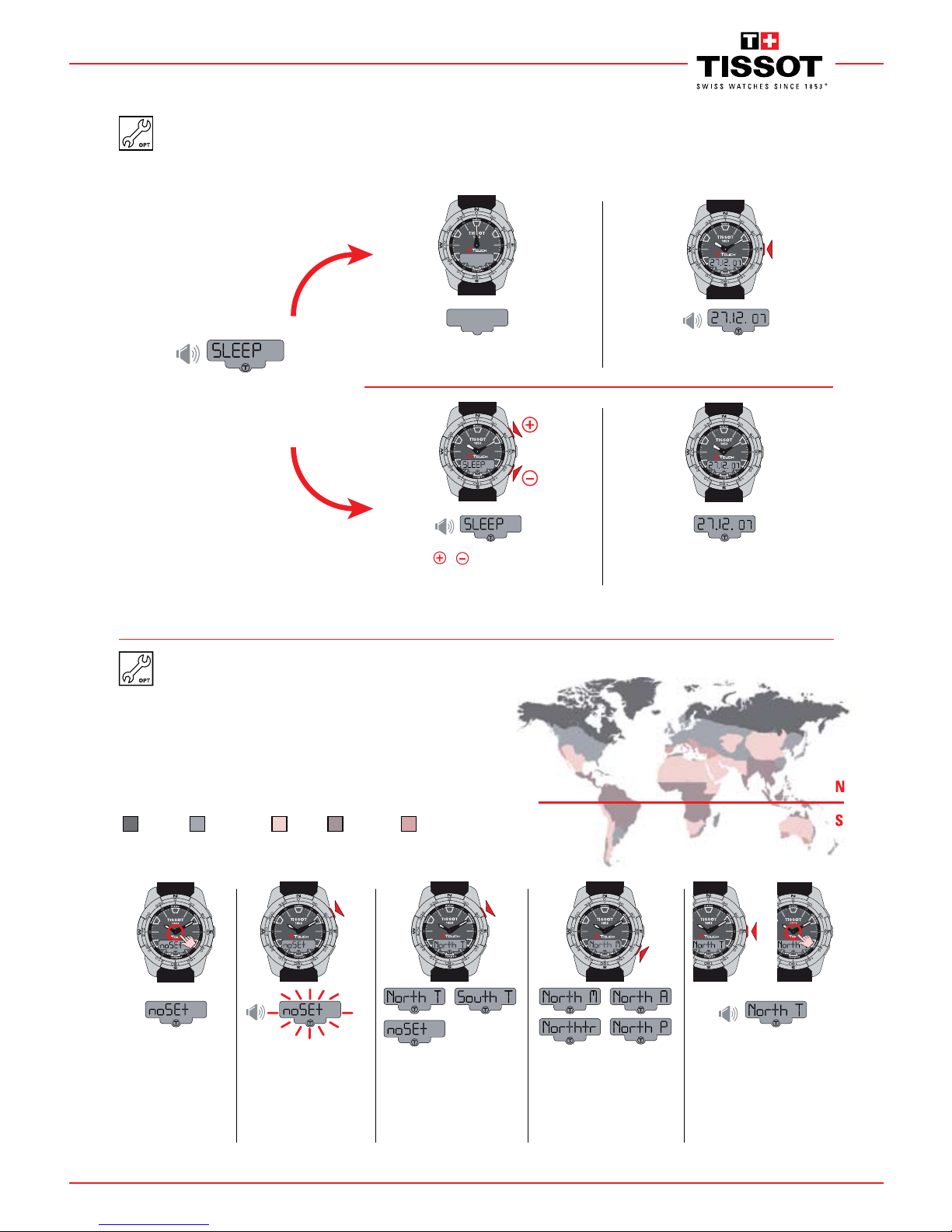

SETTING > HEMISPHERE AND CLIMATE ZONE
To get the best from the altimeter function, it is possible to adjust the
hemisphere and climate zone to your geographic location. Select your
climate zone according to the simplified Koeppen climate classification
(see illustration on right).
If the watch is not set ("No Set"), the standard atmosphere model is used: set
temperature at sea level = 15°C, mean pressure at sea level: 1013.25 hPa
Climate zone display Setting mode Select hemisphere:
North =North,
South =South
not set =not set
Set the local climate:
T= temperate;
M= Mediterranean;
A= arid;
tr = tropical;
P= polar
Validate setting
2 sec.
or
Polar Temperate Arid Tropical Mediterranean
SETTING > STANDBY
Standby mode is a battery economy mode. All the functions are deactivated, with only the time & date counters updated.
This mode economises the battery when the watch is not being worn.
Back to time & date mode
b) / : stop the count,
the watch does not switch to standby mode
a) The watch is in standby
Automatic switch to standby
mode after 10 seconds
Beep every second
Back to time & date mode
or

www.tissot.ch 141_EN
6/13
T-TOUCH EXPERT
*
WEATHER
Activate glass Relative pressure display in hPa
:up one hectopascal
:down one hectopascal Validate setting
Setting this pressure changes the altitude displayed. The possible relative pressure is deliberately limited between 950 hPa and 1100 hPa.
Setting mode
Absolute pressure display in hPa
SETTING > RELATIVE PRESSURE PRESETTING
1 sec.
2 sec.
or or
In weather mode, the hands are superimposed to indicate the weather trend.
SETTING > SYNCHRONISATION
The watch needs to be synchronised if the watch hands do not display the same time as the digital display,
or if they are not correctly superimposed when accessing the functions.
The watch is desynchronised when its electric motor’s mechanism is disturbed due to heavy impacts for
example.
N.B.: The glass must be active to access the synchronisation mode.
Units display Synchronisation
setting mode
The hands should be
perfectly
superimposed in the
12 o'clock position
Position the hour hand
at 12 o'clock
Validate setting Position the minutes
hand at 12 o'clock
Validate setting
Return to Time T
mode
or
or or
Synchronised Desynchronised
5 sec. or

www.tissot.ch 141_EN
7/13
T-TOUCH EXPERT
*
ALTIMETER
Activate glass Altitude display Altitude difference
display
:up 1 m or 3 ft
:down 1 m or 3 ft Validate setting
Setting modeAltitude display
SETTING > ALTITUDE PRESETTING
1 sec.
or or
The altitude is displayed on the digital screen for 4 hours continuously. After 4 hours, the altimeter mode is deactivated, and the
date is displayed.
Description of function

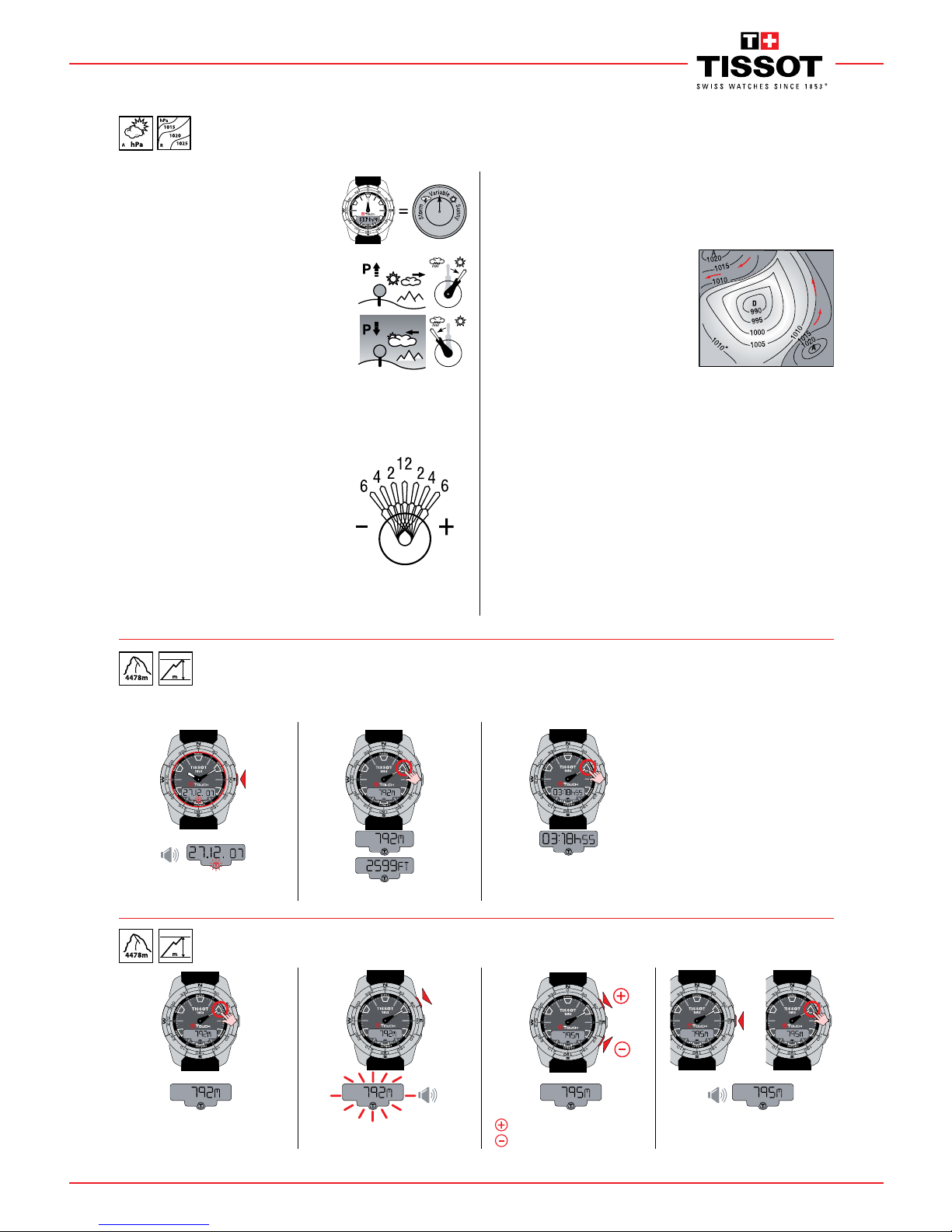

In weather mode, the hands are superimposed to
indicate the weather trend.
Explanations
Weather changes are related to variations in at-
mospheric pressure. When atmospheric pressure
increases the sky clears. The area is then referred
to as a "high pressure" area or "anticyclone" (A).
When atmospheric pressure decreases the sky
clouds over. The area is then referred to as a "low
pressure" area or "depression" (D). The T-TOUCH
measures these pressure variations and indicates
the weather trend with the hands, which can
adopt the following 7 positions according to the weather developments:
- 6’: Big pressure drop, rapid deterioration
- 4’: Moderate pressure drop,
probable deterioration
- 2’: Small pressure drop,
probable slight deterioration
12 o'clock: No notable weather change
+ 2’: Slight pressure rise,
probable slight improvement
+ 4’: Moderate pressure rise,
probable improvement
+ 6’: Big pressure rise,
rapid improvement
GLOSSARY > WEATHER
The T-TOUCH program takes account of atmospheric pressure variation over
the last 6 hours to calculate the trend to indicate. Furthermore, the pressure
variation caused by a rapid change in altitude is detected by the watch and
compensated for automatically. So it only has a minimal impact on the baro-
metric trend.
The T-TOUCH digital display indicates the
absolute and relative atmospheric pressure
values in hectoPascals [hPa]. Absolute at-
mospheric pressure is the actual pressure at
the time and place of measurement, and can-
not be altered. Relative pressure is a value
relative to sea level, based on local abso-
lute atmospheric pressure . Barometers and
weather charts show relative pressure values.
The relative pressure value depends on the climate zone set, and can be preset
on the watch.
The relative pressure presetting is in line with the altitude.
Characteristics of function
Measurement range: absolute pressure: 300 hPa to 1100 hPa
relative pressure: 950 hPa to 1100 hPa
Accuracy: absolute pressure: ± 3 hPa
relative pressure: varies with altimeter
Resolution: 1 hPa
Unit conversion: 1 hectoPascal [hPa] = 1 millibar [mb]

www.tissot.ch 141_EN
8/13
T-TOUCH EXPERT
*
NB!
Due to the use of pressure to calculate altitude, the altimeter is sensitive to
variations in atmospheric pressure in weather changes. It is not uncommon
to observe altitude differences of 100 m in a night. So the value displayed
may vary without the altitude having actually changed.
We advise you to stop the altitude difference meter during rest times and then
restart it, in order to obtain more accurate results.
Note 1: "Presetting" an altimeter means setting
the actual altitude of a known point (see preset-
ting procedure on page 7). The actual altitude
values are indicated on various media: signposts,
contour lines and spot heights on maps. The al-
titude "presetting" is in line with relative atmos-
pheric pressure.
Note 2: In an airliner, since the cabin is pressu-
rised, your altimeter will not indicate an accurate altitude.
Note 3: To optimise the accuracy of your altimeter, you are advised to select
the climate zone, see page 5.
Characteristics of function
Description of function
In altimeter mode, your T-TOUCH becomes a baro-
metric altimeter, displaying the altitude relative to
mean sea level.
Explanations
This is a barometric instrument, which calculates
the altitude as a function of absolute pressure
(atmospheric). As the altitude rises, pressure
drops, and vice versa. So the altimeter meas-
ures the difference between absolute pressure
(atmospheric) and relative pressure (relative to
sea level) to display the altitude. Your T-TOUCH
is temperature compensated, and you can adjust
your geographic location (hemisphere and climate zone). The altitude dis-
played is therefore corrected automatically.
This makes it the ideal instrument for measuring vertical movement with the
altitude difference function (e.g. in mountain trekking). The altitude difference
meter indicates the elapsed time, cumulative gains and losses in altitude and
mean vertical speeds of ascent and descent.
GLOSSARY > ALTIMETER
Weather change = pressure variation = displayed altitude change
4473 m 4473 m 4473 m
-EASUREMENTRANGE nMTOM nFTTOFT
!LTIMETERRESOLUTION M FT
5NITCONVERSION METRE;M=
FEET;FT=
FOOT;FT=
METRES;M=
!LTITUDEDIFFERENCEMETER
MAXMEASUREMENTTIME DAYSHOURSMINUTES
-AXIMUMALTITUDEDIFFERENCE M FT
!LTITUDEDIFFERENCEMETER
RESOLUTION M FT
-AXIMUMVERTICALSPEED MMIN
APPRKMH
FTMIN
APPRMPH
-INIMUMVERTICALSPEED MMINAPPRKMH FTMINAPPRMPH
6ERTICALSPEEDRESOLUTION MMIN FTMIN
-INIMUMVERTICALMOVEMENT M FT
-INIMUMTIMEOFMOVEMENT MINS
GLOSSARY > ALTIMETER
Altitude difference
display
Elapsed time or stopped time
Back: Elapsed time or stopped timeTotal cumulative loss in altitude
during elapsed time
Mean vertical speed of descent
(metres/minute or feet/minute)
Total cumulative gain in altitude
during elapsed time
Mean vertical speed of descent
(metres/minute or feet/minute)
2 sec.
2 sec.
Start Altitude difference meter Stop Altitude difference meter Reset Altitude difference meter
2 sec.
Sequentiallly every 2 seconds
2 sec.
2 sec.
2 sec.

www.tissot.ch 141_EN
9/13
T-TOUCH EXPERT
*
0.00.0000
27.12.07 27.12.07
0.01.1 6 34
0.00.0000
13h4657
0.00.0000
0.01.16 34
0.01.2052
0.01.3688
0.01.2052 0.01.3688
0.00.0000
0.00.0000
CHRONO > TIMER
SETTING > CHRONO > TIMER
Activate glass Chrono display Timer display Start or stop timer Reload the last value
on the timer
Timer display Setting mode :forward
:backward
Validate setting
Measurement range: 23 hrs 59’59’’
1 sec.
oror
Start/Stop
CHRONO
Activate glass Chrono display
b) Restart the chrono
counting the elapsed time
Resolution: 1/100 sec / Measurement range: 99 hrs 59’59’’ and 99/100 sec
Reset chrono
Start chrono
Split (partial time)
a) Flashing stop with partial
time displayed, and chrono
running in background
Stop chrono
Start chrono
Reset
Stop chrono

www.tissot.ch 141_EN
10/13
T-TOUCH EXPERT
*
In compass mode, your T-TOUCH enables you to define and follow an azimuth. To do so, you need only set the azimuth value and align
the watch using the arrows. The 6-12 o’clock axis will indicate the heading to take.
:increase azimuth by 1 degree
:decrease azimuth by 1 degree
Validate setting –
Back to azimuth display
COMPASS > AZIMUTH
SETTING > COMPASS > COMPASS CALIBRATION
Azimuth display
Azimuth display Setting mode
a) Turn the 6-12 o’clock axis left to
align 12 o’clock with the azimuth
b) Turn the 6-12 o’clock axis right to
align 12 o’clock with the azimuth
c) The 6-12 o’clock axis is aligned
with the azimuth
2 sec.
2 sec.
oror
COMPASS
The minutes hand points to True North, factoring in the magnetic declination setting. In compass mode, the digital screen displays
the angle between 12 o'clock and the minutes hand.
1 sec.
Activate glass Compass display Azimuth display
User compass calibration
Back to compass
display
SETTING > COMPASS > MAGNETIC DECLINATION
Compass display :+/- 1 degree East
:+/- 1 degree West
Validate setting
2 sec.
or
Setting mode and magnetic
declination display
or

www.tissot.ch 141_EN
11/13
T-TOUCH EXPERT
*
Azimuth explanations
In azimuth mode, you T-TOUCH indicates the azimuth (heading) that you need
to turn to.
Azimuth explanations
The azimuth is the horizontal angle
between the direction of an object
and True North. The azimuth is
measured from north in degrees
from 0° to 359° (e.g.: East = 90°).
In azimuth mode, the T-TOUCH
emits a beep and visual signal when
the 6-12 o’clock axis of the watch
is aligned with the heading set.
12 o'clock represents the heading
given by the azimuth relative to True North.
Note 1
For a correct indication of North, it is extremely important to hold the watch as
level as possible.
Note 2
The compass function, like any other com-
pass, should not be used near a metal or
magnetic mass. In case of doubt, you can
recalibrate your compass.
Note 3
The rotating bezel, graduated from 0° to 359°, provides another method for
determining the azimuth.
Characteristics of function
Accuracy: ± 8°
Resolution: 2°
Heading
Compass
In compass mode, your T-TOUCH indicates
the True North Pole, factoring in magnetic
declination.
Compass explanations
The vertical lines (meridians) on the Earth converge at the True North Pole
(Ng), indicating its direction. The hand of a conventional compass indicates
the direction of the Magnetic North Pole (Nm).
The angle (α) between these two directions Ng
and Nm is known as magnetic declination. The
magnetic declination value depends on your
location on Earth. Furthermore, the Magnetic
North Pole is constantly moving. So the magnetic
declination value also depends on the date. If the
correct magnetic declination value (for the loca-
tion and date) is set (see the setting procedure on
page 9), the minutes hand of your T-TOUCH
will point to True North (Ng). If the magnetic
declination is set to 0, your T-TOUCH will point to Magnetic north (Nm). The
magnetic declination values and dates are indicated on topographic charts,
or can be found using special software available on the Internet.
For Switzerland: http://www-geol.unine.ch/geomagnetisme/Representation.htm
For the whole world: http://www.ngdc.noaa.gov/seg/geomag/magfield.shtml
GLOSSARY > COMPASS
Heading
Azimuth
315o
Azimuth
315o
SETTING > COMPASS > COMPASS CALIBRATION
Compass
Calibration display
Activate calibration mode
– glass deactivated
during calibration
b) Calibration failed
– repeat calibration
Back to compass display
Turn the watch more than a complete revolution on
a horizontal surface (e.g. a table) in an environment
free from magnetic interference, at a rotation speed
of around 30° per second.
Total time: 20 seconds maximum
a) Calibration successful –
data stored
2 sec.

www.tissot.ch 141_EN
12/13
T-TOUCH EXPERT
*
Activate glass Thermometer display
Description of function
In thermometer mode, your T-TOUCH dis-
plays the ambient temperature.
Explanations
The temperature displayed corresponds to
that of the watch case, so this temperature
is influenced by your body temperature. That
is why the temperature displayed may differ
from the ambient temperature.
To display the actual ambient temperature,
the watch needs to be taken off for 15 to
30 minutes, in order to be free from the influ-
ence of body temperature.
Characteristics of function
The temperature can be displayed in degrees Celsius [°C] or degrees Fahren-
heit [°F]. (See procedure to follow for changing units on page 4).
THERMOMETER
1 sec.
Conversion formulae: T 0C = (T0F -32) x 5/9
T0F = T0C x 9/5 + 32
Measurement range: –5°C to +55°C / 23°F to 130°F
Accuracy: ± 1°C / ± 1.8°F
Resolution: 0.1°C/ 0.2°F
GLOSSARY > THERMOMETER
:time forward
:time backward
ALARM
Activate glass Alarm 1 display Alarm 2 display
Alarm 1 or 2 display Activate or deactivate alarm Setting mode Validate setting
SETTING > ALARM
The 2 alarms are associated with time T. An alarm lasts 30 seconds, without repeating. When the programmed time is reached,
you can stop the alarm by pressing one of the push-buttons.
1 sec.
or or
1 sec.
2 sec.
Alarm rings Stop alarm
Stop alarm
or
or

www.tissot.ch 141_EN
13/13
T-TOUCH EXPERT
*
To activate the functions on your T-TOUCH a gentle press on the push-buttons or
touch on the glass is all that is required. Excessive force may damage the watch.
The brightness of the digital display decreases when the hands are in motion.
In fast continuous setting mode, the display moves at a faster rate (e.g. for date
function: months or years instead of days) than in non-continuous or normal speed
setting mode (e.g. for date: days instead of months or years). To exit fast continu-
ous setting mode, you need to release the push-pieces for 3 seconds to continue
in normal speed setting mode.
The T-TOUCH is water-resistant to 10 bar (100 m / 330 ft) at 25°C / 77°F, but it is
not an instrument suitable for sports diving. You must not use push-buttons when
the watch is underwater. None of the functions can be activated if the glass is in
contact with a liquid.
Additional information in the "International Warranty – Service centers" booklet
SENSOR FAULT
5 sec.
When a function is selected and the display is cleared, it is probably due to a
failure of the selected function's sensor.
Battery type: button-type lithium-manganese dioxide primary battery cell.
Error: the display is cleared Back to date display
If this happens, please contact your retailer.
WARNINGS
