INTRODUCTION
The PCIe-800 PCI Express 8-port serial I/O card is a plugand play high-speed serial I/O
expansion cards for the PCI Express bus. Connecting to a PCI Express bus on your
computer, the PCI Express 8-port serial I/O card instantly adds eight RS-232 serial I/O
communication ports to your system. The PCI Express 8-port serial I/O cards are
designed to utilize the Exar XR17V358 PCI Express to UART chip. The PCIe-800 supports
high-speed data rate up to 921.6kbps. Each serial port is fully compatible with 16C550
UART, with enhanced feature of 256 bytes TX and RX FIFO buffer for higher
performance.
The PCI Express 8-port serial I/O card is an advanced and high efficient solution for
serial data communication and industrial automationapplications.

4
FEATURES
PCI Express 2.0 Gen 1 compliant
PCI Express 1 Lane compliant
16C550 compatibility
256 bytes receive FIFO buffer
256 bytes transmit FIFO buffer
Automatic RTS/CTS or DTR/DSR hardware flow control with programmable
hysteresis
Automatic Xon/Xoff software flow control
Drivers provided for Windows and Linux OS
Wide ambient temperature operation 0°C to 60°C (32°F to 140°F)
CE, FCC approval
Supports eight high speed RS-232 serial ports with data transfer rate up to
921.6kbps
Provides 15KV ESD protection for all serial signals
Eight DB9 male connectors for serial data communication
RS-232 data signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Includes one adapter cable converting a DB62 male connector to eight DB9 male
connectors. Cable length: 1m (OCT-8-DB9)
Optional adapter cable converting a DB62 male connector to eight DB25 male
connectors. Cable length: 1m (OCT-8-DB25)
Optional external serial I/O box with eight DB9 male connectors and link cable.
Cable length: 1.5m (COMBOX-8)
Optional external metal serial I/O box with eight DB25 male connectors and link
cable. Cable length: 1.5m; DIN-rail and panel mountable (COMBOX-8-DB25)

5
SPECIFICATIONS
General
Bus
PCI Express; Single-Lane (×1)
Chipset
EXAR XR17V358
Interface
RS-232
Plug & Play
Supported
IRQ & IO Address
Assigned by system BIOS
Serial Port
No. of Ports
Eight
Connectors & Cables
One DB62 male connector on card
One DB62 male to eight DB9 male adapter cable included
RS-232 Signals
DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Max. Bitrates
921.6kbps
Serial Configuration
Data bits: 5, 6, 7, 8
Parity: None, Odd, Even, Mark, Space
Stop bits: 1, 1.5, 2
UART FIFO Buffer Size
Each port with 256 bytes FIFO for transmit & receive
Environment
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Humidity
0 to 80% RH. Noncondensing
Safety Approvals
CE, FCC

6
PIN-OUT INFORMATION
The following are the connector pin-out for PCIe-800 PCI Express serial I/O card.
RS-232 Pin-out for DB9 Connector
Pin Number
Pin Type
Description
1
Input
DCD: Data Carrier Detect
2
Input
RxD: Receive Data
3
Output
TxD: Transmit Data
4
Output
DTR: Data Terminal Ready
5
Ground
GND: Signal Ground
6
Input
DSR: Data Set Ready
7
Output
RTS: Request to Send
8
Input
CTS: Clear to Send
9
Input
RI: Ring Indicator
Pin-out of DB62 Female Connector for Eight RS-232 Ports

7
INSTALLATION
Windows 8.1/8/7 32-bit & 64-bit Drivers Installation
To install the Windows driver from Device Manager for PCI Express 8-port industrial
serial I/O card, please follow the steps below:
1. Switch off the computer.
2. Insert PCI Express industrial serial I/O card into a free PCI Express Bus slot.
3. Switch on the computer and start Windows OS.
4. Windows OS will automatically detect the PCI Express I/O Card.

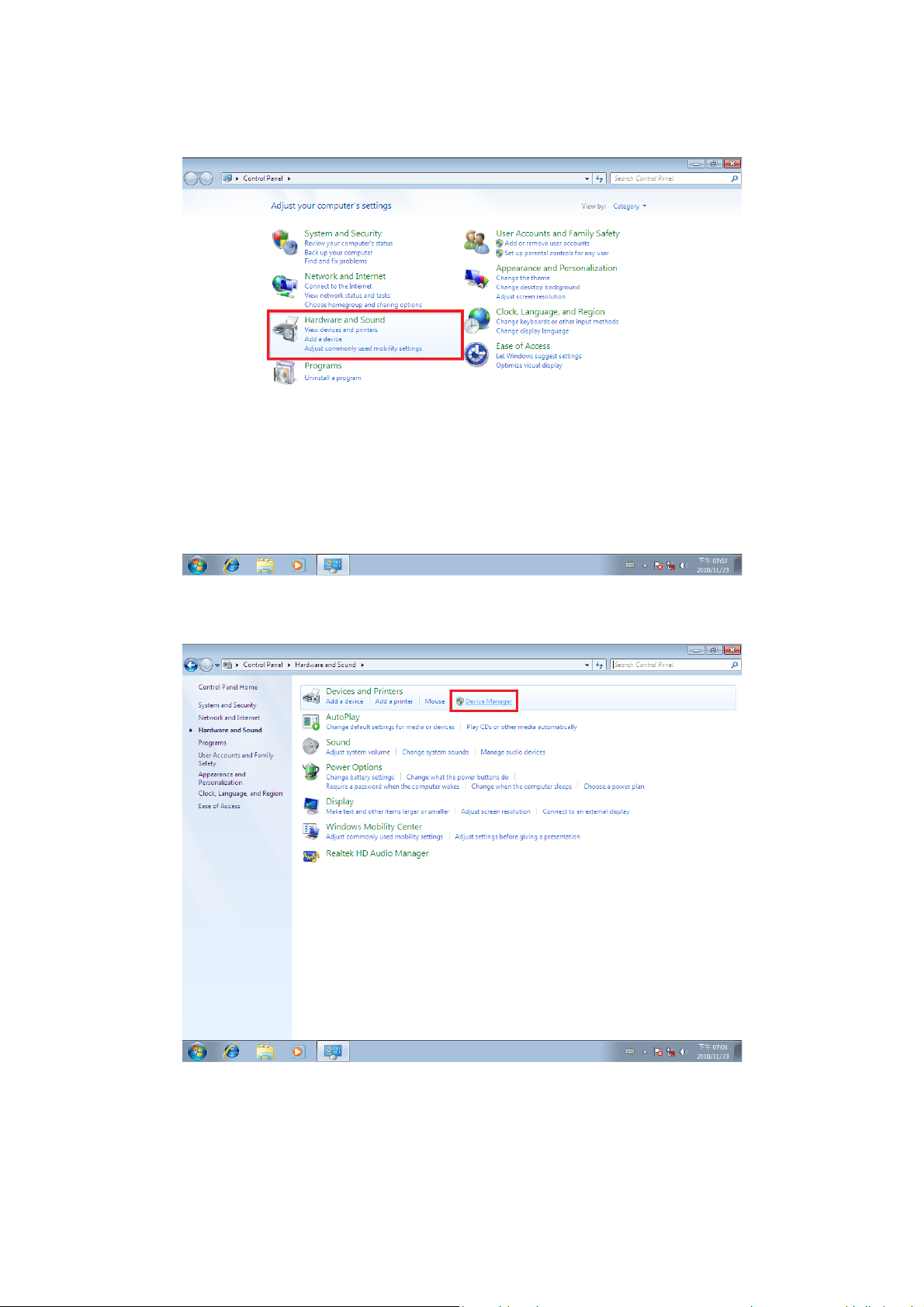

5. Press “START” button and select “Control Panel”.

8
6. Select “Hardware and Sound”.
7. Select “Device Manager”.

9
8. Under “Device Manager” of the system properties, you can find “PCI Serial Port”
attached to “Other devices”. Select “PCI Serial Port”.
9. Select “Action” and execute “Update Driver Software”.

10
10. Click “Browse my computer for driver software”.
11. Insert the driver CD into the CD-ROM or DVD-ROM drive.
12. Select the directory "\PCIe Drivers\x86” for 32 bits Windows OS (“\PCIe
Drivers\x64 for 64 bits Windows OS”) as the target. Click on "OK", and on “Next”
to install driver.

11

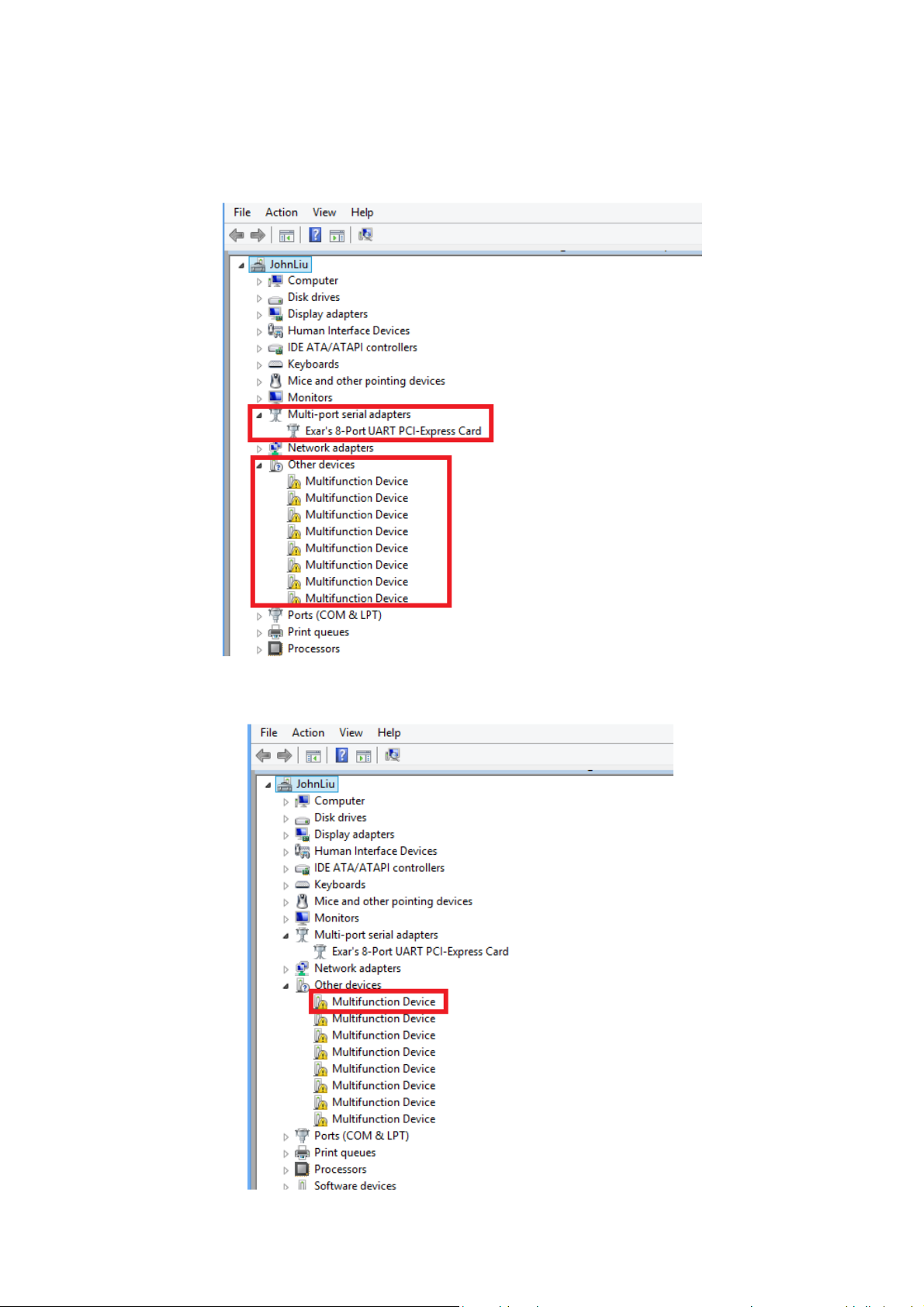

13. After driver installation is done successfully, you will find “Exar’s 8-port UART PCI-
Express Card” and eight instances of “Multifunction Device” under Device
Manager.
14. Select the first “Multifunction Device”.

12
15. Select “Action” and execute “Update Driver Software”.
16. Click “Browse my computer for driver software” again.
17. Select the directory "\PCIe Drivers\x86” for 32 bits Windows OS (“\PCIe
Drivers\x64 for 64 bits Windows OS”) as the target. Click on "OK", and on “Next”
to install COM port driver.

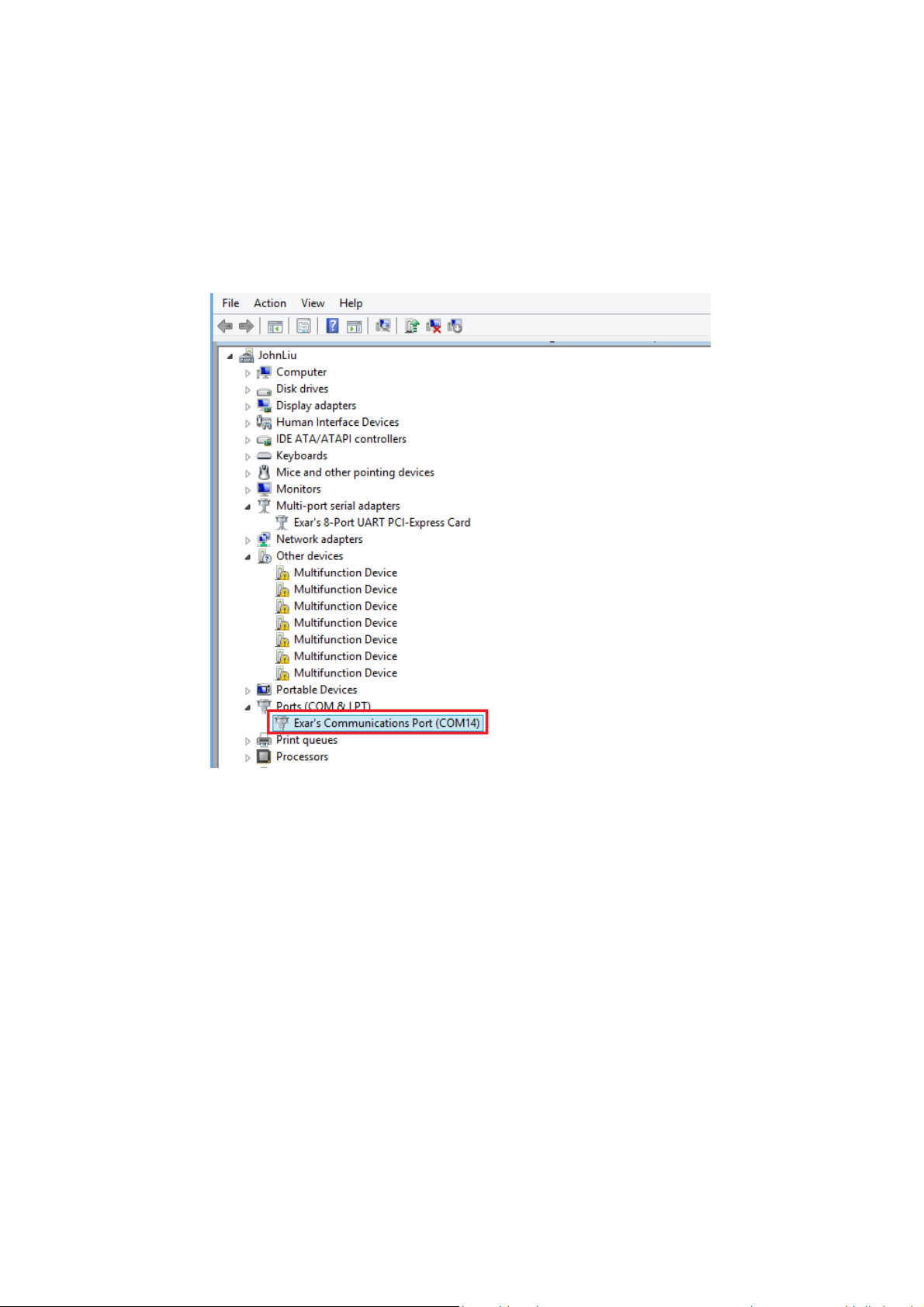

18. After COM port driver installation is done successfully, you can find the first “Exar’s
Communications Port (COMx)” under “Ports (COM & LPT)” in Device Manager.
19. Select the next “Multifunction Device” and repeat steps 15~17 to install all of the
COM port drivers.

13
20. After all COM port driver installations are done successfully, you will find eight
“Exar’s Communications Port (COMx)” under “Ports (COM & LPT)” in Device
Manager.
21. Restart computer to complete installation.

14
UNINSTALLING WINDOWS DRIVERS
To uninstall the Windows driver from Device Manager for PCI Express 8-port serial I/O
card, please follow the steps below:

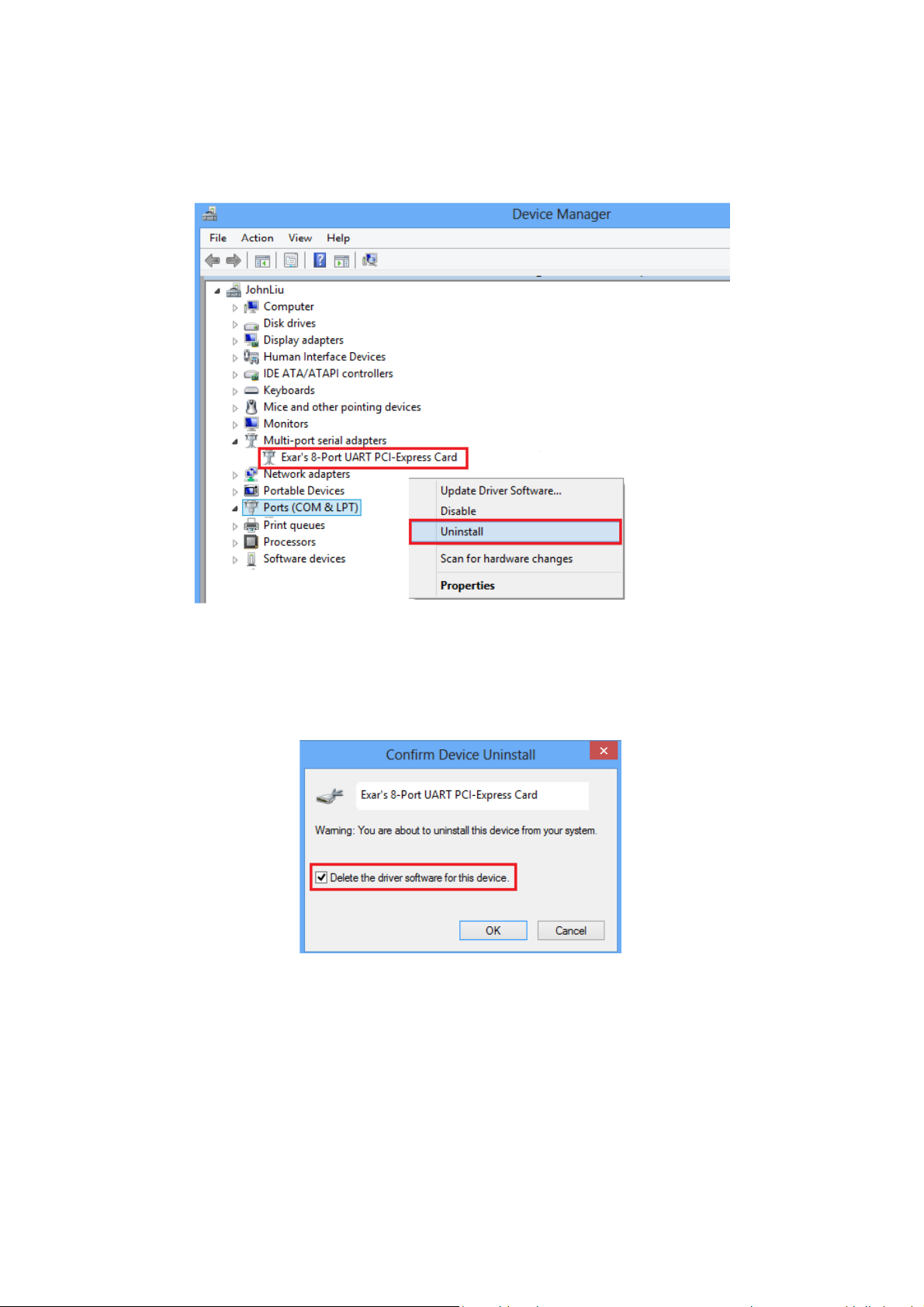

1. Right click on “Exar’s Communications Port (COMx)” under Device Manager and
select “Uninstall” to start Exar’s Communications Port (COMx) driver uninstall.
2. Under the “Confirm Device Uninstall” window, check “Delete the driver software
for this device.” Click “OK” to uninstall the software driver. If there is no “Delete
the driver software for this device” checkbox, just click “OK” to uninstall the
software driver.

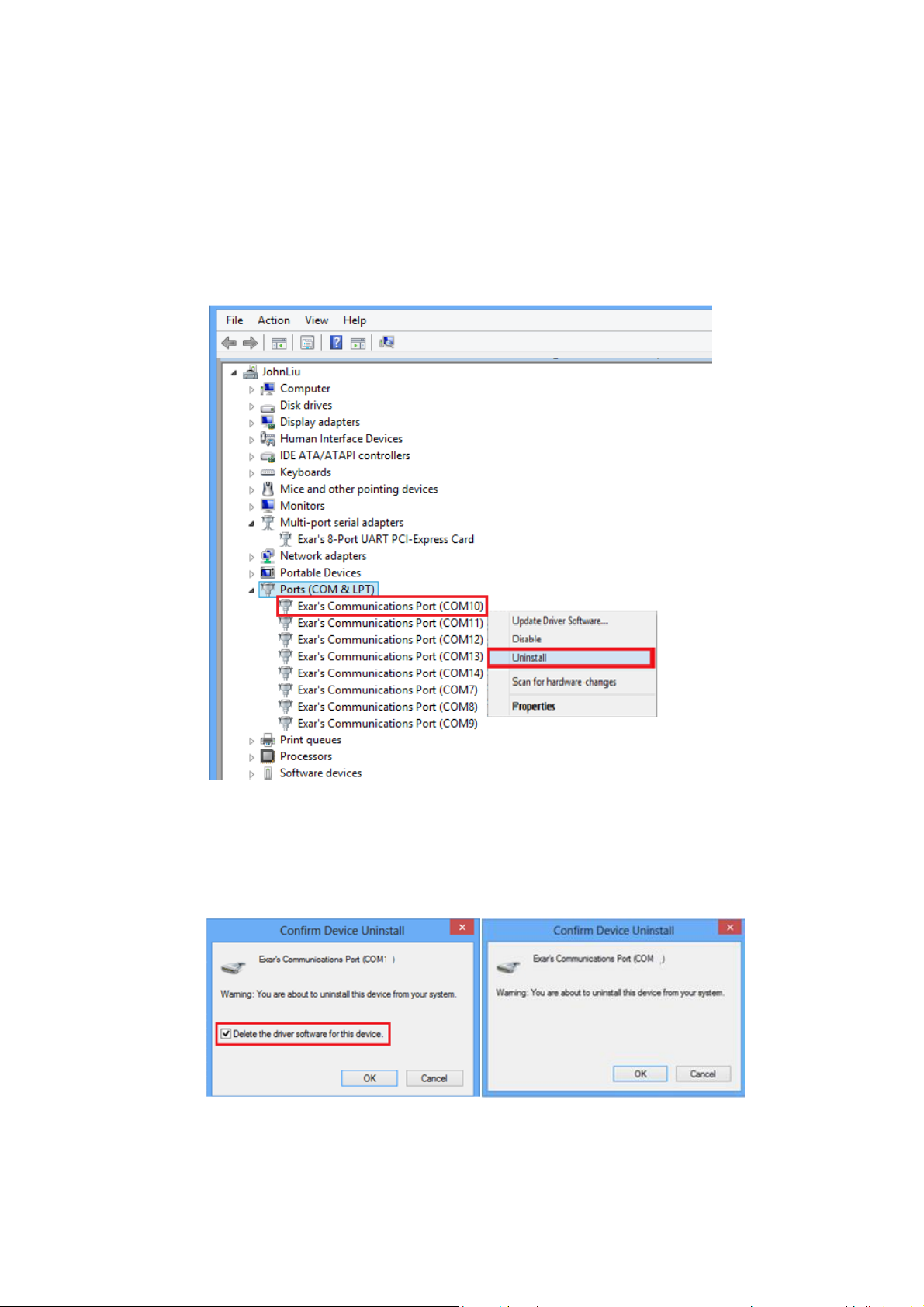

3. Right click on the remaining “Exar’s Communications Port (COMx)” drivers and
repeat steps 1 and 2 to uninstall all Exar’s Communications Port drivers.

15
4. Right click on “Exar’s 8-port UART PCI-Express Card” under Device Manager to and
select “Uninstall” to start uninstalling “Exar’s 8-port UART PCI-Express Card”
software driver.
5. Under the “Confirm Device Uninstall” window, check “Delete the driver software
for this device.” Click “OK” to uninstall the software driver. If there is no “Delete
the driver software for this device.” message, just click “OK” to uninstall the
software driver.
6. If you installed more than one PCI Express 8-port serial I/O cards in your system,
please right click on the other “Exar’s 8-port UART PCI-Express Card” drivers and
repeat steps 4~5 to uninstallall PCI Express 8-port serial I/O cards software drivers.
