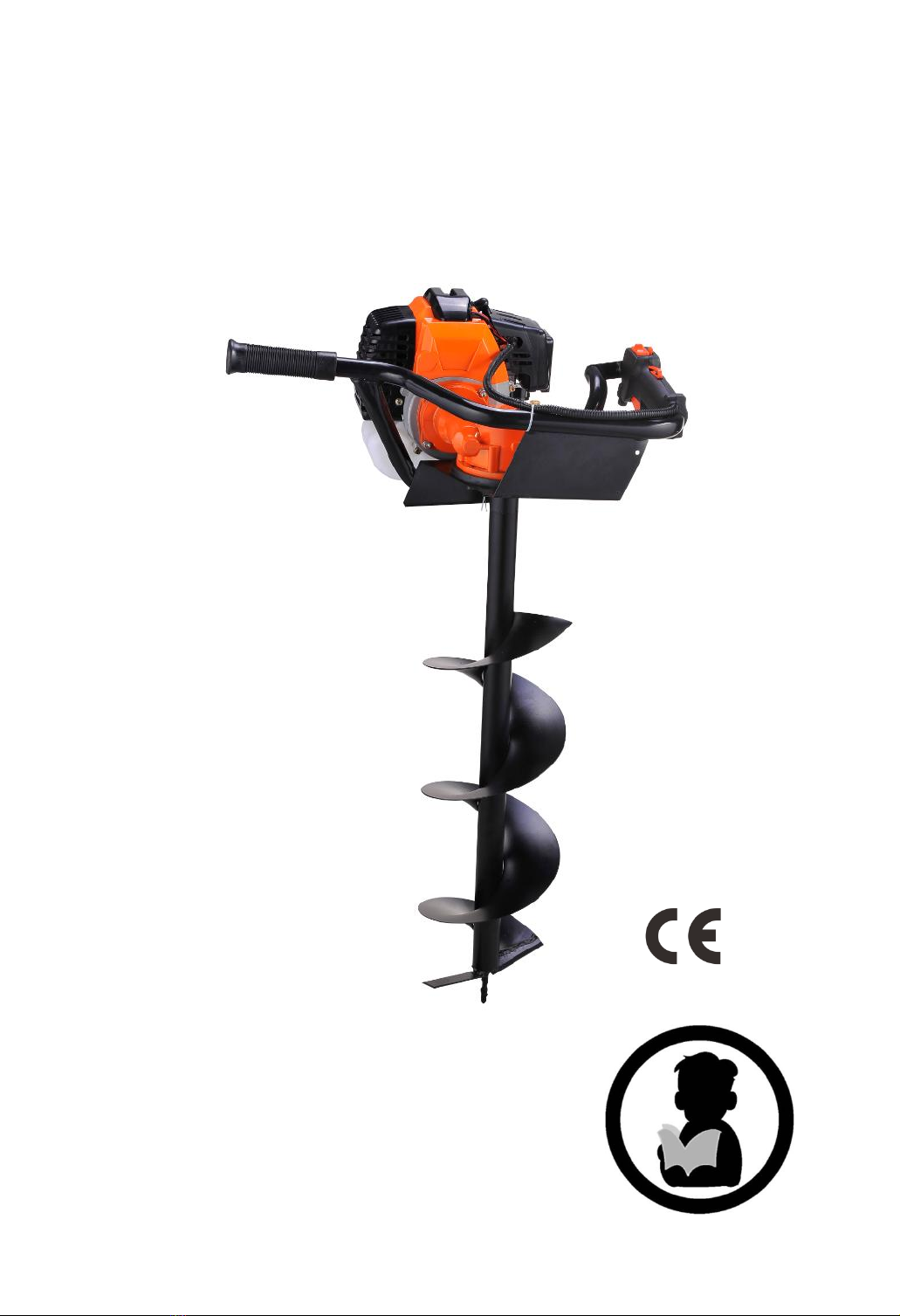

Titan TT-GD520 User manual

INSTRUCTION MANUAL
EARTH AUGER
TT-GD520
DEAR CUSTOMER
In order to achieve the best performance of your product, please read
this instruction manual carefully before using, and keep it for future
reference.

SAFETY FIRST
Instructions contained in warnings within this
manual marked with a symbol concern
critical points which must be taken into
consideration to prevent possible serious bodily
injury, and for this reason you are requested to
read all such instructions carefully and follow
them without fail.
■WARNINGS IN THE MANUAL
WARNING
This mark indicates instructions which must be
followed in order to prevent accidents which
could lead to serious bodily injury or death.
IMPORTANT
This mark indicates instructions which must be
followed, or it leads to mechanical failure,
breakdown, or damage.
NOTE
This mark indicates hints or directions useful in
the use of the product.
CONTENTS
1. Parts location ………………………………………………………………………………………………………………………………3
2. Specifications …………………………………………………………………………………………………………………………4
3. Warning labels on the machine ………………………………………………………………………………………………………5
4. Symbols on the machine …………………………………………………………………………………………………………………5
5. For safe operation …………………………………………………………………………………………………………………………6
6. Fuel………………………………………………………………………………………………………………………………………………11
7. Operation ……………………………………………………………………………………………………………………………………12
8. Maintenance …………………………………………………………………………………………………………………………………14
9. Storage …………………………………………………………………………………………………………………………………………16
10. Troubleshooting guide…………………………………………………………………………………………………………………17

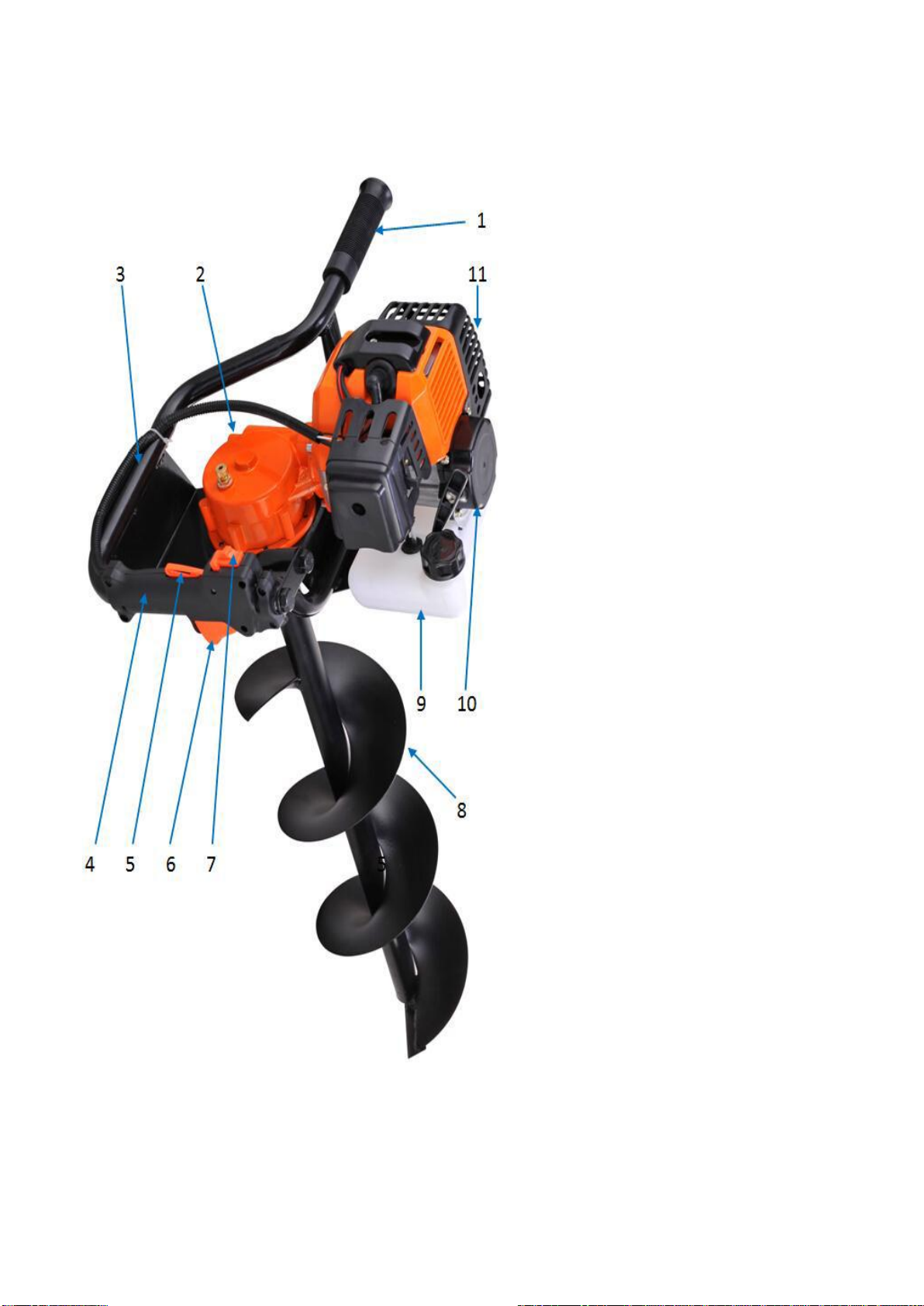

1. Parts location
-----------------------------------------------------------------------------------------------------------------------------------------
1. Left Grip
2. Gearcase
3.Frame
4. Right Grip
5. Throttle lever
6. Throttle set button
7. ON/OFF Switch
8. Driller (optional)
9. Fuel Tank
10. Recoil Stater
11. Engine

2. Specification
------------------------------------------------------------------------------------------------------
Model Number····························································································································TT-GD520
Engine Type······································································································Air-cooled 2-stroke gasoline
Displacement ···································································································································52cm3
Max. output···················································································································· 1.4kw at 7500 rpm
Fuel ···················································································································Mixture(Gasoline 40 : Oil 1)
Carburetor ·························································································································· D i a p h r a g m t y p e
Fuel tank capacity································································································································1.2L
Starter··································································································································· Recoil Starter
Gear box lubricant·········································································································Gear oil SAE#80-90
Net weight ········································································································································10.4kg
Driller size optional·························································································· Diameter 60MM to 300MM
Accessories
Instruction manual ·······························································································································1 pc.
Mixture bottle·······································································································································1 pc.
Tool kit···················································································································································1 set
Specifications are subject to change without notice.

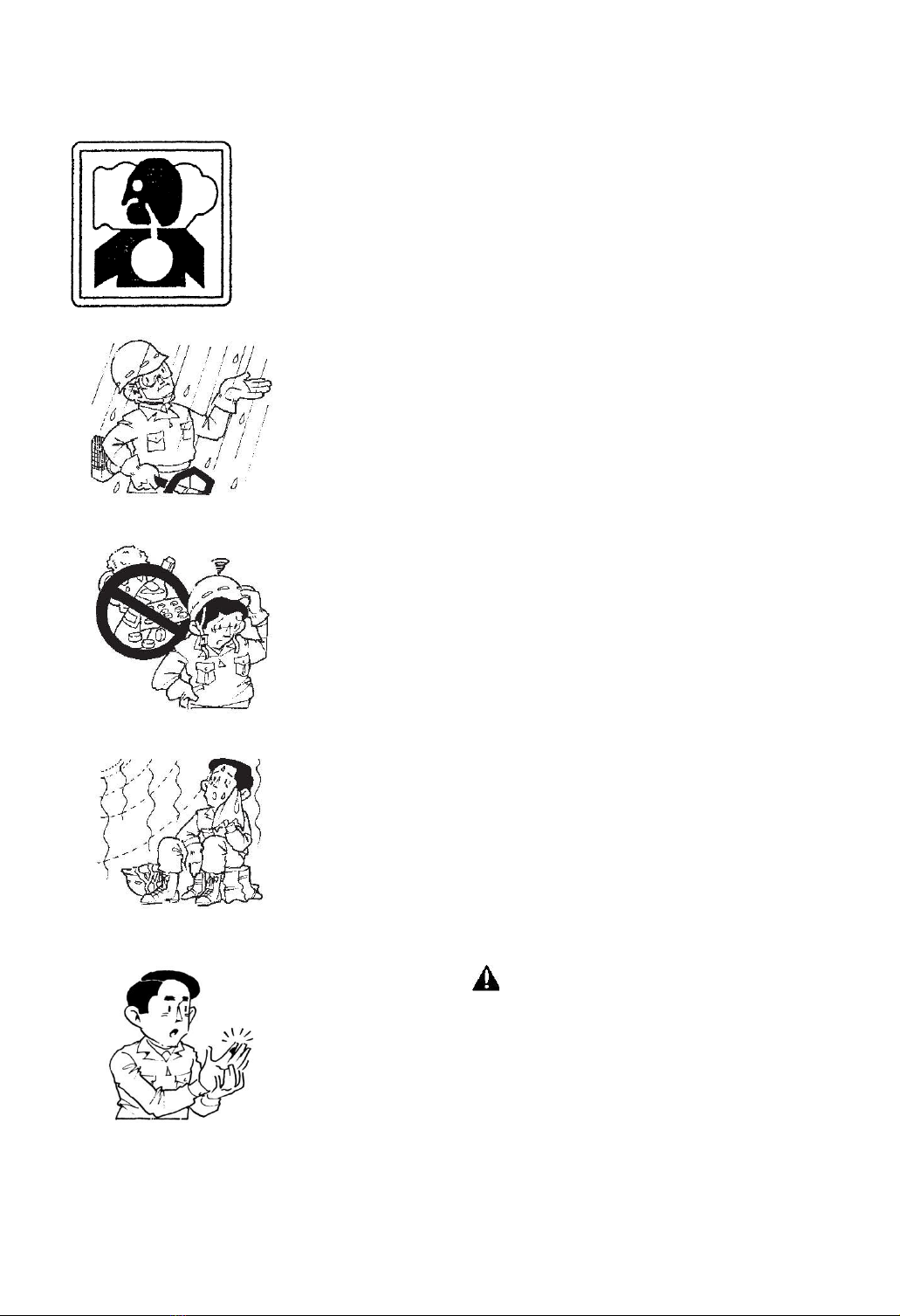

3. Warning labels on the machine
------------------------------------------------------------------------------------------------------
WARNING!
Improper Condition Can Cause
Serious Injury
Don’t work under raining days.
Read the instruction manual
completely and carefully before
using the power tool.
Don’t smoke or allow flames on
the machine
Wear hearing protection!
Danger of hot components
Wear safety glasses!
With this symbol the
manufacturer confirms that this
tool is in accordance with
applicable European directives.
Wear safety footwear
The guaranteed noise level
Wear protective gloves.
IMPORTANT
If warning label peel off or become soiled and impossible to read, you should contact the dealer from
which you purchased the product to order new labels and affix them in the required location(s).
WARNING
Never modify your product. We won't warrant the machine, if you use the remodeled brush cutter or
you don't observe the proper usage written in the manual.
4. Symbols on the machine
-----------------------------------------------------------------------------------------------------------------------------------------
For safe operation and maintenance, symbols are carved in relief on the machine. According to these
indications, please be careful not to make a mistake.
(a) The port to refuel the "MIX GASOLINE"
Position: FUEL TANK CAP
(b) The direction to close the choke
Position: AIR CLEANER COVER
(c) The direction to open the choke
Position: AIR CLEANER COVER

5. For safe operation
-----------------------------------------------------------------------------------------------------------------------------------------
1. Read this manual carefully until you
completely understand and follow all safety and
operating instructions.
2. Keep this manual handy so that you may refer
to it later whenever any questions arise. Also
note, if you have any questions which cannot be
answered herein, contact the dealer from whom
you purchased the product.
3. Always be sure to include this manual when
selling, lending, or otherwise transferring the
ownership of this product.
4. Never allow children or anyone unable to fully
understand the directions given in the manual to
use the machine.
■WORKING CONDITION
1. When using the product, you should wear
proper clothing and protective equipment.
(1) Helmet
(2) Ear protectors
(3) Protection goggles or face protector
(4) Thick work gloves
(5) Non-slip-sole work boots
2. And you should carry with you.
(1) Attached tools and files
(2) Properly reserved fuel
(3) Spare blade
(4) Things to notify your working area (rope,
warning signs)
(5) Whistle (for collaboration or emergency)
(6) Hatchet or saw (for removal of obstacles)
3. Do not wear loose clothing, jewelry, short
trousers, sandals, or go barefoot. Do not wear
anything which might be caught by a moving
part of the unit. Secure hair so it is above
shoulder length.

5. For safe operation
-----------------------------------------------------------------------------------------------------------------------------------------
■WORKING CIRCUMSTANCE
1. Never start the engine inside a closed room or
building. Exhaust gases contain dangerous
carbon monoxide.
2. Never use the product,
a. when the ground is slippery or when you
can’t maintain a steady posture.
b. At night, at times of heavy fog, or at any
other times when your field of vision might be
limited and it would be difficult to gain a clear
view of the working area.
c. During rain storms, during lightning storms,
at times of strong or gale-force winds, or at any
other times when weather conditions might
make it unsafe to use the product.
■WORKING PLAN
1. You should never use the product when under
the influence of alcohol, when suffering from
exhaustion or lack of sleep, when suffering from
drowsiness as a result of having taken cold
medicine or at any other time when a possibility
exists that your judgment might be impaired or
that you might not be able to operate the
product properly and in a safe manner.
2. When planning your work schedule, allow
plenty of time to rest. Limit the amount of time
over which the product is to be used
continuously to somewhere around 30~40
minutes per session, and take 10~20 minutes of
rest between work sessions. Also try to keep the
total amount of work performed in a single day
under 2 hours or less.
WARNING
1. If you don’t observe the working time, or
working manner (See ■USING THE
PRODUCT), Repetitive Stress Injury (RSI)
could occur. If you feel discomfort, redness
and swelling of your fingers or any other
part of your body, see a doctor before
getting worse.

5. For safe operation
-----------------------------------------------------------------------------------------------------------------------------------------
2. To avoid noise complaints, in general,
operate product between 8a.m. and 5p.m.
on weekdays and 9a.m. to 5p.m. weekends.
NOTE
Check and follow the local regulations as to
sound level and hours of operations for the
product.
■BEFORE STARTING THE ENGINE
1. The area within a perimeter of 50 feet (15m)
of the person using the product should be
considered a hazardous area into which no one
should enter. If necessary, yellow warning rope,
warning signs should be placed around the
perimeter of the area. When work is to be
performed simultaneously by two or more
persons, care should also be taken to constantly
look around or otherwise check for the presence
and locations of other people working so as to
maintain a distance between each person
sufficient to ensure safety.
2. Check the condition of working area to avoid
any accident by hitting hidden obstacles such as
stumps, stones, cans, or broken grass.
IMPORTANT
Remove any obstacle before beginning work.
3. Inspect the entire unit for loose fasteners and
fuel leakage. Make sure that the driller is
properly installed and securely fastened.
■STARTING THE ENGINE
1. Keep bystanders and animals at least 50feet
(15m) away from the operating point. If you are
approached, immediately stop the engine.
2. The product is equipped with a centrifugal
clutch mechanism, so the driller begins to rotate
as soon as the engine is started by putting the
throttle into the start position. When starting the
engine, place the product onto the ground in a
flat clear area and hold it firmly in place so as to
ensure that neither the driller nor the throttle
come into contact with any obstacle when the
engine starts.

5. For safe operation
-----------------------------------------------------------------------------------------------------------------------------------------
WARNING
Never place the throttle into the high speed
position when starting the engine.
3. After starting the engine, check to make sure
that the cutting attachment stops rotating when
the throttle is moved fully back to its original
position. If it continues to rotate even after the
throttle has been moved fully back, turn off the
engine and take the unit to your authorized
servicing dealer for repair.

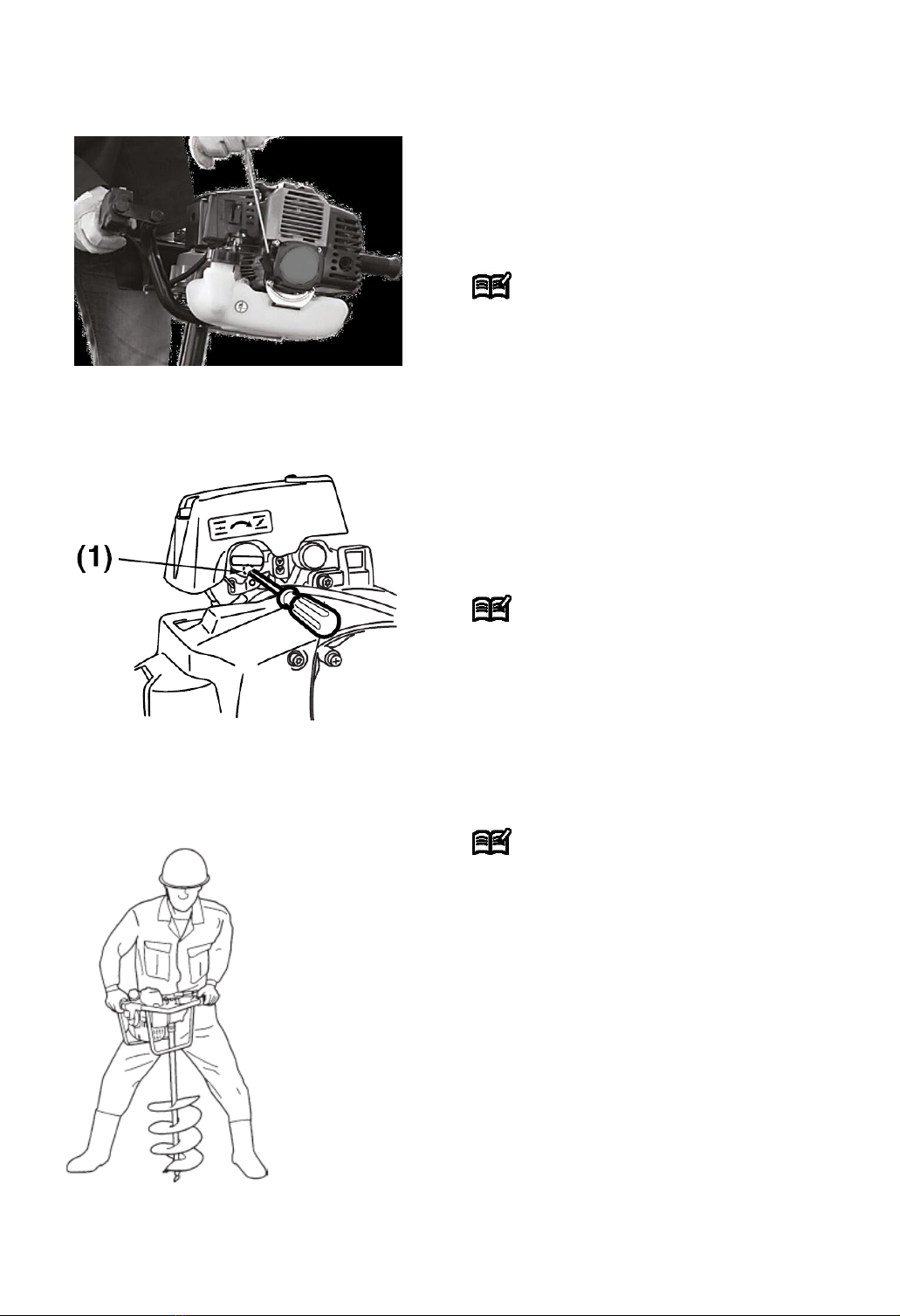

■USING THE PRODUCT
IMPORTANT
Drill only materials recommended by the
manufacturer. And use only for tasks explained
in the manual.
1. Grip the handles firmly with both hands using
your whole hand. Place your feet slightly apart
(slightly further apart than the width of your
shoulders) so that your weight is distributed
evenly across both legs, and always be sure to
maintain a steady, even posture while working.
2. Maintain the speed of the engine at the level
required to perform drilling work, and never
raise the speed of the engine above the level
necessary.
3. If the unit start to shake or vibrate, turn off
the engine and check the whole unit. Do not use
it until the trouble has been properly corrected.
5. Keep all parts of your body away from rotating
cutting attachment and hot surfaces.
6. Never touch the muffler, spark plug, or other
metallic parts of the engine while the engine is in
operation or immediately after shutting down
the engine. Doing so could result in serious
burns or electrical shock.

4. For safe operation
-----------------------------------------------------------------------------------------------------------------------------------------
• IF SOMEONE COMES
1. Guard against hazardous situations at all times.
Warn adults to keep pets and children away from
the area. Be careful if you are approached. Injury
may result from flying debris.
2. If someone calls out or otherwise interrupts
you while working, always be sure to turn off the
engine before turning around.
■MAINTENANCE
1. In order to maintain your product in proper
working order, perform the maintenance and
checking operations described in the manual at
regular intervals.
2. Always be sure to turn off the engine before
performing any maintenance or checking
procedures.
WARNING
The metallic parts reach high temperatures
immediately after stopping the engine.
3. Under no circumstances should you ever take
apart the product or alter it in any way. Doing so
might result in the product becoming damaged
during operation or the product becoming
unable to operate properly.
■HANDLING FUEL
1. The engine of the product is designed to run
on a mixed fuel which contains highly flammable
gasoline. Never store cans of fuel or refill the
tank of the unit in any place where there is a
boiler, stove, wood fire, electrical sparks, welding
sparks, or any other source of heat or fire which
might ignite the fuel.
2. Never smoke while operating the unit or
refilling its fuel tank.

5. For safe operation
-----------------------------------------------------------------------------------------------------------------------------------------
3. When refilling the tank, always turn off the
engine and allow it to cool down. Take a careful
look around to make sure that there are no
sparks or open flames anywhere nearby before
refueling.
4. Wipe spilled fuel completely using a dry rag if
any fuel spillage occurs during refueling.
5. After refueling, screw the fuel cap back tightly
onto the fuel tank and then carry the unit to a
spot 10feet (3m) or more away from where it
was refueled before turning on the engine.
■TRANSPORTATION
1. When hand-carrying the product, cover over
the cutting part if necessary, lift up the product
and carry it paying attention to the blade.
2. Never transport the product over rough roads
over long distances by vehicle without removing
all fuel from the fuel tank. If doing so, fuel might
leak from the tank during transport.
6. Fuel
WARNING
• Gasoline is very flammable. Avoid smoking or
bringing any flame or sparks near fuel.
• Wipe up all spills before starting the engine.
• Make sure to stop the engine and allow it cool
before refueling the unit.
• Keep open flames away from the area where
fuel is handled or stored.
IMPORTANT
• Never use oil for 4 cycle engine use or water
cooled 2-cycle engine.
• Never use "FUEL WITH NO OIL (RAW
GASOLINE)".
• Never use fuel laced with water.
• Mixed fuels which have been left unused for a
period of one month or more may clog the
carburetor or result in the engine failing to
operate properly. Put remained fuel into an
air-tight container and keep it in the dark and
cool room.
• Please ask for “mixed gasoline for air-cooled
2-cycle engines” at your nearest gas station, or
use fuel made by putting unleaded gasoline for
automobiles and air-cooled 2-cycle engine oil
into a mixing container in accordance with the
following ratios and then shaking to mix well.
Mixing ratios:
When using commercially available 2-cycle oil
(FB grade):
40:1
(100 ml of oil for every 4 liters of gasoline)

7. Operation
-----------------------------------------------------------------------------------------------------------------------------------------
01
02
03
04

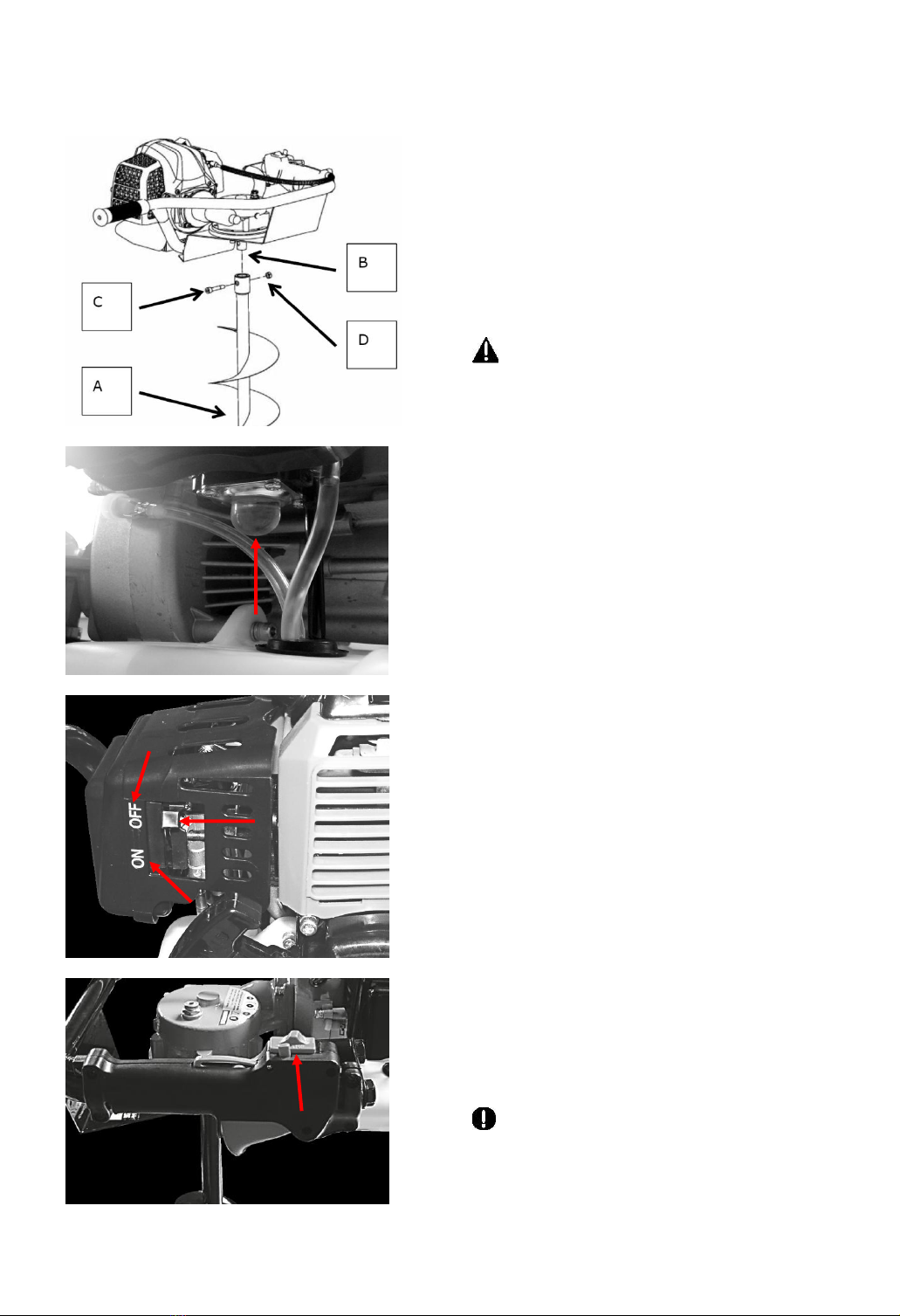

■INSTALLING DRILLER (01)
1. Insert the driller (A) on the drive shaft (B).
2. Connect the driller (A) using the screw (C)
and with the drive shaft (B) of the gearcase
and screw it with the nut (D).
■STARTING ENGINE
WARNING
The driller will start rotating upon the engine
starts.
1. Feed fuel into the fuel tank and tighten the
cap securely.
2. Rest the unit on a flat, firm place. Keep the
driller off the ground and clear of
surrounding objects as it will start rotating
upon starting of the engine.
3. Push the primer pump several times until
overflown fuel flows out in the return tube.
(02)
4. Move the choke lever to the OFF position.
(03)
(1) Choke lever (2) OFF position
(3) ON position
5. Set the ignition switch to the “start” position.
While pulling the throttle lever, push the
throttle set button, and release the throttle,
then the throttle lever is into the “Start
position. (04)
(1) Ignition switch (2) Stop
(3) Start
6. While holding the unit firmly, pull out the
starter rope quickly until engine fires. (05)
IMPORTANT
• Avoid pulling the rope to its end or
returning it by releasing the knob. Such actions
can cause starter failures.

7. Operation
-----------------------------------------------------------------------------------------------------------------------------------------
05
06
7. Move the choke lever to the ON position
(03). And pull out the starter rope quickly to
restart engine.
8. Allow the engine to warm up for several
minutes before starting operation.
NOTE
1. When restarting the engine immediately
after stopping it, leave the choke ON (03)
2. Overchoking can make the engine hard to
start due to excess fuel. When the engine
failed to start after several attempts, open
the choke and repeat pulling the rope, or
remove the spark plug and dry it.
■STOPPING ENGINE
1. Release the throttle lever and run the engine
for a half minute.
2. Shift the ignition switch to the STOP position.
NOTE
• Except for an emergency, avoid stopping the
engine while pulling the throttle lever.
■ADJUSTING IDLING SPEED (06)
1. When the engine tends stop frequently at
idling mode, turn the adjusting screw clockwise.
2. When the cutting head keeps rotating after
releasing the trigger, turn the adjusting screw
NOTE
• Warm up the engine before adjusting the
idling speed.
■DRILLING
•Keep a firm grip of the auger at all times on a
wide stance and by holding the handle with both
hands.
•A reacting motion may occur on the auger
when spinning driller has hit on stones or tree
roots under the ground. Always hold the auger
securely to control such motion.
•Start drilling with half-throttle, and gradually
increase the engine speed so that the driller may
get into the ground smoothly.
•When the drill has been caught in the ground
and cannot be pulled out, stop the engine and
rotate the auger counter-clockwise.

8. Maintenance
-------------------------------------------------------------------------------------------------------

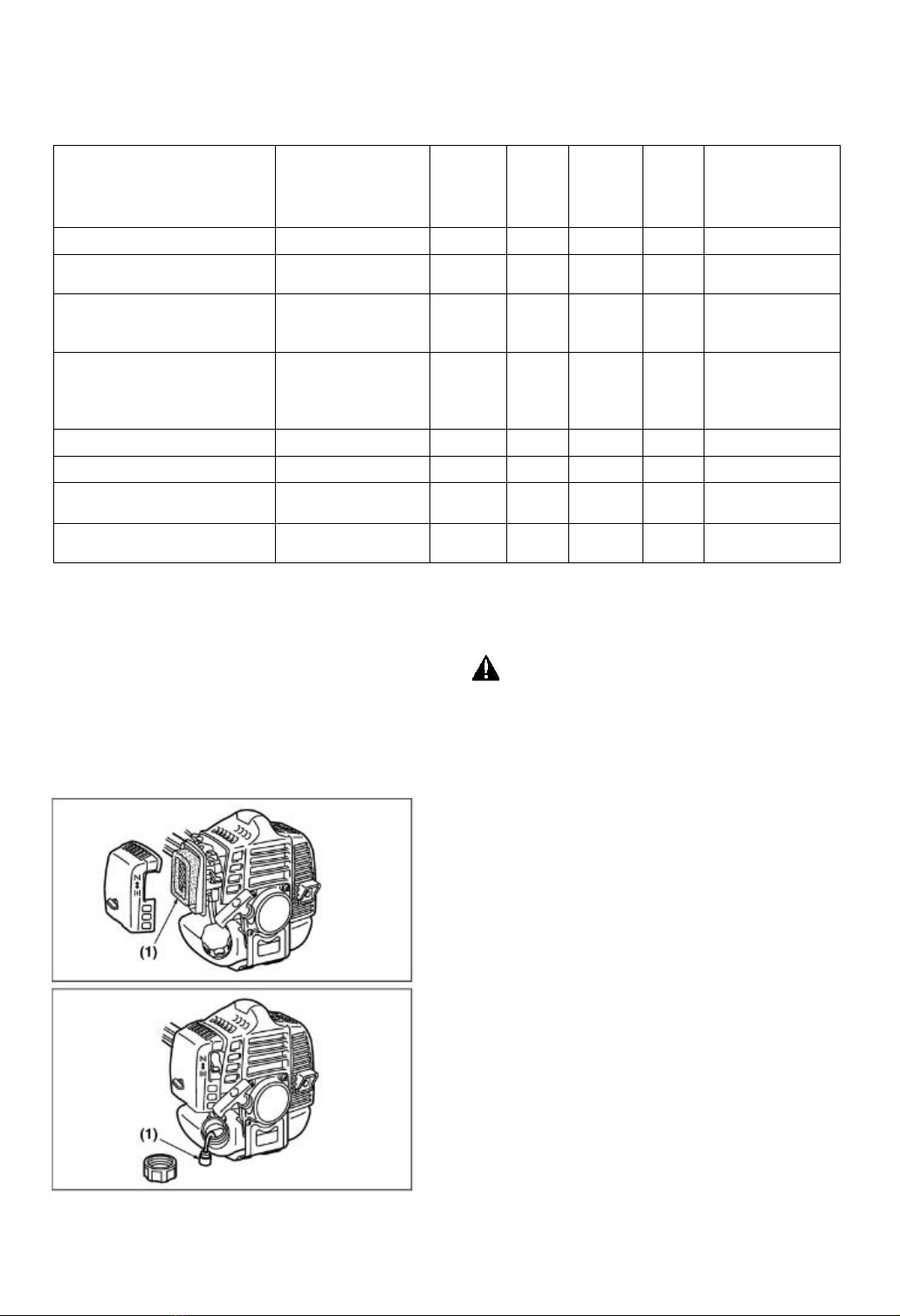

MAINTENANCE CHART
System/components
Procedure
Before
use
Every
25
hours
after
Every 50
hours
after
Every
100
hours
after
Note
fuel leaks, fuel spillage
wipe out
✔
fuel tank, air filter, fuel filter
inspect/clean
✔
✔
replace, if
necessary
idle speed adjuster
see adjusting idling
speed
✔
replace
carburetor if
necessary
spark plug
clean and readjust
plug gap
✔
GAP: .025 in (0.6
~ 0.7 mm)
replace, if
necessary
intake air cooling vent
clean
✔
throttle trigger, stop switch
check operation
✔
Pump inlet valve
replace if
something’s wrong
✔
screws/nuts/bolts
tighten/replace
✔
✔
not adjusting
screws
•Before cleaning, inspecting, or repairing the unit, make sure that the engine has stopped and is
cool.
•Use protective gloves whenever inspecting, removing and installing the drill.
WARNING
• Always be sure to stop the engine before
inspecting the brush cutter for problems or
performing maintenance.
• Never alter the auger or take the engine
apart.
■AIR FILTER
• The air filter, if clogged, will reduce the
engine performance. Monthly check and clean
the filter element in warm, soapy water as
required. Dry completely before installing. If the
element is broken or shrunk, replace with a new
one.
(1) Air filter
■FUEL FILTER
• When the engine runs short of fuel supply,
check the fuel cap and the fuel filter for
blockage.
(1) Fuel filter
•If the fuel filter is clogged, the engine speed
may be limited or speed fluctuations may occur.
•If the engine is operated without a fuel filter,
dirt will accumulate in the carburetor and cause
damage.

8. Maintenance
-------------------------------------------------------------------------------------------------------

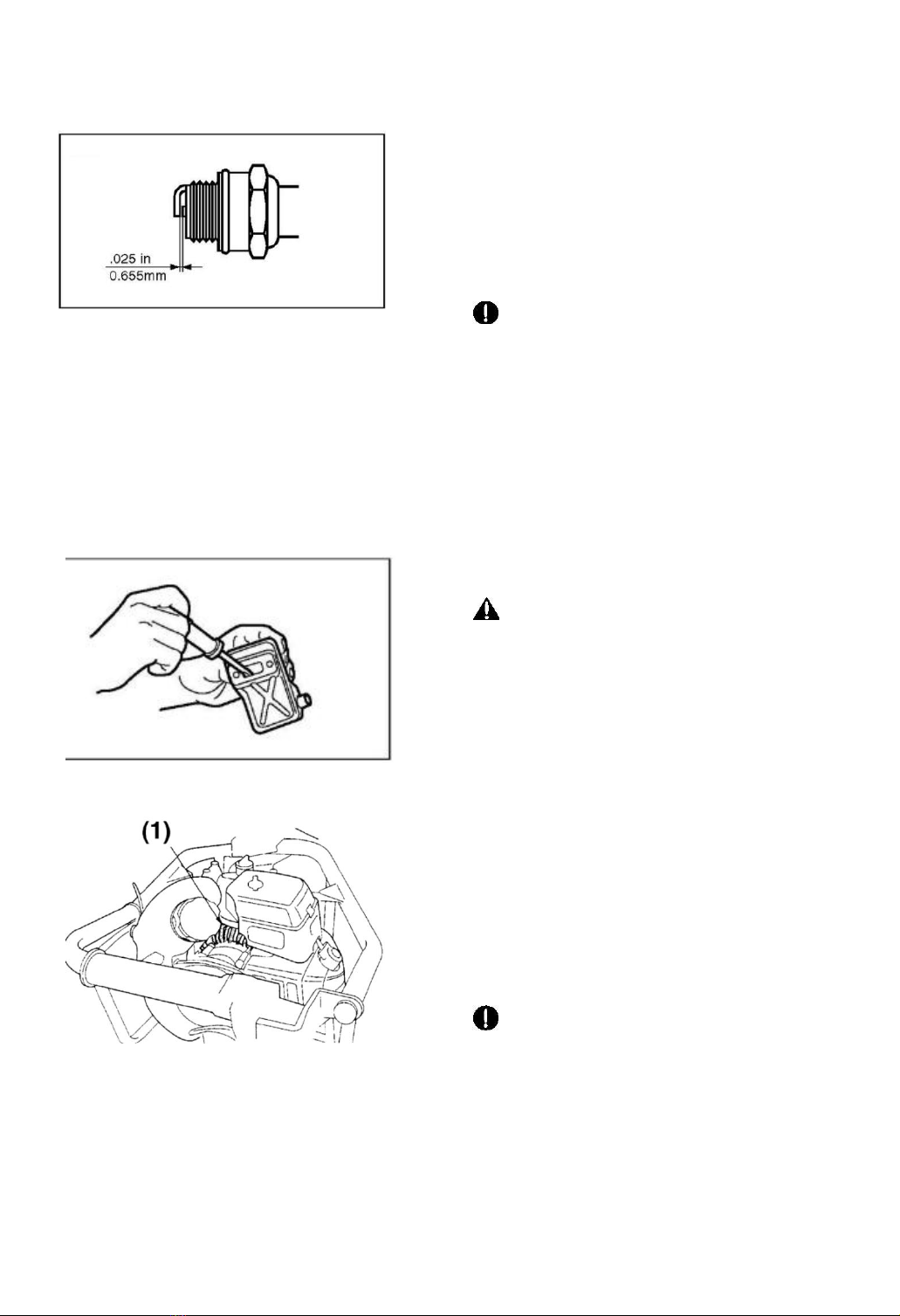

■SPARK PLUG
• Starting failure and mis-firing are often
caused by a fouled spark plug. Periodically clean
the spark plug and check that the spark gap is in
the correct range.
• When you take off the spark plug, twist and
pull off the cap.
IMPORTANT
• Note that using any spark plugs other than
those designated may result in the engine failing
to operate properly or in the engine becoming
overheated and damaged.
• To install the spark plug, first turn the plug
until it is finger tight, then tighten it a quarter
turn more with a socket wrench.
TIGHTENING TORQUE: 9.8~11.8 N.m
■MUFFLER
WARNING
• Inspect periodically, the muffler for loose
fasteners, any damage or corrosion. If any sign
of exhaust leakage is found, do not use the
brush cutter and have it repaired immediately.
• Note that failing to do so may result in the
engine catching on fire.
■INTAKE AIR COOLING VENT
• Check the intake air cooling vent and the
area around the cylinder cooling fins after every
25 hours of use for blockage, and remove any
waste which has attached itself to the brush
cutter. Note that it is necessary to remove the
plug guard shown in Figure in order to be able to
view the upper part of the cylinder.
IMPORTANT
• If waste gets stuck and causes blockage
around the intake air cooling vent or between
the cylinder fins, it may cause the engine to
overheat, and that in turn may cause mechanical
failure on the part of the brush cutter.
(1) Intake air cooling vent

8. Maintenance
-------------------------------------------------------------------------------------------------------
■OIL LEVEL
•Check oil level of the gear box every 50 hours
of use and change with new oil as necessary.
(SAE #80-90).
RECOMMENDED CHANGE INTERVAL
1st: After 50 hours of use
2nd and on: Every 100 hours of use.
9. Storage
-----------------------------------------------------------------------------------------------------------------------------------------
WARNING
• Aged fuel is one of major causes of engine starting failure.
1. Drain a fuel tank and push the primer bulb until it becomes empty of fuel.
2. Remove the spark plug and drop a spoonful of 2-cycle oil into the cylinder. Crank the engine several
times and replace the plug.
3. Brush off dirt from the drill surface and apply rust protective oil.
4. Store the machine in a dry, dust-free place.
10. Troubleshooting guide
-----------------------------------------------------------------------------------------------------------------------------------------
Case 1. Starting failure
-----------------------------------------------------------------------------------------------------------------------------------------
CHECK PROBABLE CAUSES ACTION
-----------------------------------------------------------------------------------------------------------------------------------------
fuel tank ➞incorrect fuel ➞drain it and use correct fuel
fuel filter ➞fuel filter is clogged ➞clean
carburetor adjustment screw ➞out of normal range ➞adjust to normal range
sparking (no spark) ➞spark plug is fouled/wet ➞clean/dry
➞plug gap is incorrect ➞correct (GAP: 0.6~0.7mm)
spark plug ➞disconnected ➞re-tighten
-----------------------------------------------------------------------------------------------------------------------------------------
Case 2. Engine starts but does not keep running/Hard re-starting.
-----------------------------------------------------------------------------------------------------------------------------------------
CHECK PROBABLE CAUSES ACTION
-----------------------------------------------------------------------------------------------------------------------------------------
fuel tank ➞incorrect fuel or staled fuel ➞drain it and with correct fuel
carburetor adjustment screw ➞out of normal range ➞adjust to normal range
muffler,cylinder (exhaust port)➞carbon is built-up ➞wipe away
air cleaner ➞clogged with dust ➞air blow or wash
cylinder fin, fan cover ➞clogged with dust ➞clean
-----------------------------------------------------------------------------------------------------------------------------------------
When your unit seems to need further service, please consult with service shop in your area.

CE Declaration of Conformity
We: ZHEJIANG TITAN MACHINERY CO., LTD.
NO. 8, QUNSHAN ROAD, HUANGLONG INDUSTRIAL ZONE,
321200 WUYI, ZHEJIANG, P.R. CHINA
Declare that the Product detailed below:
Gasoline Earth auger
Model: TT-GD520
Batch No.: 0001~9999
Satisfies the requirement of the Council Directives:
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive EMC 2004/108/EC
Noise Directive 2000/14/EC (Measured sound power level: 93.0dB (A),
Guaranteed sound power level: 113dB (A)
Emission directive 97/68/EC, as last amended by directive 2010/26/EU
Notified body: TÜ V SUD
Tillystraße 2 D - 90431 Nürnberg, Germany
Number of notified body: 0110
and conforms to the norms:
EN ISO 12100: 2010
EN ISO 14982: 2009
Position of Signatory:
Director of reseach and development department
Date: 01-01-2015

Návod na použitie
Motorový zemný vrták
TT-GD520
Vážený Zákazník,
Za účelom dosiahnutia čo najlepšieho výkonu Vami zakúpeného výrobku, je potrebné si pozorne prečítať návod na
použitie pred použitím a uschovávať ho pre budúce použitie.

Predovšetkým bezpečnosť
Pokyny obsiahnuté v upozorneniach tohto návode
sú označené symbolom , súvisí s kritickými
bodmi, ktoré musia byť vzaté do úvahy ako
prevencia pred možným vážnym poranením osôb
a z tohto dôvodu je nutné si starostlivo prečítať
všetky pokyny a bezpodmienečne ich dodržiavať.
Upozornenia v návode
Upozornenie
Tento symbol označuje pokyny, ktoré musia byť
dodržiavané, aby sa predišlo nehodám, ktoré by
mohli viesť k vážnemu poraneniu alebo smrti.
Dôležité
Tento symbol označuje pokyny, ktoré musia byť
dodržiavané, aby sa predišlo mechanickému
poškodeniu, havárii alebo poruche.
Poznámka
Tento symbol označuje rady alebo pokyny, ktoré
sú užitočné pri použití výrobku.
Obsah
1. Umiestnenie častí ........................................................................................3
2. Špecifikácia ..................................................................................................4
3. Výstražné štítky na zariadení ........................................................................5
4. Symboly na zariadení ...................................................................................5
5. Bezpečnostné pokyny ..................................................................................6
6. Palivo .........................................................................................................11
7. Manipulácia ................................................................................................12
8. Údržba ........................................................................................................14
9. Uskladnenie ................................................................................................16
10. Riešenie problémov ....................................................................................17

1. Umiestnenie častí
1. Ľavá rukoväť
2. Prevodová skriňa
3. Rám
4. Pravá rukoväť
5. Páka škrtiacej klapky
6. Tlačidlo nastavenia škrtenia
7. Vypínač on/off
8. Vrták (vymeniteľný)
9. Palivová nádrž
10. Štartér motora
11. Motor
