Titan TTB428GDO User manual

SCARIFIER 1300W TTB428GDO
24month
Manufacturer's
Warranty
SAFETY AND OPERATING MANUAL
Original instructions

SCARIFIER 1300W TTB428GDO
Congratulations on your purchase of a power tool from Titan Power
Tools (UK) Ltd. We want you to continue getting the best performance from
it so this handbook includes information on safety, handling and care. Please
retain this handbook in case you need to refer to any of the information in the
future.
Your power tool comes with a 24-month guarantee, so should it develop
a fault within this period contact your retailer.
GUARANTEE
This product carries a guarantee of 24 months. If your product develops a fault
within this period, you should, in the rst instance contact the retailer where the item was
purchased.
This guarantee specically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in the UK.
For any enquiries relating to the guarantee please refer to your retailer.
SAFETY INSTRUCTIONS
Warnings! Read this instruction carefully before operating this pruner.
Make sure that you are familiar with the controls and properly operate the
machine. Following this instructions, you can reduce the risk of re, electric shock
and personal injury.
GENERAL SAFETY INSTRUCTIONS
Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury! Save all warnings and
instructions for future reference. The term "garden power tool" in the warnings refers to
your mains-operated (corded) garden power tool or battery-operated (cordless) garden
power tool!
1. This garden power tool is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction
concerning use of the garden power tool by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the garden power
tool.
3. The garden power tool must be kept out of reach of children.
4. Store the instruction manual in a location accessible to all users of the garden power
tool and always include the instruction manual when passing it on to other users.
5. Instruct inexperienced persons on the safe use of this garden power tool using this
instruction manual.
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Training
Read the instructions carefully. Be familiar with the controls and the proper use of the
machine.
Preparation
1. Never allow people unfamiliar with these instructions or children to use the
product. Local regulations can restrict the age of the operator.
2. Never operate the product while people, especially children, or pets are nearby.
3. Keep in mind that the operator or user is responsible for accidents or hazards
occurring to other people or their property.
4. Wear ear protection and safety glasses at all times while operating the product.
5. Always wear substantial footwear and long trousers while operating the
product. Do not operate the product when barefoot or wearing open sandals.
6. Thoroughly inspect the area where the product is to be used and remove all
stones, sticks, wires, bones and other foreign objects.
7. Before using, always visually inspect to see that the tines, bolts are not
worn or damaged. Replace worn or damaged tines and bolts in sets to preserve
balance.

SCARIFIER 1300W TTB428GDO
Operation
1. Operate the product only in daylight or in good articial light.
2. Avoid operating the product in wet grass or take additional precautions to avoid
slipping.
3. Always be sure of your footing on slopes.
4. Walk, never run.
5. Always work across the face of slopes, never up and down.
6. Exercise extreme caution when changing direction on slopes.
7. Do not operate the product on steep slopes.
8. Use extreme caution when reversing or pulling the product towards you.
9. Stop the tines if the product has to be tilted for transportation. Do not operate
the tines when crossing surfaces other than grass, and when transporting the product
to and from the working area.
10. Never operate the product with defective guards, or without safety devices, for
example deectors and/or grass catchers, in place.
11. Switch on the motor carefully according to instructions and with feet well away from
the tine(s).
12. Do not tilt the product when switching on the motor, except if the product
has to be tilted for starting. In this case, do not tilt it more than absolutely
necessary and lift only the part which is away from the operator.
13. Do not start the motor when standing in front of the discharge opening.
14. Do not put hands or feet near or under rotating parts. Keep clear of the
discharge opening at all times.
15. Never pick up or carry a product while the motor is running.
16. Stop the motor and disconnect the product from the power supply:
-- before clearing blockages or unclogging the discharge opening;
-- before checking, cleaning or working on the product;
-- after striking a foreign object. Inspect the product for damage and make repairs before
restarting and operating the product;
-- if the product starts to vibrate abnormally (check immediately).
-- whenever you leave the product.
17. Never use the scarier without the grass catcher bag securely tted.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure the product is in a safe working
condition.
2. Allow the product to cool before storing in any enclosure.
3. Check the grass catcher frequently for wear or deterioration.
4. Examine the product regularly and replace worn or damaged parts for safety.
Additional safety warnings
1. Warning! Beware of sharp tines. Tines continue to rotate after the motor is switched
off.
2. Do not use the product if the cords are damaged or worn.
3. Do not to connect a damaged cord to the supply or touch a damaged cord
before it is disconnected from the supply. A damaged cord can lead to contact
with live parts.
4. Keep extension cords away from the tines. The tines can cause damage to the
cords and lead to contact with live parts.
5. If operating a garden power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces the risk
of electric shock.
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the time of operation, use low-
vibration and low-noise operating modes as well as wear personal protective equipment.
Take the following points into account to minimize the vibration and noise exposure risks:
1. Only use the product as intended by its design and these instructions.
2. Ensure that the product is in good condition and well maintained.
3. Use correct application tools for the product and ensure they in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these instructions and keep it well lubricated
(where appropriate).
6. Plan your work schedule to spread any high vibration tool use across a number of
days.
Emergency
Familiarise yourself with the use of this product by means of this instruction manual.
Memorise the safety directions and follow them to the letter. This will help to prevent risks
and hazards.
1. Always be alert when using this product, so that you can recognise and
handle risks early. Fast intervention can prevent serious injury and damage to
property.
2. Switch off and disconnect from the power supply if there is any malfunction.
Have the product checked by a qualied specialist and repaired, if necessary, before
you put it into operation again.
WARNING! This product produces an electromagnetic eld during operation!
This eld may under some circumstances interfere with active or passive
medical implants! To reduce the risk of serious or fatal injury, we recommend
persons with medical implants to consult their doctor and the medical implant
manufacturer before operating this product!
Residual risks
Even if you are operating this product in accordance with all the safety requirements,
potential risks of injury and damage remain. The following dangers can arise in
connection with the structure and design of this product:
1. Health defects resulting from vibration emission if the product is being used over long
periods of time or not adequately managed and properly maintained.
2. Injuries and damage to property due to broken application tools or the sudden impact
of hidden objects during use.
3. Danger of injury and property damage caused by ying objects.

SCARIFIER 1300W TTB428GDO
VIBRATION

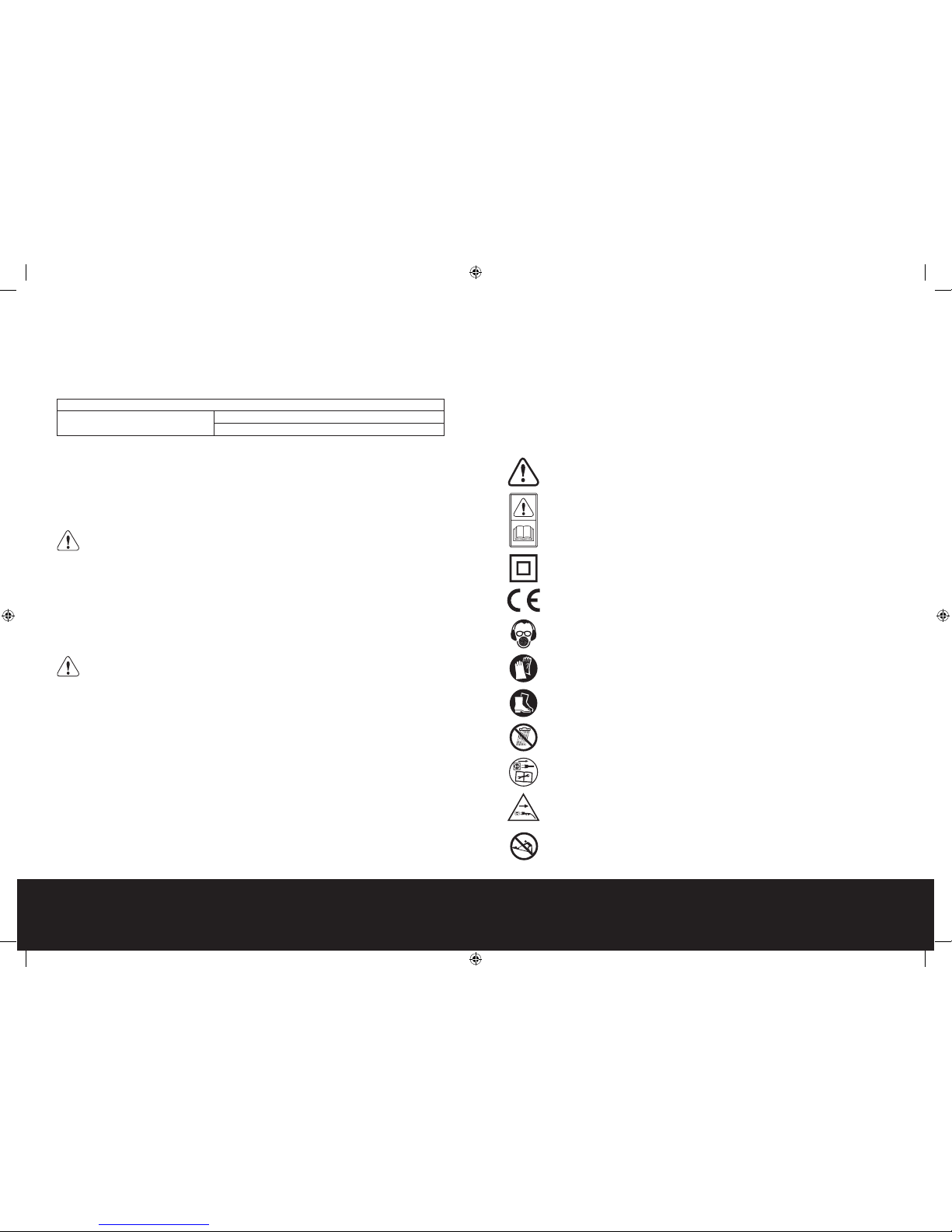

SYMBOLS
The European Physical Agents (Vibration) Directive has been brought in to help reduce
hand arm vibration syndrome injuries to power tool users. The directive requires power tool
manufacturers and suppliers to provide indicative vibration test results to enable users to make
informed decisions as to the period of time a power tool can be used safely on a daily basis and
the choice of tool. Further Advice can be found at www.hse.gov.uk
The declared vibration emission value should be used as a minimum level and should be used
with the current guidance on vibration.
Calculating the actual period of the actual period off use can be difcult and the HSE website
has further information.
The declared vibration emission been measured in accordance with a standard listed test stated
above and may be used to compare one tool with another. The declared vibration emission value
may also be used in a preliminary assessment of exposure.
Warning
Read the instruction manual
Double insulation
Compliance with relevant safety standards
Wear eye protection
Wear ear protection
Wear breath protection
Gloves with saw protection
Boots with saw protection, steel toecap and non-slip sole
To avoid potential electric shock, do not use the unit in humid or wet conditions
Switch off! Remove plug from mains before cleaning or maintenance
Switch off! Remove plug from the mains immediately if the cable is damaged or cut.
Work across the face of slopes, never up and down.
Helping to minimise your vibration exposure risk.
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate).
Avoid using tools in temperatures of 10°C or less.
Plan your work schedule to spread any high vibration tool use across a number of days. Health
Surveillance.
Health Surveillance.
All employees should be part of an employer’s health surveillance scheme to help identity any
vibration related diseases at an early stage, prevent disease progression and help employees
stay in work.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed.
WARNING! The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant on
the following examples and other variations on how the tool is used:
How the tool is used and the materials being ground or cut.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles.
And the tool is being used as intended by its design and these instructions.
WARNING! identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts of the
operating cycle such as the times when the tool is switched off and when it is running idle in
addition to the trigger time). Note The use of other tools will reduce the users’ total working
period on this tool.
Vibration total values (triax vector sum) determined according to EN60335-2-92 and EN13683
Vibration level for operation Vibration emission value ah = 3.591m/s²
Uncertainty K = 1.5 m/s²
Double insulation:
The tool is double insulated. This means that all the external metal parts are electrically insulated
from the mains power supply. This is done by placing insulation barriers between the electrical
and mechanical components making it unnecessary for the tool to be earthed.
Important note:
Be sure the supply is the same as the voltage given on the rating plate. The tool is tted with a
two-core cable and plug. Remove the mains plug from socket before carrying out any adjustment
or servicing.

SCARIFIER 1300W TTB428GDO
3
4a
4b
4
5
6
24
22
23
8
9
7
19
1
10
21252
18
17
16
15
14
12
13
11
20

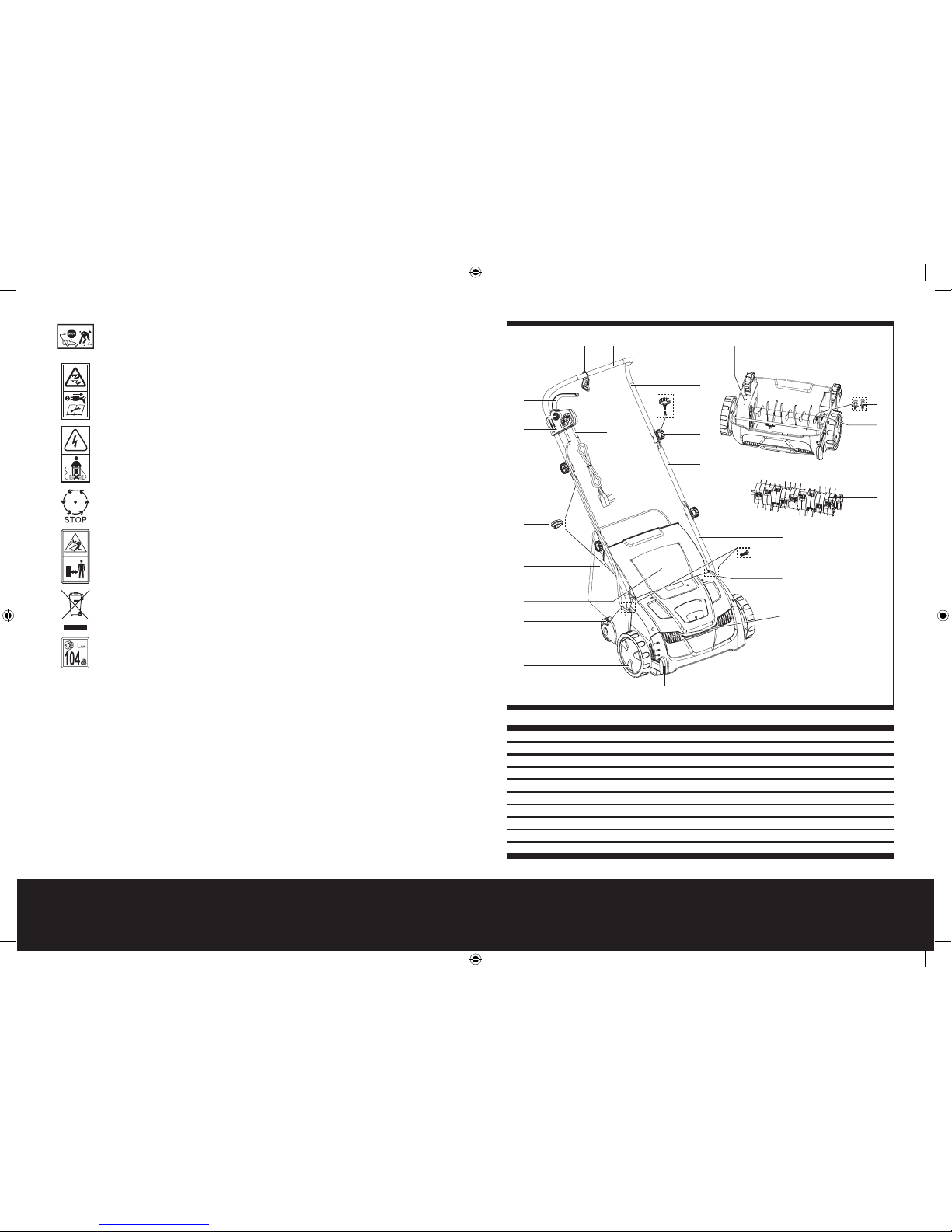

1. Handle
2. Cord strain relief
3. Upper handle bar
4. Mounting set (x4) for handle bar
4a. Knob
4b. Bolt
5. Middle handle bar
6. Lower handle bar
7. Screw (x2)
8. Support
Inspect the area where the product is to be used and remove all objects which
could be thrown by the product. If objects are hidden while operating stop the
motor and remove them.
Beware of sharp tines. Tines continue to rotate after the motor is switched
Off. Remove plug from power supply before maintenance or if the power cord
is damaged.
Keep supply cord away from the cutting device.
Cutting device continues to rotate after the product is switched off. Wait until
all components have completely stopped before touching the product.
Waste electrical products should not be disposed of with household waste, please
recycle where facilities exist. Check with your local authority or retailer for recycling
advice.
Guaranteed sound power level
Objects thrown by the product could hit the user or other bystanders.
Always ensure that other people and pets remain at a safe distance from the
product when it is in operation. In general, children must not come near the
area where the product is.

SCARIFIER 1300W TTB428GDO
9. Air vents
10. Depth adjustment lever
11. Wheel
12. Castor
13. Discharge opening
14. Deectorguard
15. Grass catcher
15a. Bag
15b. Frame
16. Cord clip (x2)
17. Switch box
18. Lock-off button
19. Start/stop lever
20. Power cable
21. Cutting device (scarifying cylinder)
22. Mounting set for cutting device (x4)
22a. Bolt
22b. Spring washer
23. Cutting device (raking cylinder)
24. Bearing
25. Drive shaft
Rated voltage 230-240VAC 50Hz
Rated input power 1300W
No-load speed 2990 /min
Max. cutting width 320mm
Working height range -10/-5/0/5/10 mm, 5 adjustments
Grass catcher volume 30 L
Protection class IPX4
Net Weight 15 kg
Cable length 10m
TECHNICAL DATA
NOISE AND VIBRATION DATA
Measured sound pressure level 84.5 dB(A), K=3 dB (A)
Measured sound power level 97.9 dB(A), K=3 dB (A)
Guaranteed sound power level 104 dB(A)
Vibration: 3.591 m/s², K=1.5m/s²
The declared vibration value has been measured in accordance with a standard test method and
may be used for comparing one tool with another.
The declared vibration value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the tool can differ from the
declared value depending on the ways in which the tool is used. Identify safety measures to
protect the operator that are based on an estimation of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as the times when the tool is switched off
and when it is running idle in addition to the trigger time).
The sound intensity level for the operator may exceed 85dB(A) and ear protection measures are
necessary.
ACCESSORIES
Grass catcher with frame 1SET
Cutting device (raking cylinder) 1PC
Bolt (M6) 4PC
Knob 4PC
Spring washer 4PC
Screw 2PC
Cable clamp 2PC

SCARIFIER 1300W TTB428GDO
3
5
6
3
4b
4a
2
3
6
5
4b 4a
6
7
6
8
2. ASSEMBLY INSTRUCTIONS
Follow the operating instructions step-by-step and use the
pictures provided as a visual guide to easily assemble the
machine.
1). HANDLE BAR ASSEMBLY
a). Align the lower hand bars (6) with the supports (8). Make
sure the holes in the lower handle bars
correspond those in the supports (8) and secure the bars
with one screw (7) each to the support (8).
(See Fig. 1a, 1b).
1. INTENDED USE
1). This scarifier and raker is designated with a rated input
of 1300 Watts. Depending on the fitted cutting device this
product it is either intended for scarifying and removing
thatch from lawns or for raking in domestic and hobby
gardens.
2). When used as a scarifier, this product works by
scratching through and between the grass with specially
adapted prongs that collect and remove any unwanted parts
from the lawn whilst leaving the grass blades intact. At the
same time the product scarifies the ground resulting in a
better airing.
3). When used as a raker, the fine needles will scratch the
surface of the lawn while simultaneously picking light debris
for better oxygen absorption, airing and draining.
4). This product is not to be used in wet weather conditions
and may not be used to mow dry, wet or unusually high
grass, e. g. pasture grass or for shredding leaves.
5). This product is intended for private domestic use only,
not for any commercial trade use. It must not be used for
any purposes other than those described.
b). Align the middle handle bars (5) to the lower ones (6).
Make sure the holes of the handle bars (5, 6) correspond
and secure them with one mounting set (4) on each side.
(See Fig. 2).
c). Slide the cord strain relief (2) onto the upper handle bar
(3). (See Fig. 3).
d). Align the upper handle bar (3) with the middle handle bar
(5) and secure them with one mounting set (4) on each side.
(See Fig. 4a,4b).
Fig. 2
Fig. 3
Fig. 4a
Fig. 4b
Fig. 1a
Fig. 1b
OPERATION INSTRUCTIONS
WARNING! Read all instructions carefully. Do not
connect the scarifier to mains supply power before
it is completely assembled. Always wear glove s during
assembly.

SCARIFIER 1300W TTB428GDO
20
14
15
16
e). Fix the cord with the cord clips (16) to the handle bar (Fig.
5).
Adjust the depth according to the needs of your lawn. The
most suitable depth depends on the kind of lawn and the
actual height of the grass.
1). Push the depth adjustment lever (10) towards the wheel
(11), then move it forward or backward to adjust the cutting
depth. (See Fig. 8a).
2). Adjust the lever (10) to one out of the five stages. Read
the adjusted depth from the scale. (See Fig 8b and table)
Scale /
Position Setting Application
Depth Scarifying Depth Raking
1 transport -10 mm for transportation and
storage -10 mm for transportation and storage
2 minimal +5 mm
scarifying a young or
sensitive lawn, removing
thin thatch layers, also use
this setting when scarifying
a second time in the
Autumn
+10 mm
raking a young or
sensitive lawn, removing
thin thatch layers
3 middle 0 mm scarifying healthy lawn,
removing thatch +5 mm raking healthy lawn
4 deep -5 mm scarifying healthy lawn,
removing thicker thatch 0 mm raking an unkempt lawn
5 maximal -10 mm
scarifying an unkempt
lawn, removing thick thatch
layers
-5 mm do not use for raking
NOTE: A full grass catcher will reduce the performance of
this product.
Attach the grass catcher (15) to the product before
operation.
a). Open the deflector guard (14), hold it in position and
align the hooks on the grass catcher (15) with the hinges to
hang it onto. (See Fig. 6).
b). Empty the grass catcher (15) frequently during use. Do
not wait until it is completely full. We recommend emptying it
when it is half full.
c). Lift the deflector guard (14) and pull the grass catcher (15)
off the hinges to remove it.
d). Empty the collected material onto a compost heap and
reattach it onto the product.
Fig. 5
Fig. 6
Fig. 7
4. CUTTING DEPTH ADJUSTMENT
2). GRASS CATCHER ASSEMBLY
3. CABLE ROUTING
WARNING! Always switch the product off and
pull the mains plug from power supply before any
adjustment.
WARNING! Do not attempt to use the product
without the grass catcher attached. Danger of flying
objects!
1). Always route the electric main cable away from the work
area to prevent it from coming into contact with the cutting
device. Plan your route before starting work. Start your work
at the nearest point to the electrical outlet, and work away
from it. This will keep the cable away from the cutting device
and avoid it being accidentally cut. Keep the cable over your
shoulder for added safety.
2). For cord strain relief of the cable, form a loop of the end
of the main cable and bring this through the opening at the
handle and insert it into the cord strain relief.
WARNING! The product must be switched off and
the cutting device must have stopped rotating before
you attach or empty the grass catcher!
WARNING! Never use the scarifier without the
grass catcher bag securely fitted.
Fig. 8a
Fig. 8b

SCARIFIER 1300W TTB428GDO
19
18
5. POWER CONNECTION
8. GENERAL OPERATION
6. STARTING AND STOPPING
The product can be connected to any socket (with 230-240V
alternating current). We recommend to always use the
appliance via a Residual Current Device (RCD) with a
tripping current of max. 30mA.
1). Mains leads on scarifier are particularly susceptible to
insulation damage. The causes of this include the following:
- Cut the cable by passing over it with the scarifier.
- Damage through crushing if the mains lead is routed
under doors or windows.
- Cracks caused by ageing of the insulation sheath.
- Kinks caused by incorrect fastening or routing of the
mains lead.
2). Such damaged mains leads should not be used under
any circumstances as they may cause fatal injuries due to
their damaged insulation sheath.
3). Always check the plug and cable and make sure they are
in good condition before operation.
1). Check the product, its power cord and plug as well as
accessories for damage before each use. Do not use the
product if it is damaged or shows wear.
2). Double check that accessories are properly fixed.
3). Push the product forward by its handle. Keep the handle
dry to ensure safe support.
4). Ensure that the air vents are always unobstructed and
clear. Clean them if necessary with a soft brush. Blocked air
vents may lead to overheating and damage the product.
5). Switch the product off immediately if you are disturbed
while working by other people entering the working area.
Always let the product come to complete stop before putting
it down.
6). Do not overwork yourself. Take regular breaks to ensure
you can concentrate on the work and have full control over
the product.
7). Mow the lawn before working and fertilise afterwards.
8). Make sure that the lawn is clear of stones, sticks, wire or
other objects that could damage the product or its motor.
7. OVERLOAD PROTECTION
The overload protection will be activated in the following
circumstances:
1). A build up of scarified material around the cutting device.
2). If the material scarified is larger then the motor capacity.
3). Where there is too much resistance against the cutting
device.
When the circuit breaker has been activated switch off the
product and disconnect from the power supply.
Let the product cool down and eliminate the cause before
using the product again.
Fig. 9
WARNING! Before operating the scarifier, ensure
that the fastening elements are undamaged.
In order to prevent risk, always switch off the motor and pull
out the mains plug before starting this task.
WARNING! In some countries regulations define
at what time of the day and on what special days
products are allowed to be used and what restrictions apply!
Ask your community for detailed information and observe the
regulations in order to preserve a peaceful neighbourhood
and avoid committing administrative offences!
WARNING! If the product strikes a foreign object
stop the motor! Switch the product off, disconnect
it from the power supply and let it cool down. Inspect the
product thoroughly for damage! Have any damage repaired
before restarting!
WARNING! Extensive vibration of the product
during operation is an indication of damage!
The product should be promptly inspected and repaired!
1). STARTING
The product is fitted with a lock-off button feature. To start
the product, simply depress the lock-off button (18) then
fully press and hold the start/stop level (19). The lock-off
button can now be released. (See Fig.9)
NOTE: It is not necessary to maintain pressure on the lock-
off button once the start/stop level is squeezed and the
motor is running. The lock-off button is a safety device to
avoid accidental start-up of the device.
2). STOPPING
The product will automatically stop once the start/stop level
is released. The lock-off button will have to be depressed
and the start/stop level squeezed to restart the product
motor.

SCARIFIER 1300W TTB428GDO
9). Select the suitable cutting depth for the actual grass
height.
10). Do not work with this product on a wet lawn because
it tends to stick to the underbody of the product, preventing
the proper discharge of collected material, and it could also
cause you to slip and fall.
11). Slowly push the product forward. Move the product at
appropriate speed. Do not move it too fast to prevent the
discharge opening from getting blocked and engine from
useless overloading.

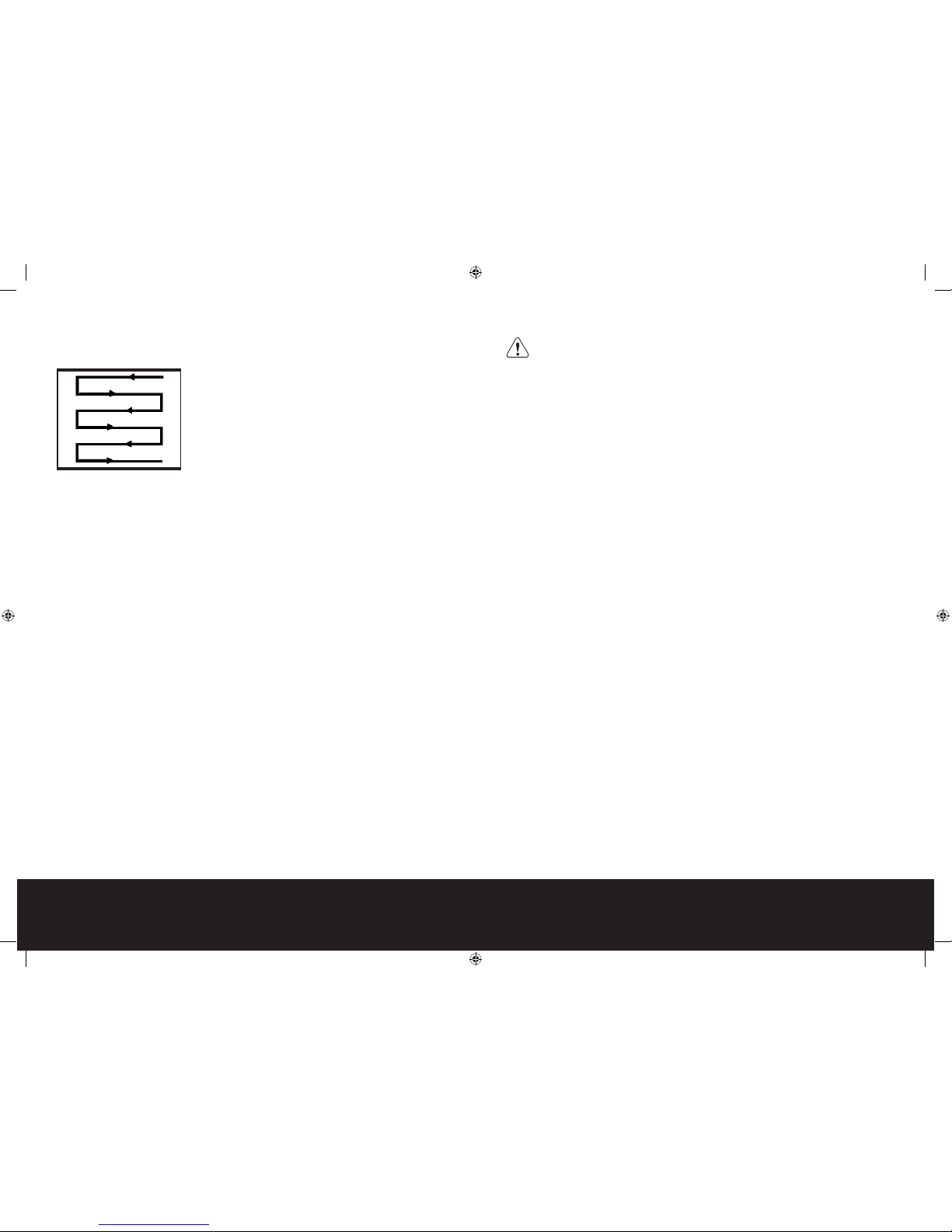

12). Work in slight overlapping rows. The most effective
pattern for scarifying/raking lawns is straight lines along one
of the sides. This will keep the rows even and ensures that
all the lawn is scarified/raked without missing any spots. (See
Fig. 10).
13). Circle around flower beds. When reaching a flower bed
in the middle of the lawn, make a row or two around the
circumference of the bed.
14). Pay special attention when changing direction.
1. SERVICE AND STORAGE
To ensure long and reliable service, carry out the following
maintenance regularly. Servicing and cleaning work on the
product and the removal of the guards may only be carried
out after the motor has been switched off and the plug
disconnected from the power supply.
1). Regularly check for obvious defects such as loose,
dislodged or damaged chain and guide bar, loose
fixings and worn or damaged components.
2). Check that covers and guards are undamaged and
correctly fitted. Carry out necessary maintenance
or repairs before using the product.
3). If the cutting device should happen to fail despite the
care taken in manufacturing and testing, repair
should be carried out by an authorized specialist.
4). Do not clean the product while it is running.
5). Ensure that all the fastening elements (screws, nuts,
etc.) are tight at all times so that you can safely work with
the product.
6). Check the product frequently for signs of wear. Replace
worn or damaged parts.
7). Store your product in a dry place. To ensure a long
service life all screw parts should be cleaned and then oiled.
8). Clean the product with a brush or cloth. Do not use any
solvents or water to remove dirt.
9). The component that is subject to most wear is the cutting
device. You should therefore check the condition of the
cutting device and its mounting at regular intervals.
- If the cutting device is worn or blunt it must be replaced
immediately;
- If the product starts to suffer from excessive vibrations,
this means that the cutting device has not been balanced
correctly or has suffered deformation due to impacts. In this
case it must be repaired or replaced.
SCARIFYING
Consider the weather when scarifying. Scarify the lawn with
an increased depth setting during spring time between April
and May as the lawn is better able to recover during this
season. During a wet summer scarify again in late summer
with a decreased depth setting. Do not scarify during
periods of hot weather condition. During a dry rainless
summer do not scarify a second time in autumn.
RAKING
In order that a healthy lawn can develop in the spring, it is
necessary for greater amounts of air to penetrate the area
around the roots of the grass. We recommend aerate the
lawn every 4 - 6 weeks depending on the state of your lawn.
Fig. 10
MAINTENANCE
WARNING! Before carrying out any repairs or
servicing work, you must ensure that the product
has been disconnected from the power supply. Repairs
and maintenance work other than described within this
instruction manual may be performed only by qualified
specialist!

SCARIFIER 1300W TTB428GDO
22a
22b
4. GRASS CATCHER
1). Inspect the grass catcher (15) before each use. Do not
use it if you find any damage.
2). Clean the grass catcher (15) after operation. Let the
grass catcher dry thoroughly before storing to avoid mildew.
5. TRANSPORTATION
1). Switch the product off and disconnect it from power
supply before transporting it anywhere.
2). Attach transportation guards, if applicable.
3). Adjust the cutting depth to the transportation stage (refer
to “CUTTING DEPTH ADJUSTMENT”).
4). Always transport the product by its handle.
5). Protect the product from any heavy impact or strong
vibrations which may occur during transportation in vehicles.
6). Secure the product to prevent it from slipping or falling
over.
2. REPLACING/CHANGING CUTTING DEVICE
WARNING! Always switch the product off,
disconnect it from power supply and let it cool down
before changing/replacing the cutting device!
WARNING! Always use a correct cutting device
according to the intended use! Observe the technical
requirements of this product (see section Technical
specifications) when purchasing and using cutting devices!
WARNING! Make sure two bolts are tight completely
before operate the product, don't operate the product
if anyone of bolt is missing or loose.
If bolt thread is damaged, it must be replaced for safety
cause. You can replace it with one suitable size.
Cutting devices are very sharp and become hot
during use! Handle them carefully!
Wear safety gloves when handling cutting devices in order
to avoid injuries like burns and cuts!
The product has two functions, scarifying or raking. The
scarifying cylinder is preassembled on the product. The
raking cylinder is included in the supply box. The cylinder
can be changed according to different application. (See Fig.
11a, 11b)
1). Remove the grass catcher .
2). Place the product upside down on a flat stable ground to
have access to the underbody.
3). Loosen the two bolts (22a) with a suitable wrench,
remove them together with the spring washers (22b) and
the presently attached cutting device (21 or 23). (See Fig.
12a).
4). To remove the cutting device, first lift the bearing and
then pull it out from the drive shaft (25).
5). Align and insert the respective cutting device: Slide
the hex nut into the socket of driving shaft (25) and fix
the bearing to the support with the bolts (22a) and spring
washers (22b). (See Fig. 12b).
3. AFTER USE
1). Switch the product off, disconnect it from the power
supply and let it cool down.
2). Check, clean and store the product as described below.
scarifying cylinder with blades
raking cylinder with fine needles
Fig. 11a
Fig. 11b
Fig. 12a
Fig. 12b

SCARIFIER 1300W TTB428GDO
TROUBLESHOOTING
Problem Possible cause Fault correction
Product does not start Not connected to power supply Connect to power supply
Power cord or plug is defective Check by a specialist electrician.
Other electrical defect to the
product
Check by a specialist electrician.
Lock-off button not pressed Press lock-off button rst, then
the start/stop lever
Product does not reach
full power
Power source (e.g. generator)
has too low voltage
Connect to another power source
Air vents are blocked Clean the air vents
Poor result Cutting device is dull/damaged Replace with a new one
Scarified material exceeds
capacity
Only scarify materials according
to capacity of the product
Scarifying depth is incorrect Adjust depth
WARNING! Only perform the steps described in these instructions! All further inspection,
maintenance and repair work must be performed by a qualified specialist! Contact a
specialist if the problem cannot be solved by yourself!
WARNING! If the product does not perform properly, or sound are abnormal, or motor
cannot be started, or stopped as described, or the cutting device does not work properly,
or any other irregularity, or malfunction occurs, do not attempt to repair the product by yourself.
Please contact helpline or local service center. UK PLUG REPLACEMENT
The fuse in the main plug of your garden power tool should
always be replaced with one of identical rating.
Check the voltage given on your garden power tool matches
the supply voltage.The garden power tool is supplied with
a fitted plug, however if you should need to fit a new plug
follows the instruction below.
IMPORTANT:
The wires in the mains lead are coloured in accordance with
the following code:
Blue – Neutral
Brown – Live.
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the
terminal which is marked with N.
The wire which is coloured brown, must be connected to
the terminal, which is marked with the letter L.
Warning: Never connect live or netutral wires to the earth
terminal of the plug. A 13AMP (BS1363/A) plug must be
used and a 13AMP fuse must be fitted.
NOTE: If a moulded plug is fitted and has to be removed
take great care in disposing of the plug and severed cable,
it must be destroyed to prevent engaging into a socket.
If the supply cord is damaged it must be replaced by a
service agent or a similarly qualiaed person in order to avoid
hazard.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your Local Authority or
retailer for recycling advice.
For further information visit www.recycle-more.
co.uk.
13

SCARIFIER 1300W TTB428GDO
Authorised signatory and technical file holder
Date: 30/11/11
Signature:
Name / title: Peter Harries / Quality Manager
Titan Power Tools (UK)Ltd. Trade House, Mead Avenue, BA22 8RT
Declaration of Conformity
We, Importer
TITAN Power Tools (UK) Ltd
Trade House, Mead Avenue, BA22 8RT
Declare that the product
Designation: 1300W SCARIFIER
Model: TTB428GDO
Complies with the following directives:
2006/42/EC - Machinery Directive
2004/108/EC - Electromagnetic Compatibility Directive
2006/95/EC - Low Voltage Directive
2000/14/EC amended by 2005/88/EC - Noise Emission in the Environment by Equipment
for Use Outdoors Directive
2002/95/EC - Restrictions of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment
2002/96/EC and 2003/108/EC - Waste Electrical and Electronic Equipment (WEEE)
The conformity assessment followed was according to Annex III of the directive for equipment
listed in schedule 1 / article 13 the chosen conformity assessment route Internal control of
production
(schedule 10 / Annex V)
– Measured Sound Power Level 97.9 dB(A)
– Guaranteed Sound Power Level 104 dB(A)
Standards and technical specifications referred to:
EN60335-1:2002 + A1:2004 + A2:2006 + A11:2004 + A12:2006 + A13:2008 +
A14:2011
EN60335-2-92:2005
EN13683:2004 + A3:2009
EN62233:2008
EN55014-1:2006 + A1:2009
EN55014-2:1997 + A1:2001 + A2:2008
EN61000-3-2:2006 + A1:2009 + A2:2009
EN61000-3-3:2008
ISSUE DATE: REV1-NOV11
8458-6702

SCARIFIER 1300W TTB428GDO
