TK-STAR PET TRACKER User manual

www.ephy.co.uk
0
TK-STAR PET TRACKER
USER
MANUAL

www.ephy.co.uk
1
WHATS IN THE BOX?
1 x TKSTAR PET TRACKER
1 x UK AC Power Supply
1 x USB Charger Cable
1 x Pet Collar
1 x User Manual
1 x Free Lebara SIM card

www.ephy.co.uk
2
Basic 5 SMS Set Up

www.ephy.co.uk
3
SUMMARY
Working based on existing GSM/GPRS network and GPS satellites, this product can locate and
monitor any remote targets by SMS or internet. The most advanced technology of GPS and A-GPS
dual positioning.
LED INDICATOR STATUS
MEANING
Left-GREEN-Not lit
Device fault or dormant
Left-GREEN-Continuously lit
No GPRS signal
Left-GREEN-Flashing
GSM/GPRS communication established
Center-RED-Not lit
Fully charged
Center-RED-Solid red
Charging
Center-RED-Flashing
Low battery
Right-BLUE-Not lit
No power to the unit or unit can’t start
Right-BLUE-Continuously lit
Searching for GPS signal
Right-BLUE-Flashing
GPS location successful

www.ephy.co.uk
4
ACTIVATING SIM CARD
•Activate your SIM card provided with your GPS tracker by following the instructions inside the
packet.
•Top up the SIM card with credit, so you can start sending the GPS tracker commands.
•You send the commands from YOUR mobile to the number of the SIM card that is inside the
GPS device.
•Each SMS reply will cost approx. 9-15p.
•You can now also use the SMS tracking service. (please refer to SMS tracking section)
SETTING UP DEVICE
•Turn on the unit outdoors by pressing the “On/Off” button until the indicator is on.
•Within one minute, the unit will begin to acquire GMS & GPS signals. The indicator will keep
flashing every 3 seconds when the unit has received signals. (please note GPS signals can
only be received when outside)
•Once unit receives GSM signals (GREEN LED SIGNAL) you can send the unit commands.
For first use, please initialize the unit and restore to its default setting by using the reboot
command. (please refer to command section)
•The SIM card must have credit on for you to receive the SMS command reply.
SMS COMMAND
INSTRUCTION
COMMAND
REPLY
Reboot the device
begin123456
Begin ok
SMS track
G123456#
Google maps link
GPRS mode ON (for online tracking)
Gprs123456
Gprs ok
GPRS mode off (default mode)
Nogprs123456
Nogprs ok
Set authorized number
admin123456+space+phone
number
Admin ok
noadmin123456+space+phone
number
Noadmin ok
Set GMT time zone number
timezone123456+space+-4
Time ok
Change the device into sleep mode
By number of minutes.(Default power save
mode)
sleep123456+space+number
of minutes
Sleep ok
No Sleep (tracker continuously working)
nosleep123456+space+off
Sleep off ok
Sleep mode by Shock Sensor (Tracker
sleeps when no movement)
Sleep123456+space+shock
Sleep shock ok
Format the device (authorized number only)
format

www.ephy.co.uk
5
SMS TRACKING
•Call the SIM card phone number that is inside the device by your mobile phone
•You will then receive a google maps link by SMS to your mobile phone
•Click on the google maps link. This will open up the GPS position on google maps.
•Each tracking report will cost approx. 9-15p
Please note you must have credit on the GPS SIM card to receive the google maps link.
1. Google Maps link: This is the link to the Google map showing the position of the tracker unit.
When you click the link, if a map is displayed there is GPS information for the unit. If there is
no map displayed then there is no GPS signal.
2. V:A/V: Indicates GPS signal. V:A indicates there is a GPS signal; V:V indicates there is no
GPS signal.
3. 2014-07-29 06:41:43: The date and time stamp when the unit last received a GPS signal.
4. S: 007km/h: This indicates the last known speed of the unit.
5. Bat:80% The approximate amount of battery charge remaining. The value is between5%and
100%, with 100% being fully charged.
6. 4109112546: The IMEI code of tracker device. This number is used for tracking website and
the app.

www.ephy.co.uk
6
FREE ONLINE/MOBILE APP TRACKING
You must send the GPRS MODE ON command to the device, before you can start tracking.
For you to use the free online and mobile app tracking service, you must first setup the APN for the
device.
Depending on the SIM card you are using all have different APN settings;
http://www.mobilefun.co.uk/blog/2009/03/manual-wap-mms-gprs-settings/
If you have received the Lebara SIM card provided by us then these are the commands you must
send to the device.

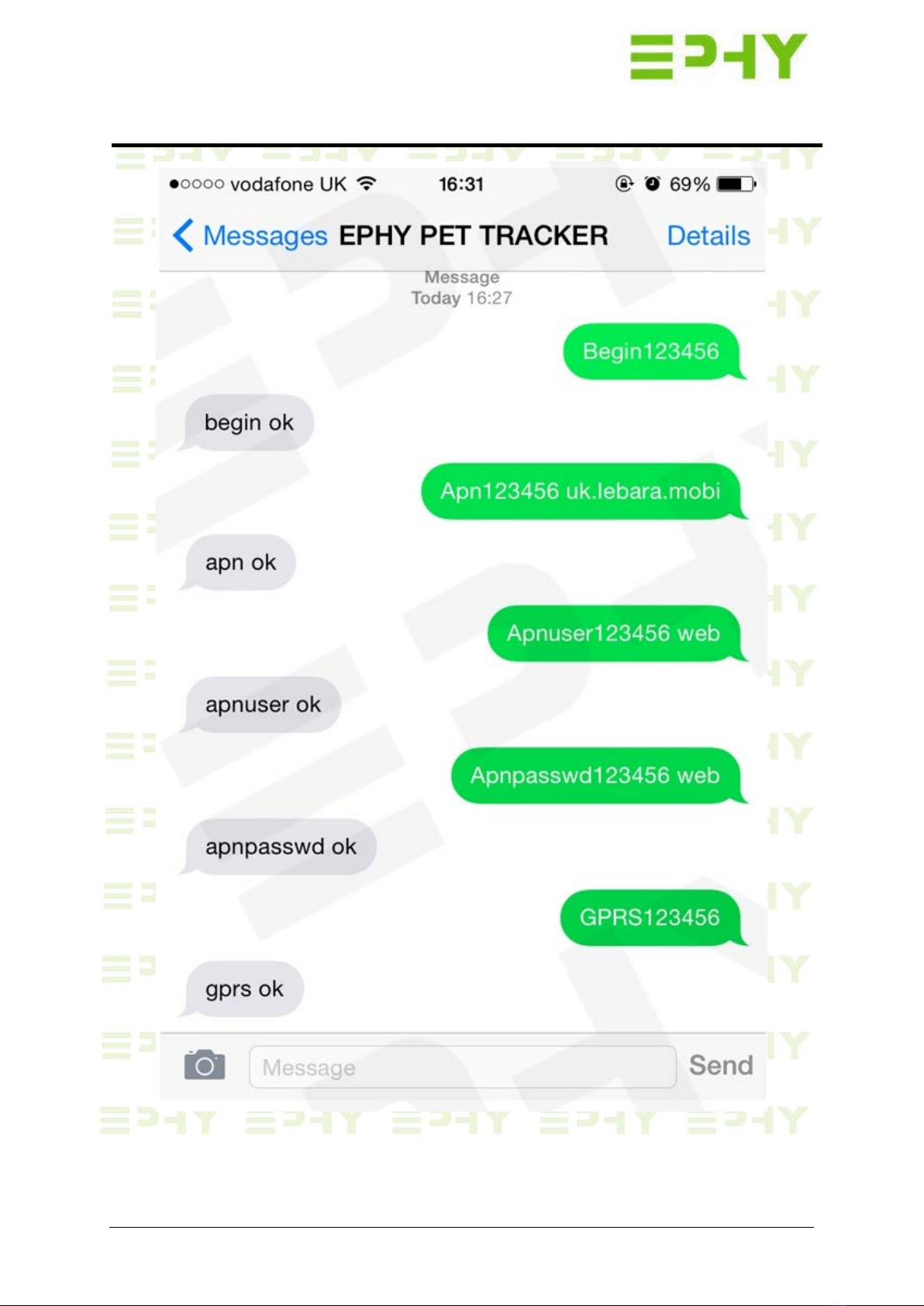

Lebara APN SMS command Setup;
Send the following commands via text message from your mobile to the number of the SIM card that
is inside the GPS device. Make sure you do them in the order as below and wait for the REPLY
before sending the next command;
TEXT 1 = apn123456(space)uk.lebara.mobi / REPLY 1 = apn ok
TEXT 2 = apnuser123456(space)web / REPLY 2 = apnuser ok
TEXT 3 = apnpasswd123456(space)web / REPLY 3 = apnpasswd ok
TEXT 4= upload123456(space)30 / REPLY 4 = upload123456 30

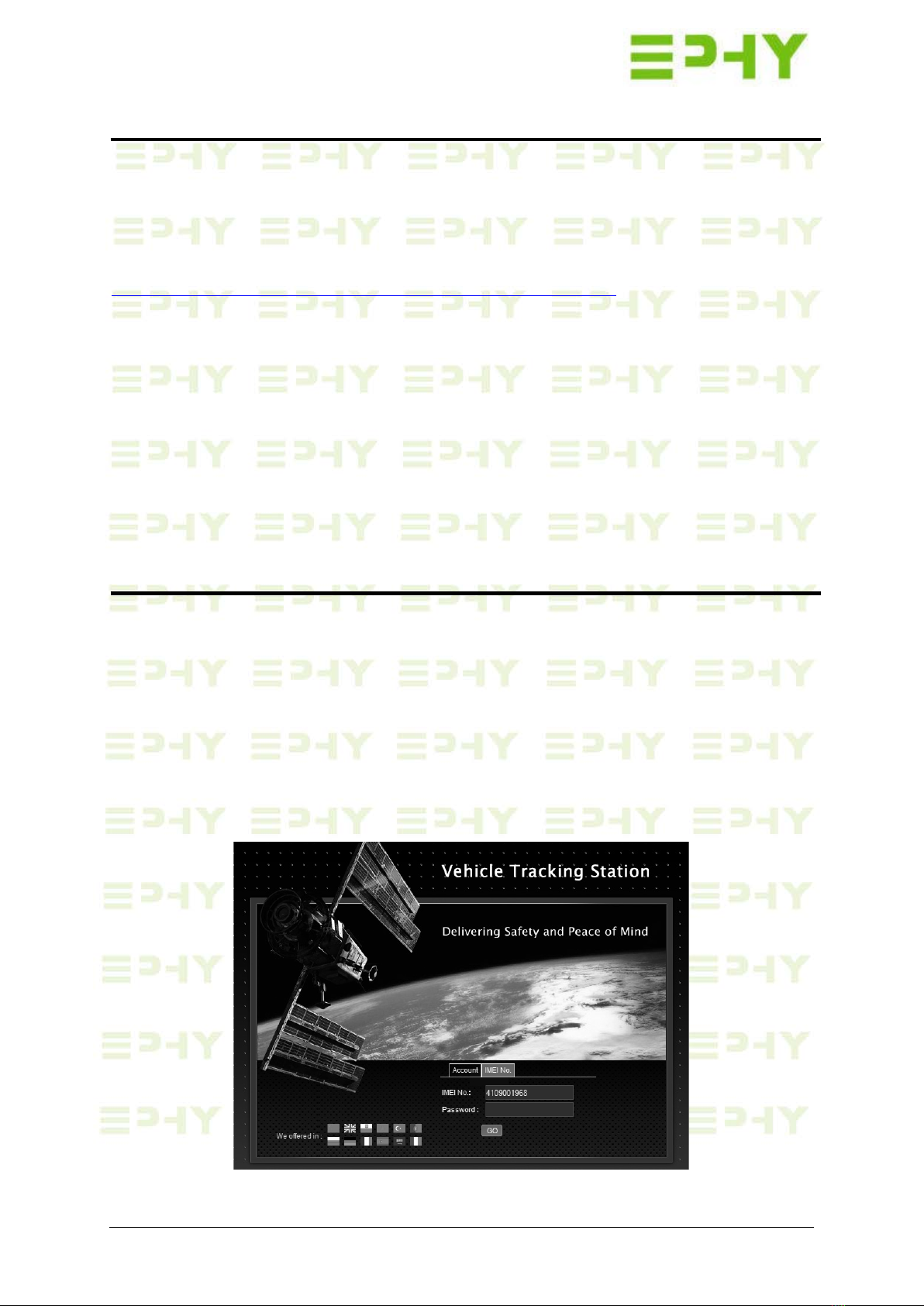

FREE ONLINE TRACKING
Visit the following website 2.tkstargps.net > click on the IMEI No. section. The IMEI no. can be found
on the back of the GPS device example 41090000001. The password is 123456.
Platform: 2.tkstargps.net
IMEI No: On back of GPS device.
Password: 123456
Once logged in your can view/edit the following;
Monitor GPS device, Track GPS device, Playback up to 1 year of tracking data, Set up Geo Fence
alerts, View tracking statistics, Print tracking reports, Change password + MORE!

www.ephy.co.uk
7

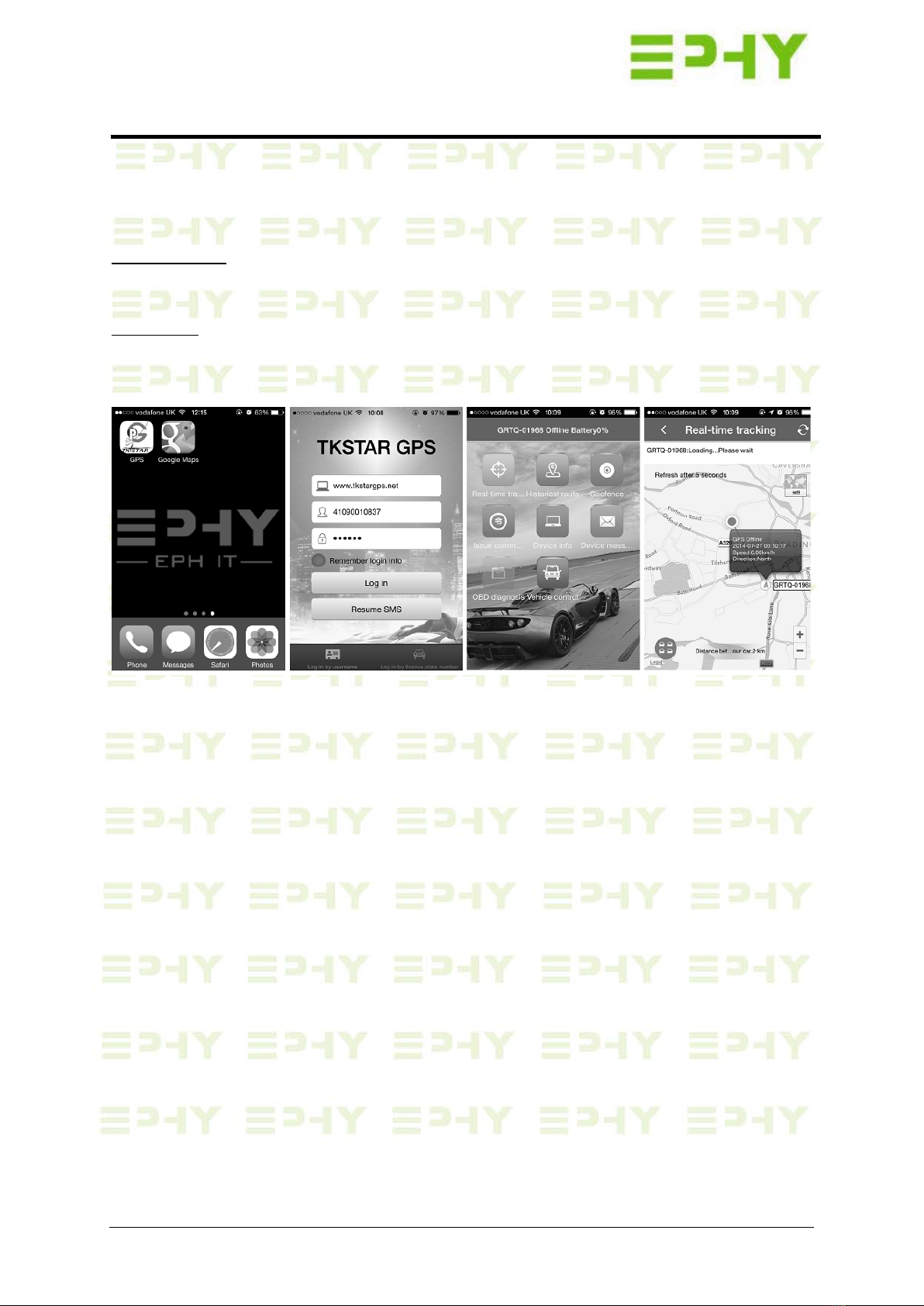

FREE ANDROID/IOS MOBILE TRACKING APP
You must send the GPRS MODE ON command to the device, before you can start tracking.
Android devices: visit 2.tkstargps.net and download the latest android GPS application.
iOS devices: search TKSTARGPS in the apple app store and download the application to your iOS
device.
Once you have downloaded the app to your smartphone. Log into the GPS tracking app by using the
License Plate section using your IMEI number and password.
Server: 2.tkstargps.net
IMEI No: On back of GPS device. (Ex 41090000001)
Password: 123456
Once logged in, choose the REAL TIME TRACKING option.

www.ephy.co.uk
8
FAQs
What’s inside the box?
1 x TKSTAR Pet Tracker, 1 x UK Power Adapter, 1 x USB cable, 1 x Pet Collar, 1 x User manual
& 1 x Free Lebara card
How long does the GPS battery last for?
Standby time is 250-400 hours.
How long does the GPS take to charge fully?
Approx. 5-6 hours.
How do I reset my GPS?
Use the ‘reboot device’ command. (This can be found in the SMS command section)
Is the tracker waterproof?
The GPS is IPX6 waterproof, protected against heavy splashing and rain.
I live outside the UK will the SIM card supplied work in my country?
Yes, but SMS report prices maybe higher. We suggest you use your own 2G/3G SIM card from your
own countries mobile network provider.
Will the GPS work with my 4G SIM card?
No, the GPS device will only work with a standard 2G/3G SIM card.
How do I put credit on the tracker?
By topping up the SIM card that’s inside the GPS via the network provider.
How much does an SMS report cost?
If you are using a Lebara SIM card provided from us, SMS reports cost approx. 9p per SMS.
Please note other networks may vary.
Will the tracker work worldwide?
Yes tracking is available worldwide via the online or mobile app tracking.
Does the tracker have real time tracking?
Yes the Android/iOS mobile applications provide real time tracking.
Can I check the history of the GPS tracker?
Yes you can view back up to 1 years’ worth of tracking data using the online tracking site.
Does the GPS come supplied with power supply adapters for different countries?
No, the GPS is supplied with a UK power adapter only.
Will the GPS charge off an in-car charger?
Yes, you can charge the GPS off a Micro USB in-car charger. (This is not supplied with the GPS)
Does the GPS come with warranty?
Yes, the tracker is supplied with one year’s RTB warranty.
For any other questions or queries, please email us at
[e-mail]
