DXP
DXPDXP
DXP
-
--
-
3800EC
3800EC3800EC
3800EC
User
Manual
Brighten Your Digital View!
8-Way MPEG-2 SD Encoder

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
01 Notice
03 Before Using the Device
04 1 Overview
04 2 Features
05 3 Technical Specifications
06 4 Block Diagram
06 5 Front panel and rear panel instructions
06 5.1 Front panel
07 5.2 Rear panel
08 6 Control with Front Panel
08 6.1 Overview of the Menu
08 6.2 Description of menu
08 6.2.1 Status
09 6.2.2 Configuration
14 6.2.3 System
15 7 Control with Web Server

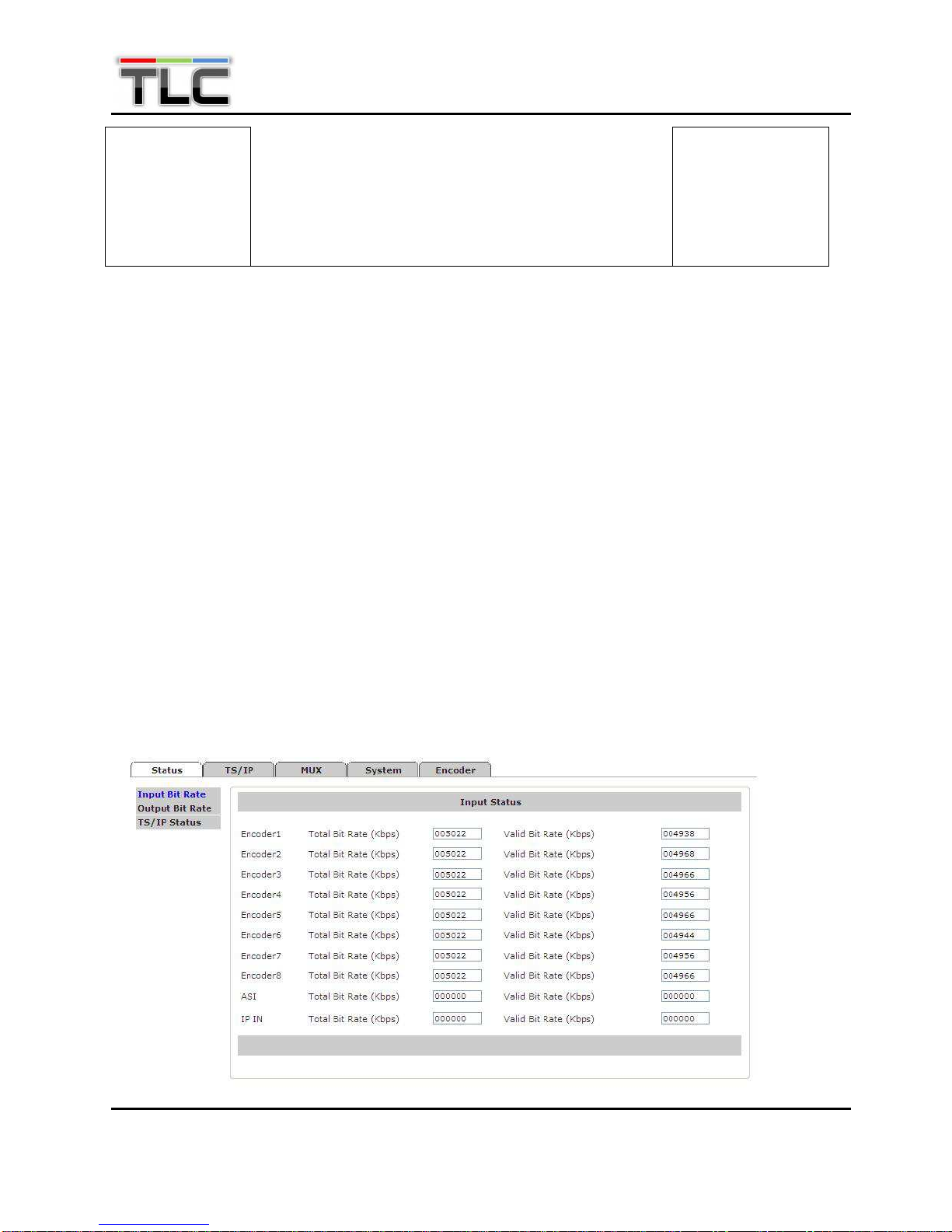

15 7.1 Status
16 7.2 Encoder
18 7.3 TS/IP
22 7.4 MUX
2
3
7
.
5
System
Contents

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
Notices
COPYRIGHT (Copyright © 2014 Beijing Jaeger Communication Electronic Technology Co., Ltd.)
Not to be copied, used or translated in part or whole without Beijing Jaeger prior consent in writing
except approval of ownership of copyright and copyright law.
WARRANTY
This warranty does not cover parts which may become defective due to misuse of the information
contained in this manual.
Read this manual carefully and make sure you understand the instructions provided. For your
safety, be aware of the following precautions.

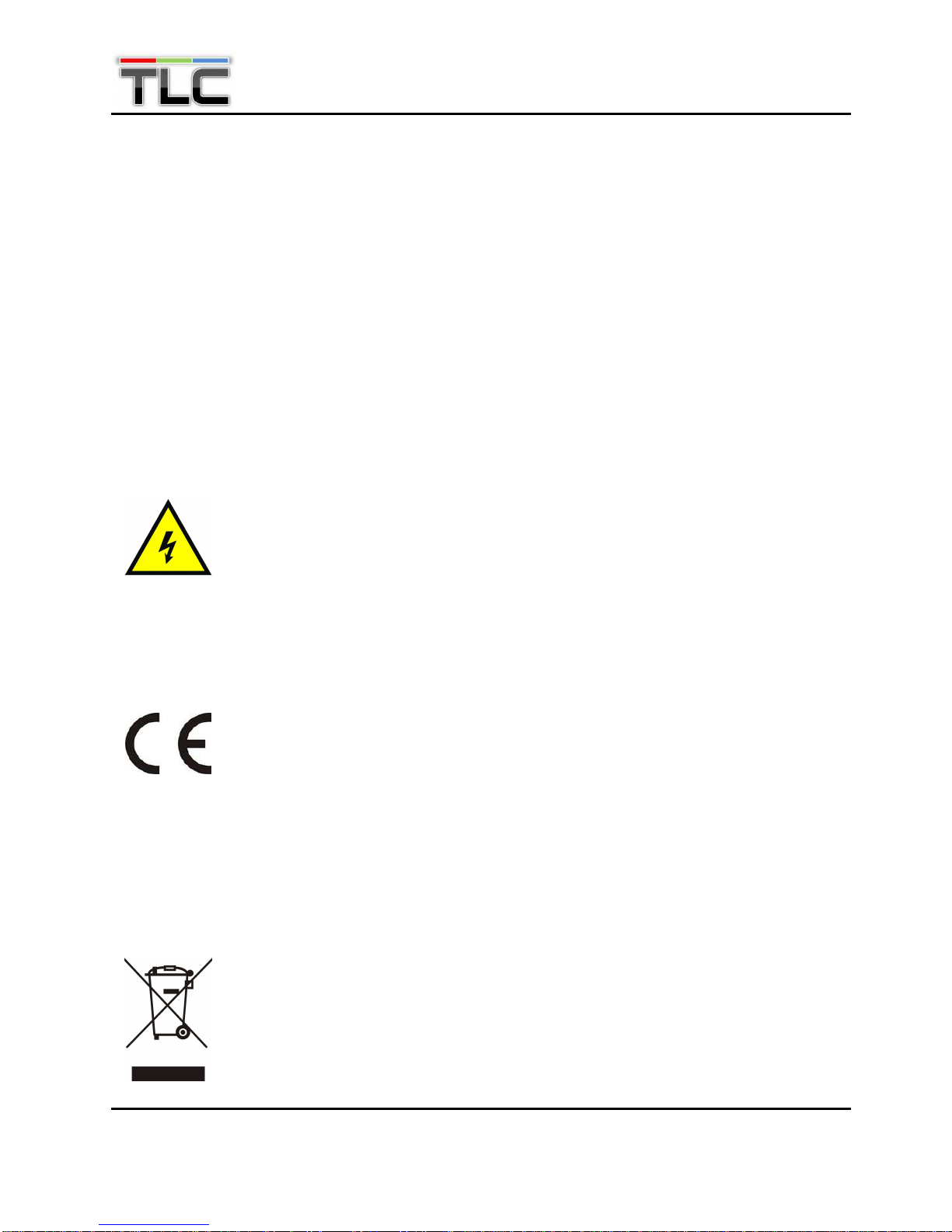

WARNING! IMPORTATNT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• To avoid explosion danger, do not dispose of batteries in an open fire.
CE MARK FOR EUROPEAN HARMONISED STANDARDS
The CE mark which is attached to these products means it conforms to EMC Directive
(89/336/EEC) and Low Voltage Directive (73/23/EEC).
IMPORTANT INFORMATION
Please retain the original packaging, should it be necessary at some stage to return the device.
Disposal of Old Electrical and Electronic Equipment (Applicable in the European Union and
other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will help to conserve natural resources.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
For more detailed information about recycling of this product, please contact your local
Civic Office, your household waste disposal service, or the shop where you purchased the
product.
COPYRIGHTS
Television programs, movies, video tapes, discs, and other materials may be copyrighted.
Unauthorized recording of copyrighted material may be against the copyright laws in your region.
Also, use of this product with cable television transmissions may require authorization from the
cable television operator or transmitter/owner.
VENTILATION
• Do not expose the product to high temperatures, such as placing it on top of other product that
produce heat or in places exposed to direct sunlight or spot lights.
• The ventilation slots on top of the product must be left uncovered to allow proper airflow into the
device.
• Do not stand the product on soft furnishings or carpets.
• Do not stack electronic equipment on top of the product.
• Do not place the product in a location subject to extreme changes in temperature. The temperature
gradient should be less than 10 degrees C/hour.
• Place the product in a location with adequate ventilation to prevent the build-up of heat inside the
product. The minimum ventilation space around the device should be 7 cm. The ventilation should
not be impeded by covering the ventilation openings with items, such as newspapers, table cloth,
curtains, etc.
POWER SOURCES
• The product is not disconnected from the AC power source (mains) as long as it is connected to the
power outlet or wall socket, even if the product is turned off.
• If the product will not be used for a long period of time, disconnect it from the AC power outlet or wall
socket.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
Before Using the Device
Thank you for purchasing the DXP-3800EC 8-Way MPEG-2 SD Encoder. This User Manual is
written for operators/users of the DXP-3800EC to assist in installation and operation. Please read
this user manual carefully before installation and use of the device.
FOR YOUR SAFETY
This equipment is provided with a protective earthing ground incorporated in the power cord. The
main plug shall only be inserted in a socket outlet provided with a protective earth contact. Any
interruption of the protective conductor, inside or outside the device, is likely to make the device
dangerous. Do not remove the covers of this equipment. Hazardous voltages are present within
this equipment and may be exposed if the covers are removed. Only Beijing Jaeger trained and
approved service engineers are permitted to service this equipment.
The supplied AC power cable must be used to power the device. If the power cord becomes
damaged it must be replaced. No operator serviceable parts inside. Refer servicing to Beijing
Jaeger trained and approved service engineers. For the correct and safe use of the device, it is
essential that both operating and servicing personnel follow generally accepted safety procedures
in addition to the safety precautions specified in this manual. Whenever it is likely that safety
protection is impaired, the device must be made in-operative and secured against unintended
operation. The appropriate servicing authority must be informed. For example, safety is likely to be
impaired if the device fails to perform the intended measurements or shows visible damage.
WARNINGS
• The mounting environment should be relatively dust free, free of excessive vibration and the ambient
temperature between 0C° to 40C°. Relative humidity of 20% to 80% (non-condensed) is
recommended.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
• Avoid direct contact with water.
• Never place the equipment in direct sunlight.
• The outside of the equipment may be cleaned using a lightly dampened cloth. Do not use any
cleaning liquids containing alcohol, methylated spirit or ammonia etc.
• For continued protection against fire hazard, replace line fused only with same type.
• Air intake for cooling is achieved via holes at the side of the device and the fans inside. The air flow
should not be obstructed. Therefore, the device has to be placed on a flat surface, leaving some
space at the sides of the device.
• When in operation, the internal temperature should not exceed the limit of 70C°.
DXP-3800EC Series 8-Way MPEG-2 SD Encoder
1 Overview
DXP-3800EC is an integrated 8-way high density MPEG-2 Encoder. Eight ways of Standard Definition
(SD) base band real time A/V programs could be encoded simultaneously. These streams encoded
could be re-multiplexed with the stream from its ASI input port. The final re-multiplexed Transport
Stream (TS) is available at its Gigabit TSoverIP port and ASI output port. The series provide two TS/IP
operation modes. The first is “Full Duplex”, which allows one MPTS or SPTS inputted over 1
multicast/unicast to make up a new MPTS with local encoders, then sends out the new one over 1
multicast/unicast. In the second mode “Multiple output” which delivers up to 9 streams over IP. There
are 8 un-stuffed SPTS (lower bit rate but less PCR accurate than normal SPTS, from local encoders)
and 1 MPTS (from internal reMultiplexer) over the IP with different Unicast or Multicast IP addresses.
DXP-3800EC allows user to configure, monitoring and manage over the informative front panel and
keypad, or Web interface, or SNMP based management software from 3rd party. This Encoder family
presents brilliant picture quality, high density design, high stability system architecture, and the hot-
swappable power supply.
2 Features
Compile with MPEG-1(ISO/IEC11172), MPEG-2 MP@ML(ISO/IEC13818)
Video resolution 576i (PAL, SECAM) & 480i (NTSC)
MPEG1 Layer I/II audio compression
8-way real time encoder with re-multiplexed integrated
Built-in re-Mux accepts up to 10 SPTS/MPTS (8 from local encoders, 2 from external input over IP and ASI)

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
1 ASI input (for daisy chain) & Redundant ASI output
Full duplex Gigabit TS over IP I/O (under Full duplex operation mode)
Up to 9 multicast/unicast output (under Multiple-channel operation mode)
SNMP & HTTP WEB
Redundant Power Supplies
 19” x 1 U EIA standard chassis
3 Technical Specifications
Video input & Encode
Number of input ports CVBS x 8
Encoding Standard MPEG-2 MP@ML
Chrominance Format 4:2:0
Compression Bit Rate 1.7Mbps~20Mbps
Video Resolutions &
Recommended
Compression Bit Rates
480i（720×480）@29.97Hz:SMPTE656M: 3~6Mb/s
576i（720×576）@25Hz: SMPTE656M: 3~6Mb/s
Audio Input & Encode
Number of input ports 8 pairs of Stereo Audios
MPEG1 Layer I
Compression Standard MPEG1 Layer II
Sampling Rate 48KSym/s
MPEG1 Layer I: 64~256Kb/s
Compression Bit Rate MPEG1 Layer II: 32~384Kb/s
DVB-ASI Input
Interface BNC Female, 75Ω
Maximum Input Bit rate 100 Mb/s
Data Transfer type Byte
Packet Length 188 or 204 Bytes
Signal Level 200 ~ 880mVp-p
DVB-ASI Output
Interface BNC Female, 75Ω
Effective Data Rate 1.5 Mb/s ～70 Mb/s

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
Data Transfer type Byte
Packet Length 188 or 204 Bytes
Signal Level 800±80mV
Gigabit TS_over_IP
Standard IEEE 802.3, 10/100/1000 Base-T, Full Duplex
Maximum Effective Bit
Rate 80Mb/s
Data Protocol UDP or RTP, SPTS or MPTS
Control Protocol ICMP, ARP, IGMPv2
Interfaces on Rear Panel
ASI In 1 x BNC Female, 75Ω
CVBS In 8 x BNC Female, 75Ω
AUDIO In 8 x BNC Female, 75Ω
ASI Out 2×BNC Female, 75Ω(1 Backup)
Interfaces on Front Panel
Control 1×RJ-45, 10/100 Base-T
TS/IP 1× IP (GbE), RJ-45, 10/100/1000 Base-T, Full Duplex
Display 2 x 20 LCD Display
Others
Power Supply AC90~260V 50/60Hz
Operating Temperature 0 ~ 45℃
Storage Temperature -10 ~ 60℃
Operation Humidity 10 ~ 90%, (Non-condensed)
4 Block Diagram

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
A3 A4

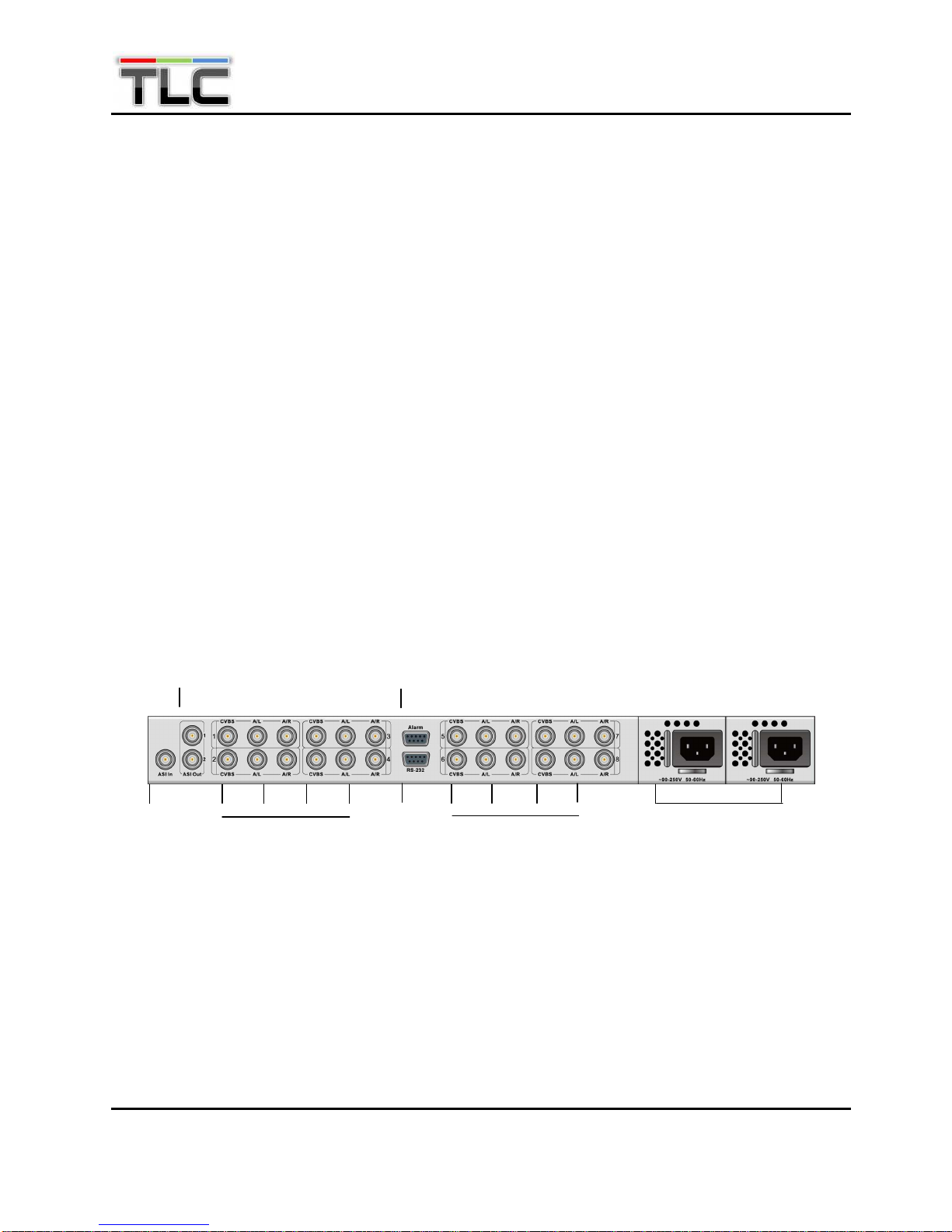

5 Front panel and rear panel instructions
5.1 Front panel
A5 A7
A6
A2A1

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
B1
B2
B3 B3B4
B5
B6
A1 Status LEDs Power: green when power is on, red when one of the power supply unit
malfunction
Warning: red when function faulty
Alarm: red when function critical
A2 Encoder Status Encoder 1~8 working status, green light indicates the corresponding encoder
module is under working, red when the corresponding encoder module
malfunction or stop or input is invalid
A3 VFD Panel
A4 Keypad 6 keys for local control
A5 USB Used to upgrade software version of this device
A6 Management Ethernet (10/100 LAN) control port
A7 TS/IP TS over IP I/O port
5.2 Rear panel of DXP-3800EC
B1 ASI IN ASI input interface
B2 ASI OUT 2 ASI output interface (output in mirror)
B3 Audio Video IN SDI/HDMI input interface
B4 RS232 Reserved for factory use
B5 Alarm Alarm relay interface

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
B6 Power Socket AC Power Input
6 Control with Front Panel
With the keypad and display panel on the front panel, user can configure the device locally.
6.1 Overview of the Menu
Power on the device and wait for initialization complete, the Local IP address will be displayed on the VFD panel.
Press〔ENTER〕to get into the main menu.
Main Menu
Status
Configuration
System
Input Bit Rate
TS/IP Status
(Full Duplex/
Multiple
Output)
Encoder
Remux
TS/IP
(Mode:
Multiple
Output/ Full
Duplex)

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
(1)Status: show the status of the device
(2)Configuration: Configure and monitor parameters of encoding/transcoding
(3)System: Configure the local settings of the device
6.2 Description of menu
The main menu items can be selected with the keypad. By pressing the [Enter], the user navigates to the sub-
menus, which are selected in the same manner.
6.2.1 Status
Sub-Menu Sub-menu
Parameter Description Factory Default Value
Encoder 1 Bit Rate Display encoder 1 bit rate
Encoder 2 Bit Rate Display encoder 2 bit rate
Encoder 3 Bit Rate Display encoder 3 bit rate
Encoder 4 Bit Rate Display encoder 4 bit rate
Encoder 5 Bit Rate Display encoder 5 bit rate
Encoder 6 Bit Rate Display encoder 6 bit rate
Encoder 7 Bit Rate Display encoder 7 bit rate
Encoder 8 Bit Rate Display encoder 8 bit rate
ASI Input Bit rate Display the input ASI signal bit rate
Input Bit Rate
TS/IP Input Bit Rate Display the TSoverIP input bit rate (Valid under Fully
Duplex mode only)
Link Status Display IP link status:10M/100M/1000M
Display IP out UDP packet/s
Display IP out column FEC packet/s
Gigabit Output Status
Display IP out row FEC packet/s
Display IP in lock status and lock bitrate
Display IP in protocol
TS/IP Status
(Full Duplex)
Gigabit In Status
Display IP in mode of column FEC and row FEC

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
Display IP in packets per UDP frame
Display IP in received TS frames
Display IP in fixed RTP frames
TS/IP Status
(Multiple
Output) Link Status Display IP link Status:
10M/100M/1000M/Disconnect
6.2.2 Configuration
Sub-Menu Sub-menu
Parameter Description Factory Default
Value
Encoder Select
Encoder Select:
Encoder 1: the encoder 1 is active for configuration
Encoder 2: the encoder 2 is active for configuration
Encoder 3: the encoder 3 is active for configuration
Encoder 4: the encoder 4 is active for configuration
Encoder 5: the encoder 5 is active for configuration
Encoder 6: the encoder 6 is active for configuration
Encoder 7: the encoder 7 is active for configuration
Encoder 8: the encoder 8 is active for configuration
Encoder
Video Settings Mode:
PAL/NTSC/SECAM: set the video mode
Resolution: set the resolution of the output video
D1 / HD1 / SIF / QSIF / Sliced Screen / 2/3D1 /
3/4D1
GOP Structure: set the structure of GOP
IBBPBBPBB/IIIIIIIII/IPPPPPPPP/IBIPBPBPB
GOP Size: 0-63. Set the GOP size, valid range from
0-63. Note the bigger the value, better the
compression ratio (for video) but longer the latency of
encoding.
Saturation Control: set the saturation of the picture,
valid range 0~255
Mode: PAL
Resolution: D1
GOP Structure:
IBBPBBPBB
GOP Size: 61

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
Hue Control: set the hue of the picture, valid range
0~255
Brightness Control: set the brightness of the
picture, valid range 0~255
Contrast Control: set the contrast of the picture,
valid range 0~255
Aspect Ratio:
4:3: set video aspect ratio to 4:3
16:9: set video aspect ratio to 16:9
Hue Control: 0
Brightness Control: 135
Contrast Control: 123
Aspect Ratio: 4:3
Audio Settings
Audio Format:
MPEG1 Layer2: set the audio compression format
MPEG-1 Layer I or MPEG-1 Layer II
Sample: 48K/32K/44.1K
Set the audio sampling rate
Audio Bit Rate: 32k bps /64k bps /128k bps /192k
bps /256k bps /384k bps
Set the audio bitrate
Audio Channel Mode: Stereo / Joint Stereo / Dual
Channel / Single Channel
Set the audio channel mode.
Audio Level: Mute/+6dB~-17dB
Set the gain of output volume
Audio Format: MPEG1
Layer I
Sample: 48K
Audio Bit Rate: 192 Kbps
Audio Channel Mode:
Stereo
Audio Level: 0dB
Encoder Bit Rate
Encoder Bit Rate: 1.7M~20MKbps. set the output bit
rate of the selected encoder.
Note: Encoder bit rate must greater than the sum of
video bit rate + audio bit rate + PSI (150Kbps) +
buffering (100Kbps) + encoder error (150Kbps)
Encoder Bit Rate:
5000Kb/s
Encoder
Advanced Settings PMT PID: set PMT PID, valid range from 32 to 8190
decimal Output PMT PID: 43

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
Video PID: set Video PID, valid range from 32 to
8190 decimal Output Video PID: 4001
Audio PID: set audio PID, valid range from 32 to
8190 decimal Output AudioPID:4002
PCR PID: set PCR PID, valid range from 32 to 8190
decimal Output PCR PID:8004
Service PID: set Service PID, valid from 32 to 8190
decimal Output Service PID:4000
Service Name: set the service name Output Service Name:
Encoder Video
Program List
Program List: select the programs to remux. Click
on Enter to select, double click to cancel. (The
program(s) will be marked with an asterisk (*) once
be selected)
Encoder 1: select the SPTS from encoder 1
Encoder 2: select the SPTS from encoder 2
Encoder 3: select the SPTS from encoder 3
Encoder 4: select the SPTS from encoder 4
Encoder 5: select the SPTS from encoder 5
Encoder 6: select the SPTS from encoder 6
Encoder 7: select the SPTS from encoder 7
Encoder 8: select the SPTS from encoder 8
ASI Input: select the program(s) inputted via ASI
input port.
IP Input: select the program(s) inputted via IP input
port. (Note: this sub-menu is displayed only when the
Gigabit I/O is configured as full-duplex mode.)
Bit Rate Output Bit Rate: set the bit rate of the newly
generated MPTS, valid range from 100~216000 Kb/s Output Bit Rate:
38015Kb/s
Packet Size 188 Byte / 204 Byte 188 Byte
TS ID TS ID: key in the TSID of the newly generated MPTS,
valid range from 0 to 65535 decimal TS ID:00008
Remove CA
ON: remove the CA descriptors that are carried
within the inputted TS over ASI or IP
OFF: keep the CA descriptors
OFF
Insert EIT
ON: insert EIT into the output stream, EIT data may
come from ASI or IP input port
OFF: don’t insert EIT into the output stream. OFF
Remux
Output Program Display the program list of the remux

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
Channel 1~8
(the streaming
comes from Encoder
1~8
correspondingly.)
Uni/Multi IP Address: set the uni/multicast IP
address for the IP output 1~8
Uni/Multi UDP Port: set the port number, valid range
from 1~65535
Target MAC Address:
set the destination port number MAC Address
Gigabit Out Switch: ON/OFF: to switch on/off the
current channel
Uni/Multi IP Address:
238.069.070.001
Uni/Multi UDP Port:
01234
Target MAC Address:
00:00:24:56:12:67
Gigabit Out Switch: ON
Channel 9
(the streaming
comes from the
built-in Remux or
ASI input.)
Uni/Multi IP Address: set the uni/multicast IP
address for the IP output channel 9
Uni/Multi UDP Port: set the port number, valid range
from 1~65535
Target MAC Address:
set the destination port number MAC Address
Gigabit Out Switch: ON/OFF: to switch on/off the
current channel
MUX/ASI Out: set the source for IP output
channel 9
Uni/Multi IP Address:
238.069.070.001
Uni/Multi UDP Port:
01234
Target MAC Address:
00:00:24:56:12:67
Gigabit Out Switch: ON
MUX/ASI Out: ASI
Gigabit Address: set the IP address of the IP port IP Board IP
Address:10.10.80.60
Gigabit Subnet Mask: set the net mask of the IP
port IP Board Net Mask:255.255.255.0
Gigabit Gateway: set the gateway of the IP port IP Board
Gateway:10.10.80.1
Gigabit MAC Address: display the MAC address of
the IP port IP Board MAC Address:
Protocol:
UDP: set UDP protocol to IP output
RTP: set RTP protocol to IP output
Protocol: UDP
TS Pkts Per UDP: set the number of TS packets that
can be carried by each UDP packet, valid range from
1~7 TS Pkts Per UDP: 7
Time To Live: set TTL to the output IP packets, valid
range from 1~255 Time To Live: 255
Type Of Service: Min Delay/Max Reliability/Max
Throughput/Min Monetary Cost/Normal Type Of Service: Min Delay
TS/IP(Gigabit
Mode:
Multiple
Output)
Gigabit Local
Gateway MAC Address: set the MAC address of the
gateway under which the device is connected Gateway MAC Address: ff:ff:ff:ff:ff:ff

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
Gigabit Out Switch: Enable/Disable Gigabit Out Switch: ON
Protocol:
UDP: set UDP protocol to IP output
RTP: set RTP protocol to IP output
Protocol: UDP
TS Pkts Per UDP: set the number of TS packets that
can be carried by each UDP packet, valid range from
1~7 TS Pkts Per UDP: 7
Time To Live: set TTL to the output IP packets, valid
range from 1~255 Time To Live: 1~255
Type Of Service: Min Delay/Max Reliability/Max
Throughput/Min Monetary Cost/Normal Type Of Service: Min Delay
Uni/Multi IP Address: set the destination IP address Uni/Multi Address:
238.069.070.001
Uni/Multi UDP Port: set the destination port number,
valid range from 1~65535 Uni/Multi UDP Port: 01234
ProMPEG FEC Switch: Enable/Disable ProMPEG FEC Switch:
Disable
ProMPEG FEC Mode:
1D,5x5/1D,5x20/1D,10x10/2D,5x5/2D,5x20/2D,10x10
ProMPEG FEC Mode :
1D,5x5
Gigabit Output
FEC Alignment:
Annex A/Annex B
FEC Alignment:
Annex A
Gigabit Address: set the IP address of the IP port Gigabit Adress:
010.010.080.060
Gigabit Subnet Mask: set the net mask of the IP
port Gigabit Subnet Mask: 255.255.255.000
Gigabit MAC Address: display the MAC address of
the IP port
Gigabit Gateway: set the gateway of the IP port Gigabit IP Gateway:
010.010.080.001
Gigabit Local
Gateway MAC Address: set the MAC address of the
gateway under which the device is connected Gateway MAC Address: ff:ff:ff:ff:ff:ff:ff
Uni/Multi Address: set the uni/multicast target
address of the IP input Uni/Multi Addres:238.069.070.002
TS/IP
(Gigabit
Mode: Full
Duplex)
Gigabit Input
Uni/Multi UDP Port: set the target port number of
the uni/multicast IP input, valid range from 1~65535 Uni/Multi UDP Port: 01234

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
TS Clock Recovery:
Auto: it is suggested to set Auto when there is
accurate PCR carried by the inputted TS/IP
Fixed Rate: when fixed rate is selected, user has to
configure a bit rate to regenerate the TS clock. The
configured fixed bit rate has to be a little bit higher
than the bit rate of the inputted TS/IP.
TS Clock Recovery: Auto
6.2.3 System
IP Address: set the IP address of the device, valid range from
0.0.0.0~255.255.255.255 IP Address: 10.10.70.48
Subnet Mask: set the net mask of the device, valid range from
0.0.0.0~ 255.255.255.255 Net Mask: 255.255.255.0
Gateway: set the gateway of the device, valid range from
0.0.0.0~255.255.255.255 Gateway: 10.10.70.1
Network Setting
MAC Address: to display the MAC address
Remote Setting Trap IP Address: set the IP address of the SNMP Trap server, valid
range from 0.0.0.0~255.255.255.255
Trap IP Address:
10.10.70.25
Device Label Device Label: user allows to rename the device, press Enter and key
in the name of the device, then press Enter to confirm the setting or
press Exit to cancel.
Software Version Software Version: display the software version
Factory Default
Factory Default:
Enter = Yes: press Enter to recall the factory default settings.
Exit = No: press Exit to cancel
Note: the network
settings will not reset to
the factory setting!
MAC Address: to Modify the MAC address
S/N: display the serial number of the device
Gigabit MAC Address: to Modify the Gigabit MAC address
Machine Type
Detail Version: Display the detail version of MCU,FPGA,LINUX OS
WEB Login ID Edit Login ID: press Enter and key in the login ID for WEB
management Default Login ID: root
WEB Login Password Edit Login Password: press Enter and key in the password for WEB
management Default Login Password: 12345
Gigabit Mode:Gigabit Mode
Multiple Output: the Gigabit I/O is configured as multiple
uni/multicast output mode, which delivers up to 10 streams over IP.
Gigabit Mode: Multiple
Output

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
There are 8 stuffed or un-stuffed SPTS (lower bit rate but less PCR
accurate than normal SPTS, from local encoders) and two MPTS
from built-in remultiplexer and ASI input over the IP with different
Unicast or Multicast IP addresses.
Full Duplex: the IP I/O is configured as full duplex mode, which
allows only one MPTS or SPTS over IP input and output in
uni/multicast at the same time.
7. Control with Web Server
DXP-3800EC has an integrated web server. This web server allows the configuration and status requests with a
standard web browser. To operate a DXP-3800EC, first make sure the Ethernet control port is well connected in
the network and could be pinged by the host PC, and then enter the IP address of the DXP3800EC into the
browser, there will be a pop-up showed asking for login user and password. After login the device can be
operated. The default user name and password are respectively “root” and “12345”. The username and password
can be changed by user via front panel or via submenu under the system page. If the username and password
are forgotten, user have to set a new one via front panel.
7.1 Status
Via the status page, user can have an overview of the current input and output status of the connected DXP-
3800EC.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулко ское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001
р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ Санкт-Петербурге | БИК 044030704
ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru
ООО «ТЛК Трейд», Санкт
-
Петербург
[phone]
[email protected]
Input Status
Output Status
TS/IP Status
7.2 Encoder
There are eight encoders integrated on one DXP-3800EC, each encoder can work independently. Click on the
to configure the encoder 1, the same for the rests.
