Lemur-Z/Lemur-X Kiosk Ticket Printers Operator’s Manual
Rev: 17.01.17

1
Table of Contents Page
FCC Notice & Warranty Information 2
1.0 Unpacking the printer Introduction 3
2.0 Introduction for Lemur-Z 4
2.1 Introduction for Lemur-X 7
3.0 Important Safety Information 8
4.0 Installation 9
4.1 Paper Guide Installation for Lemur-Z 10
4.2 Receipt Roll Holder Installation for Lemur-Z & X 11
4.2.1 Receipt Roll Hold with Optional Low Paper Sensor 13
5.0 Ticket Load Procedure 14
5.1 Ticket Width Adjustment 15
6.0 Standard Interface Pinouts 16
7.0 Thermal Paper –Theory & Specifications 17
8.0 Maintenance 18
8.1 SQ Optical Sensors 18
8.2 Thermal Print Head 19
8.3 Platen 20
8.4 Cutter Assembly 21
9.0 Troubleshooting Guide 22
Appendix A - ETHERNET PARAMETERS 24
Appendix B–INTERFACE TESTING A LEMUR 25
Appendix C –DOWNLOADING SOFTWARE COMMANDS 30
Appendix D –WINDOWS DRIVER INSTALLATION GUIDE 32
Appendix E –MAC DRIVER INSTALLATION GUIDE 46
Appendix F–SERVICE PLANS 50
Appendix G–TECHNICAL SUPPORT 51
Appendix H–LEMUR X REFERENCE DRAWING 52
Appendix I –LEMUR Z REFERENCE DRAWING 53
Appendix J –REFERENCE DRAWING FOR ROLL HOLDER 54

2
FCC NOTICE
NOTE: The equipment has been tested and found to comply with the limits for a class A digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at the user’s expense.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be
used with the unit to insure compliance.
WARRANTY INFORMATION
BOCA warrants the equipment manufactured and sold by it to be free from defects in material and
workmanship under normal use and service for a specified period of time. Parts damaged by
negligence or misuse (bad ticket stock, improper operating conditions, etc.) are excluded from this
warranty. Warranties for printers are 1 year from date of shipment. (NOTE: The print head is a
consumable part and is warranted for 90 days.) Spare parts carry a 90 day warranty. Tickets are
warranted, under proper storage conditions, for a period of 3 years. All warranty work is to be
performed either by BOCA or by an authorized BOCA service center. Shipping charges to the repair
center are the customer's responsibility. BOCA will pay for the equipment's return via ground service.
Please go to the link below if you have any reported issues with your new BOCA printer.
www.bocasystems.com/onlinesupportform.html
Equipment damaged in shipping should be reported immediately both to BOCA and to the shipper.
EXTENDED WARRANTY PLAN - BOCA offers extended warranty plans for all printer models. These
plans cover all parts and labor. All labor is to be performed at the BOCA facility. Equipment
damaged by misuse or negligence, including damage to print heads caused by defective ticket stock,
is excluded from this extended warranty. The customer, at its option, may request BOCA to ship
individual parts to expedite simple repair procedures. In certain cases where the customer is unable
to wait for the normal repair cycle, BOCA will ship an exchange printer within one business day after
notification by the customer. All freight charges are the responsibility of the customer.
Click here to return to > Table of Contents

3
1.0 Unpacking the Printer
The printer is shipped in a ruggedized container. Please save packing material for future use. Remove the
printer and accessories from the box and inspect for obvious damage. If damage is noticed, please report it
immediately to BOCA.
Email: [e-mail] Tel: [phone] Fax: [phone]
The following items should be in the box:
A) Lemur-Z or X Printer
B) 24VDC power supply
C) AC cord
D) May come with one or both of the below listed items (depending on what was ordered):
- Input paper guide (P/N 424050) for Lemur-Z printers only
or
- Receipt roll holder (P/N 424051)
E) Interface cable (optional)
F) Optional low paper sensor (see 4.2.1 Receipt Roll Holder with Optional Low Paper Sensor )
Above shows printer with Input paper guide.
Above shows printer with receipt roll holder.

4
2.0 Introduction for Lemur-Z
The Lemur-Z is a direct thermal ticket printer with integrated cutting mechanism. This manual will provide the
user with general information regarding printer set-up, configuration and troubleshooting. Please read the
important safety information section before installation is conducted. Review the programming guide for
additional details.
The Lemur-Z series are kiosk printers designed for use with 2” (50.8mm) to 3.25” (82.5mm) rolled receipt stock
or fan folded stock with black timing mark using direct thermal printing. The following is a link to the black
timing mark specs www.bocasystems.com/ticket_specs10.html . The printer features intergraded auto cut
mechanism, easily adjustable paper guide (if equipped) and presenter with built in retract and retain function.
The print head may be easily opened to give the operator easy access to the paper path and print head for
routine maintenance.
Principle of Operation
Print Head
Presenter rollers
Retract Exit
Printout Exit
Loop area
Cutter

5
PRESENTER
The Lemur-Z printer feature a presenter mechanism with a built in retracts and retain function. The following
illustrations provide an overview of the functionality of the various stages of printer operation.
PRINT–It handles documents of various lengths
by storing the printed paper in a loop.
CUT –It holds the printout until fully printed and
cut before presenting the completed printout to
the customer.
PRESENT –The printout is presented to the customer.
RETRACT –The retract and retain function can
retract uncollected printouts and drop them back inside
the kiosk.
Print
Store printout
in loop
Cut
Present Printout
Retract into kiosk

6

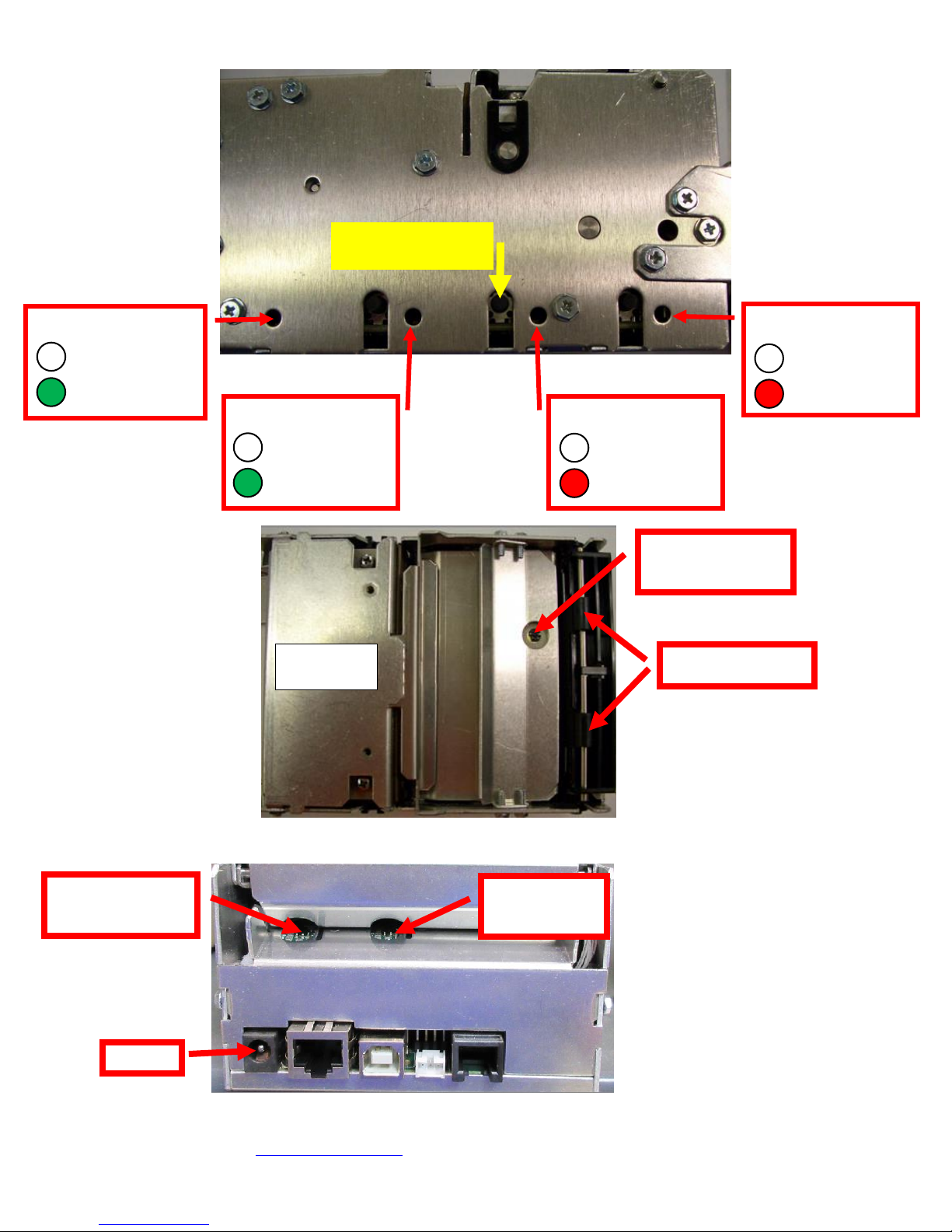

Controls & Sensors
Top View
Click here to return to > Table of Contents
DATA
No data received
Data received
CHECK PAPER
Has paper
No paper
PAPER JAM
No paper jam
Paper jam
Self-test button
Black timing
mark sensor
Ticket load
sensor
Head of form/
Exit sensor
Presenter rollers
Print Head
Assembly
READY
Not ready
Ready
DC IN

7
2.1 Introduction Lemur-X
The Lemur-X is a direct thermal ticket printer with integrated cutting mechanism. This manual will provide the user with
general information regarding printer set-up, configuration and troubleshooting. Please read the important safety
information section before installation is conducted. Review the programming guide for additional details.
The Lemur-X series are kiosk printers designed for use with 2” (50.8mm) to 3.25” (82.5mm) rolled receipt stock or fan
folded stock with black timing mark using direct thermal printing. The following is a link to the black timing mark specs
www.bocasystems.com/ticket_specs10.html . The printer features intergraded auto cut mechanism and easily adjustable
paper guide.
The print head may be easily opened to give the operator easy access to the paper path and print head for routine
maintenance.
Controls & Sensors
Click here to return to > Table of Contents
DATA
No data received
Data received
CHECK PAPER
Has paper
No paper
PAPER JAM
No paper jam
Paper jam
Self-test button
READY
Not ready
Ready
Black timing
mark sensor
Ticket load
sensor
DC IN

8
3.0 Important Safety Information
WARNING: The appearance of this symbol indicates the proximity of an
exposed high voltage area. Please follow all directions carefully for your
personal safety. You must read the following safety information carefully
before working on the printer.
As a safety precaution, all service to the printer should be done by qualified persons with power off
and the AC cord unplugged from the printer. Following any procedure requiring the removal of covers
and/or doors, please verify that they have been properly attached and fastened prior to operating the
printer.
WARNING: "Provide an earthing connection before the mains plug is connected to the mains. And, when disconnecting
the earthing connection, be sure to disconnect after pulling out the mains plug from the mains."
WARNING: Power Cord Set: This must be approved for the country where it is used:
U.S.A. and Canada
The cord set must be UL-approved and CSA certified.
The minimum specification for the flexible cord is:
No. 18 AWG
Type SV or SJ
3-conductor
The cord set must have a rated current capacity of at least 10A.
The attachment plug must be an earth-grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A,
250V) configuration.
United Kingdom only
The supply plug must comply with BS1363 (3-pin 13 amp) and be fitted with a 5A fuse which complies with
BS1362.
The mains cord must be <HAR> or <BASEC> marked and be of type H03VVF3GO.75 (minimum).
Europe only:
The supply plug must comply with CEE 7/7 (“SCHUKO”).
The mains cord must be <HAR> or <BASEC> marked and be of type H03VVF3GO.75 (minimum).
Denmark: The supply plug must comply with section 107-2-D1, standard DK2-1a or DK2-5a.
Switzerland: The supply plug must comply with SEV/ASE 1011.
WARNING: The appliance coupler (the connector to the unit and not the wall plug) must have a configuration for mating
with an EN60320/IEC320 appliance inlet.
WARNING: The socket outlet must be near to the unit and easily accessible.
WARNING: France and Peru only:
This unit cannot be powered from IT† supplies. If your supplies are of IT type, this unit must be powered by 230V (2P+T)
via an isolation transformer ratio 1:1, with the secondary connection point labelled Neutral, connected directly to earth
(ground).
WARNING: RJ-45 Ports. These are shielded RJ-45 data sockets. They cannot be used as standard traditional telephone
sockets, or to connect the unit to a traditional PBX or public telephone network. Only connect RJ-45 data connectors.
Either shielded or unshielded data cables with shielded or unshielded jacks can be connected to these data sockets.
Click here to return to > Table of Contents

9
4.0 Installation
The Lemur-X and Lemur-Z are designed to be mounted in a kiosk. Appendix H shows the mounting hole locations.
Prior to site preparation and installation, the printer should be powered up and run in the self-test mode.
Lay the printer flat on a counter top.
For a Lemur-Z Install the input paper guide (see page 8) or receipt roll holder (see page 9) onto the printer.
Attach the round DC connector of the 24VDC power supply into the printer.
Plug the AC cord into the 24VDC power supply. The printer will automatically power up once the AC corer
is plugged into its AC source
Wait five seconds after power up, during this time you will hear the cutter knife cycle. Begin loading tickets
through the entrance slot with a smooth motion until the printer automatically positions the ticket. See
section 5.0 Ticket Load Procedure.
After the ticket is automatically positioned (the green READY led will be illuminated), press the center TEST
button located on the control panel to print a test ticket.
When the Lemur-Z leaves the factory it is configured for us with receipt rolled stock (stock with no
black timing mark). If you will use the printer with stock that has a black timing mark then it will
need to be taken out of paper mode. See Appendix C –DOWNLOADING SOFTWARE COMMANDS to
download the appropriate software command.
o<pmd> this will configured the printer for use with ticket stock with a black timing mark.
o<pme> this will configured the printer for use with receipt stock without a black timing mark.
Verify that the printer properly works with your system by issuing a ticket through your computer system.
You may also use out customer based program to test the printer independently of your ticketing system
(see Appendix B)
You may now install the printer in its permanent location. Adequate room should be provided behind the printer for
the smooth feeding of ticket stock.
Below is a typical self-test printout
Your printout may vary depending on printer configuration and ticket stock used.
Click here to return to > Table of Contents

10
4.1 Paper Guide Installation for Lemur-Z
(P/N 424050)
Kit will include paper guide and four mounting screws.
1. The paper guide is installed onto the Lemur-Z via four mounting location.
2. Install the paper guide on the back of the printer and align the mounting holes to the above referenced
installation location. Install the four Philip 3/16” Hex head screws that were included with the paper
guide and tighten.

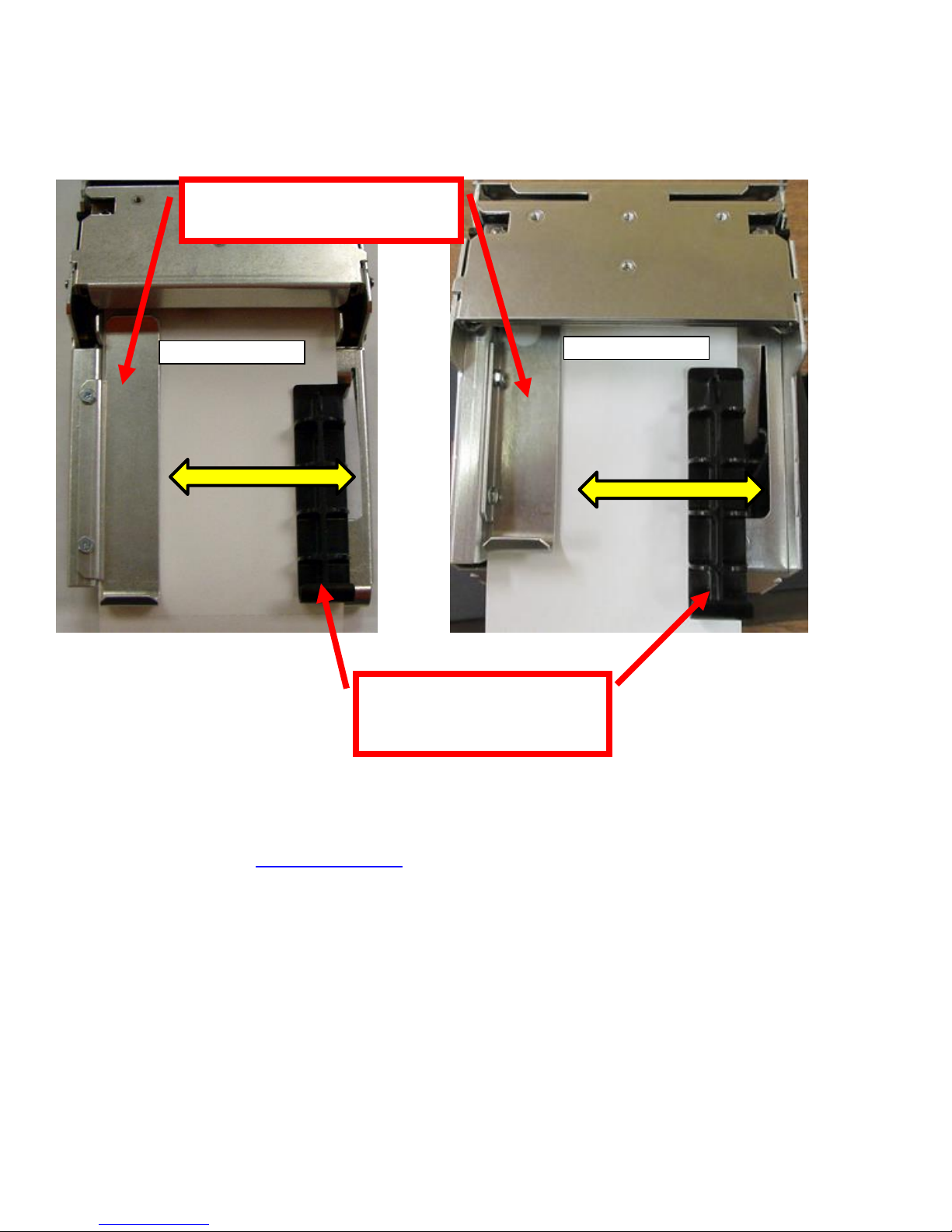

3. The black slider bar may be adjusted to accommodate ticket stock widths from 2” to up to 3.25”.

11
4.2 Receipt Roll Holder Installation for Lemur-X & Z
(P/N 424051)

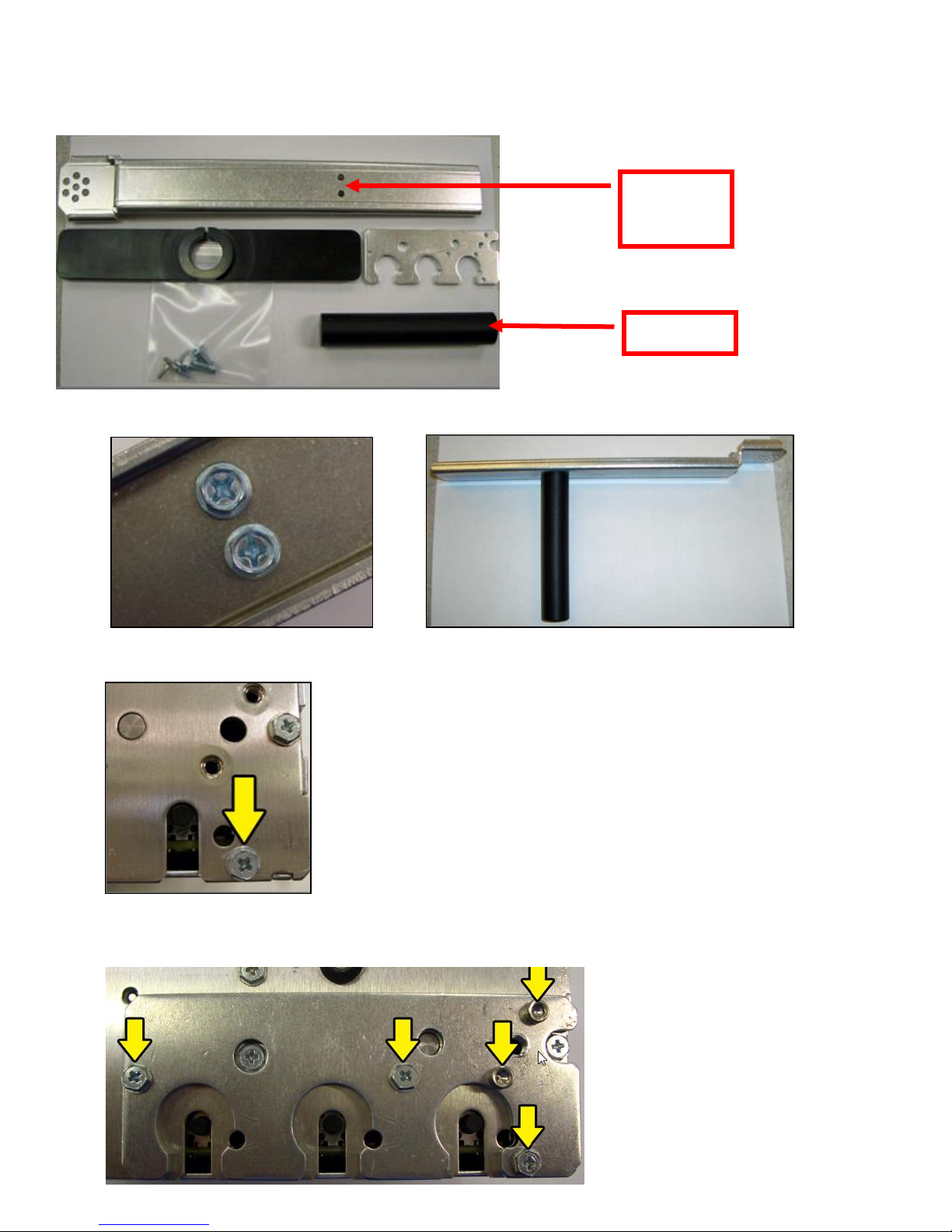

Kit will include mounting plate, roll holder arm, spindle, adjustable stopper and various mounting screws.
Roller holder arm may differ than what is shown in the photo
1. Attach the spindle onto the roll holder arm using the two Philip ¼” Hex head screws included with kit.
2. The Philip 3/16” Hex head screw shown in the photo below will need to be removed and will be reused.
3. Install the mounting plate onto the printer using three Philip 3/16” hex and two 3/32” Allen head screws.
Spindle
mounting
holes
Spindle

12
4. Install the roll holder arm onto the mounting plate and secure it in place with a Philip ¼” hex
head screw. Appendix J shows the different positions the arm may be placed in.
5. Prior to installing the receipt roll onto the roll holder arm the printer needs to be secured in
place.
6. Tear off a full turn of the paper from the new paper roll. Caution: This is important as the
outer end of the paper is usually secured to the roll with glue or other adhesive substance that
may cause paper jam or damage the print head.
7. Place the Receipt roll onto the spindle.
8. Install the adjustable stopper onto the spindle and slide into place. The stopper should not be
binding against the roller to prevent it from moving freely.
Click here to return to > Table of Contents
Must be
completely
removed

13
4.2.1 Receipt Roll Holder with Optional Low Paper Sensor
An optional low paper sensor (P/N 424078) may be installed onto the receipt roll holder. This sensor will alert the print
will the paper roll physically goes below the sensor eye. When this happens the printer will send a low paper status
message (0F hex or 15 decimal) to the host computer.
The P/N 424078 Kit contains the above items.
The sensor is installed onto the roll holder arm in the following manner.
1. Chose the sensor location that will work best with the position the roll holder arm will be installed at (see Appendix
Jfor the different positions).
2. Insert the screw into the countersink side of the arm.
3. Attach the sensor, flat washer and ¼” nut onto the screw. Make sure the tab on the sensor aligns with the slot in
the roll holder arm and tighten the nut.
4. Attached the cable tie mount to the roll holder arm, similar to what is shown in the below photo. Connect the AMP
connector to the sensor and route the wire through the whole in the arm. Zip-tie the cable onto the cable tie
mount.
5. Once installed, you may plug the sensor connector into the low paper connector on the printer.
Click here to return to > Table of Contents
Hold in Arm
Cable Tie
Mount

14
5.0 Ticket Load Procedure
1. Plug the printer into an AC source and it will automatically turn on. The red CHECK PAPER led will be
illuminated. You will also hear the cutter knife cycle during this time.
2. Begin loading the tickets through the entrance slot with a smooth motion until the ticket stock comes to
a stop (at this point the stock is between the thermal head and platen). Keep pressure against the
stock and the printer will automatically feed the ticket stock.
Receipt stock with Lemur-Z (with roll holder)
Fan folded stock (with paper guide)
Lemur-Z with paper guide Lemur-X
3. The printer will feed the stock forward toward the front of the printer and then reverse it back to the print
(idle) position. For use with fan folder stock with black timing mark the stock will loop upwards.
When using ticket stock with a black timing mark the black timing must meet the specifications found on the
following link www.bocasystems.com/ticket_specs10.html .
If you have any ticket load issues then make sure the paper guild slider bar is properly adjusted (see 5.1 Ticket
Width Adjustment ).
Click here to return to > Table of Contents
Feed
Direction
Align paper to
this side wall
Slider Bar
Feed
Direction
Feed
Direction
Slider Bar
The black timing mark on the
back of ticket stock must
pass under this side facing
down towards the opto

15
5.1 Ticket Width Adjustment
To adjust the paper path for use with a different ticket width, adjust the slider bar to the fully open position.
Insert your ticket stock into the paper guide. Adjust the slider bar down to the proper ticket width, making sure
the bar is not too tight against the ticket. The ticket should move freely in the paper guide.
Lemur-Z with paper guide Lemur-X
Click here to return to > Table of Contents
Ticket Stock
Slider Bar, NOTE: stock
must go under the slider
bar.
Load your stock towards this
side and below this metal plate
Ticket Stock

16

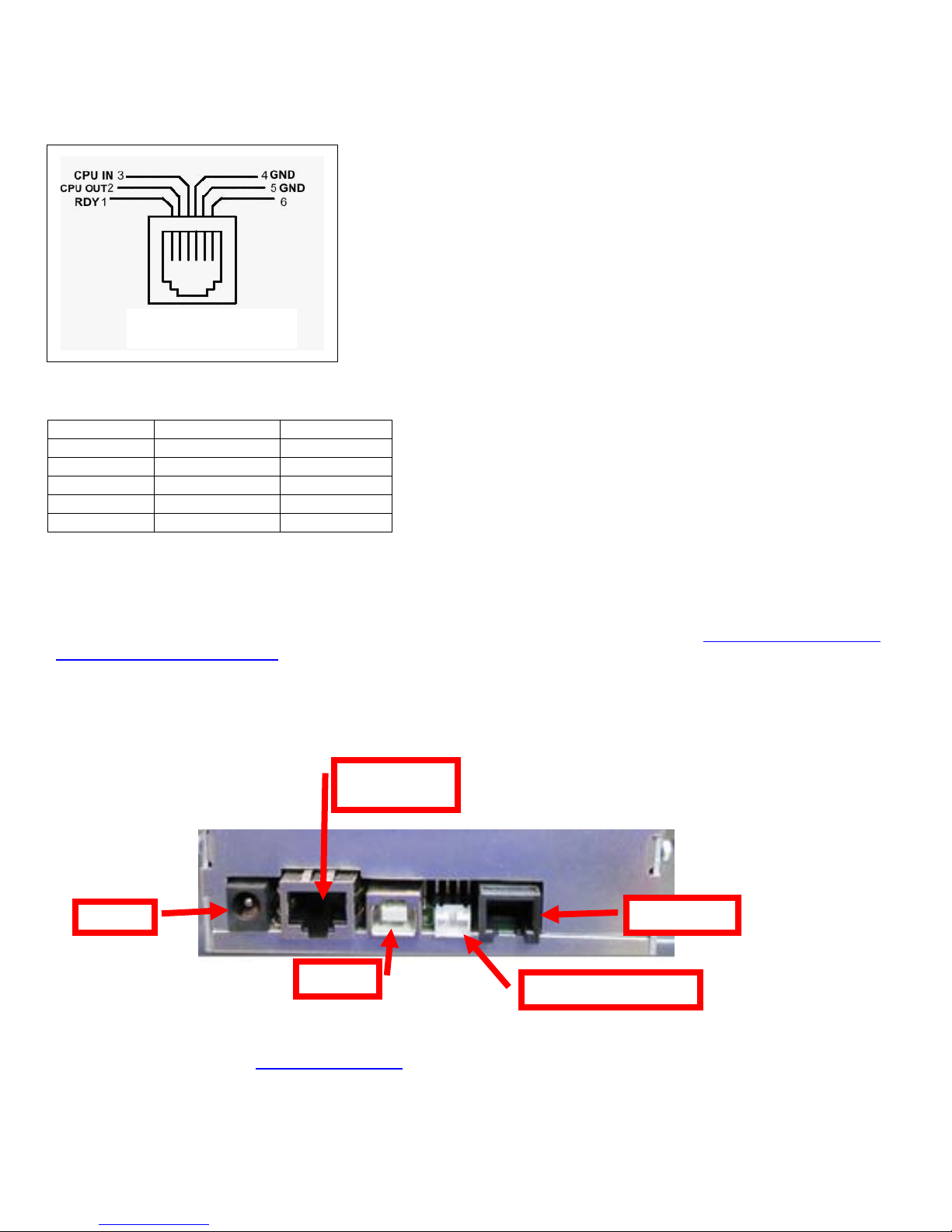

6.0 Standard Interface Pinouts
RJ12 Serial Connection
TYPICAL DB9 to RJ12 PIN CONNECTIONS
9 pin host
BOCA RJ12
2
2
Transmit
3
3
Receive
5
4
GND
6
1
RDY
8
6
CTS
USB USB 2.0 compliant devices.
ETHERNET (Optional) is a standard RJ45 Ethernet cable connection.
Low Paper Port used in conjunction with the roll holder with low paper sensor. See section 4.2.1 Receipt Roll Holder
with Optional Low Paper Sensor.
Click here to return to > Table of Contents
+5VDC
RJ12 Connector
DC IN
USB
RJ12 serial
Ethernet
(Optional)
Low Paper port

17
7.0 Thermal Paper - Theory & Specification
Refer to the BOCA Systems website at www.bocasystems.com, THERMAL TICKETS section for the
most current paper specifications.
The print head’s life expectancy is composed of both a mechanical and an electrical component. Both of these factors are
strongly influenced by the quality of the thermal paper used.
MECHANICAL
The print head has a theoretical rating of 60 kilometers. This number is based upon the assumption that the head will be
used with a good quality, top coated thermal paper. Uncoated and poorly top coated thermal papers are abrasive to the
print head and have been found to wear through the head after less than one kilometer.
Other factors which may contribute to premature mechanical wear are the use of non-thermal inks and stray metallic
particles stuck in ticket perforations. Certain inks colors such as opaque white (which contains titanium dioxide) are also
highly abrasive.
Unfortunately, there are no available devices for quantitatively measuring the abrasiveness of a given ticket. Fortunately,
we have developed a slightly subjective, but effective method of weeding out overly abrasive ticket stock.
ELECTRICAL
Each heat element, dot, on the print head has a theoretical life expectancy of 100 million activations. This is based on the
assumption that each activation will cause the dot temperature to approach the dot’s maximum recommended
temperature. Running at lower temperatures will increase the theoretical life expectancy, while slight temperature
increases will seriously (exponentially) degrade the head life.
The thermal paper can affect the electrical head life in two ways. Insensitive, slow papers will typically encourage the
user to increase the voltage to darken the printed image. This will directly increase the head temperature resulting in
reduced head life. Additionally, the higher temperatures will frequently cause the ink to peel off the ticket and deposit onto
the print head. The ink debris will disrupt the normal transfer of heat from the head to the paper. This further increases
the head temperature above the desired level. The use of non-thermal inks and/or non-top coated papers also will cause
the ink to release and deposit on the print head.
SPECIFICATION
Based upon the above technical information, BOCA has always tried to encourage our customers to use the proper
thermal papers to maximize the life of their print heads. BOCA provides an extensive series of papers which meet the
above criteria for low abrasion and high sensitivity. We have also tested and approved a number of Ricoh thermal papers
which meet our criteria. While we have not had the opportunity to test other manufacturers’ thermal papers, we feel
confident that other papers manufactured with the above goals in mind should be acceptable for use in our printers. The
following list of papers have been approved by BOCA.
200 dpi usage
Lemur-X and Lemur-Z T4, T5, BS7, SKI7 & T7
Besides the above mentioned stock the Lemur-X is also able to support thicker stock like M10 & SKI-10
.
Click here to return to > Table of Contents

18
8.0 Maintenance
Your ticket printer is solidly constructed and requires minimal care to provide maximum service.
WARNING: The appearance of this symbol indicates the proximity of an
exposed high voltage area. Please follow all directions carefully for your
personal safety. You must read the following safety information carefully
before working on the printer.
This section provides an overview of printer maintenance.
For discussion purposes, the printer consists of three major modules or assemblies:
• Paper path and print head assembly
• Cutter
• Logic board
As a safety precaution, all service to the printer should be done by qualified persons with power off and the AC
cord unplugged from the printer. Following any procedure requiring the removal of covers and/or doors, please
verify that they have been properly attached and fastened prior to operating the printer.
Routine maintenance should normally be done at least once a year. Maintenance will need to be done more often in
higher usage or dirty environments. The following review those components that require maintenance:

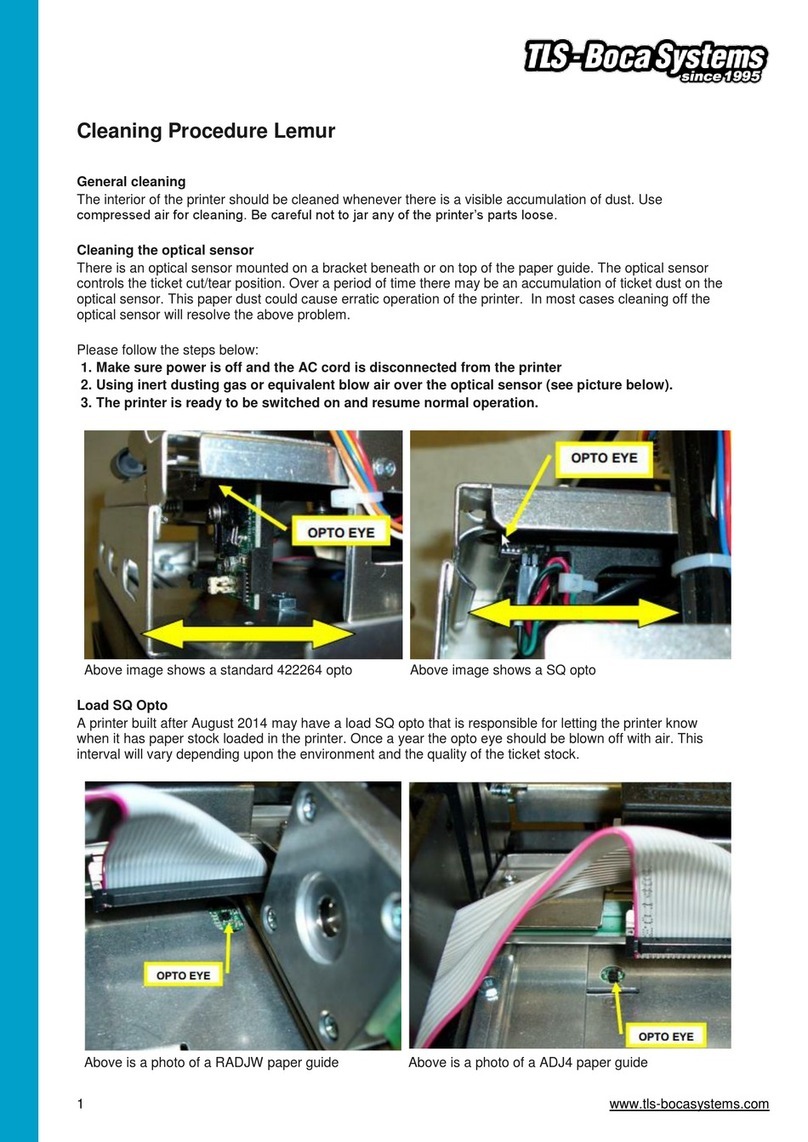

8.1 SQ Optical Sensors
There are three optical sensors (opto) which are responsible for detecting where the ticket stock is as all times.
Once a year the sensors should be blown off with air. This interval will vary depending upon the environment and the
quality of the ticket stock.
LEMUR-Z LEMUR-Z TOP VIEW
LEMUR-X
Click here to return to > Table of Contents
Black timing
mark sensor
Ticket load sensor
Head of form/ Exit sensor
Print Head
Assembly
Ticket load sensor
Black timing
mark sensor

19
8.2 THERMAL PRINT HEAD
The print head should be cleaned periodically to prevent debris from building up on the print element. The required
cleaning interval varies greatly depending on the quality of the ticket stock and the amount of dust entering the print area.
Excessive dirt build up on the print head will result in reduced quality. Continuing to run the print head in a dirty condition
will reduce its life expectancy, as it is unable to diffuse its heat properly.

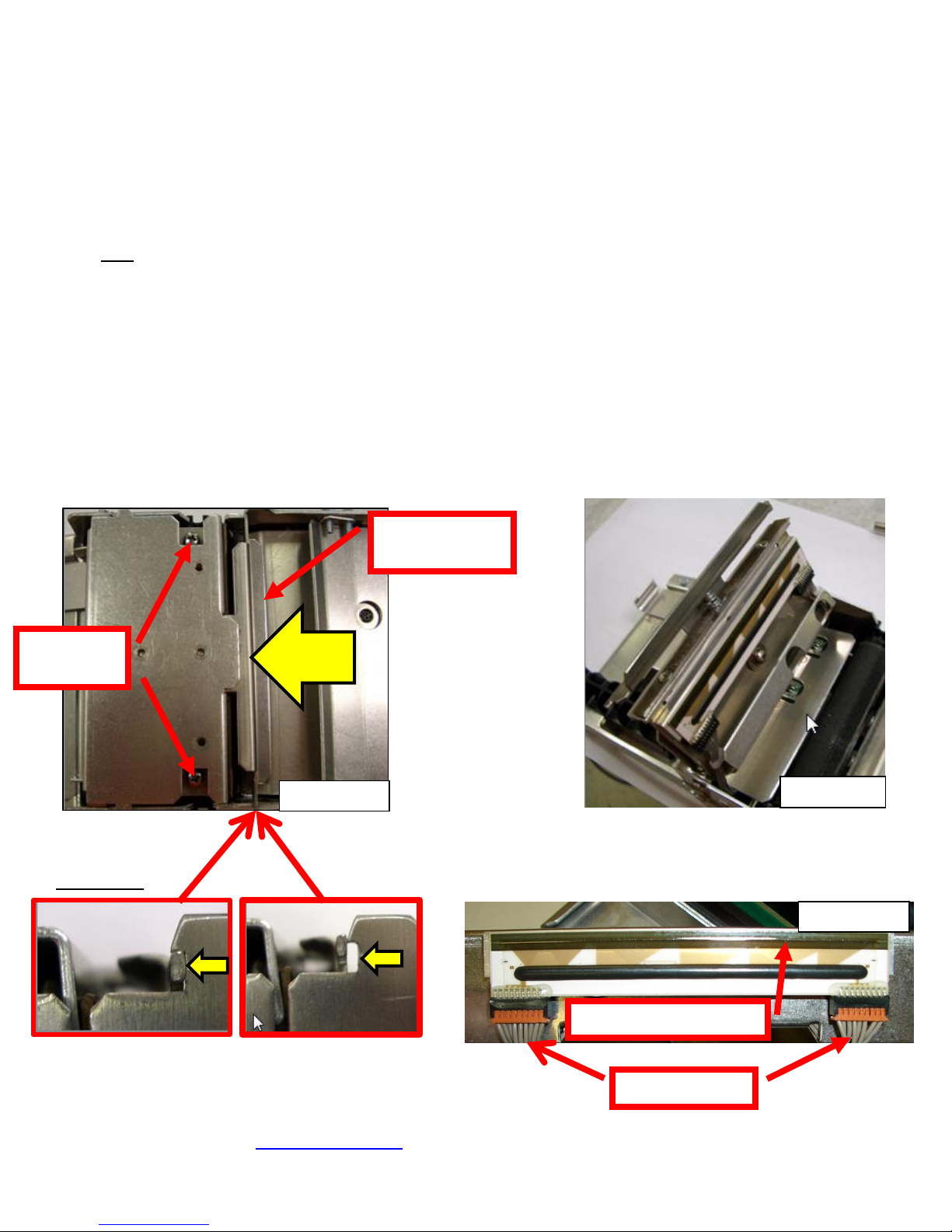

The thermal print head can easily be accessed for cleaning or replacement, as follows:
1. Make sure power is off and the AC cord is disconnected from the power pack.
2. DO NOT UNPLUG CABLE FROM PRINT HEAD.
3. Open the print head by push back on the Print Head lock/ cutter guard to unlock the print head. Photo A
4. Lift up on the head mounting assembly/ thermal head and tilt back. Photo B
5. Clean the thermal print head surface (the side that makes contact with the paper) with isopropyl alcohol. Photo C
6. Gently lower the head mounting assembly/ thermal head and push down to center to lock in place.
7. The printer in now ready for operation. If the print quality is still poor then the thermal head needs to be replaced.
8. To replace print head (part number 200C3), gently remove the two head cable connector from print head and then
remove print head from mounting plate by removing two Philip head screws.
Above photo shows head assembly open
Side View
LOCKED UNLOCKED
Click here to return to > Table of Contents
Photo A
Photo D
Cam Lock
Assembly
Head Mounting
Plate
Photo C
Clean This Surface
Print Head lock/
cutter guard
Head mtg.
screws
Head cable
Photo A
Photo B
Push
Here
