TLS 875240 User manual
875240 HDBaseT / HDMI Splitter 1x4
User Manual
875240 HDBaseT /HDMI Splitter 1x4
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future
reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order to
protect and extend the life of your equipment.
SAFETY AND NOTICE
1. The transmission distances of HDMI over UTP cables are measured
using TE CONNECTIVITY 1427071-6
2. EIA/TIA-568-B termination (T568B) for CAT cables (AWG 24/1) is
recommended for better performance.
3. DO NOT use 568A/568B standard mixed CAT cable (cross-over
cable) because there are 2 pairs swapped, this will make POE
OVER-CURRENT and damage POE components. Please use
straight-through CAT cable (both RJ45 headers are 568A or 568B
standard).
4. It is recommended that power up the device after connections of
source, sink and CAT cable.
5. To reduce the interference among the unshielded twisted pairs of
wires in CAT cable, do not run HDBaseT / Zone Cat5e/6/6a cabling
with or in close parallel proximity to mains power cables. Shielded
CAT cables can be used to improve EMI problems, which is worsen
in long transmission.
6. Because the quality of the CAT cables has the major effect on how
long the transmission limit can achieve and how good is the received
picture quality, the actual transmission range is subject to one’s
choice of CAT cables.
7. Do not substitute or use any other Power Supply other than the
enclosed unit, or a TLS approved Replacement Part. Doing so
will void the warranty and potentially expose the user to
dangerous voltages resulting in an electrical shock.
8. Do not disassemble the device for any reason. Doing so will void the
manufacturer’s warranty. Also, our unique case is an integral part of
875240 HDBaseT / HDMI Splitter 1x4
the design of this unit and is responsible for cooling and circuitry
shielding. Any modifications to this case will potentially cause
malfunction and product failure.
9. Do not expose the device to water, moisture, or liquids. Possible
electric shock may result the unit to operate.
Table of Contents
1. Introduction........................................................................................4
2. Features.............................................................................................4
3. Panel Descriptions............................................................................5
4. DIP Switcher EDID Setting................................................................6
5. Application Diagram..........................................................................7
6. Specifications.....................................................................................8
7. Package Contents............................................................................8
8. Maintenance......................................................................................9
9. Warranty Policy.................................................................................9
10. Limitations of Warranty.....................................................................9
11. Exclusive Remedies........................................................................10
12. RMA Policy......................................................................................10
875240 HDBaseT /HDMI Splitter 1x4
Introduction:
The 875240 HDBaseT / HDMI Splitter is a HDBaseT Distribution
Amplifier and splits a single HDMI or DVI audio/video source to 4
HDBaseT outputs and 1 HDMI local output. The HDMI output can be
used to monitor local displays or cascade up to 6 times with additional
875240 HDBaseT / HDMI Splitter. It supports 1080p Full HD up to
4K@30Hz UHD plus all 3D formats, along with multichannel digital audio
formats such as Dolby® True HD and DTS-HD® Master Audio™.
Embedded audio extractors can extract the audio and output via L/R and
Coaxial. Based on HDBaseT Lite chipset inside, the output distance can
reach up to 70m via Cat5e/6/7 (AWG24/1).
TLS HDBaseT PoH Receiver is recommended to utilize the full function
of the HDBaseT outputs of this device. (Not included)
Features:
•Supports resolutions up to 1080p@60Hz, 4K@30Hz, 36-bit deep
color
•Full 3D pass- through.
•Splits a HDMI source to 4 HDBaseT outputs and 1 HDMI output
without loss
•Supports cascading via HDMI OUT, up to 6 times
•HDBaseT Lite chipset inside for the output distance up to 70m for
1080P, 40m for 4K.
•Power the remote receivers, with PoH (Power over HDBaseT), no
power supply needed for the receivers (only TLS receivers!).
•Extract the audio from HDMI source via analog and digital outputs.
•Dolby TrueHD and DTS-HD master audio pass through HDMI output
•Advanced EDID management for rapid integration of sources and
displays
•LEDs for power-on and outputs indication.
•Bi-directional IR supported.
•Easy installation with rack-mounting ears
•Small compact size
•HDCP compliant
875240 HDBaseT / HDMI Splitter 1x4

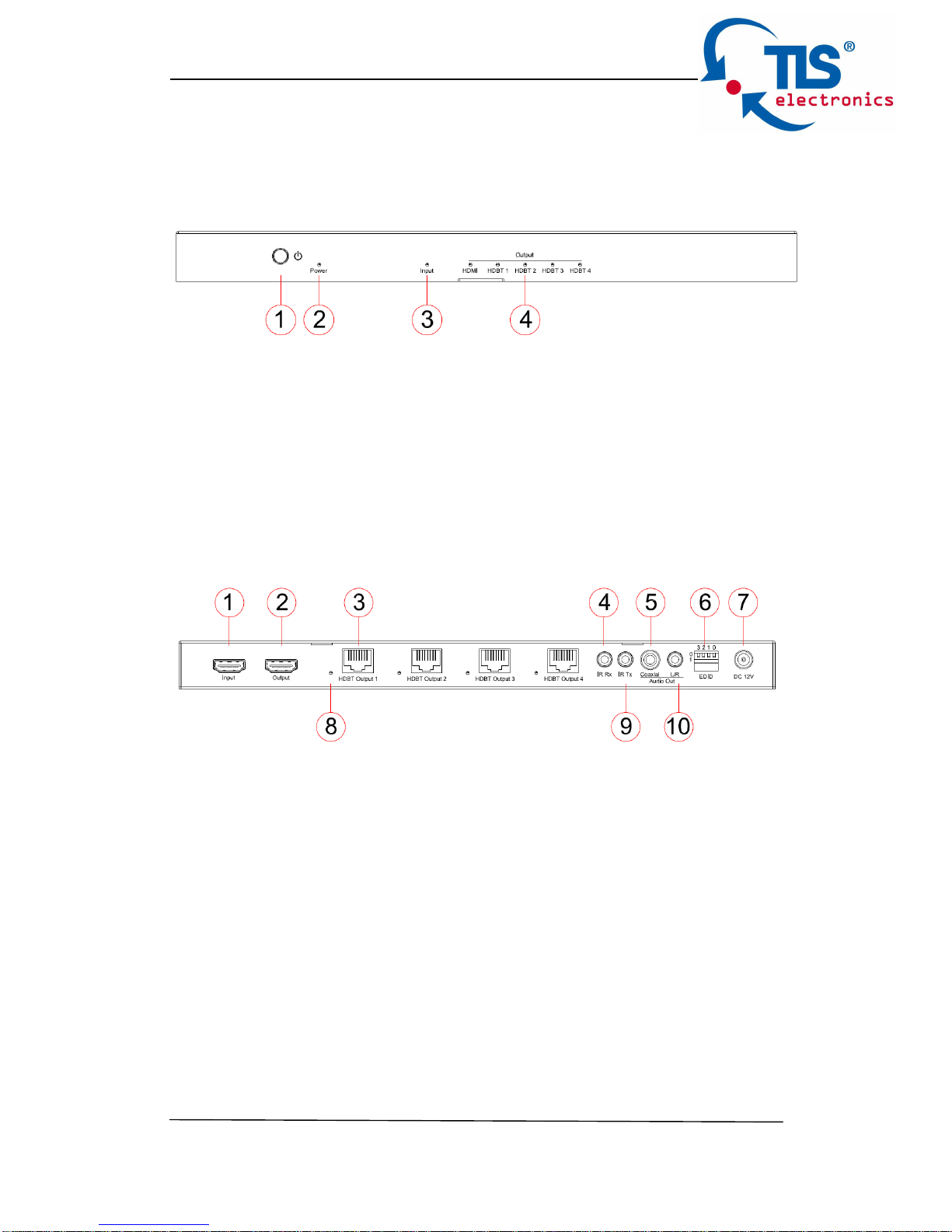

Panel Descriptions
Front Panel
1. Power Push Button --- push to enter standby mode
2. Power LED Indicator --- Indicate the status of the power for the unit.
3. Input LED Indicator --- Indicate the status of the input for the unit.
4. Output LED Indicator --- Indicate the status of the output for the unit.
Back Panel
1. HDMI Input --- Connect to HDMI source.
2. HDMI Output --- Connect to to local displays or cascade with
additional 875240 HDMI/HDbaseT Splitter 1x4.
3. HDBT Outputs 1 to 4--- Connect to HDBaseT receivers for remote
displays.
4. IR RX--- 3.5mm stereo phone-jack, connect to IR receiver cable.
5. Coaxial Audio Output--- RCA connector, extract audio from HDMI
input.
6. DIP Switcher--- EDID management.
7. Power Port--- Use included 12V/5A DC adaptor to power the unit.
875240 HDBaseT /HDMI Splitter 1x4
8. HDBaseT Link LED Indicator 1 to 4--- Blue light for link, no light for no
connection.
9. IR TX--- 3.5mm mono phone-jack, connect to IR transmitter cable.
10. L/R Audio Out ---3.5mm stereo phone-jack, extract audio from HDMI
input, will mute if multichannel audio
DIP Switches EDID Setting: ( 3 – 2 - 1 – 0 )
[DIP]=0000: Copy EDID From Output1, i.e., EDID pass through
[DIP]=0001: HDMI 1080p@60Hz, Audio 2CH PCM
[DIP]=0010: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0011: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0100: HDMI 1080i@60Hz, Audio 2CH PCM
[DIP]=0101: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0110: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0111: HDMI 1080p@60Hz/3D, Audio 2CH PCM
[DIP]=1000: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1001:
HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1010: HDMI 4K2K, Audio 2CH PCM
[DIP]=1011: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1100: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1101: DVI 1280x1024@60Hz, Audio None
[DIP]=1110: DVI 1920x1080@60Hz, Audio None
[DIP]=1111: DVI 1920x1200@60Hz, Audio None
875240 HDBaseT / HDMI Splitter 1x4

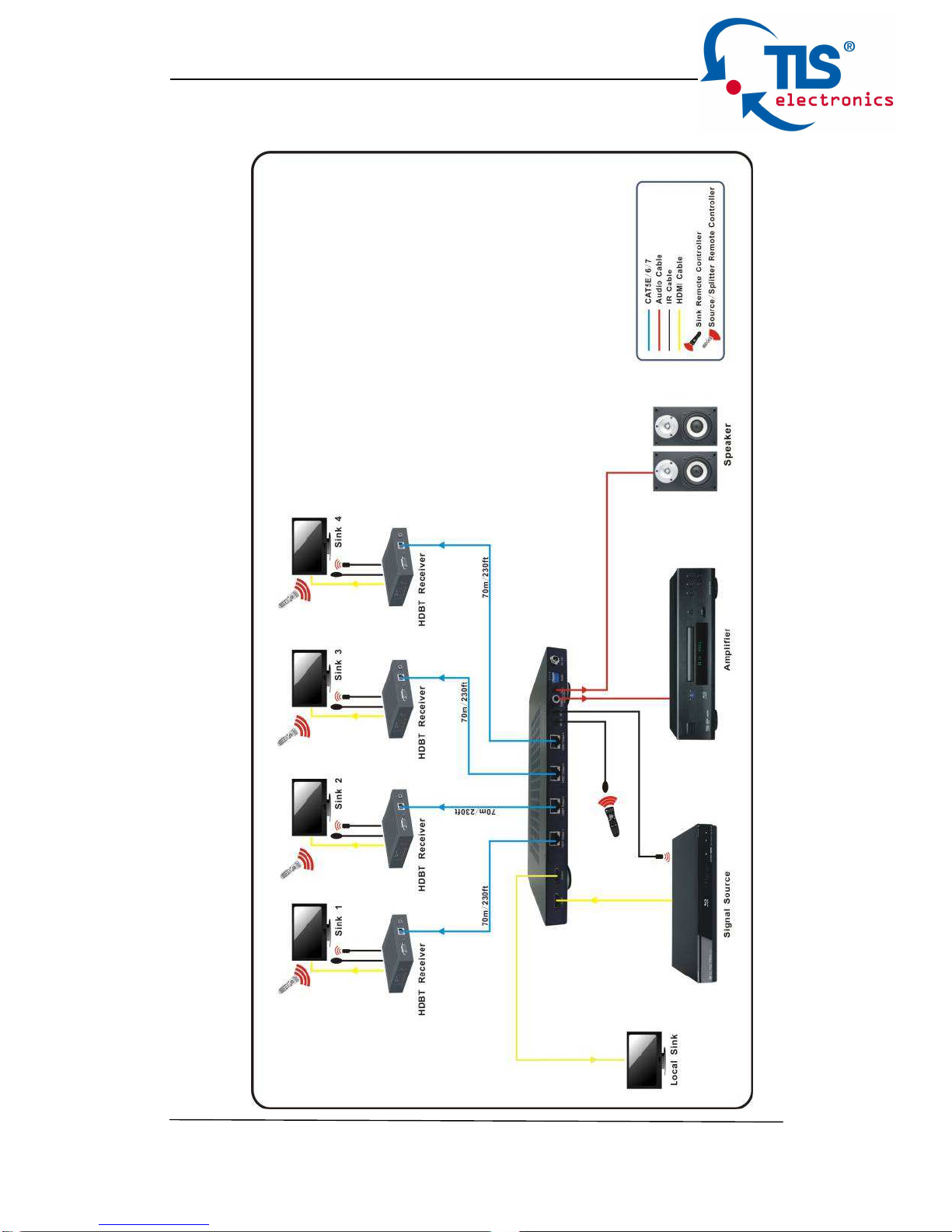

Application Diagram
875240 HDBaseT /HDMI Splitter 1x4
Specifications
Bandwidth 2.97Gbps per color
Video Input Connectors 1x HDMI Type A, 19-pin, female
Video Output Connectors 1x HDMI Type A, 19-pin, female, 4XRJ45
Audio Output Connectors 1x RCA(SPDIF), 1x 3.5mm stereo jack (L/R)
EDID 4-PIN DIP Switch or pass through from OUT1
IR Input Ports 1x 3.5mm stereo jack
IR Output Ports 1x 3.5mm mono jack
Dimensions(W x D x H) 262mm x 145mm x 22mm, without feet
Shipping Weight 0.9KG
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature - 4°F to 140°F (- 20°C to 60°C)
Power Supply 12V/5A DC
Package Contents:
1. 875240 HDMI / HDMI / HDBaseT Splitter 1x4
2. 1x 12V/5A DC power supply
3. 1x IR Transmitter cable.
4. 1x IR Receiver cable.
5. 2x Mounting ears.
875240 HDBaseT / HDMI Splitter 1x4
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or
benzene to clean this unit.
Warranty Policy
TLS electronics GmbH products are warranted against defects in
material and workmanship for two years from the date of shipment.
During the warranty period, TLS will, at its option, repair or replace
products that prove to be defective. Repairs are warranted for the
remainder of the original warranty or a 90 day extended warranty,
whichever is longer.
For equipment under warranty, the owner is responsible for freight to
TLS electronics GmbH and all related customs, taxes, tariffs, insurance,
etc. TLS is responsible for the freight charges only for return of the
equipment from the factory to the owner. TLS will return the equipment
by the same method (i.e., Air, Express, Surface) as the equipment was
sent to TLS.
All equipment returned for warranty repair must have a valid RMA
number issued prior to return and be marked clearly on the return
packaging. TLS electronics GmbH strongly recommends all equipment
be returned in its original packaging.
TLS’s obligations under this warranty are limited to repair or replacement
of failed parts, and the return shipment to the buyer of the repaired or
replaced parts.
Limitations of Warranty
The warranty does not apply to any part of a product that has been
installed, altered, repaired, or misused in any way that, in the opinion of
TLS electronics GmbH, would affect the reliability or detracts from the
performance of any part of the product, or is damaged as the result of
use in a way or with equipment that had not been previously approved
by TLS.
The warranty does not apply to any product or parts thereof where the
serial number or the serial number of any of its parts has been altered,
defaced, or removed.
The warranty does not cover damage or loss incurred in transportation of
the product.
The warranty does not cover replacement or repair necessitated by loss
or damage from any cause beyond the control of TLS electronics GmbH,
such as lightning or other natural and weather related events or wartime
environments.
875240 HDBaseT /HDMI Splitter 1x4
10
The warranty does not cover any labor involved in the removal and or
reinstallation of warranted equipment or parts on site, or any labor
required to diagnose the necessity for repair or replacement.
The warranty excludes any responsibility by TLS electronics GmbH for
incidental or consequential damages arising from the use of the
equipment or products, or for any inability to use them either separate
from or in combination with any other equipment or products.
A fixed charge established for each product will be imposed for all
equipment returned for warranty repair where TLS electronics GmbH
cannot identify the cause of the reported failure.
Exclusive Remedies
TLS electronics GmbH’s warranty, as stated is in lieu of all other
warranties, expressed, implied, or statutory, including those of
merchantability and fitness for a particular purpose. The buyer shall pass
on to any purchaser, lessee, or other user of TLS products, the
aforementioned warranty, and shall indemnify and hold harmless TLS
from any claims or liability of such purchaser, lessee, or user based upon
allegations that the buyer, its agents, or employees have made
additional warranties or representations as to product preference or use.
The remedies provided herein are the buyer’s sole and exclusive
remedies. TLS electronics GmbH shall not be liable for any direct,
indirect, special, incidental, or consequential damages, whether based
on contract, tort, or any other legal theory.
RMA Policy
When returning product to TLS electronics GmbH for any reason, the
customer should fill out the official RMA form to obtain a RMA number.
Without the permission or approval, TLS will be no responsible for any
return.
This can be initiated by emailing or calling your related sales.
All requests are processed within 48 hours.
Standard Replacement
For customers that agree to return defective product to TLS electronics
GmbH first, a Standard Replacement option is available.
An RMA number must first be issued by sales. This RMA number will
need to be referenced on the outside of the return shipment.
875240 HDBaseT / HDMI Splitter 1x4
11
Upon receipt of the defective product, TLS electronics GmbH will, at its
discretion, either repair or replace the product and ship it out in the most
expeditious manner possible. Subject to availability, the replacement
product will be shipped on the business day following receipt of the
defective product.
In the event the product returned to TLS electronics GmbH has been
discontinued (i.e. the product is no longer being manufactured by TLS
but is still under warranty), TLS will, at its discretion, either repair or
replace with recertified product.
Once you have obtained an RMA number:
After obtaining an RMA number from TLS electronics GmbH, you must
send the product –freight prepaid –to TLS. The TLS RMA number must
be prominently displayed on the outside of your package. If you send
your product to TLS without the RMA number prominently displayed on
the outside of the package, it will be returned to you unopened.
Please use a shipping company that can demonstrate proof of delivery.
TLS electronics GmbH does not accept responsibility for any lost
shipments unless proof of delivery to TLS is provided.
Please note:
Product shipped to TLS electronics GmbH must be properly packaged to
prevent loss or damage in transit.
Shipping your RMA to TLS using regular mailing envelopes is not
acceptable, as they do not protect the product from damage during
shipping.
TLS will not repair or replace a module that is shipped in such a way that
the product is not properly protected.
TLS electronics GmbH will not accept any product that has been
damaged as a result of accident, abuse, misuse, natural or personal
disaster, or any unauthorized disassemble, repair or modification.
Table of contents
