TMG TMG-TSG26 User manual

MODEL TMG-TSG26
TOLL FREE: 1-877-761-2819
WARNING
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: [email protected]
26" 3-Point Hitch Stump
Grinder
www.tmgindustrial.com
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
PRODUCT MANUAL
V.2022.08.04

Content
Introduction...................................................................................................2
Intended use..................................................................................................3
Technical specificaiton..................................................................................3
General safty rules........................................................................................4
Personal safty................................................................................................5
Tool use and care..........................................................................................6
Maintenance..................................................................................................8
Replacing teeth.............................................................................................9
Part list..........................................................................................................9
www.tmgindustrial.com P
1/16
TOLL FREE: 1-877-761-2819

INTRODUCTION
Congratulations on your purchase and welcome to TMG. This manual gives
you the necessary information about your machine so you will be able to use
it properly.
The entire manual must be read and understood before you start using the
machine. If any questions should arise that are not covered by this manual,
please contact TMG.
This machine is designed for certain applications only. We strongly
recommend this machine is not modified and/or used for any application
other than that for which it was designed. If you have any questions relative
to a particular application, DO NOT use the machine until you have first
contacted us to determine if it can or should be performed on the product.
For technical questions and replacement parts, please contact TMG.
OWNER'S RECORD
Please take a moment to record the following information about your
stump grinder. If you need to call for assistance, please be ready to
provide your model number. This information will allow us to help you
more quickly when you call.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
www.tmgindustrial.com P
2/16
TOLL FREE: 1-877-761-2819

INTENDED USE
This stump grinder is designed for grinding stumps using a tractor PTO at 540 RPM.
TECHNICAL SPECIFICATIONS
Model SG24 SG24-PRO
Recommended HP 30 HP - 50 HP
Rotor Size 24"
Number of Teeth 36 54
Tooth Construction Carbide steel bolt-in
Required PTO Speed 540 RPM
Cutting Wheel Speed 950 RPM
Cutting Height 18” above ground
Cutting Depth 8” below ground
Maximum Cutting Depth (per pass) 6”
Maximum Horizontal Cut 26”
Swing Arc 40°
Hitch Category
Shipping Weight 280kg
Cat. I or II
www.tmgindustrial.com P
3/16
TOLL FREE: 1-877-761-2819

The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur.
It must be understood by the operator that common sense and caution are
factors which cannot be built into this product, but must be supplied by the
operator.
GENERAL SAFETY RULES
WARNING!
Read and understand all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious injury.
WARNING!
NOTE: All the laws and any regulation having jurisdiction covering the safety
requirements for use of the machine take precedence over the statements in
this manual. Users of this machine must adhere to such regulations.
Only people that have read and understood these instructions are able to use
the stump grinder.
Inspect the stump grinder and tractor at the beginning of every working day
and repair any defects.
Stop the engine and make sure that the machine will not start accidentally
while repairing defects or doing maintenance.
Do not remove the stump grinders safety devices or make them inactive.
Always locate buried wires, cables, and pipelines before grinding.
www.tmgindustrial.com P
4/16
TOLL FREE: 1-877-761-2819

engine is running. Always shut the engine off, remove the ignition key, and keep
the engine off beforecarrying out any of the aforementioned procedures. Consult
your engine manual for safe shut down procedures to prevent accident ignition.
Never conduct any maintenance or make any other adjustments when the
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating the
machine. Do not use the machine while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating machines
may result in serious personal injury.
Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep
your hair, clothing and gloves away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts. Air vents often cover moving parts
and should be avoided.
Use safety apparel and equipment. Use safety goggles or safety glasses with side
shields which comply with current national standards, or when needed a face shield.
Use a dust mask in dusty work conditions.
This applies to all persons in the work area. Also use safety shoes, hardhat, gloves,
dust collection systems, and hearing protection when appropriate.
Do not over reach. Keep proper footing and balance at all times.
Remove adjusting keys or wrenches before connecting to the power supply or
turning on the tool. A wrench or key that is left attached to a rotating part of the
tool may result in personal injury.
Never allow passengers on the stump grinder.
www.tmgindustrial.com P
5/16
TOLL FREE: 1-877-761-2819

TOOL USE AND CARE
Always be sure operator is familiar with proper safety precautions
and operationtechniques before using machine.
Do not force the machine. Machines do a better and safer job when used in the
manner for which they are designed.
Storing the machine. When the machine is not in use, store it in a
dry, secure place or keep well covered and out of the reach of children.
Inspect the machine for good working condition prior to storage and before
re-use .
Maintain the machine. It is recommended that the general condition of the
machine be examined before it is used. Keep the machine in good repair by
adopting a program ofconscientious repair and maintenance in accordance
with the recommended procedures found in this manual.
If any abnormal vibrations or noise occurs, turn the machine off immediately
and have the problem corrected before further use.
Cleaning. Use a pressure washer to clean the carbide teeth while taking care
not to pressure wash the bearings as this may introduce water into areas of
the machine that will result in malfunction or damage.
Use only accessories that are recommended by the manufacturer. Accessories
that may be suitable for another machine may create a risk of injury when used
on this machine.
Always operate the machine with all safety devices and guards in place and in
working order. DO NOT modify or make changes to safety devices.
DO NOT operate the machine if any safety devices or guards are missing or
inoperative.
Never leave the machine running unattended.
Never use the machine to grind anything other than stumpsor for any purpose
other than grinding stumps as described in this manual.
www.tmgindustrial.com P
6/16
TOLL FREE: 1-877-761-2819

STUMP GRINDER SET-UP PROCEDURES TRIMMING THE PTO SHAFT
The stump grinder is shipped with a PTO shaft that can be fitted to most tractors. The
PTO shaft may need to be trimmed depending on your tractor and configuration.
Follow the below steps to ensure that the PTO shaft is fitted to your tractor correctly.
1. Attach the stump grinder to the tractor, but do not install the PTO shaft.
2. Raise the stump grinder using the tractors 3 point hitch system so that the shaft on
the tractor is level with the shaft on the stump grinder.

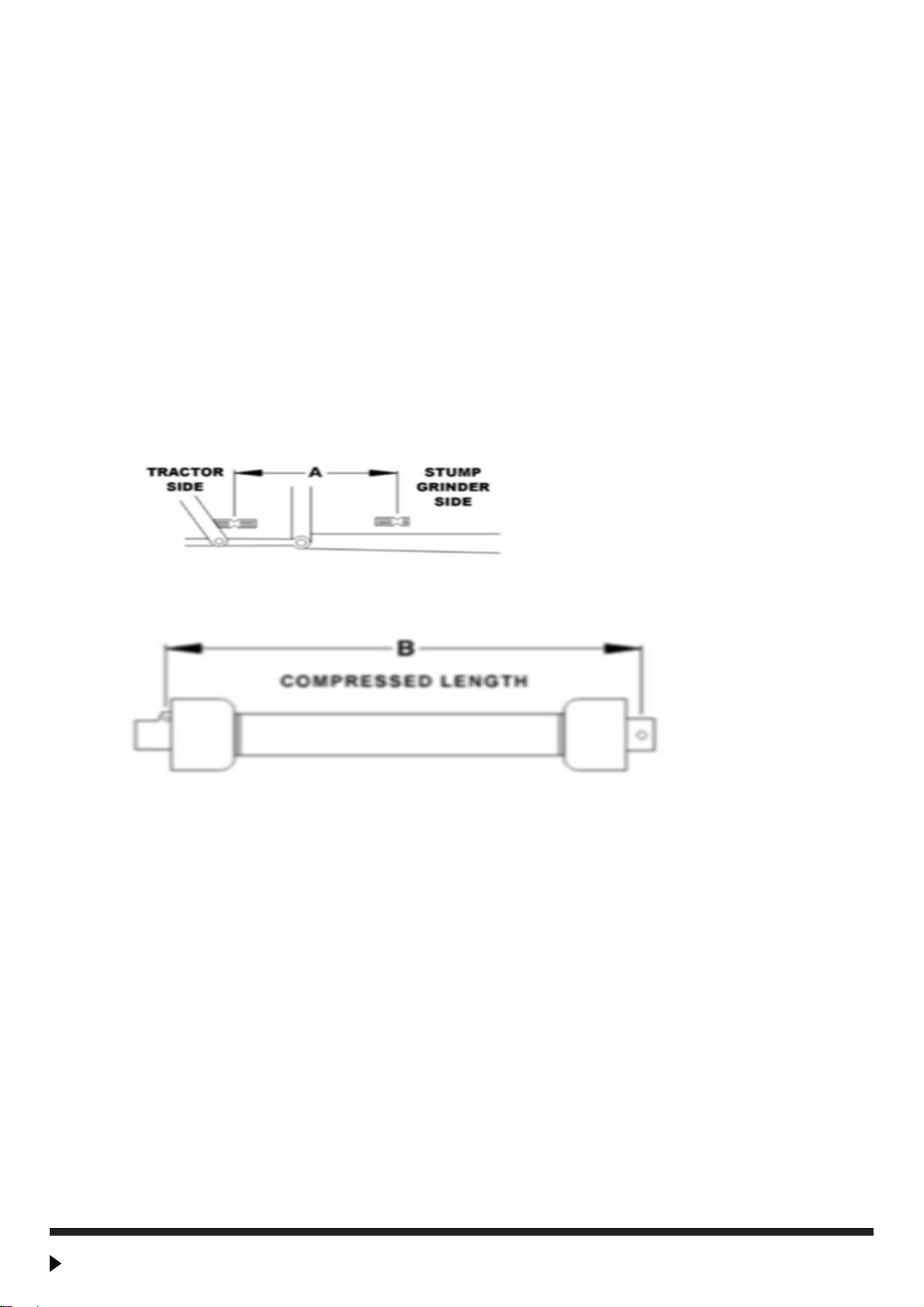

3. Measure the distance between the locking grooves on the shaft of the tractor and
stump grinder (A) as shown below.
4. Measure the distance between the locking pins on the PTO shaft itself when it is in
the compressed/shortest length (B) as shown below.
5. If(A) is at least 1” longer than (B), the PTO shaft will not need to be cut.
6. If dimension (B) is longer than (A), the PTO shaft will need to be cut. The below
equation may be used to calculate the correct amount to trim.
(B-A) + 1 INCH = C (AMOUNT TO CUT)
7. Once (C) has been calculated; this amount will need to be cut off of BOTH
halves of the PTO shaft.
8. After both halves of the PTO shaft have been cut, use a file to remove any burrs or
sharp edges and slide the shaft together ensuring it telescopes in and out freely. The
PTO shaft can now be attached to the stump grinder and tractor, ready for use.
www.tmgindustrial.com P
7/16
TOLL FREE: 1-877-761-2819

1. Proper and routine maintenance is critical to operator safety, achieving
proper stump grinding results and in prolonging the life of the machine.
2. For cleaning and maintenance of the stump grinder, switch off the tractor PTO shaft and
turn the engine off.
3. Inspect the unit before each use for loose nuts and worn cutting teeth. Also clean
any build up of debris.
4. After 2 hours of operation, check for loose nuts and worn cutting teeth. Tighten and
replace as necessary.
5. Grease the bearings and the pivot pins on the main housing as needed before eachuse. Do
not over grease the the bearings as this will blow out the seals and causepremature bearing
failure.
6. Inspect the clutch plates on the PTO shaft periodically to ensure that they are not seized
together. Refer to “PTO Shaft Clutch Run In” in the “Stump Grinder Set UpProcedures”
section of the manual.
MAINTENANCE
www.tmgindustrial.com P
8/16
TOLL FREE: 1-877-761-2819

2. Remove the lock nut using a wrench or socket.
3. Remove the cutting tooth.
4. Install a replacement tooth and lock nut using a torque wrench set to 160 ft-lbs
(215 Nm)
REPLACING TEETH
1. Disconnect the PTO shaft from the tractor and set the stump grinder on a flat
and level surface.
www.tmgindustrial.com P
9/16
TOLL FREE: 1-877-761-2819

www.tmgindustrial.com P
10/16
TOLL FREE: 1-877-761-2819
Exploded View of STUMP GRINDER-TMG-TSG26
NO. PART NO. Name & Specifications QTY
1 SG24.001 Lifting & Hydraulic Assy 1
2 SG24.002 Swing & Transmission Assy 1
3 SG24.003 Cutter head Assy, single side
SG24.003-A Cutter head Assy, double side 1

SG24.001 Lifting & Hydraulic Assy
www.tmgindustrial.com P
11/16
TOLL FREE: 1-877-761-2819

SG24.001
www.tmgindustrial.com P
12/16
TOLL FREE: 1-877-761-2819
NO
PAR NUMBER
DESCRIPTON
QTY
A1
GB/T5783-2000
BOLT M8X20
3
A2
GB/ T93-1987
SPRING WASHER 8
3
A3
GB/T97．1-2002
WASHER 8
3
A4
SG24.01.011
AXLE PIN 155
3
A5
SG24.01.012
BIG SWAY SEAT BIG SWAY SEAT
WELDMENT
1
A6
JB/T7940.1-1995
GREASE CUT M8
4
A7
SG24.01.013
SMALL SWAY SEAT WELDMENT
1
A8
SG24.01.014
HANGING WELDMENT
1
A9
LOCK PIN 12
2
A10
SG24.01.101
LOWER HANGING PIN
2
A11
SG24.01.015
OIL HOSE
4
A12
SG24.01.016
SWAY CYLINDER FOR RIGHTAND
LEFT MOVEMENT
1
A13
JB/T982-1977
BONDED WASHER 16
8
A14
BH5.60.110
HOLLOW BOLT 16
4
A15
GB/T91-2000
SPLITPIN 5X40
2
A16
SG24.01.102
AXLE PIN 97
2
A17
SG24.01.017
SWAY CYLINDER FOR UP AND DOWN
MOVEMENT
1

www.tmgindustrial.com P
13/16
TOLL FREE: 1-877-761-2819
SG24.002 Swing & Transmission Assy

www.tmgindustrial.com P
14/16
TOLL FREE: 1-877-761-2819
NO. PART NO. Name & Specifications QTY
B1 SG24.02.011 Pin weldment, 85 1
B2 SG24.02.013 Swing arm weldment 1
B3 SG24.02.015 Wheel guard weldment 1
B4 SG24.02.016 Guard weldment 1
B5 SG24.02.017 Lid weldment, shield 1
B6 SG24.02.018 Pin weldment 1
B7 SG24.02.019 Pin weldment, 125 1
B8 SG24.02.101 Sleeve 2
B9 XH50.169Z.01L Gearbox Assy 1
B10 GB889．1-M16 Lock Nut M16 4
B11 GB5783-M16×50 Bolt M16×50 4
B12 GB6178-M24 Slotted Round Nut M24 1
B13 GB96．2-24 Large Plain Washer 24 1
B14 GB93-10 Spring washer 10 12
B15 GB5783-M10×25 Bolt M10×25 12
B16 GB96．2-12 Large Plain Washer 12 2
B17 GB93-12 Spring washer 12 2
B18 GB5783-M12×35 Bolt M12×35 2
B19 GB97．1-10 Plain Washer 10 4
B20 GB93-8 Spring washer 8 8
B21 GB97．1-8 Plain Washer 8 4
B22 GB5783-M8×20 Bolt M8×20 8
B23 JB7940．1-8 Oil cup 8 1
SG24.002

SG24.003 Cutter head Assy, single side
C1
C2
C3
C4
C3
C4
C2
NO. PART NO. Name & Specifications QTY
C1 SG24.02.014 Grinder wheel weldment,
single side 1
C2 SG24.02.012 Carbide tooth weldment 36
C3 GB93-14 Spring washer 14 36
C4 GB6171-M14x1.5 Nut M14x1.5 36
www.tmgindustrial.com P
15/16
TOLL FREE: 1-877-761-2819

SG24.003-A Cutter head Assy, single side
D1
D3
D4
D2
D3
D4
D3
D4
D2
D2
NO. PART NO. Name & Specifications QTY
D1 SG24.02.014A Grinder wheel weldment,
double side 1
D2 SG24.02.012 Carbide tooth weldment 36
D3 GB93-14 Spring washer 14 36
D4 GB6171-M14x1.5 Nut M14x1.5 36
www.tmgindustrial.com P
16/16
TOLL FREE: 1-877-761-2819
