Toa VX-1000MC-W User manual

User’s Manual
MatrixController
VX-1000MC-W
PeeringFrame
VX-1000PF-W
DigitalAmplifierModule125W
250W
500W
VX-1125DA-W
VX-1250DA-W
VX-1500DA-W

ThankyouverymuchforpurchasingTOAVX-1000seriesproduct.
Pleasereadtheinstructionsinthismanualcarefully,toensurelong-term,trouble-freeoperationof
thesystem. TOACorporation

1
1. SAFETYPRECAUTIONS
Pleaseabidebythewarningandtherelevantsafetytips.
Pleasetakethismanualinconvenientplaceafteryoureadingtheguideforfuturereference.
Warning
Thesignmeansthereispotentialsafetyhazard,whenoperatewrongmayresultindeathor
seriousinjury.
The sign is used to remind user of this equipment is attached the important data of
operationandmaintenance.
SettingandInstallation
（1）Avoidbeingwetwiththewater.
Don’t make the product or exposed to rain water or other liquid contamination of the
environment,orleadtofireorgetanelectricshock.
（2）Don’tusevoltageoutsideofthedesignation
Usingthemarkedvoltageontheproduct.
Usingmorethanthelogoofvoltagecouldleadtofireorshock.
（3）Don’tscratchthepowercord.
Don’tscratchthepowercordorcutit.
Simultaneously, keep the power line far way from heated objects, put heavy things on it will
leadtofiresorelectricshock.
UsingProduct
（1）Oncetheanomalies
In use, immediately cut off power supply when finding the abnormal phenomena, please
connectwiththeagency.ifyoucontinuetouse,itwilllikelyfiresorshock.
·Thesmokeorodoroftheproduct.
·Theinsideoftheproductisfloodedbywaterorforeignbodiesintrusion.
·Productfallingorproductshelldamage.
·Thepowercorddamage(wirecoreisexposedofbroken,etc.)
·Fault(e.g.itcan’tnetwork,nosoundetc.)
（2）Donotletforeignmattersinvadetheproductsinternal.
Don’t let the metal items or inflammable objects inserting product such as foreign inserting
products or throw into the vents products internal, otherwise will likely cause fires or electric
shock.
（3）Pleasedonottouchitwhenthunder
Toavoidelectricshock,pleasedonottouchtheproductandtheplugwhenlightning,etc.
（4）Pleasedonotplacecontainerswithliquidorsmallmetalobjectsonproductabove.
Ifgetsupsetcontainers,andletthefluidinflowtotheproductthatwilllikelyfiresorcauseshock.
（5）Donotopentheproductinternalormodificationoftheproduct.
The product internal contains high voltage parts, once the open cover, or modification of the
product,itwilllikelyfiresorcauseshock.Allaboutmaintenanceandothersuchmatterswithin
theproducttotransformshouldbeoperatedbyprofessionalpersonnel.
（6）Maintenanceortheprecautionswhennotinuseforlongtime.
WhenMaintenance,iftheproductnotinusein10daysormorethan10days,inordertoensure

2
thesafe,pleaseshutoffpowersupplyswitch,andwillpowerplug.Iffailuretocomplywiththis
provision,itwilllikelycauseelectricshockorfires.

3
2. PRODUCTINTRODUCTION
2.1Overview
Matrixcontrollercanrealizebusinessbroadcastingandfirealarmlinkageemergencybroadcasting
by supporting Peering Frame and fire alarm. It is a Public Address system and fire protection
linkage alarmsystemsuitable forlargepublic places such as railways,business offices, factories,
schools,hospitals,shoppingmalls,entertainmentplaces,etc.
MatrixController:
(1) Standard 2U rack-mounted design, 4.3-inch true color LCD screen, which can display
informationsuchasworkingstatusandequipmentparameters.
(2) Support emergency broadcast function, can receive fire alarm linkage alarm signal from fire
alarmcontrollerforemergencybroadcast.
(3)Supportlocalbroadcast,networkbroadcast,schedulebroadcast,etc.;canrealizemulti-receiver
andmulti-sourcebroadcast,schedulebroadcast,controlinputtriggersourcebroadcastandother
functions.
(4)Supportzonecontrol,youcanmanuallyselecttheaudiosourceandzones,supportthecontrol
oflocalaudioinputplaybacktoanyaudiooutput,andcanplayanyaudiosourceinanyzones.
(5) Optional hand-held microphone can be used for general manual broadcasting and fire
emergencybroadcasting.
(6)Built-inmonitorspeakers,whichcanmonitortheaudiosourceandzone’saudio.
(7)Withautomaticnoisecontrolfunction,itcanmonitortheexternalenvironmentalnoiseofeach
outputchannelinrealtime,automaticallyadjusttheoutputsoundpressurelevel,andimprovethe
clarityofthesound.
(8)Withself-checkfunction,theself-checkisrealizedthroughthe"self-check"buttononthepanel.
During the self-check process, all the indicators on the front panel are always on (multi-color
indicatorsalternatelydisplaydifferentcolors),andthefaultindicationbuzzersoundscontinuously.
During the self-check process,all devices directly connected to thematrix controller execute the
self-checkfunction.
(9)Withfaultdetectionfunction,itcan detecttheopencircuit,short circuit, groundfault,power
amplifierfaultandpowersupplyfaultofthehorncircuit.
(10) It has the function of power amplifier reverse backup. When a power amplifier failure is
detected,itcanautomaticallyswitchtothebackuppoweramplifiertoensurethatthebroadcastis
notinterrupted.
(11) Equipped with dual network ports, supporting network redundancy backup, one network
interruption,canautomaticallyswitchtoanothernetwork.
(12) With CPU OFF function, when the device crashes or the network is paralyzed, the CPU OFF
functioncanbeturnedontorealizethewholeareabroadcasting.
(13)Supportredundancyforpowersupply,usuallyfrompowersupplyA,whenthepowersupplyA
fails,itcanautomaticallyswitchtothepowersupplyB;whenthepowersupplyAreturnstonormal,
itwillautomaticallyreturntothepowersupplyA.
PeeringFrame:
(1) The standard 4U rack design is used to supply power to the digital power amplifier module
installedinthechassis.
(2) Provide 4 channels digital power amplifier module slot + 1 channel standby digital power
amplifiermoduleslot.
(3)Theoperationandfaultstatusofthedigitalpoweramplifiermodulecanbedisplayed.
(4)Itcanshowwhetherthestandbypoweramplifierisinworkingstateornot.
Supportredundancyforpowersupply,usuallyfromthepowersupplyA,whenthepowersupplyA
fails,itcanautomaticallyswitchtothepowersupplyB;whenthepowersupplyAreturnstonormal,
itwillautomaticallyreturntothepowersupplyA.
DigitalPowerAmplifierModule:
(1)ClassDdigitalpoweramplifier,highefficiencyandenergysaving.
(2)Therearethreepowerlevelsof125W/250W/500Wtochoosefrom.

4
(3)Modulardesign,smallandlightappearance.
(4)Ithasafaultdetectionfunction,whichcandetectfaultssuchasovercurrent,overheat,andfan
abnormality,anddisplaysthemontheindicatorlightofthepowersupplychassis.
2.2InterfaceDescription
2.2.1MatrixController
FrontPanel
1HandheldMicrophoneInterface:connectthehandheldmicrophone(PM-100VX-EA)tothis
interface,usedforgeneralmanualbroadcastingandfireemergencybroadcasting.
2CPUOFFButton:SwitchtotheOFFpositionmeansthatthehandheldmicrophonechannelis
open;switchtotheONpositionmeansthatthehandheldmicrophonechannelisclosed(Note:
whentheCPUisdown,pleasemanuallyswitchtoOFFtoenable).
3EmergencyBroadcastButton:pressthisbuttontomanuallyinitiateemergencybroadcast.The
buttonhasaprotectivecovertopreventmisuse.Whenyouneedtoswitchtomanual
emergencymode,firstlifttheprotectivecover,thenpressthebutton,thebuttonindicator
lightsred.
4PresetButtonandstatusindicator:Pressthepreset1-preset3button,thepresetbroadcast
taskwillbeexecuted.(Note:Thepresetbroadcastneedstobeconfiguredinthe"VX-1000
SettingSoftware"inadvance.)
Preset1/2/3statuslights:pressthepresetbutton,thecorrespondingindicatorlightsgreen;
whenthepresettaskends,thelightgoesout.
54.3-inchLCDscreen:displaydeviceparameters,workingstatus,etc.
6Menu/BackButton
7ZoneSelectionButton:presstoselectthecorrespondingzone(multipleselectionis
supported),pressagaintocanceltheselection.
8OperateButton:RotatetheOperateButtontoselectthemenu,andpresstheOperateButton
toconfirmtheselection.
9STOPButton:Pressthisbuttontostopbroadcasting/monitoring.
10 STARTButton:Pressthisbuttontostartbroadcasting/monitoring.
11 SELF-CHECKButton:Pressthisbuttontoperformself-check,andpresstheself-checkbutton
againtoendtheself-check.Duringtheself-check,alltheindicatorsonthefrontpanelare
alwayson(multi-colorindicatorsalternatelydisplaydifferentcolors),andthefaultindication
buzzercontinuestosound.
12 AUDIOMONITORButton:Pressthisbuttontomonitortheaudiosourceandzoneaudio.
13 RESETButton:Whenthesystemhasafault,pressthe"Reset"keytoresetthefaultstate,the
faultindicatorreturnstothenormalstate,andthenre-detectthesystemfault.

5
14 ACKButton:Whenthesystemdetectsafault,pressthe"ACK"buttontoconfirmthefault,the
faultindicatororangelightisalwayson,andtheLCDscreendisplaysspecificfaultinformation.
15 Equipmentstatusindicator,therelevantinstructionsareasfollows:
StatusIndicatorLED
Introduction
ACPOWERINA
Two-colorlights,orangelightwithoutpowerinput,greenlight
withpowerinput.
ACPOWERINB
Two-colorlights,
Incasesurveillancefunctionisenable:ifthereisnopower
input,lightsorange,ifthereispowerinput,lightsgreen;
Incasesurveillancefunctionisdisable:ifthereisnopower
input,nolights,ifthereispowerinput,lightsgreen.
RUN
Thedeviceissteadygreenafterthedeviceisstartedandcan
worknormally.
AUDIOMONITOR
PresstheAUDIOMONITORButtontoenterthemonitorstate,
themonitorstatuslightisalwaysgreen;
Pressthemonitorbuttonagaintoexitthemonitorstateandthe
monitorstatuslightgoesout.
FAULT
Theorangelightflasheswhenthedeviceisfaulty;afterpressing
theconfirmkey,theorangelightisalwayson.Afterallthefaults
areeliminatedortheresetkeyispressed,theorangelightgoes
out.
EMERGENCY
Whentheemergencybroadcastoccurs,theindicatorlightsred;
Aftertheemergencybroadcaststops,theindicatorgoesoff.
CPUOFF
Whenthe"CPU"switchispulledtothe"OFF"state,theCPU
OFFindicatorlightsred;
Whenthe"CPU"switchispulledtothe"ON"state,theCPUOFF
indicatorgoesout.
16 Speaker
RearPanel

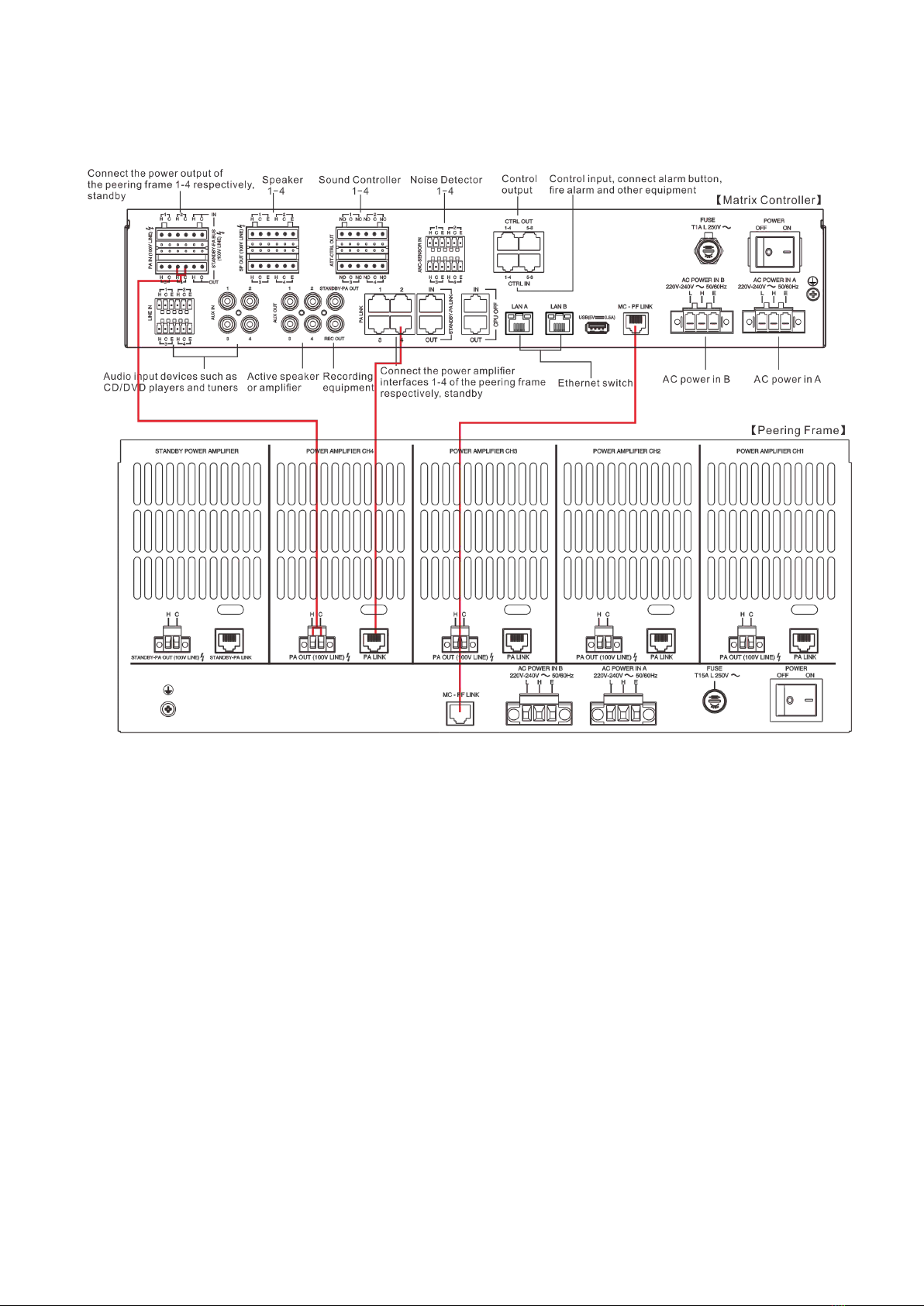

1PAIN:4poweramplifierinputs+1backuppoweramplifierinput,usedtoconnectthe100V
amplifieroutputportofanyamplifiers.1cascadepoweramplifierinput(usedwhentwo
matrixcontrollersarecascaded),usedtoconnectthecascadepoweramplifierinputof
anothermatrixcontroller(VX-1000MC).(H:hotend,C:coldend).
2SPOUT:4channelsofpoweramplifiersignaloutput,usedtoconnectthespeakerline.(H:hot
terminal,C:coldterminal,E:groundterminal)

6
3ATT-CTROUT:4channelsattenuatorcontroloutput.(NO:normallyopen,C:public,NC:
normallyclosed)
4ANC-SENSORIN:4microphone(asanambientdetectionsensor)inputs,whichcanbe
connectedtoanambientnoisedetectortoautomaticallyadjustthebroadcastsoundoutput
levelaccordingtoenvironmentalnoiselevel.(H:hotterminal,C:coldterminal,E:ground
terminal)
5CTRLIN/CTRLOUT:8controlinputs,8controloutputs.Seethenextpageforthewire
sequenceanddefinitionoftheinterface.
6LINEIN:4channelsbalancedlinesignalinput,usedtoconnectexternalaudiosource
equipment.(H:hotterminal,C:coldterminal,E:groundterminal)
7AUXIN:4channelsunbalancedlineinputs,usedtoconnectexternalaudiosourceequipment,
suchasCD/DVDplayer,tuner,etc.
8AUXOUT:4channelsunbalancedlineoutputs,canbeconnectedtoactivespeakersorpower
amplifierequipment.
9RECOUT:1channelrecordingoutput,usedtoconnectexternalrecordingequipment.
10 STANDBY-PAOUT:1channelstand-byaudiooutputinterface,canoutputtheaudiosignalof
thestand-bypoweramplifierchannel.
11 PALINK:4channelspoweramplifierinterface+1channelstandbypoweramplifierinterface,
usedtoconnecttheDigitalPowerAmplifierModulebuilt-inPeeringFrame(VX-1000PF),to
interface1-4,andstandby.1channelcascadedpoweramplifierinterface(usedwhentwo
matrixcontrollersarecascaded),usedtoconnectthecascadedpoweramplifierinterfaceof
anothermatrixcontroller(VX-1000MC).Twomatrixcontrollerscascadedwillshareastand-by
poweramplifier.
12 CPUOFF:cascadewithanothermatrixcontroller'sCPUOFFinterface.(Note:Iftwodevicesare
cascaded,youmustensurethattheCPUOFFcascadeinterface,cascadepoweramplifierbyPA
LINK,andcascadepoweramplifierinterfaceofthetwodevicesareallconnected)
13 LANA/LANB:dualnetworkports.Whenthenetworkcableisnotconnected,thenetwork
interfacelightisoff;afterconnectingthenetworkcable,theorangelightflashesslowly,and
theorangelightflashesquicklywhenthereisdata.
14 USB:Notused.
15 MC-PFLINK:ConnectedtotheMC-PFLINKinterfaceofthePeeringFrame(VX-1000PF),which
candetectthepowerfailureofthePeeringFrame.
16 ACPOWERINB:connecttoAC220V-240Vstandbypowersupply.
17 ACPOWERINA:connecttoAC220V-240Vmainpowersupply.
18 Groundterminal:connectthegroundwire.
19 POWERSwitch:controlthepoweronandoff.
20 FUSE:T1AL/250V,providingpowersupplyovercurrentprotection.

7
Linesequenceanddefinitionofcontrolinput/controloutputinterface:
Name
No.
Color
Pair
Pin
Assignment
Description
CTRL_OUT
1-4
①
Orange/White
COM1
Common1
②
Orange
NO1
NormallyOpen1
③
Green/White
COM2
Common2
④
Blue
COM3
Common3
⑤
Blue/White
NO3
NormallyOpen3
⑥
Green
NO2
NormallyOpen2
⑦
Brown/White
COM4
Common4
⑧
Brown
NO4
NormallyOpen4
CTRL_OUT
5-8
①
Orange/White
COM5
Common5
②
Orange
NO5
NormallyOpen5
③
Green/White
COM6
Common6
④
Blue
COM7
Common7
⑤
Blue/White
NO7
NormallyOpen7
⑥
Green
NO6
NormallyOpen6
⑦
Brown/White
COM8
Common8
⑧
Brown
NO8
NormallyOpen8
CTRL_IN
1-4
①
Orange/White
CTRLIN1
ControlInput1
②
Orange
GND
Ground
③
Green/White
CTRLIN2
ControlInput2
④
Blue
GND
Ground
⑤
Blue/White
CTRLIN3
ControlInput3
⑥
Green
GND
Ground
⑦
Brown/White
CTRLIN4
ControlInput4
⑧
Brown
GND
Ground
CTRL_IN
5-8
①
Orange/White
CTRLIN5
ControlInput5
②
Orange
GND
Ground
③
Green/White
CTRLIN6
ControlInput6
④
Blue
GND
Ground
⑤
Blue/White
CTRLIN7
ControlInput7
⑥
Green
GND
Ground
⑦
Brown/White
CTRLIN8
ControlInput8
⑧
Brown
GND
Ground

8
2.2.2PeeringFrame
FrontPanel
Name
Indicatorlightstatus
ACPOWERINA
Greenlightwhenthereispowerinput,anddoesnotlightupwhenthere
isnopowerinput.
ACPOWERINB
Greenlightwhenthereispowerinput,anddoesnotlightupwhenthere
isnopowerinput.
STANDBYOPERATION
Greenlightwhenswitchingtothestandbypoweramplifier,andthelight
isoffwhennotswitching.
POWER
Greenlightwhenthepoweramplifierchannelhaspowerinput;without
powerinput,itdoesnotlight.
FAULT
Ifthepoweramplifierisfaulty,itwilllightorange;ifthereisnofault,it
willnotlight.
PEAK
Whentheinputsignalofthepoweramplifierreachesthepeakvalue,it
lightsupinred;ifitdoesnotreach,itdoesnotlightup.
SIGNAL
Theamplifierhasaninputsignalandlightsgreen;nosignal,itdoesnot
light.

9
RearPanel
1POWERSwitch:controlthepoweronandoff.
2PALINK:poweramplifierinterfaces(amplifierchannels1-4),respectivelyconnectedtothe
matrixcontroller'spoweramplifierinterface1-4;1channelforstandbypoweramplifier
interface,connectedtothematrixcontroller'sstandbypoweramplifierSTANDBY-PALINK
interface.
3PAOUT:poweramplifieroutput(poweramplifierchannels1-4),respectivelyconnectedtothe
matrixcontrollerPAINinterface1-4;1channelforstandbypoweramplifierinterface,
connectedtothematrixcontrollerstandbypoweramplifierPAINinterface.
4FUSE:T15AL/250V,providingpowerovercurrentprotection.
5ACPOWERINA:connecttoAC220V – 240Vpowersupply.
6ACPOWERINB:connecttoAC220V – 240Vpowersupply.
7MC-PFLINK:ConnectedtotheMC-PFLINKinterfaceofthematrixcontroller(VX-1000MC),itcan
detectthepowerfailureofthePeeringFrame(VX-1000PF).
8Ground:connectthegroundwire.

10
3. Wiring
3.1MatrixControllerWiringDiagram

11
3.2DigitalPowerAmplifierModuleInstallationDiagram
Installationsteps
Step1：RemovethefourM3*10countersunkscrewsonthepanelofthePeeringFrame,and
thenremovethepanel.
Step2：Loosenthethumbscrew(noneedtocompletelyunscrewit,thelockpiececanbe
droppedtothelowerright),andturnthelockpiecetothelowerright(hookdown).
Step3：Pushthedigitalpoweramplifiermoduleintothecorrespondingposition.
Step4：Turnthelockingplatetotheupperleft,withthehookpositionfacingup,hookthe
hookpositiononthebottomofthedigitalpoweramplifiermodule,andthentightenthehand
screw.
Step5：Connectthecableanduse4M3*10countersunkscrewstoassemblethepanel.

12
3.3ReferenceSize（unit：mm）
3.3.1MatrixController
3.3.2PeeringFrame

13
4. Instructions
4.1VX-1000Configurationtooloperatinginstructions
4.1.1SoftwareInstallation
Double-clicktheVX-1000installerandpress"Next"toinstall.Aftertheinstallationiscomplete,
select"Runasadministrator"software.
4.1.2Basicparametersettings
(1) New project file：Click "File"-"New" in the main interfaceof the software, enter the project
name in the pop-up dialog box, and create a new project file. After the new creation is
complete,relatedsettingssuchassystemnameandscreendisplaycanbemadeonthe"Basic
Settings"interface.
(2) Adddevice：Inthe"DeviceList"interface,adddevices,setdeviceIPandotheroperations.After
theconfigurationsarecompleted,thesystemwillsaveconfigurationsautomatically.

14
(3) Matrix extended partition configuration: Set the number of matrix extended partition
extendersvX-1010ZE-EA.IfthevX-1010ZE-EAisnotconnected,thenyoudonotneedtosetthis
parameter. A maximum of 16 partition extenders can be added.After the configurations are
completed,thesystemwillsaveconfigurationsautomatically.

15
(4) DeviceConfiguration：Afterthedeviceisadded,thenamesoftheinputandoutputchannels
and control input and output channels of each matrix controller can be customized in the
device configuration interface. After the configurations are completed, the system will save
configurationsautomatically.
Theconfigurationofthematrixcontrollerisdescribedasfollows:
(1) Select the corresponding matrix controller in EquipmentList. You can customize the
input/output channel name, volume, whether to enable the ground detection function, and
thenameofthecontrolinput/outputchannelforeachmatrixcontroller.(Note:Inputchannels
1-4respectivelycorrespondtothe4-channelaudiosourceinputofthematrixcontroller,and
output channels 1-4 respectively correspond to the 4-channel line output of the matrix
controller.Groundingdetectionisnotenabledwhenusingda-Xpoweramplifier.)
(2) If partition controller extenders VX-1010ZE-EA are connected, set the channel type in

16
Output Settings. To connect one power amplifier to the partition extender, select single
channel;toconnecttwopoweramplifierstothepartitionextender,selectdoublechannel.
Asinglechannelsupportsonlyonebroadcastoutput.Youcanselectanychannel1,2,3,or4as
theoutputchannel.
DualchannelSupportsBGMandtwoprioritybroadcasts.Youcanselect1,2,or3,or4output
channels (1 indicates channels 1 and 2, and 3 indicates channels 3 and 4). BGM broadcasts
outputfrom2and4,andprioritybroadcastsoutputfrom1and3.
(5) Createamedialibrary：Clickthe"Add"buttoninthe"MediaLibrary"toaddaudiofiles(usedas
a broadcast source). After the configurations are completed, the system will save
configurationsautomatically.

17
(6) Broadcast List Setting：Set the broadcast audio file playlist (need to add audio files in the
"Media Library" in advance). After the configurations are completed, the system will save
configurationsautomatically.
(7) Setaudiosourcepriority：Settheaudiosourcetype(BGM/Business/Emergency)andpriorityof

18
thedeviceinputchannelandplaylist.Aftertheconfigurationsarecompleted,thesystemwill
saveconfigurationsautomatically.
(8) SetGroup:OnGroupingSetting,multi-zonecanbeconbinedtoonegroup.
(9) Control output：Enter the name of the Control output, check the control output to be
