TOA SPEAKER SYSTEM
WEATHER-RESISTANTSPEAKER
F-160WP
Rear View
DESCRIPTION
TOA's F-160WP two-way, ported speaker system com-
bines durable, weather-resistant construction with
superb acoustic characteristics. Ideal for outdoor
applications and high-humidity areas, the F-160WP
includes a 5” water-resistant cone speaker and 1”
dome tweeter with a high power handling capacity.
The F-160WP is engineered to combine maximum
efficiency with a flat frequency response when mount-
ed in a half- or quarter-space environment. The typical
position for a foreground/background speaker is
against a wall or at the intersection of a wall and a ceil-
ing or second wall. This is the acoustical environment
for which the new F-Series is optimized.
An extremely durable, low-foam polypropylene resin
enclosure ensures quality sound performance. An
internal 70/100 volt transformer is included, which
adjusts via a rotary switch under the rear cover.
The F-160WP is easy to install horizontally on walls
or under eaves with an optional outdoor mounting
bracket. To protect connection terminals, the enclosure
has a rear cover with a cable feed slot.
FEATURES
1.
Two-way, weather-resistant speaker system with
1” dome tweeter and 5” drip-proof woofer.
2.
Ideal for outdoor applications and high-humidity
locations, such as swimming pools, ice arenas and
health clubs.
3.
Includes built-in 70/100 volt transformer, adjustable
via rotary switch under the rear cover.
4. Engineered to provide maximum efficiency with a
flat frequency response when mounted in a half- or
quarter-space environment.
5.
Durable, low-foam polypropylene resin enclosure in
dark gray enhances acoustic quality.
6.
Enclosure has a rear cover with cable feed slot to
protect connection terminals.
7. Installs easily on walls or under eaves with optional
outdoor mounting bracket.

SPECIFICATIONS
Enclosure type
Bass-reflex
Speaker
low frequency 5” (13cm) drip-proof cone woofer
high frequency 1” (3cm) dome tweeter
Rated impedance 100V Line: 330 Ω (30W 500 Ω (20),
1k Ω (10W), 2k Ω (5W)
70V Line: 170 Ω (30W), 330 Ω (15W),
500
Ω (10W), 1k Ω (5W), 2k Ω (2.5W)
Rated input power
30W
Output SPL 91dB (1W/1m)*
Crossover frequency 4kHz (passive network)
Frequency response 100Hz – 20kHz (-10dB)
150Hz – 13kHz (-3dB)
Input connector
Push terminal
Enclosure material Polypropylene resin
Color Dark gray
Dimensions (W x H x D) 9.8” x 6.2” x 6.7”
(250 x 157 x 169mm)
Weight 8.6 Ibs. (3.9 kg.)
Mounting bracket
YS-150WP
*Pink noise of 330Hz - 3.3kHz. All specifications subject to change.

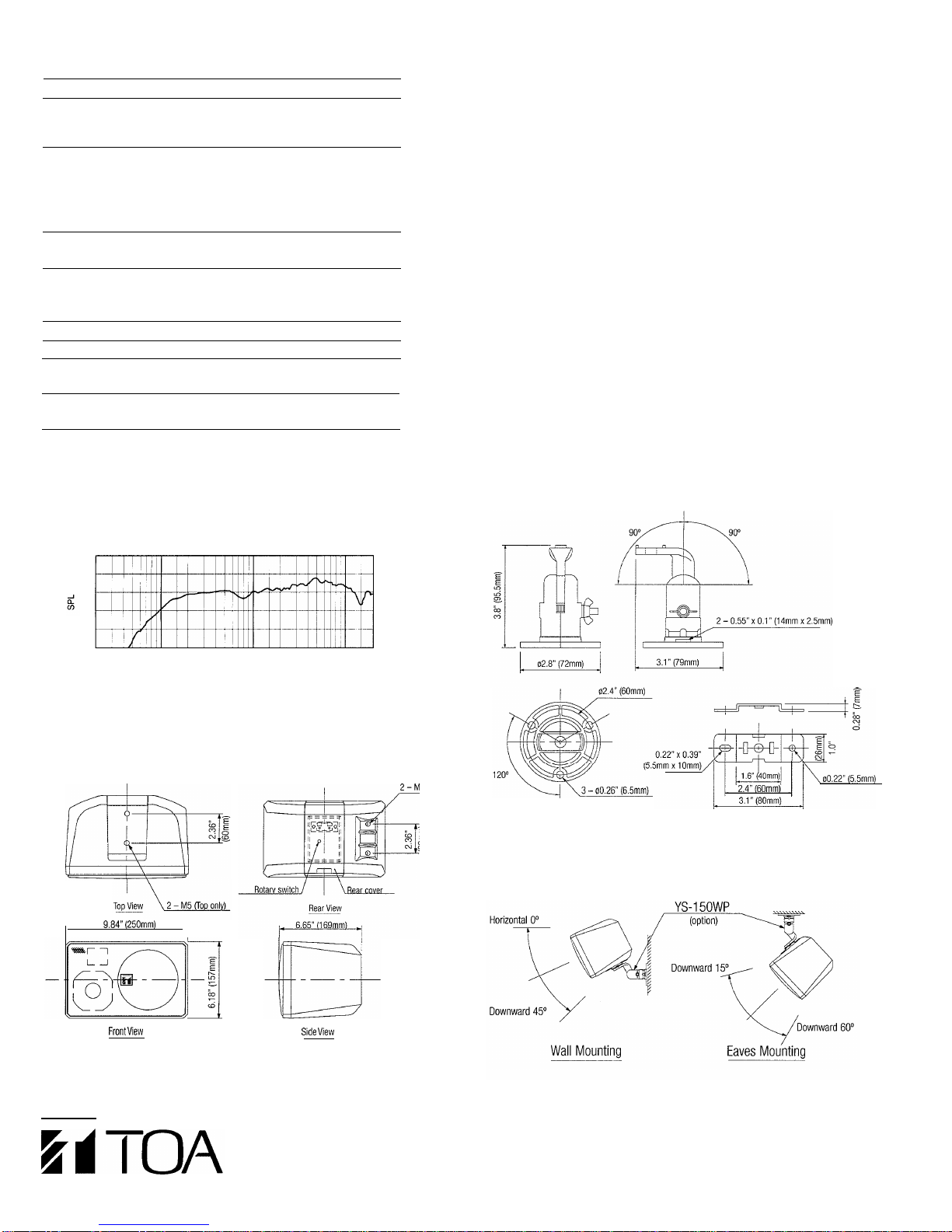

CHARACTERISTIC DIAGRAM
Frequency Response (1W/1m: 1/3 Octave Pink Noise)
db
100
90
80
70
2050100 200 500 1000 2000 5000 10000 20000 Hz
Frequency
APPEARANCE & DIMENSIONAL DIAGRAM
ARCHITECT’S AND ENGINEER’S
SPECIFICATIONS
The speaker system shall be the two-way, ported TOA F-160WP,
which provides a wide frequency range and high power handling
capacity. The F-160WP shall be engineered to combine maximum
efficiency with a flat frequency response when mounted in a half- or
quarter-space environment.
The F-160WP shall feature a 5” (13cm) drip-proof cone speaker
and a 1" (3cm) dome tweeter. Frequency response shall be 100Hz -
20kHz, with crossover at 4kHz. Sensitivity shall be rated at 91dB
(1W/1m).
The 160WP shall have a continuous pink-noise transformer input
power rating of 30 watts and an internal 70/100 volt line matching
transformer, adjustable via a rotary switch under the rear cover. A
push-type input connector shall be available on all models.
The enclosure shall be dark gray and composed of acoustically-
efficient, polypropylene resin to ensure high quality sound perfor-
mance. The speaker shall be easily mounted on walls or under eaves
in a horizontal position with an optional YS-16OWP outdoor mounting
bracket. The enclosure shall have a rear cover with cable feed slot
to protect connection terminals.
The F-160WP shall measure 9.8”W x 6.2”H x 6.7”D (250 x 157 x
169mm), and shall weigh 8.6 Ibs. (3.9 kg.).
YS-150WP MOUNTING BRACKET
INSTALLATION DIAGRAM
*F-160WPcannotbepositionedverticallyusingYS-150WP.
TOA Electronics, Inc. 601 Gateway Blvd., Ste. 300, So. San Francisco, CA 94080 Tel: [phone] Fax: [phone]
TOA Canada Corp. 6150 Kennedy Rd., Unit 3, Mississauga, Ontario L5T 2J4 Tel: [phone] Fax: [phone]
Printed in U.S.A. 5/96 © 1996 TOA Electronics, Inc.
