TOA SPEAKER SYSTEM
FOREGROUND MUSIC SPEAKERS
F-240G/240W/240GM/240WM
F-160G/160W/160GM/160WM
F-240G/F-240GM F-160G/F-160GM
F-160W/F-160WM
Rear View
F-240W/F-240WM
DESCRIPTION
TOA’s F-240 and F-160 Series of foreground/back-
ground music speakers are ideal for applications
requiring both sonic quality and designer styling.
These two-way, ported systems provide a wide fre-
quency range and high power handling capacity-
in an attractive, acoustically-efficient polypropylene
enclosure.
Each of the F-240 and F-160 Series includes four
models-two dark gray and two white, indicated by
the suffix “G”or “W”. Models with the suffix “GM”or
“WM”include a built-in 70/100 volt matching trans-
former. In all, eight models are available to match a
variety of job requirements.
The F-240 Series features a
6"/4" woofer and a 1"
titanium dome tweeter, which includes an acoustic
equalizer and a 90" x 90" CD horn for uniform sound
distribution at high frequencies. Frequency response
is 65Hz - 20kHz, with crossover at 4kHz. Sensitivity is
rated at 92dB (1W/1m).
The F-160 Series features a 5" woofer and a 1"
dome tweeter, which also includes an acoustic equal-
izer and a 90" x 90" CD horn. Frequency response is
100Hz - 20kHz, with crossover at 4kHz. Sensitivity is
rated at 91dB, measured in whole-space (1W/1m).
Both the F-240G/W and F-160G/W feature a continuous
pink-noise power rating of 50 watts at 8
Ω , and a con-
tinuous program power rating of 150 watts at 8
Ω. Built-
in protection circuitry guards all components against
overloads.
The F-240 and F-160 Series are engineered to com-
bine maximum efficiency with a flat frequency response
when mounted in a half- or quarter-space environment.
The typical position for a foreground/background
speaker is against a wall or at the intersection of a wall
and a ceiling or second wall. This is the acoustical
environment for which the new F-Series is optimized.
The F-240GM/WM and the F-160GM/WM feature an
internal line matching transformer with four impedance
selections for 100 volt line and five selections for 70
volt line, adjustable via a rotary switch under the rear
cover. These four models each have five 70 volt trans-
former taps ranging from 2.5 watts to 30 watts.
All systems are easily mounted in vertical or horizon-
tal positions with a wide range of optional mounting
brackets, and a logo badge on the front grille rotates to
match the enclosure’s orientation. A rear cover with a
cable feed slot protects connection terminals.
TOA

FEATURES
1. Two-way foreground/background music speaker
systems combine sonic quality with designer
styling,
2. All systems feature wide range and continuous
pink-noise power rating of 50 watts at 8 Ω (con-
tinuous program power rating of 150 watts at 8 Ω ).
3. Eight models available to match versatile job
requirements.
4. The F-240 Series includes 6 1/4” woofer and 1”
titanium dome tweeter with acoustic equalizer
and 90” x 90” CD horn.
5. F-160 Series includes 5” woofer and 1” dome
tweeter with acoustic equalizer and 90” x 90”
CD horn.
7. Engineered to provide maximum efficiency with a
flat frequency response when mounted in half- or
quarter-space environments.
8. F-240GM/WM and F-160GM/WM have built-in
70/100 volt transformer, adjustable via rotary
switch under rear cover.
9. All models equipped with push-type input
connector.
10. Easily mounted with optional mounting brackets
in vertical or horizontal position; logo badge on
front grille rotates to match enclosure orientation.
11. Enclosure has a rear cover with cable feed slot to
protect connection terminals.
12. Acoustically-efficient polypropylene enclosure in
6. Internal protection circuitry guards all speaker
components against overloads in the 8 Ω version. white (“W” models) or dark gray (“G” models).

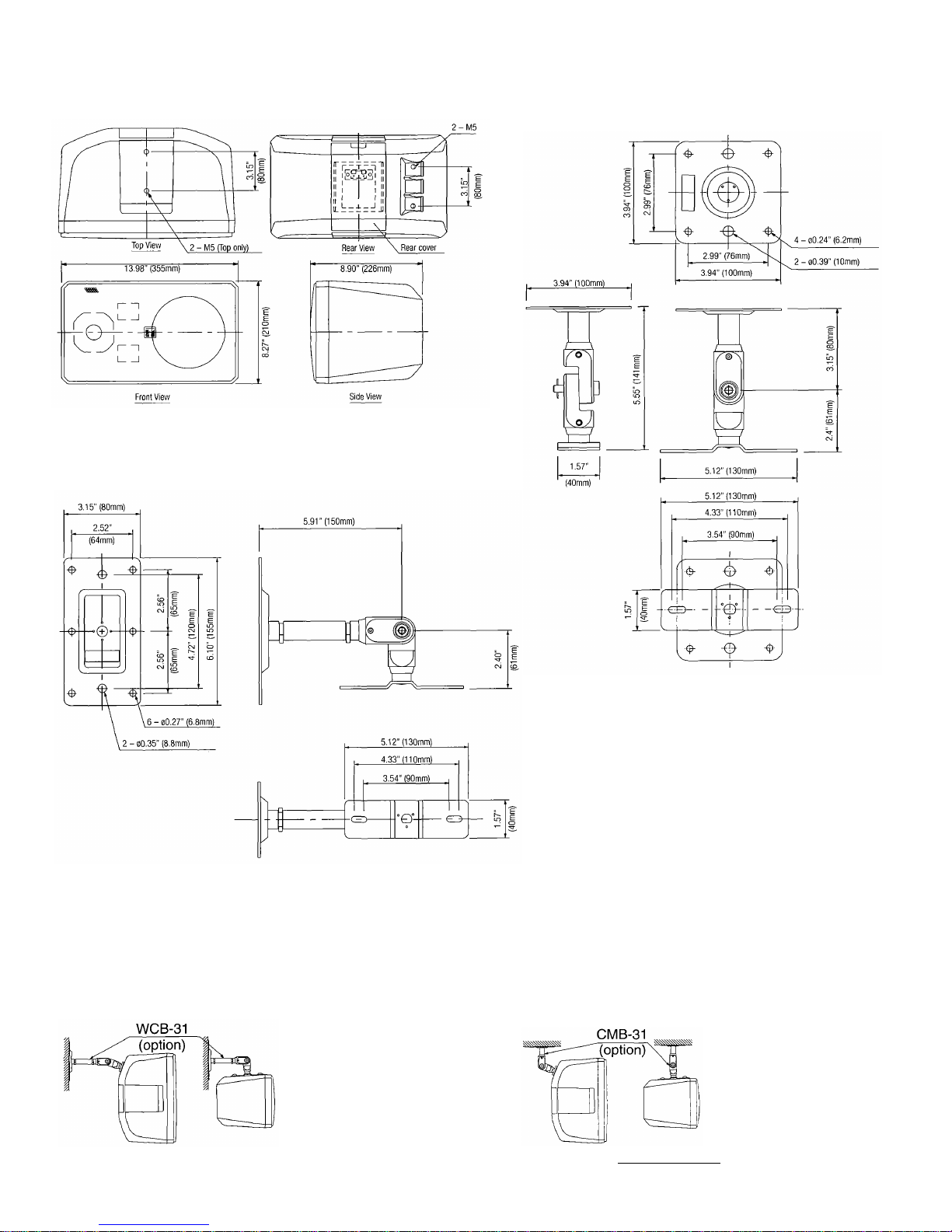

F-160 SERIES APPEARANCE & DIMENSIONAL DIAGRAMS
F-160 Series Speakers
F-160 Installation (with WCB-12)
WCB-12
WCB-12 Wall/Ceiling Mounting Bracket
Wall Mounting Ceiling Mounting

F-240 SERIES APPEARANCE & DIMENSIONAL DIAGRAMS
F-240 Series Speakers CMB-31 Ceiling Mounting Bracket
WCB-31 Wall Mounting Bracket
F-240 Installation (with WCB-31)
Wall Mounting
F-240 Installation (with CMB-31)
Ceiling Mounting

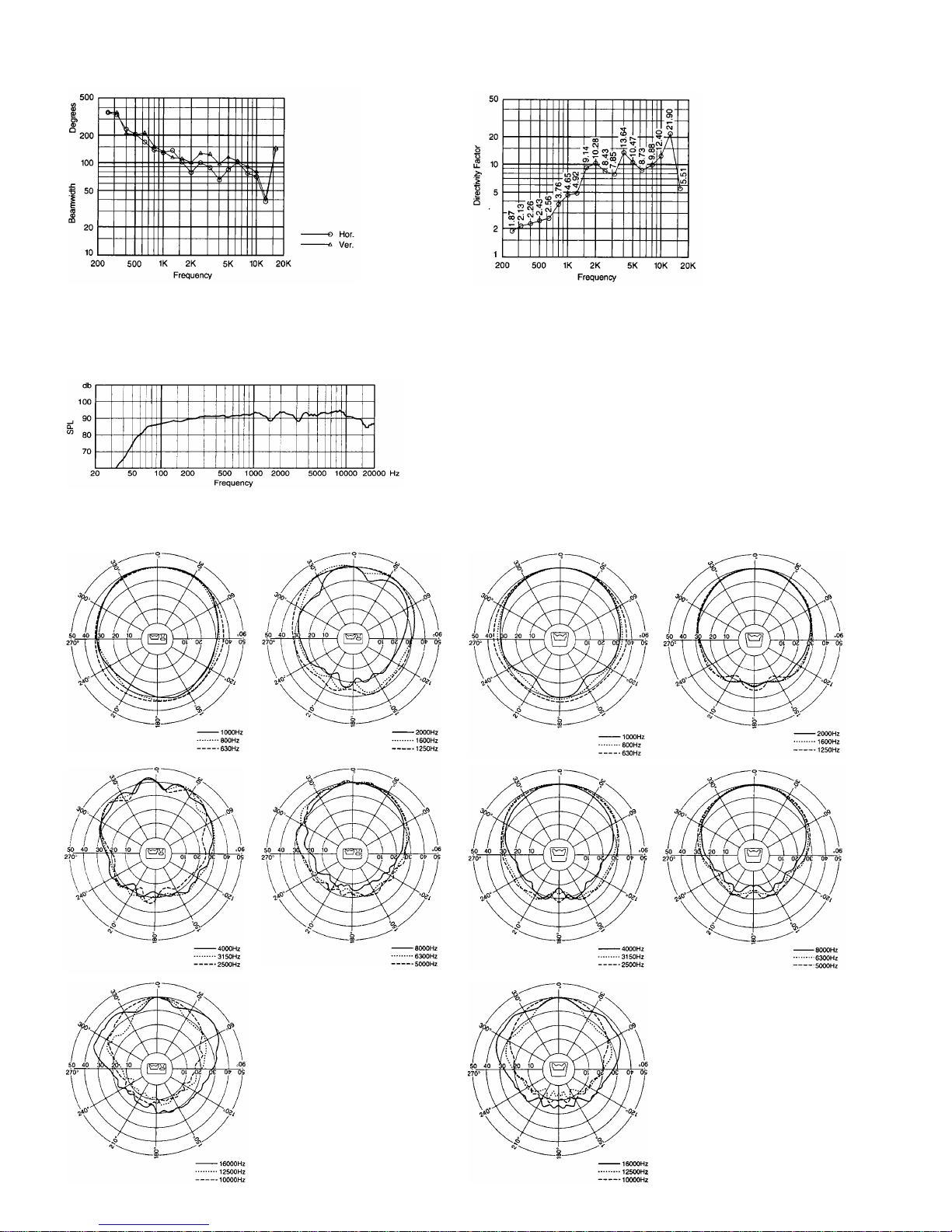

F-240 SERIES —CHARACTERISTIC DIAGRAMS
Beamwidth vs. Frequency Directivity Factor vs. Frequency
Frequency Response (1W/1m: 1/3 Octave Pink-Noise)
Polar Response — Horizontal Polar Response — Vertical

F-160 SERIES — CHARACTERISTIC DIAGRAMS
Beamwidth vs. Frequency Directivity Factor vs. Frequency
Frequency Response (1W/1m: 1/3 Octave Pink-Noise)
Polar Response — Horizontal Polar Response — Vertical

SPECIFICATIONS
F-240G/240W F-160G/160W F-240GM/240WM F-160GM/160WM
Enclosure type
Bass-reflex
Speaker
low frequency 6¼" (16cm) cone woofer 5" (13cm) cone woofer 6¼" (16cm) cone woofer 5" (13cm) cone woofer
high frequency 1" (3cm) titanium dome tweeter 1" (3cm) dome tweeter 1" (3cm) titanuim dome tweeter 1" (3cm) dome tweeter
Rated impedance 8
Ω
100VLine:330 Ω (30 W),500 Ω (20 W), 1k Ω (10W),2k Ω (5W)
70VLine:170 Ω (30W),330 Ω (15W),500 Ω (10W ), 1k Ω (5W), 2k Ω (2.5W)
Power handling Continuous pink-noise: 50W*
capacity Continuous program: 150W taps up to 30W
Output SPL
92dB (1W/1m)** 91dB (1W/1m)** 92dB (1W/1m)** 91dB (1W/1m)**
Crossover frequency 4 kHz (passive network)
Frequency response 65Hz - 20kHz (-10dB) 100Hz - 20kHz (-10dB) 65Hz - 20kHz (-10dB) 100Hz - 20kHz (-10dB)
130Hz - 15kHz (-3dB) 150Hz - 13kHz (-3dB) 130Hz - 15kHz (-3dB) 150Hz - 13kHz (-3dB)
Input connector
Push terminal
Enclosure material Polypropylene resin
Color Dark gray (F-240G) Dark gray (F-160G) Dark gray (F-240GM) Dark gray (F-160GM)
White (F-240W)
White (F-160WM)
White (F-240WM) White (F-160WM)
Dimensions 14" x 8.3" x 8.9" 9.8" x 6.2" x 6.7" 14" x 8.3" x 8.9" 9.8" x 6.2" x 6.7"
(W x H x D)
(355 x 210 x 226mm) (250 x 157 x 169mm) (355 x 210 x 226mm) (250 x 157 x 169mm)
Weight 10.8 Ibs. (4.9 kg.) 7.3 lbs. (3.3 kg.) 12.1 lbs. (5.5 kg.) 8.6 lbs. (3.9 kg.)
* Continuous 24 hours pink-noise of 50Hz - 20kHz. ** Pink noise of 330Hz - 3.3kHz. All specifications subject to change.
ARCHITECT’S AND ENGINEER’S
SPECIFICATIONS
The speaker systems shall be the two-way, ported TOA F-240
and F-160 Series, which provide a wide frequency range and
high power handling capacity. The F-240 and F-160 Series shall
be engineered to combine maximum efficiency with a flat fre-
quency response when mounted in a half- or quarter-space envi-
ronment.
The F-240 Series (F-240G, F-240W, F-240GM, F-240WM) shall
feature a 6¼" (16cm) woofer and a 1" (3cm) titanium dome tweet-
er with an acoustic equalizer and a 90" x 90" constant directivity
horn for uniform sound distribution at high frequencies.
Frequency response shall be 65Hz - 20kHz, with crossover at
4kHz. Sensitivity shall be rated at 92dB (1W/1m).
The F-160 Series (F-160G, F-160W, F-160GM, F-160WM) shall
feature a 5" (13cm) woofer and a 1" (3cm) dome tweeter with an
acoustic equalizer and a 90" x 90" constant directivity horn.
Frequency response shall be 100Hz - 20kHz, with crossover at
4kHz. Sensitivity shall be rated at 91dB (1W/1m).
The F-240G/W and F-160G/W shall have a continuous pink-
noise power rating of 50 watts at 8Ω and continuous program
power rating of 150 watts at 8Ω. All F-Series speakers shall have
push-type input connectors, and all 8Ω versions shall have pro-
tection circuitry to guard components against overloads.
The F-240GM/WM and F-160GM/WM shall have five 70 volt
transformer taps ranging from 2.5 watts to 30 watts. An internal
line matching transformer with four impedance selections for 100
volt line and five impedance selections for 70 volt line, adjustable
via a rotary switch under the rear cover shall be included.
The enclosures shall be made of acoustically-efficient
polypropylene, in gray (G-suffix) or white (W-suffix). All speakers
shall be easily mounted in vertical or horizontal positions, with a
wide range of optional brackets. The front grille shall have a logo
badge that rotates to match the vertical or horizontal enclosure
orientation. The enclosure shall have a rear cover with cable
feed slot to protect connection terminals, while providing an
attractive appearance.
The F-240G/W/GM/WM shall measure 14"W x 8.3"H x 8.9"D
(355 x 210 x 226mm). The F-160G/W/GM/WM shall measure
9.8"W x 6.2"H x 6.7"D (250 x 157 x 169mm). The speaker sys-
tems shall weigh: 10.8 lbs/4.9 kg. (F-240G/W); 12.1 lbs/5.5 kg.
(F-240GM/WM); 7.3 lbs/3.3 kg. (F-160G/M); and 8.6 lbs./3.9 kg.
(F-160GM/WM).
OVERLOAD PROTECTION
The F-240G/W and F-160G/W feature built-in over-
load protection circuitry. A sudden drop of either the
high or low frequencies during speaker operation
indicates the protection circuit has been activated.
After approximately 3 - 30 seconds, the system will
automatically reset itself. If the protection circuit acti-
vates again, reduce the system volume.
OPTIONAL MOUNTING BRACKETS
F-160 Series:
WCB-12/WCB-12W Wall/Ceiling Mounting Bracket
MAB-1 Microphone Stand Mounting Bracket
F-240 Series:
WCB-31/WCB-31W Wall Mounting Bracket
CMB-31/CMB-31W Ceiling Mounting Bracket
STB-3 Speaker Stand Adaptor
ST-20 Tripod Speaker Stand
