Toa IP-A1SC15 User manual
INSTRUCTION MANUAL
IP HORN SPEAKER IP-A1SC15
Thank you for purchasing TOA’s IP Horn Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
2
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ............................................................................. 3
2. SUMMARY AND FEATURES .................................................................... 5
3. ABOUT SECURITY MEASURES ............................................................ 5
4. DIMENSIONAL DRAWINGS ...................................................................... 6
5. NOMENCLATURE AND FUNCTIONS ................................................. 7
6. INSTALLATION .................................................................................................. 8
6.1. Attaching the Rear Cover ..................................................................................... 8
6.2. Unit Mounting ....................................................................................................... 9
7. CONNECTIONS ................................................................................................ 10
7.1. Network Connection ........................................................................................... 10
7.2. Connections to Control Input and Output Terminals .......................................... 10
7.3. Removable Terminal Plug Connections ............................................................. 11
8. SETTINGS ........................................................................................................... 12
8.1. System Settings Summary ................................................................................. 12
8.2. System Requirements ........................................................................................ 12
8.3. Connections ....................................................................................................... 12
9. INITIALIZATION OF SETTINGS ............................................................ 13
10. CAUTIONS
REGARDING THE AVC/H.264 PATENT LICENSE ................. 14
11. SPECIFICATIONS ......................................................................................... 15
3
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual rst and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
WARNING
CAUTION
When Installing the Unit
• Install the unit only in a location that can structurally
support the weight of the unit and the mounting
bracket. Doing otherwise may result in the unit
falling down and causing personal injury and/or
property damage.
• When installing the unit in the snowy area, take
appropriate measures to prevent snow from lying
on the unit. If the snow lies on the unit, the unit may
fall, causing personal injuries.
• Do not use other methods than specied to mount
the bracket. Extreme force is applied to the unit and
the unit could fall off, possibly resulting in personal
injuries.
• Attach the safety wire to the unit. If not attached, the
unit could fall off, resulting in personal injury.
• Use nuts and bolts that are appropriate for the
ceiling’s or wall’s structure and composition. Failure
to do so may cause the speaker to fall, resulting in
material damage and possible personal injury.
• Tighten each nut and bolt securely. Ensure that
the bracket has no loose joints after installation
to prevent accidents that could result in personal
injury.
• Use the specied mounting bracket in combination.
Doing otherwise may cause the unit or component
to fall off, resulting in personal injury.
• Do not mount the unit in locations exposed to
constant vibration. The mounting bracket can be
damaged by excessive vibration, potentially causing
the unit to fall, which could result in personal injury.
• Do not use anti-rust lubricant. If it contacts resin or
rubber parts, they could deteriorate and cause the
unit to fall, possibly resulting in personal injury.
When the Unit is in Use
• Should the following irregularity be found during use,
immediately cut off the power supply from a PoE+
or PoE switching hub and contact your nearest TOA
dealer. Make no further attempt to operate the unit
in this condition as this may cause re or electric
shock.
· If you detect smoke or a strange smell coming
from the unit
· If water or any metallic object gets into the unit
· If the unit falls, or the unit case breaks
· If the LAN cable is damaged (exposure of the core,
disconnection, etc.)
· If it is malfunctioning (no tone sounds)
• To prevent a re or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
qualied service personnel.
• Do not touch the unit and LAN cable during thunder
and lightning, as this may result in electric shock.
• To prevent the electromagnetic wave interference
from badly inuencing medical equipment, make
sure to switch off the unit’s power when placing it in
close proximity to the medical equipment.
WARNING
4
CAUTION
• Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke
or steam as doing otherwise may result in re or
electric shock.
• Avoid touching the unit’s sharp metal edge to
prevent injury.
• Do not operate the unit for an extended period of
time with the sound distorting. Doing so may cause
the connected speakers to heat, resulting in a re.
• Have the unit checked periodically by the dealer
from where it was purchased. Failure to do so
may result in corrosion or damage to the unit or its
mounting bracket that could cause the unit to fall,
possibly causing personal injury.
The IP-A1SC15 IP horn speaker is capable of delivering extremely high volume sound output.
Therefore, close proximity to the speaker over time could present the danger of hearing
impairment. Be sure to follow the instructions below when conducting performance tests:
• Turn down the sound volume before adjusting the volume.
• Do not position one’s ear close to the unit.
• Point the unit in a direction where no people are present.
• Avoid listening to high-volume output for prolonged periods of time.
This equipment is not suitable for use in locations where children may be present.
WARNING: Operation of this equipment in residential areas could cause radio interference.
FCC REQUIREMENTS
Note
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Modifications
Any modifications made to this device that are not approved by TOA Corporation may void the authority
granted to the user by the FCC to operate this equipment.
5
2. SUMMARY AND FEATURES
The IP-A1SC15 IP horn speaker is equipped with a built-in power amplier and sound source memory. It can be
connected to and used over a local network.
• Power may be supplied by way of PoE+ or PoE switching hubs.
• Full compatibility with international IP66 waterproof enclosure standards ensures that the unit can be used in
a wider range of temperatures and weather conditions, realizing excellent environmental performance.
• The IP horn speaker is compatible with the following broadcasting modes:
Internal sound source
broadcasting mode
Enables broadcast of up to 20 internal sound source les by means of contact
control or Remote API (HTTP).
VMS broadcasting
mode
Enables backchannel audio broadcast from the VMS (Video management system)
software using the common protocol for IP cameras.
SIP broadcasting
mode
Enables SIP broadcasts from any voice communications device that utilizes the
SIP protocol, such as SIP or IP telephone (IP-PBX) systems.
Multicast broadcasting
mode
Allows up to 10 multicast ports to be set up, for 10 paging groups.
• Orders of priority can be set among the various broadcasting modes, meaning higher priority broadcasts can
interrupt and override lower priority broadcasts.
• Since the unit is equipped with individual offset adjustable volumes for each broadcasting modes and patterns
(internal sound source), actual broadcasting volume can be normalized or optimized.
• Broadcasts can be controlled using Remote API or contact inputs from connected external equipment.
• Connected external equipment can be controlled by contact outputs in synchronization with speaker
broadcasts.
3. ABOUT SECURITY MEASURES
• Ensure that sufcient security measures are taken on the customer’s own responsibility.
• TOA Corporation takes no responsibility for damage or loss caused by security-related problems, such as
illegal access.
• To help prevent illegal access to the unit, be sure to change the user ID and password from those used for
initial setup. For setting methods and other details, please refer to the separate setup manual which can be
downloaded from the TOA DATA Library (https://www.toa-products.com/international/).
• Take utmost care in the management of the unit’s communications password.
6
4. DIMENSIONAL DRAWINGS
4.5 (0.18")
222 (8.74")
4.5
(0.18")
211 (8.31")*
130 (5.12")
162 (6.38")
276 (10.87")
106
(4.17")
Mounting bracket
* Figure is a reference value.
141 (5.55")
25
(0.98")
3 - ø9
(3 - ø0.35")
36 (1.42")
50
(1.97")
Mounting holes
[Mounting bracket bottom surface]
[Front]
[Rear]
[Side] Unit: mm
7
5. NOMENCLATURE AND FUNCTIONS
[Rear (with rear cover removed)]
1
2
3 4
6
5
7
8
9
10
11
12
[Side]
1. Mounting bracket
Used to securely mount the unit to a wall or ceiling.
2. Rear cover (accessory)
This weatherproof cover protects the cable connection
parts from the elements.
3. Sealing nut
Functions as a weatherproof cable inlet.
4. Safety wire attachment ring
Used as an attachment point for safety wire to
prevent the unit from accidentally falling.
Safety wire attachment ring
5. Control output terminal
A ll ow s c on tr ol of e x tern al eq ui pm en t i n sy n ch r on iz at io n
with speaker operation.
6. Functional ground terminal
If excessive noise is produced when the unit is
connected to external equipment, connect this
terminal to the external equipment’s functional
ground terminal*, potentially minimizing the noise
level.
* Not safety ground.
7. LAN port
Connect to a PoE+ or PoE switching hub using a
LAN cable.
Tip
Amplier Rated Output is as follows.
• 15 W at PoE+ powered
• 8 W at PoE powered
8. LAN indicator (green)
Flashes when data is being sent or received over
a network.
9. Status indicator (orange)
Indicates the unit’s operating status by ashing
or remaining continuously lit. (See "Network
Connection" on p. 10.)
10. Reset key
The unit begins to restart when this key is clicked.
Holding down this key (for approx. 1 min and 30
sec) initializes the unit’s settings.
(See "INITIALIZATION OF SETTINGS" on p. 13)
11. Ring gasket
Prevents water from getting inside the speaker’s
rear cover.
12. Control input terminals
Allow input of control signals from connected
external equipment to enable output of internal
sound source les or make calls to SIP devices.
8
6. INSTALLATION
6.1. Attaching the Rear Cover
[Before attachment]
Notes
• To ensure complete weatherproong, be sure that the following specications of cable are used for both the
LAN cable and the control input and output cable:
Cable diameter: ø4.5 to 5.2 mm or ø0.18" to 0.2"
Cable type: Round (not compatible with at or spiral type cables.)
• The recess is 14.5 mm or 0.57" in diameter.
[Installation procedure]
The rear cover is designed to meet specic weatherproong regulations (IP66 enclosure standards).
During installation, follow the below procedure to ensure that weatherproong performance is not impaired.
Step 1. Turn the sealing nut counterclockwise to detach it from the rear cover.
Step 2. Remove both the sealing clamp and the sealing bush from the recess
in the cover.
Tip
Use the hole plug with the sealing bush as follows:
If using the control cable in Step 3
below
If NOT using the control cable in
Step 3 below
Remove the plug from the sealing
bush.
Sealing bush
Hole plug
Leave the plug inserted in the
sealing bush.
* Attached to the rear cover when shipped from the factory.
Rear cover
(accessory)
Sealing nut
Rear cover
(accessory)
Recess
Sealing clamp
Sealing bush
Removable terminal plugs
(3 pins)
Sealing nut*
Sealing clamp*
Hole plug*
Sealing bush*
Ring gasket
Screws
(3 places)
Rear cover
(accessory)
Recess
9
Step 3. Slide each part over the ends of the LAN cable and control cable
in the order shown in the gure at right.
Tip
Feed the cable ends through the sealing bush can be more
easily done by pressing the cable into the slots in the bush.
Step 4. Feed the ends of both the LAN cable and the control cable
through the recessed hole in the rear cover to connect them to
the LAN port and terminals on the rear panel.
For connection method, see "Network Connection" on p. 10 and
"Connections to Control Input and Output Terminals" on p. 10.
Step 5. Conrm that the ring gasket installed in the perimeter of the rear
panel ts snugly in its groove.
Step 6. Attach the rear cover to the unit using the 3 rear cover screws.
Step 7. Slide the sealing bush and sealing clamp up the cable(s) and reinsert them into the recess in the rear
cover.
Step 8. Slide the sealing nut up the cable(s) and screw it securely into position.
After tightening the nut rmly by hand, secure it by rotating another 90° (1/4 rotation) using a wrench.
Note
Take care not to overtighten the nut, as it could be damaged.
6.2. Unit Mounting
Mount the unit so that its downward inclination is within 80° of horizontal, and the cable inlet is facing downward,
as shown in the gure below.
Cable
Downward inclination: 80°
141 (5.55")
25 (0.98")
50 (1.97")
3 – ø9
(0.12" – ø0.35")
36
(1.42")
[Mounting bracket dimensional drawing]
Unit: mm
*Only when using the control functions
LAN cable
Control cable*
Sealing nut
Sealing clamp
Sealing bush
Rear cover
(accessory)
Slot
WARNING
Be sure to attach a safety wire to prevent the unit
from falling to the ground.
Observe the following instructions when attaching
the safety wire. Failure to do so could result in the
speaker falling, potentially resulting in personal
injury.
• Select a safety wire that is strong enough to
withstand the total weight of the unit being
mounted.
• Use a wire with a diameter larger than 1.5 mm
or 0.06".
• Attach the safety wire so that it does not
become slack.
Notes
• Since safety wire is not supplied with the IP horn
speaker, be sure to prepare it separately.
• When attaching the safety wire, be sure that it is
fastened securely to the safety wire attachment ring.
5 (0.2")
16
(0.63")
Unit: mm
Safety wire attachment ring
10
7. CONNECTIONS
7.1. Network Connection
Connect the IP horn speaker to the PoE+ or PoE switching hub using a LAN cable (straight UTP or STP cable,
both rated at Category 5e or greater and tted with RJ45 connectors). Power to the speaker is supplied by the
PoE+ or PoE switching hub.
Compatible switching hubs:
Switching hubs conforming to PoE+ (IEEE802.3at Class 4) or PoE (IEEE802.3at Class 3) specications.
The unit’s operating status after connection is displayed by the status indicator as follows:
Unit Operation Status Indicator
System startup Continuously lit (approx. 5 seconds) to
ashing (approx. 1 minute 30 seconds)
Broadcast standby Continuously lit
Broadcasting Continuously lit
Initialization or rmware update Flashing
Device malfunction Flashing (continuously*)
* If the indicator ashes continuously in any other mode than initialization or
rmware update, restart the unit by disconnecting and reconnecting the LAN
cable.
Note
Please contact your nearest TOA dealer if irregularities continue even after restart.
7.2. Connections to Control Input and Output Terminals
Use the supplied removable terminal plugs (3 pins) for connection.
Connect a control line of 2 channels control input and 1 channel control
output from the external control device to the unit’s control input or
control output terminal. For connection of the removable terminal
plugs, see "Removable Terminal Plug Connections" on p. 11.
The following functions can be assigned to the control input and
control output terminals by browser settings:
Assignable Functions
Control input terminals • SIP device calls
• Internal sound source broadcasts
Control output terminals • SIP broadcast in progress output
• VMS broadcast in progress output
• Multicast broadcast in progress
output
• Internal sound source broadcast in
progress output
For settings, please refer to the separate setup manual.
The latest version of the setup manual is available on the TOA DATA
Library (https://www.toa-products.com/international/).

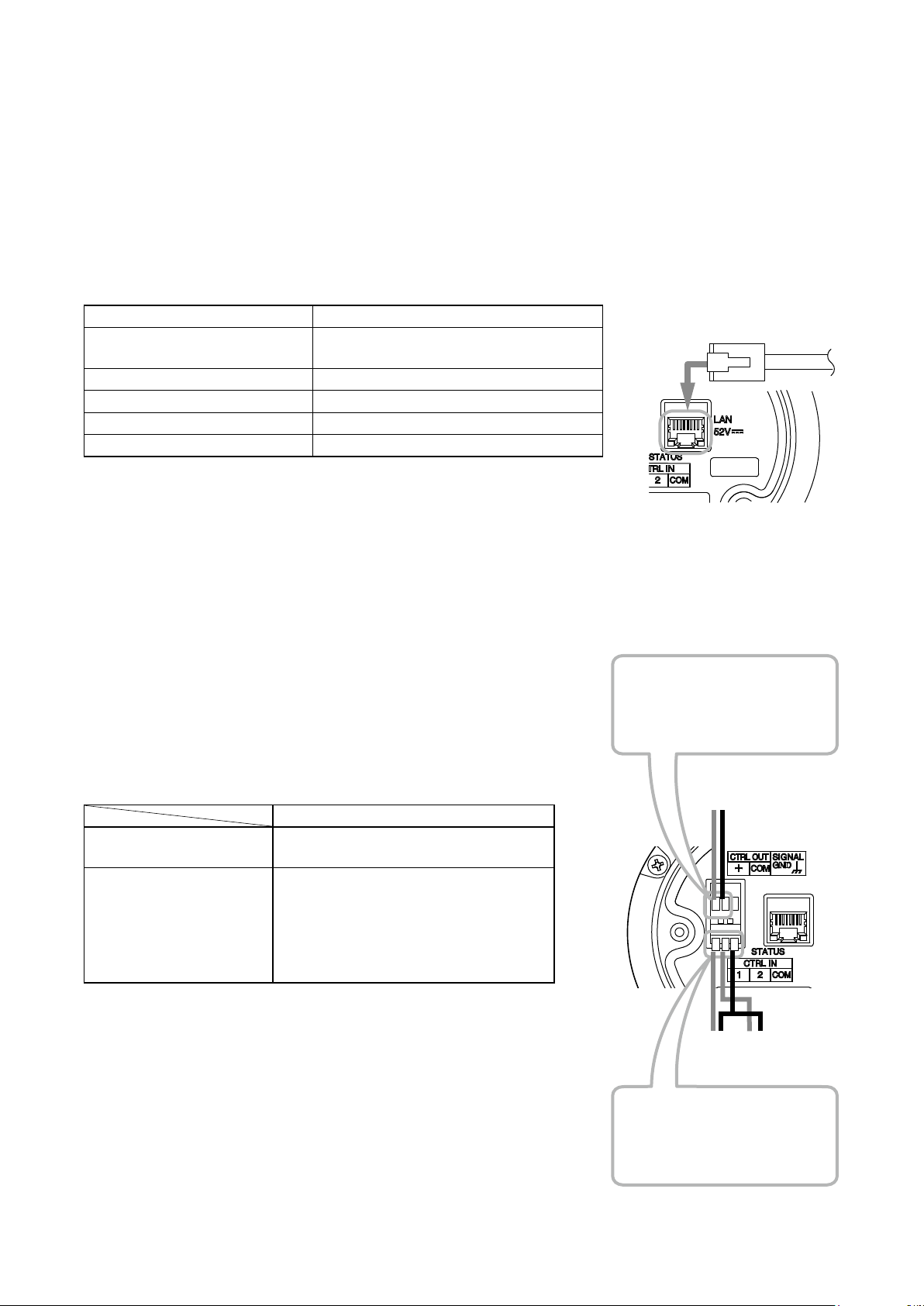

(Rear Panel)
From PoE+ (or PoE)
switching hub
[Control input (2 channels)]
Removable terminal block (3 pins)
No-voltage make contact input
Open circuit voltage: 5V DC
Short-circuit current: 2 mA or less
From external
control device’s
control output terminals
(Rear panel)
From external
control device’s
control input terminals
[Control output (1 channel)]
Removable terminal block (3 pins)
Open collector output
Withstand voltage: 30V DC
Allowable current: 10 mA or less
11
7.3. Removable Terminal Plug Connections
Please note the following points when making connections to the control input or output terminals using the
supplied removable terminal plugs:
• Do not tin stripped wire ends with solder.
Soldered wire ends will be crushed when the terminal plug screws are tightened, leading to higher contact
resistance and potentially resulting in an abnormal rise in the temperature of the connected parts.
• Use AWG 28 – 22 wire (ø0.32 – 0.64 mm solid wire or multi-stranded wire with a cross-sectional area of 0.08
– 0.32 mm2).
• Strip the wire end back about 7 mm (0.28").
• When connecting 2 wires or a signal cable to a single terminal, crimp them in an insulated (twin) wire ferrule
to prevent their core wires from being separated from one another. Use a ferrule of the dimensions shown in
the gure as below.
[Plug Connection Procedure]
Step 1. Loosen the terminal screw and insert a wire.
Step 2. Tighten the screw rmly.
Note
Pull on the wire to ensure that it does not come off.
Step 3. Insert the plug into either the control input terminal
or control output terminal.
Tip
Recommended slotted screwdriver is as follows.
Blade width: about 2.5 mm (0.1")
a
b
l2
l1
ContactWire ferrule b: 0.8 – 1.1 mm (0.03" – 0.04")
l2: 8 mm (0.31")
Note
Select dimensions “a” and “l1” depending on the wires to be used.
1
2
1
Removable terminal plug
(accessory)
Terminal screw
Tighten Loosen
Slotted screwdriver
2.5 mm (0.1")
Shape of bit
12
8. SETTINGS
8.1. System Settings Summary
The following settings can be performed using a PC browser connected to the same network as the IP horn
speaker.
Setting Name Setting Item
Status Conrmation of current rmware version, network settings, volume setting and the like.
Network Network settings such as the IP address.
SIP Settings of SIP connection enable/disable, SIP server address, authentication
information, and audio codec.
VMS Broadcasting Settings of VMS connection enable/disable and authentication information.
Multicast Settings of multicast reception enable or disable, multicast port and audio codec.
Audio Settings of speaker volume and input volume for individual broadcast classications.
Media Uploading/Downloading or deletion of sound source les such as messages to or from
the internal memory.
Pattern Registration of sound source reproduction to be interlocked with events as patterns.
Event Settings of operations to be synchronized with the control input and control output.
Priority Settings of priority order for each function of SIP broadcast, VMS broadcast, multicast
broadcast and internal sound source broadcast.
User Changes to user name and password.
Maintenance Backup and restoration of settings, initialization, rmware update and restart of
hardware.
For more information, please refer to the separate setup manual.
The latest version of the setup manual is available on the TOA DATA Library (https://www.toa-products.com/
international/).
8.2. System Requirements
Connectable system requirements are as follows:
Display Resolution: 1366 × 768 or greater
OS Windows 10 Pro (64-bit), Windows 10 Home (64-bit)
Browser Microsoft Edge, Google Chrome
Notes
• Windows and Microsoft Edge are registered trademarks of Microsoft Corporation of the United States in the
United States and other countries.
• Google Chrome is a trademark of Google LLC of the United States in the United States and other countries.
8.3. Connections
8.3.1. Connection presets
The unit is factory-preset as follows:
Username: admin
Password: guest
IP address: 192.168.14.1
Subnet mask: 255.255.255.0
Default gateway: 192.168.14.254
Before connecting a PC to the IP horn speaker and changing its setting, it will be necessary to set the PC’s
network settings so that it can operate on the same network as the IP horn speaker. Take care that no IP
addresses are duplicated in the same network. For example, if the IP horn speaker’s IP address is 192.168.14.1,
set the PC’s IP address to 192.168.14.10 or the like.
13
8.3.2. Making connection
Notes
• Avoid simultaneously connecting to the IP horn speaker from multiple PCs.
• Avoid simultaneously connecting to the IP horn speaker from a single PC
using multiple browsers.
Step 1. Start the browser and enter the unit’s IP address in the address eld.
The Login screen is displayed.
Step 2. Enter the username and password, and click the LOGIN button.
The Status screen is displayed, enabling a range of settings.
Note
For details regarding the setting method, please refer to the separate setup
manual. The latest version of the setup manual is available on the TOA DATA
Library (https://www.toa-products.com/international/).
9. INITIALIZATION OF SETTINGS
Follow the procedure below to return all IP horn speaker setting contents to their initial settings:
When initialized with the Reset key, the unit’s sound source les are left untouched, and not deleted.
Step 1. Connect the unit to the PoE+ or PoE switching hub using a LAN cable.
The unit will be started.
Step 2. Hold down the Reset key located on the rear panel using a pointed tool.
The unit automatically restarts and settings initialization begins. During this period, continue to hold
down the Reset key (for approx. 1 min and 30 sec).
Tip
Clicking on the Reset key causes the unit to be restarted.
If pressure on the Reset key is released part way through the initialization process, only unit restart will
be performed, and the settings will not be initialized.
To click on the Reset key, use a tool that is thinner than ø1.5 mm (0.06") and longer than 15 mm (0.59").
Step 3. When the status indicator lights orange, release the reset key.
When initialization is complete, all settings will be initialized to their default settings.
[Default Settings]
Username: admin
Password: guest
IP address: 192.168.14.1
Subnet mask: 255.255.255.0
Default gateway: 192.168.14.254
1
3
Status indicator
2
Reset key
To PoE+ switching hub
or
PoE switching hub
LAN cable
14
10. CAUTIONS REGARDING THE AVC/H.264 PATENT LICENSE
TOA’s IP-A1SC15 IP horn speaker employs MPEG technology (AVC/H.264 Standard) regarding the handling
of image information. TOA Corporation has received approval to use this technology from MPEG LA, LLC, the
patent management group.
Please note that the use of this product is prohibited except the following cases:
The use of the product is intended for personal use of a user of the MPEG technology and also for non-
prot use, which includes (i) video encoding conforming to the AVC/H.264 Standard (hereinafter referred to
as “AVC/H.264”) and/or (ii) personal use and decoding of AVC/H.264 encoded by an MPEG technology user
engaged in non-prot activities and/or AVC/H.264 furnished by a video provider who is granted a license by
MPEG LA, LLC.
Regarding use for sales promotion or commercial purposes, or additional licensing information, please contact
MPEG LA, LLC (https://www.mpegla.com).
15
11. SPECIFICATIONS
Power Source PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3)
Power Consumption 22 W (at PoE+ powered, rated output)
13 W (at PoE powered, rated output)
5 W (IEC62368-1)
Amplier Rated Output 15 W (at PoE+ powered), 8 W (at PoE powered)
Sensitivity 112 dB (1 W, 1 m) (500 Hz to 2.5 kHz, peak level)
Maximum
Sound Pressure level
124 dB (at PoE+ powered, 15 W, 1 m) (500 Hz to 2.5 kHz, peak level)
121 dB (at PoE powered, 8 W, 1 m) (500 Hz to 2.5 kHz, peak level)
Frequency Response 280 Hz to 12.5 kHz
Audio Codec PCMU (G.711u), PCMA (G.711a), G.722
Broadcasting Mode SIP Broadcasting Mode: PCMU/PCMA/G.722
Multicast Broadcasting Mode: PCMU/PCMA/G.722, Max. 10 ports
VMS Broadcasting Mode: Audio Backchannel, PCMU
Internal Message Broadcasting Mode
Note
Each broadcast mode can be assigned an order of priority using the Priority
Setting function.
Internal Messages Max. 20 messages (Max. recording capacity: 80 MB)
Supported le formats
WAV le: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 le: 32/44.1/48 kHz sampling frequency, 64 to 320 kbps, CBR/VBR,
monaural/stereo
Repeat count: 1 to 10 times
Interval time: 0 to 30 sec
Trigger: Control Input or Remote API (HTTP)
Network I/F 100BASE-TX, MDI/MDI-X, RJ-45
Network Protocol TCP/IP, UDP, HTTP, RTP, ARP, ICMP, RTSP, SIP (RFC3261)
Control Input 2 channels, no-voltage make contact inputs, open voltage: 5 V DC,
short-circuit current: 2 mA or less, removable terminal block (3 pins)
Control Output 1 channel, open collector output, withstand voltage: 30 V DC,
control current: 10 mA or less, removable terminal block (3 pins)
Indicator LAN LINK/ACT (green), STATUS (orange)
Dust/Water Protection IP66
Operating Temperature –30 to +55 °C (–22 to +131 °F)
Operating Humidity 90%RH or less (no condensation)
Finish Horn are and body: Aluminum, off-white (RAL 9010 equivalent), paint
Reector horn: ABS resin, off-white (RAL 9010 equivalent)
Rear cover: PC resin, off-white (RAL 9010 equivalent), paint
Bracket, screws and bolts: Stainless steel
Dimensions 222 (w) x 211 (h) x 276 (d) mm (8.74" x 8.31" x 10.87")
Weight 1.4 kg (3.09 lb)
Note: The design and specications are subject to change without notice for improvement.
• Accessories
Rear cover ................................................. 1
Removable terminal plug (3 pins) .............. 2
• Optional products
Speaker mount bracket: SP-131, SP-201, SP-301
Pole band: YS-60B
Traceability Information for Europe
Manufacturer:
TOA Corporation
7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
Traceability Information for USA
Manufacturer:
TOA Corporation
7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
Authorized representative:
TOA Electronics, Inc.
400 Oyster Point Boulevard, Suite 301,
South San Francisco, California 94080,
USA
URL: https://www.toa.jp/
133-01-00286-00
Other manuals for IP-A1SC15
2
Table of contents
Other Toa Speakers manuals
