Toa BS-680F User manual

Thank you for purchasing TOA's Wall Mount Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
BS-680F
BS-680FC
WALL MOUNT SPEAKERS
INSTALLATION MANUAL
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
WARNING
CAUTION
WARNING
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read
all the instructions in this section for correct and
safe operation.
• Be sure to follow all the precautionary instructions
in this section, which contain important warnings
and/or cautions regarding safety.
• After reading, keep this manual handy for future
reference.
• Install the unit only in a location that can
structurally support the weight of the unit and the
mounting bracket. Doing otherwise may result in
the unit falling down and causing personal injury
and/or property damage.
• Do not use other methods than specified to mount
the bracket. Extreme force is applied to the unit
and the unit could fall off, possibly resulting in
personal injuries.
• Tighten all screws securely. If any is loosely fixed,
this may cause the speaker cabinet or baffle to fall,
resulting in personal injury.
• To avoid electric shocks, be sure to switch off the
amplifier's power when connecting speakers.
• Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
• Do not stand or sit on, nor hang down from the unit
as this may cause it to fall down or drop, resulting
in personal injury and/or property damage.
CAUTION
• Constructed with metal cabinet, the speakers are
ideal for use in a voice evacuation system.
• Can be surface- or flush- mounted to the wall.
• Either concealed in-wall wiring or exposed wiring
can be used for speaker cable connection.
• The speaker structure of direct wall-mounting with
screws prevents the speaker from falling easily
even if an outward force is applied to.
• The input impedance can be easily changed by
changing the tap position of the transformer.
• A 16 cm (6") double cone speaker unit ensures
high quality sound.
• Two steatite screw terminal blocks (1 cable to 1
connection type) make bridge connection easier.
(BS-680FC)
• The push-in type input connector makes cable
connections easy and allows bridge wiring. (BS-
680F)
• The BS-680FC complies with British Standard
5839 part 8.
2. FEATURES
Traceability Information for Europe (EMC directive 2004/108/EC)
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg, Germany

3. INSTALLATION

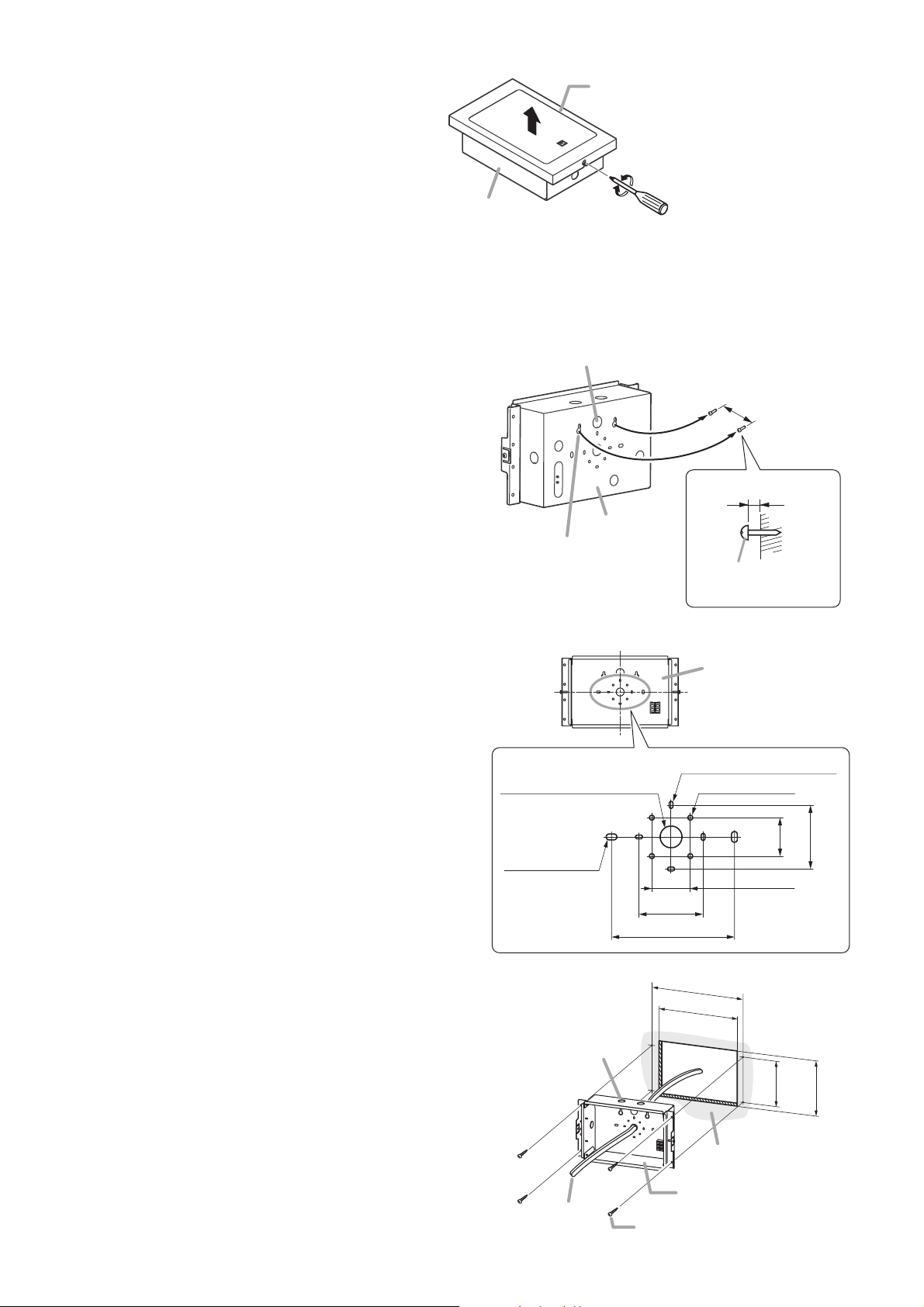

Step 1. Loosen one each of the screws on both
sides of the speaker, then remove the
baffle.
You can remove the baffle by loosening
the screw without taking it out.
Step 2. Install the cabinet on the wall.
The cabinet has knockout holes (ø20.5 mm or ø0.81") for cable routing.
Remove the desired knockout hole depending on the wiring method, and route cables.
2-1. When installing the cabinet on the wall using the hanging holes:
(1) Fix 2 supplied screws (tapping screws 4 x 16)
to the wall leaving about 5 mm (0.2") space
from the wall surface.
(2) Remove the cabinet's knockout, then run the
cables routed from the wall through this hole.
In the case of exposed wiring, fit the supplied
rubber grommet into the knockout hole.
Note: Cut a hole in the grommet's thin
membrane to match the cable size.
(3) Hook the cabinet onto the stick-out screws,
then tighten the screws.
Tip: The shape of cabinet's hanging hole is
so designed to prevent the cabinet from
falling easily even if an outward force is
applied to.
2-2. When installing the cabinet on the wall using other holes:
(1) Remove the cabinet's knockout, then run
the cables routed from the wall through this
hole.
In the case of exposed wiring, fit the supplied
rubber grommet into the knockout hole.
Note: Cut a hole in the grommet's thin
membrane to match the cable size.
(2) Install the cabinet on the wall using the
mounting holes [a], [b] or [c] shown at right.
Note: Since no mounting screws are
supplied with the speaker, separately
prepare them appropriate for the
construction of wall and its thickness.
2-3. When mounting the cabinet into the wall:
(1) Make a mounting hole of 260 x 175 mm
(10.24" x 6.89") in the wall.
(2) Remove the cabinet's knockout hole, run
the cables through this hole, then install
the cabinet using 4 supplied screws
(tapping screw 4 x 16).
Fit the supplied rubber grommet into the
knockout hole.
Note: Cut a hole in the grommet's thin
membrane to match the cable size.
Loosen
Tighten
Baffle
Cabinet
Note: To remove, pull in the arrow
direction after loosening screws.
Cabinet
83.5 mm (3.29")
About 5 mm (0.2")
Hanging hole
Wall
Tapping screw 4 x 16
(accessory)
Knockout hole (ø20.5mm or ø0.81")
Cabinet
Knockout hole: ø20.5 (0.81)
36 (1.42)
36
(1.42)
60 (2.36)
60 (2.36)
115 (4.53)
4-3.5 x 6.5 (0.14 x 0.26) [a]
2-5.5 x 10
(0.22 x 0.39) [c]
4-ø4.5 (0.18) [b]
Unit: mm (in)
The figure shows BS-680F.
Cabinet
Knockout hole: ø20.5 (0.81)
Sides: 4 holes
Bottom: 2 holes
wall
286 (11.26)
260±3
(10.24±0.12)
175±3
(6.89±0.12)
150
(5.91)
Speaker
cable Tapping screw 4 x 16 (accessory)
Unit: mm (in)

Step 3. Perform wiring.
3-1. Connect both the lead-in and lead-out cables to the terminal block attached to the cabinet.
[Applicable cable]
Step 4. Replace the baffle to the cabinet, then tighten 2 screws loosely attached on both sides of the cabinet.
3-2. Insert the fasten terminals fitted at the ends of the HOT, COM, and Earth (BS-680FC only) cables
from the input connector on the cabinet into the taps of the matching transformer on the speaker unit.
Connect the COM cable to the transformer's COM tap, the HOT cable to the desired transformer's
input tap, and the Earth cable (BS-680FC only) to the lug terminal at the transformer base. (Refer to
the figure below.)
The table below shows the relationship between impedance and input power.
Impedance 1.7 kΩ3.3 kΩ6.7 kΩ13 kΩ
100 V line 6 W 3 W 1.5 W 0.8 W
70 V line 3 W 1.5 W 0.8 W 0.4 W
BS-680F Solid wire: ø0.8 – ø1.6 mm (AWG 20 – 14)
7-core twisted wire: 0.75 – 1.25 mm2(AWG 18 – 16)
BS-680FC Solid wire: ø1.0 – ø3.0 mm (AWG 18 – 9)
3.3kΩ
1.7kΩ
COM
6.7kΩ
13kΩ
3.3kΩ
1.7kΩ
COM
6.7kΩ
13kΩ
Cabinet Input connector
Input connector
Thermal fuse
From the amplifier
To the next speaker
From the amplifier
Cabinet
Input connector
To the next speaker
From the amplifier
From
the amplifier
To the next speaker
To the next speaker
COM
HOT
5 mm (0.2”)
COM
HOT
[Connection of the BS-680FC]
[Connection of the BS-680F]
COM (white)
HOT (black)
Matching transformer
(on the speaker unit)
Matching transformer
(on the speaker unit)
Input connector
HOT
COM
9 mm (0.35”)
