Toastmaster TECG732467 User manual

Foodservice Equipment
Job Item#
Toastmaster ®5600 13th Street, Menominee, MI 49858 • www.toastmastercorp.com
Toll Free: 1-800-338-9886 • Telephone: [phone] • Fax: [phone]
Construction:
Stainless steel front including top
rail, with aluminized steel rear and
sides. Full width stainless steel
grease trough and easy to access
grease drawer. 3-1/2” rear and side
splash guards.
Controls:
Temperatue is controlled by
thermostat adjustable from
150oF to 450oF with a positive
“OFF” position. A cycle light is
associated with each thermostat.
Warranty:
Product warranty includes one year
parts and labor. (USA only) Call
factory for warranty authorization.
Cleanability:
•Full with stainless steel grease
trough mounted in front of the unit
•Grease trough drains through
grease chutes into drawer type
receptacle.
Countertop Electric Griddles
TECG732467, TECG732470, TECG733667, TECG733670, TECG734867, TECG734870
Application
The Toastmaster Countertop Electric
Griddle is the most economical and
flexible Countertop Griddle in the
food service industry. It offers
unsurpassed performance,
combining a proven control system
with Toastmaster quality and
durability. Available in three different
sizes: 24”, 36”, and 48”.
Heating:
Heating is accomplished by
performed tubular heating elements
that are pressure clamped to the
underside of the griddle surface. The
heaters are designed to provide
perimeter heat to assure even
heating.
Standard Features:
•Stainless steel front, top and
sides, including top rail
•Aluminized steel rear
•4” steel legs
•Griddle capacity is:
24”, 36”, 48” Wide x
24” depth to 7324, 7336, and
7348 respectively.
•1/2” thick polished rolled steel
plate with 4” high rear and side
splash guards
•Full width stainless steel grease
trough mounted at the front of
of the cooking surface
•Griddle temperature controlled
by thermostat adjustable from
150oF to 450oF, with indicator
light per thermostat
Electrical:
All electrical connections are made
to terminal block in compartment at
rear. Knockouts located adjacent to
terminal block. Available 208/240V
AC 1-phase or 480V AC 3 phase.

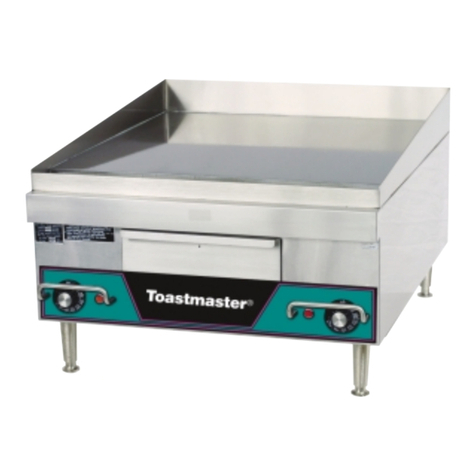

Model Shown: May ship UPS
Standard Features:
•1/2” griddle plate
•Adjustable temperature control
from 150-450OF
•Thermostat with positive
“OFF” position
•Stainless steel front, top an
sides, including top rail
•Aluminized steel rear
•4” steel legs
•Stainless steel grease trough
•3-1/2” rear and side splash guards
•Griddle capacity is:
24”, 36”, 48” Wide
(7324, 7336, 7348) Wide
24” Long
TECG732467

Countertop Electric Griddle - Model TECG73 Series
Toastmaster ®5600 13th Street, Menominee, MI 49858 • www.toastmastercorp.com
Toll Free: 1-800-338-9886 • Telephone: [phone] • Fax: [phone]
INTENDED FOR COMMERCIAL USE ONL . NOT FOR HOUSEHOLD USE.
Toastmaster, in line with its policy to continually improve its product,
reserves the right to change materials or specifications without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements,
additions, or replacements for previously purchased equipment.
281/9”
(714)
91/6” (233)
4” (102)
138/9”
(353)
11/2”
(38) 11/2”
(38)
144/9”
(367)
281/8”
(721)
165/8”
(424)
241/7” (613)
271/6” (690)
24” (610), 36” (914), 48” (1219)
21” (534), 33” (838), 45” (1143)
FRONT SIDE
TOP
Model Number TECG732467* TECG732470 TECG733667* TECG733670 TECG734867* TECG734870
Supply 480 V 208/240 V 480 V 208/240 V 480 V 208/240 V
3 Phase 3 Phase 3 Phase 3 Phase 3 Phase 3 Phase
Current 480/3 - 18.8 208/3 - 32.6 480/3 - 22.4 208/3 - 39 480/3 - 31.1 208/3 - 54.1
Draw (Amps) 480/1 - 21.7 240/3 - 37.5 480/1 - 34.2 240/3 - 44.9 480/1 - 44.8 240/3 - 62.2
208/1 - 37.6 208/1 - 59.2 208/1 - 77.9
240/1 - 43.3 240/1 - 68.5 240/1 - 89.7
Total KW 10.4 208/3 - 7.8 16.4 208/3 - 12.3 21.5 208/3 - 16.2
240/3 - 10.4 240/3 - 16.4 240/3 - 21.5
208/1 - 7.8 208/1 - 12.3 208/1 - 16.2
208/1 - 10.4 208/1 - 16.4 208/1 - 21.5
Incoming 480/3 - 12 208 V - 8 480/3 - 10 208/3 - 8 480/3 - 8 208/3 - 8
Supply AWG 480/1 - 10 240 V - 8 480/1 - 8 240/3 - 6 480/1 - 8 240/3 - 8
(min) 208/1 - 4 208/1 - 6
240/1 - 4 240/1 - 6
Cook Zone Size 24” 24” 36” 36” 48” 48”
Weight 162 lbs. 162 lbs. 230 lbs. 230 lbs. 340 lbs. 340 lbs.
Dimensions 24” W x 24” W x 36” W x 36” W x 48” W x 48” W x
16-5/8” H x 16-5/8” H x 16-5/8” H x 16-5/8” H x 16-5/8” H x 16-5/8” H x
28-1/8” L 28-1/8” L 28-1/8” L 28-1/8” L 28-1/8” L 28-1/2” L
Countertop Electric Griddles
TECG732467, TECG732470, TECG733667, TECG733670, TECG734867, TECG734870
* May require additional lead time
