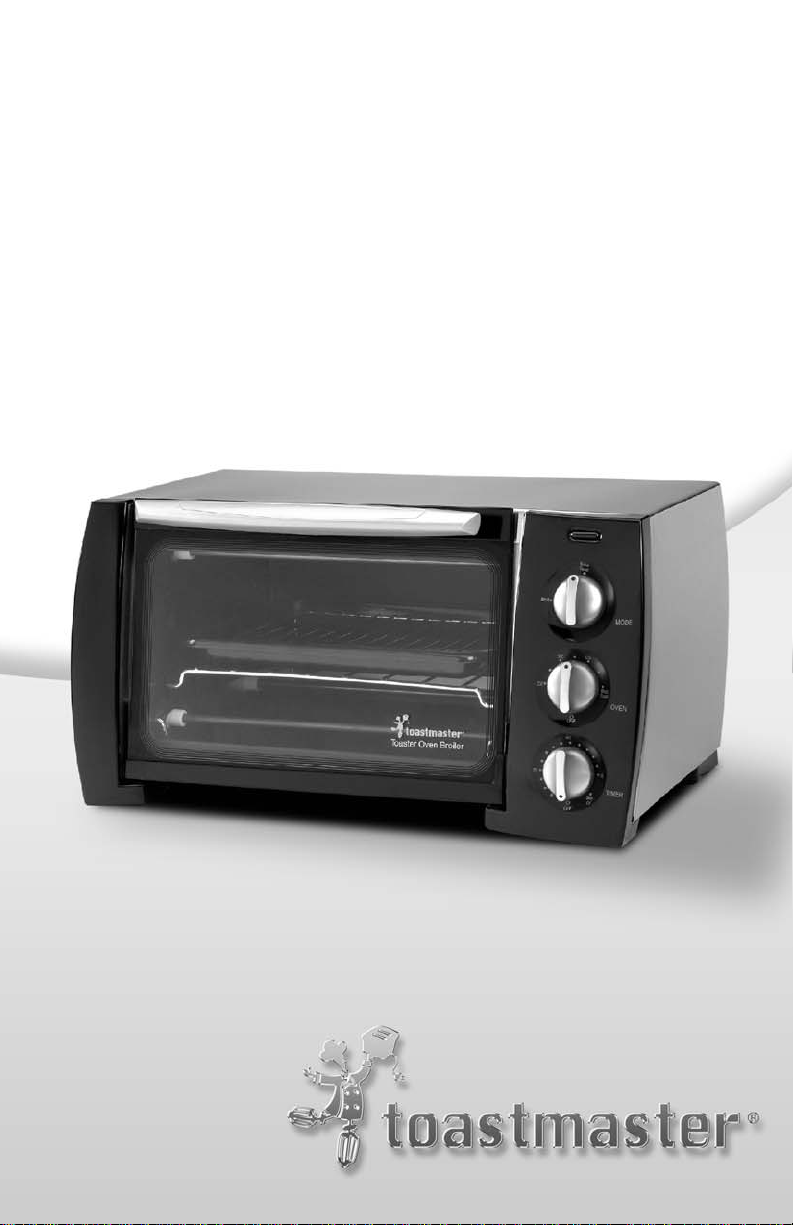

Toastmaster TOV435RLB User manual

USE AND CARE GUIDE
MODELS TOV435RLB / TOV435RLW
TOV435RLB / TOV435RLW
Toaster Oven
Broiler
Questions
Call toll free 1-800-233-9054
Monday–Friday, 8:00 a.m.-5:30 p.m. CST
www.maxim-toastmaster.com
?
•Patented, Removable Dishwasher Safe Non-Stick Liner
•Glass Door For Easy Viewing
•60-Minute Timer with “Stay On” Feature
•Fully Adjustable Thermostat
•4Rack Positions
•Accessories Include Bake Pan, Wire Rack
and Broil Insert
TMR_TOV435RLB/RLW_Cover_24-2-05 02/24/2005 16:24 Page 1

1.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed including the following:
◆Read all instructions.
◆Do not touch hot surfaces. Use handles or knobs.
◆To protect against electrical shock do not immerse cord, plugs, or
appliance in water or other liquid.
◆Close supervision is necessary when any appliance is used by or
near children.
◆Unplug from outlet when not in use and before cleaning. Allow to
cool before putting on or taking off parts.
◆Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions or has been damaged in any
manner. Contact Consumer Service for examination, repair or
adjustment.
◆The use of accessory attachments not recommended by the
appliance manufacturer may cause injuries.
◆Do not use outdoors.
◆Do not let cord hang over edge of table or counter, or touch hot
surfaces.
◆Do not place on or near a hot gas or electric burner, or in a heated
oven.
◆Extreme caution must be used when moving an appliance
containing hot oil or other hot liquids.
◆To disconnect, turn the Timer and Temperature Controls to "off",
then remove plug from wall outlet.
◆Do not use appliance for other than intended use.
◆Oversize foods or metal utensils must not be inserted in a toaster-
oven as they may create a fire or risk of electric shock.
◆A fire may occur if the toaster-oven is covered or touching
flammable material, including curtains, draperies, walls, and the
like, when in operation. Do not store any item on top of the
appliance when in operation.
◆Do not clean with metal scouring pads. Pieces can break off the
pad and touch electrical parts involving a risk of electric shock.
TMR_TOV435RLB/RLW_IB_24-2-05 02/24/2005 16:22 Page 1

2. Toaster Oven-Broiler Use and Care Guide
◆Extreme caution should be exercised when using containers
constructed of other than metal or glass.
◆Do not store any materials, other than manufacturers
recommended accessories, in this oven when not in use.
◆Do not place any of the following materials in the oven: paper,
cardboard, plastic, and the like.
◆Do not cover crumb tray or any part of the oven with metal foil.
This will cause overheating of the oven.
◆Use extreme caution when removing tray or disposing of hot
grease.
SAVE THESE INSTRUCTIONS
For Household Use Only
ADDITIONAL IMPORTANT
SAFEGUARDS
CAUTION HOT SURFACES: This appliance generates heat and
escaping steam during use. Proper precautions must be taken to
prevent the risk of burns, fires, or other injury to persons or damage
to property.
◆A person who has not read and understood all operating and
safety instructions is not qualified to operate this appliance. All
users of this appliance must read and understand this Use and
Care Guide before operating or cleaning this appliance.
◆If this appliance falls or accidentally becomes immersed in water,
unplug it from the wall outlet immediately. Do not reach into the
water!
◆When using this appliance, provide adequate air space above and
on all sides for air circulation. Do not operate this appliance while
it is touching or near curtains, wall coverings, clothing, dishtowels
or other flammable materials.
◆To reduce the risk of fire, do not leave this appliance unattended
during use.
◆If this appliance begins to malfunction during use, immediately
unplug the cord. Do not use or attempt to repair a malfunctioning
appliance!
◆The cord to this appliance should only be plugged into a 120V AC
electrical wall outlet.
◆Do not use this appliance in an unstable position.
TMR_TOV435RLB/RLW_IB_24-2-05 02/24/2005 16:22 Page 2

3.
Polarized Plug
This appliance has a polarized plug (one blade is wider than the
other). To reduce the risk of electrical shock, this plug is intended to
fit into a polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to modify the plug in any way.
Short Cord Instructions
A short power-supply cord is provided to reduce the risk resulting
from becoming entangled in or tripping over a longer cord.
Do not use an extension cord with this product.
Electric Power
If the electrical circuit is overloaded with other appliances, your
appliance may not operate properly. It should be operated on a
separate electrical circuit from other appliances.
Plasticizer Warning
CAUTION: To prevent Plasticizers from migrating from the finish of
the countertop or tabletop or other furniture, place NON-PLASTIC
coasters or placemats between the appliance and the finish of the
countertop or tabletop.
Failure to do so may cause the finish to darken, permanent blemishes
may occur or stains can appear.
TMR_TOV435RLB/RLW_IB_24-2-05 02/24/2005 16:22 Page 3

4. Toaster Oven-Broiler Use and Care Guide
11.
12.
13.
10.
9. 8.
7.
6. 5.
3.
4.
2.
1.
1. Control Panel
2. Power Light
3. Function Control
4. Temperature Control
5. Timer/Toast Color Control
(with 60 minute Timer and
“Stay On” feature)
6. Lower Heating Elements
7. Removable Liner with Handle
(P/N 22460)
8. Glass Door
9. Door Handle
10. Shelf Positions 3 and 4
11. Wire Rack (P/N 21499)
12. Shelf Positions 1 and 2
13. Upper Heating Elements
Figure 1
Getting to Know Your Toastmaster
Toaster Oven-Broiler
Your product may vary slightly from illustration.
TMR_TOV435RLB/RLW_IB_24-2-05 02/24/2005 16:22 Page 4

5.
Figure 2
Figure 3
TMR_TOV435RLB/RLW_IB_24-2-05 02/24/2005 16:22 Page 5

6. Toaster Oven Broiler Use and Care Guide
Figure 5
Shelf Positions
1 and 3
Shelf Positions
2 and 4
Wire Rack
Bake/Broil Pan
(P/N 21869)
Broil Insert
(P/N 21864TM)
Figure 4
TMR_TOV435RLB/RLW_IB_24-2-05 02/24/2005 16:22 Page 6

7.
Operating Instructions
BEFORE FIRST USE
1. Carefully unpack your Toaster Oven-Broiler and remove all
packaging materials including the piece of paper that has been
placed between the top of the oven door and oven for protection
during shipping. Also remove the piece of cardboard that has also
been placed between the bottom of the oven door and the oven.
2. Place your Toaster Oven-Broiler on a level surface such as a
countertop or table. Be sure the sides, back, and top of the
Toaster Oven-Broiler are at least four inches away from any walls,
cabinets, or objects on the counter or table.
3. Remove all stickers from the Toaster Oven-Broiler except the
rating label located on the back.
4. Remove Bake/Broil Pan, Broil Insert, Wire Rack and Removable Liner
and wash in warm, soapy water. Rinse and dry thoroughly before
placing in the Toaster Oven-Broiler.
5. Remove any dust that may have accumulated during packaging,
simply wipe the Toaster Oven-Broiler exterior with a clean, damp
cloth.
6. Do not use abrasive cleansers.
7. Do not put the Toaster Oven-Broiler, cord or plug in water.
8. When you are ready to use the Toaster Oven-Broiler, plug the cord
into a 120V AC outlet.
Function Control
Power Light
Temperature Control
Figure 6
Timer/Toast Color Control
TMR_TOV435RLB/RLW_IB_24-2-05 02/24/2005 16:22 Page 7

8. Toaster Oven Broiler Use and Care Guide
Operating Instructions (Cont.)
BEFORE FIRST USE
9. To eliminate any protective substance or oil that may have been used
for packing and shipping, turn the Function Control to Bake/Toast
and set the Timer Control for 15 minutes. A small amount of smoke
and odor may be detected. This is normal.
10. To avoid scratching, marring, or discoloration, do not store anything
on top of the Toaster Oven-Broiler during operation.
CAUTION: Appliance surfaces are hot during and after use.
CAUTION: Always wear protective, insulated oven mitts on hands
when touching hot Toaster Oven-Broiler or hot dishes and food or
when inserting or removing Wire Racks, baking dish and food.
Cooking Containers
◆The Bake/Broil Pan included with the Toaster Oven-Broiler is suitable
for items such as cookies, rolls, biscuits, nachos and pork chops.
◆A variety of standard baking dishes, such as an 8" round or square
cake pan, a 6-cup muffin pan, and 1 & 2 quart round, square, or
rectangular casserole dish may be used for other foods.
◆Choose bakeware made of metal, or glass/ceramic without lids.
◆Dark or dull pans absorb heat faster; foods will bake more rapidly
and crust will brown more easily than in shiny bake pans.
◆Check package directions and/or with the ovenware manufacturer to
determine if the container is suitable for use in a Toaster Oven-Broiler.
◆Do not use oven roasting bags in this Toaster Oven-Broiler, as they
may come in contact with the Heating Elements.
CAUTION: Allow at least 1" air space between the top of the
container and the Upper Heating Elements. Never use glass lids on
glass or metal bakeware. If a lid is necessary, cover tightly with
heavy-duty aluminum foil.
TMR_TOV435RLB/RLW_IB_24-2-05 02/24/2005 16:22 Page 8

9.
Instructions For Toast
1. Plug into 120V AC 60 Hz outlet.
2. Make sure the Removable Liner is in place in the Toaster-Oven
Broiler.
3. Open the Glass Door and place the Wire Rack in Shelf Position # 3.
Center bread on the Wire Rack. Close the Glass Door.
4. Set the Function Control to Bake/Toast.
5. Turn the Temperature Control to Broil/Toast.
6. Turn the Timer/Toast Color Control to the desired Toast Color
position. Watch bread carefully until the desired toast color is
reached. The Power Light will come on. To set the Timer Control for
less than 10 minutes, turn to 10 and then turn back to the appropriate
amount of time.
CAUTION: As soon as the Timer Control is engaged, the Toaster
Oven-Broiler will turn ON. Both the top and the bottom Heating
Elements will remain ON for the entire cooking time.
CAUTION: As soon as the Timer Control is engaged both Heating
Elements will become hot immediately. Use care not to place
anything on top of the Toaster Oven-Broiler. Do not touch the
Toaster Oven-Broiler or any part of the Toaster Oven-Broiler
without wearing oven mitts.
7. If the Timer Control has been set, the Toaster Oven-Broiler will
shut off automatically when the Toast cycle is complete. If toasting
is completed before the Timer Control shuts the Toaster Oven-
Broiler OFF, you may shut the Toaster Oven-Broiler OFF manually
by turning the Timer Control to the OFF position. The Power Light
will go off.
NOTE: Watch toast until desired color is achieved.
8Open the Glass Door. Wear protective oven mitts to remove toast from
Toaster Oven-Broiler. Be careful when removing toast from the back
of the Wire Rack. The inside of the Toaster Oven-Broiler is very hot.
Close Glass Door.
9. Unplug unit and allow to cool before cleaning.
DO NOT LEAVE TOASTER OVEN-BROILER UNATTENDED
DURING TOASTING.
Additional toast cycles require less time since the oven cavity is already
warm.
See User Maintenance Instructions. Unplug when not in use.
TMR_TOV435RLB/RLW_IB_24-2-05 02/24/2005 16:22 Page 9
