USE AND CARE GUIDE
MODEL TOV850B/W
TOV850B/W
Toaster Oven-Broiler
Questions
Call toll free 1-800-233-9054
Monday–Friday, 8:00 a.m.-5:30 p.m. CST
www.maxim-toastmaster.com
?
• Timer Control
(with 2-Hour Timer and Stay On feature)
• Slide out Crumb Tray
• Fully adjustable thermostat
• Accessories include: Enamel Bake/Broil Pan,
Broil Insert, Wire Pizza Rack, and
Tray/Rack Handle
TMR_TOV850B/W_Cover_9-7-05 7/9/05 4:51 PM Page 1

1.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed including the following:
◆ Read all instructions.
◆Do not touch hot surfaces. Use handles or knobs.
◆To protect against electrical shock, do not immerse cord, plugs, or
appliance in water or other liquid.
◆Close supervision is necessary when any appliance is used by or
near children.
◆Unplug from outlet when not in use and before cleaning. Allow to
cool before putting on or taking off parts.
◆Do not operate any appliance with a damaged cord or plug or after
the appliance malfunctions or has been damaged in any manner.
Contact Consumer Service for examination, repair or adjustment.
◆The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
◆Do not use outdoors.
◆Do not let cord hang over edge of table or counter, or touch
hot surfaces.
◆Do not place on or near a hot gas or electric burner, or in a
heated oven.
◆Extreme caution must be used when moving an appliance containing
hot oil or other hot liquids.
◆To disconnect, turn the Temperature Control to OFF; turn the Timer
Control to 0, then remove plug from wall outlet.
◆Do not use appliance for other than intended use.
◆Oversize foods or metal utensils must not be inserted in a toaster-oven
as they may create a fire or risk of electric shock.
◆A fire may occur if the toaster-oven is covered or touching flammable
material, including curtains, draperies, walls, and the like, when in
operation. Do not store any item on top of the appliance when in
operation.
◆Do not clean with metal scouring pads. Pieces can break off the pad
and touch electrical parts involving a risk of electric shock.
◆Extreme caution should be exercised when using containers
constructed of other than metal or glass.
◆Do not store any materials, other than manufacturers recommended
accessories, in this oven when not in use.
TMR_TOV850B/W_IB_9-7-05 7/9/05 5:04 PM Page 1

2. Toaster Oven-Broiler Use and Care Guide
IMPORTANT SAFEGUARDS (cont.)
◆Do not place any of the following materials in the oven: paper,
cardboard, plastic, and the like.
◆Do not cover crumb tray or any part of the oven with metal foil. This
will cause overheating of the oven.
◆Use extreme caution when removing tray or disposing of hot grease.
SAVE THESE INSTRUCTIONS
For Household Use Only
ADDITIONAL IMPORTANT
SAFEGUARDS
CAUTION HOT SURFACES: This appliance generates heat and escaping
steam during use. Proper precautions must be taken to prevent the risk of
burns, fires, or other injury to persons or damage to property.
◆A person who has not read and understood all operating and safety
instructions is not qualified to operate this appliance. All users of this
appliance must read and understand this Owner’s Manual before
operating or cleaning this appliance.
◆If this appliance falls or accidentally becomes immersed in water,
unplug it from the wall immediately. Do not reach into the water!
◆When using this appliance, provide adequate air space above and on all
sides for air circulation. Do not operate this appliance while it is
touching or near curtains, wall coverings, clothing, dishtowels or other
flammable materials.
◆To reduce the risk of fire, do not leave this appliance unattended
during use.
◆If this appliance begins to malfunction during use, immediately unplug
the cord. Do not use or attempt to repair a malfunctioning appliance!
◆The cord to this appliance should only be plugged into a 120V AC
electrical wall outlet.
◆Do not use this appliance in an unstable position.
TMR_TOV850B/W_IB_9-7-05 7/9/05 5:04 PM Page 2

3.
Grounded 3-Conductor Plug
This appliance is equipped with a grounded-type 3-wire cord (3-prong
plug). This plug will only fit into an electrical outlet made for a 3-prong
plug. This is a safety feature. If the plug should fail to fit the outlet,
contact an electrician to replace the obsolete outlet. Do not attempt to
defeat this safety feature.
Short Cord Instructions
A short power-supply cord is provided to reduce the risk resulting
from becoming entangled in or tripping over a longer cord.
Do not use an extension cord with this product.
Electric Power
If the electrical circuit is overloaded with other appliances, your
appliance may not operate properly. It should be operated on a
separate electrical circuit from other appliances.
Plasticizers Warning
CAUTION: To prevent Plasticizers from migrating from the finish of
the countertop or tabletop or other furniture, place NON-PLASTIC
coasters or placemats between the appliance and the finish of the
countertop or tabletop.
Failure to do so may cause the finish to darken, permanent blemishes
may occur or stains can appear.
TMR_TOV850B/W_IB_9-7-05 7/9/05 5:04 PM Page 3

Glass
Door
Door
Handle Temperature
Control
Timer Control
with 120
minute (2 hour)
Timer and
STAY ON
feature
Crumb Tray
(P/N 22709W) White
(P/N 22709B) Black
Lower
Heating
Elements
Power
ON
Light
Function
Control
4.

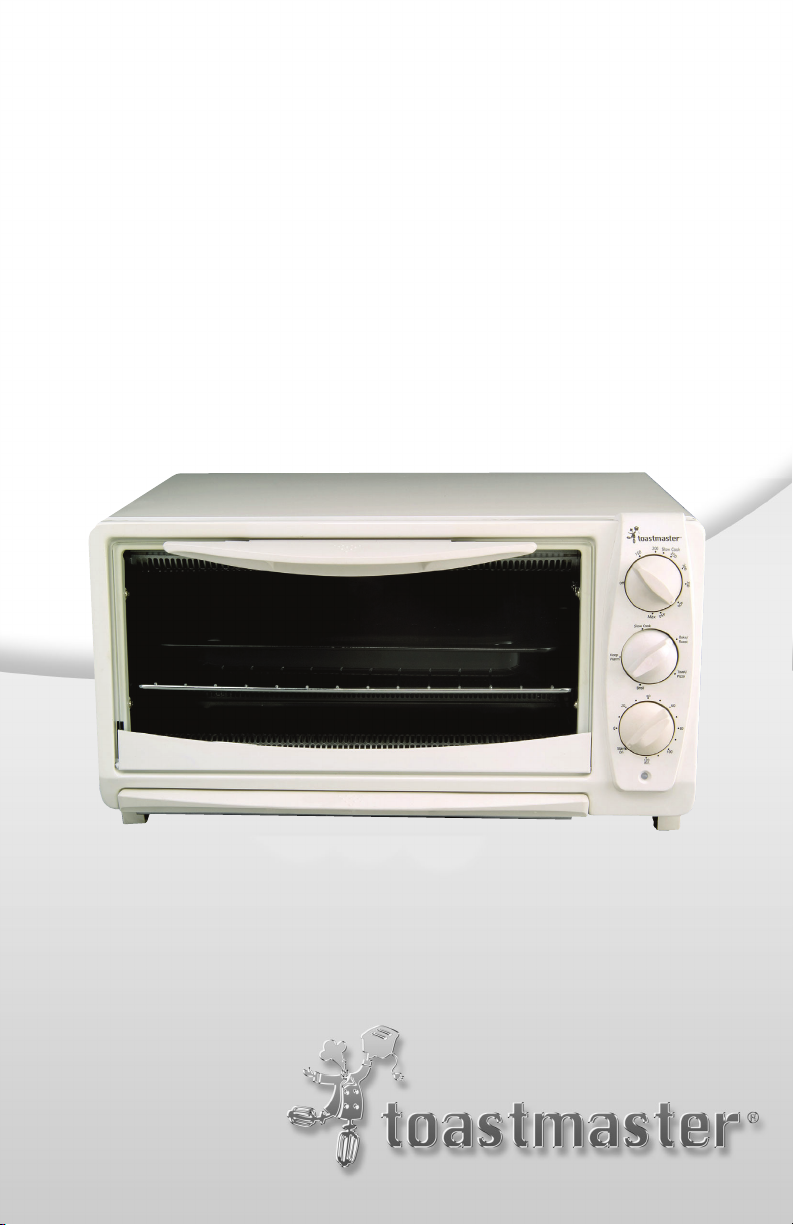

Getting To Know Your Toaster
Oven-Broiler
Your Toastmaster® Toaster Oven-Broiler offers 5 Oven Functions:
BAKE/ROAST, TOAST, BROIL, SLOW COOK and KEEP WARM.
FIGURE 2
Toaster Oven-Broiler Use and Care Guide
Lower Shelf
Rail
Upper Shelf
Rail
FIGURE 1
TMR_TOV850B/W_IB_9-7-05 7/9/05 5:04 PM Page 4

5.
FIGURE 3
Tray/Rack
Handle
(P/N 22713)

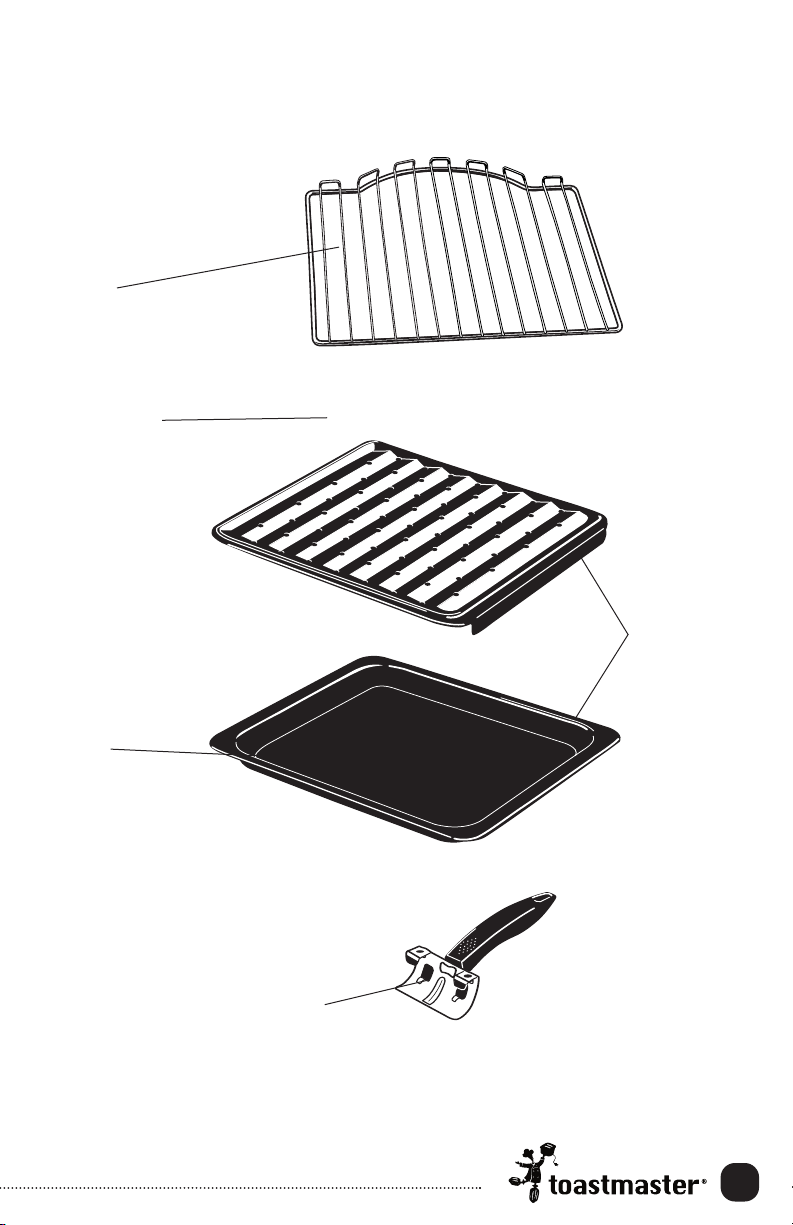

Accessories
Wire Pizza
Rack
(P/N 22710)
Broil Insert
(P/N 22711)
Bake/Broil
Pan
(P/N 22712)
Bake/Broil
Assembly
TMR_TOV850B/W_IB_9-7-05 7/9/05 5:04 PM Page 5

6. Toaster Oven-Broiler Use and Care Guide
Temperature Control
Your Toaster Oven-Broiler has an adjustable Temperature Control
with temperatures 150° to MAX with a special preset mark for
Slow Cook.
Function Control
The Toaster Oven-Broiler has 5 different functions:
• Bake/Roast: Pizza, cakes, pies, cookies, poultry, beef, pork, etc.
• Toast: Bread, muffins, frozen waffles, etc.
• Broil: Fish, steak, poultry, pork chops, etc.
• Slow Cook: For food that requires a long cooking time, such as pot
roast, spare ribs, soups.
• Keep Warm: Keeps cooked foods warm.
Timer Control
The Timer Control also acts as the Oven’s ON and OFF switch. Turn
the Timer Control clockwise to select appropriate cooking time. The
Control is marked with 1 or 2 hour (HR) in 10 minute segments. If
cooking less than 1 hour, turn the Timer Control past 1 hour, then
back to desired cooking time. When cooking time is complete, a
signal will sound and the unit will turn OFF automatically.
Stay On
If you are cooking for less than 10 minutes or do not wish to use the
Timer feature, turn the Timer Control to STAY ON to turn Oven ON.
Turn Timer Control to the OFF position when cooking is complete. The
Power ON Light will go off.
Power ON Light
The Power ON Light will remain ON any time the Timer Control (and
the Toaster Oven-Broiler) is turned ON.
TMR_TOV850B/W_IB_9-7-05 7/9/05 5:04 PM Page 6

Heating Elements
On the SLOW COOK setting, low wattage heat is provided by the top
and bottom elements. On the BAKE setting, the top and bottom
elements will turn OFF and ON as the thermostat cycles to control
the cooking temperature. On the BROIL setting, only the upper
elements cycle ON and OFF. The Power ON Light will remain on
while the unit is on.
NOTE: Some elements will appear black during certain heating
functions. This is normal.
Pizza Rack Positions
The Wire Pizza Rack can be inserted into either the Upper or Lower
Shelf Rail Positions.
Cooking Containers
• The Bake/Broil Pan included with the Toaster Oven-Broiler is suitable
for items such as cookies, rolls, biscuits, nachos and pork chops.
• A variety of standard baking dishes, such as an 8" round
or square cake pan, or a 6-cup muffin pan and 1 and 2 quart round,
square, or rectangular casserole dishes may be used for other foods.
• Choose bakeware made of either metal or glass/ceramic
without lids.
• Dark or dull pans absorb heat faster; foods will bake more rapidly and
crust will brown more easily than in shiny bake pans.
• Check package directions on the container or contact the ovenware
manufacturer to determine the container’s suitability for use in a
Toaster Oven-Broiler.
• Do not use oven roasting bags in this Toaster Oven-Broiler, as they
may come in contact with the Heating Elements.
CAUTION: Allow at least 1" air space between the top of the
container and the Upper Heating Elements. Never use glass lids
on glass or metal bakeware. If a lid is necessary, cover tightly
with heavy-duty aluminum foil.
7.
TMR_TOV850B/W_IB_9-7-05 7/9/05 5:04 PM Page 7

8. Toaster Oven-Broiler Use and Care Guide
Toast
1. Make sure the Crumb Tray is firmly in place in the bottom of the
Toaster Oven-Broiler.
2. Plug into a 120V ~ 60 Hz outlet.
3. Open the Glass Door and center bread or food on the Wire Pizza Rack.
Close the Glass Door.
4. Turn the Function Control to TOAST.
5. Turn the Timer Control to approximately 5 minutes. The Power Light
will illuminate.
NOTE: To set the Timer Control for less than 1 hour, turn to 60 minutes
and then turn back to the appropriate amount of time.
NOTE: Do not set the Timer Control to the STAY ON position when
using the TOAST function.
CAUTION: As soon as the Timer Control is engaged, the Toaster Oven-
Broiler will turn ON. Both the top and the bottom Heating Elements may
cycle ON and OFF to maintain temperature for the entire cooking time.
CAUTION: As soon as the Timer Control is engaged both Heating
Elements will become hot immediately. Use care not to place anything on
top of the Toaster Oven-Broiler. Do not touch the Toaster Oven-Broiler
or any part of the Toaster Oven-Broiler without wearing oven mitts.
NOTE: Watch toast until desired color is achieved.
6. When TOAST time is complete, a signal will sound, and the Timer
Control will finish in the 0 position; the Toaster Oven-Broiler will shut
off automatically; the Power Light will go off.
NOTE: If toasting is completed before the Timer Control shuts the
Toaster Oven-Broiler OFF, you may shut the Toaster Oven-Broiler OFF
manually by turning the Timer Control to the 0 position. The Power
Light will go off.
7. Open the Glass Door. Wear protective oven mitts and use the
Tray/Rack Handle to pull the Wire Pizza Rack out from the Toaster
Oven-Broiler. Be careful when removing toast from the back of the
Pizza Rack. The inside of the Toaster Oven-Broiler is very hot. Close
Glass Door.
8. Unplug unit and allow to cool before cleaning.
WARNING: DO NOT LEAVE TOASTER OVEN-BROILER
UNATTENDED DURING TOASTING.
See User Maintenance Instructions. Unplug when not in use.
TMR_TOV850B/W_IB_9-7-05 7/9/05 5:04 PM Page 8

9.
Hints For Toast
• Remove all protective wrappings from food before placing in Toaster
Oven-Broiler. Follow toaster food directions.
• Frozen and heavy bread require a longer time setting (e.g. bagels and
English muffins).
NOTE: Use extra caution when using this Toaster Oven-Broiler for
toasting pastry items with runny-type frosting or open fillings.
• When toasting more than one slice of bread, use slices of similar size,
thickness and freshness.
• One slice of bread requires a lighter setting than several slices
of bread.
• Stale bread, thin bread or sweet bread products, such as tea cakes and
fruit loaf, brown much more quickly than ordinary bread, so they
should be toasted for less time.
• Different breads require different toasting times. Turn Timer Control
to the 0 position and open the Glass Door to check toast color. Close
Glass Door and reset Timer Control if more toasting time is needed.
• For best results, clean Crumb Tray frequently.
TMR_TOV850B/W_IB_9-7-05 7/9/05 5:04 PM Page 9
