Tomar Spider Microbar User manual

IS0576-01
02.08.2012
TOMAR Electronics, Inc.
2100 W. Obispo Ave.
Gilbert, AZ 85233 USA
800.338.3133 ph
800.688.6627 fax
www.tomar.com
Instruction Manual
MICROBAR

2
Spider Microbar Wiring
Red +12Vdc
Black Ground
Orange Warning Mode 1
Blue Warning Mode 2
Orange & Blue Warning Mode 3
Red/White Alt Mode Circle Fill
Brown/White Alt Mode Circle Trail
Red/White & Brown/White All Lamps On
Brown N/A
Green Intensity Control
Programming Instructions
Entering Programming Mode:
To activate the Lstick programming mode, connect the BLACK Wire to ground then simultaneously
attach the GREEN wire and the RED wire to +12 Vdc.
Changing Warning Patterns and Flash Rates:
Six unique warning patterns can be selected by using different combinations of the ORANGE, BLUE,
BROWN/WHITE and RED/WHITE wires. See example below:
ORANGE WIRE Warning Mode 1
BLUE WIRE Warning Mode 2
ORANGE and BLUE WIRES Warning Mode 3
BROWN/WHITE WIRE Alt Mode 1*
RED/WHITE WIRE Alt Mode 2*
BROWN/WHITE and RED/WHITE WIRES Alt Mode 3*
*Alt modes will override warning modes if both are activated simultaneously.
To change the warning mode, attach the wire(s) corresponding to the mode to be changed to +12Vdc.
Tap the Red/WHITE wire to +12Vdc to advance the flash pattern. See the list of available flash patterns
below.
A unique flash rate can be assigned to each warning mode. To change the flash rates enter the
programming mode as described above. Move the green wire from +12Vdc to Ground. Tap the
BROWN/WHITE wire to +12Vdc to advance the flash rate. See the list of available flash rates below.
MICROBAR

3
Changing Alt Mode Flash Rates:
The Alt mode flash patterns are not selectable. To change the flash rates enter the programming mode
as described above. Move the green wire from +12Vdc to Ground. Tap the BROWN wire to +12Vdc to
advance the flash rate. See the list of available flash rates below.

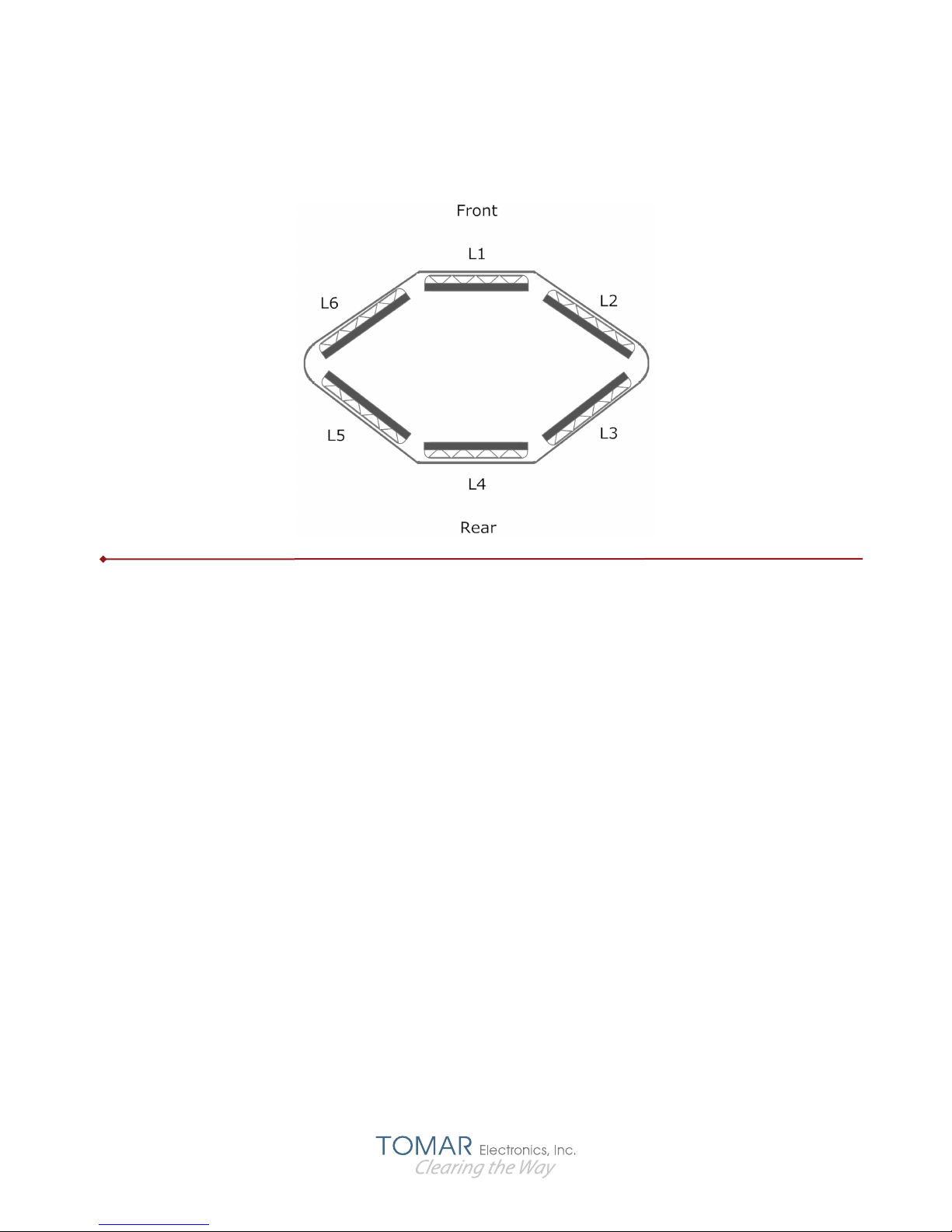

WARNING MODE PATTERNS:
1) OFF All OFF
2) COMBINATION Pattern 5, Pattern 4, Pattern 6, Pattern 4, Repeat
3) ALL ON Lamps 1,2,3,4,5,6 simultaneously on
4) FRONT/REAR Lamps 6,1,2 Alt with Lamps 3,4,5
5) LEFT/RIGHT Lamps 5,6,2,3 Alt With 1,4
6) CORNERS ALT Lamps 4,5,6 Alternate with 1,2,3
7) BOTH CORNERS ALT Lamps 4,5,6 Alternate 1,2,3, then 2,3,4 Alternate with 5,6,1,
Repeat
8) CIRCLE (FILL) Lamps 1 to 2 to 3 to 4 to 5 to 6, repeat (FILL)
9) CIRCLE (TRAIL) Lamps 1 to 2 to 3 to 4 to 5 to 6, repeat (TRAIL)
10) SKIP Lamps 6,4,2 Alternate with 1,5,2
11) SWEEP Lamps 1, 1&2,2&3,3&4,4&5,5&6,6,6&5,5&4,4&3,3&2,2&1 repeat
(TRAIL)
ALT MODE PATTERNS:
1) Red/White Wire Alt Mode Circle Fill
2) Brown/White Wire Alt Mode Circle Trail
3) Red/Wht & Brown/Wht Wires All Lamps On
FLASH RATES:
1) SINGLE FLASH
2) DOUBLE FLASH
3) NEOBE FLASH
4) SCROLL FLASH WARNING PATTERNS
