Tonlyware CV1102-HTS User manual

CV1102-HTS User Manual
CV1102-HTS User Manual
Tonlyware Technology Inc. Contact: [e-mail] 1

CV1102-HTS User Manual
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
Tonlyware Technology Inc. Contact: [e-mail] 2

CV1102-HTS User Manual
Table of Contents
. Introduction.............................................................................................4
2. Features.....................................................................................................4
3. Panel Descriptions.........................................................................................................4
4. Remote Control Descriptions...........................................................................................7
5. Application Diagram........................................................................................................8
6. Specifications..........................................................................................................8
7. Package Contents.......................................................................................9
8. RS-232 Pin Assignment.........................................................................................9
9. RS-232 and Telnet Commands ...................................................................................... 0
0. Maintenance................................................................................................................. 3
. Warranty Policy....................................................................................................... 3
2. Limitations of Warranty......................................................................................... 3
3. Exclusive Remedies........................................................................................ 3
4. RMA Policy........................................................................................... 4
Intro uction:
The CV 02-HTS is a multi-format video presentation scaler switch with audio. It features
inputs of various video formats including HDMI, VGA, Component, Composite, and HDBaseT with
HDMI and HDBaseT outputs. Video can be scaled to various aspect ratios and resolutions from
640x480 up to 920x 080 @ 60Hz.
Embedded splitter and dual switcher modes, it can work as : x2 multiple splitter and 5x
& x dual switcher. It also features a switchable digital bypass output allowing any HDMI
input to be directly bypassed via that HDMI output to cater for the 4K source. With advanced
audio embedding and de-embedding, it can provide flexible audio signal integration. Each
source can be switched to the HDMI output using the front-panel, IR remote control or RS-
232 interface.
The CV 02-HTS integrates easily in various analog to digital applications such as when used
in collaboration environments, lecture halls, conference rooms, class rooms, healthcare
facilities and control centers.
Tonlyware Technology Inc. Contact: [e-mail] 3

CV1102-HTS User Manual
Features:
Switch & Scale -inputs to 2 HD/UHD displays.
4x HDMI, 4x VGA, x YPbPr, x Composite, xHDBaseT Inputs.
2 simultaneous outputs ( x HDMI, x HDBaseT), bypass and scaled formatted output
selectable.
Dual mode selectable ( x2 Splitter Mode and 5x & x Dual Switcher Mode).
Scaling from 640x480 to 920x 080 @ 60Hz.
HDTV formats up to 4K@30Hz.
HDBaseT POE Transmitter & Receiver supports distance up to 330ft / 00m.
With built in Ethernet Hub.
HDCP .4 compliant.
Audio embedder and audio extractor.
OSD menu for volume control and resolution selection.
Controllable via front panel, IR remote, TCP/IP or RS232.
Front-panel LCD display for status feedback.
Easy installation with rack-mounting ears.
Panel Descriptions

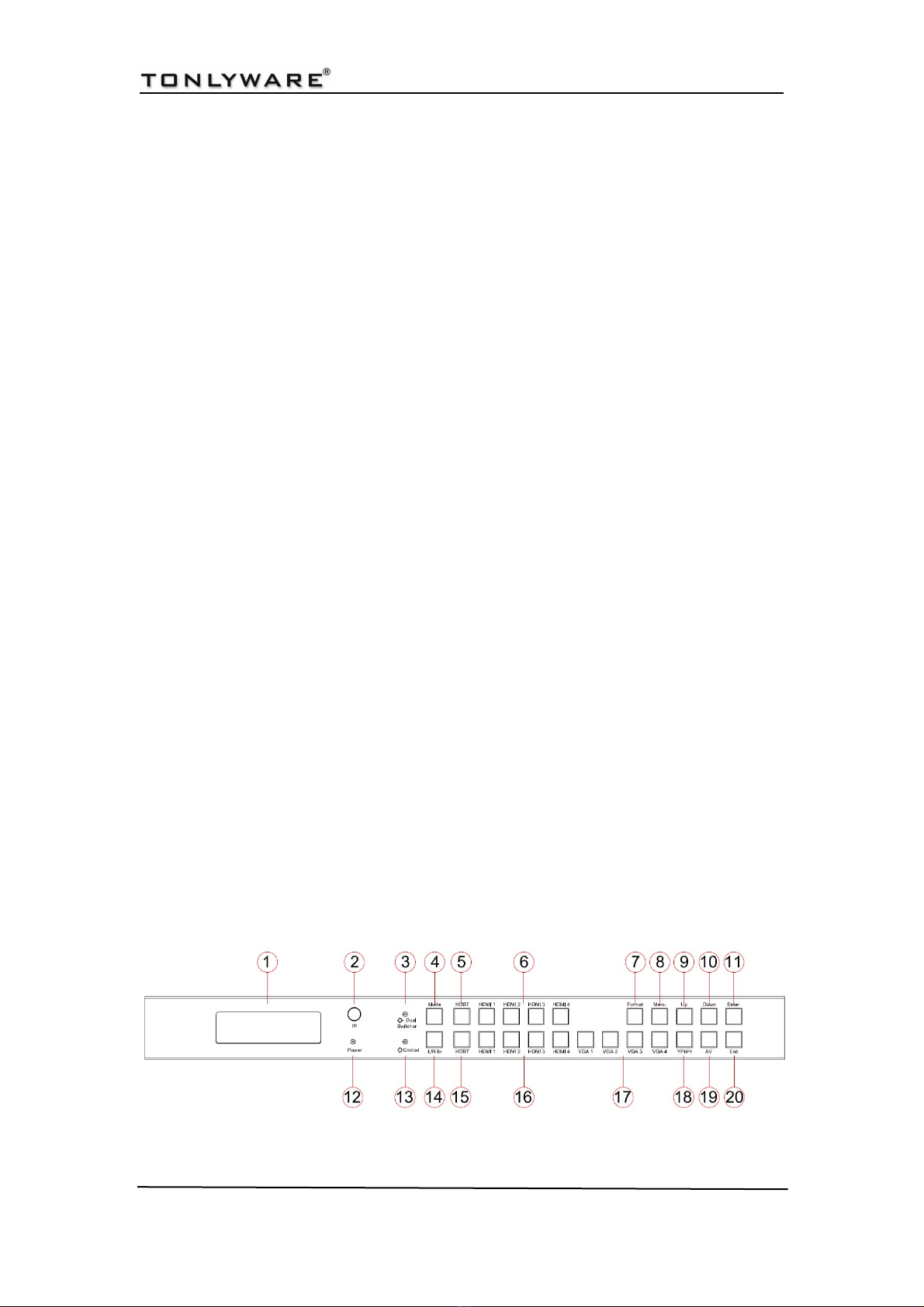

Front Panel
Tonlyware Technology Inc. Contact: [e-mail] 4

CV1102-HTS User Manual
. LCD display---Show the status of input-output selection, EDID info and so on.
2. IR receiver window----Receive the IR from the remote control of CV 02-HTS.
3. Dual switcher LED indicator---When the LED is lit, dual switcher mode is on. Output HDMI
is selected by HDBT/HDMI /HDMI2/HDMI3/HDMI4 which works as 4K 5x switcher in
by-pass mode; Output HDMI2 is selected by HDBT/HDMI /HDMI2/HDMI3/HDMI4/VGA
/VGA2/VGA3/VGA4/YPbPr/AV, it will always be scaled & formatted output regardless of by-
pass ON/OFF, works as scaling x switcher,
4. Mode button---Press to set Dual Switcher mode ON/OFF.
5. HDBT input selection button---Press to select the output from HDBT input working as 4k
5x switcher.
6. HDMI input to 4 selection buttons---Press to select the output from to 4 working as 4k
5x switcher.
7. Format set button---Press to set the resolution for the output.
8. Menu button---Press to enter EDID set, volume setting or F/W information. Three EDID
segments will display on the LCD panel formatted as: INPUT VIDEO AUDIO, for example:
IN 080P 2.0CH, means to set 080P 2.0CH EDID to INPUT . The blinking segment is
the one can be changed currently; press “Menu” button will change the segment. Segment
content items as below:
INPUT VIDEO AUDIO Note
IN 080I 2.0CH.
IN2 080P 5. CH
IN3 3D 7. CH
IN4 4K2K NONE
IN5 D 024 D 024=DVI 024 x 768
IN6 D 080 D 080=DVI 920 x 080
IN7 D 200 D 200=DVI 920 x 200
IN8 OUT OUT =Copy OUTPUT EDID to INPUTx
IN9 OUT2 OUT2=Copy OUTPUT2 EDID to INPUTx
IN 0
IN
Tonlyware Technology Inc. Contact: [e-mail] 5

CV1102-HTS User Manual
ALL ALL=Set EDID to ALL INPUTs
Volume can be changed by UP and Down button. During F/W mode，press Enter button
will show the current F/W information.
9. Up selection button--- Press to change segment’s value.
0. Down selection button---Press to change segment’s value.
. Enter button--- Press to confirm the settings.
2. Power LED indicator---Indicate the status of power.
3. Embed LED indicator ---When the LED is lit, embed mode is on. When embed in on, the
L/R in will be embedded in to the HDMI outputs (The two outputs will be embedded with the
L/R in audio and the volume is adjustable)
4. L/R in selection button---Press to embed L/R audio to the HDMI output.
5. HDBT input selection button ---Press to select HDBT input.
6. HDMI input selection button to 4---Press to select the input from to 4.
7. VGA input selection button---Press to select VGA input.
8. YPbPr input selection button---Press to select YPbPr input.
9. AV input selection button---Press to select AV input.
20. ESC---Press to quit EDID set mode.

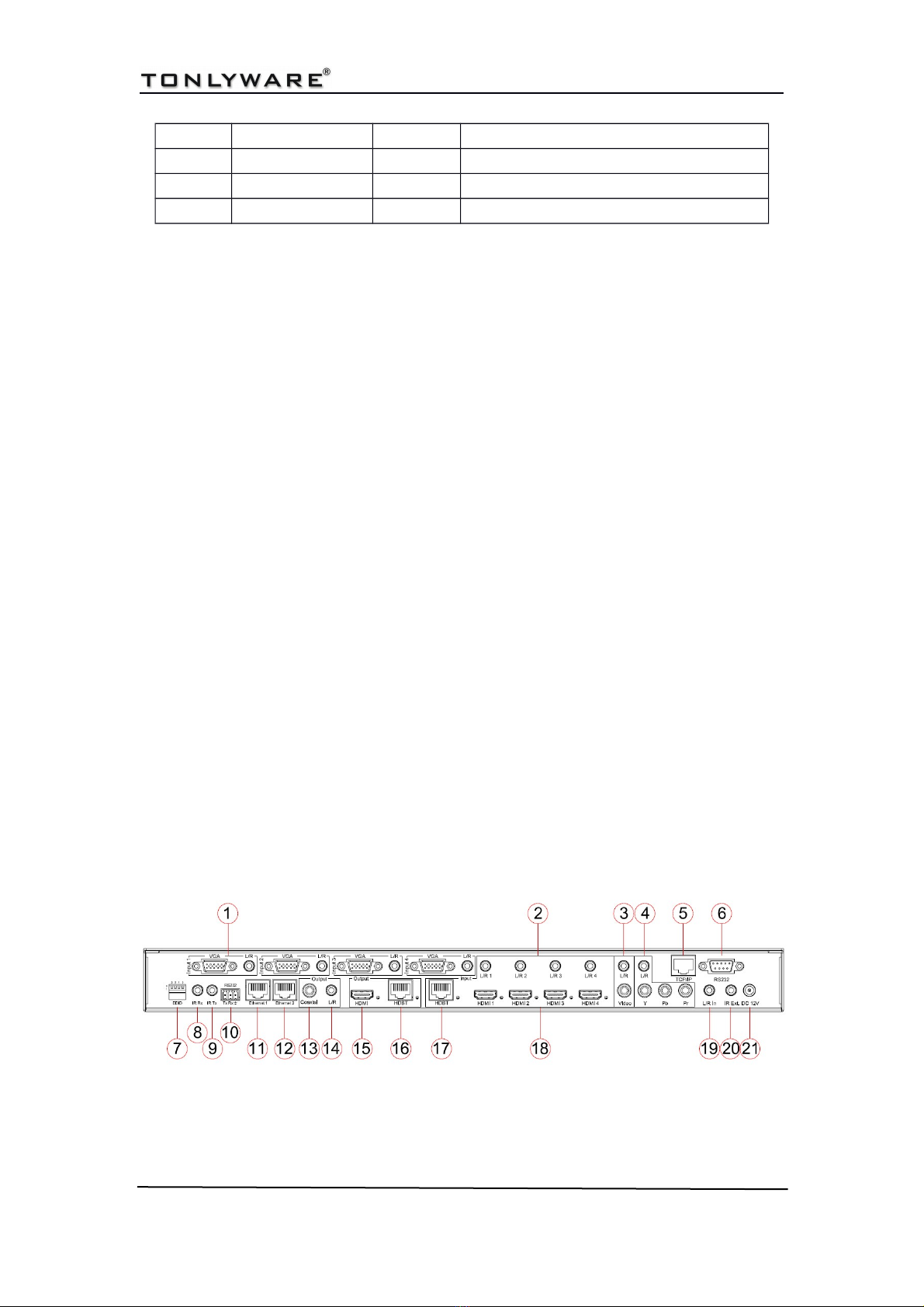

Back Panel
. VGA input to 4--- VGA input to 4 with L/R audio input.
2. L/R In to 4--- Connect to addition audio input to embed to HDMI output to 4.
Tonlyware Technology Inc. Contact: [e-mail] 6

CV1102-HTS User Manual
3. AV input--- AV input with L/R audio input.
4. YPbPr input--- YPbPr input with L/R audio input.
5. TCP/IP---Connect to Ethernet for control.
6. RS232 port--- DB9 connector for local control only.
7. DIP switcher---EDID settings.
[DIP]=0000: HDMI 080p@60Hz, Audio 2CH PCM
[DIP]= : Copy EDID from HDMI output, i.e., EDID pass through
[DIP]=000 : HDMI 080p@60Hz, Audio 5. CH PCM/DTS/DOLBY
[DIP]=00 0: HDMI 080p@60Hz, Audio 7. CH PCM/DTS/DOLBY/HD
[DIP]=00 : HDMI 080i@60Hz, Audio 2CH PCM
[DIP]=0 00: HDMI 080i@60Hz, Audio 5. CH PCM/DTS/DOLBY
[DIP]=0 0 : HDMI 080i@60Hz, Audio 7. CH PCM/DTS/DOLBY/HD
[DIP]=0 0: HDMI 080p@60Hz/3D, Audio 2CH PCM
[DIP]=0 : HDMI 080p@60Hz/3D, Audio 5. CH PCM/DTS/DOLBY
[DIP]= 000: HDMI 080p@60Hz/3D, Audio 7. CH PCM/DTS/DOLBY/HD
[DIP]= 00 : HDMI 4K2K, Audio 2CH PCM
[DIP]= 0 0: HDMI 4K2K, Audio 5. CH PCM/DTS/DOLBY
[DIP]= 0 : HDMI 4K2K, Audio 7. CH PCM/DTS/DOLBY/HD
[DIP]= 00: DVI 280x 024@60Hz, Audio None
[DIP]= 0 : DVI 920x 080@60Hz, Audio None
[DIP]= 0: DVI 920x 200@60Hz, Audio None
8. IR RX---Connect to IR receiver cable.
9. IR TX--- Connect to IR emitter cable.
0. Phoenix terminal---Work with HDBT Transmitter / Receiver for RS232 pass through.
. Ethernet port—Connect to Ethernet. (Embedded Ethernet hub)
2. Ethernet port--- Connect to Ethernet port. (Embedded Ethernet hub)
3. Coaxial audio output --- It will always follow HDMI output 2.
4. L/R audio output--- It will always follow HDMI output 2.
5. HDMI output--- Connect to HDTV.
6. HDBT output---Connect to HDBT class A receiver
7. HDBT input--- Connect to HDBT class A transmitter.
8. HDMI input to 4 ---Connect to HDMI sources
9. L/R In --- Connect to Global Audio Input to embed to both HDMI outputs.
20. IR Ext. --- Connect to IR receiver cable.
2 . DC 2V---Connect to 2V/5A power supply.
Tonlyware Technology Inc. Contact: [e-mail] 7

CV1102-HTS User Manual
Remote Control Description

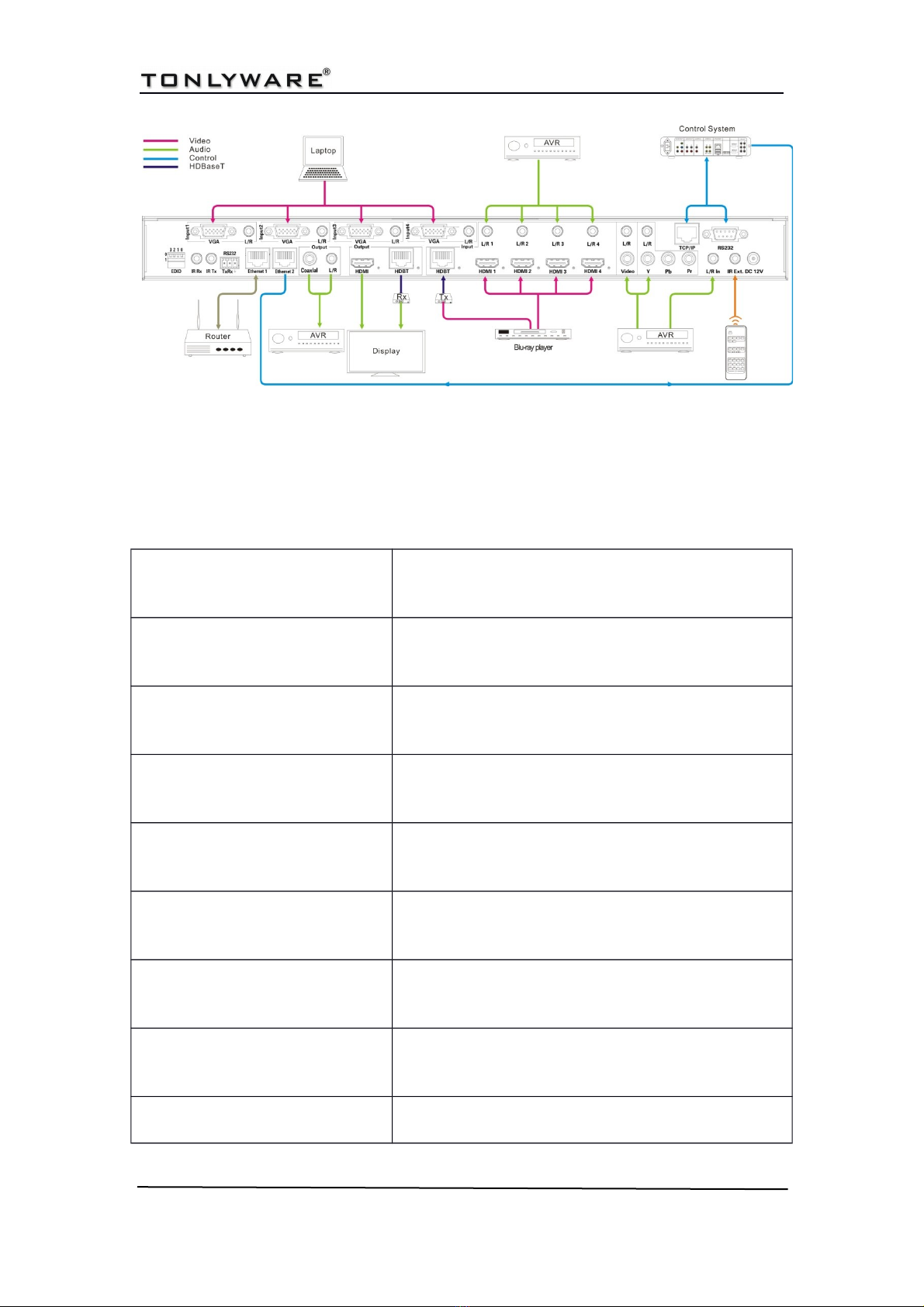

Application Diagram
Tonlyware Technology Inc. Contact: [e-mail] 8

CV1102-HTS User Manual
Specifications:
Bandwidth：0.2Gbps
Video Input Connectors: 4x HDMI Type A, 4x VGA, x RJ45, xYPbPr, x AV
Video Output Connectors: x HDMI Type A, x RJ45
Audio Input Connectors: x 3.5mm stereo jack
Audio Output Connectors: x 3.5mm stereo jack, x RCA (SPDIF)
RS-232 serial port: x DB 9 connector, x 3 phoenix terminal
TCP/IP x RJ45
IR Input ports: 2x 3.5mm stereo jack
IR Output ports: x 3.5mm mono jack
Tonlyware Technology Inc. Contact: [e-mail] 9

CV1102-HTS User Manual
Dimensions (W x H x D): 438mm x 225mm x 44mm , without feet
Shipping Weight: .2Kg
Operating Temperature: 32°F to 04°F (0°C to 40°C)
Storage Temperature : -4°F to 40°F (-20°C to 60°C)
Power Supply: DC 2V/5A
Package Contents:
. x CV 02-HTS.
2. x 2V/5A power supply.
3. x Remote control.
4. 3x IR Emitter
5. 4x IR Receiver.
6. x Rack-mounting ears
RS-232 Pin Assignment
Tonlyware Technology Inc. Contact: [e-mail] 10
CV 02-HTS Remote Control
Console
PIN Assignment PIN Assignment
NC NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC

CV1102-HTS User Manual
Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: -bit
Flow Control: None
RS232 an Telnet Comman s
No
.Command Action
? Print Help Information
2 HELP Print Help Information
3 STATUS Print System Status And Port Status
4 PON Power On, System Run On Normal State
5 POFF Power Off, System Run On Power Save State
6 IR ON/OFF Set System IR Control On Or Off
7 KEY ON/OFF Set System KEY Control On Or Off
Tonlyware Technology Inc. Contact: [e-mail] 11

CV1102-HTS User Manual
8 DBG ON/OFF Set Debug Mode On Or Off
9 BEEP ON/OFF Set Onboard Beep On Or Off
0 LCD ON/OFF Set LCD Always On Or Auto Turn Off In Power On State
RESET Reset System To Default Setting (Should Type "Yes" To
Confirm, "No" To Discard)
2 IR232 vv
Set IR And RS232 Connect To Remote Valens RX/TX
vv=OFF: Disconnect With Valens
vv=RRX: Remote Valens RX
vv=RTX: Remote Valens TX
vv=BOTH: Remote Valens RX and TX
3 OUT xx FR yy
Set OUTPUT:xx From INPUT:yy
xx=00: Select All OUTPUT Port
xx=[0 ...02]: Select One OUTPUT Port
yy=[0 ...04]: HDMI Input 0 ~ 04
yy=HDBT: HDBT/Valens Input
yy=AV: AV Input( Output 02 Only )
yy=YPBPR: Component Input( Output 02 Only )
yy=VGA ...VGA4: VGA Input( Output 02 Only )
4 OUT BYP ON/OFF Set HDMI Input Signal Through Scaler or Bypass
5 OUT SP/MX Set OUTPUT To Splitter or Matrix Mode
6 OUT RES rr
Set Scaler Output Resolution (Change Output Resolution Will
Effect EDID Setting)
rr=0 : 080P@50Hz
rr=02: 080P@60Hz
rr=03: 720P@50Hz
rr=04: 720P@60Hz
rr=05: 280x 024@60Hz
rr=06: 024x768@60Hz
rr=07: 360x768@60Hz
rr=08: 440x900@60Hz
rr=09: 680x 050@60Hz
7 OUT FREQ mm
Set Output Frequence Mode (When Output Resolution is
080P or 720P)
mm=AUTO: Set Output Freq Auto Change To Input Freq
mm=FORCE: Set Output Freq By CMD:OUT RES rr Select
8 AUD SCA ORG Scaler Audio Input Follow Port Selection
9 AUD SCA ANA Scaler Audio Input From Analog L/R Signal
20 AUD HDMI yy ORG HDMI Input:yy Use Orginal HDMI/DVI Signal
Signal yy=[0 ...04]: HDMI Input 0 ~ 04
2 AUD HDMI yy ANA HDMI Input:yy Embeded Analog L/R
Signal yy=[0 ...04]: HDMI Input 0 ~ 04
Tonlyware Technology Inc. Contact: [e-mail] 12

CV1102-HTS User Manual
22 AUD HDMI yy AUTO HDMI Input:yy Embeded Analog L/R When Input is DVI signal
Signal yy=[0 ...04]: HDMI Input 0 ~ 04
23 VOL xx
Set Scaler Audio Volume
xx=[00...30]: Volume Value
xx=+: Volume Increase
xx=-: Volume Decrease
24 EDID xx CP yy
Set Input:xx EDID Copy From Output:yy
xx=00: Select All INPUT Port
xx=0 : Select HDBT INPUT Port
xx=[02...05]: Select HDMI INPUT:0 ~04 Port
yy=[0 ...02]: Select One OUTPUT Port
25 EDID xx DF zz
Set Input:xx EDID To Default EDID:zz
(cmd: OUT RES rr Will Effect EDID Setting)
xx=00: Select All INPUT Port
xx=0 : Select HDBT INPUT Port
xx=[02...05]: Select HDMI INPUT:0 ~04 Port
zz=00: PC 080p, HDMI 080p, 2CH PCM
zz=0 : PC 080p, HDMI 080p, 5. CH PCM/DTS/DB
zz=02: PC 080p, HDMI 080p, 7. CH PCM/DTS/DB/HD
zz=03: PC 080i, HDMI 080i, 2CH PCM
zz=04: PC 080i, HDMI 080i, 5. CH PCM/DTS/DB
zz=05: PC 080i, HDMI 080i, 7. CH PCM/DTS/DB/HD
zz=06: PC 080p, HDMI 3D, 2CH PCM
zz=07: PC 080p, HDMI 3D, 5. CH PCM/DTS/DB
zz=08: PC 080p, HDMI 3D, 7. CH PCM/DTS/DB/HD
zz=09: PC 4K2K, HDMI 4K2K, 2CH PCM
zz= 0: PC 4K2K, HDMI 4K2K, 5. CH PCM/DTS/DB
zz= : PC 4K2K, HDMI 4K2K, 7. CH PCM/DTS/DB/HD
zz= 2: DVI 280x 024@60Hz, Audio None
zz= 3: DVI 920x 080@60Hz, Audio None
zz= 4: DVI 920x 200@60Hz, Audio None
Tonlyware Technology Inc. Contact: [e-mail] 13

CV1102-HTS User Manual
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this
unit.
Warranty Policy
Tonlyware products are warranted against defects in material and workmanship for two years
from the date of shipment. During the warranty period, Tonlyware will, at its option, repair or
replace products that prove to be defective. Repairs are warranted for the remainder of the
original warranty or a 90 day extended warranty, whichever is longer.
For equipment under warranty, the owner is responsible for freight to Tonlyware and all
related customs, taxes, tariffs, insurance, etc. Tonlyware is responsible for the freight charges
only for return of the equipment from the factory to the owner. Tonlyware will return the
equipment by the same method (i.e., Air, Express, Surface) as the equipment was sent to
Tonlyware.
All equipment returned for warranty repair must have a valid RMA number issued prior to
return and be marked clearly on the return packaging. Tonlyware strongly recommends all
equipment be returned in its original packaging.
Tonlyware’s obligations under this warranty are limited to repair or replacement of failed parts,
and the return shipment to the buyer of the repaired or replaced parts.
Limitations of Warranty
The warranty does not apply to any part of a product that has been installed, altered,
repaired, or misused in any way that, in the opinion of Tonlyware, would affect the reliability or
detracts from the performance of any part of the product, or is damaged as the result of use in
a way or with equipment that had not been previously approved by Tonlyware.
Tonlyware Technology Inc. Contact: [e-mail] 14

CV1102-HTS User Manual
The warranty does not apply to any product or parts thereof where the serial number or the
serial number of any of its parts has been altered, defaced, or removed.
The warranty does not cover damage or loss incurred in transportation of the product.
The warranty does not cover replacement or repair necessitated by loss or damage from any
cause beyond the control of Tonlyware, such as lightning or other natural and weather related
events or wartime environments.
The warranty does not cover any labor involved in the removal and or reinstallation of
warranted equipment or parts on site, or any labor required to diagnose the necessity for
repair or replacement.
The warranty excludes any responsibility by Tonlyware for incidental or consequential
damages arising from the use of the equipment or products, or for any inability to use them
either separate from or in combination with any other equipment or products.
A fixed charge established for each product will be imposed for all equipment returned for
warranty repair where Tonlyware cannot identify the cause of the reported failure.
Exclusive Reme ies
Tonlyware’s warranty, as stated is in lieu of all other warranties, expressed, implied, or
statutory, including those of merchantability and fitness for a particular purpose. The buyer
shall pass on to any purchaser, lessee, or other user of Tonlyware’s products, the
aforementioned warranty, and shall indemnify and hold harmless Tonlyware from any claims
or liability of such purchaser, lessee, or user based upon allegations that the buyer, its agents,
or employees have made additional warranties or representations as to product preference or
use.
The remedies provided herein are the buyer’s sole and exclusive remedies. Tonlyware shall
not be liable for any direct, indirect, special, incidental, or consequential damages, whether
based on contract, tort, or any other legal theory.
RMA Policy
When returning product to Tonlyware for any reason, the customer should fill out the official
RMA form to obtain a RMA number. Without the permission or approval, Tonlyware will be no
responsible for any return.
This can be initiated by emailing or calling your related sales.
All requests are processed within 48 hours.
Tonlyware Technology Inc. Contact: [e-mail] 15

CV1102-HTS User Manual
Stan ar Replacement
For customers that agree to return defective product to Tonlyware first, a Standard
Replacement option is available.
An RMA number must first be issued by sales. This RMA number will need to be referenced
on the outside of the return shipment.
Upon receipt of the defective product, Tonlyware will, at its discretion, either repair or replace
the product and ship it out in the most expeditious manner possible. Subject to availability, the
replacement product will be shipped on the business day following receipt of the defective
product.
In the event the product returned to Tonlyware has been discontinued (i.e. the product is no
longer being manufactured by Tonlyware but is still under warranty), Tonlyware will, at its
discretion, either repair or replace with recertified product.
nce you have obtained an RMA number
After obtaining an RMA number from Tonlyware, you must send the product - freight prepaid -
to Tonlyware Technology Co., Ltd. The Tonlyware RMA number must be prominently
displayed on the outside of your package. If you send your product to Tonlyware without the
RMA number prominently displayed on the outside of the package, it will be returned to you
unopened.
Please use a shipping company that can demonstrate proof of delivery. Tonlyware does not
accept responsibility for any lost shipments unless proof of delivery to Tonlyware is provided.
Please note:
Product shipped to Tonlyware must be properly packaged to prevent loss or damage in
transit.
Shipping your RMA to Tonlyware using regular mailing envelopes is not acceptable, as they
do not protect the product from damage during shipping.
Tonlyware will not repair or replace a module that is shipped in such a way that the product is
not properly protected.
Tonlyware will not accept any product that has been damaged as a result of accident, abuse,
misuse, natural or personal disaster, or any unauthorized disassemble, repair or modification.
Tonlyware Technology Inc. Contact: [e-mail] 16

CV1102-HTS User Manual
Tonlyware Technology Inc. Contact: [e-mail] 17
