TBF - 7110
User Guide
High Definition
Digital Terrestrial Receiver

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.

iv CONTENTS
Contents
Contents iv
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
2 Setup 6
2.1 Unpacking .............................. 6
2.2 Safety precautions ......................... 6
2.3 Rear panel connections ....................... 8
2.4 Connecting up your digital receiver ............... 9
2.4.1 Connecting the antenna .................. 9
2.4.2 Connecting to your television set ............ 10
2.5 Inserting batteries in the remote control ............. 12
2.6 Switching on for the first time ................... 12
2.6.1 Powering on and checking picture ............ 12
3 Preference Settings 13
3.1 Language settings .......................... 13
3.2 Video and audio settings ...................... 14
3.2.1 Television aspect ratio ................... 14
3.2.2 High definition television ................. 16
3.2.3 Audio mode ........................ 16

CONTENTS v
3.3 Local time setting .......................... 17
3.4 Parental control ........................... 19
3.5 Adjusting the On-Screen Display ................. 21
3.6 Displaying the time in standby mode .............. 21
4 Service Search 22
4.1 Searching broadcasting services .................. 22
4.2 Resetting to factory settings .................... 23
5 Daily Usage 24
5.1 Volume control ........................... 24
5.2 Watching television ......................... 24
5.2.1 The services list ....................... 24
5.2.2 The favourite services list ................. 26
5.2.3 Viewing programme information ............ 27
5.2.4 Selecting audio tracks ................... 27
5.2.5 Selecting subtitle tracks .................. 28
5.2.6 Viewing teletext ...................... 28
5.3 Viewing electronic programme guide .............. 28
5.4 Making timer events ........................ 30
6 Listing Services 32
6.1 Editing the favourite list ...................... 32
6.2 How to use on-screen keyboard .................. 34
7 Firmware Update 35
7.1 Checking the firmware information ............... 35
7.2 From a USB memory ........................ 36
7.3 From your computer via RS-232 port ............... 37
Index 38

1
Chapter 1
Introduction
The TBF - 7110 digital receiver is fully compliant with the inter-
national Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard.
For its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word service is preferably
used than channel as a term to indicate one television or radio
broadcast.
1.1 Features
The TBF - 7110 digital receiver has the following features:

2 Introduction
• Supports the Australian Freeview Phase 1.
• Can store up to 2000 television and radio services.
• Can create favourite lists of your favourite services.
• Can view information about the current television or
radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.

1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control
the digital receiver, specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY button switches the digital receiver between
standby mode and operation mode.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
lamp blinks whenever you press a button on the remote
control.
STANDBY lamp lights up while the digital receiver is in
standby mode.
Front display shows the current time in standby mode, and
displays the current service in operation mode.

4 Introduction
1.2.2 The remote control
14
14
18
16
9
12
2
17
3
5
10
15
7
6
11
13
19
3
8
20
21
5
1
 button switches the digital re-
ceiver between standby mode and
operation mode.
2
 is used to set a sleep timer in 10
minute increments.
3




V− ,




V+ buttons decrease or in-
crease the volume. They are also
used to change values for menu op-
tions.
4
 mutes the sound. Press again
to switch it back on.
5




P− ,




P+ buttons switch to previ-
ous or next service. They are also
used to navigate in menus and in-
teractive screens.
6
 switches between the current
service and the previously viewed
one.
7
 Numeric buttons are used to en-
ter a service number for service
change or to specify values for
menu options.
8




OK displays the services list. See
§ 5.2.1 for more details. It is also
used to select a menu item.
9




FAV displays the favourite lists.
10
 displays the service information box. It is also used
to display more information about a programme.
11
 is used to select an audio track and a sound mode, or

1.2 Controlling the digital receiver 5
a video track of multifeed programme.
12
is used to select a subtitle track.
13
displays teletext.
14




V.Format changes video resolution. See § 3.2.2 for more
details.
15
pauses live television.
16
 switches between television services and radio ser-
vices.
17




GUIDE displays the electronic programme guide.
18




A/R changes aspect ratio. See § 3.2.1 for more details.
19




MENU displays the main menu. It is also used to return
to the previous menu from a submenu.
20




EXIT is used to exit a menu or to hide on-screen info.
21
 These buttons have different functions per menu. They
will be guided by on-screen help.

6 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• One component cable (RCA cable)
• One composite cable (RCA cable)
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.

2.2 Safety precautions 7
• The mains power must be 90 to 250 volts. Check it before
connecting the digital receiver to the mains socket. For
the power consumption of the digital receiver, refer to
Table 2.1.
• The mains outlet should be near the equipment. Do not
run an extension lead to the unit.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digi-
tal receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
• Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiver
and get the cord replaced.
• Never open the digital receiver casing under any circum-
stances, the warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 20 W at maximum in operation
1 W in passive standby (MEPS compliant)

8 Setup
Table 2.2: Physical specifications
Size 260×46×190 mm
Weight 1.2 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 90 %

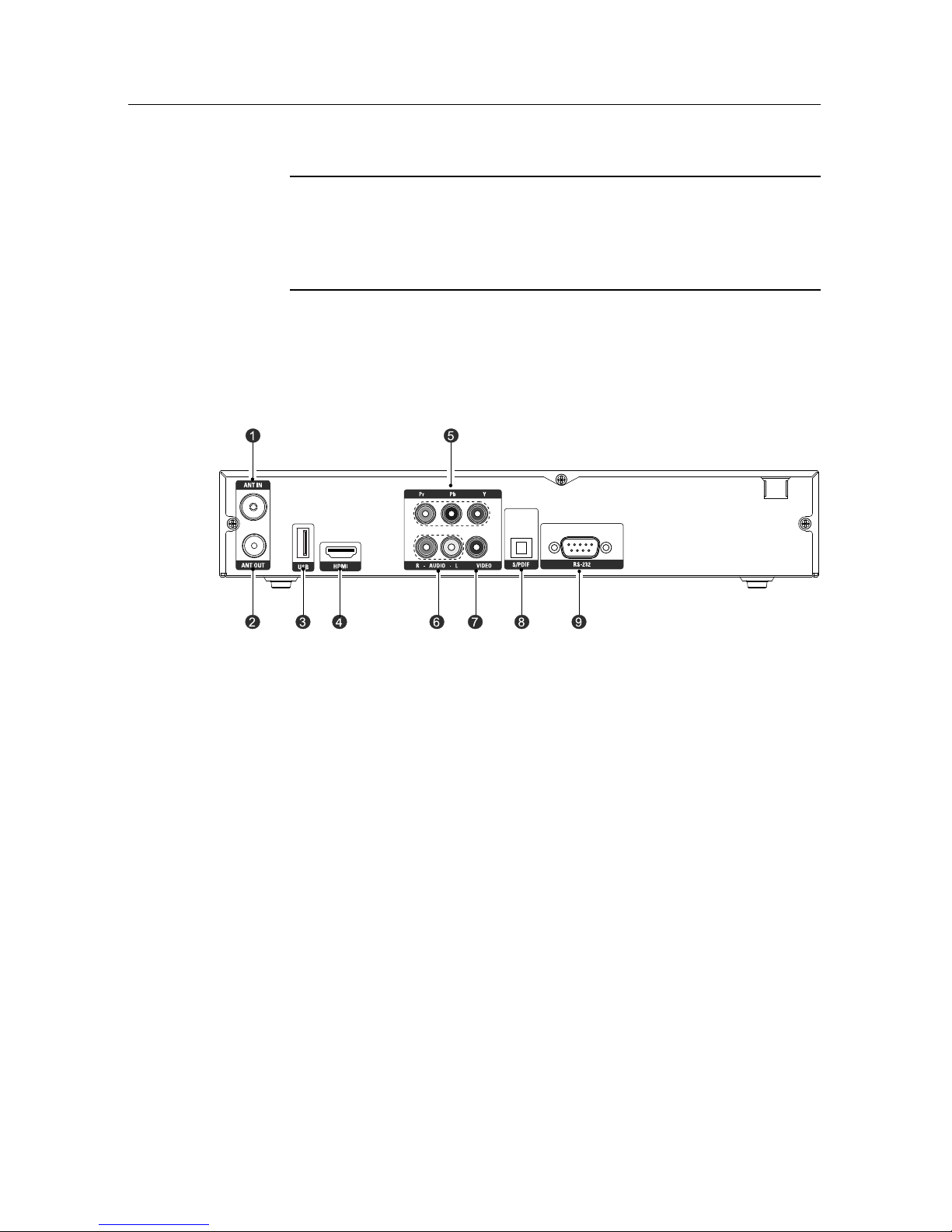

2.3 Rear panel connections
The TBF - 7110 has the following connections on the back.
Check what connections your television set has in comparison
with the digital receiver.
1
ANT IN Terrestrial broadcasting signal input socket.
2
ANT OUT Terrestrial broadcasting signal output socket
through the ANT IN socket for another digital
receiver.
3
USB USB port for firmware update and data trans-
fer.
4
HDMI Audio and video output socket for the high
definition television set.
5
Y/Pb/Pr Component video output socket for the tele-
vision set. (green/blue/red)
6
AUDIO L/R Stereo audio output socket for the television
set or the audio system. (white/red)

2.4 Connecting up your digital receiver 9
7
VIDEO Composite video output socket for the televi-
sion set. (yellow)
8
S/PDIF Dolby digital output socket for the audio sys-
tem.
9
RS-232 Serial port for firmware update and data
transfer.
Table 2.3: Connectors specifications
HDMI High definition video output
Left & right audio output
Dolby Digital audio output
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
YPbPr Component video (YUV) output
S/PDIF Dolby digital audio output
RS-232 115.2 kbps at maximum
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other appliances.
If you have any problem with your setup or need help, contact
your dealer.
2.4.1 Connecting the antenna
Whatever sort of connection you have be-
tween the digital receiver and the television,
you need to connect the digital receiver to
your television antenna so that it can receive
digital television services.
Connect the antenna cable to the ANT IN con-
nector.
If you have another digital receiver, you may
link the ANT OUT connector to your televi-
sion.

10 Setup
2.4.2 Connecting to your television set
For all the following connections of the digital receiver, we
recommend you use the first connector to get the best picture
quality. If your television does not have a matching connector,
then use the next connector in the following order for a better
picture quality.
1. HDMI connector (HDMI)
2. Component connector (YPbPr)
3. Composite connector (VIDEO)
You should configure audio and video settings after connecting
up the digital receiver. See § 3.2 for a detailed description.
To use the HDMI connector
If you have a high definition television set,
you should use a HDMI cable for best re-
sults. Plug one end of the cable into the HDMI
socket on the digital receiver, and plug the
other end into the matching socket on your
television. In this case, you do not have to
make audio connection because the HDMI
connector can output stereo audio or Dolby
digital audio.
To use the component video connector
You need to obtain a component video cable
(RCA cable) to use the component video con-
nector. Plug one ends of the cable into the Y
(green), Pb (blue) and Pr (red) sockets on the
digital receiver, and plug the other ends into
the matching sockets on your television.

2.4 Connecting up your digital receiver 11
To use the composite video connector
NOTE
You cannot view high definition video with a
composite video connector.
You need to obtain a composite video cable
(RCA cable) to use the composite video con-
nector. Plug one end of the cable into the
VIDEO (yellow) socket on the digital receiver,
and plug the other end into the matching
socket on your television.
To make the audio connection
You need to obtain an audio cable (RCA ca-
ble) to connect the audio connectors. Plug
one end of the cable into the AUDIO L (white)
and AUDIO R (red) sockets on the digital re-
ceiver, and plug the other end into the match-
ing sockets on your television or audio sys-
tem.
To enjoy Dolby digital audio, your televi-
sion or audio system must be able to decode
Dolby digital audio, and you need to obtain a
S/PDIF cable. Plug one end of the cable into
the S/PDIF socket on the digital receiver, and
plug the other end into the matching socket
on your audio system.

12 Setup
2.5 Inserting batteries in the remote control
Open the battery compartment by removing the lid, and then
insert the batteries observing the polarity, which is marked on
the base of the battery compartment.
If the digital receiver no longer reacts properly to remote con-
trol commands, the batteries may be flat. Be sure to remove
used batteries. The manufacturer accepts no liability for the
damage resulting from leaking batteries.
NOTE
Batteries, including those which contain no heavy metals, may
not be disposed with other household wastes. Please dispose
of used batteries in an environmentally sound manner. Find
out the legal regulations which apply in your area.
2.6 Switching on for the first time
Now that you have your digital receiver connected, you should
plug it into a mains socket. Ensure that your television set is
turned on and on the correct AV channel, so that you will be
able to see the display from the digital receiver.
2.6.1 Powering on and checking picture
Press the button in top left corner on the remote control.
After about 10 seconds you may see a picture displaying a
menu. If you do not see a picture, try pressing the




V.Format
button on the remote control. If after several tries you still get
no picture, check that the television is set to the correct input.
If the picture is good, you can skip to § 4.1 to search for the
available television and radio services. Otherwise, you may
need to temporarily connect the composite video connector
(VIDEO) to your television set so that you can see the on-screen
menus in order to configure the video settings.

13
Chapter 3
Preference Settings
3.1 Language settings
You can select the language of
audio track and of subtitle track.
Select the System Setting > Lan-
guage Setting menu. You should
see a screen like the left figure.
Subtitle language
Set the 1st Subtitle Language option and the 2nd Subtitle Lan-
guage option to your desired languages. When you watch a
programme, if the programme has a subtitle track of the lan-
guage that is designated for the 1st Subtitle Language, it will be
displayed. If the first language is not available but the second
language is available, the subtitle of the second language will

14 Preference Settings
be displayed. If there is no available language, no subtitle will
be displayed.
Apart from this setting, you can select a subtitle track with the
button. See § 5.2.5 for a detailed description.
Audio language
Set the 1st Audio Language option and the 2nd Audio Lan-
guage option to your desired languages. When you watch a
programme, if the programme has an audio track of the lan-
guage that is designated for the 1st Audio Language, it will
be outputted. If the first language is not available but the
second language is, the audio of the second language will be
outputted.
Apart from this setting, you can select an audio track with the
button. See § 5.2.4 for a detailed description.
3.2 Video and audio settings
You have to configure the video
and audio settings appropriately
for your television set and other
appliances.
Select the System Setting >
A/V Output Setting menu. You
should see a screen like the left
figure.
3.2.1 Television aspect ratio
If you have a wide-screen television, set the TV Aspect Ratio
option to 16:9.
