Chapter 1
Introduction
The TF 5100 PVRt HDMI digital receiver is fully compliant with
the international Digital Video Broadcasting (DVB) standard,
and can receive digital broadcasts. For its operation you need
an antenna, which must be installed appropriately.
NOTE
In general we equate a channel with a frequency. Unlike ana-
logue broadcasts, however, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word service is preferably
used than channel as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 5100 PVRt HDMI digital receiver has the following fea-
tures:
• Can store up to 2000 television and radio services.

2 Introduction
• You can edit the services list.
• You can create favourite lists of your favourite services.
• You can view information about the current television or
radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can update the firmware of the digital receiver to the
latest version, provided by the manufacturer.
• You can record one broadcasting service while you are
currently watching another.
• The large storage capacity of the built-in hard disk drive
allows you to record up to about 60 hours of television
—in case of 250 gigabytes— in excellent picture and sound
quality.
• Time shift is a special technical feature available on the
TF 5100 PVRt HDMI. You can pause the programme you
are watching and resume it again at a later time. Then
you can quickly go to whatever part of the current pro-
gramme by fast foward and rewind search.
1.2 Controlling the digital receiver
The digital receiver can be operated with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.

1.2 Controlling the digital receiver 3
1.2.1 The front panel

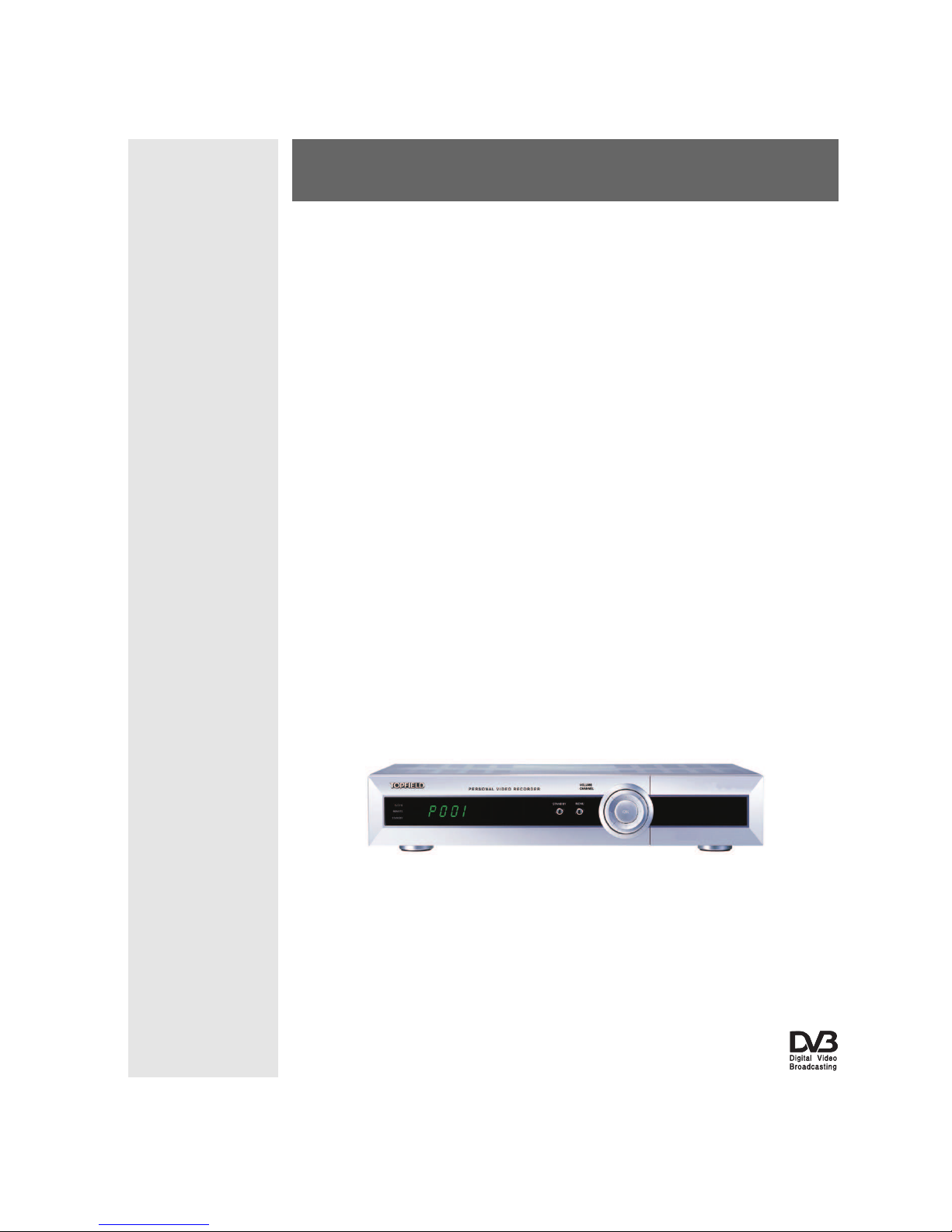

The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
TV/STB
OK
REMOTE
STANDBY
TV/STB lamp lights up while your video recorder operates
instead of the digital receiver. See § 3.2.3 for more
details.
REMOTE lamp lights up whenever you press a button on
the remote control.
STANDBY lamp lights up while the digital receiver is in
standby mode.
Front display displays the current time in standby mode,
and displays the current service in operation mode.
STANDBY button switches the digital receiver between
standby mode and operation mode.
MENU button displays the main menu. It is also used to
return to the previous menu from a submenu.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
VOLUME
b
,
d
buttons decrease or increase the volume.
They are also used to change values for menu options.
OK button displays the services list. See § 5.2.1 for more
details. It is also used to select a menu item.

4 Introduction

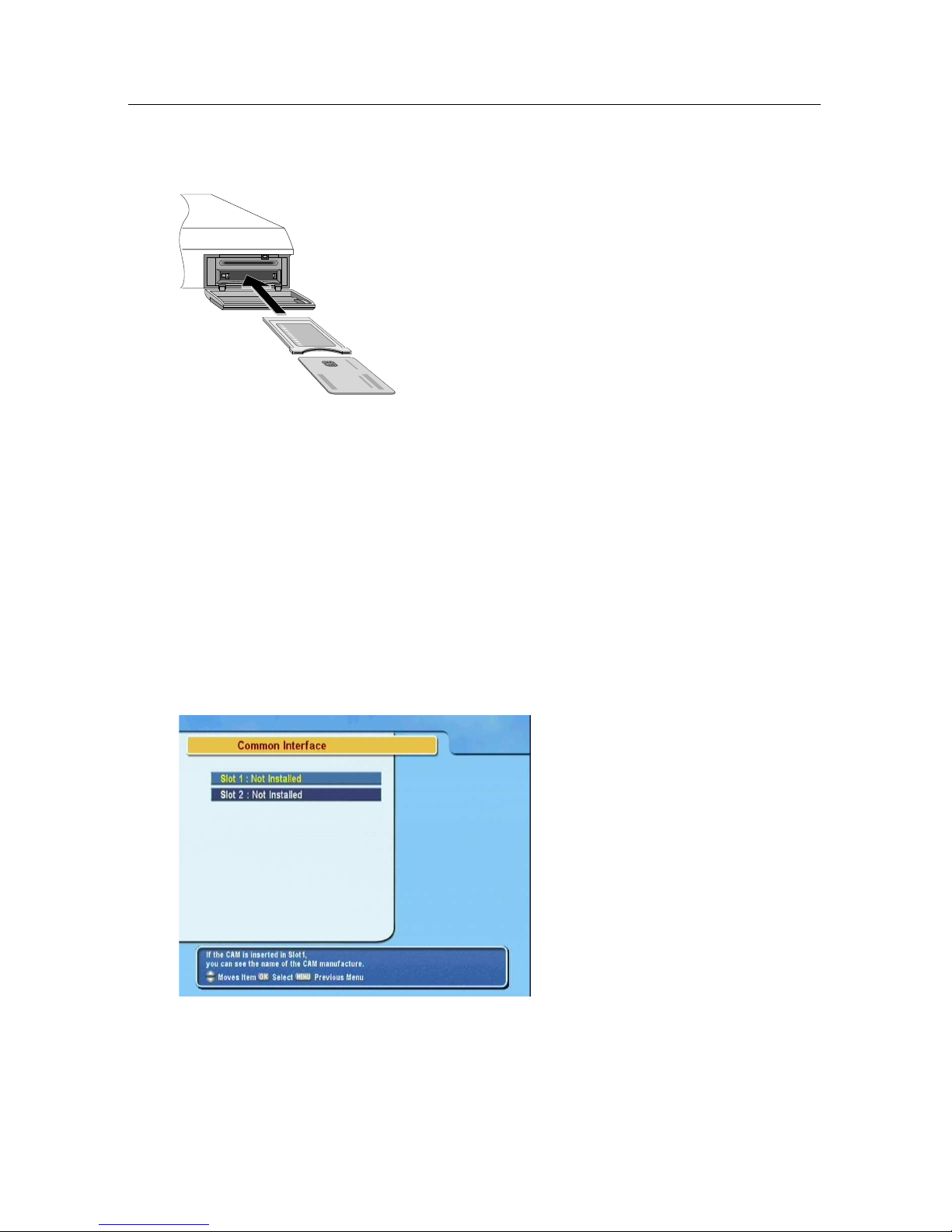

Pull the right edge of the front panel to open the flap. You have
to insert your subscription card into the front slot to watch pay
services.

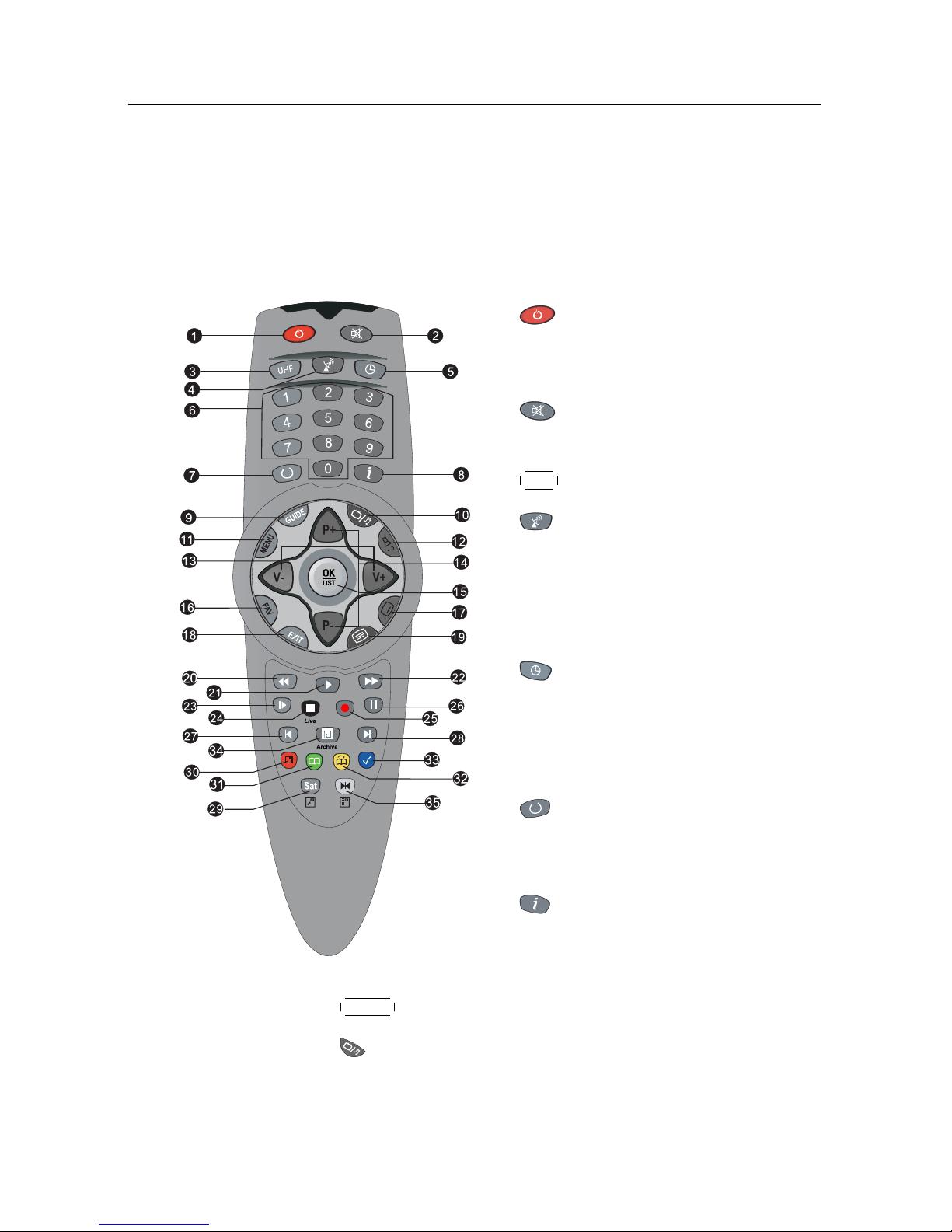

1.2.2 The remote control
1

button switches the digital re-
ceiver between standby mode and
operation mode.
2

mutes the sound. Press again to
switch it back on.
3




UHF is not used in this model.
4

switches the output of the TV
SCART socket between the digital
receiver and the device connected to
the VCR SCART socket. See § 3.2.3
for more details.
5
is used to set a sleep timer.
6

Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
7

switches between the current
service and the previously viewed
one.
8

displays the service information
box. It is also used to display more
information about a programme.
9




GUIDE displays the electronic programme guide.
10

switches between television services and radio ser-
vices.

1.2 Controlling the digital receiver 5
11




MENU displays the main menu. It is also used to return
to the previous menu from a submenu.
12

is used to select an audio track and a sound mode, or
a video track of multifeed programme.
13




V− ,




V+ buttons decrease or increase the volume. They
are also used to change values for menu options.
14




P− ,




P+ buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
15




OK displays the services list. See § 5.2.1 for more details.
It is also used to select a menu item.
16




FAV displays the favourite lists.
17
is used to select a subtitle track.
18




EXIT is used to exit the current screen.
19
displays teletext.
20

is used to start reverse playback. Subsequent presses
increase the rewind speed.
21

resumes normal playback speed, or displayes the
progress bar for navigation on playback or time shift. To
play a recorded programme, see button 34.
22

is used to start fast motion playback. Subsequent
presses increase the playback speed.
23

is used to start slow motion playback. Subsequent
presses change the playback speed.
24

is used to stop playback, to stop recording, or to jump
back to live television from time-shifted television.
25
is used to start recording.
26

pauses live television or playback of a recorded pro-
gramme.

6 Introduction
27

changes the position of sub-screen counterclockwise.
It is also used to jump back to beginnng of recording
during a playback.
28

changes the position of sub-screen clockwise. It is also
used to jump to end of recording during a playback.
29




SAT swaps the sub-picture with the main picture. See
§5.6 for more details.
30

is used to display, minify or hide the sub-screen. See
§5.6 for information about picture-in-picture.
31

is used to make a bookmark during playback or time
shift.
32

is used to jump to next bookmark position or to jump
forward by 30 seconds.
33

is used to jump back 10 seconds for an instant replay.
It is also used to edit a recording.
34

is used to display the list of recorded programmes
that are stored on the internal hard disk drive. See § 7.2
for more details.
35

displays the services list for sub-screen. It is also used
to specify a block for editing or for repeated playback.
The , , , and buttons have additional different
functions per menu besides their own function. They will be
guided by on-screen help.

1.3 What is common interface? 7
1.3 What is common interface?
Some broadcasts are scrambled so that only paid
subscribers can enjoy them. Scrambled services
can only be viewed with a Conditional Access
Module (CAM) and a subscription card belong-
ing with the scrambling system.
Common Interface (CI) is the slot on a digitial
receiver into which a conditional access module
may be insterted. The front of the digital receiver
has two common interfaces.
To watch a pay service, you should take the following steps:
1. Purchase a conditional access module and a subscription
card for the pay service you want to watch.
2. Insert the subscription card into the conditional access
module.
3. Insert the conditional access module into a common in-
terface on the front of the digital receiver.
To view the information about
the module and subscription
card inserted into the digital re-
ceiver, select the Common Inter-
face menu. You should see a
screen like the left figure.

8 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• One loop cable to link the first tuner with the second
tuner
• One SCART-to-component cable
• One S-Video cable
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.

2.2 Safety precautions 9
• The mains power must be 90 to 250 volts. Check it before
connecting the digital receiver to the wall outlet. For
the power consumption of the digital receiver, refer to
Table 2.1.
• The wall outlet should be near the equipment. Do not
run an extension lead to the unit.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digi-
tal receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
• Protect the power cord from being walked on or pinched.
If the wires are exposed or the cord is damaged, do not
use the digital receiver and get the cord replaced.
• Never open the digital receiver casing under any circum-
stances. The warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 25 W at maximum in operation
7 W in standby

10 Setup
Table 2.2: Physical specifications
Size 340×60×265 mm
Weight 3.4 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 95 %
2.3 Rear panel connections
The TF 5100 PVRt HDMI has a wide range of connections on
the back panel.
RS-232
S/PDIF
VCR USB
TV
RF LOOP
1 OUT
ANT 1ANT 2
RF LOOP
2 OUT
VIDEO
S-VIDEO
AUDIO
HDMI
R
L
1
2
3
4
5
6
7
8
9
10 11 12 13
Check what connections your television set has in comparison
with the digital receiver.
1
ANT 1
Terrestrial broadcasting signal input socket
for the first tuner.
2
RF LOOP 1 OUT
Terrestrial broadcasting signal output
socket through the first tuner.
3
ANT 2
Terrestrial broadcasting signal input socket
for the second tuner.
4
RF LOOP 2 OUT
Terrestrial broadcasting signal output
socket through the second tuner.
5
VIDEO
Composite video output socket for the televi-
sion set. (yellow)

2.3 Rear panel connections 11
6
AUDIO L/R
Stereo audio output socket for the television
set or the audio system. (white/red)
7
HDMI
Audio and video output socket for the high
definition television set.
8
S-VIDEO
Super video output socket for the television
set.
9
TV
Audio and video output socket for the televi-
sion set.
10
VCR
Audio and video input/output socket for the
video cassette recorder or suchlike.
11
USB
USB port for firmware update and data trans-
fer.
12
S/PDIF
Dolby digital output socket for the audio sys-
tem.
13
RS-232
Serial port for firmware update and data
transfer.
Table 2.3: Connectors specifications
HDMI High definition video output
Left & right audio output
Dolby digital audio output
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
S-VIDEO Super video (S-Video) output
TV CVBS/S-Video/RGB/YUV video output
Left & right audio output
VCR CVBS video output
Left & right audio output
CVBS/S-Video/RGB/YUV video input for bypass
Left & right audio input for bypass
S/PDIF Dolby digital audio output
RS-232 115,2 kbps at maximum
USB 2.0 device

12 Setup
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other appliances.
If you have any problem with your setup or need help, contact
your dealer.
2.4.1 Connecting the antenna
Whatever sort of connection you have be-
tween the digital receiver and the television,
you need to connect the digital receiver to
your television antenna so that it can receive
digital television services.
Connect the antenna cable to the ANT 1 con-
nector on the back panel of the digital re-
ceiver.
Also, you must ensure that there is a connec-
tion to both the ANT 1 and ANT 2 connectors
on your digital receiver, so that both tuners
work properly.
Normally you do that by using a loop cable to link from the RF
LOOP 1 OUT connector to the ANT 2 connector.
NOTE
However, if you are in a weak signal area, or are using a signal
amplifier with more than one output, you may achieve better
results by connecting a cable from the antenna or amplifier
directly to the ANT 2 connector rather than using the loop
cable.
If you have another digital receiver, or you want to still receive
analogue channels on your television, link it from the RF LOOP
2 OUT connector.

2.4 Connecting up your digital receiver 13
2.4.2 Connecting to your television
Between all the following connectors of the digital receiver, we
recommend you to use the first connector to get best picture
quality. If your television does not have the matching connector,
then use the next connector in the following order for better
picture quality.
1. HDMI connector (HDMI)
2. SCART connector (TV)
3. S-Video connector (S-VIDEO)
4. Composite connector (VIDEO)
You should configure audio and video settings after connecting
up the digital receiver. See § 3.2 for detailed description.
To use the HDMI connector
If you have a high definition television set,
you should use a HDMI cable for best re-
sults. Plug one end of the cable into the HDMI
socket on the digital receiver, and the other
end into the matching socket on your televi-
sion. In this case, you do not have to make
audio connections because the HDMI connec-
tor can output stereo audio or Dolby digital
audio.
To use the SCART connector
For best results with a standard television set,
you should use a SCART cable, plugging one
end into the TV socket on the digital receiver
and the other end into a free SCART socket
on your television.
Some televisions have inputs via Component
connector or S-Video connector rather than
SCART.

14 Setup
If you have such a television, use an appropriate conversion ca-
ble to link the TV socket on the digital receiver to the matching
socket on your television.
If you connect with a standard SCART cable, you do not have
to make audio connections because the SCART connector can
output stereo audio. But if you use a conversion cable, such as
SCART-to-Component, you have to make audio connections.
NOTE
You cannot view high definition video with the SCART connec-
tor.
To use the S-Video connector
NOTE
You cannot view high definition video with
the S-Video connector.
You will need to obtain a S-Video cable to use
the S-Video connector. Plug one end of the
cable into the S-VIDEO socket on the digital
receiver, and the other end into the matching
socket on your television.
To use the composite video connector
NOTE
You cannot view high definition video with
the composite video connector.
You will need to obtain a composite video
cable (RCA cable) to use the composite video
connector. Plug one end of the cable into the
VIDEO (yellow) socket on the digital receiver,
and the other end into the matching socket
on your television.
