CYP PU-507RX-2H User manual

PU-507RX-2H
5-Play™ HDBaseT™ Receiver with dual HDMI outputs
(inc. PoE & Single LAN, up to 100m)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 11/11/2013 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 D-Sub 9-Pin Denitions.........................10
6.4 IR Cable Pin Assignment .......................10
7. Connection Diagram .......................... 11
8. Specications...................................... 12
8.1 Technical Specications ........................12
8.2 CAT5e/6/7 Cable Specication ...........13
9. Acronyms............................................. 14

6
1. INTRODUCTION
The PU-507RX-2H Receiver allows uncompressed HDMI signals and IP
data to be received over a Single CAT5e/6/7 cable. This solution has the
added features of RS-232 and 2-way IR control functionality over the
same CAT5e/6/7 cable. These combined HDMI and control signals can
be transmitted up to lengths of 100 metres. This variant of the popular
PU-507-RX Receiver provides dual HDMI outputs for added exibility
enabling distribution to a second display within a zone as an alternative
to using an additional Distribution Amplier.
2. APPLICATIONS
Household entertainment sharing and control
Lecture room display and control
howroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
HDMI over HDMI & CAT5e/6/7 with LAN/IR/RS232/Bidirectional PoE
Receiver
IR Receiver x 1
3.5mm Phone Jack to RS-232 Cable
Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI over CAT5e/6/7 Transmitter and output display with HDMI
input.

7
5. FEATURES
Supports all v1.4 HDMI resolutions plus 4k.
Supports Dual HDMI Outputs
Supports uncompressed video/audio up to 10.2Gbps
ommon supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p,
1080p24, 4K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
HDMI, HDCP, & DVI compliant
Supports HDCP repeating and CEC functions
Uncompressed data transfer over single CAT cable (100m - CAT6/7;
80m - CAT5e)
Uncompressed video 1080p, 60Hz, 48bits
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232)
Supports 3D signalsl
Note:
1. This system was tested with CAT6/23AWG cables, results may vary with
cables of a dierent specication.
2. The PoE function is designed for powering compatible Transmitter units
only non-PoE Transmitter will need their own power supply. Transmitter of
another brand may not be compatible.
3. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable
and display in order for proper image displaying.

8
6. OPERATION CONTROLS AND FUNCTIONS

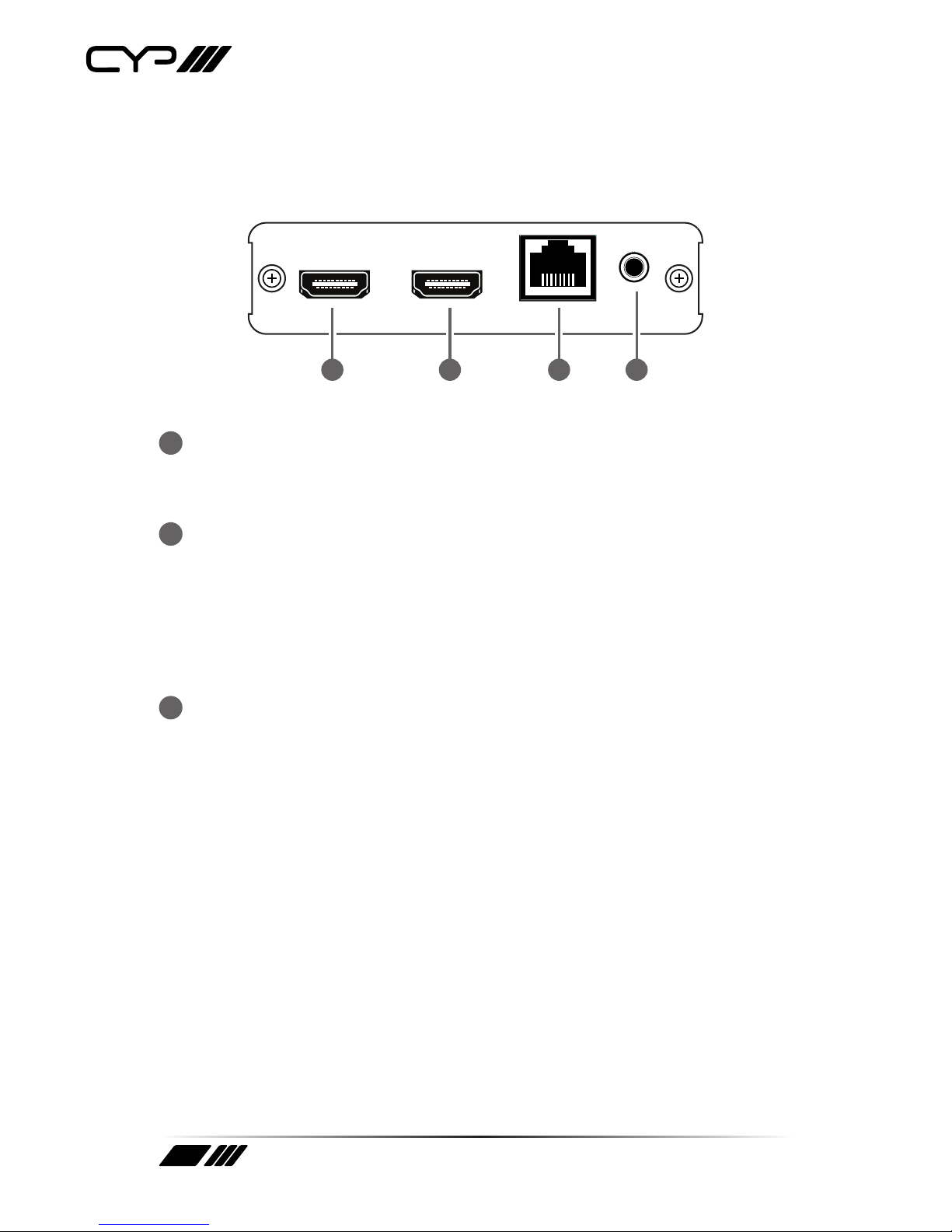

6.1 Front Panel
HDMI OUT 1 HDMI OUT 2
LAN
RS232 OUT
CAT5e/6 to HDMI with LAN/IR/RS232 Receiver
1 2 3 4
1HDMI OUT 1 & 2:
Connect to HDMI displays for instant image display or cascade with
another family type Transmitter.
2LAN:
Connect to intra-net or internet service system for a total sharing rate
of 100Mbps within the link of Receiver.
Warning: DO NOT connect this slot with any of the CAT5e/6/7 port,
doing so may trigger a power shut down and may damage the
device.
3RS-232 OUT:
Connect to a PC/Laptop or RS-232 enabled device (with supplied
3.5mm Phone Jack to D-Sub 9-Pin adaptor) to transmit of RS-232
commands.

9
6.2 Rear Panel
POWER
DC 24V
CAT5e/6 IN
IR 2
BLASTER USB LINK
IR 1
EXTENDER
1 3 4 5 6 72
1POWER LED:
Once the power supply is connected the LED will illuminate.
2DC 24V:
Plug the 24V DC power supply into the unit and connect the adaptor
to an AC outlet.
3IR 2 BLASTER:
Connect to the supplied IR Blaster cable for IR signal transmission.
Place the IR Blaster in direct line-of-sight of the equipment to be
controlled.
4IR 1 EXTENDER:
Connect to the supplied IR Extender cable for IR signal reception.
Ensure that remote controller being used is within the direct line-of-
sight of the IR Extender.
5USB:
This port is reserved for rmware update only.
6LINK:
The link LED will illuminate when CAT5e/6/7 output have been
connected to the Receiver and the Receiver have connected with
display that shows image on screen.
7CAT5e/6 IN:
Connect this port to HDMI to CAT5e/6/7 Transmitter (with or without
PoE function) with CAT5e/6/7 cable to extend the signal up to 100m.

10
6.3 D-Sub 9-Pin Denitions
PIN DEFINE TX/RX
1 N/C
2 TxD/RxD
3 RxD/TxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
6.4 IR Cable Pin Assignment
3
1
3
1
2
2
Power 3.3V
IR Blaster Signal
NC
IR Signal
Power 3.3V
Ground
IR Extender
IR Blaster

11
7. CONNECTION DIAGRAM
POWER
DC 24V
CAT5e/6 IN
IR 2
BLASTER USB LINK
IR 1
EXTENDER
CONTROL
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUTCAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GNDGND
V+
HDMI OUT 1 HDMI OUT 2
LAN
RS232 OUT
CAT5e/6 to HDMI with LAN/IR/RS232 Receiver
HDMI HDMI
3D TV/Display 3D TV/Display
RS232 Equipped
Device
RS-232 Cable
Router (with Internet
Connection)

12
8. SPECIFICATIONS
8.1 Technical Specications
Video Bandwidth 300Mbps/10.2Gbps
Input ports 1 x CAT5e/6/7, 1 x IR Extender,
1 x LAN, 1 x USB (Service only)
CAT5e/6/7 Input Cable
Distance
up to 100 Meters
Output port 2 x HDMI, 1 x RS-232, 1 x Blaster,
HDMI Output Cable
Distance
N/A
Resolution Up to 4Kx2K
(3840x2160@30Hz/4096x2160@24Hz)
IR Frequency 30 ~50kHz
Power Supply 24V / 1.25A DC (US/EU standards, CE/FCC/
UL certied)
ESD Protection Human-body Model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) 102 (W) x 109 (D) x 25 (H)
Weight (g) 282 g
Chassis Material Metal
Color Black
Operating Temperature 0 °C~40 °C
Storage Temperature −20 °C ~ 60 °C/−4 °F~140 °F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 18.3W

13
8.2 CAT5e/6/7 Cable Specication
Cable
Type
Range Pixel clock
rate
Video Data
Rate
Supported Video
CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps
(HD Video)
Up to 1080p, 60 Hz, 36
bits, 3D (data rates
lower than 5.3 Gbps
or below 225 MHz
TMDS clock).
70 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K×2K, 30Hz video
formats

14
9. ACRONYMS
ACRONYM COMPLETE TERM
4Kx2K 3840x2160 / 4096x2160
DTS Digital Theater System
EDID Extended Display Identication Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton,
Middlesex, TW17 8BA
Tel: [phone] | Fax: [phone]
Email: [email protected]
www.cypeurope.com
v1.00
