Topfield TF 4400 PVRt User manual

TOPFIELD
TF 4400 PVRt
User Guide
Digital Terrestrial Receiver
Personal Video Recorder

The lighting flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to consititute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.

iv Contents
Contents
Contents iv
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
2 Setup 7
2.1 Unpacking .............................. 7
2.2 Safety precautions ......................... 7
2.3 Rear panel connections ....................... 9
2.4 Connecting up your digital receiver ............... 10
2.4.1 Connecting the antenna .................. 11
2.4.2 Connecting to your television set ............ 11
2.4.3 Connecting to your video cassette recorder ....... 14
2.5 Switching on for the first time ................... 14
2.5.1 Inserting batteries in the remote control ......... 14
2.5.2 Powering on and checking picture ............ 15
3 Preference Settings 16
3.1 Language settings .......................... 16
3.2 Video and audio settings ...................... 18
3.2.1 Television standard .................... 18
3.2.2 Colour model ........................ 19

Contents v
3.2.3 Video cassette recorder .................. 19
3.2.4 Television aspect ratio ................... 20
3.2.5 Audio mode ........................ 20
3.2.6 Radio frequency output .................. 21
3.3 Local time setting .......................... 21
3.4 Parental control ........................... 23
3.5 Adjusting the on-screen display .................. 24
3.6 To turn on the time shift feature .................. 25
4 Service Search 26
4.1 Searching broadcasting services .................. 26
4.2 Resetting to factory settings .................... 27
5 Daily Usage 28
5.1 Volume control ........................... 28
5.2 Watching television ......................... 28
5.2.1 The services list ....................... 28
5.2.2 The favourite services list ................. 30
5.2.3 Viewing programme information ............ 30
5.2.4 Selecting audio tracks ................... 31
5.2.5 Selecting subtitle tracks .................. 32
5.2.6 Viewing teletext ...................... 32
5.3 Viewing electronic programme guide .............. 32
5.4 Using time shift ........................... 33
5.5 Using picture in picture ...................... 35
6 Listing Services 37
6.1 Editing the favourite list ...................... 37
6.2 How to use on-screen keyboard .................. 39
6.3 Transferring receiver data ..................... 39
7 Recording and Playing 41
7.1 Recording a programme ...................... 42
7.1.1 Instant recording ...................... 42
7.1.2 Timer recording ...................... 44
7.1.3 Scheduling recordings using the programme guide . . 47
7.1.4 Recording a time-shifted programme .......... 47

vi Contents
7.2 File archive ............................. 48
7.2.1 To delete a recording .................... 48
7.2.2 To sort recordings ..................... 49
7.2.3 To lock a recording ..................... 49
7.2.4 To rename a recording ................... 49
7.2.5 To make a new folder ................... 50
7.2.6 To move a recording to another folder .......... 50
7.3 Playing back a recording ...................... 50
7.3.1 To navigate using the progress bar ............ 51
7.3.2 To play in slow motion .................. 51
7.3.3 To play in fast motion ................... 51
7.3.4 To make a bookmark .................... 52
7.3.5 To play back a recording repeatedly ........... 52
7.3.6 To play back recordings in sequence ........... 53
7.4 Editing a recording ......................... 54
7.5 Copying a recording ........................ 54
7.6 Formatting the hard disk ...................... 55
8 Firmware Update 56
8.1 Checking the firmware information ............... 56
8.2 From your computer via RS-232 port ............... 58
8.3 From another digital receiver via RS-232 port .......... 59
Index 60

1
Chapter 1
Introduction
The TF 4400 PVRt digital receiver is fully compliant with the
international Digital Video Broadcasting (DVB) standard, and
thus is able to receive digital broadcasts of that standard. For
its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. Unlike ana-
logue broadcasts, however, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word service is preferably
used than channel as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 4400 PVRt digital receiver has the following features:
• Can store up to 2000 television and radio services.

2 Introduction
• You can create favourite lists of your favourite services.
• You can view information about the current television or
radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can record one service while you are currently watch-
ing another.
• The large storage capacity of the hard disk drive allows
you to record up to about 60 hours of television —in case
of 250 gigabytes— in excellent picture and sound quality.
• Time shift is a special technical feature available on the TF
4400 PVRt. You can pause the programme you are watch-
ing and resume it again at a later time. Then you can
quickly go to whatever part of the current programme by
fast foward or backward search.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.

1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY button switches the digital receiver between
standby mode and operation mode.
CH
c
,
a
buttons switch to previous or next service. They
are also used to navigate in menus and interactive
screens.
VOL
c
,
a
buttons decrease or increase the volume. They
are also used to change values for menu options.
TV/STB lamp lights up while your video recorder operates
instead of the digital receiver. See § 3.2.3 for more
details.
REMOTE lamp lights up whenever you press a button on
the remote control.
STANDBY lamp lights up while the digital receiver is in
standby mode.
Front display displays the current time in standby mode,
and displays the current service in operation mode.

4 Introduction
1.2.2 The remote control
1
 button switches the digital re-
ceiver between standby mode and
operation mode.
2
 mutes the sound. Press again
to switch it back on.
3




UHF displays the radio frequency
setting menu. See § 3.2.6 for more
details.
4
 switches the output of the TV
SCART socket between the digital
receiver and the device connected to
the VCR SCART socket. See § 3.2.3
for more details.
5
 is used to set a sleep timer in 10
minute increments.
6
 Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
7
 switches between the current
service and the previously viewed
one.
8
 displays the service information
box. It is also used to display more
information about a programme.
9




GUIDE displays the electronic programme guide.
10
 switches between television services and radio ser-
vices.
11




MENU displays the main menu. It is also used to return
to the previous menu from a submenu.

1.2 Controlling the digital receiver 5
12
 is used to select an audio track and a sound mode, or
a video track of multifeed programme.
13




V− ,




V+ buttons decrease or increase the volume. They
are also used to change values for menu options.
14




P− ,




P+ buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
15




OK displays the services list. See § 5.2.1 for more details.
It is also used to select a menu item.
16




FAV displays the favourite lists.
17
is used to select a subtitle track.
18




EXIT is used to exit the current screen.
19
displays teletext.
20
 is used to start reverse playback. Subsequent presses
increase the rewind speed.
21
 resumes normal playback speed, or displays the
progress bar for navigation on playback or time shift.
To play a recorded programme, see button 34.
22
 is used to start fast motion playback. Subsequent
presses increase the playback speed.
23
 is used to start slow motion playback. Subsequent
presses change the playback speed.
24
 is used to stop playback, to stop recording, or to jump
back to live television from time-shifted television.
25
is used to start recording.
26
 pauses live television or playback of a recorded pro-
gramme.

6 Introduction
27
 changes the position of sub-picture counterclockwise.
It is also used to jump back to beginnng of recording
during a playback.
28
 changes the position of sub-picture clockwise. It is
also used to jump to end of recording during a playback.
29




SAT swaps the sub-picture with the main picture. See
§5.5 for more details.
30
 is used to display, minify or hide the sub-picture. See
§5.5 for information about picture-in-picture.
31
is used to make a bookmark during playback or time
shift.
32
 is used to jump to next bookmark position or to jump
forward 30 seconds.
33
 is used to jump back 20 seconds for an instant replay.
It is also used to edit a recording.
34
 is used to display the list of recorded programmes
that are stored on the internal hard disk drive. See § 7.2
for more details.
35
 displays the services list for sub-picture. It is also used
to specify a block for editing or for repeated playback.
The , , , and buttons have additional different
functions per menu besides their own function. They will be
guided by on-screen help.

7
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• One loop cable to link the first tuner with the second
tuner
• One SCART-to-component cable
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.

8 Setup
• The mains power must be 90 to 250 volts. Check it before
connecting the digital receiver to the mains socket . For
the power consumption of the digital receiver, refer to
Table 2.1.
• The mains socket should be near the equipment. Do not
run an extension lead to the unit.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digi-
tal receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
• Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiver
and get the cord replaced.
• Never open the digital receiver casing under any circum-
stances, or the warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 25 W at maximum in operation
8 W in standby

2.3 Rear panel connections 9
Table 2.2: Physical specifications
Size 340×60×265 mm
Weight 3.4 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections
The TF 4400 PVRt has a wide range of connections on the back.
ANT 1
RF LOOP
1 OUT
RF LOOP
2 OUT AUDIO
L
R
S-VIDEO VCR
RF IN
S/PDIF RS-232
VIDEO
TV
RF OUT
ANT 2
1 3 5 8
112 4 6 12
10
139
7
Check what connections your television set has in comparison
with the digital receiver.
1
ANT 1 Terrestrial broadcasting signal input socket
for the first tuner.
2
RF LOOP 1 OUT Terrestrial broadcasting signal output
socket through the first tuner.
3
ANT 2 Terrestrial broadcasting signal input socket
for the second tuner.
4
RF LOOP 2 OUT Terrestrial broadcasting signal output
socket through the second tuner.
5
VIDEO Composite video output socket for the televi-
sion set. (yellow)
6
AUDIO L/R Stereo audio output socket for the television
set or the audio system. (white/red)

10 Setup
7
S-VIDEO Super video output socket for the television
set.
8
TV Audio and video output socket for the televi-
sion set.
9
VCR Audio and video input/output socket for the
video cassette recorder or suchlike.
10
RF OUT Analogue television output socket.
11
RF IN Analogue television input socket.
12
S/PDIF Dolby digital output socket for the audio sys-
tem.
13
RS-232 Serial port for firmware update and data
transfer.
Table 2.3: Connectors specifications
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
S-VIDEO Super video (S-Video) output
TV CVBS/S-Video/RGB/YUV video output
Left & right audio output
VCR CVBS video output
Left & right audio output
CVBS/S-Video/RGB/YUV video input for bypass
Left & right audio input for bypass
S/PDIF Dolby digital audio output
RS-232 115.2 kbps at maximum
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other appliances.
If you have any problem with your setup or need help, contact
your dealer.

2.4 Connecting up your digital receiver 11
2.4.1 Connecting the antenna
Whatever sort of connection you have be-
tween the digital receiver and the television,
you need to connect the digital receiver to
your television antenna so that it can receive
digital television services.
Connect the antenna cable to the ANT 1 con-
nector on the back panel of the digital re-
ceiver.
Also, you must ensure that there is a connec-
tion to both the ANT 1 and ANT 2 connectors
on your digital receiver, so that both tuners
work properly.

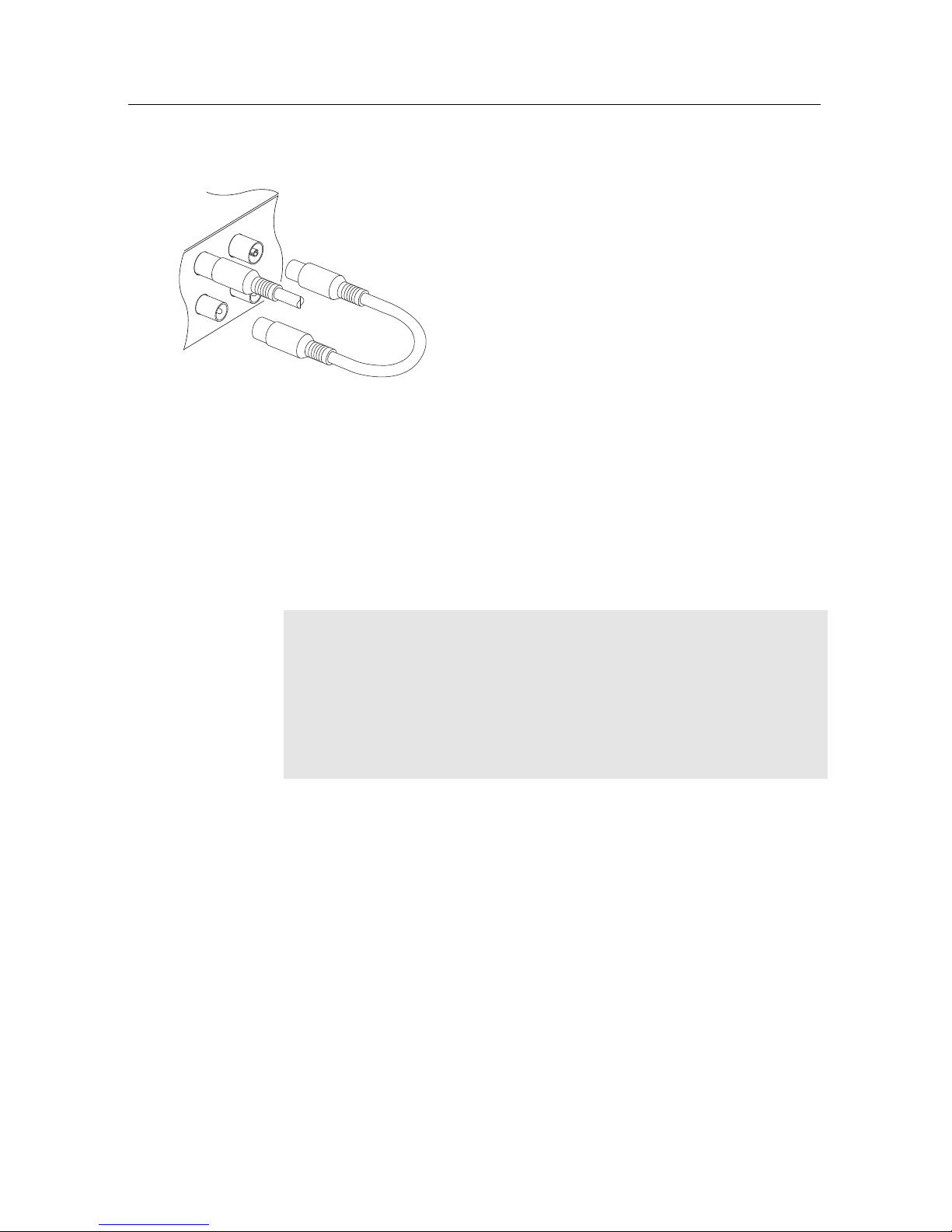

Normally you do that by using a loop cable to link from the RF
LOOP 1 OUT connector to the ANT 2 connector.
NOTE
However, if you are in a weak signal area, or are using a signal
amplifier with more than one output, you may achieve better
results by connecting a cable from the antenna or amplifier
directly to the ANT 2 connector rather than using the loop
cable.
If you have another digital receiver, or you want to still receive
analogue channels on your television, link it from the RF LOOP
2 OUT connector.
2.4.2 Connecting to your television set
Between all the following connectors of the digital receiver, we
recommend you to use the first connector to get best picture
quality. If your television does not have the matching connector,
then use the next connector in the following order for better
picture quality.
1. SCART connector (TV)

12 Setup
2. S-Video connector (S-VIDEO)
3. Composite connector (VIDEO)
4. RF connector (RF OUT)
You should configure audio and video settings after connecting
up the digital receiver. See § 3.2 for detailed description.

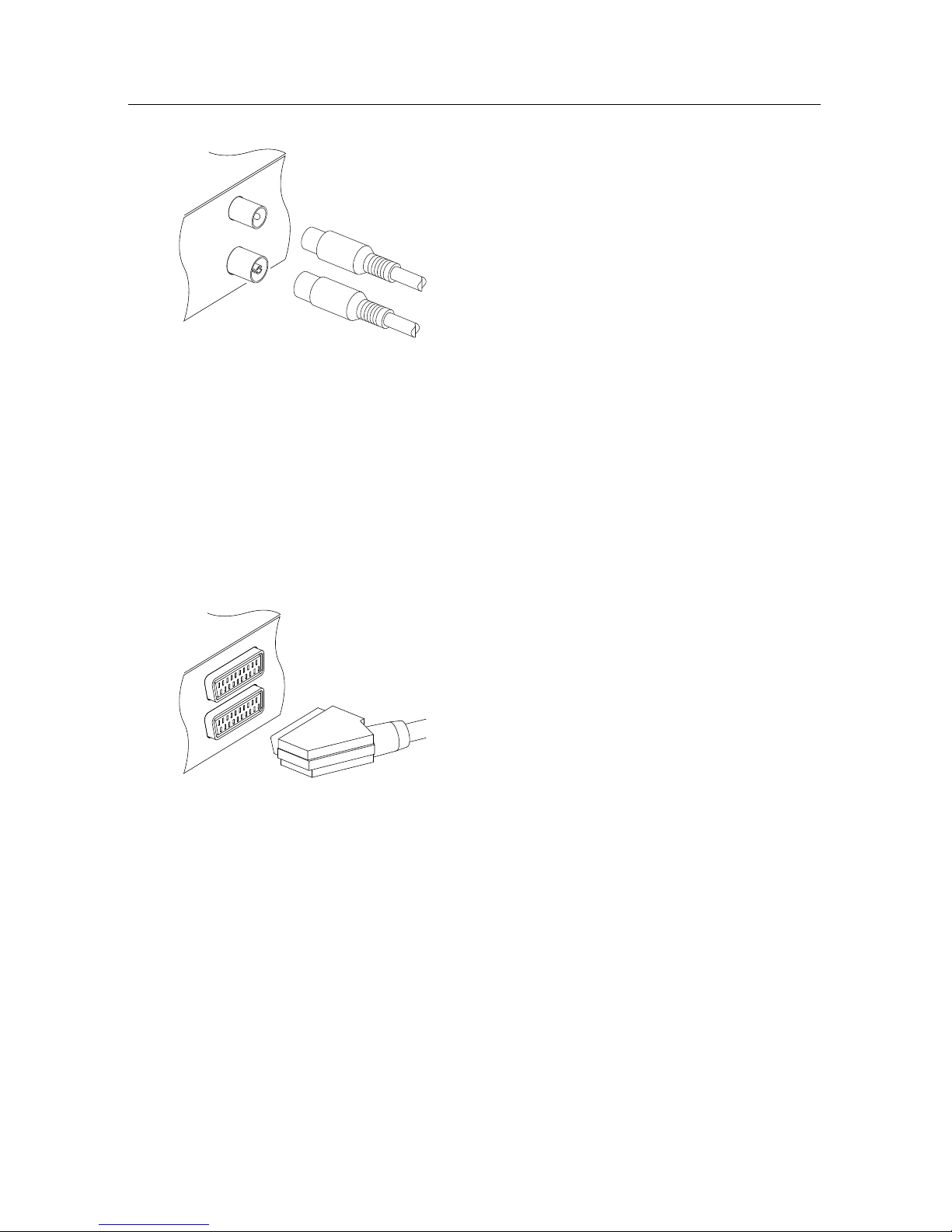

To use the SCART connector
For best results with a standard television set,
you should use a SCART cable. Plug one end
of the cable into the TV socket on the digital
receiver, and plug the other end into a free
SCART socket on your television.
Some televisions have inputs via S-Video or
Component connectors rather than SCART.
If you have such a television, use an appropriate conversion ca-
ble to link the TV socket on the digital receiver to the matching
socket on your television.
If you connect with a standard SCART cable, you do not have
to make audio connection because the SCART connector can
output stereo audio. But if you use a conversion cable, such as
SCART-to-Component, you have to make audio connection.
To use the S-Video connector
You need to obtain a S-Video cable to use
the S-Video connector. Plug one end of the
cable into the S-VIDEO socket on the digi-
tal receiver, and plug the other end into the
matching socket on your television.

2.4 Connecting up your digital receiver 13
To use the composite video connector
You need to obtain a composite video cable
(RCA cable) to use the composite video con-
nector. Plug one end of the cable into the
VIDEO (yellow) socket on the digital receiver,
and plug the other end into the matching
socket on your television.
To make the audio connection
You need to obtain an audio cable (RCA ca-
ble) to connect the audio connectors. Plug
one end of the cable into the AUDIO L (white)
and AUDIO R (red) sockets on the digital re-
ceiver, and plug the other end into the match-
ing sockets on your television or audio sys-
tem.
To enjoy Dolby digital audio, your televi-
sion or audio system must be able to decode
Dolby digital audio, and you need to obtain a
S/PDIF cable. Plug one end of the cable into
the S/PDIF socket on the digital receiver, and
plug the other end into the matching socket
on your audio system.
To use the RF connector
If your television does not have any video and audio input, you
will need to use the radio frequency output from the digital
receiver.

14 Setup
In this case, you will need to connect a ca-
ble from the RF OUT socket to the antenna
connector on your television. To ensure your
television can also pick up existing analogue
channels as well, you will need to connect
a cable from RF LOOP 2 OUT connector on
the back of the digital receiver to the RF IN
connector.
Tune your television set to channel 36 so that
you can see the output from the digital re-
ceiver.
2.4.3 Connecting to your video cassette recorder
The digital receiver can also output video to another appliance
such as a video cassette recorder through an auxiliary SCART
connector.
You need to obtain a SCART cable to use the
auxiliary SCART connector. Plug one end of
the cable into the VCR socket on the digital re-
ceiver, and plug the other end into the match-
ing socket on your video cassette recorder or
suchlike.
2.5 Switching on for the first time
Now that you have your digital receiver connected, you should
plug it into a mains socket. Ensure that your television set is
turned on, so that you will be able to see the display from the
digital receiver.
2.5.1 Inserting batteries in the remote control
To insert the batteries, open the battery compartment by remov-
ing the lid, and then insert the batteries observing the polarity,
which is marked on the base of the battery compartment.
