Topfield TF 4000 PVR Plus User manual

TOPFIELD
TF 4000 PVR Plus
User Guide
Digital Satellite Receiver
Personal Video Recorder

Contents iii
Contents
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
1.3 What is common interface? .................... 6
2 Setup 8
2.1 Unpacking .............................. 8
2.2 Safety precautions ......................... 8
2.3 Rear panel connections ....................... 10
2.4 Connecting up your digital receiver ............... 11
2.4.1 Connecting the antenna .................. 12
2.4.2 Connecting to your television .............. 13
2.4.3 Connecting to your video cassette recorder ....... 14
2.5 Switching on for the first time ................... 15
2.5.1 Inserting batteries in the remote control ......... 15
2.5.2 Powering on and checking picture ............ 15

iv Contents
3 Preference Settings 17
3.1 Language settings .......................... 17
3.2 Video and audio settings ...................... 19
3.2.1 Television standard .................... 19
3.2.2 Colour model ........................ 19
3.2.3 Video cassette recorder .................. 20
3.2.4 Television aspect ratio ................... 20
3.2.5 Sound mode ........................ 21
3.3 Local time setting .......................... 21
3.4 Parental control ........................... 24
3.5 Adjusting the on-screen display .................. 25
3.6 To turn on the time shift feature .................. 25
4 Service Search 26
4.1 Searching broadcasting services .................. 26
4.1.1 Configuring LNB settings ................. 26
4.1.2 Configuring DiSEqC 1.2 settings ............. 29
4.1.3 Configuring USALS settings ............... 30
4.1.4 Searching services ..................... 32
4.2 Copying services .......................... 35
4.3 Resetting to factory settings .................... 35
5 Daily Usage 36
5.1 Volume control ........................... 36
5.2 Watching television ......................... 36
5.2.1 The services list ....................... 36
5.2.2 The favourite services list ................. 39
5.2.3 Viewing programme information ............ 40
5.2.4 Selecting audio tracks ................... 41
5.2.5 Selecting subtitle tracks .................. 41

Contents v
5.2.6 Viewing teletext ...................... 41
5.3 Viewing electronic programme guide .............. 41
5.4 Watching multifeed programme ................. 42
5.5 Using time shift ........................... 43
5.6 Using picture in picture ...................... 44
6 Listing Services 46
6.1 Editing the services list ....................... 46
6.2 Editing the favourite list ...................... 48
6.3 How to use on-screen keyboard .................. 50
6.4 Transferring receiver data ..................... 50
6.5 Editing channel data on your computer ............. 51
6.5.1 Editing satellite and transponder list .......... 52
6.5.2 Editing television and radio services list ........ 55
6.5.3 Editing favourite list .................... 56
7 Recording and Playing 58
7.1 Recording a programme ...................... 59
7.1.1 Instant recording ...................... 59
7.1.2 Current programme recording .............. 62
7.1.3 Timer recording ...................... 64
7.1.4 Scheduling a recording using the programme guide . 67
7.1.5 Recording a time-shifted programme .......... 68
7.1.6 Recording a pay service programme ........... 69
7.2 File archive ............................. 69
7.2.1 To delete a recording .................... 70
7.2.2 To sort recordings ..................... 71
7.2.3 To lock a recording ..................... 72
7.2.4 To rename a recording ................... 73
7.2.5 To make a new folder ................... 74

vi Contents
7.2.6 To move a recording to another folder .......... 75
7.3 Playing back a recording ...................... 75
7.3.1 To navigate using the progress bar ............ 76
7.3.2 To play in slow motion .................. 77
7.3.3 To play in fast motion ................... 78
7.3.4 To make a bookmark .................... 79
7.3.5 To play back a recording repeatedly ........... 80
7.3.6 To play back recordings in sequence ........... 81
7.3.7 To play back a scrambled recording ........... 82
7.4 Editing a recording ......................... 82
7.5 Copying a recording ........................ 83
7.6 Formatting the hard disk ...................... 83
8 Firmware Update 84
8.1 Checking the firmware information ............... 84
8.2 From your computer via RS-232 port ............... 86
8.3 From another digital receiver via RS-232 port .......... 87
8.4 Over the air ............................. 88
Index 89

1
Chapter 1
Introduction
The TF 4000 PVR Plus digital receiver is fully compliant with
the international Digital Video Broadcasting (DVB) standard,
and can receive digital broadcasts. For its operation you need
an antenna, which must be installed appropriately.
NOTE
In general we equate a channel with a frequency. Unlike ana-
logue broadcasts, however, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word service is preferably
used than channel as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 4000 PVR Plus digital receiver has the following fea-
tures:
• Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-
ALS.

2 Introduction
• Can store up to 5000 television and radio services.
• You can edit the services list.
• You can create favourite lists of your favourite services.
• You can view information about the current television or
radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can update the firmware of the digital receiver to the
latest version, provided by the manufacturer.
• You can record one broadcasting service while you are
currently watching another.
• The large storage capacity of the built-in hard disk drive
allows you to record up to about 60 hours of television
—in case of 250 gigabytes— in excellent picture and sound
quality.
• Time shift is a special technical feature available on the
TF 4000 PVR Plus. You can pause the programme you
are watching and resume it again at a later time. Then
you can quickly go to whatever part of the current pro-
gramme by fast foward and rewind search.
1.2 Controlling the digital receiver
The digital receiver can be operated with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.

1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY lamp lights up while the digital receiver is in
standby mode.
TV/STB lamp lights up while your video recorder operates
instead of the digital receiver. See § 3.2.3 for more
details.
REMOTE lamp lights up whenever you press a button on
the remote control.
STANDBY button switches the digital receiver between
standby mode and operation mode.
CH
c
,
a
buttons switch to previous or next service. They
are also used to navigate in menus and interactive
screens.
VOL
c
,
a
buttons decrease or increase the volume. They
are also used to change values for menu options.
Front display displays the current time in standby mode,
and displays the current service in operation mode.

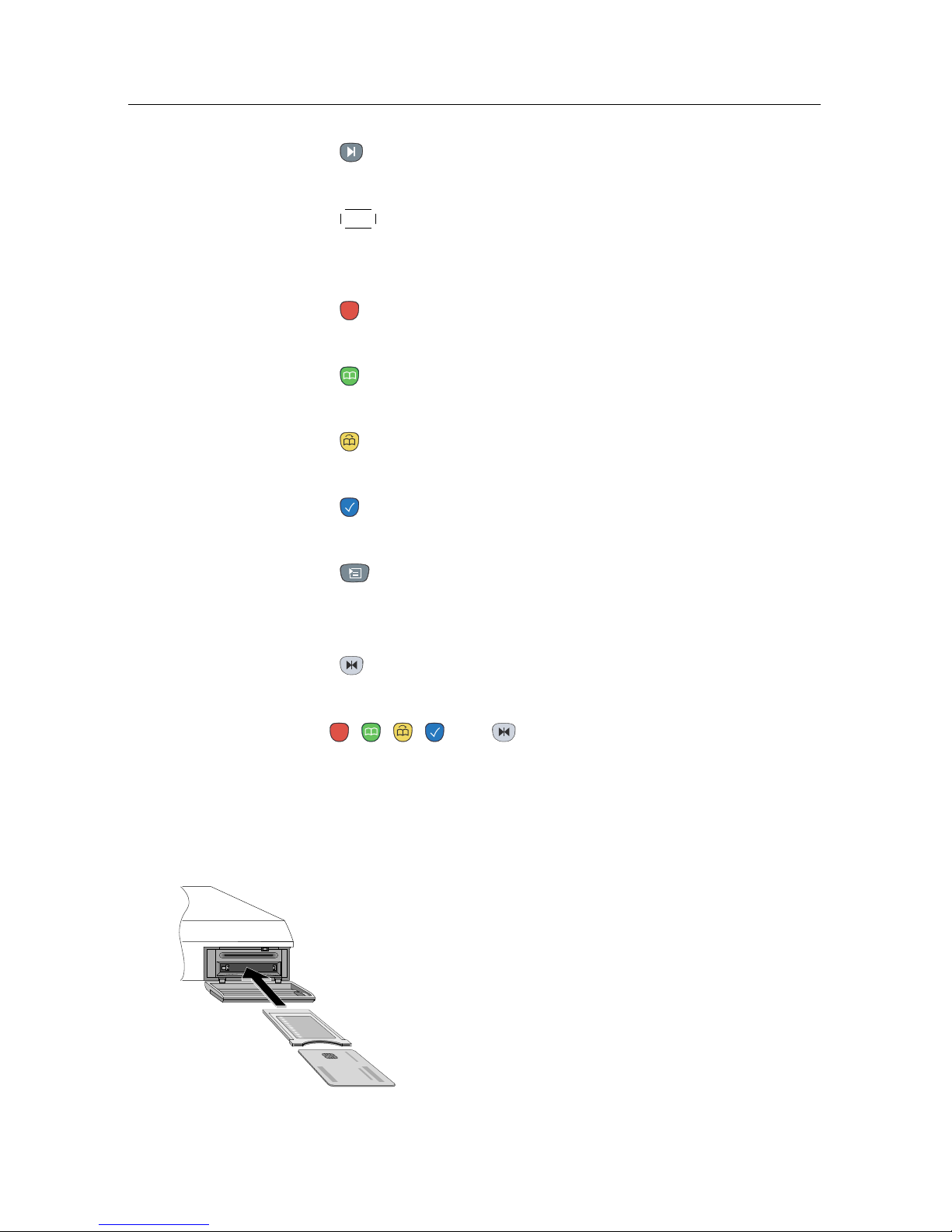

Pull the right edge of the front panel to open the flap. You have
to insert your subscription card into the front slot to watch pay
services.

4 Introduction
1.2.2 The remote control
1

button switches the digital re-
ceiver between standby mode and
operation mode.
2

mutes the sound. Press again to
switch it back on.
3




UHF is not used in this model.
4

switches the output of the TV
SCART socket between the digital
receiver and the device connected to
the VCR SCART socket. See § 3.2.3
for more details.
5
is used to set a sleep timer.
6

Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
7

switches between the current
service and the previously viewed
one.
8

displays the service information
box. It is also used to display more
information about a programme.
9




GUIDE displays the electronic programme guide.
10

switches between television services and radio ser-
vices.
11




MENU displays the main menu. It is also used to return
to the previous menu from a submenu.
12

is used to select an audio track and a sound mode, or
a video track of multifeed programme.

1.2 Controlling the digital receiver 5
13




V− ,




V+ buttons decrease or increase the volume. They
are also used to change values for menu options.
14




P− ,




P+ buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
15




OK displays the services list. See § 5.2.1 for more details.
It is also used to select a menu item.
16




FAV displays the favourite lists.
17
is used to select a subtitle track.
18




EXIT is used to exit the current screen.
19
displays teletext.
20

is used to start reverse playback. Subsequent presses
increase the rewind speed.
21

resumes normal playback speed, or displayes the
progress bar for navigation on playback or time shift. To
play a recorded programme, see button 34.
22

is used to start fast motion playback. Subsequent
presses increase the playback speed.
23

is used to start slow motion playback. Subsequent
presses change the playback speed.
24

is used to stop playback, to stop recording, or to jump
back to live television from time-shifted television.
25
is used to start recording.
26

pauses live television or playback of a recorded pro-
gramme.
27

changes the position of sub-screen counterclockwise.
It is also used to jump back to beginnng of recording
during a playback.

6 Introduction
28

changes the position of sub-screen clockwise. It is also
used to jump to end of recording during a playback.
29




SAT displays the satellite list with their services list. It is
also used to swap the sub-picture with the main picture.
See § 5.6 for more details.
30

is used to display, minify or hide the sub-screen. See
§5.6 for information about picture-in-picture.
31

is used to make a bookmark during playback or time
shift.
32

is used to jump to next bookmark position or to jump
forward by 30 seconds.
33

is used to jump back 10 seconds for an instant replay.
It is also used to edit a recording.
34

is used to display the list of recorded programmes
that are stored on the internal hard disk drive. See § 7.2
for more details.
35

displays the services list for sub-screen. It is also used
to specify a block for editing or for repeated playback.
The , , , and buttons have additional different
functions per menu besides their own function. They will be
guided by on-screen help.
1.3 What is common interface?
Some broadcasts are scrambled so that only paid
subscribers can enjoy them. Scrambled services
can only be viewed with a Conditional Access
Module (CAM) and a subscription card belong-
ing with the scrambling system.
Common Interface (CI) is the slot on a digitial
receiver into which a conditional access module
may be insterted. The front of the digital receiver
has two common interfaces.

1.3 What is common interface? 7
To watch a pay service, you should take the following steps:
1. Purchase a conditional access module and a subscription
card for the pay service you want to watch.
2. Insert the subscription card into the conditional access
module.
3. Insert the conditional access module into a common in-
terface on the front of the digital receiver.
To view the information about
the module and subscription
card inserted into the digital re-
ceiver, select the Common Inter-
face menu. You should see a
screen like the left figure.

8 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• User manual
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
• The mains power must be 90 to 250 volt. Check it before
connecting the digital receiver to the wall outlet. For
the power consumption of the digital receiver, refer to
Table 2.1.

2.2 Safety precautions 9
• The wall outlet should be near the equipment. Do not
run an extension lead to the unit.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digi-
tal receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
• Protect the power cord from being walked on or pinched.
If the wires are exposed or the cord is damaged, do not
use the digital receiver and get the cord replaced.
• Never open the digital receiver casing under any circum-
stances. The warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 55 W at maximum in operation
10 W in standby
Table 2.2: Physical specifications
Size 340×60×265 mm
Weight 3.4 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 95 %

10 Setup
2.3 Rear panel connections
The TF 4000 PVR Plus has a wide range of connections on the
back panel.
RS-232S/PDIFVCR
TV
IF 2 OUT
LNB 2 IN
IF 1 OUT
LNB 1 IN
VIDEO
AUDIO
R
L
1
2
3
4
5
6
7
8 9 10
Check what connections your television set has in comparison
with the digital receiver.
1
LNB 1 IN
Satellite broadcasting signal input socket for
the first tuner.
2
IF 1 OUT
Satellite broadcasting signal output socket
through the first tuner.
3
LNB 2 IN
Satellite broadcasting signal input socket for
the second tuner.
4
IF 2 OUT
Satellite broadcasting signal output socket
through the second tuner.
5
VIDEO
Composite video output socket for the televi-
sion set. (yellow)
6
AUDIO L/R
Stereo audio output socket for the television
set or the audio system. (white/red)
7
TV
Audio and video output socket for the televi-
sion set.
8
VCR
Audio and video input/output socket for the
video cassette recorder or suchlike.

2.4 Connecting up your digital receiver 11
9
S/PDIF
Dolby digital output socket for the audio sys-
tem.
10
RS-232
Serial port for firmware update and data
transfer.
Table 2.3: Connectors specifications
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
TV CVBS/S-Video/RGB/YUV video output
Left & right audio output
VCR CVBS video output
Left & right audio output
CVBS/S-Video/RGB video input for bypass
Left & right audio input for bypass
S/PDIF Dolby digital audio output
RS-232 115.2 kbps at maximum
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other appliances.
If you have any problem with your setup or need help, contact
your dealer.

12 Setup
2.4.1 Connecting the antenna
Whatever sort of connection you have be-
tween the digital receiver and the television,
you need to connect the digital receiver to
your television antenna so that it can receive
digital television services.

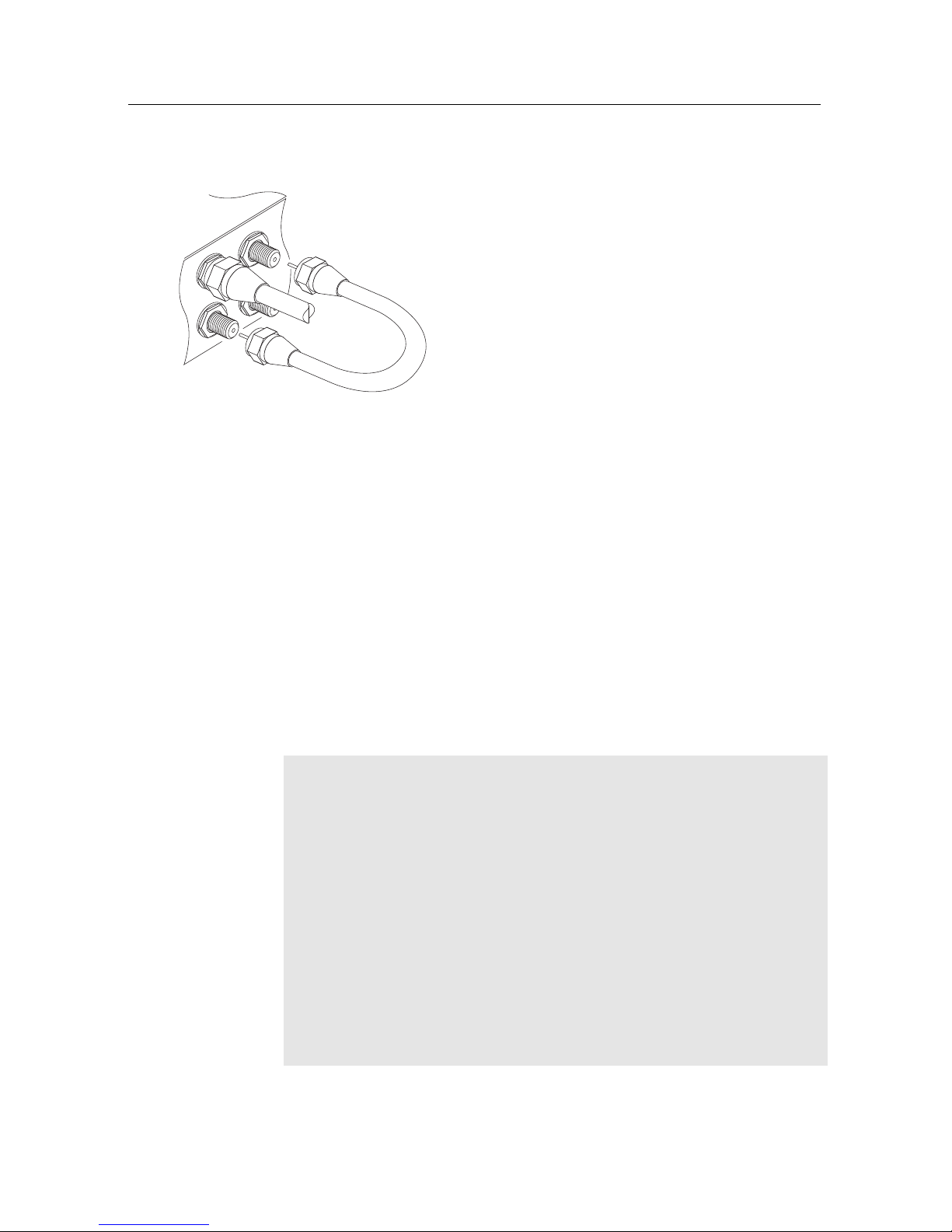

Connect the antenna cable to the LNB 1 IN
connector on the back panel of the digital
receiver.
Also, you must ensure that there is a con-
nection to both the LNB 1 IN and LNB 2 IN
connectors on your digital receiver, so that
both tuners work properly.
Normally you do that by using a loop cable to link from the IF
1 OUT connector to the LNB 2 IN connector.
If you have two antennas without DiSEqC switch, then you
have to connect a cable from the other antenna directly to
the LNB 2 IN connector rather than using the loop cable. If
you have another digital receiver, link it from the IF 2 OUT
connector.
NOTE
The digital receiver can supply a current of 500 milliampere at
maximum for antenna devices including LNB, DiSEqc switch
and antenna rotor through each antenna input connection sepa-
rately but not simultaneously. So if there are too many antenna
devices to be supplied with power through antenna input con-
nections simultaneously for a long time, your LNBs may lack
power to operate. So it is recommended to link the IF 1 OUT
connector to the LNB 2 IN connector with a loop cable even
though the digital receiver is designed to operate over two
antennas alternatively.

2.4 Connecting up your digital receiver 13
2.4.2 Connecting to your television
Between all the following connectors of the digital receiver, we
recommend you to use the first connector to get best picture
quality. If your television does not have the matching connector,
then use the next connector in the following order for better
picture quality.
1. SCART connector (TV)
2. Composite connector (VIDEO)
You should configure audio and video settings after connecting
up the digital receiver. See § 3.2 for detailed description.

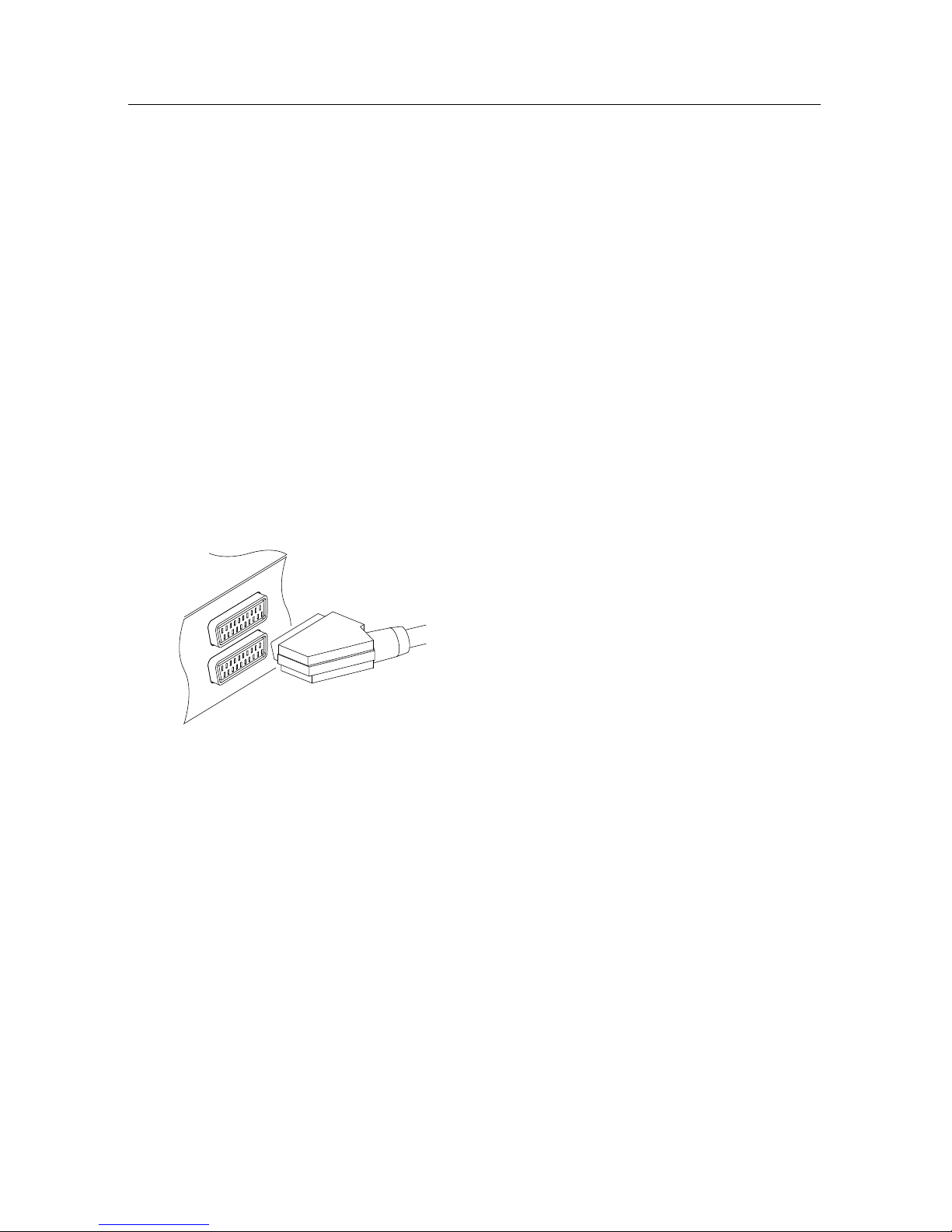

To use the SCART connector
For best results with a standard television set,
you should use a SCART cable, plugging one
end into the TV socket on the digital receiver
and the other end into a free SCART socket
on your television.
Some televisions have inputs via Component
connector or S-Video connector rather than
SCART.
If you have such a television, use an appropriate conversion ca-
ble to link the TV socket on the digital receiver to the matching
socket on your television.
If you connect with a standard SCART cable, you do not have
to make audio connections because the SCART connector can
output stereo audio. But if you use a conversion cable, such as
SCART-to-Component, you have to make audio connections.

14 Setup

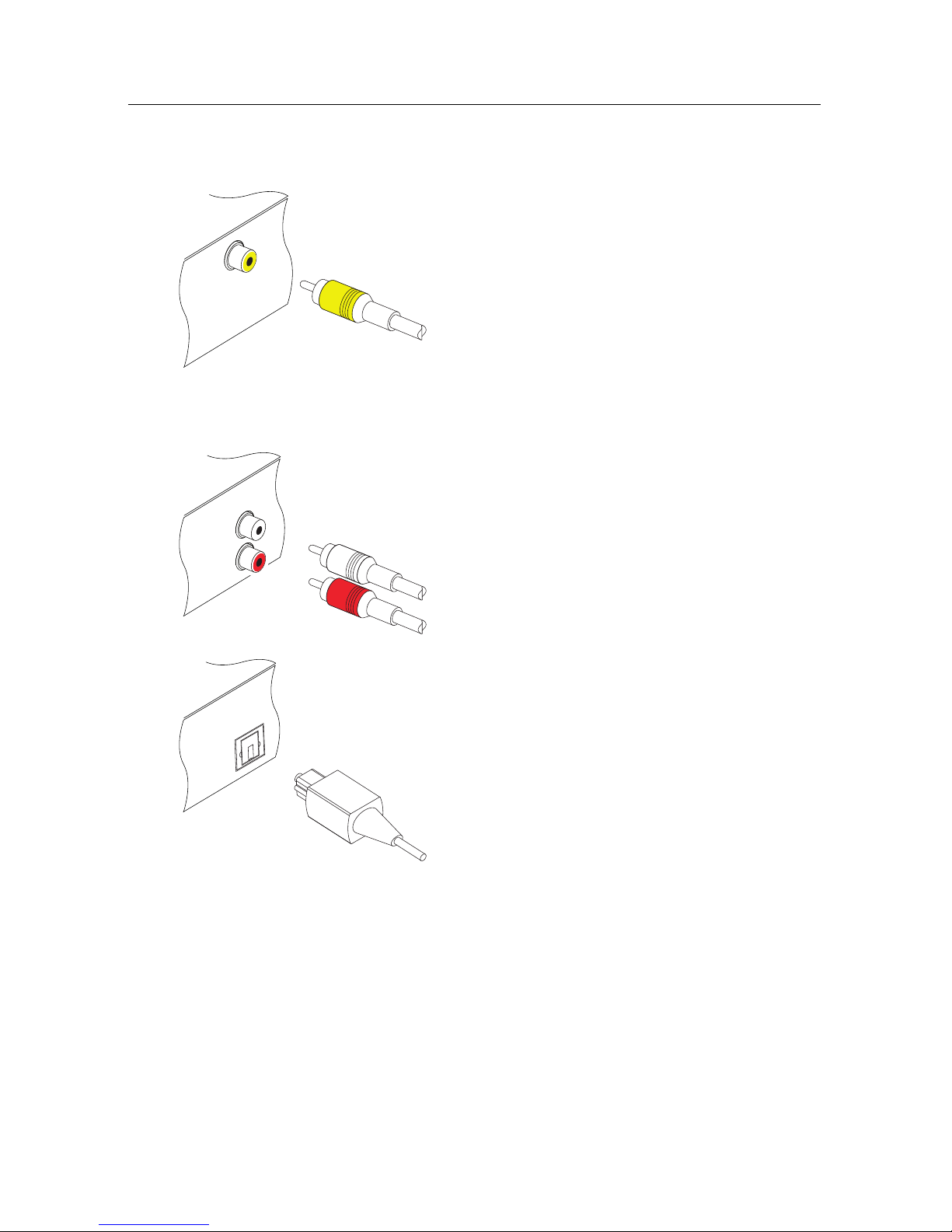

To use the composite video connector
You will need to obtain a composite video
cable (RCA cable) to use the composite video
connector. Plug one end of the cable into the
VIDEO (yellow) socket on the digital receiver,
and the other end into the matching socket
on your television.
To connect the audio connectors
You will need to obtain an audio cable (RCA
cable) to connect the audio connectors. Plug
one end of the cable into the AUDIO L (white)
and AUDIO R (red) sockets on the digital re-
ceiver, and the other end into the matching
sockets on your television or audio system.
To enjoy Dolby digital audio, your televi-
sion or audio system must be able to decode
Dolby digital audio, and you will need to ob-
tain a S/PDIF cable. Plug one end of the
cable into the S/PIDF socket on the digital
receiver, and the other end into the matching
socket on your audio system.
2.4.3 Connecting to your video cassette recorder
The digital receiver can also output video to another appliance
such as a video cassette recorder or video receiver through an
auxiliary SCART connector.
