MANUAL
Searchlights
DHR 260
Deck operated
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
TOPLICHT
Art-Nr. Typ Ausführung/Leuchtmittel Spannung Leistung
Reichweite
3322-222 260DS024 Scheinwerfer/Halogen 24V 24 V 250W 1100 m
3322-224 260DS220 Scheinwerfer/Halogen 24V 230 V 250W 1100 m
3322-522 260DS070 Scheinwerfer/Metall Halide 230V 200 W 1800 m
3321-102 Halogenlampe M35 24 V 250W
3322-103 Standrohr 800 mm

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 2 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the directives
73/23/EEC and 93/68/EEC.
5 November 2004
Introduction
Den Haan Rotterdam, specialist in developing and manufacturing navigation lights for ships
since 1922. Besides, 40 years active in producing searchlights for pleasure craft, inland trade
and seagoing vessels.
Co-workers of Den Haan Rotterdam got more and more interest in a wider assortment of high
quality searchlights. Much attention has been paid to the wishes of our very valued customers
After a time-consuming development, the use of exclusive seawater resistant materials, and
electrical construction conform the directives 73/23/EEC and 93/68/EEC, now the searchlight is
ready to put on the market.
Voorwoord
Den Haan Rotterdam, specialist in het ontwikkelen en produceren van navigatieverlichting sinds
1922. Daarnaast reeds 40 jaar actief in de fabricage van zoeklichten voor de plezier-, binnen- en
zeevaart.
Bij de medewerkers van Den Haan ontstond een steeds grotere interesse voor een breder
assortiment kwalitatief hoogwaardige zoeklichten. Veel aandacht is besteed aan de geuite wensen
van onze zeer gewaardeerde afnemers.
Na een tijdrovende ontwikkeling, het gebruik van uitsluitend zeewaterbestendige materialen, de
elektrische constructie volgens de richtlijnen 73/23/EEG en 93/68/EEG, achten wij het zoeklicht
thans geschikt om op de markt te brengen.
Den Haan Rotterdam BV
M. den Haan
Managing director / Directeur
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 3 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the directives
73/23/EEC and 93/68/EEC.
Table of contents
Introduction..................................................................................................................2
Table of contents ...........................................................................................................3
Safety notes ..................................................................................................................4
Mounting instructions.....................................................................................................4
Maintenance.................................................................................................................. 5
Lamp replacement ...................................................................................................5
Preventive maintenance ...........................................................................................5
Technical specification....................................................................................................6
Guarantee .....................................................................................................................7
Annex 1 – Dimensions Searchlight DHR 260 – Deck operated ................................................8

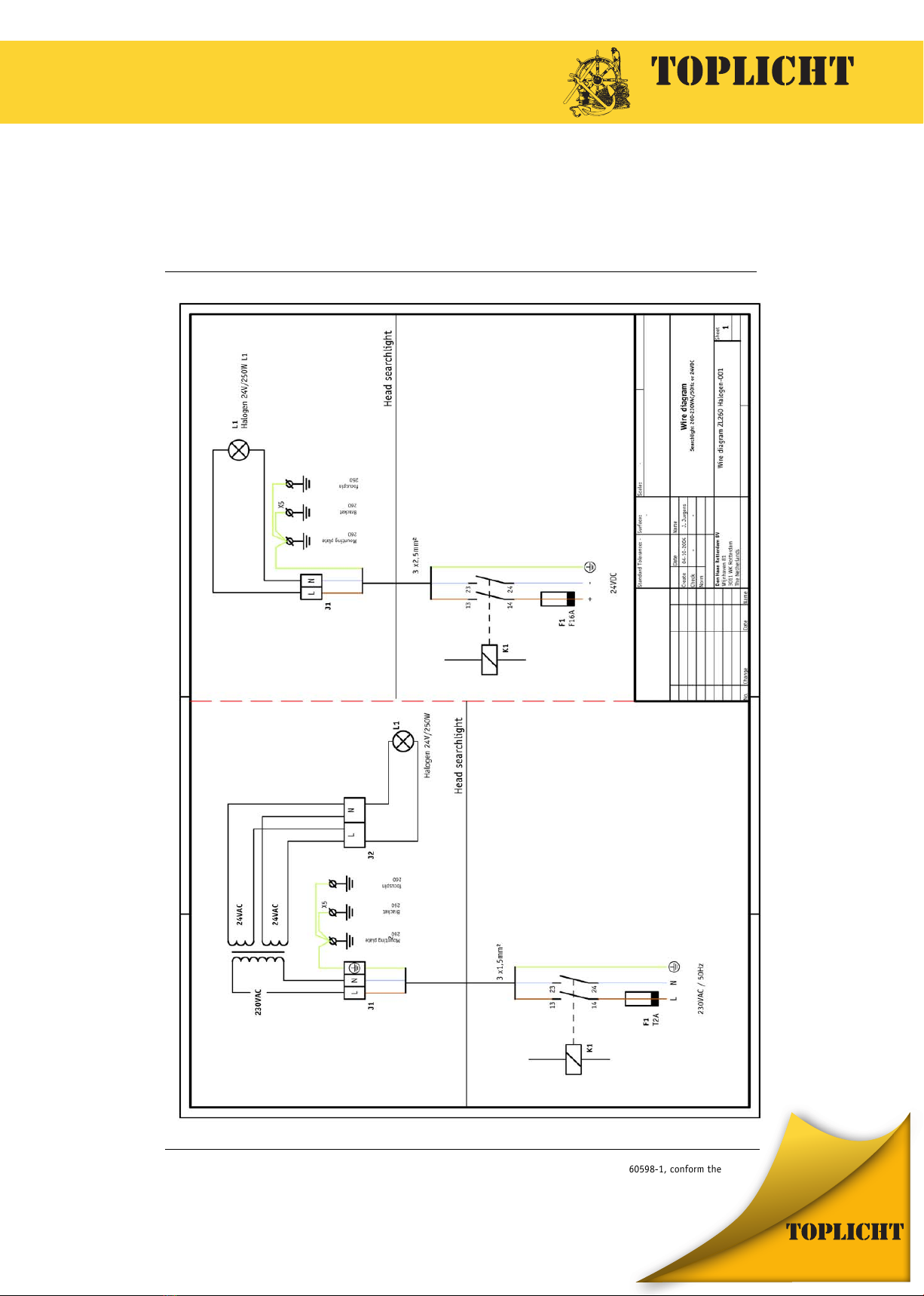

Annex 2 – Wire diagram with halogen lamp........................................................................9

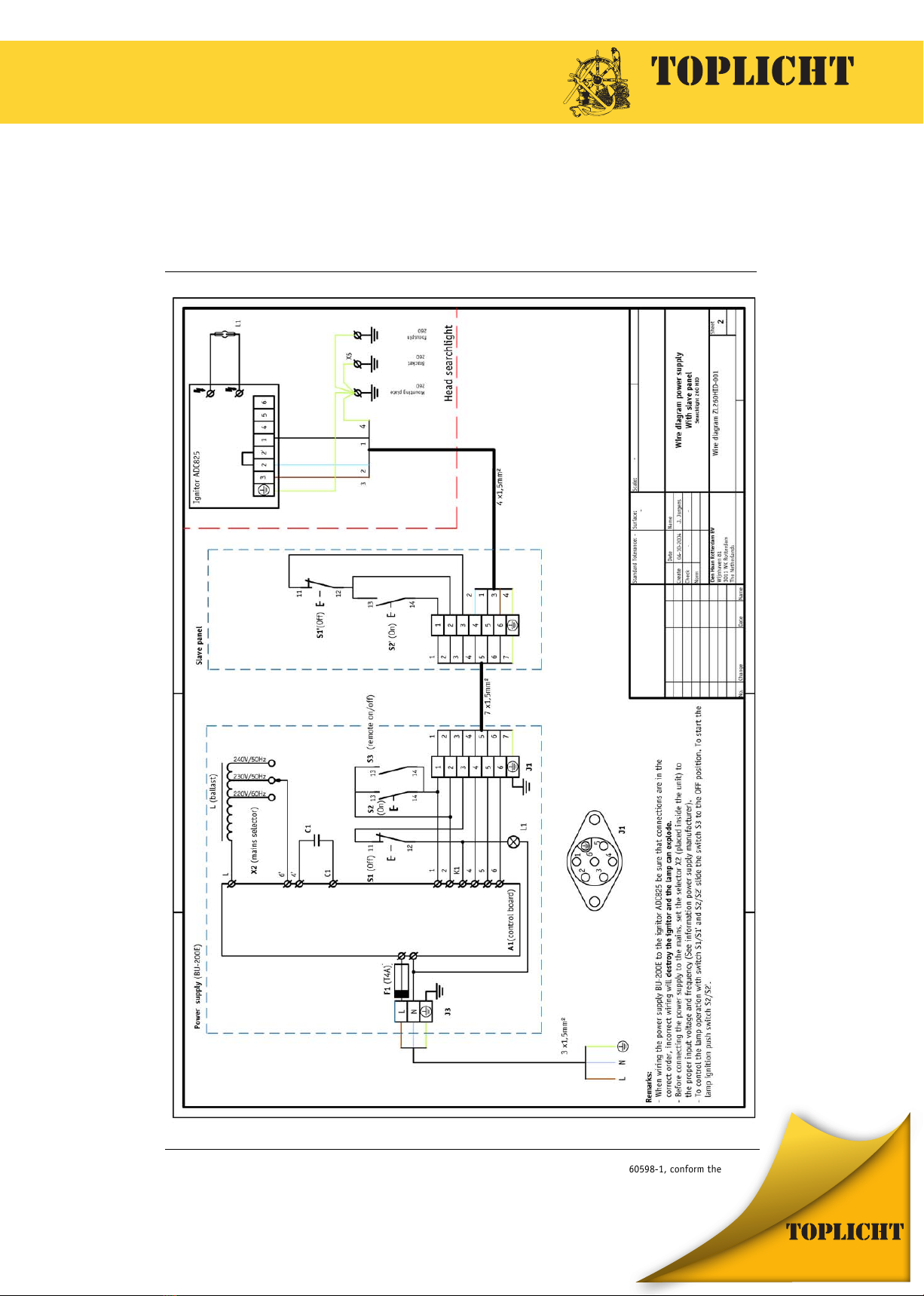

Annex 3 – Wire diagram with metal halide lamp - slave panel ............................................. 10

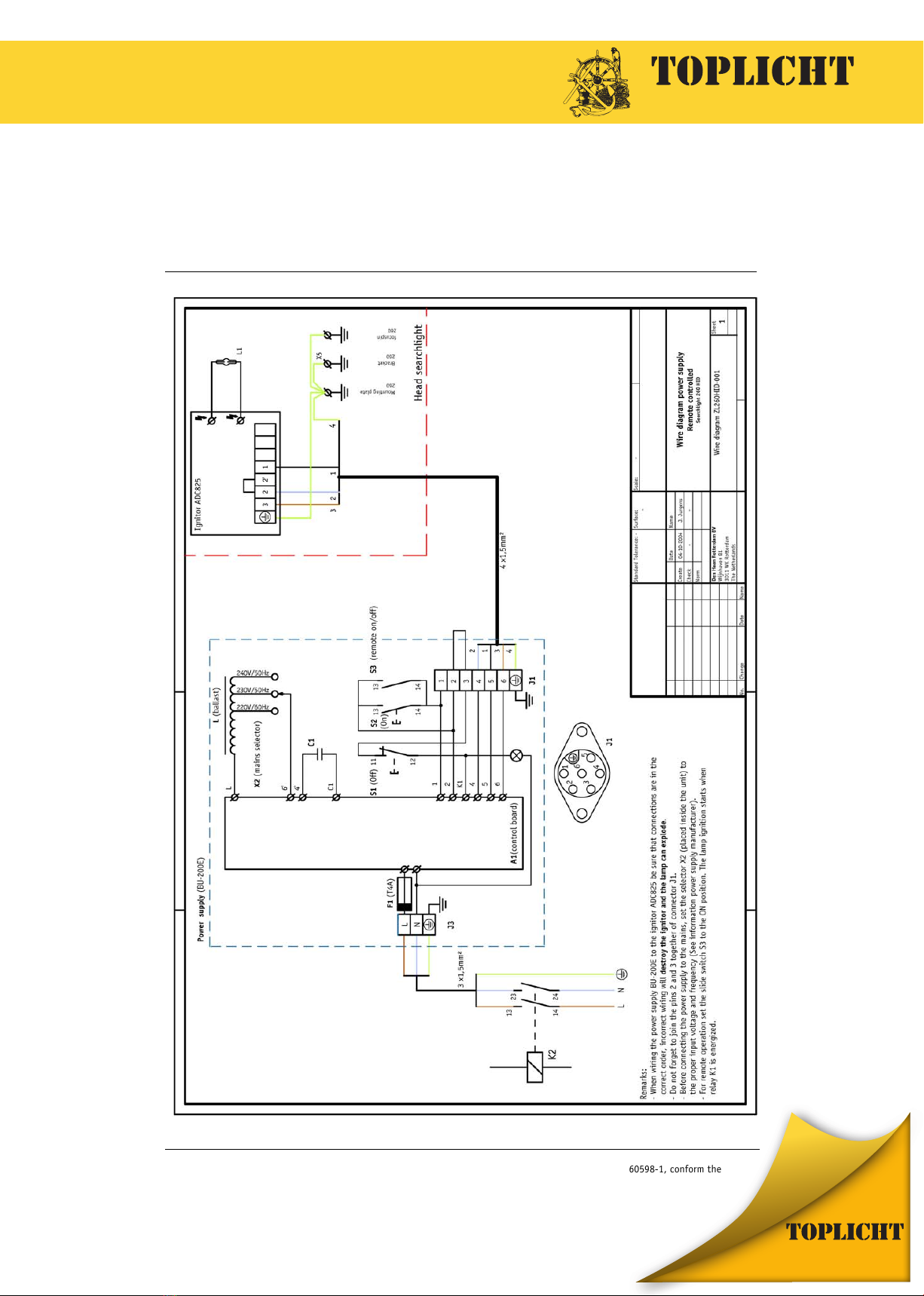

Annex 4 – Wire diagram with metal halide lamp - remote controlled .................................... 11
Annex 5 – Spare parts DHR260DS - With halogen lamp 250W .............................................. 12
Annex 6 – Spare parts DHR260DS - With metal halide lamp................................................. 13
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 4 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the directives
73/23/EEC and 93/68/EEC.
Safety notes
WARNING
Risk of electrical shock
- Turn power off before inspection, installation or removal
Risk of fire
- Keep combustible materials away from lamp
Pressurized lamp—unexpected rupture may cause injury, fire, or property damage
- Use eye protection when handling lamp
- Do not touch glass with bare hands
- Do not use lamp if outer glass is scratched or broken
- Operate lamp only in specified position
- Do not exceed 105% of rated voltage
CAUTION
Risk of burn
- Allow lamp/fixture to cool before handling
- Turn power off before installing lamp
Lamp may shatter and cause injury if broken
- Do not use lamp if outer glass is scratched or broken
- Dispose of lamp in a closed container
- Wear safety glasses and gloves when handling lamp
The metal halide lamp emits UV radiation which may cause eye/skin injury
- Turn power off, if front UV-filter glass is broken and replace the front glass.
Mounting instructions
1) Before placing the searchlight be sure that there is plenty of space for the head to move in
any direction. For dimensions see annex 1
2) Drill the mounting holes according to annex 1.
3) Install the electrical wiring according to annex . Keep the distance between the power
supply and lamp as sort as possible. Long wires will increase the voltage drop near the lamp,
decreasing the light output.
Warning
Den Haan Rotterdam accepts no responsibility for any damage if the searchlight is
installed and / or used improper. When in doubt consult a qualified electrical
technician.
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 5 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the directives
73/23/EEC and 93/68/EEC.
Maintenance
Lamp replacement
1. Switch off the main power
Caution – hot lamp. Let the lamp cool down, wait for at least 10 minutes before going
further
2. Open the drum
3. Pull the lamp out of the lamp holder
4. Ensure that the replacement lamp is of the same type
5. Take a clean cloth to place the new lamp in the lamp holder
(Do not touch the lamp with bare fingers, remove any fingertips with alcohol and rub it
dry)
6. Check the silicone sealing of the front glass and rub it in with talcum powder
7. Close the drum
8. The searchlight is ready for use
It is highly recommended by the lamp manufacturer that de metal halide lamp is
replaced after 400 hour of service, in view of the increased shattering risk.
Preventive maintenance
Clean the searchlight with clean water regularly. Do not use any aggressive cleaning agents.
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 6 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the directives
73/23/EEC and 93/68/EEC.
Technical specification
• Tilt : + 55° / - 35°
• Materials:
- Material : Seawater resistant Aluminium - yellow chromatted
- Finish : UV-resistant ‘qualicoat’ powder coating, white RAL 9016
- Sealing : Silicone, natural
- Glass : - Therm. toughened glass 267 x 4 mm
- With metal halide lamp: UV-filter glass 267 x 4 mm
- Reflector : Parabolic mirror 260/50 (normal beam)
Parabolic mirror 260/90 (narrow beam)
- Cable : Head resistant cable 3 x 1,5 mm²
(with metal halide lamp 4 x 1,5 mm²)
- Cable glands : PG 13,5
• Electrical insulation class : I
• Protection class : Min. IP 66 c/w membrane vent
• Ambient temperature : -25°C / + 40°C
Pmax.(lamp) : Metal halide lamp, 200W
Halogen lamp 250W
• Unom. (dependant on type lamp) : 230VAC or 24VDC
• Metal halide lamp (Narrow Beam)
- Light intensity : 3.300.000 cd
- Angle of divergence : 2,2°
- Range : 1800 metre
• Halogen lamp 24V – 250W
- Light intensity : 1.200.000 cd
- Angle of divergence : 4,4°
- Range : 1100 metre
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 7 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the directives
73/23/EEC and 93/68/EEC.
Guarantee
For this DHR deck operated searchlight we grant a guarantee of 2 years. The guarantee begins
with the day when the equipment is sold or before, when it is operated for the first time. The
presentation of your invoice is your warranty.
Our guarantee covers faults in material or defects of fabrication. Our guarantee does not apply
to claims of which the cause is due to installation and operation faults, inexpert attempts to
repair, as well as to all damages due to wear and tear on parts subject to wear.
In our fabrication first quality, seawater resistant material is worked. If nevertheless, the unit
should give reason for a justified complaint, then you have, after our choice, a claim for the
retouching or replacement of the defective parts free of charge. Repair work under guarantee
will only be performed at our facilities or a company, duly authorized by us.
If you have to claim to our guarantee, send the defective unit or part of the unit with the
receipt or copy of invoice and statement of the defect free of charge to us.
Claims for damages on the transport shall not be recognized. The shipment risks are for account
of the purchaser, unless otherwise agreed with Den Haan Rotterdam.
Garantie
Op dit op dekbedienbare zoeklicht wordt een garantie gegeven van 2 jaar. De garantieperiode
begint op de dag van aanschaf, of wanneer het zoeklicht is geïnstalleerd. De factuur is uw
garantiebewijs.
Onze garantie geldt voor fabricagefouten en materiaal gebreken. De garantie geldt niet indien door
installatiefouten, verkeerd gebruik en / of slecht onderhoud gebreken ontstaan. Evenzo op slijtage
en normale veroudering.
Voor de fabricage van dit zoeklicht zijn alleen zeewaterbestendige materialen gebruikt. Mocht
desondanks, het zoeklicht toch reden geven tot terechte klachten, dan kunt u het zoeklicht of de
defecte onderdelen na overleg onder garantie laten repareren of vervangen. Reparatie vinden alleen
plaats door een medewerker van Den Haan Rotterdam of een door ons geautoriseerde persoon of
onderneming.
Als u een garantie claim heeft, dan kan het defecte onderdeel of gehele zoeklicht, met een kopie
van de factuur met duidelijke omschrijving van de klacht, gefrankeerd naar ons worden opgestuurd.
Beschadigingen door transport vallen niet onder de garantie. Het transportrisico is voor de afnemer,
tenzij anders overeengekomen met Den Haan Rotterdam.
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 8 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the
directives 73/23/EEC and 93/68/EEC.
Annex 1 – Dimensions Searchlight DHR 260 – Deck operated
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 9 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the
directives 73/23/EEC and 93/68/EEC.
Annex 2 – Wire diagram with halogen lamp
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 10 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the
directives 73/23/EEC and 93/68/EEC.
Annex 3 – Wire diagram with metal halide lamp - slave panel
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 11 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the
directives 73/23/EEC and 93/68/EEC.
Annex 4 – Wire diagram with metal halide lamp - remote controlled
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 12 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the
directives 73/23/EEC and 93/68/EEC.
Annex 5 – Spare parts DHR260DS - With halogen lamp 250W
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Den Haan Rotterdam Rev. 1.0
Page 13 of 14
The electrical construction of the searchlight is manufactured in accordance with international standard IEC 60598-1, conform the
directives 73/23/EEC and 93/68/EEC.
Annex 6 – Spare parts DHR260DS - With metal halide lamp
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster

Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
Notkestraße 97 · 22607 Hamburg
SEARCHLIGHTS DHR 260DS
Deck operated
Modellbezeichnung
Größe
SUNDSTRÖM
Best. nr.
TOPLICHT
Art-Nr.
SR 900 S
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
This manual suits for next models
1
Table of contents
Popular Floodlight manuals by other brands

Ibiza
Ibiza DJLIGHT65 instruction manual

iSolution
iSolution iMove 350 Beam user manual

DAGR
DAGR FL570 Platinum Series Installation and maintenance manual

Berner
Berner 414773 instruction manual

WE-EF
WE-EF FLC210 LED Installation and maintenance instructions

Larson Electronics
Larson Electronics LEDEQ-PK-24X2-CPR-SPFL instruction manual

NightSearcher
NightSearcher ProStar user manual

NORDRIDE
NORDRIDE LOOP POWER operating instructions

Precision Consumer Products
Precision Consumer Products FL 7SQ 345CCT BZ 120V user guide

Powerplus
Powerplus LION manual

HQ Power
HQ Power VDL15UV quick start guide

Solar Goes Green
Solar Goes Green SGG-F108-3R manual
