Toplovo TL-202 User manual

www.toplovo.com Email: [e-mail] Skype: cherry-gps
1
TL-202 PERSONAL GPS TRACKER
Contents Tables
Contents Tables
1. Introduction--------------------------------------------------------------------------------------------------2
2. What’s new? ------------------------------------------------------------------------------------------------3

www.toplovo.com Email: ch[email protected] Skype: cherry-gps
2
3. Main Features-----------------------------------------------------------------------------------------------3
4. Applications--------------------------------------------------------------------------------------------------4
5. Specification-------------------------------------------------------------------------------------------------4
6. Get the position by calling the tracker-----------------------------------------------------------------5
7. Send one position------------------------------------------------------------------------------------------5
8. Real time tracking on website or PC software------------------------------------------------------5
9. Commands list--------------------------------------------------------------------------------------------7
10. Cautions---------------------------------------------------------------------------------------------------11
1. Introduction
This tracker is a personal remote location device with small size,build-in long standby time
battery and easy to use.This tracker can be used as an emergency cellular phone and
allows speed dialing 5 numbers for 2-way voice communication. This tracker sends alert
and call the preset numbers for immediate assistance.The alerts include Date, Time,
Coordinate, Speed and Map URL link. It will send the coordinate to the designated server
by GPRS and then displaying the location by tracking software.

www.toplovo.com Email: [e-mail] Skype: cherry-gps
3
2. What's new?
2.1 Smaller size: As small as a car remote controller which can be linked to the key chain.
2.2 It has ringing sound when there is an incoming call in 2-way voice mode.
2.3 Longer battery life (standby time is 200hours)
Position accurate will combine the GPS IM and GSM base station IM.
2.4 By pressing CALL1 (Blue LED will flash) to turn up the volume and pressing CALL2
(Yellow LED will flash) to turn down the volume.
2.5 It can make a call to any phone number by sending a signal command.
2.6 Get position by 3 ways: Search the coordinate in Google map, click the URL and see
the position in cell phone directly and view the position and history in tracking software.
3. Main Features
Locating and tracking via SMS or GPRS
Support voice call
Listen in function
SOS alert
Geo-fence alarm
Speeding alert
Low battery alert
Combine the GPS IM and GSM base station IM(customer should offer the base
station data)
Configuration with PC directly. (not standard feature, optional)
Position transmit

www.toplovo.com Email: ch[email protected] Skype: cherry-gps
4
4. Applications
Protect the child/elderly/disabled/pet etc.
Personnel management
Track the vehicle/ equipment etc.
Provide peace-of-mind for businessmen
Tracking system for Express/Carriers/Logistics
5. Specification
Content Specs.
Dimension 65mm x 40mm x 18mm
Weight 56.4g
Network GSM/GPRS
Band 850/900/1800/1900Mhz
GPS chip SIRF3 chip
GPS sensitivity -159dBm
GPS accuracy 5m
Cold start 42 sec.
Warm starts 38 sec.
Hot start 1 sec.
Battery Chargeable 3.7V 1700mA/h
Operation temperature -20°C to +55°C
Humidity 5%--95% non-condensing

www.toplovo.com Email: [e-mail] Skype: cherry-gps
5
6. Get the position by calling the tracker
You can use the authorized numbers to call the tracker SIM number for at least 2 seconds,
then hang up the call before the tracker hangs up or receives it. The tracker will reply a
google position URL SMS. You can visit this URL to see the position. The tracker will not
reply the SMS If you did not hang up the call before the tracker hangs up or receives it.
Note: The tracker will reply to any incoming call number if you have not set the authorized
numbers yet. Once you have set the authorized number, the tracker will reply SMS to the
authorized numbers only.
7. Send once position
You can get a google position URL SMS by pressing the power button(around one second)
till the Green LED blinking fast.
Note: This link SMS will just be sent to theA1,A2 andA3 authorized numbers.
8. Real time tracking on website or PC software
The device can be tracked on our tracking platform, please contact us for more
information.

www.toplovo.com Email: ch[email protected] Skype: cherry-gps
6

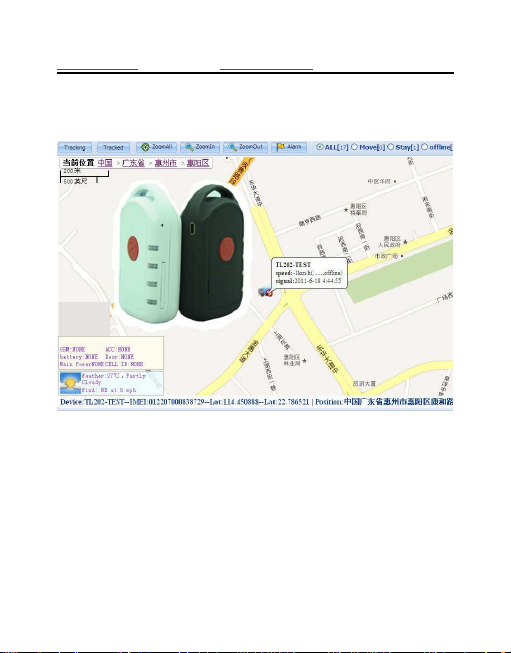

Tracking website
PC software
Note: alternative fromTracking website and PC software

www.toplovo.com Email: [e-mail] Skype: cherry-gps
7
9. SMS commands list
name Sentence content Description
Set authorized
numbers


123456A1,phone number


123456A2,phone number


123456A3,phone number


123456A4,phone number
123456A5,phone number
(‘A’ and the comma must be
English )
A1,A2,A3 is for setting the 3 SOS
numbers.
A4,A5 is for the call1 and call2
Phone number must include the country
code like [phone]. +86 isthe
country code of China. Please do not use
‘00’ instead of ‘+’
Sample 123456A1,[phone] Set [phone] as the first SOS
number (A1).
Delete
authorized
numbers


123456A1,D


123456A2,D


123456A3,D


123456A4,D
123456A5,D
A1,A2,A3 is for deleting the 3 SOS
numbers.
A4,A5 is for deleting the call1 and call2
Switch to the
Talking mode


123456U0
Calling in 2-way voice mode
The tracker will pick up the incoming
call then enter to the 2-way voice mode.
Switch to the
Listen-in mode
123456U1(Default Mode)
Calling in listen-in mode
The tracker will pick up the incoming
call then the call center can hear the
sound around the tracker.
Switch SOS
Call to Listen-in
mode


123456U2
SOS Call in listen-in mode
When you make the SOS call, just the
call receiver can hear the sound around
the tracker

www.toplovo.com Email: ch[email protected] Skype: cherry-gps
8
Switch SOS
Call to the Talking
mode
123456U3 (Default Mode)
SOS Call in 2-way voice
mode
The mode is 2-way voice
communication after hitting the SOS
Calling out
automatically


123456V31,phone number
Calling phone number in
listen-in mode
Tracker will call this number auto in
listen-in mode
Calling out
automatically


123456V30,phone number
Calling phone number in
2-way voice mode
Tracker will call this number auto in
two-way voice mode
Get position by
SMS


123456F It will reply the latitude and longitude
as well as a link to the cell phone
Set continuous
tracking


123456Mx,yyyz x=1 means on, x=0 means off
yyy means time interval. If z=S/M it
should be <=255.if z=H, it should
be<=090. It must be three
numbers,030Smeans 30S
Z means time unit，z=S means second,
z=M means minute, z=H means hour
Sample of
Setting continuous
tracking


123456M1,030S The tracker will reply the position
according to the time interval you set (30
seconds). If the tracker has connected to
server it will send to the server by GPRS
or it will be sent to the cell phone by SMS
Set the
speeding alarm


123456Jx,yyy x=1meanson,x=0meansoff
yyy means the alarm speed, it should

www.toplovo.com Email: [e-mail] Skype: cherry-gps
9
be<250 and must three digital, e.g.
080=80km/h.
Sample 

123456J1,080 The tracker will send a speeding alarm
to server if it is over the 80km/h
Set GEO fence 123456Ix,y,z,
aabbccddefffgghhiijkkllmmn
nepppqqrrssj
x=NO.oftheGEO-fence(1-5),5GEO
fencecanbeset
y=1meanson,y=0meansoff
z=0meansgoin, z=1meansgoout
e=Nmeansthenorthlatitude,e=Smeans
thesouthlatitude
j=Emeanstheeastlongitude,j=Wmeans
thewestlongitude
aa,bb,cc,dd,kk,ll,mm,nn,qq,rr,ssmustbe2
numbers.03means3.
fff,pppmustbe3numbers.011means11
Example of
setting GEO
fence
123456I1,1,1,511135
25N009125670E
50241115N011011173E
The tracker will send an alarm data if it
is in/out the districtyou set.
Set the time
zone


123456Lxyy x=+ means east x=- means west
yy means the time zone，must be 2
numbers

www.toplovo.com Email: ch[email protected] Skype: cherry-gps
10
Sample 

123456L+08 Set the east 8 zone
Set the low
battery alarm


123456Nx,yy x=1 means on,x=0 means off
yy means battery lower then yy% then
send the alarm. It must be<45.it must be
2 numbers.
Sample of
setting the low
battery alarm


123456N1,40 The tracker will send a low battery
alarm if the batteryis lower then 40%
Modify the
password


123456H456789 456789 is the new password, new
password must be 6 numbers
Set theAPN,IP
and port


123456C$$$$,IP:Port $$$$ is theAPN, you can get theAPN
from your local GSM provider.
Sample of
setting theAPN
123456CCMNET,
119.122.101.91:9289
CMNET is the APN of China mobile.
Set the
username and
password for APN


123456O&&&&, @@@@ &&&& is the username and @@@@ is
the password.
If the SIM card doesn’t need username
and password for theAPN, pls ignore this
command
Sample 123456Ointernet,internet1
23
The user name is internet and the
password is internet123.
Open
GPRS


123456D The tracker will start to connect the
server by GPRS. It will send back an SMS
to confirm after it has connected the

www.toplovo.com Email: [e-mail] Skype: cherry-gps
11
server successfully.
Close GPRS 

123456E The tracker will close the connection
with the server.
Get the IMEI
number


123456B It will reply the IMEI number of the
tracker.
Check the
settting


123456G Check all parametres set in tracker
Reset 

RESET! Reset the tracker and no confirm SMS
10. Cautions
Please comply with the instructions to extend the unit life:
1. Keep the unit dry.Any liquid, i.e. rain, may destroy or damage the inside circuitry.
2. Don’t use & store the unit in dusty places.
3. Don’t put the unit in overheated or overcooled places.
4. Handle carefully. Don’t vibrate or shake it violently.
5. Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent.
6. Don’t paint the unit, this may cause some foreign materials left in between the parts.
7. Don’t disassemble or refit the unit.
8. Please use the battery and charger provided by manufacturer. Using other batteries and
chargers will cause unwanted situation.
9. Don’t dismount the antenna randomly, or use other antennas. This may interfere the
transmission, and increase the radiation as well.
