Toplovo TL-007 User manual

PERSONAL GPS TRACKING SOLUTION
Contents Tables
1. Introduction-------------------------------------------------------------1
2. Hardware escription-------------------------------------------------2
3. What’s new? -------------------------------------------------------------2
4. Main Features------------------------------------------------------------3
5. Applications--------------------------------------------------------------3
6. Specification-------------------------------------------------------------3
7. Start up--------------------------------------------------------------------4
8. Set the authorized number------------------------------------------6
9. elete authorized number-----------------------------------------7
10. Get instant position via TWO ways--------------------------6
11. Auto-track function-------------------------------------------8
12. Alert-----------------------------------------------------------------------9
13. Set the local time----------------------------------------------------12
14. GPRS setting---------------------------------------------------------14
15. Check tracker’s parameters-------------------------------------14
16. isplaying location on Google map--------------------------15
17. isplaying location on your cell phone----------------------15
18. Real time tracking on website or PC software-------------15
19. Cautions----------------------------------------------------------------21
1. Introduction
This tracker is a personal remote location device with small
size, build-in long standby time battery and easy to use.
This tracker can be used as a monitor. This tracker sends
alerts and the alerts include Date, Time, Coordinate, Speed
and Map RL link. It will send the coordinate to the
designated server by GPRS and then displaying the
location by tracking software.
USB Charger, User manual, USB cable, Lanyard,
Tracker, Key

Parts

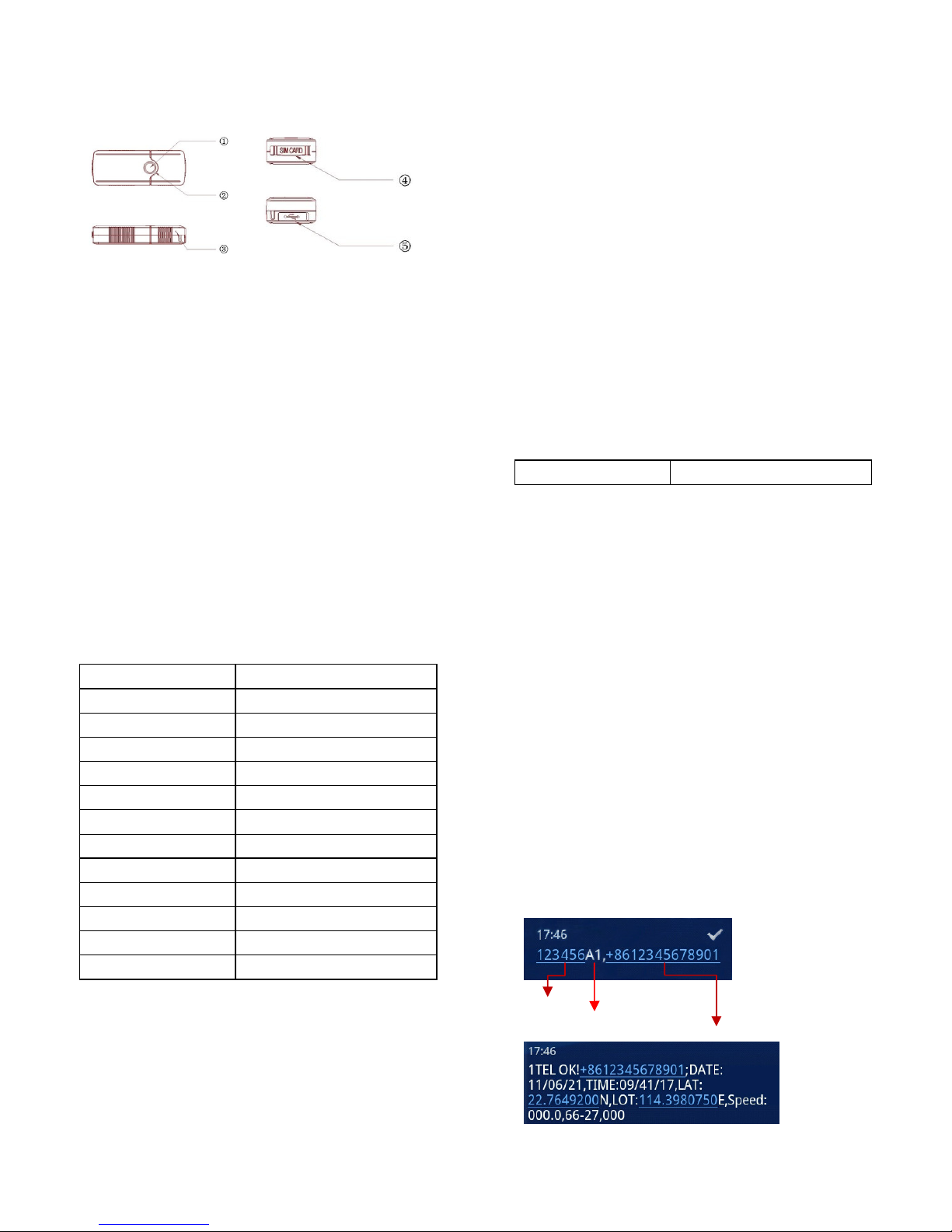

2. Hardware escription
1. SOS; 4. SIM card;
2. LE ; 5. USB;
3. Speaker;
3. What’s new?
3.1 Smaller size: As small as a disk so that it can be
linked to the key chain.
3.2 Longer battery life (standby time is around 72 hours)
3.3 Position accurate will combine the GPS info and GSM
base station info.
3.4 Get position by 3 ways: Search the coordinate in Google
map, click the RL and see the position in cell phone
directly and view the position and history in tracking
software.
4. Main Features
 Locating and tracking via SMS or GPRS
 Listen in function
 Geo-fence alert
 Speeding alert
 Low battery alert
 Position accurate will combine the GPS info and GSM
base station info
 Position transmit
5. Applications
 Protect the child/elderly/disabled/pet etc.
 Personnel management
 Track the vehicle/ equipment etc.
 Provide peace-of-mind for businessmen
 Tracking system for Express/Carriers/Logistics
6. Specification
Content Specs
Dimension 60mm x 22.8mm x 12mm
Weight 23g
Network GSM/GPRS
Band 900/1800Mhz
GPS chip SIRF3 chip
GPS sensitivity -159dBm
GPS accuracy 5m
Cold start 42 sec.
Warm start 38 sec.
Hot start 1 sec.
Battery Chargeable 3.7V 420mA/h
Operation temperature -20°C to +55°C
Humidity 5%--95% non-condensing
7. Start up
TRACKER: Do charge the battery for 8 -12 hours after first
use. Then, the battery can be charged fully in 4-5 hours. In
order to protect the device please use the battery and
charger which come with the tracker.
SIM CAR : Please be sure that there is call display but no
call transfer, and PIN code is off.
Switch on:Please take the unit outdoors or near the window.
The device will be switched on after inserting the sim card.
Switch off:The device will be switched off after taking out
the sim card.
8. Set the authorized number
Send SMS“123456A1,phone number” to set the first SOS
number. At least, you have to set 1 authorized number
A1/2/3 is SOS number
Command SMS
Note:
‘A’ must be capital
Password
A1/2/3/4/5
Authorized number
Reply SMS

Note: All the letters in any commands must be English in
capital and make sure there is no space in the command.
Phone number must include the country code. For example:
+86 is the country code of China. Please do not use 00
instead of +.
123456 is the default password of the tracker.
9. elete authorized number
Command SMS
123456A1 (2/3/4/5), D
‘A, D’ must be capital
Reply SMS
E.g. send “123456A1, ” to delete the A1(SOS) number.
10. Get instant position via TWO ways
10.1 Get instant position by calling the tracker
You can use the authorized numbers to call the tracker SIM
number for at least 2 seconds, and then hang up the call
before the tracker hangs up or receives it. The tracker will
reply a Google position RL SMS. You can click on this RL
to see the position. The tracker will not reply the SMS If you
did not hang up the call before the tracker hangs up or
receives it.
Note: The tracker will reply to any incoming call number if
you have not set the authorized numbers yet. Once you
have set the authorized number, the tracker will reply SMS
to the authorized numbers only.
10.2 Get instant position by sending SMS command
Send “123456F” to the unit. It will reply its position.
Command SMS
Note: F must be capital
Password
Command
Reply SMS
11. Auto-track function
Send SMS “123456M0/M1, xxxS/M/H” to the unit, the
tracker will reply the location RL messages to A5
according to the time interval. If the device has been
connected to the server, the reply data will be sent to the
server only, which means the server has the priority.
Command SMS
Note: M must be capital.
M1 means turn on
M0 means turn off
Reply SMS
Reply SMS
Tracking
data
xxx is interval time and must be three digits,030S means
30S.
S — second, M — minute, H — hour
H should be≤90, S,M should be <255
E.g. send“123456M1,030S” to the tracker means every 30
seconds send back a position coordinate to the A5 number.
Send“123456M0,030S” to the tracker means stop the
continuous tracking.
12 ．
．．
． Alerts
12.1 Speeding alert
Send SMS “123456J0/J1,speed” to set the Speeding alert
function. Please activate auto-track function before
activating speeding alert.
Command SMS
J0 means turn off the function
J1 means turn on the function
Reply SMS
When the speed exceeds 80 km/h, the unit will send SMS
as “Over speed! +GPS info” to the A1, A2, A3 number.
Note: J must be capital, speed should be<250 and must be

3 digits, e.g. 080= 80 km/h.
Also, you need open continuous track to check the speed.
E.g. Send “123456J0,080” to turn off this function.
12.2 Low-battery alert
Send SMS “123456N0/N1,battery” to set the Low-battery
alert function.
Command SMS
J0 means turn off the function
J1 means turn on the function
Reply SMS
Reply SMS
Low battery
Now is 23%
When the battery level bellows 30%, the unit will send SMS as
“Low power! +GPS IM” to the A1, A2, A3 number.
Note: N must be capital, battery is the Low-battery
percentage, It should be<45 and 2 digits, e.g. 30= 30%.
E.g. Send “123456N0,30” to turn off this function.

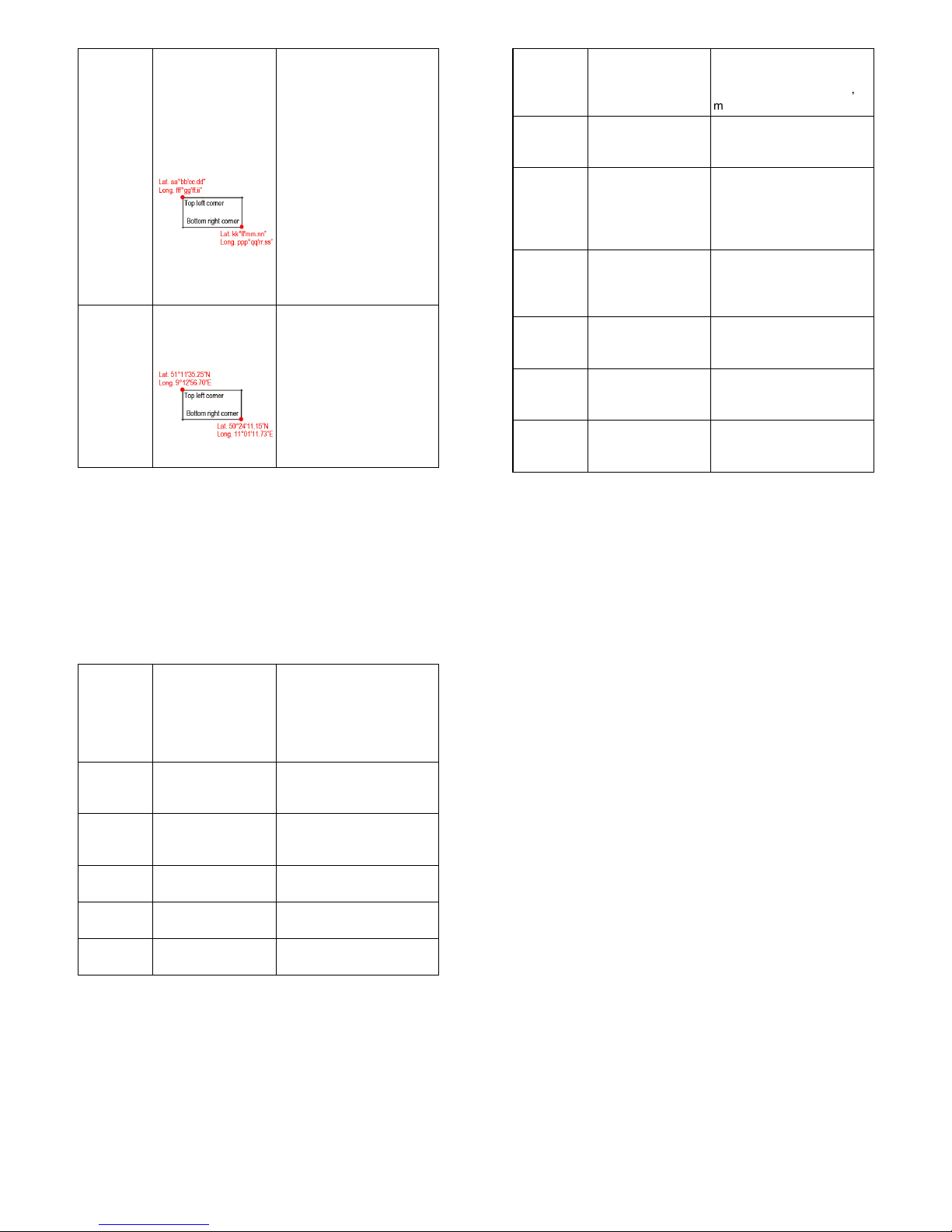

12.3 GEO-FENCE alert
“123456Ixyz,aabbccddefffgghhiijkkllmmnneppp qqrrssj”
send above message to set up the geo-fence for the device
to restrict its movement area. The device will send the
message to the A1, A2, A3 numbers as “Stockade +geo
info” if the tracker enters/exits the preset zone. 5 groups
GEO-FENCE areas can be set for the tracker.
Note: I must be capital.
x=NO. of the GENFENCE(1-5)
y=1 means ON, y=0 means OFF
z=0 means go into, z=1 means go out
e=N means north latitude, e=S means south latitude
j=E means east longitude, j=W means west longitude
aa,bb,cc,dd,gg,hh,ii,kk,ll,mm,nn,qq,rr,ss must be 2 digits.03
means 3. fff,ppp must be 3 numbers.011 means 11.
E.g. The first Lat.22º45'55.49''N, Long.114º23'46.86''E
The second Lat.22º45'47.40''N, Long.:114º23'54.99''E
Command SMS
Reply SMS
GEO-Fence
Alarm SMS
Note: the coordinate should be standard format which you can
get from the software of Google earth.
13. Set the local time
Send SMS “123456Ltime zone” to set the local time
Note: L must be capital, + in the time zone means east, - in
the time zone means west. Time zone must be 2 numbers.
So Beijing time zone should be like this: +08
E.g. send “123456L+08” to set the time to the Beijing time
send “123456L-08” to set the time to Los Angeles time
Note: Send “123456L+XX:30” to set the east XX and half
time zone.
Send “123456L-XX:30” to set the west XX and half
time zone.
E.g. send “123456L+05:30” to set the India time
14. GPRS setting
Send SMS “123456B” to get the IMEI number of the unit.
Note: B must be capital.
E.g. send SMS “123456B”
Note: Before you execute the following GPRS connection,
please submit the IMEI # to the manufacturer to register the
IMEI #.
In order to use GPRS function, the user needs to set IP, Port
and APN (Access Point Name) by sending SMS commands.

Make sure that the SIM card in the tracker has the GPRS
function activated.
Send SMS “123456C$$$$,IP:Port” to set the APN, IP and
port.
Note: C must be capital. Please get APN from your local
GSM operators and the APN is case sensitive. sers do not
need to input the server's IP & Port if you use the
manufacturer's server.
E.g. send SMS “123456CCMNET”.CMNET is the APN of
China Mobile, and it will connect the manufacturer's server
as a default mode.
Note: The APN should be in wap mode.
Send SMS “123456O&&&&, @@@@” to set the username
and password for APN.
Note: &&&& is the username and @@@@ is the password.
O must be capital. If the GSM provider doesn’t create a
username and password for the APN, you can ignore this
command.
E.g. send SMS “123456Owap, wap”.
Note: The username and password should be in wap mode.
Send SMS “123456 ” to turn on GPRS connection
Note: D must be capital.
E.g. send SMS “123456 ”
Send SMS “123456E” to turn off GPRS connection
Note: E must be capital.
E.g. send SMS “123456E”
15 ．
．．

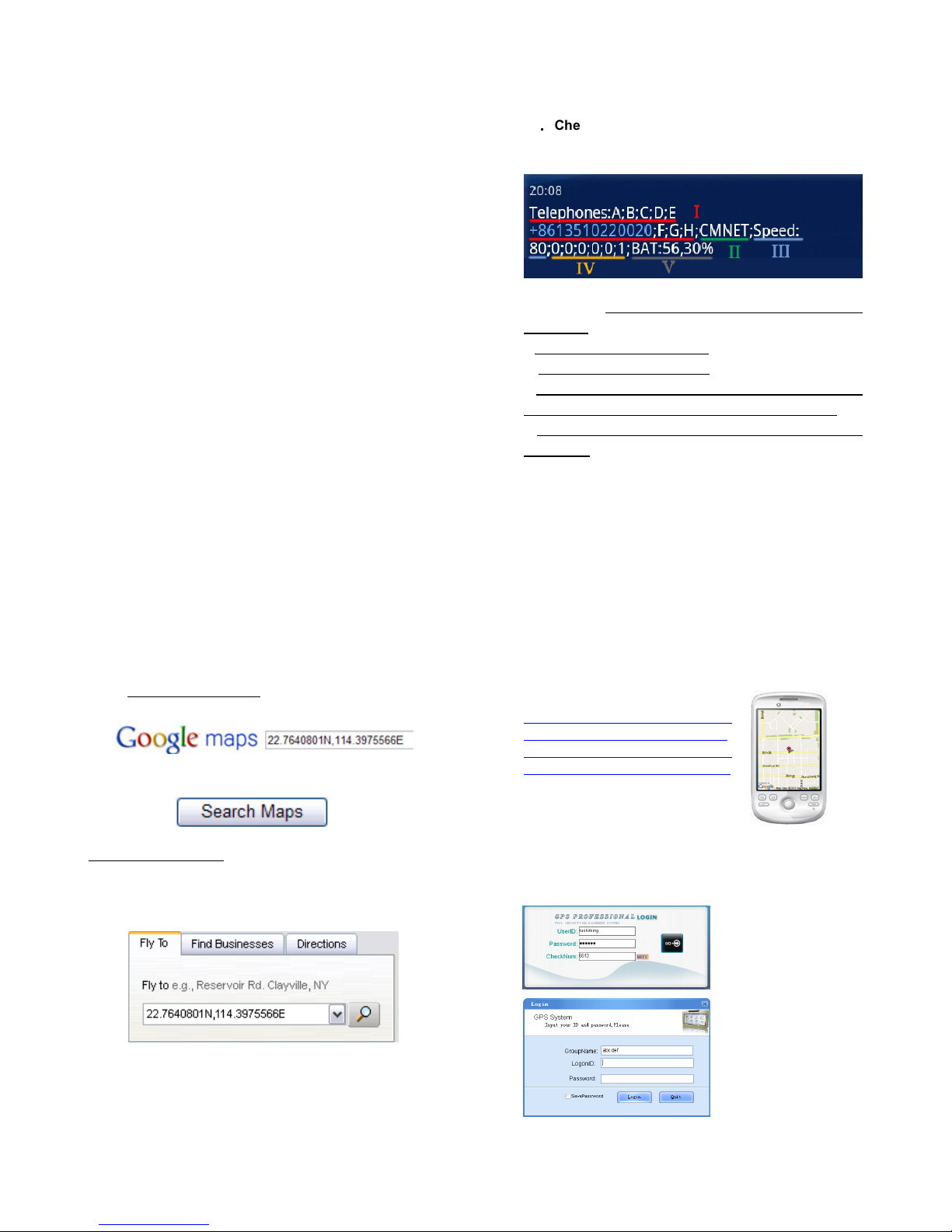

． Check tracker’s parameters
Send command 123456G to check the parameters
The respond SMS is as follow:
I Telophones:A; B; C; D; E ( the phone number of A1; A2;
A3; A4; A5)
II CMNET is China mobile’s APN
III Speed: 80 is over speed value
IV0;0;0;0;0;0;1 :Over speed alarm; auto-track; auto-arm;
Move alarm; Rrm; Low battery alarm(0 is OFF, 1 is ON)
V BAT: 56, 30%: 56 is the power value, 30% is low power
alarm value
16. isplaying location on Google map
Go to http://maps.google.com and type in the latitude and
longitude like this: 22.7640801N,114.3975566E
Click search button, then you can see the position.
Download Google earth software from:
http://earth.google.com/
Start the Google Earth software and type the latitude and
longitude into the software like this: 22.7640801N,114.
3975566E. Click search. Then you can see the position.
17. isplaying location on your cell phone
It will reply a location RL SMS like:
http://maps.google.com/maps?f=q&h
l=en&q=22.7647333,114.3978316&i
e= TF8&z=16&iwloc=addr&om=1sp
eed:000.0,&imei=012207009017010
Click on the RL, then you can see
the location
18. Real time tracking on website or PC software
The device can be tracked on our tracking platform, please
contact us for more information.
Tracking website
PC software
Note: alternative from
tracking website and PC
software

19. Cautions
Please comply with the instructions to extend the unit life:
1. Keep the unit dry. Any liquid, i.e. rain, moisture, may
destroy or damage the inside circuitry.
2. Don’t use & store the unit in dusty places.
3. Don’t put the unit in overheated or overcooled places.
4. Handle carefully. Don’t vibrate or shake it violently.
5. Clear the unit with a piece of dry cloth. Don’t clean in
chemicals, detergent.
6. Don’t paint the unit, this may cause some foreign
materials left in between the parts.
7. Don’t disassemble or refit the unit.
8. Please use the battery and charger provided by
manufacturer. sing other batteries and chargers will cause
unwanted situation.
9. Don’t dismount the antenna randomly, or use other
antennas. This may interfere the transmission, and increase
the radiation as well.
SMS commands list Appendix*
 name  Sentence content  Description
 Set
authorized
numbers
 123456A1,phone
number
 123456A2,phone
number
 123456A3,phone
number
 123456A4,phone
number
 123456A5,phone
number

A1,A2,A3 is for setting the 3
SOS numbers.
 A4,A5 is listen in number
Phone number must include
the country code like
[phone]. +86 is the
country code of China.
Please
do not use ‘00’ instead of ‘+’
 Sample of
setting
authorized
numbers
 123456A1,+861381
2345678
(‘A’ and the comma
must be in English )
 Set [phone] as
the first SOS number (A1).
 Delete
authorized
numbers
 123456A1,
 123456A2,
 123456A3,
 123456A4,
 123456A5,
 A1,A2,A3 is for deleting the
3 SOS numbers.
 A4,A5 is for deleting the
listen in number
 Calling out
automatically
 123456V31,phone
number
Calling phone
number in listen-in
mode

Tracker will call this number
automatically in listen-in
mode.
 Get
position by
SMS
 123456F  It will reply the latitude and
longitude as well as a link to
the cell phone
 Set
continuous
tracking
 123456Mx,yyyz  x=1 is on, x=0 is off
 yyy means time interval. If
z=S/M it should be <=255.if
z=H, it should be<=090. It
must be three numbers,030S
means 30S
 Z means time unit ， z=S
means second, z=M means
minute, z=H means hour
 Sample of
Setting
continuous
tracking
 123456M1,030S The tracker will reply the
position according to the time
interval you set (30 seconds).
If the tracker has connected
to server it will send to the
server by GPRS or it will be
sent to the cell phone by SMS
 Set the
speeding
alarm
 123456Jx,yyy  x=1 means on, x=0 means off
 yyy means the alarm
speed, it should be<250 and
must be three digitals, e.g.
080=80km/h.
 Sample of
setting
speeding
alarm
 123456J1,080  The tracker will send a
speeding alarm to server if it
is over the 80km/h

 Set GEO
fence
123456Ix,y,z,
aabbccddefffgghhiij
kkllmmnnepppqqrrs
sj
 x=NO. of the
GEO-fence(1-5),5 GEO fence
can be set
 y=1 means on, y=0 means off
 z=0 means go in, z=1 means
go out

e=N means the north latitude,
e=S means the south latitude
 j=E means the east
longitude, j=W means the west
longitude
 aa,bb,cc,dd,kk,ll,mm,nn,qq,rr,
ss must be 2 numbers.03
means 3.
 fff,ppp must be 3
numbers.011 means 11
 Example
of setting
GEO fence
123456I1,1,1,511135
25N009125670E
50241115N011011173
E
 The tracker will send an
alarm data if it is in/out the
district you set.
 Set the
time zone
 123456Lxyy  x=+ means east x=- means
west
 yy means the time zone ，
must be 2 numbers
 Sample of
setting the
time zone
 123456L+08  Set the east 8 zone

Set the low
battery alarm
 123456Nx,yy  x=1 means on,x=0 means
off
yy is the alarm battery
percentage. It must be<45
and 2 numbers.
 Sample of
setting the
low battery
alarm
 123456N1,40  The tracker will send a low
battery alarm if the battery is
lower than 40%
 Modify the
password
 123456H456789  456789 is the new
password, new password
must be 6 numbers
 Set the
APN,IP and
port
 123456C$$$$,IP:P
ort
 $$$$ is the APN, you can
get the APN from your local
GSM provider.
 Sample of
setting the
APN
 123456CCMNET,
119.122.101.91:9289
 CMNET is the APN of
China mobile.
 Set the
username
and
password for
APN
 123456O&&&&,
@@@@
 &&&& is the username and
@@@@ is the password.
 If the SIM card doesn’t
need username and
password for the APN, pls
ignore this command
 Sample  123456Ointernet,in
ternet123
 The user name is internet
and the password is
internet123.
 Open
 GPRS
 123456  The tracker will send a
confirmation SMS back after
successful connection.
 Close
GPRS
 123456E  The tracker will close the
connection with the server.
 Get the
IMEI number
 123456B 
It will reply the IMEI number
of the tracker.
 Check the
settting
 123456G  Check all parameters set
in tracker
