FormNo.3425-240RevB
RakeandVac™andSuperBlower/Vacuum
ModelNo.51617—SerialNo.319000001andUp
ModelNo.51618—SerialNo.319000001andUp
Operator'sManual
Ifyouhavequestionsorproblems,calltollfree1-888-367-6631
(US),1-888-430-1687(Canada),or1-800-574-3312(Mexico)before
returningthisproduct.
YoumaycontactT orodirectlyatwww.Toro.comforproduct
andaccessoryinformation,helpndingadealer,thecomplete
warrantydetails,ortoregisteryourproduct.
WARNING
CALIFORNIA
Proposition65Warning
Thepowercordonthisproductcontains
lead,achemicalknowntotheState
ofCaliforniatocausebirthdefects
orotherreproductiveharm.Wash
handsafterhandling.
Useofthisproductmaycauseexposure
tochemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
IMPORTANTSAFETY
INSTRUCTIONS
Whenusinganelectricalappliance,basicprecautionsshould
alwaysbefollowed,includingthefollowing:
READALLINSTRUCTIONS
BEFOREUSINGVAC/BLOWER
WARNING—Toreducetheriskofre,electric
shock,orinjury,followthesesafetyinstructions.
Toensuremaximumsafety,bestperformance,andtogain
knowledgeoftheappliance,itisessentialthatyouoranyother
operatoroftheappliancereadandunderstandthecontentsofthis
manualbeforeoperatingtheappliance.Payparticularattentionto
thesafety-alertsymbolwhichmeansCAUTION,WARNINGor
DANGER-personalsafetyinstruction.Readandunderstandthe
instructionbecauseithastodowithsafety.Failuretocomply
withtheseinstructionsmayresultinpersonalinjury,riskof
re,orelectricalshock.
Donotleavetheappliancewhenpluggedin.Unplugitfromthe
outletwhennotinuseandbeforeservicing.
WARNING-T oreducetheriskofelectricshock,donotusethe
applianceonwetsurfaces.Donotexposeittorain.Storeit
indoors.
Donotallowtheappliancetobeusedasatoy.Donotuseitnear
children.Donotletchildrenusetheappliance.
Usetheapplianceonlyasdescribedinthismanual.Useonlythe
manufacturer'srecommendedattachments.
Dressproperly.Keephair,looseclothing,ngers,andallpartsof
thebodyawayfromopeningsandmovingparts.Beawareofthe
positionoftheblowerandtheairinletsduringoperation.Loose
clothing,jewelry,andhaircanbedrawnintotheinlets(refertothe
followinggure)andmayresultinpersonalinjury.Alwayswear
substantialfootwear,longpants,andeyeprotection.
g246212
Caution—MovingParts—donotoperatetheappliancewithout
theairinletguard(bottominletcover)inplace.RefertoSetupfor
properassemblyinstructions.
Donotusetheappliancewithadamagedelectricalcordorplug.
Ifitisnotworkingasitshould,hasbeendropped,damaged,left
outdoors,ordroppedintowater,returnittoaservicedealer.
Donotpullorcarrytheappliancebythecord,usetheelectrical
cordasahandle,closeadooronthecord,orpullthecord
aroundsharpedgesorcorners.Keepthecordawayfromheated
surfaces.
Donotunplugtheappliancebypullingontheelectricalcord.T o
unplugthecord,grasptheplug,notthecord.
Donothandletheplugorappliancewithwethands.
Donotputanyobjectintotheopenings.Donotusetheappliance
withanyopeningblocked;keepitfreeofdust,lint,hair,and
anythingthatmayreduceairow.
Turnoffallcontrolsbeforeunpluggingtheappliance.
Useextracarewhencleaningonstairs.
Donotusetheappliancetovacuumammableorcombustible
liquids,suchasgasoline,oruseinareaswheretheymaybe
present.
Thisapplianceisprovidedwithdoubleelectricalinsulation.Use
onlyidenticalreplacementparts.Seeinstructionsforservicing
double-insulatedappliances.
©2018—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.Toro.com.OriginalInstructions(EN)
PrintedinMexico
AllRightsReserved*3425-240*B

Donotvacuumanythingthatisburningorsmoking,suchas
cigarettes,matches,orhotashes.
Donotusetheappliancewithoutthevacuumbagorproper
attachmentsinplace.
SAVETHESE
INSTRUCTIONS
SafetyandInstructional
Decals
Safetydecalsandinstructionsareeasily
visibletotheoperatorandarelocatednear
anyareaofpotentialdanger.Replaceany
decalthatisdamagedormissing.
decal138-6674
138-6674
2

Setup
Registeryourproductatwww.T oro.comsothatT orocannotify
youinthecaseofasafetyorwarrantyproductrecall.
g224170
Figure2
1.Blowertube3.Upper-vacuumtube
2.Bottominletcover4.Lower-vacuumtube
AssemblingtheBlower
Important:Themotorshouldnotrununlessthebottom
inletcoverislockedinplace.
Note:Ifthemotorrunswithoutthebottominletcoverinplace,
donotusetheappliance.ReturnittoanAuthorizedService
Dealer.
Installtheblowertubeandbottominletcover.
g227713
ConvertingfromBlowerto
Vacuum
WARNING
Theimpellerrotatesforafewsecondsafteryouturn
offtheapplianceandcancutorinjurengers.
Donotremovethebottominletcoverwhenthemotor
isrunningorwhentheapplianceispluggedintoa
poweroutlet.
1.Removethebottominletcoverandtheblowertube.
g227756
2.Installthevacuumtubeandbag.
Important:Themotorshouldnotrununlessthe
vacuumtubeislockedinplace.
Note:Ifthemotorrunswithouttheinletcoverinplace,do
notusetheappliance.ReturnittoanAuthorizedService
Dealer.
g227757
3.Adjustthebagstrapasneededforcomfortableoperation.
3

ConvertingfromVacuumto
Blower
1.Removethevacuumbagandthevacuumtube.
g227758
2.Installtheblowertubeandbottominletcover.
Important:Themotorshouldnotrununlessthe
bottominletcoverislockedinplace.
Note:Ifthemotorrunswithouttheinletcoverinplace,do
notusetheappliance.ReturnittoanAuthorizedService
Dealer.
g227759
Operation
Important:Thisapplianceisintendedforoutdoor,
residentialuseonly.Donotuseitindoorsorforcommercial
orindustrialpurposes.Thisapplianceisforhouseholduse
only.
ConnectingtoaPower
Source
Toreducetheriskofelectricshock,thisappliancehasapolarized
plug(i.e.,onebladeiswiderthantheother).Useonlyapolarized,
ULlisted(CSAcertiedinCanada)extensioncordrecommended
foroutdooruse.Apolarizedplugwilltinapolarizedcordonly
oneway.Iftheplugdoesnottfullyinthecord,reversethecord.
Ifitstilldoesnott,purchaseapolarizedextensioncord.Ifyou
haveapolarizedextensioncordandtheextensioncordplugdoes
nottfullyintothewallreceptacle,reversetheplug.Ifitstilldoes
nott,contactaqualiedelectriciantoinstalltheproperoutlet.Do
notchangetheapplianceorextensioncordpluginanyway.
Useonlyanextensioncordrecommendedforoutdooruse.
WARNING
Ifyoudonotfullyseattheextensioncordonthe
inletplug,oriftheplugandcorddonottrmly,the
looseplugcouldleadtooverheatingandcauseare,
possiblyburningyouorothers.
•Ensurethatyoufullyseatthecordontheplug.
•Checktheconnectionregularlytoensurethatthe
cordisrmlyattached.
•Donotuseaworn-outorlooseextensioncord.
ExtensionCordLengthMinimumWireGage
(A.W.G.)
100ft14
150ft12
Note:Donotuseanextensioncordover150feet.
Important:Checktheextensioncordfrequentlyduring
useforholesorcracksintheinsulation.Donotusea
damagedcord.Donotrunthecordthroughstandingwater
orwetgrass.
Securetheextensioncordtotheapplianceusingthecord
locksystemasshown.
4

g224197
1.Extensioncord2.Cordlock
Starting/Stopping/Adjusting
theAirSpeed
g021689
UsingtheNozzles
Installtheconcentratornozzleintotheblowertubetohelpreach
intonarrowspacesortoremovematteddebrisfromhardsurfaces.
g021690
1.Blowertube2.Concentratornozzle
UsingtheApplianceasa
Blower
Theapplianceusedablowerisintendedforresidentialuseonly.
Usethebloweroutdoorstomovedebrisasneeded.
WARNING
Usingtheapplianceasablowercanthrowdebris,
possiblycausingseriouspersonalinjurytoyouor
bystanders.
•Donotblowhardobjectssuchasnails,bolts,or
rocks.
•Donotoperatetheblowernearbystandersorpets.
•Useextracarewhencleaningdebrisfromstairsor
othertightareas.
•Wearsafetygogglesorothersuitableeye
protection,longpants,andshoes.
5

UsingtheApplianceasa
Vacuum
Usingtheapplianceasavacuumisintendedforresidentialuse
only.Useitoutdoorstocollectdebrisasneeded.
WARNING
Usingtheapplianceasavacuumcanthrowdebris,
possiblycausingseriouspersonalinjurytoyouor
bystanders.
•Donotoperatethevacuumwithoutthebaginstalled
orwiththebagzipperopen.
•Donotvacuumsharp,pointed,orhardobjectsthat
couldbethrownthroughthefabricofthebag,such
aswires,staples,nails,orrocks.
g017098
Important:Vacuumonlyleavesandsoftitems.Hard
itemssuchassticks,rocks,acorns,andpineconeswill
damagetheimpeller.
Important:Donotforcethevacuumtubeintoapileof
debrisorholdthetubeuprightwhileforcefeedingdebrisinto
thetube.Eitheractionmaycloganddamagetheimpeller.If
thevacuumstartstovibrateormakeabnormalnoise,stopit,
unplugthecord,andcheckforthecause.
EmptyingtheBag
1.Turnoffandunplugthevacuumfromthepowersource.
2.Emptyanydebrisfromthebag.
g017099
Donotstoredebrisinthebag.Tocleanthebag,turnit
insideoutandshakeoutanyexcessdebris.Onceayear,
handwashthebaginsoapywaterandallowittoairdry.
DANGER
Normalusageofthebagcausesittowearand
deteriorateovertime.Awornordeterioratedbag
allowssmallobjectstobethrownthroughthebag,
possiblyinjuringyouorbystanders.
Checkthebagfrequently.Ifitiswornor
deteriorated,replaceitwithagenuineToro
vacuumbag.
SeparatingtheVacuumTube
g227719
RemovingCloggedDebris
fromtheImpeller
1.Turnoffandunplugtheappliancefromthepowersource
andwaitforallmovingpartstostop.
2.Removethevacuumtubethenremovethedebrisfrom
impellerblades.
g227760
3.Checktheimpellerforanysignsofdamage.Ifitisdamaged,
contactyourAuthorizedServiceDealer.
4.Installthevacuumtube,or,ifyouwanttoswitchtoblower
mode,thebottominletcover.RefertoConvertingfrom
BlowertoVacuum(page3)orConvertingfromVacuumto
Blower(page4)formoreinformation.
6

Service
Torohasdesignedthisproducttogiveyouyearsoftroublefree
use.Shoulditneedservice,bringtheproducttoyourAuthorized
ServiceDealer.YourT oroDealerisspeciallytrainedtorepairT oro
productsandwillensurethatyourTorostays“All”T oro.
Double-insulated
Appliances
Inadouble-insulatedappliance,twosystemsofinsulation
areprovidedinsteadofgrounding.Nogroundingmeansis
providedonadouble-insulatedappliance,norshouldameansfor
groundingbeaddedtotheappliance.Servicingadouble-insulated
appliancerequiresextremecareandknowledgeofthesystem,
andshouldbedoneonlybythequaliedservicepersonnelat
yourAuthorizedT oroServiceDealer.Replacementpartsfora
double-insulatedappliancemustbeidenticaltothepartsthey
replace.Adouble-insulatedapplianceismarkedwiththewords
“DoubleInsulation”or“DoubleInsulated.”Thesymbol(square
withinasquare)mayalsobemarkedontheappliance.
Storage
Storetheapplianceandextensioncordindoors,inacooldry
location,outofreachofchildrenandanimals.
Troubleshooting
Ifyourblowerfailstorunwhenyouturniton,checkthefollowing
beforecontactingyourAuthorizedServiceDealer:
•Ensurethatthebottominletcoverorvacuumtubeislockedin
place.
•Ensurethatthepowercordissecuredinplaceatthebackof
theapplianceandthattheplugisfullyseated.
7

CaliforniaProposition65WarningInformation
Whatisthiswarning?
Youmayseeaproductforsalethathasawarninglabellikethefollowing:
WARNING:CancerandReproductiveHarm—www.p65Warnings.ca.gov.
WhatisProp65?
Prop65appliestoanycompanyoperatinginCalifornia,sellingproductsinCalifornia,ormanufacturingproductsthatmaybesoldinorbroughtinto
California.ItmandatesthattheGovernorofCaliforniamaintainandpublishalistofchemicalsknowntocausecancer,birthdefects,and/orother
reproductiveharm.Thelist,whichisupdatedannually,includeshundredsofchemicalsfoundinmanyeverydayitems.ThepurposeofProp65isto
informthepublicaboutexposuretothesechemicals.
Prop65doesnotbanthesaleofproductscontainingthesechemicalsbutinsteadrequireswarningsonanyproduct,productpackaging,orliteraturewith
theproduct.Moreover,aProp65warningdoesnotmeanthataproductisinviolationofanyproductsafetystandardsorrequirements.Infact,the
CaliforniagovernmenthasclariedthataProp65warning“isnotthesameasaregulatorydecisionthataproductis‘safe’or‘unsafe.’”Manyofthese
chemicalshavebeenusedineverydayproductsforyearswithoutdocumentedharm.Formoreinformation,gotohttps://oag.ca.gov/prop65/faqs-view-all.
AProp65warningmeansthatacompanyhaseither(1)evaluatedtheexposureandhasconcludedthatitexceedsthe“nosignicantrisklevel”;or(2)
haschosentoprovideawarningbasedonitsunderstandingaboutthepresenceofalistedchemicalwithoutattemptingtoevaluatetheexposure.
Doesthislawapplyeverywhere?
Prop65warningsarerequiredunderCalifornialawonly.ThesewarningsareseenthroughoutCaliforniainawiderangeofsettings,includingbutnot
limitedtorestaurants,grocerystores,hotels,schools,andhospitals,andonawidevarietyofproducts.Additionally,someonlineandmailorder
retailersprovideProp65warningsontheirwebsitesorincatalogs.
HowdotheCaliforniawarningscomparetofederallimits?
Prop65standardsareoftenmorestringentthanfederalandinternationalstandards.TherearevarioussubstancesthatrequireaProp65warning
atlevelsthatarefarlowerthanfederalactionlimits.Forexample,theProp65standardforwarningsforleadis0.5μg/day,whichiswellbelow
thefederalandinternationalstandards.
Whydon’tallsimilarproductscarrythewarning?
•ProductssoldinCaliforniarequireProp65labellingwhilesimilarproductssoldelsewheredonot.
•AcompanyinvolvedinaProp65lawsuitreachingasettlementmayberequiredtouseProp65warningsforitsproducts,butothercompanies
makingsimilarproductsmayhavenosuchrequirement.
•TheenforcementofProp65isinconsistent.
•CompaniesmayelectnottoprovidewarningsbecausetheyconcludethattheyarenotrequiredtodosounderProp65;alackofwarningsfora
productdoesnotmeanthattheproductisfreeoflistedchemicalsatsimilarlevels.
WhydoesToroincludethiswarning?
Torohaschosentoprovideconsumerswithasmuchinformationaspossiblesothattheycanmakeinformeddecisionsabouttheproductstheybuyand
use.T oroprovideswarningsincertaincasesbasedonitsknowledgeofthepresenceofoneormorelistedchemicalswithoutevaluatingthelevelof
exposure,asnotallthelistedchemicalsprovideexposurelimitrequirements.WhiletheexposurefromT oroproductsmaybenegligibleorwellwithinthe
“nosignicantrisk”range,outofanabundanceofcaution,T orohaselectedtoprovidetheProp65warnings.Moreover,ifTorodoesnotprovidethese
warnings,itcouldbesuedbytheStateofCaliforniaorbyprivatepartiesseekingtoenforceProp65andsubjecttosubstantialpenalties.
RevA

FormNo.3389-118RevB
TurboClearOscillatingTube
Blower/Vacuum
ModelNo.51664
InstallationInstructions
Installation

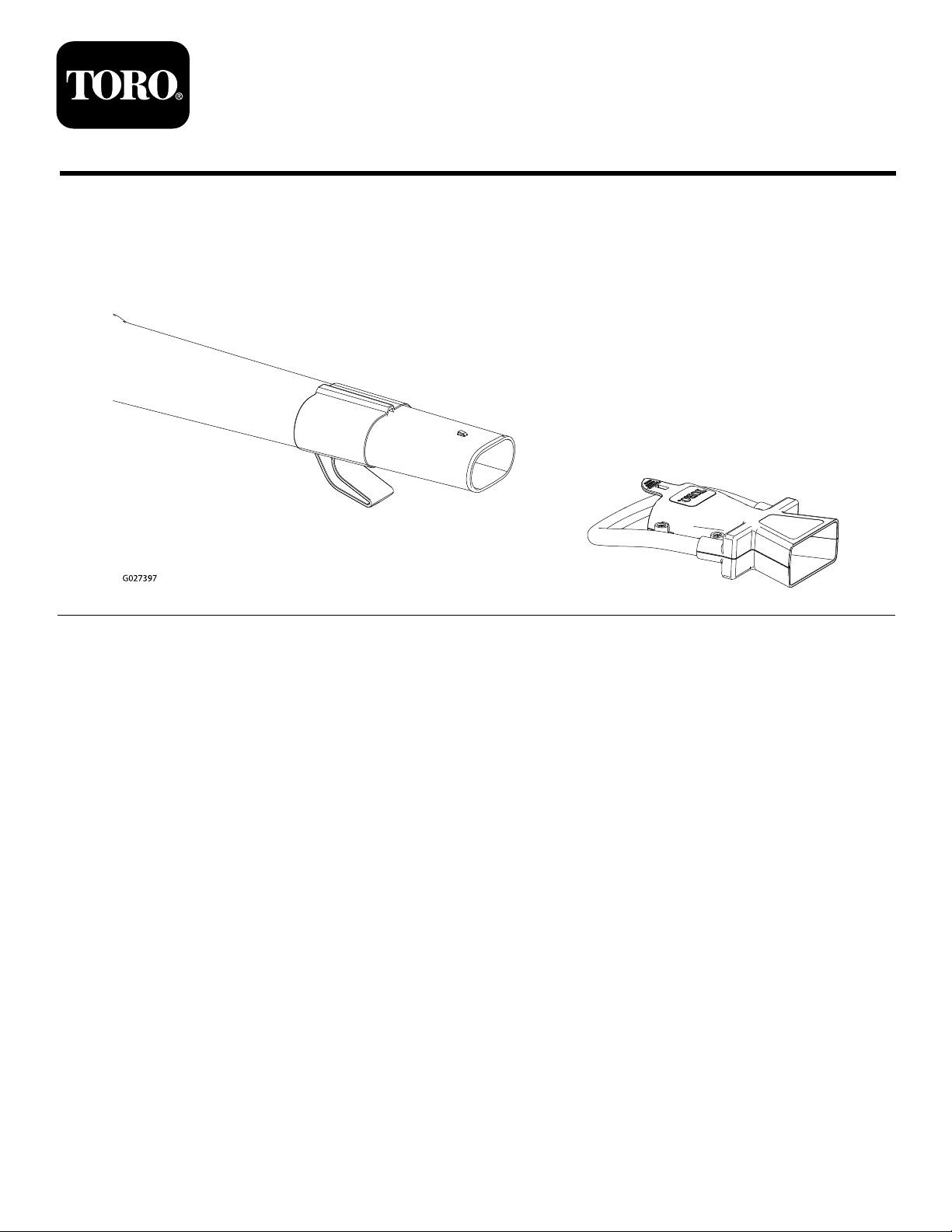

Installtheoscillatornozzleontotheblowertubetosavetimeclearinghardscapes.Itautomaticallysweeps
back-and-forth,creatingawiderblowingpathwithlessside-to-sidewristmovement.
g027397
Note:Removetheoscillatornozzlebeforeusingthecordwraptostoretheblower.
©2017—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.Toro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3389-118*B
