Toro 21467 User manual

FormNo.3444-712RevC
Flex-ForcePowerSystem™60V
MAX21inRecycler®LawnMower
ModelNo.21467—SerialNo.400000000andUp
ModelNo.21467T—SerialNo.400000000andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3444-712*

Forassistance,pleasesee
www.Toro.com/support
forinstructionalvideos
orcontact1-888-384-9939
beforereturningthis
product.
WARNING
CALIFORNIA
Proposition65Warning
Thepowercordonthisproductcontains
lead,achemicalknowntotheState
ofCaliforniatocausebirthdefects
orotherreproductiveharm.Wash
handsafterhandling.
Useofthisproductmaycauseexposure
tochemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Introduction
Thisrotary-blade,walk-behindlawnmowerisintended
tobeusedbyresidentialhomeowners.Itisdesigned
primarilyforcuttinggrassonwell-maintainedlawns
onresidentialproperties.Itisnotdesignedforcutting
brushorforagriculturaluses.Itisdesignedtouse
Toro60Vlithium-ionbatterypacks.Thesebattery
packsaredesignedtobechargedonlybyT oro60V
lithium-ionbatterychargers.Usingtheseproductsfor
purposesotherthantheirintendedusecouldprove
dangeroustoyouandbystanders.
Model21467Tdoesnotincludeabatteryora
charger.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
Visitwww.T oro.comformoreinformation,including
safetytips,trainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorT oroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Important:Withyourmobiledevice,youcan
scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.
g275230
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Safety-AlertSymbol
Thesafety-alertsymbol(Figure2)showninthis
manualandonthemachineidentiesimportantsafety
messagesthatyoumustfollowtopreventaccidents.
g000502
Figure2
Safety-alertsymbol
Thesafety-alertsymbolappearsaboveinformation
thatalertsyoutounsafeactionsorsituationsand
isfollowedbythewordDANGER,WARNING,or
CAUTION.
DANGERindicatesanimminentlyhazardoussituation
which,ifnotavoided,willresultindeathorserious
injury.
WARNINGindicatesapotentiallyhazardoussituation
which,ifnotavoided,couldresultindeathorserious
injury.
CAUTIONindicatesapotentiallyhazardoussituation
which,ifnotavoided,mayresultinminorormoderate
injury.
Thismanualusestwootherwordstohighlight
information.Importantcallsattentiontospecial
mechanicalinformationandNoteemphasizesgeneral
informationworthyofspecialattention.
©2023—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedinMexico
AllRightsReserved

Safety
IMPORTANTSAFETY
INSTRUCTIONS
WARNING
Whenusingelectriclawnmowers,basic
safetyprecautionsshouldalwaysbefollowed
toreducetheriskofre,electricshock,and
personalinjury,includingthefollowing:
ReadAllInstructions
I.Training
1.Theoperatorofthemachineisresponsiblefor
anyaccidentsorhazardsoccurringtoothersor
theirproperty.
2.Donotallowchildrentouseorplaywiththe
machine,batterypack,orthebatterycharger;
localregulationsmayrestricttheageofthe
operator.
3.Donotallowchildrenoruntrainedpeopleto
operateorservicethisdevice.Allowonlypeople
whoareresponsible,trained,familiarwiththe
instructions,andphysicallycapabletooperate
orservicethedevice.
4.Beforeusingthemachine,batterypack,and
batterycharger,readalltheinstructionsand
cautionarymarkingsontheseproducts.
5.Becomefamiliarwiththecontrolsandproper
useofthemachine,batterypack,andbattery
charger.
II.Preparation
1.Keepbystanders,especiallychildrenandpets,
outoftheoperatingarea.
2.Donotoperatethemachinewithoutallguards
andsafetydevices,suchasdeectorsandgrass
catchers,inplaceandfunctioningproperlyon
themachine.
3.Inspecttheareawhereyouwillusethemachine
andremoveallobjectsthatcouldinterferewith
theoperationofthemachineorthatthemachine
couldthrow.
4.Beforeusingthemachine,ensurethattheblade,
bladebolt,andbladeassemblyarenotwornor
damaged.Replaceanydamagedorunreadable
labels.
5.UseonlythebatterypackspeciedbyToro.
Usingotheraccessoriesandattachmentsmay
increasetheriskofinjuryandre.
6.Pluggingthebatterychargerintoanoutletthatis
not120Vcancauseareorelectricshock.Do
notplugthebatterychargerintoanoutletother
than120V.Foradifferentstyleofconnection,
useanattachmentplugadapteroftheproper
congurationforthepoweroutletifneeded.
7.Donotuseadamagedormodiedbattery
packorbatterycharger,whichmayexhibit
unpredictablebehaviorthatresultsinre,
explosion,orriskofinjury.
8.Ifthesupplycordtothebatterychargeris
damaged,contactanAuthorizedServiceDealer
toreplaceit.
9.Chargethebatterypackwithonlythebattery
chargerspeciedbyToro.Achargersuitablefor
1typeofbatterypackmaycreateariskofre
whenusedwithanotherbatterypack.
10.Chargethebatterypackinawell-ventilatedarea
only.
11.Followallcharginginstructionsanddo
notchargethebatterypackoutsideofthe
temperaturerangespeciedintheinstructions.
Otherwise,youmaydamagethebatterypack
andincreasetheriskofre.
12.Dressproperly—Wearappropriateclothing,
includingeyeprotection;longpants;substantial,
slip-resistantfootwear(notbarefootorwearing
sandals);andhearingprotection.Tiebacklong
hairanddonotwearlooseclothingorloose
jewelrythatcangetcaughtinmovingparts.
Wearadustmaskindustyoperatingconditions.
Useofrubberglovesisrecommended.
III.Operation
1.Contactwiththemovingbladewillcauseserious
injury.Keepyourhandsandfeetawayfromthe
cuttingareaandallmovingpartsofthemachine.
Keepclearofanydischargeopening.
2.Usingthismachineforpurposesotherthanits
intendedusecouldprovedangeroustoyouand
bystanders.
3.Disengagetheself-propeldrive(ifequipped)
beforestartingthemachine.
4.Donottiltthemachinewhenstartingthemotor.
5.Preventunintentionalstarting—Ensurethat
theelectric-startbuttonisremovedfromthe
electric-startswitchbeforeconnectingthe
batterypackandhandlingthemachine.
6.Useyourfullattentionwhileoperatingthe
machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.
7.Stopthemachine,removetheelectric-start
button,removethebatterypackfromthe
machine,andwaitforallmovementtostop
beforeadjusting,servicing,cleaning,orstoring
themachine.
3

8.Removethebatterypackandelectric-start
buttonfromthemachinewheneveryouleaveit
unattendedorbeforechangingaccessories.
9.Donotforcethemachine—Allowthemachineto
dothejobbetterandsaferattherateforwhichit
wasdesigned.
10.Stayalert—Watchwhatyouaredoinganduse
commonsensewhenoperatingthemachine.
Donotusethemachinewhileill,tired,orunder
theinuenceofalcoholordrugs.
11.Donotuseabattery-operatedlawnmowerin
rain.
12.Operatethemachineonlyingoodvisibilityand
appropriateweatherconditions.Donotoperate
themachinewhenthereistheriskoflightning.
13.Useextremecautionwhenreversingorpulling
themachinetowardyou.
14.Keepproperfootingandbalanceatalltimes,
especiallyonslopes.Mowacrosstheface
ofslopes,neverupanddown.Useextreme
cautionwhenchangingdirectionsonslopes.Do
notmowexceedinglysteepslopes.Walk,never
runwiththemachine.
15.Donotdirectthedischargematerialtoward
anyone.Avoiddischargingmaterialagainsta
wallorobstruction;materialmayricochettoward
you.Stoptheblade(s)whencrossingsurfaces
otherthangrass.
16.Watchforholes,ruts,bumps,rocks,orother
hiddenobjects.Uneventerraincouldcauseyou
toloseyourbalanceorfooting.
17.Wetgrassorleavescancauseseriousinjuryif
youslipandcontacttheblade.Donotmowin
wetconditions.Donotmowwhenitisraining.
18.Ifthemachinestrikesanobjectorstartsto
vibrate,immediatelyshutoffthemachine,
removetheelectric-startbutton,removethe
batterypack,andwaitforallmovementtostop
beforeexaminingthemachinefordamage.
Makeallnecessaryrepairsbeforeresuming
operation.
19.Stopthemachineandremovetheelectric-start
buttonbeforeloadingthemachineforhauling.
20.Underabusiveconditions,thebatterypackmay
ejectliquid;avoidcontact.Ifyouaccidently
comeintocontactwiththeliquid,ushwith
water.Iftheliquidcontactsyoureyes,seek
medicalhelp.Liquidejectedfromthebattery
packmaycauseirritationorburns.
IV.MaintenanceandStorage
1.Stopthemachine,removetheelectric-start
button,removethebatterypackfromthe
machine,andwaitforallmovementtostop
beforeadjusting,servicing,cleaning,orstoring
themachine.
2.Donotattempttorepairthemachineexceptas
indicatedintheinstructions.HaveanAuthorized
ServiceDealerperformserviceonthemachine
usingidenticalreplacementparts.
3.Wearglovesandeyeprotectionwhenservicing
themachine.
4.Sharpenadullbladeonbothedgestomaintain
balance.Cleanthebladeandensurethatitis
balanced.
5.Replacethebladeifitisbent,worn,orcracked.
Anunbalancedbladecausesvibration,which
coulddamagethemotororcausepersonal
injury.
6.Whenservicingtheblade,beawarethatthe
bladecanstillmoveeventhoughthepower
sourceisoff.
7.Checkthegrasscollectionbagfrequentlyfor
deteriorationorwear,andreplaceawornbag
withaT oro[replacement]bag.
8.Forbestperformance,useonlygenuineToro
replacementpartsandaccessories.Other
replacementpartsandaccessoriescouldbe
dangerous,andsuchusecouldvoidtheproduct
warranty.
9.Maintainthemachine—Keepcuttingedges
sharpandcleanforthebestandsafest
performance.Keephandlesdry,clean,andfree
fromoilandgrease.Keepguardsinplaceandin
workingorder.Keepbladessharp.Useidentical
replacementbladesonly.
10.Checkthemachinefordamagedparts—Ifthere
aredamagedguardsorotherparts,determine
whetherthemachinewilloperateproperly.
Checkformisalignedandbindingmovingparts,
brokenparts,mounting,andanyothercondition
thatmayaffectitsoperation.Unlessindicated
intheinstructions,haveanAuthorizedService
Dealerrepairorreplaceadamagedguardor
part.
11.Whenthebatterypackisnotinuse,keepit
awayfrommetalobjectssuchaspaperclips,
coins,keys,nails,andscrewsthatcanmakea
connectionfrom1terminaltoanother.Shorting
thebatteryterminalsmaycauseburnsorare.
12.Checkthebladeandmotormountingbolts
frequentlyfortightness.
4

13.Whenyouarenotusingthemachine,storeit
indoorsinadry,secureplaceoutofthereach
ofchildren.
14.Donotexposeabatterypackormachinetore
orexcessivetemperature.Exposuretoreor
temperatureabove130°C(265°F)maycause
explosion.
15.CAUTION—Amistreatedbatterypackmay
presentariskofre,explosion,orchemical
burn.
•Donotdisassemblethebatterypack.
•Replacethebatterypackwithagenuine
Torobatterypackonly;usinganothertypeof
batterypackmaycauseareorriskofinjury.
•Keepbatterypacksoutofthereachof
childrenandintheoriginalpackaginguntil
youarereadytousethem.
SAVETHESE
INSTRUCTIONS
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decal137-9462
137-9462
decal137-9463
137-9463
1.Thebatterypackischarging.
2.Thebatterypackisfullycharged.
3.Thebatterypackisoverorundertheappropriatetemperaturerange.
4.Batterypackchargingfault
5

Model88660
decal137-9455
137-9455
1.ReadtheOperator’s
Manual.
3.Donotexposetorain.
2.Keepawayfromopenre
orames.
decal140-1324
140-1324
1.ReadtheOperator’s
Manual.
3.Toshutoffthemachine,
releasethebar.
2.Tostartthemachine,
squeezethebartothe
handleandpressthe
button.
decal140-1328
140-1328
1.Warning—readthe
Operator’sManual.
4.Thrownobject
hazard—keepbystanders
away;shutofftheengine
andwaitforallmoving
partstostopbefore
leavingthemachine;pick
updebrisbeforemowing.
2.Cutting/dismemberment
hazardofthehand,mower
blade—stayawayfrom
movingparts;keepall
guardsandshieldsin
place.
5.Cutting/dismemberment
hazardofthefoot,mower
blade—donotmowup
ordownslopes;only
mowacrossslopes;look
behindyouwhenmowing
inreverse.
3.Cutting/dismemberment
hazardofthehand,mower
blade—removethekey
andreadtheOperator’s
Manualbeforeperforming
maintenance.
decal94-8072
94-8072
6

decal125-5026
125-5026
1.Recyclingmode2.Baggingmode
decal137-9461
137-9461
1.Batterychargestatus
decal133-8061
133-8061
decal139-8986
139-8986
7

Setup
Important:Thebatterypackisnotfullycharged
whenitispurchased.Beforeusingthemachine
forthersttime,refertoChargingtheBattery
Pack(page17).
1
MountingtheBattery
Charger(Optional)
NoPartsRequired
Procedure
Ifdesired,mountthebatterychargersecurelyona
wallusingthewall-mountkeyholesonthebackof
thecharger.
Mountitindoors(suchasagarageorotherdryplace),
nearapoweroutlet,andoutofthereachofchildren.
RefertoFigure3forassistanceinmountingthe
charger.
Slidethechargerovertheappropriatelypositioned
hardwaretosecurethechargerinplace(hardware
notincluded).
g290534
Figure3
8

2
UnfoldingtheHandle
NoPartsRequired
Procedure
WARNING
Foldingorunfoldingthehandleimproperlycandamagethecables,causinganunsafe
operatingcondition.
•Donotdamagethecable(s)whenfoldingorunfoldingthehandle.
•Ensurethatthecable(s)areroutedtotheoutsideofthehandle.
•Ifacableisdamaged,contactanAuthorizedServiceDealer.
Note:Ensurethatthecablesareroutedontheoutsideofthehandleandarenotpinched(DofFigure4).
g335466
Figure4
9

3
AssemblingtheGrassBag
NoPartsRequired
Procedure
g334351
Figure5
10

ProductOverview
g436946
Figure6
1.Handle7.Cutting-heightlever(4)
2.Self-propeldrivebar8.Bag-on-demandlever
3.Blade-controlbar9.Handlelever(2)
4.Electric-startbutton10.Grassbag
5.Electric-startswitch11.Reardeector
6.Batterycompartment
g355813
Figure7
1.Batterycharger(included
withModel21467)
2.Batterypackmodel88660
(includedwithModel
21467)
Specications
BatteryPack
Model88660
6.0Ah
Batterypackcapacity324Wh
Batterymanufacturerrating=60Vmaximumand54Vnominal.
Actualvoltagevarieswithload.
BatteryCharger
Model88602
Type60VMAXLithium-IonBatteryCharger
Input120VAC~2.0A,60Hz
Output60VDC2.0AMAX
AppropriateTemperatureRanges
Charge/storethebatterypack
at
5°C(41°F)to40°C(104°F)*
Usethebatterypackat-30°C(-22°F)to49°C(120°F)*
Usethemachineat0°C(32°F)to49°C(120°F)*
*Chargingtimewillincreaseifyoudonotchargethe
batterypackwithinthisrange.
Storethemachine,batterypack,andbatterycharger
inanenclosedclean,dryarea.
Attachments/Accessories
AselectionofToroapprovedattachmentsand
accessoriesisavailableforusewiththemachine
toenhanceandexpanditscapabilities.Contact
yourAuthorizedServiceDealerorauthorizedToro
distributororgotowww.T oro.comforalistofall
approvedattachmentsandaccessories.
Toensureoptimumperformanceandcontinuedsafety
certicationofthemachine,useonlygenuineToro
replacementpartsandaccessories.Replacement
partsandaccessoriesmadebyothermanufacturers
couldbedangerous.
11

Operation
BeforeOperation
InstallingtheBatteryPack
Important:Usethebatterypackonlyintemperaturesthatarewithintheappropriaterange;refer
toSpecications(page11).
1.Ensurethattheventsonthebatteryareclearofanydustanddebris.
2.Pressdownonthebattery-compartmentlidtoopenit(AofFigure8).
3.Lineupthecavityinthebatterypackwiththetongueonthemachineandslidethebatterypackintothe
compartmentuntilitlocksintoplace(BofFigure8).
4.Pressdownonthebattery-compartmentliduntilitclicksintoplace(CofFigure8).
Note:Ifthebattery-compartmentliddoesnotclosecompletely,thebatteryisnotfullyinstalled.
g436947
Figure8
12

AdjustingtheCuttingHeight
DANGER
Adjustingtheheight-of-cutcouldbringyourhandsintocontactwithamovingbladeand
resultinseriousinjury.
•Shutoffthemotor,removethebattery,andwaitforallmovingpartstostopbeforeadjusting
thecuttingheight.
•Donotputyourngersunderthehousingwhenadjustingthecuttingheight.
Adjustthecuttingheightasdesired.Setallwheelstothesamecuttingheight(Figure9).
g254131
Figure9
DuringOperation

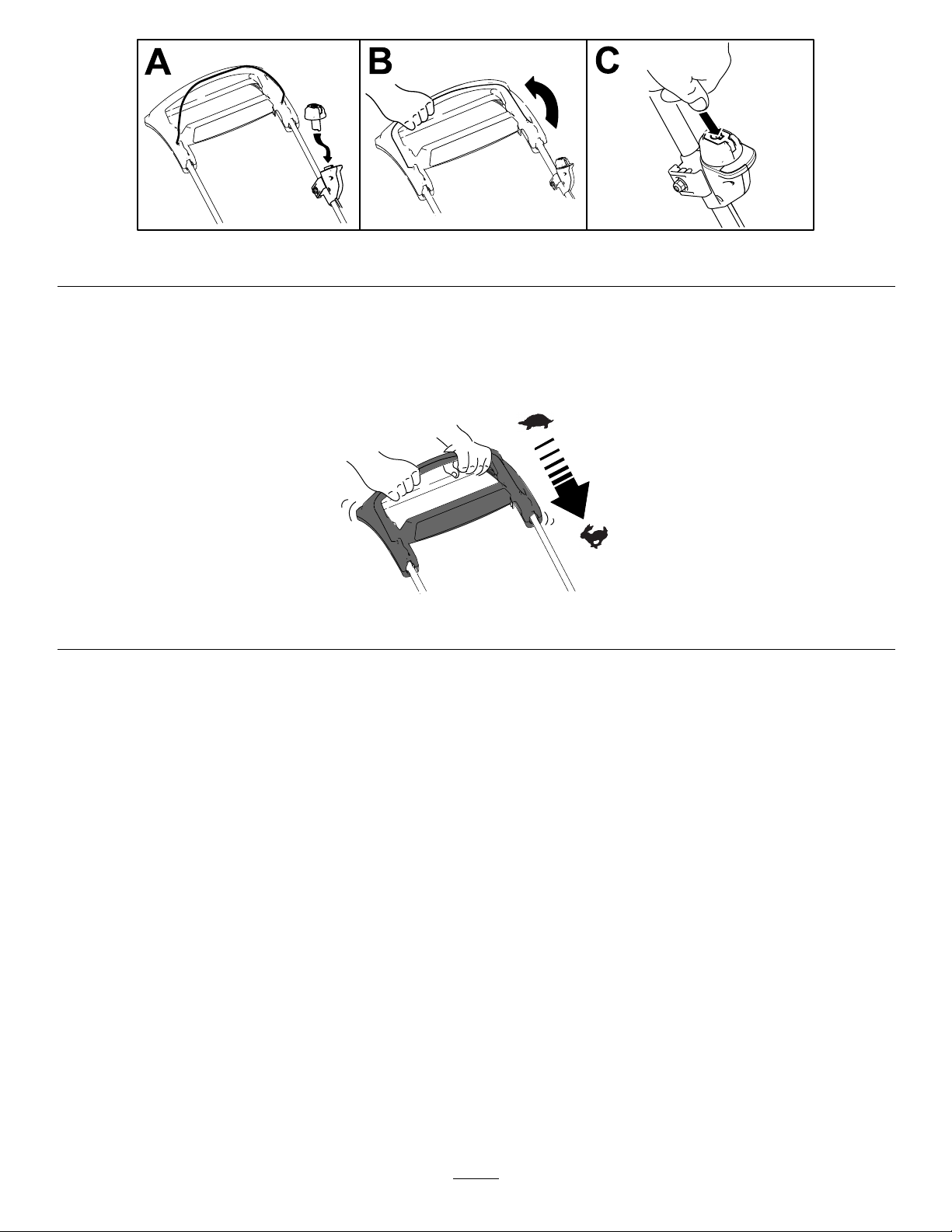

StartingtheMachine
1.Ensurethatthebatterypackisinstalledinthemachine;refertoInstallingtheBatteryPack(page12).
Note:Ifthebattery-compartmentliddoesnotclosecompletely,thebatteryisnotfullyinstalled.
2.Inserttheelectric-startbuttonintotheelectric-startswitch(AofFigure10).
3.Squeezetheblade-controlbarandholdittothehandle(BofFigure10).
4.Presstheelectric-startbuttonandkeepitpresseduntilthemotorstarts(CofFigure10).
13

g370586
Figure10
UsingtheSelf-PropelDrive
Simplywalkwithyourhandsontheupperhandleandyourelbowsatyoursides,andthemachinewill
automaticallykeeppacewithyou(Figure11).
g334136
Figure11
Note:Ifthemachinedoesnotfreelyrollbackwardafterself-propelling,stopwalking,holdyourhandsinplace,
andallowthemachinetorollacoupleofcentimeters(inches)forwardtodisengagethewheeldrive.Youcan
alsotryreachingjustundertheupperhandletothemetalhandleandpushingthemachineforwardacoupleof
centimeters(inches).Ifthemachinestilldoesnotrollbackwardeasily,contactanAuthorizedServiceDealer.
RecyclingtheClippings
Yourmachinecomesfromthefactoryreadytorecyclethegrassandleafclippingsbackintothelawn.
Ifthegrassbagisonthemachineandthebag-on-demandleverisinthebaggingposition,movethelevertothe
recyclingposition;refertoOperatingtheBag-on-DemandLever(page15).
14

BaggingtheClippings
Usethegrassbagwhenyouwanttocollectgrassandleafclippingsfromthelawn.
Ifthebag-on-demandleverisintherecyclingposition,moveittothebaggingposition;refertoOperatingthe
Bag-on-DemandLever(page15).
InstallingtheGrassBag
1.Raiseandholdupthereardeector(AofFigure12).
2.Installthegrassbag,ensuringthatthepinsonthebagrestinthenotchesonthehandle(BofFigure12).
3.Lowerthereardeector.
g334207
Figure12
RemovingtheGrassBag
Toremovethebag,reversethestepsinInstallingtheGrassBag(page15).
Operatingthe
Bag-on-DemandLever
Thebag-on-demandfeatureallowsyoutoeither
collectorrecyclegrassandleafclippingswhilethe
grassbagisattachedtothemachine.
•Tobagthegrassandleafclippings,pressthe
buttononthebag-on-demandleverandmovethe
leverforwarduntilthebuttonontheleverpopsup
(Figure13).
g251583
Figure13
1.Bag-on-demandlever(in
therecyclingposition)
2.Bag-on-demandlever(in
thebaggingposition)
•Torecyclethegrassandleafclippings,press
thebuttonontheleverandmovethelever
rearwarduntilthebuttonontheleverpopsup.
Important:Forproperoperation,remove
anygrassclippingsanddebrisfromthe
bag-on-demanddoorandthesurrounding
opening(Figure14)beforeyoumovethe
bag-on-demandleverfrom1positionto
another.
g251584
Figure14
1.Cleanhere
15

ShuttingOfftheMachine
1.Releasetheblade-controlbar(AofFigure15).
2.Removetheelectric-startbuttonfromthe
electric-starterswitch(BofFigure15).
3.Removethebatterypack;refertoRemovingthe
BatteryPackfromtheMachine(page16).
Note:Wheneveryouarenotusingthemachine,
removethebatterypack.
g335480
Figure15
RemovingtheBatteryPack
fromtheMachine
1.Liftupthebattery-compartmentlid.
2.Pressthebattery-packlatchtoreleasethe
batterypackandremovethebatterypack.
3.Closethebattery-compartmentlid.
OperatingTips
GeneralMowingTips
•Avoidstrikingsolidobjectswiththeblade.Never
deliberatelymowoveranyobject.
•Forbestperformance,installanewT oroblade
beforethecuttingseasonbeginsorwhen
necessary.
CuttingGrass
•Cutonlyaboutathirdofthegrassbladeatatime.
Forimprovedruntime,cutgrassatahigherheight
ofcut.
•Donotcutbelow51mm(2inches)unlessthe
grassissparseoritislatefallwhengrassgrowth
beginstoslowdown.
•Whencuttinggrassover15cm(6inches)tall,
mowatthehighestcuttingheightsettingandwalk
slower;thenmowagainatalowersettingforthe
bestlawnappearance.Ifthegrassistoolong,the
machinemayplugandcausethemotortostall.
•Wetgrassandleavestendtoclumpontheyard
andcancausethemachinetoplugorthemotorto
stall.Avoidmowinginwetconditions.
•Beawareofapotentialrehazardinverydry
conditions,followalllocalrewarnings,andkeep
themachinefreeofdrygrassandleafdebris.
•Alternatethemowingdirection.Thishelps
dispersetheclippingsoverthelawnforeven
fertilization.
•Ifthenishedlawnappearanceisunsatisfactory,
try1ormoreofthefollowing:
–Replacethebladeorhaveitsharpened.
–Walkataslowerpacewhilemowing.
–Raisethecuttingheightonyourmachine.
–Cutthegrassmorefrequently.
–Overlapcuttingswathsinsteadofcuttingafull
swathwitheachpass.
CuttingLeaves
•Aftercuttingthelawn,ensurethathalfofthelawn
showsthroughthecutleafcover.Youmayneed
tomakemorethanasinglepassovertheleaves.
•Iftherearemorethan13cm(5inches)ofleaves
onthelawn,mowatahighercuttingheightand
thenagainatthedesiredcuttingheight.
•Slowdownyourmowingspeedifthemachine
doesnotcuttheleavesnelyenough.
16

AfterOperation
ChargingtheBatteryPack
Important:Thebatterypackisnotfullycharged
whenyoupurchaseit.Beforeusingthetoolfor
thersttime,placethebatterypackinthecharger
andchargeituntiltheLEDdisplayindicatesthe
batterypackisfullycharged.Readallsafety
precautions.
Important:Chargethebatterypackonlyin
temperaturesthatarewithintheappropriate
range;refertoSpecications(page11).
Note:Atanytime,pressthebattery-charge-indicator
buttononthebatterypacktodisplaythecurrent
charge(LEDindicators).
1.Ensurethattheventsonthebatteryandcharger
areclearofanydustanddebris.
g290533
Figure16
1.Batterypackcavity5.LEDindicators(current
charge)
2.Batterypackventingareas6.Handle
3.Batterypackterminals7.ChargerLEDindicator
light
4.Battery-charge-indicator
button
8.Chargerventingareas
2.Lineupthecavityinthebatterypack(Figure16)
withthetongueonthecharger.
3.Slidethebatterypackintothechargeruntilitis
fullyseated(Figure16).
4.Toremovethebatterypack,slidethebattery
backwardoutofthecharger.
5.RefertothefollowingtabletointerprettheLED
indicatorlightonthebatterycharger.
Indicator
light
Indicates
OffNobatterypackinserted
Green
blinking
Batterypackischarging
GreenBatterypackischarged
RedBatterypackand/orbatterychargerisoverorunder
theappropriatetemperaturerange
Red
blinking
Batterypackchargingfault*
*RefertoTroubleshooting(page23)formore
information.
Important:Thebatterycanbeleftonthecharger
forshortperiodsbetweenuses.
Ifthebatterywillnotbeusedforlongerperiods,
removethebatteryfromthecharger;referto
Storage(page22).
17

CleaningUnderthe
Machine
ServiceInterval:Aftereachuse
Forbestresults,cleanthemachinesoonafteryou
havecompletedmowing.
1.Movethemachineontoaatpavedsurface.
2.Removetheelectric-startbuttonandwaitfor
allmovingpartstostopbeforeleavingthe
operatingposition.
3.Removethebatterypack;refertoRemovingthe
BatteryPackfromtheMachine(page16).
4.Washouttheareaunderthereardoorwherethe
clippingsgofromtheundersideofthemachine
tothegrassbag.
Note:Washouttheareawiththe
bag-on-demand(ifequipped)inboththefully
forwardandfullyrearwardpositions.
5.Startthemotorandrunitforafewminutesto
drytheundersideofthemachinetopreventit
fromrusting.
6.Shutoffthemotor,removetheelectric-start
button,andstorethemachine;refertoStorage
(page22).
CleaningUndertheMachineinthe
Vertical-StowPosition
1.Setthemachineinthevertical-stowposition;
refertoStoringtheMachineintheVertical-Stow
Position(page19).
2.Washouttheclippingsfromunderthemachine.
FoldingtheHandle
WARNING
Foldingorunfoldingthehandleimproperlycandamagethecables,causinganunsafe
operatingcondition.
•Donotdamagethecable(s)whenfoldingorunfoldingthehandle.
•Ensurethatthecable(s)areroutedtotheoutsideofthehandle.
•Ifacableisdamaged,contactanAuthorizedServiceDealer.
1.Holdthehandlewhiledisengagingthehandlelockstoavoidpinchingyourhands.
2.Disengagethehandlelocksuntilyoucanmovetheupperhandlefreely(AofFigure17)
3.Foldthehandleforwardtothefullyforwardposition(BofFigure17).
Important:Routethecablestotheoutsideofthehandlelocksasyoufoldthehandle.
g334367
Figure17
4.Tounfoldthehandle,referto2UnfoldingtheHandle(page9).
18

StoringtheMachineinthe
Vertical-StowPosition
Youcanstoreyourmachineintheverticalpositionto
minimizestoragespace.
DANGER
Thevertical-stowpositionexposesthebottom
ofthemachine.
•Removethebatterypackandthe
electric-startbuttonbeforemovingthe
machineintothevertical-stowposition.
•Donottransportthemachineinthe
vertical-stowposition.
•Donotattempttostartthemachineinthe
vertical-stowposition.
1.Removetheelectric-startbuttonandbattery
fromthemachine.
2.Ensurethatthecutting-heightsettingonthe
machineis92mm(3-5/8inches)orlower;ifitis
not,lowerit;refertoAdjustingtheCuttingHeight
(page13).
3.Disengagethehandlelocks(Figure18).
g335482
Figure18
4.Foldthehandlefullyforward;refertoFolding
theHandle(page18).
Important:Routethecablestotheoutside
ofthehandleknobsasyoufoldthehandle.
5.Engagethehandlelocks.
6.Liftthefrontofthemachinebythehandleand
moveitintoastoragespace(Figure19).
g251586
Figure19
19

Maintenance
Removetheelectric-startbuttonandbatterypack
fromthemachinebeforemaintainingorcleaningthe
machine.
Useonlythemanufacturer’srecommended
replacementpartsandaccessories.
Inspectandmaintainthemachineregularly.Have
themachinerepairedonlybyanAuthorizedService
Dealer.
LubricatingtheMachine
Youdonotneedtolubricatethemachine;allthe
bearingshavebeenlubricatedatthefactoryforthe
lifeofthemachine.
ReplacingtheBlade
ServiceInterval:Yearly
Important:Youwillneedatorquewrenchto
installthebladeproperly.Ifyoudonothavea
torquewrenchorareuncomfortableperforming
thisprocedure,contactanAuthorizedService
Dealer.
Ifthebladeisdamagedorcracked,replaceit
immediately.Ifthebladeedgeisdullornicked,have
itsharpenedandbalanced,orreplaceit.
WARNING
Whenservicingtheblade,thebladecanstill
moveeventhoughthepowersourceisoff.
Thebladeissharp;contactingthebladecan
resultinseriouspersonalinjury.
•Keepyourhandsandfeetawayfroma
movingblade.
•Weargloveswhenservicingtheblade.
1.Removetheelectric-startbuttonandbattery
packfromthemachine.
2.Useablockofwoodtoholdthebladesteady
(Figure20).
3.Removetheblade,savingallmountinghardware
(Figure20).
g231389
Figure20
4.Installthenewbladeandallmountinghardware
(Figure21).
g231390
Figure21
Important:Positionthecurvedendsofthe
bladefacinguptowardthemachinehousing.
5.Useatorquewrenchtotightenthebladebolt
to68N∙m(50ft-lb).
20
